0-15B — CRANKSHAFT,PISTON AND FLYWHEEL (#20067) — 155 parça

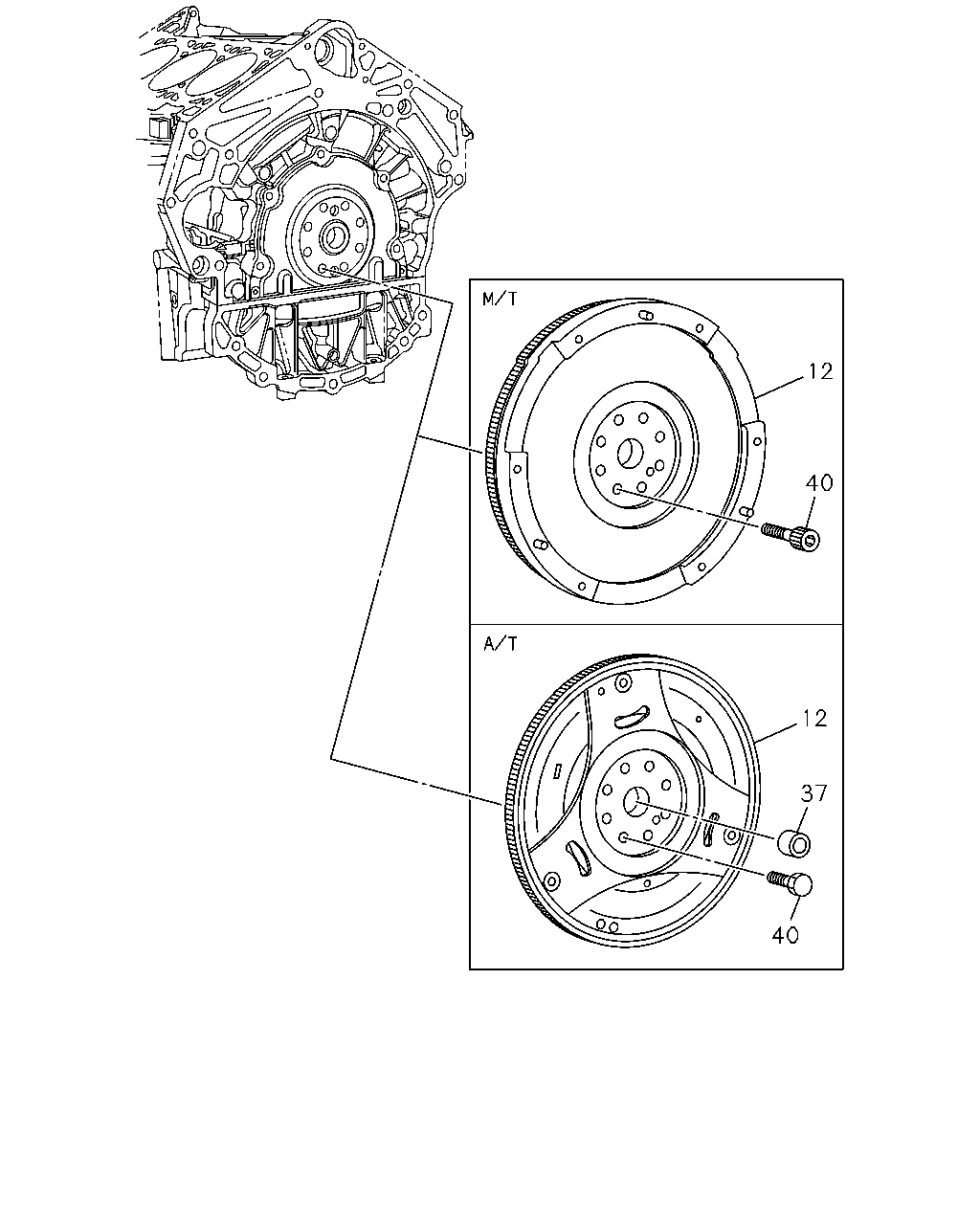

çizim 13042
12 40 12 37 40
BalonParca AdiParca NoAdetTipApplied Date A B
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5G(RSP) 		8-97131-860-0 01 1 0307-0609 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12572-046-0 01 1 0610- ●
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-12572-046-0 01 1 0509-0609 ●
12 00.666 FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-12575-412-0 01 1 0509-0709 ●
12 00.666 FLYWHEEL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-412-0 01 1 0710- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-90105-743-0 01 1 0509-0609 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-90105-743-0 01 1 0610- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T MUA 5 SPEED 5G(RSP) 00.649 		8-97031-741-0 01 1 0307-0609 ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD) M10X17 		8-97015-187-0 08 1 0307-0609 ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5G(RSP) M10X31 		8-94379-616-0 08 1 0307-0609 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-11518-862-0 08 1 0509-0609 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11518-862-0 08 1 0610- ●
40 00.669 BOLT; FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-11588-884-0 08 1 0509-0709 ●
40 00.669 BOLT; FLYWHEEL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11588-884-0 08 1 0710- ●

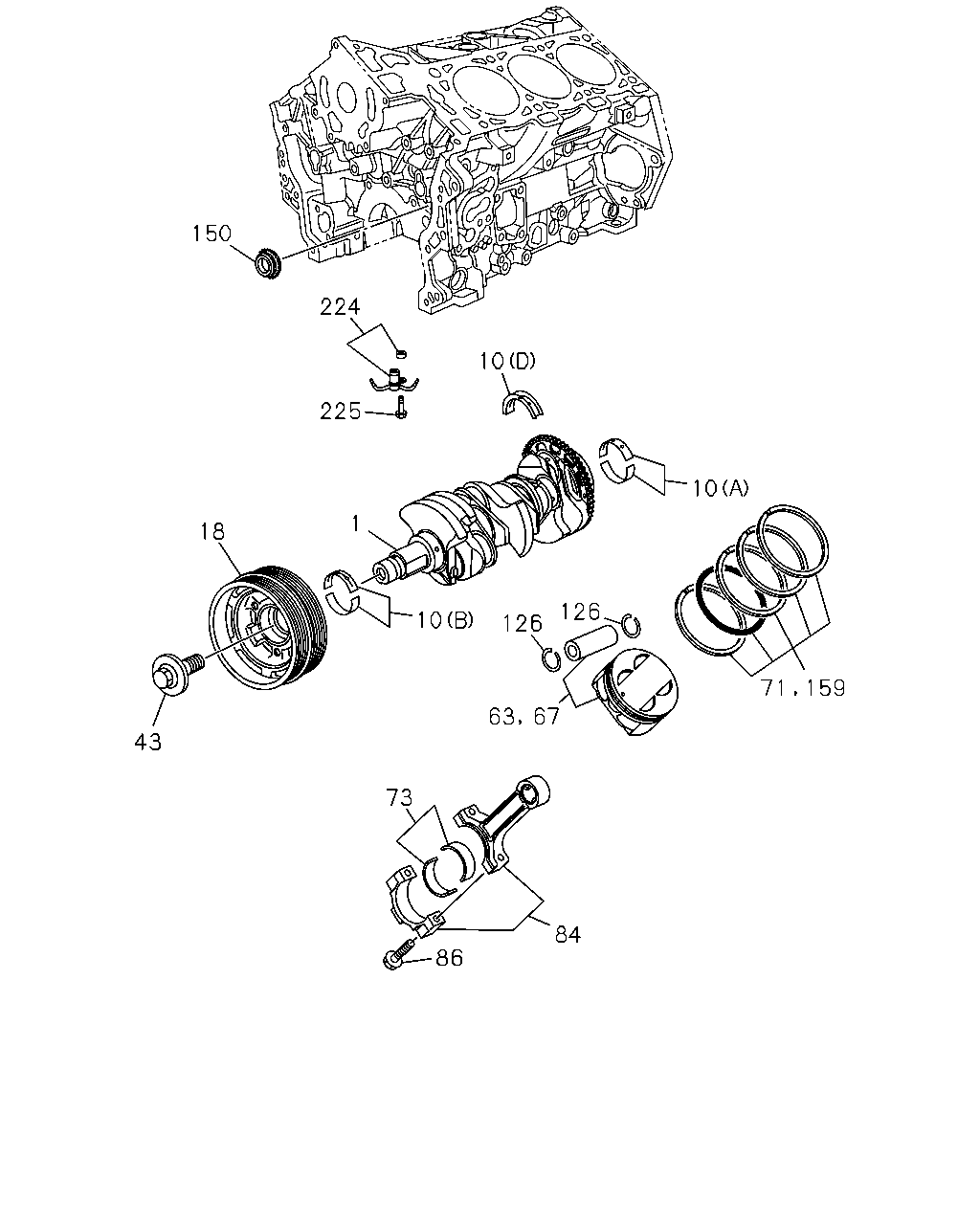

çizim 56276
150 224 10 225 10 1 18 126 10 126 159 63 67 43 73 84 86 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT 8-97358-476-0 01 1 0307-0609 ●
1 00.646 CRANKSHAFT 8-12571-127-0 01 1 0509-0609 ●
1 00.646 CRANKSHAFT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12571-127-0 01 1 0610- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.1,NO.4 BROWN 		8-97179-296-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.1,NO.4 GREEN 		8-97179-297-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.1,NO.4 YELLOW 		8-97179-298-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.1,NO.4 BLUE 		8-97179-299-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.2,NO.3 BROWN 		8-97179-300-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.2,NO.3 GREEN 		8-97179-301-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.2,NO.3 YELLOW 		8-97179-302-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.2,NO.3 BLUE 		8-97179-303-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) 		8-12594-223-0 04 1 0509-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-12594-225-0 03 1 0509-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) 		8-12594-226-0 01 1 0509-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) 		8-12594-223-0 04 1 0610- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12594-225-0 03 1 0610- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12594-226-0 01 1 0610- ●
18 00.659 PULLEY; CR/SHF
6-GROOVE 		8-97321-296-0 01 1 0307-0308 ●
18 00.659 PULLEY; CR/SHF
6-GROOVE 		8-97328-604-0 01 1 0309-0609 ●
18 00.659 PULLEY; CR/SHF 8-12597-654-0 01 1 0509-0609 ●
18 00.659 PULLEY; CR/SHF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12597-654-0 01 1 0610- ●
43 00.662 BOLT; CR/SHF PULLEY
M16X30 		8-94108-479-0 01 1 0307-0609 ●
43 00.662 BOLT; CR/SHF PULLEY 8-11569-873-0 01 1 0509-0609 ●
43 00.662 BOLT; CR/SHF PULLEY
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11569-873-0 01 1 0610- ●
63 00.629 PISTON
GRADE=A 		8-97289-496-1 06 1 0307-0307 ●
63 00.629 PISTON
GRADE=A 		8-97358-040-0 06 1 0308-0609 ●
63 00.629 PISTON
GRADE=B 		8-97289-497-1 06 1 0307-0307 ●
63 00.629 PISTON
GRADE=B 		8-97358-041-0 06 1 0308-0609 ●
63 00.629 PISTON
GRADE=C 		8-97289-498-1 06 1 0307-0307 ●
63 00.629 PISTON
GRADE=C 		8-97358-042-0 06 1 0308-0609 ●
63 00.629 PISTON 8-12598-170-0 06 1 0509-0609 ●
63 00.629 PISTON
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-324-0 06 1 0702-0702 ●
63 00.629 PISTON
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-324-0 06 1 0702- ●
63 00.629 PISTON
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12598-170-0 06 1 0610-0701 ●
63 00.629 PISTON
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12598-170-0 06 1 0702-0702 ●
67 00.629 PISTON; O/S=0.25 8-12600-388-0 06 1 0509-0609 ●
67 00.629 PISTON; O/S=0.25
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12600-388-0 06 1 0610-0701 ●
67 00.629 PISTON; O/S=0.25
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-325-0 06 1 0702-0702 ●
67 00.629 PISTON; O/S=0.25
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-325-0 06 1 0702- ●
71 00.643 RING SET; PISTON,O/S=0.25 8-92068-453-0 06 1 0509-0609 ●
71 00.643 RING SET; PISTON,O/S=0.25
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-453-0 06 1 0610- ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97179-293-0 06 1 0307-0609 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97179-294-0 06 1 0307-0609 ●
73 00.616 METAL SET; CONN ROD,STANDARD
PINK 		8-97179-295-0 06 1 0307-0609 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-12589-621-0 12 1 0509-0609 ●
73 00.616 METAL SET; CONN ROD,STANDARD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12589-621-0 12 1 0610- ●
84 00.603 ROD ASM; CONN 8-97351-159-0 06 1 0307-0609 ●
84 00.603 ROD ASM; CONN 8-12566-523-0 06 1 0509-0609 ●
84 00.603 ROD ASM; CONN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-523-0 06 1 0610-0701 ●
84 00.603 ROD ASM; CONN
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-523-0 06 1 0702-0702 ●
84 00.603 ROD ASM; CONN
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-773-0 06 1 0702-0702 ●
84 00.603 ROD ASM; CONN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-773-0 06 1 0702- ●
86 00.623 BOLT; CONNROD
3/8-24UNF X 55.5 		8-97010-606-0 12 1 0307-0609 ●
86 00.623 BOLT; CONNROD 8-11519-680-0 12 1 0509-0609 ●
86 00.623 BOLT; CONNROD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-680-0 12 1 0610- ●
126 00.639 RING; SNAP,PISTON PIN 8-12566-186-0 12 1 0509-0609 ●
126 00.639 RING; SNAP,PISTON PIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-186-0 12 1 0610- ●
150 00.659 SPROCKET; CR/SHF 8-12590-921-0 01 1 0509-0609 ●
150 00.659 SPROCKET; CR/SHF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12590-921-0 01 1 0610-0701 ●
150 00.659 SPROCKET; CR/SHF
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12590-921-0 01 1 0702-0702 ●
150 00.659 SPROCKET; CR/SHF
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12599-721-0 01 1 0702-0702 ●
150 00.659 SPROCKET; CR/SHF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12599-721-0 01 1 0702- ●
159 00.639 RING KIT; PISTON,STANDARD 8-92068-452-0 06 1 0509-0609 ●
159 00.639 RING KIT; PISTON,STANDARD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-452-0 06 1 0610- ●
224 00.648 NOZZLE; PSTN OIL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12590-118-0 03 1 0610- ●
225 00.648 BOLT; NOZZLE
04.197 M6X20 FLANGE 		8-11588-712-0 03 1 0509-0609 ●
225 00.648 BOLT; NOZZLE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 04.197 M6X20 FLANGE 		8-11588-712-0 03 1 0610- ●

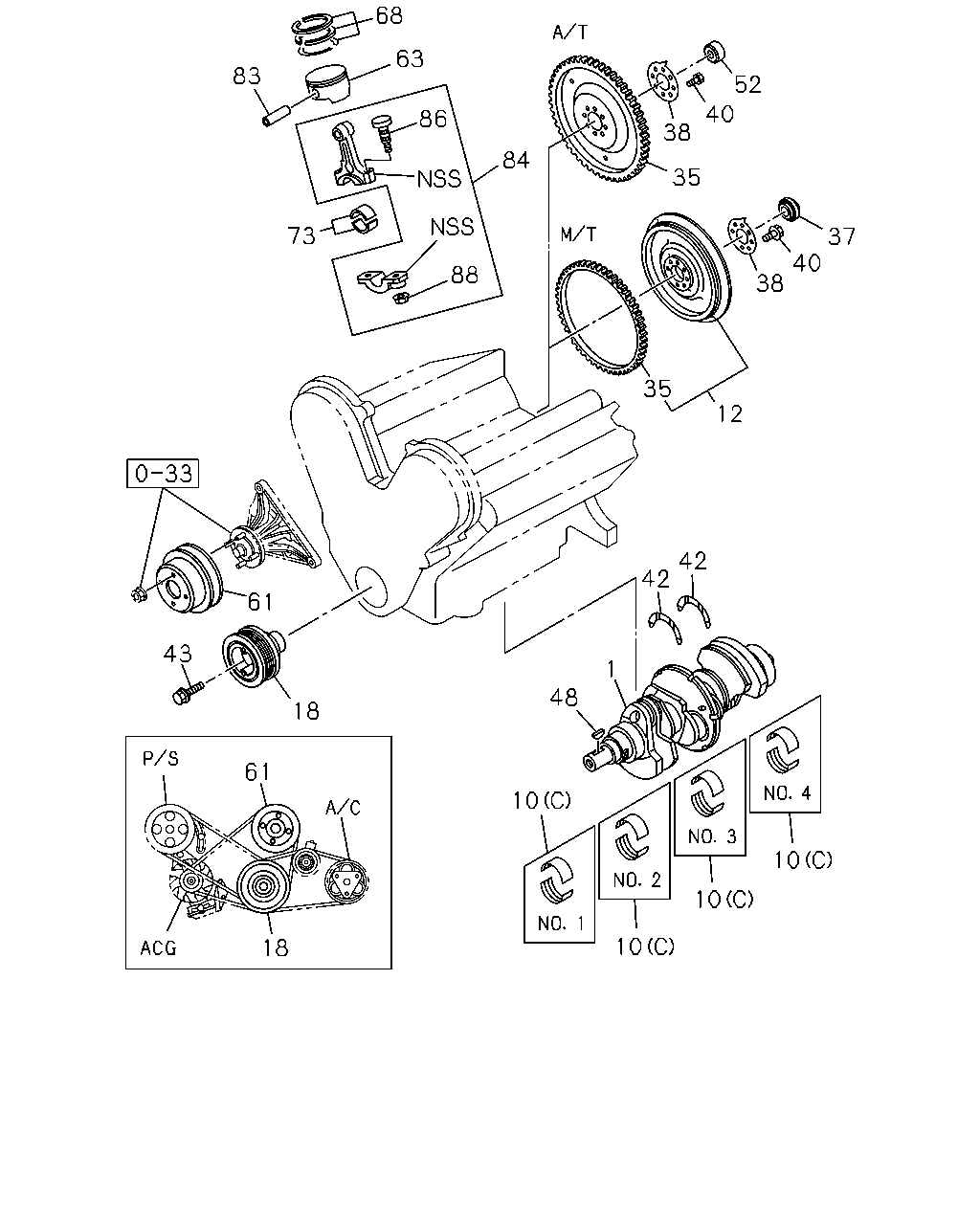

çizim 56940
68 63 83 52 40 86 38 84 35 73 37 40 38 88 35 12 42 42 61 43 1 48 18 61 10 10 10 10 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT 8-97358-476-0 01 1 0307-0609 ●
1 00.646 CRANKSHAFT 8-12571-127-0 01 1 0509-0609 ●
1 00.646 CRANKSHAFT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12571-127-0 01 1 0610- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.1,NO.4 BROWN 		8-97179-296-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.1,NO.4 GREEN 		8-97179-297-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.1,NO.4 YELLOW 		8-97179-298-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.1,NO.4 BLUE 		8-97179-299-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.2,NO.3 BROWN 		8-97179-300-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.2,NO.3 GREEN 		8-97179-301-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.2,NO.3 YELLOW 		8-97179-302-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(C) NO.2,NO.3 BLUE 		8-97179-303-0 02 1 0307-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(D) 		8-12594-223-0 04 1 0509-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-12594-225-0 03 1 0509-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) 		8-12594-226-0 01 1 0509-0609 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) 		8-12594-223-0 04 1 0610- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12594-225-0 03 1 0610- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12594-226-0 01 1 0610- ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5G(RSP) 		8-97131-860-0 01 1 0307-0609 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12572-046-0 01 1 0610- ●
12 00.666 FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-12572-046-0 01 1 0509-0609 ●
12 00.666 FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-12575-412-0 01 1 0509-0709 ●
12 00.666 FLYWHEEL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-412-0 01 1 0710- ●
18 00.659 PULLEY; CR/SHF
6-GROOVE 		8-97321-296-0 01 1 0307-0308 ●
18 00.659 PULLEY; CR/SHF
6-GROOVE 		8-97328-604-0 01 1 0309-0609 ●
18 00.659 PULLEY; CR/SHF 8-12597-654-0 01 1 0509-0609 ●
18 00.659 PULLEY; CR/SHF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12597-654-0 01 1 0610- ●
35 00.673 GEAR; RING
A/T AISIN(RMD) Z=121 		8-97174-420-0 01 1 0307-0609 ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5G(RSP) ID=281 		8-94374-959-0 01 1 0307-0609 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-90105-743-0 01 1 0509-0609 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-90105-743-0 01 1 0610- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T MUA 5 SPEED 5G(RSP) 00.649 		8-97031-741-0 01 1 0307-0609 ●
38 00.862 WASHER; FLYWHEEL
00.669 T=0.8 		8-94235-325-1 01 1 0307-0609 ●
40 00.669 BOLT; FLYWHEEL
A/T AISIN(RMD) M10X17 		8-97015-187-0 08 1 0307-0609 ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5G(RSP) M10X31 		8-94379-616-0 08 1 0307-0609 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) 		8-11518-862-0 08 1 0509-0609 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11518-862-0 08 1 0610- ●
40 00.669 BOLT; FLYWHEEL
M/T AISIN 5 SPEED(MA5) 		8-11588-884-0 08 1 0509-0709 ●
40 00.669 BOLT; FLYWHEEL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11588-884-0 08 1 0710- ●
42 00.095 WASHER; THRUST,CR/SHF 8-97014-208-0 02 1 0307-0609 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X30 		8-94108-479-0 01 1 0307-0609 ●
43 00.662 BOLT; CR/SHF PULLEY 8-11569-873-0 01 1 0509-0609 ●
43 00.662 BOLT; CR/SHF PULLEY
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11569-873-0 01 1 0610- ●
48 00.662 KEY; WOODRUFF,CR/SHF 5-09737-003-0 01 1 0307-0609 ●
52 00.669 SLEEVE; CONV PILOT
A/T AISIN(RMD) 		8-94384-695-0 01 1 0307-0609 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-97352-277-0 01 1 0307-0609 ●
63 00.629 PISTON
GRADE=A 		8-97289-496-1 06 1 0307-0307 ●
63 00.629 PISTON
GRADE=A 		8-97358-040-0 06 1 0308-0609 ●
63 00.629 PISTON
GRADE=B 		8-97289-497-1 06 1 0307-0307 ●
63 00.629 PISTON
GRADE=B 		8-97358-041-0 06 1 0308-0609 ●
63 00.629 PISTON
GRADE=C 		8-97289-498-1 06 1 0307-0307 ●
63 00.629 PISTON
GRADE=C 		8-97358-042-0 06 1 0308-0609 ●
63 00.629 PISTON 8-12598-170-0 06 1 0509-0609 ●
63 00.629 PISTON
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-324-0 06 1 0702-0702 ●
63 00.629 PISTON
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-324-0 06 1 0702- ●
63 00.629 PISTON
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12598-170-0 06 1 0610-0701 ●
63 00.629 PISTON
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12598-170-0 06 1 0702-0702 ●
68 00.643 RING SET; PISTON,STANDARD 8-97170-113-0 06 1 0307-0307 ●
68 00.643 RING SET; PISTON,STANDARD 8-97371-553-0 06 1 0308-0609 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97179-293-0 06 1 0307-0609 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97179-294-0 06 1 0307-0609 ●
73 00.616 METAL SET; CONN ROD,STANDARD
PINK 		8-97179-295-0 06 1 0307-0609 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-12589-621-0 12 1 0509-0609 ●
73 00.616 METAL SET; CONN ROD,STANDARD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12589-621-0 12 1 0610- ●
83 00.636 PIN; PISTON 8-97149-195-1 06 1 0307-0609 ●
84 00.603 ROD ASM; CONN 8-97351-159-0 06 1 0307-0609 ●
84 00.603 ROD ASM; CONN 8-12566-523-0 06 1 0509-0609 ●
84 00.603 ROD ASM; CONN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-523-0 06 1 0610-0701 ●
84 00.603 ROD ASM; CONN
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-523-0 06 1 0702-0702 ●
84 00.603 ROD ASM; CONN
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-773-0 06 1 0702-0702 ●
84 00.603 ROD ASM; CONN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-773-0 06 1 0702- ●
86 00.623 BOLT; CONNROD
3/8-24UNF X 55.5 		8-97010-606-0 12 1 0307-0609 ●
86 00.623 BOLT; CONNROD 8-11519-680-0 12 1 0509-0609 ●
86 00.623 BOLT; CONNROD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-680-0 12 1 0610- ●
88 00.623 NUT; CONNROD
00.626 3/8-24 UNF 		8-94377-785-0 12 1 0307-0609 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
