◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14B - CAMSHAFT AND VALVE ▶
0-14B — CAMSHAFT AND VALVE (#20065) — 229 parça

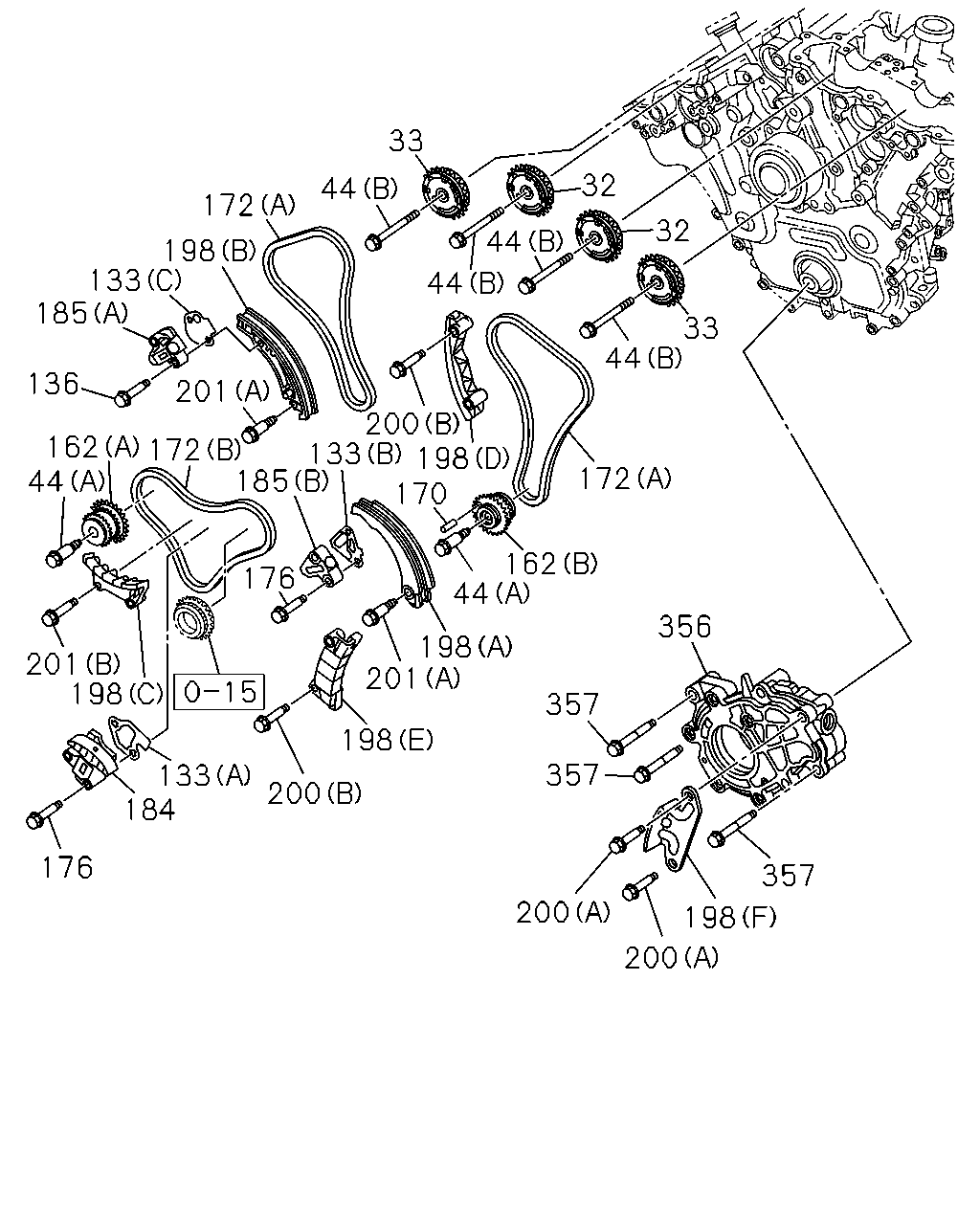

çizim 13043
33 32 44 172 32 44 198 133 185 44 33 44 136 201 200 172 133 198 185 170 162 44 172 162 44 176 356 198 201 201 198 357 198 357 133 184 200 176 357 200 198 200
BalonParca AdiParca NoAdetTipApplied Date A B
32 00.736 SPROCKET; CM/SHF INL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-228-0 02 1 0702-0702 ●
32 00.736 SPROCKET; CM/SHF INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92068-228-0 02 1 0702- ●
32 00.736 SPROCKET; CM/SHF INL 8-92067-306-0 02 1 0509-0609 ●
32 00.736 SPROCKET; CM/SHF INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-306-0 02 1 0610-0701 ●
32 00.736 SPROCKET; CM/SHF INL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-306-0 02 1 0702-0702 ●
33 00.736 SPROCKET; CM/SHF EXH
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12599-724-0 02 1 0702-0702 ●
33 00.736 SPROCKET; CM/SHF EXH
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12599-724-0 02 1 0702- ●
33 00.736 SPROCKET; CM/SHF EXH 8-12566-656-0 02 1 0509-0609 ●
33 00.736 SPROCKET; CM/SHF EXH
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-656-0 02 1 0610-0701 ●
33 00.736 SPROCKET; CM/SHF EXH
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-656-0 02 1 0702-0702 ●
44 00.738 BOLT
(A) 		8-11588-252-0 02 1 0509-0609 ●
44 00.738 BOLT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-11588-252-0 02 1 0610- ●
44 00.738 BOLT
(B) 		8-11588-279-0 04 1 0509-0609 ●
44 00.738 BOLT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-11588-279-0 04 1 0610- ●
133 00.356 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-12589-477-0 01 1 0509-0609 ●
133 00.356 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12589-477-0 01 1 0610- ●
133 00.356 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-12589-478-0 01 1 0509-0609 ●
133 00.356 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12589-478-0 01 1 0610- ●
133 00.356 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-12589-479-0 01 1 0509-0609 ●
133 00.356 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-12589-479-0 01 1 0610- ●
136 00.724 BOLT; TENSIONER 8-11588-255-0 02 1 0509-0609 ●
136 00.724 BOLT; TENSIONER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11588-255-0 02 1 0610- ●
162 00.736 SPROCKET; IDLE
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12600-459-0 01 1 0702-0702 ●
162 00.736 SPROCKET; IDLE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12600-459-0 01 1 0702- ●
162 00.736 SPROCKET; IDLE
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12600-460-0 01 1 0702-0702 ●
162 00.736 SPROCKET; IDLE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12600-460-0 01 1 0702- ●
162 00.736 SPROCKET; IDLE
(B) 		8-12597-413-0 01 1 0509-0609 ●
162 00.736 SPROCKET; IDLE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12597-413-0 01 1 0610-0701 ●
162 00.736 SPROCKET; IDLE
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12597-413-0 01 1 0702-0702 ●
162 00.736 SPROCKET; IDLE
(A) 		8-12597-414-0 01 1 0509-0609 ●
162 00.736 SPROCKET; IDLE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12597-414-0 01 1 0610-0701 ●
162 00.736 SPROCKET; IDLE
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12597-414-0 01 1 0702-0702 ●
170 00.724 PIN; SPROCKET 8-12585-420-0 02 1 0509-0609 ●
170 00.724 PIN; SPROCKET
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12585-420-0 02 1 0610- ●
172 00.724 CHAIN; TIMING,CM/SHF
(A) 		8-12589-011-0 02 1 0509-0609 ●
172 00.724 CHAIN; TIMING,CM/SHF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12589-011-0 02 1 0610-0701 ●
172 00.724 CHAIN; TIMING,CM/SHF
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12589-011-0 02 1 0702-0702 ●
172 00.724 CHAIN; TIMING,CM/SHF
(B) 		8-12590-920-0 01 1 0509-0609 ●
172 00.724 CHAIN; TIMING,CM/SHF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12590-920-0 01 1 0610-0701 ●
172 00.724 CHAIN; TIMING,CM/SHF
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12590-920-0 01 1 0702-0702 ●
172 00.724 CHAIN; TIMING,CM/SHF
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12599-716-0 02 1 0702-0702 ●
172 00.724 CHAIN; TIMING,CM/SHF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12599-716-0 02 1 0702- ●
172 00.724 CHAIN; TIMING,CM/SHF
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12599-718-0 01 1 0702-0702 ●
172 00.724 CHAIN; TIMING,CM/SHF
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12599-718-0 01 1 0702- ●
176 00.724 BOLT; TENSIONER,SECONDARY 8-11588-255-0 04 1 0509-0609 ●
176 00.724 BOLT; TENSIONER,SECONDARY
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11588-255-0 04 1 0610- ●
184 00.724 TENSIONER; CHAIN,PRIMARY 8-12609-262-0 01 1 0509-0609 ●
184 00.724 TENSIONER; CHAIN,PRIMARY
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12609-262-0 01 1 0610- ●
185 00.724 TENSIONER; CHAIN
(B) 		8-12609-260-0 01 1 0509-0609 ●
185 00.724 TENSIONER; CHAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12609-260-0 01 1 0610- ●
185 00.724 TENSIONER; CHAIN
(A) 		8-12609-258-0 01 1 0509-0609 ●
185 00.724 TENSIONER; CHAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12609-258-0 01 1 0610- ●
198 00.724 GUIDE; TIMING CHAIN
(A) 		8-12586-960-0 01 1 0509-0609 ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12586-960-0 01 1 0610- ●
198 00.724 GUIDE; TIMING CHAIN
(B) 		8-12586-961-0 01 1 0509-0609 ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-12586-961-0 01 1 0610- ●
198 00.724 GUIDE; TIMING CHAIN
(D) 		8-12597-418-0 01 1 0509-0609 ●
198 00.724 GUIDE; TIMING CHAIN
(C) 		8-12597-417-0 01 1 0509-0609 ●
198 00.724 GUIDE; TIMING CHAIN
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-12597-417-0 01 1 0610-0709 ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-12597-417-0 01 1 0610-0709 ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-12597-417-0 01 1 0710- ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) 		8-12597-418-0 01 1 0610-0701 ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-12600-461-0 01 1 0702-0702 ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-12600-461-0 01 1 0702- ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) 		8-12600-462-0 01 1 0702-0709 ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) 		8-12600-462-0 01 1 0710- ●
198 00.724 GUIDE; TIMING CHAIN
(F) 		8-12586-959-0 01 1 0509-0609 ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-12586-959-0 01 1 0610- ●
198 00.724 GUIDE; TIMING CHAIN
(E) 		8-12597-416-0 01 1 0509-0609 ●
198 00.724 GUIDE; TIMING CHAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-12597-416-0 01 1 0610-0701 ●
198 00.724 GUIDE; TIMING CHAIN
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-12597-416-0 01 1 0702-0702 ●
200 00.724 BOLT; CHAIN GUIDE,LWR
(A) 		8-11588-255-0 04 1 0509-0609 ●
200 00.724 BOLT; CHAIN GUIDE,LWR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-11588-255-0 04 1 0610- ●
200 00.724 BOLT; CHAIN GUIDE,LWR
(B) 		8-11588-725-0 02 1 0509-0609 ●
200 00.724 BOLT; CHAIN GUIDE,LWR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-11588-725-0 02 1 0610- ●
201 00.724 BOLT; CHAIN GUIDE,UPR
(A) 		8-11561-619-0 02 1 0509-0609 ●
201 00.724 BOLT; CHAIN GUIDE,UPR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-11561-619-0 02 1 0610- ●
201 00.724 BOLT; CHAIN GUIDE,UPR
(B) 		8-11588-255-0 02 1 0509-0609 ●
201 00.724 BOLT; CHAIN GUIDE,UPR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-11588-255-0 02 1 0610- ●
356 01.652 PUMP ASM; OIL
01.723 		8-12590-152-0 01 1 0509-0609 ●
356 01.652 PUMP ASM; OIL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.723 		8-12590-152-0 01 1 0610- ●
357 01.652 BOLT; OIL PUMP 8-11588-729-0 03 1 0509-0609 ●
357 01.652 BOLT; OIL PUMP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11588-729-0 03 1 0610- ●

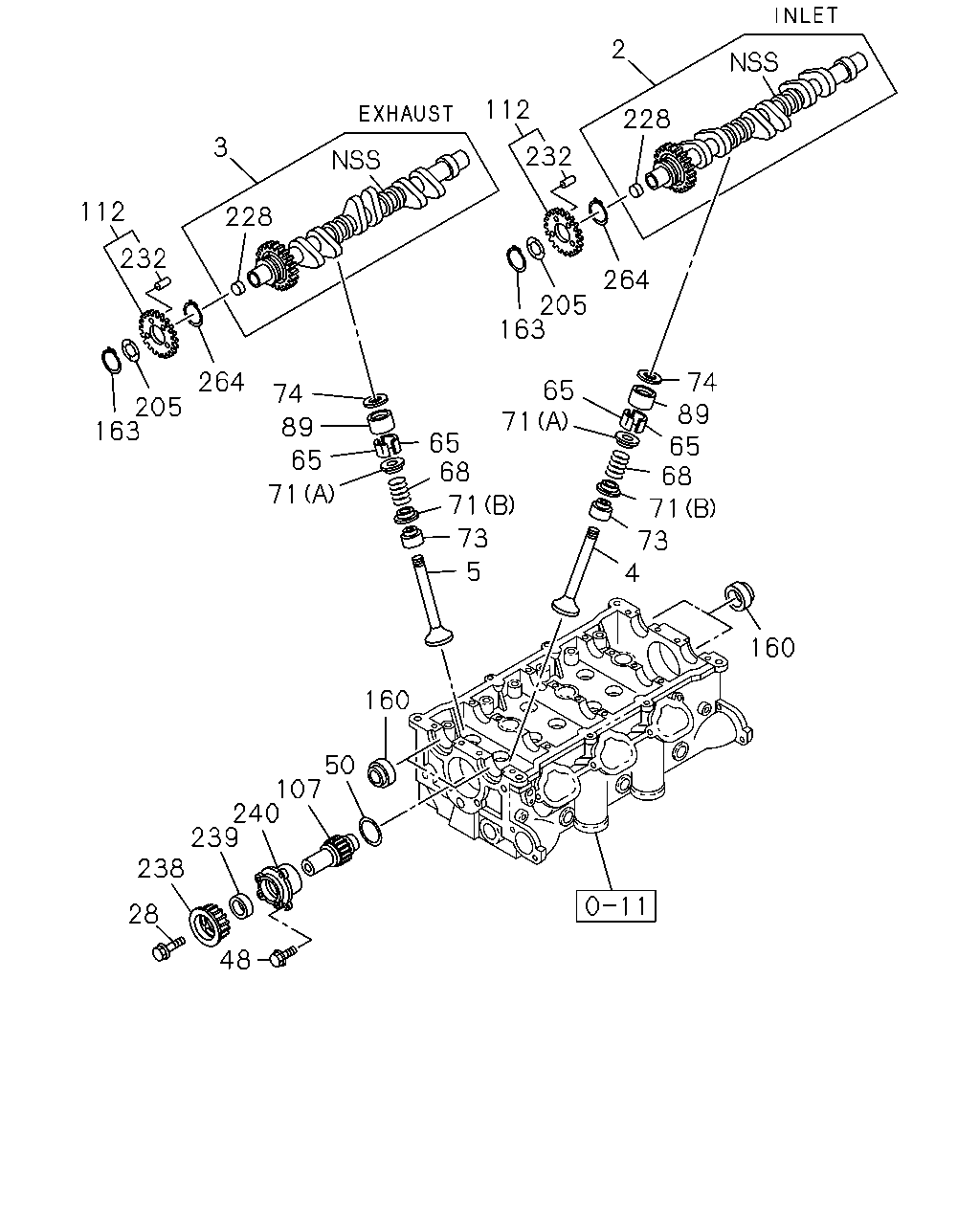

çizim 13900
2 112 228 3 232 112 228 232 264 205 163 264 74 89 65 68 71 73 4 65 71 74 205 163 89 65 68 65 71 71 73 5 160 160 50 107 240 239 238 28 48
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.519 CAMSHAFT; INL 8-97146-570-1 01 1 0307-0609 ●
2 00.519 CAMSHAFT; INL 8-97146-569-1 01 1 0307-0609 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-542-0 01 1 0702-0702 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-542-0 01 1 0702- ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-543-0 01 1 0702-0702 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-543-0 01 1 0702- ●
2 00.519 CAMSHAFT; INL 8-12591-216-0 01 1 0509-0609 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-216-0 01 1 0610-0701 ●
2 00.519 CAMSHAFT; INL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-216-0 01 1 0702-0702 ●
2 00.519 CAMSHAFT; INL 8-12591-217-0 01 1 0509-0609 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-217-0 01 1 0610-0701 ●
2 00.519 CAMSHAFT; INL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-217-0 01 1 0702-0702 ●
3 00.519 CAMSHAFT; EXH 8-97146-572-1 02 1 0307-0609 ●
3 00.519 CAMSHAFT; EXH 8-12591-218-0 01 1 0509-0609 ●
3 00.519 CAMSHAFT; EXH
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-218-0 01 1 0610- ●
3 00.519 CAMSHAFT; EXH 8-12591-219-0 01 1 0509-0609 ●
3 00.519 CAMSHAFT; EXH
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-219-0 01 1 0610- ●
4 00.296 VALVE; INL 8-97169-807-0 12 1 0307-0609 ●
4 00.296 VALVE; INL 8-12575-351-0 12 1 0509-0609 ●
4 00.296 VALVE; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-351-0 12 1 0610- ●
5 00.297 VALVE; EXH 8-97169-808-0 12 1 0307-0609 ●
5 00.297 VALVE; EXH 8-12575-354-0 12 1 0509-0609 ●
5 00.297 VALVE; EXH
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-354-0 12 1 0610- ●
28 00.738 BOLT; CAM PULLEY 8-97330-881-0 02 1 0307-0609 ●
48 00.724 BOLT; RET
M6X20 FLANGE 		0-28690-620-0 03 1 0307-0512 ●
48 00.724 BOLT; RET
M6X20 FLANGE 		0-28660-620-0 03 1 0601-0609 ●
48 00.724 BOLT; RET
M6X30 FLANGE 		0-28690-630-0 03 1 0307-0512 ●
48 00.724 BOLT; RET
M6X30 FLANGE 		0-28660-630-0 03 1 0601-0609 ●
50 00.724 GASKET; RET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97149-238-0 02 1 0307-0609 ●
65 00.310 COLLAR; SPLIT 8-94429-487-0 48 1 0307-0609 ●
65 00.310 COLLAR; SPLIT 8-12575-197-0 48 1 0509-0609 ●
65 00.310 COLLAR; SPLIT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-197-0 48 1 0610- ●
68 00.303 SPRING; VLV 8-97314-228-0 24 1 0307-0609 ●
68 00.303 SPRING; VLV 8-12575-355-0 24 1 0509-0609 ●
68 00.303 SPRING; VLV
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-355-0 24 1 0610- ●
71 00.309 SEAT; SPR
(A) UPPER OD=24.2 		8-97136-329-1 24 1 0307-0609 ●
71 00.309 SEAT; SPR
(B) LOWER OD=27 		8-97149-155-0 24 1 0307-0609 ●
71 00.309 SEAT; SPR
(C) 		8-12575-196-0 24 1 0509-0609 ●
71 00.309 SEAT; SPR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-12575-196-0 24 1 0610- ●
73 00.309 SEAL; VLV GUIDE
EXHAUST ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-733-0 12 1 0307-0609 ●
73 00.309 SEAL; VLV GUIDE
INLET ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97332-359-0 12 1 0307-0609 ●
73 00.309 SEAL; VLV GUIDE 8-12565-836-0 24 1 0509-0609 ●
73 00.309 SEAL; VLV GUIDE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12565-836-0 24 1 0610- ●
74 00.459 ADJUSTER; VLV GAP
T=2.48 		8-97149-266-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.50 		8-97149-267-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.52 		8-97149-268-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.54 		8-97149-269-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.56 		8-97149-270-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.58 		8-97149-271-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.60 		8-97149-272-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.62 		8-97149-273-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.64 		8-97149-274-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.66 		8-97149-275-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.68 		8-97149-276-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.70 		8-97149-277-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.72 		8-97149-278-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.74 		8-97149-279-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.76 		8-97149-280-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.78 		8-97149-281-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.80 		8-97149-282-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.82 		8-97149-283-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.84 		8-97149-284-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.86 		8-97149-285-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.88 		8-97149-286-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.90 		8-97149-287-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.92 		8-97149-288-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.94 		8-97149-289-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.96 		8-97149-290-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=2.98 		8-97149-291-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=3.00 		8-97149-292-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=3.02 		8-97149-293-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=3.04 		8-97149-294-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=3.06 		8-97149-295-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=3.08 		8-97149-296-0 AR 1 0307-0609 ●
74 00.459 ADJUSTER; VLV GAP
T=3.10 		8-97149-297-0 AR 1 0307-0609 ●
89 00.459 TAPPET; VLV 8-97148-296-1 24 1 0307-0609 ●
107 00.724 SHAFT; IDLE GEAR
AIKOR 		8-97131-966-1 01 1 0307-0609 ●
107 00.724 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-871-0 01 1 0307-0609 ●
107 00.724 SHAFT; IDLE GEAR
AIKOR 		8-97131-965-1 01 1 0307-0609 ●
107 00.724 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-870-0 01 1 0307-0609 ●
112 00.724 GEAR; IDLE
TOKYO BUHIN KOGYO CO.LTD Z=40 		8-97136-655-1 04 1 0307-0609 ●
112 00.724 GEAR; IDLE
SUMITOMO ELECTRIC INDUSTRIES Z=40 		8-97322-153-0 04 1 0307-0609 ●
160 00.533 PLUG; CM/SHF END 8-97149-338-0 08 1 0307-0609 ●
163 00.724 RING; SNAP,IDLE 8-97149-334-0 04 1 0307-0609 ●
205 00.724 WASHER; LK,IDLE 8-97136-589-0 04 1 0307-0609 ●
228 00.738 CUP; SEALING,CAMSHAFT
OD=8 		8-97039-526-0 04 1 0307-0609 ●
232 00.662 PIN; GEAR SET
SUMITOMO ELECTRIC INDUSTRIES OD=5 L=7 		8-97173-670-0 04 1 0307-0609 ●
232 00.662 PIN; GEAR SET
00.738 TOKYO BUHIN KOGYO CO.LTD OD=5 L=6 		9-09878-626-0 04 1 0307-0609 ●
238 00.659 PULLEY; TIMING,CAM 8-97136-327-0 02 1 0307-0609 ●
239 00.533 SEAL; OIL,IDLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94389-593-1 02 1 0307-0609 ●
240 00.724 RETAINER; IDLE 8-97132-365-1 01 1 0307-0609 ●
240 00.724 RETAINER; IDLE 8-97132-364-1 01 1 0307-0609 ●
264 00.349 SPRING; GEAR
00.659 		8-97136-343-0 04 1 0307-0609 ●

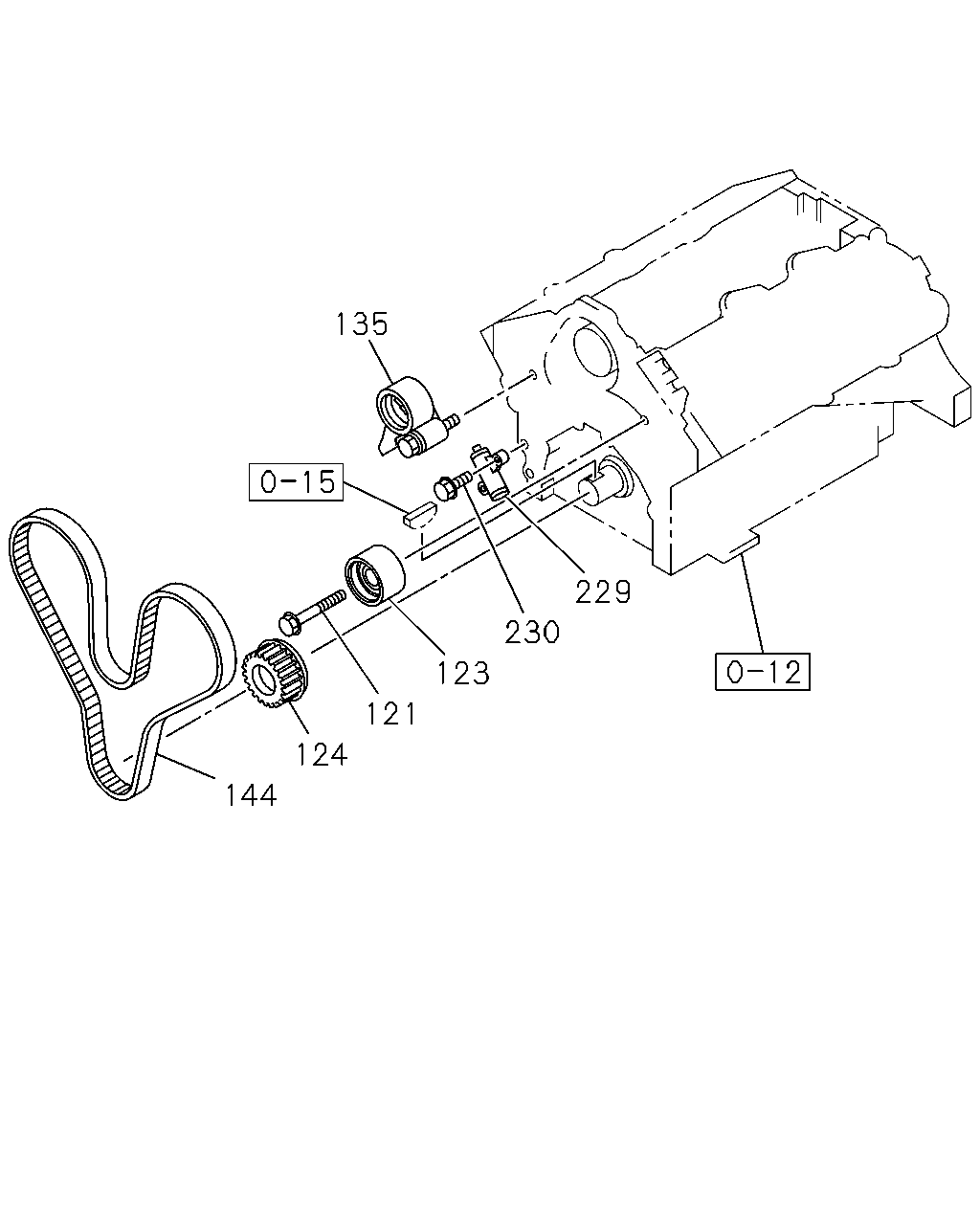

çizim 53263
135 229 230 123 121 124 144
BalonParca AdiParca NoAdetTipApplied Date A B
121 00.724 BOLT; IDLE PULLEY
03.613 M10X40 FLANGE 		0-28681-040-0 01 1 0307-0512 ●
121 00.724 BOLT; IDLE PULLEY
03.613 M10X40 FLANGE 		0-28651-040-0 01 1 0601-0609 ●
123 00.724 PULLEY; IDLE,TIMING 8-97146-877-0 01 1 0307-0609 ●
124 00.659 PULLEY; TIMING,CR/SHF
Z=26 		8-97136-326-0 01 1 0307-0609 ●
135 00.724 PULLEY; TENSIONER 8-97136-256-1 01 1 0307-0609 ●
144 00.724 BELT; TIMING 8-97191-036-1 01 1 0307-0609 ●
229 00.724 ROD ASM; PUSH,TENSIONER 8-97136-257-0 01 1 0307-0401 ●
229 00.724 ROD ASM; PUSH,TENSIONER 8-97328-512-0 01 1 0402-0609 ●
230 00.724 BOLT; PUSH ROD
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0307-0512 ●
230 00.724 BOLT; PUSH ROD
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-0609 ●

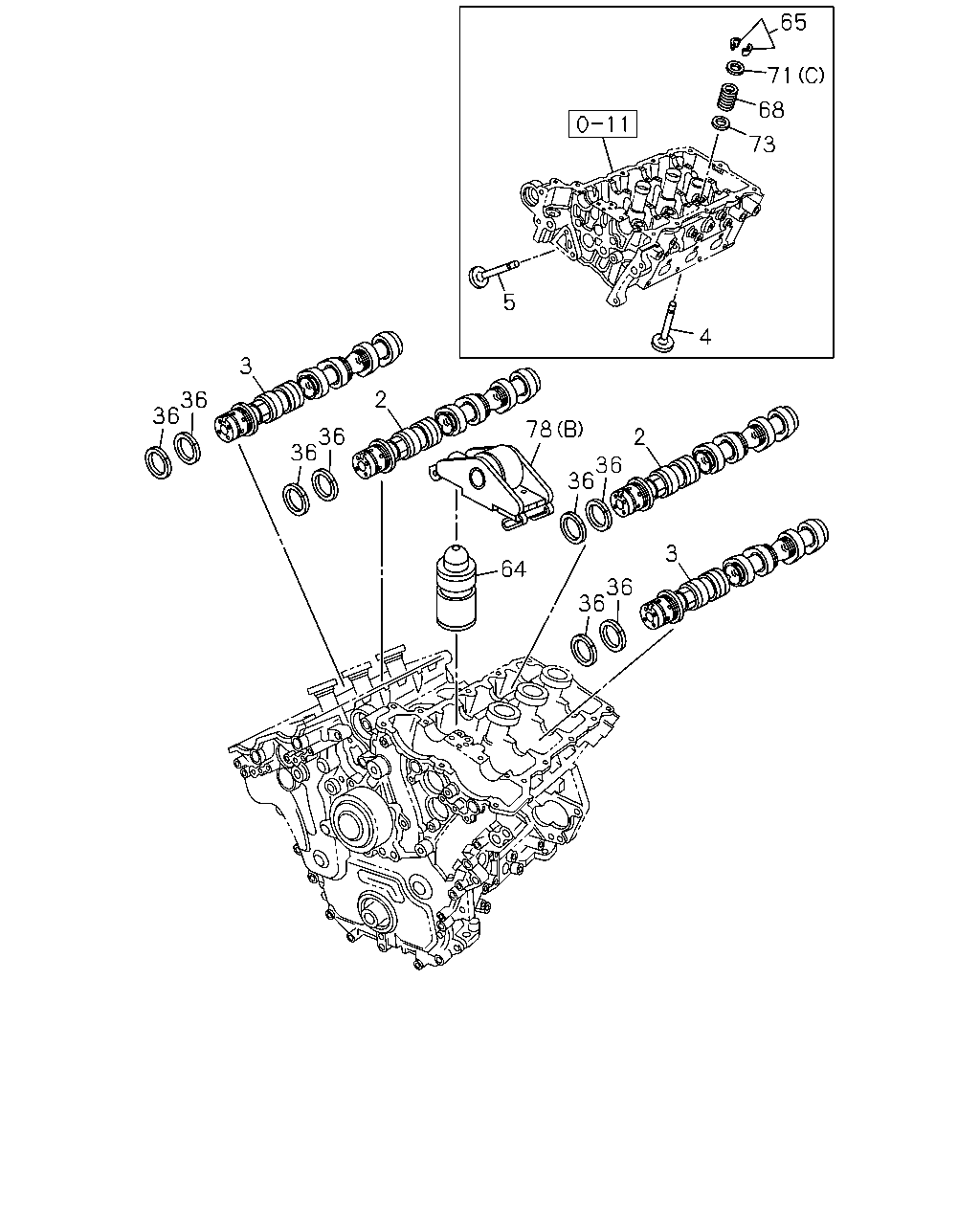

çizim 56938
65 71 68 73 5 4 3 2 36 36 78 36 36 2 36 36 3 64 36 36
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.519 CAMSHAFT; INL 8-97146-570-1 01 1 0307-0609 ●
2 00.519 CAMSHAFT; INL 8-97146-569-1 01 1 0307-0609 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-542-0 01 1 0702-0702 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-542-0 01 1 0702- ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-543-0 01 1 0702-0702 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-543-0 01 1 0702- ●
2 00.519 CAMSHAFT; INL 8-12591-216-0 01 1 0509-0609 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-216-0 01 1 0610-0701 ●
2 00.519 CAMSHAFT; INL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-216-0 01 1 0702-0702 ●
2 00.519 CAMSHAFT; INL 8-12591-217-0 01 1 0509-0609 ●
2 00.519 CAMSHAFT; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-217-0 01 1 0610-0701 ●
2 00.519 CAMSHAFT; INL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-217-0 01 1 0702-0702 ●
3 00.519 CAMSHAFT; EXH 8-97146-572-1 02 1 0307-0609 ●
3 00.519 CAMSHAFT; EXH 8-12591-218-0 01 1 0509-0609 ●
3 00.519 CAMSHAFT; EXH
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-218-0 01 1 0610- ●
3 00.519 CAMSHAFT; EXH 8-12591-219-0 01 1 0509-0609 ●
3 00.519 CAMSHAFT; EXH
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-219-0 01 1 0610- ●
4 00.296 VALVE; INL 8-97169-807-0 12 1 0307-0609 ●
4 00.296 VALVE; INL 8-12575-351-0 12 1 0509-0609 ●
4 00.296 VALVE; INL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-351-0 12 1 0610- ●
5 00.297 VALVE; EXH 8-97169-808-0 12 1 0307-0609 ●
5 00.297 VALVE; EXH 8-12575-354-0 12 1 0509-0609 ●
5 00.297 VALVE; EXH
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-354-0 12 1 0610- ●
36 00.533 SEAL; OIL,CM/SHF,FRT 8-12574-477-0 08 1 0509-0609 ●
36 00.533 SEAL; OIL,CM/SHF,FRT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12574-477-0 08 1 0610- ●
64 00.459 ADJUSTER; VLV LASH 8-12572-638-0 24 1 0509-0609 ●
64 00.459 ADJUSTER; VLV LASH
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12572-638-0 24 1 0610- ●
65 00.310 COLLAR; SPLIT 8-94429-487-0 48 1 0307-0609 ●
65 00.310 COLLAR; SPLIT 8-12575-197-0 48 1 0509-0609 ●
65 00.310 COLLAR; SPLIT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-197-0 48 1 0610- ●
68 00.303 SPRING; VLV 8-97314-228-0 24 1 0307-0609 ●
68 00.303 SPRING; VLV 8-12575-355-0 24 1 0509-0609 ●
68 00.303 SPRING; VLV
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12575-355-0 24 1 0610- ●
71 00.309 SEAT; SPR
(A) UPPER OD=24.2 		8-97136-329-1 24 1 0307-0609 ●
71 00.309 SEAT; SPR
(B) LOWER OD=27 		8-97149-155-0 24 1 0307-0609 ●
71 00.309 SEAT; SPR
(C) 		8-12575-196-0 24 1 0509-0609 ●
71 00.309 SEAT; SPR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-12575-196-0 24 1 0610- ●
73 00.309 SEAL; VLV GUIDE
EXHAUST ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-733-0 12 1 0307-0609 ●
73 00.309 SEAL; VLV GUIDE
INLET ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97332-359-0 12 1 0307-0609 ●
73 00.309 SEAL; VLV GUIDE 8-12565-836-0 24 1 0509-0609 ●
73 00.309 SEAL; VLV GUIDE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12565-836-0 24 1 0610- ●
78 00.333 ARM; ROCKER
(B) 		8-24100-294-0 24 1 0509-0609 ●
78 00.333 ARM; ROCKER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-24100-294-0 24 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
