0-13B — OIL PAN AND LEVEL GAUGE (#20063) — 76 parça

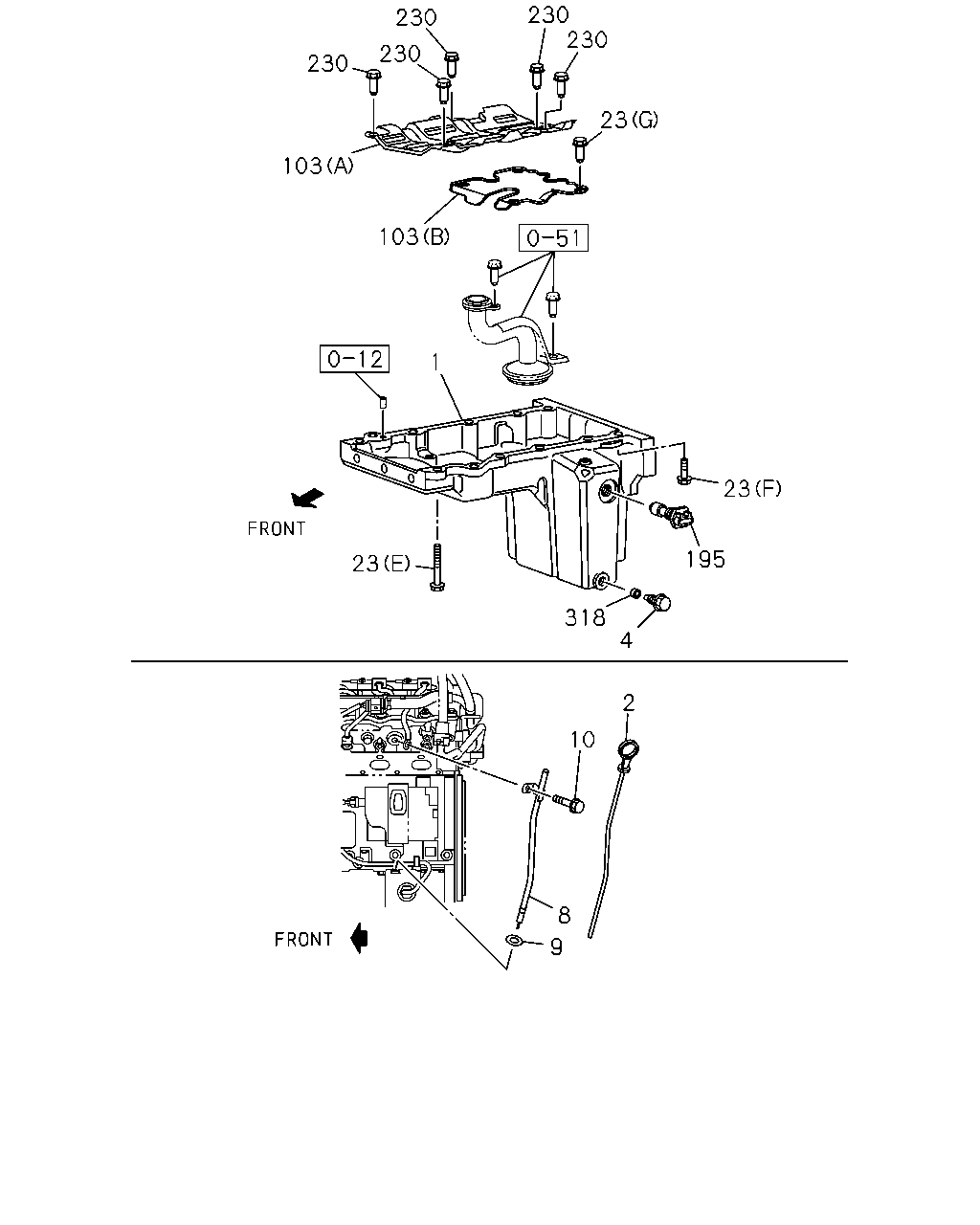

çizim 54783
230 230 230 230 230 23 103 103 1 23 195 23 318 4 2 10 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0307-0609 ●
1 01.426 PAN ASM; OIL 8-92067-142-0 01 1 0509-0609 ●
1 01.426 PAN ASM; OIL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-142-0 01 1 0610- ●
2 01.516 GAUGE; OIL LEVEL 8-97148-697-2 01 1 0307-0308 ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0309-0609 ●
2 01.516 GAUGE; OIL LEVEL 8-92067-272-0 01 1 0509-0609 ●
2 01.516 GAUGE; OIL LEVEL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-272-0 01 1 0610- ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0307-0609 ●
4 01.453 PLUG; DRAIN,OIL 8-11519-408-0 01 1 0509-0609 ●
4 01.453 PLUG; DRAIN,OIL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-408-0 01 1 0610- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97132-302-2 01 1 0307-0308 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 0309-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-92067-274-0 01 1 0509-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-274-0 01 1 0610- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 		5-09623-002-0 02 1 0307-0609 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 8-24504-031-0 03 1 0509-0609 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-24504-031-0 03 1 0610- ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
10 01.516 BOLT; GUIDE TUBE
04.197 M6X20 FLANGE 		8-11588-712-0 01 1 0509-0609 ●
10 01.516 BOLT; GUIDE TUBE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 04.197 M6X20 FLANGE 		8-11588-712-0 01 1 0610- ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0307-0609 ●
23 01.428 BOLT; OIL PAN
02.500 (E) 		8-11519-979-0 11 1 0509-0609 ●
23 01.428 BOLT; OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 02.500 (E) 		8-11519-979-0 11 1 0610- ●
23 01.428 BOLT; OIL PAN
(F) 		8-11588-424-0 02 1 0509-0609 ●
23 01.428 BOLT; OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-11588-424-0 02 1 0610- ●
23 01.428 BOLT; OIL PAN
01.430 (G) 		8-11588-713-0 04 1 0509-0609 ●
23 01.428 BOLT; OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.430 (G) 		8-11588-713-0 04 1 0610- ●
103 01.428 BAFFLE; OIL PAN
(A) 		8-12572-089-0 01 1 0509-0609 ●
103 01.428 BAFFLE; OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-12572-089-0 01 1 0610- ●
103 01.428 BAFFLE; OIL PAN
(B) 		8-92067-143-0 01 1 0509-0609 ●
103 01.428 BAFFLE; OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-92067-143-0 01 1 0610- ●
195 01.516 SENSOR; OIL LEVEL 8-12603-781-0 01 1 0509-0609 ●
195 01.516 SENSOR; OIL LEVEL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12603-781-0 01 1 0610- ●
230 01.430 BOLT; BAFFLE 8-11588-713-0 06 1 0509-0609 ●
230 01.430 BOLT; BAFFLE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11588-713-0 06 1 0610- ●
318 01.428 INSERT; OIL PAN 8-11503-302-0 01 1 0509-0609 ●
318 01.428 INSERT; OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11503-302-0 01 1 0610- ●

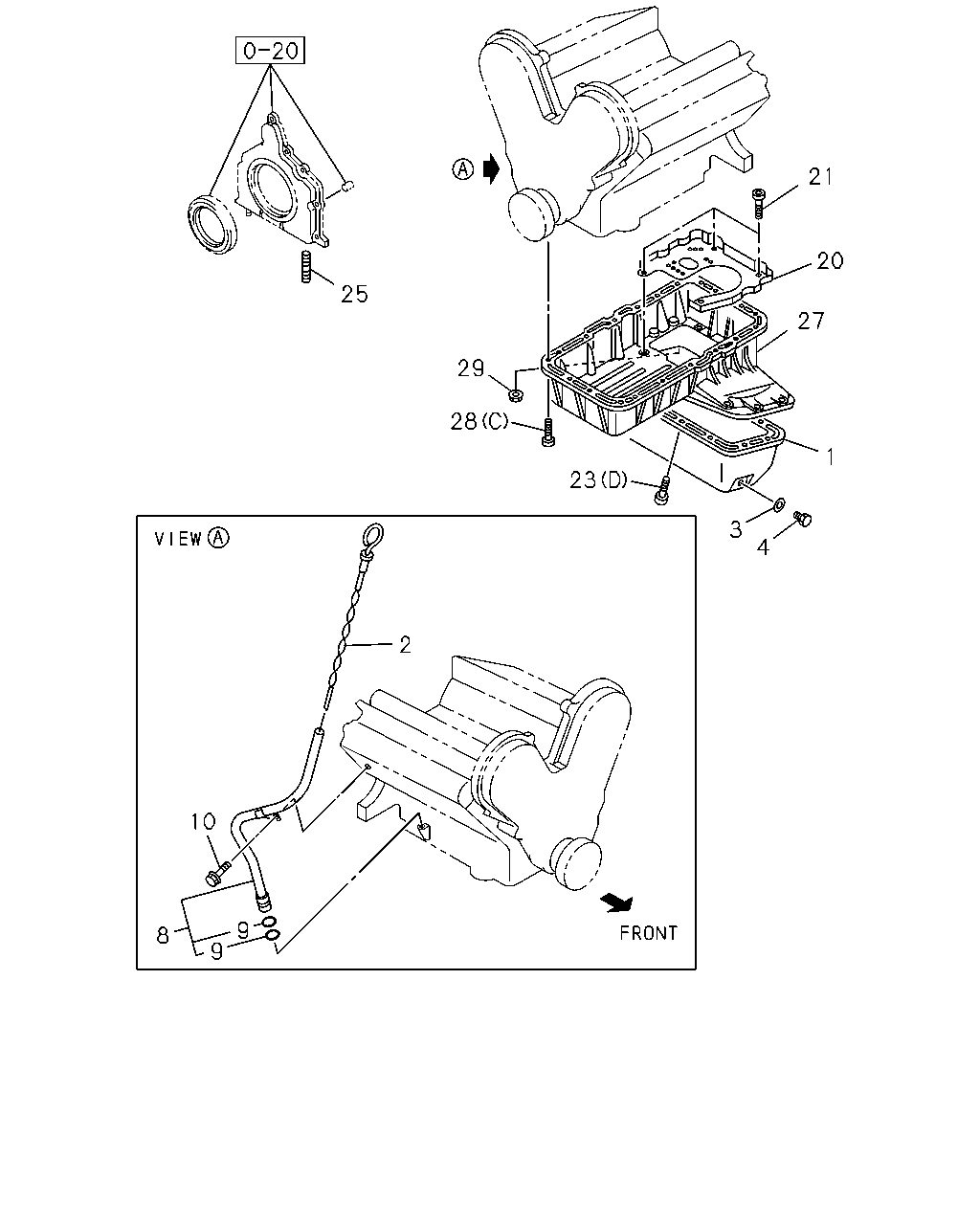

çizim 54784
21 20 25 27 29 28 1 23 3 4 2 10 9 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0307-0609 ●
1 01.426 PAN ASM; OIL 8-92067-142-0 01 1 0509-0609 ●
1 01.426 PAN ASM; OIL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-142-0 01 1 0610- ●
2 01.516 GAUGE; OIL LEVEL 8-97148-697-2 01 1 0307-0308 ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0309-0609 ●
2 01.516 GAUGE; OIL LEVEL 8-92067-272-0 01 1 0509-0609 ●
2 01.516 GAUGE; OIL LEVEL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-272-0 01 1 0610- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0307-0609 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0307-0609 ●
4 01.453 PLUG; DRAIN,OIL 8-11519-408-0 01 1 0509-0609 ●
4 01.453 PLUG; DRAIN,OIL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-408-0 01 1 0610- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97132-302-2 01 1 0307-0308 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 0309-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-92067-274-0 01 1 0509-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-274-0 01 1 0610- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 		5-09623-002-0 02 1 0307-0609 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 8-24504-031-0 03 1 0509-0609 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-24504-031-0 03 1 0610- ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
10 01.516 BOLT; GUIDE TUBE
04.197 M6X20 FLANGE 		8-11588-712-0 01 1 0509-0609 ●
10 01.516 BOLT; GUIDE TUBE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 04.197 M6X20 FLANGE 		8-11588-712-0 01 1 0610- ●
20 01.430 PLATE; BAFFLE,CRANKCASE 8-97149-082-1 01 1 0307-0609 ●
21 01.430 BOLT; BAFFLE PLATE,CRANKCASE
M6X12 HEX SOCKET 		0-58310-612-0 04 1 0307-0512 ●
21 01.430 BOLT; BAFFLE PLATE,CRANKCASE
01.251 M6X12 HEX SOCKET 		0-58330-612-0 04 1 0601-0609 ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0307-0609 ●
23 01.428 BOLT; OIL PAN
02.500 (E) 		8-11519-979-0 11 1 0509-0609 ●
23 01.428 BOLT; OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 02.500 (E) 		8-11519-979-0 11 1 0610- ●
23 01.428 BOLT; OIL PAN
(F) 		8-11588-424-0 02 1 0509-0609 ●
23 01.428 BOLT; OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) 		8-11588-424-0 02 1 0610- ●
23 01.428 BOLT; OIL PAN
01.430 (G) 		8-11588-713-0 04 1 0509-0609 ●
23 01.428 BOLT; OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.430 (G) 		8-11588-713-0 04 1 0610- ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49740-630-0 01 1 0307-0609 ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 0307-0609 ●
28 01.780 BOLT; CRANKCASE TO C/BL
(C) M6X25 HEX SOCKET 		0-58310-625-0 18 1 0307-0512 ●
28 01.780 BOLT; CRANKCASE TO C/BL
01.428 (C) M6X25 HEX SOCKET 		0-58330-625-0 18 1 0601-0609 ●
29 01.426 NUT; CRANKCASE
04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0602 ●
29 01.426 NUT; CRANKCASE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ●
