◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13A - OIL PAN AND LEVEL GAUGE ▶
0-13A — OIL PAN AND LEVEL GAUGE (#20062) — 344 parça

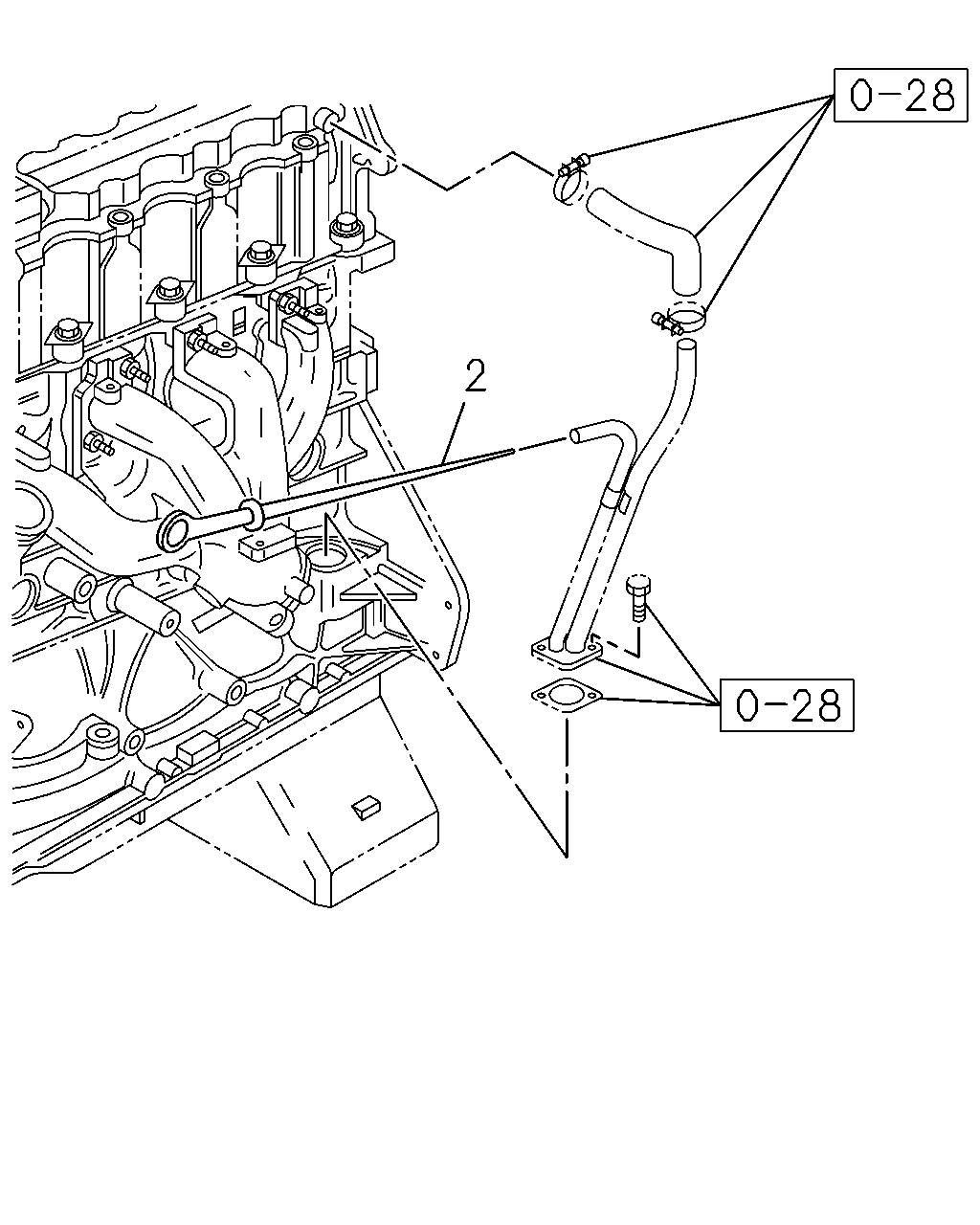

çizim 11460
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0307-0609 ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0610- ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-92063-647-0 01 1 0307- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-92063-162-0 01 1 0307-1009 ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13) 		8-92063-162-0 01 1 1010- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-0 01 1 0610-0611 ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-834-0 01 1 0612-0612 ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-834-0 01 1 0701-0709 ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 0710-0912 ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-834-1 01 1 1001- ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98053-833-0 01 1 0610-0612 ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98053-833-0 01 1 0701-0912 ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-833-1 01 1 1001- ● ● ● ●

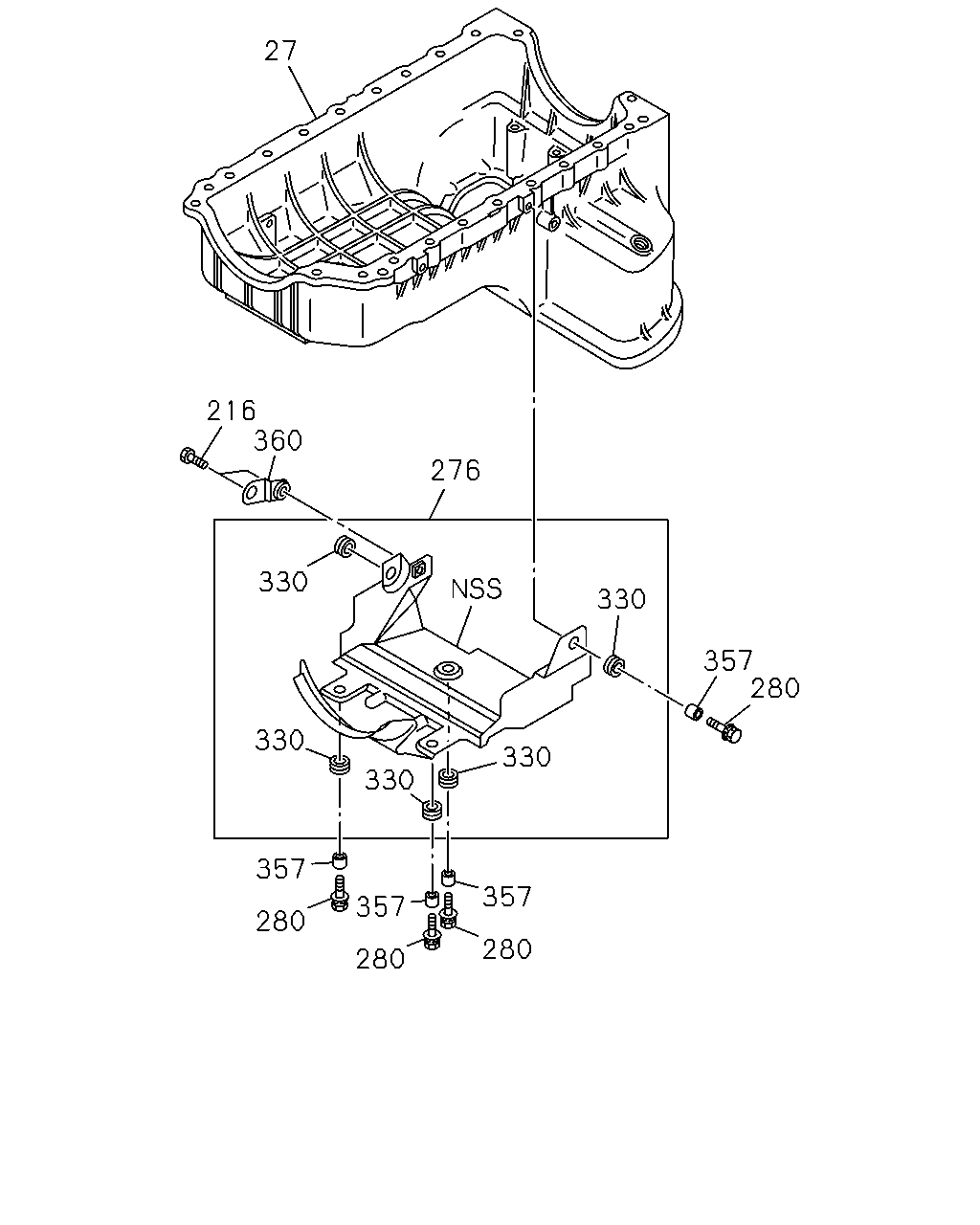

çizim 54220
27 216 360 276 330 330 357 280 330 330 330 357 357 357 280 280 280
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
27 01.426 CRANKCASE 8-97358-796-0 01 1 0307-0609 ● ● ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0610- ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0610-0612 ● ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0701-0912 ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 1001- ● ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0610-0612 ● ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0701-0912 ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 1001- ● ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-498-2 01 1 0610- ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-497-2 01 1 0610- ●
216 01.429 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0307-0512 ● ● ●
216 01.429 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ●
216 01.429 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610- ●
216 01.429 BOLT; BRKT
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0307-0609 ● ● ●
216 01.429 BOLT; BRKT
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0610- ●
276 01.516 COVER; CRANKCASE 8-97324-158-3 01 1 0307-0309 ● ● ●
276 01.516 COVER; CRANKCASE 8-97373-085-0 01 1 0310-0609 ● ● ●
276 01.516 COVER; CRANKCASE 8-97373-085-2 01 1 0610- ●
280 01.430 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0307-0309 ● ● ●
280 01.430 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0310-0609 ● ● ●
280 01.430 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0610- ●
330 01.516 RUBBER; MTG,CRANKCASE COVER
00.034 OD=22 		8-94140-428-1 05 1 0307-0309 ● ● ●
330 01.516 RUBBER; MTG,CRANKCASE COVER
00.034 OD=22 		8-94140-428-1 03 1 0310-0609 ● ● ●
330 01.516 RUBBER; MTG,CRANKCASE COVER
00.034 OD=22 		8-94140-428-1 03 1 0610-0905 ●
330 01.516 RUBBER; MTG,CRANKCASE COVER
00.413 OD=21.8 		8-97325-051-0 03 1 0906- ●
357 01.516 BUSHING; COVER 8-97361-926-0 04 1 0307-0308 ● ● ●
357 01.516 BUSHING; COVER 8-97371-498-0 04 1 0309-0309 ● ● ●
357 01.516 BUSHING; COVER 8-97371-498-0 03 1 0310-0609 ● ● ●
357 01.516 BUSHING; COVER 8-97371-498-0 03 1 0610- ●
360 01.750 BRACKET; CRANK CASE 8-97329-650-1 01 1 0307-0609 ● ● ●
360 01.750 BRACKET; CRANK CASE 8-97329-650-1 01 1 0610- ●

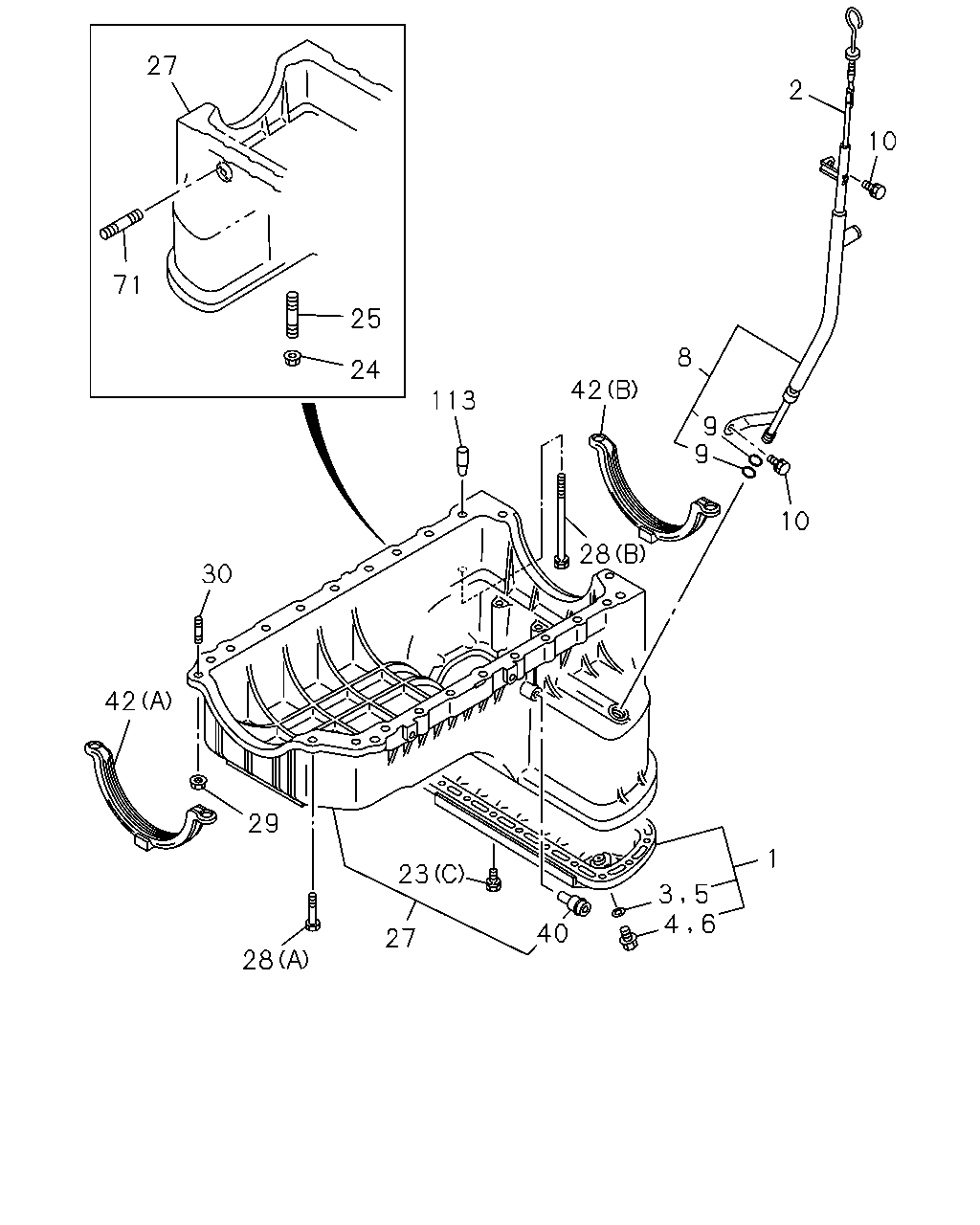

çizim 54269
27 2 10 71 25 8 24 42 113 9 9 10 28 30 42 29 1 23 40 27 28 3 5 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.426 PAN ASM; OIL 8-97248-860-1 01 1 0307-0609 ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-1 01 1 0307-0609 ●
1 01.426 PAN ASM; OIL 8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-97248-862-1 01 1 0307-0609 ●
1 01.426 PAN ASM; OIL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98011-499-0 01 1 0610-0612 ● ● ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98011-499-0 01 1 0701-0912 ● ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98011-499-0 01 1 1001- ● ● ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-92065-759-0 01 1 0307- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-92065-808-0 01 1 0307-1009 ●
1 01.426 PAN ASM; OIL
4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-808-0 01 1 1010- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-0 01 1 0610-0611 ● ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98013-383-0 01 1 0612-0612 ● ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98013-383-0 01 1 0701-0709 ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-0 01 1 0710-0912 ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98013-383-1 01 1 1001- ● ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0307-0609 ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0610- ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-92063-647-0 01 1 0307- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-92063-162-0 01 1 0307-1009 ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13) 		8-92063-162-0 01 1 1010- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-0 01 1 0610-0611 ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-834-0 01 1 0612-0612 ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-834-0 01 1 0701-0709 ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 0710-0912 ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-834-1 01 1 1001- ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98053-833-0 01 1 0610-0612 ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98053-833-0 01 1 0701-0912 ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-833-1 01 1 1001- ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0307-0609 ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0610-0612 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0701-0912 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1001-1001 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94158-328-0 01 1 1002-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 4X2(TFB***) ID=14.2 OD=24 		8-94158-328-0 01 1 1002-1003 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 4X4(TFS***) KENYA EQUIPMENT(CL1) ID=14.2 OD=24 		8-94158-328-0 01 1 1002-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1004-1007 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008- ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-11023-589-0 01 1 0307- ●
4 01.453 PLUG; DRAIN,OIL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92139-054-0 01 1 1010- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0307-0609 ● ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0610-1007 ●
4 01.453 PLUG; DRAIN,OIL 8-90409-376-0 01 1 0307-1009 ●
4 01.453 PLUG; DRAIN,OIL
AUSTRALIA EQUIPMENT(B13) 		8-90409-376-0 01 1 1010- ●
4 01.453 PLUG; DRAIN,OIL
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M14X14 		8-97329-621-0 01 1 0610-0612 ● ● ● ●
4 01.453 PLUG; DRAIN,OIL
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M14X14 		8-97329-621-0 01 1 0701-0709 ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0710-0912 ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1001-1001 ● ● ● ●
4 01.453 PLUG; DRAIN,OIL
4X2(TFB***) M14X14 		8-97329-621-0 01 1 1002-1003 ● ● ● ●
4 01.453 PLUG; DRAIN,OIL
4X4(TFS***) KENYA EQUIPMENT(CL1) M14X14 		8-97329-621-0 01 1 1002-1003 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1004- ● ● ● ●
5 01.456 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008- ●
6 01.453 PLUG; OIL DRAIN
03.001 M14X14 		8-94152-613-0 01 1 1008- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97328-532-0 01 1 0307-0706 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98067-937-0 01 1 0707- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97302-689-0 01 1 0307-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 0610-0612 ● ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 0701-0912 ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 1001- ● ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97249-184-0 01 1 0307-0609 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 ALSO INCLUDED IN GASKET SET(ENGINE) . 		5-09623-002-0 02 1 0307-0609 ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 ALSO INCLUDED IN GASKET SET(ENGINE) . 		5-09623-002-0 02 1 0610- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 OD=15.8 		8-98034-629-0 01 1 0610-0611 ● ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8 		8-98034-629-0 01 1 0612-0612 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 OD=15.8 		8-98034-629-0 01 1 0612-0612 ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8 		8-98034-629-0 01 1 0701-0912 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 OD=15.8 		8-98034-629-0 01 1 0701-0912 ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8 		8-98034-629-0 01 1 1001- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 OD=15.8 		8-98034-629-0 01 1 1001- ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 		1-09623-469-0 01 1 0610-0611 ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
KENYA EQUIPMENT(CL1) ID=11 		1-09623-469-0 01 1 0612- ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0307-0512 ● ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ● ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-0611 ● ● ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0612 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0612 ● ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0701-0912 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0701-0912 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1001- ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1001- ● ● ●
10 01.516 BOLT; GUIDE TUBE
KENYA EQUIPMENT(CL1) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0612- ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0610- ●
23 01.428 BOLT; OIL PAN
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-11096-082-0 01 1 1010- ●
23 01.428 BOLT; OIL PAN
EXC. AUSTRALIA EQUIPMENT(B13) 00.662 (B) M8X45 		8-11096-481-0 10 1 1010- ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0307-0609 ● ● ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0610- ●
23 01.428 BOLT; OIL PAN
(A) M8X132 		8-11093-981-0 03 1 0307- ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 11 1 0307-1009 ●
23 01.428 BOLT; OIL PAN
AUSTRALIA EQUIPMENT(B13) 00.662 (B) M8X45 		8-11096-481-0 11 1 1010- ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0307-0609 ● ● ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0610-0805 ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97329-622-0 02 1 0806- ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 0307-0604 ● ● ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0605-0609 ● ● ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0610- ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 0610-0612 ● ● ● ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 0701-0912 ● ● ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1001- ● ● ● ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0307-0609 ● ● ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0610- ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0610-0612 ● ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0701-0912 ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 1001- ● ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0610-0612 ● ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0701-0912 ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 1001- ● ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-498-2 01 1 0610- ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-497-2 01 1 0610- ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28085-812-0 01 1 0307-0512 ● ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28055-812-0 01 1 0601-0609 ● ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28055-812-0 01 1 0610- ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0307-0609 ● ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0610-0909 ●
28 01.780 BOLT; CRANKCASE TO C/BL
(A) M8X32 W/LK WASHER 		0-50540-832-0 19 1 0910- ●
29 01.426 NUT; CRANKCASE
07.633 M8 FLANGE 		0-91150-108-0 02 1 0307-0602 ● ● ●
29 01.426 NUT; CRANKCASE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ● ●
29 01.426 NUT; CRANKCASE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ●
30 01.780 STUD; CRANKCASE
08.981 M8X35 L=47 		9-04110-835-0 02 1 0307-0604 ● ● ●
30 01.780 STUD; CRANKCASE
M8X35 L=47 		0-41010-835-0 02 1 0605-0609 ● ● ●
30 01.780 STUD; CRANKCASE
M8X35 L=47 		0-41010-835-0 02 1 0610- ●
40 01.426 NIPPLE; OIL RETURN HOSE VAC PUMP
01.531 		5-11369-038-0 01 1 0307-0609 ● ● ●
40 01.426 NIPPLE; OIL RETURN HOSE VAC PUMP
01.531 		5-11369-038-0 01 1 0610- ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . (A) FRONT 		8-97120-933-0 01 1 0307-0609 ● ● ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . (A) FRONT 		8-97120-933-0 01 1 0610- ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . (B) REAR 		8-97123-342-0 01 1 0307-0609 ● ● ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . (B) REAR 		8-97123-342-0 01 1 0610- ●
71 01.428 STUD; OIL DRAIN PIPE
M8X18 L=30 		9-04110-818-0 02 1 0307-0604 ● ● ●
71 01.428 STUD; OIL DRAIN PIPE
M8X18 L=30 		0-41010-818-0 02 1 0605-0609 ● ● ●
71 01.428 STUD; OIL DRAIN PIPE
M8X18 L=30 		0-41010-818-0 02 1 0610- ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0307-0609 ● ● ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0610- ●
113 01.453 PIN; STRAIGHT
M/T MUX 5 SPEED 5S(MZJ) 08.939 OD=10 L=32 		9-08161-032-0 02 1 0610- ●

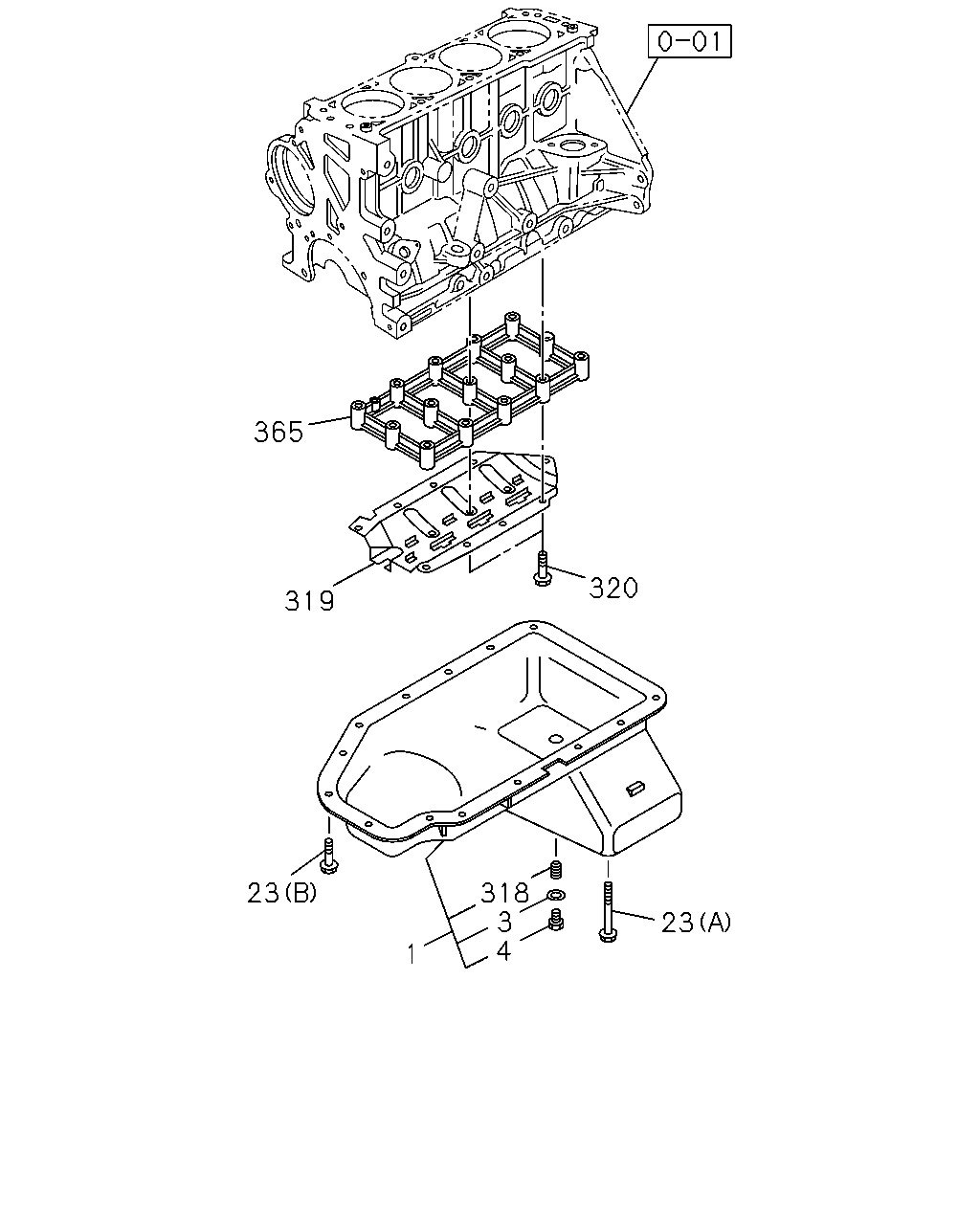

çizim 56024
365 320 319 23 318 3 4 23 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.426 PAN ASM; OIL 8-97248-860-1 01 1 0307-0609 ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-1 01 1 0307-0609 ●
1 01.426 PAN ASM; OIL 8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-97248-862-1 01 1 0307-0609 ●
1 01.426 PAN ASM; OIL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98011-499-0 01 1 0610-0612 ● ● ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98011-499-0 01 1 0701-0912 ● ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98011-499-0 01 1 1001- ● ● ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-92065-759-0 01 1 0307- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-92065-808-0 01 1 0307-1009 ●
1 01.426 PAN ASM; OIL
4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-808-0 01 1 1010- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-0 01 1 0610-0611 ● ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98013-383-0 01 1 0612-0612 ● ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98013-383-0 01 1 0701-0709 ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-0 01 1 0710-0912 ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98013-383-1 01 1 1001- ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0307-0609 ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0610-0612 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0701-0912 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1001-1001 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94158-328-0 01 1 1002-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 4X2(TFB***) ID=14.2 OD=24 		8-94158-328-0 01 1 1002-1003 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 4X4(TFS***) KENYA EQUIPMENT(CL1) ID=14.2 OD=24 		8-94158-328-0 01 1 1002-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1004-1007 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008- ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-11023-589-0 01 1 0307- ●
4 01.453 PLUG; DRAIN,OIL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92139-054-0 01 1 1010- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0307-0609 ● ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0610-1007 ●
4 01.453 PLUG; DRAIN,OIL 8-90409-376-0 01 1 0307-1009 ●
4 01.453 PLUG; DRAIN,OIL
AUSTRALIA EQUIPMENT(B13) 		8-90409-376-0 01 1 1010- ●
4 01.453 PLUG; DRAIN,OIL
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M14X14 		8-97329-621-0 01 1 0610-0612 ● ● ● ●
4 01.453 PLUG; DRAIN,OIL
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M14X14 		8-97329-621-0 01 1 0701-0709 ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0710-0912 ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1001-1001 ● ● ● ●
4 01.453 PLUG; DRAIN,OIL
4X2(TFB***) M14X14 		8-97329-621-0 01 1 1002-1003 ● ● ● ●
4 01.453 PLUG; DRAIN,OIL
4X4(TFS***) KENYA EQUIPMENT(CL1) M14X14 		8-97329-621-0 01 1 1002-1003 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1004- ● ● ● ●
23 01.428 BOLT; OIL PAN
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-11096-082-0 01 1 1010- ●
23 01.428 BOLT; OIL PAN
EXC. AUSTRALIA EQUIPMENT(B13) 00.662 (B) M8X45 		8-11096-481-0 10 1 1010- ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0307-0609 ● ● ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0610- ●
23 01.428 BOLT; OIL PAN
(A) M8X132 		8-11093-981-0 03 1 0307- ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 11 1 0307-1009 ●
23 01.428 BOLT; OIL PAN
AUSTRALIA EQUIPMENT(B13) 00.662 (B) M8X45 		8-11096-481-0 11 1 1010- ●
318 01.428 INSERT; OIL PAN 8-11065-809-0 01 1 0307- ●
319 01.430 SCRAPER; OIL PAN
EXC. AUSTRALIA EQUIPMENT(B13) 		8-90571-319-0 01 1 1010- ●
319 01.430 SCRAPER; OIL PAN 8-92063-872-0 01 1 0307-1009 ●
319 01.430 SCRAPER; OIL PAN
AUSTRALIA EQUIPMENT(B13) 		8-92063-872-0 01 1 1010- ●
320 01.430 BOLT; SCRAPER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-11096-482-0 13 1 1010- ●
320 01.430 BOLT; SCRAPER
00.662 M8X45 		8-11096-481-0 13 1 0307-1009 ●
320 01.430 BOLT; SCRAPER
AUSTRALIA EQUIPMENT(B13) 00.662 M8X45 		8-11096-481-0 13 1 1010- ●
365 01.426 BRIDGE; MAIN BEARING
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93382-758-0 01 1 1010- ●
365 01.426 BRIDGE; MAIN BEARING 8-90501-900-0 01 1 0307-1009 ●
365 01.426 BRIDGE; MAIN BEARING
AUSTRALIA EQUIPMENT(B13) 		8-90501-900-0 01 1 1010- ●

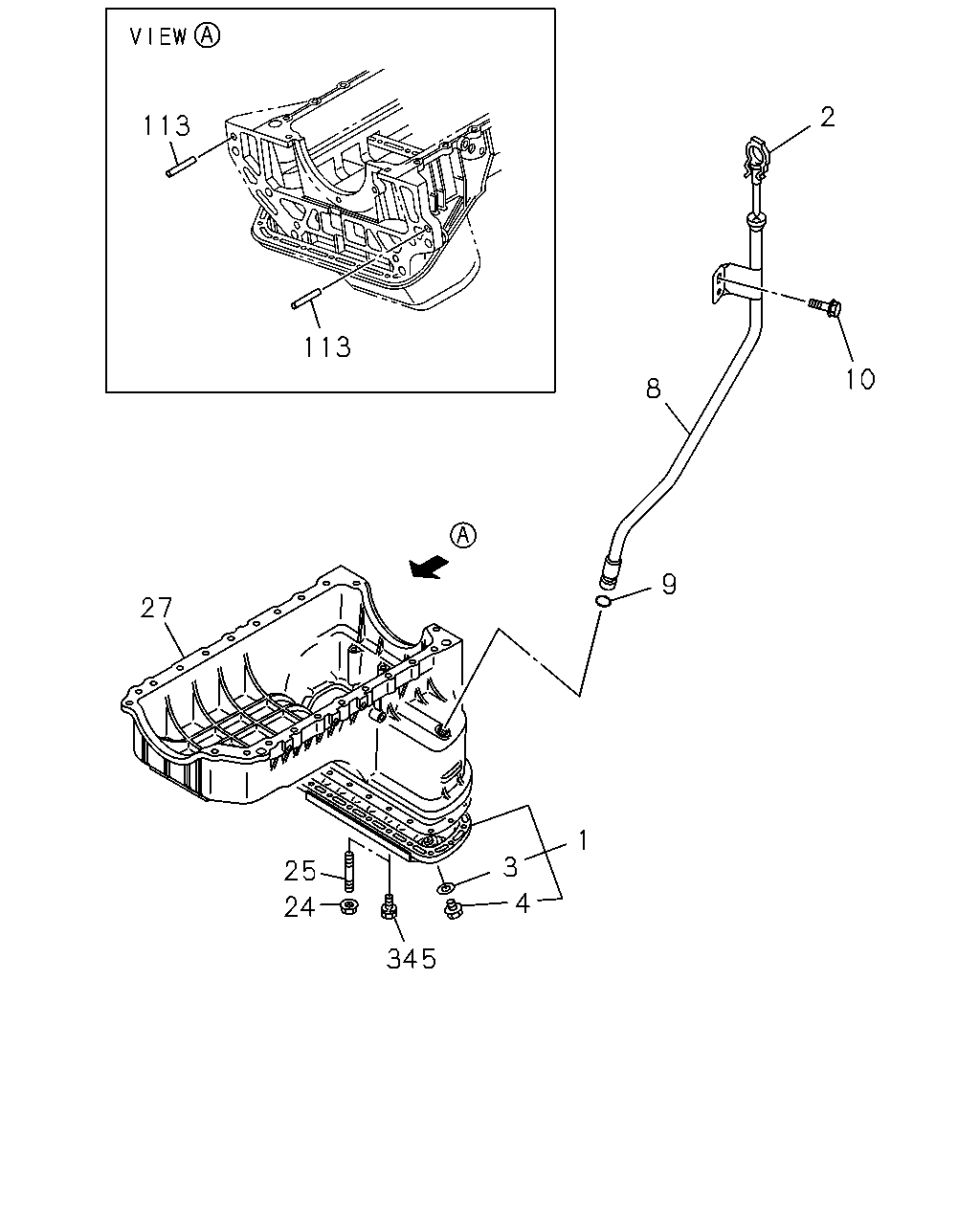

çizim 56877
2 113 113 10 8 9 27 1 3 25 4 24 345
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.426 PAN ASM; OIL 8-97248-860-1 01 1 0307-0609 ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-1 01 1 0307-0609 ●
1 01.426 PAN ASM; OIL 8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-97248-862-1 01 1 0307-0609 ●
1 01.426 PAN ASM; OIL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98011-499-0 01 1 0610-0612 ● ● ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98011-499-0 01 1 0701-0912 ● ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98011-499-0 01 1 1001- ● ● ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-92065-759-0 01 1 0307- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-92065-808-0 01 1 0307-1009 ●
1 01.426 PAN ASM; OIL
4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-808-0 01 1 1010- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-0 01 1 0610-0611 ● ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98013-383-0 01 1 0612-0612 ● ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98013-383-0 01 1 0701-0709 ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-0 01 1 0710-0912 ● ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98013-383-1 01 1 1001- ● ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0307-0609 ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0610- ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-92063-647-0 01 1 0307- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-92063-162-0 01 1 0307-1009 ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13) 		8-92063-162-0 01 1 1010- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-0 01 1 0610-0611 ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-834-0 01 1 0612-0612 ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-834-0 01 1 0701-0709 ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 0710-0912 ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-834-1 01 1 1001- ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98053-833-0 01 1 0610-0612 ● ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98053-833-0 01 1 0701-0912 ● ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 		8-98053-833-1 01 1 1001- ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0307-0609 ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0610-0612 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0701-0912 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1001-1001 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94158-328-0 01 1 1002-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 4X2(TFB***) ID=14.2 OD=24 		8-94158-328-0 01 1 1002-1003 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 4X4(TFS***) KENYA EQUIPMENT(CL1) ID=14.2 OD=24 		8-94158-328-0 01 1 1002-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1004-1007 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008- ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-11023-589-0 01 1 0307- ●
4 01.453 PLUG; DRAIN,OIL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92139-054-0 01 1 1010- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0307-0609 ● ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0610-1007 ●
4 01.453 PLUG; DRAIN,OIL 8-90409-376-0 01 1 0307-1009 ●
4 01.453 PLUG; DRAIN,OIL
AUSTRALIA EQUIPMENT(B13) 		8-90409-376-0 01 1 1010- ●
4 01.453 PLUG; DRAIN,OIL
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M14X14 		8-97329-621-0 01 1 0610-0612 ● ● ● ●
4 01.453 PLUG; DRAIN,OIL
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M14X14 		8-97329-621-0 01 1 0701-0709 ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0710-0912 ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1001-1001 ● ● ● ●
4 01.453 PLUG; DRAIN,OIL
4X2(TFB***) M14X14 		8-97329-621-0 01 1 1002-1003 ● ● ● ●
4 01.453 PLUG; DRAIN,OIL
4X4(TFS***) KENYA EQUIPMENT(CL1) M14X14 		8-97329-621-0 01 1 1002-1003 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1004- ● ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97328-532-0 01 1 0307-0706 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98067-937-0 01 1 0707- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97302-689-0 01 1 0307-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 0610-0612 ● ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 0701-0912 ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 1001- ● ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97249-184-0 01 1 0307-0609 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 ALSO INCLUDED IN GASKET SET(ENGINE) . 		5-09623-002-0 02 1 0307-0609 ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 ALSO INCLUDED IN GASKET SET(ENGINE) . 		5-09623-002-0 02 1 0610- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 OD=15.8 		8-98034-629-0 01 1 0610-0611 ● ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8 		8-98034-629-0 01 1 0612-0612 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 OD=15.8 		8-98034-629-0 01 1 0612-0612 ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8 		8-98034-629-0 01 1 0701-0912 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 OD=15.8 		8-98034-629-0 01 1 0701-0912 ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
EXC. KENYA EQUIPMENT(CL1) ID=11 OD=15.8 		8-98034-629-0 01 1 1001- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 OD=15.8 		8-98034-629-0 01 1 1001- ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ID=11 		1-09623-469-0 01 1 0610-0611 ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
KENYA EQUIPMENT(CL1) ID=11 		1-09623-469-0 01 1 0612- ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0307-0512 ● ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ● ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-0611 ● ● ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0612 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0612 ● ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0701-0912 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0701-0912 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. KENYA EQUIPMENT(CL1) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1001- ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1001- ● ● ●
10 01.516 BOLT; GUIDE TUBE
KENYA EQUIPMENT(CL1) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0612- ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0610- ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0307-0609 ● ● ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0610-0805 ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97329-622-0 02 1 0806- ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 0307-0604 ● ● ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0605-0609 ● ● ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0610- ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 0610-0612 ● ● ● ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 0701-0912 ● ● ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1001- ● ● ● ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0307-0609 ● ● ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0610- ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0610-0612 ● ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0701-0912 ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 1001- ● ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0610-0612 ● ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0701-0912 ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 1001- ● ● ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-498-2 01 1 0610- ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-497-2 01 1 0610- ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0307-0609 ● ● ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0610- ●
113 01.453 PIN; STRAIGHT
M/T MUX 5 SPEED 5S(MZJ) 08.939 OD=10 L=32 		9-08161-032-0 02 1 0610- ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 02.343 M8X12 FLANGE 		0-28050-812-0 21 1 0610-0612 ● ● ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 02.343 M8X12 FLANGE 		0-28050-812-0 21 1 0701-0912 ● ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 02.343 M8X12 FLANGE 		0-28050-812-0 21 1 1001- ● ● ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X4(TFS***) 02.343 M8X12 FLANGE 		0-28050-812-0 17 1 0610-0611 ● ● ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 02.343 M8X12 FLANGE 		0-28050-812-0 17 1 0612-0612 ● ● ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 02.343 M8X12 FLANGE 		0-28050-812-0 17 1 0701-0709 ● ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X4(TFS***) 02.343 M8X12 FLANGE 		0-28050-812-0 17 1 0710-0912 ● ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 S PEED-JATCO(RMK) 02.343 M8X12 FLANGE 		0-28050-812-0 17 1 1001- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
