0-12B — CYLINDER BLOCK (#20061) — 67 parça

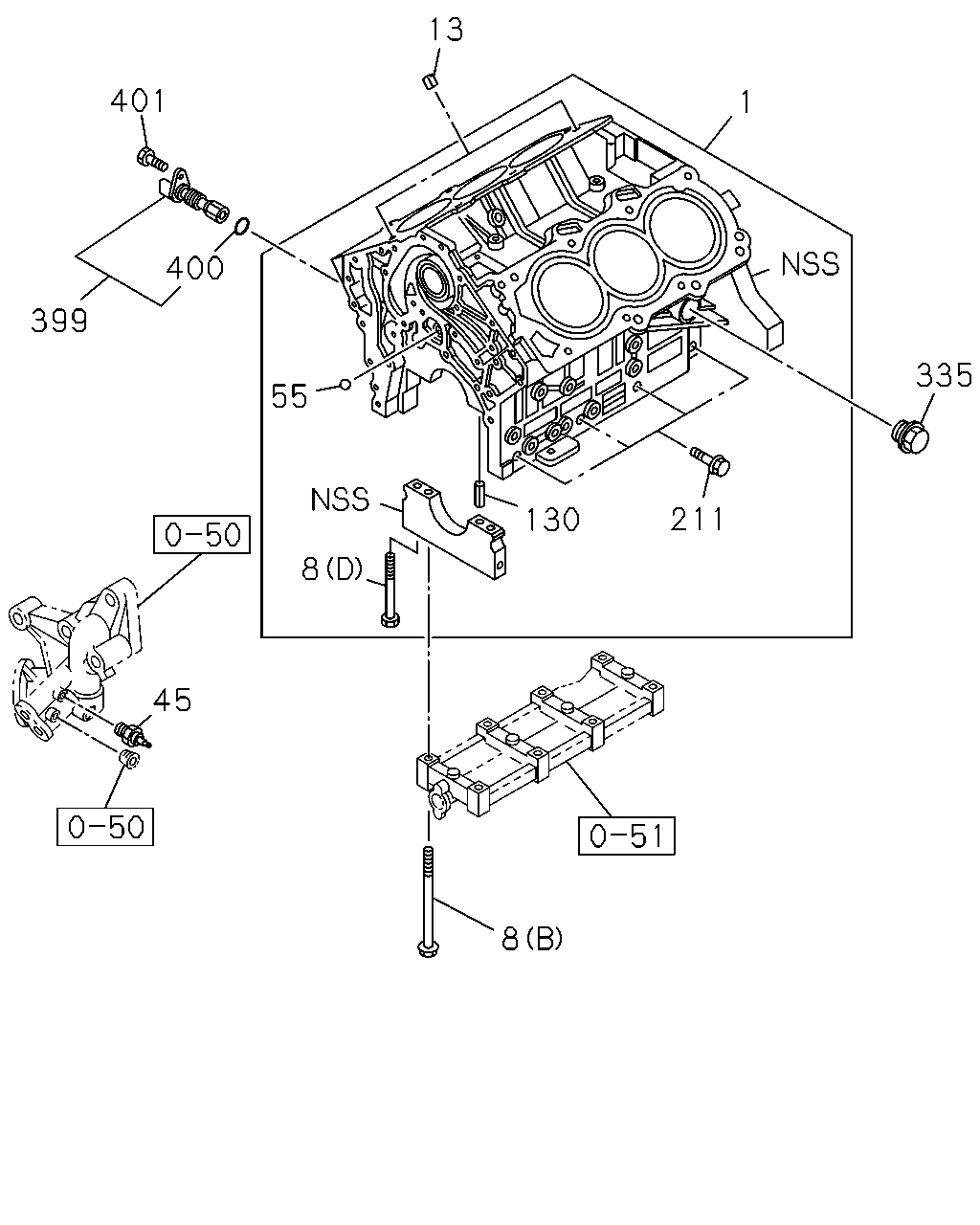

çizim 53867
13 401 1 400 399 335 55 211 130 8 45 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-97193-231-1 01 1 0307-0609 ●
1 00.033 BLOCK ASM; CYL 8-12601-920-0 01 1 0509-0609 ●
1 00.033 BLOCK ASM; CYL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12601-920-0 01 1 0610-0701 ●
1 00.033 BLOCK ASM; CYL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12600-127-0 01 1 0610-0701 ●
1 00.033 BLOCK ASM; CYL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12600-127-0 01 1 0702- ●
8 00.056 BOLT; BRG CAP
(B) M11X143 FLANGE 		8-94363-095-1 08 1 0307-0609 ●
8 00.056 BOLT; BRG CAP
(D) M9X85 FLANGE 		8-94363-224-1 08 1 0307-0609 ●
8 00.056 BOLT; BRG CAP
(C) 		8-11518-861-0 08 1 0509-0609 ●
8 00.056 BOLT; BRG CAP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-11518-861-0 08 1 0610- ●
8 00.056 BOLT; BRG CAP
(E) 		8-11589-000-0 04 1 0509-0609 ●
8 00.056 BOLT; BRG CAP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-11589-000-0 04 1 0610- ●
8 00.056 BOLT; BRG CAP
(A) 		8-11589-001-0 04 1 0509-0609 ●
8 00.056 BOLT; BRG CAP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-11589-001-0 04 1 0610- ●
8 00.056 BOLT; BRG CAP
(C) M10X102 		8-12560-272-0 08 1 0509-0609 ●
8 00.056 BOLT; BRG CAP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M10X102 		8-12560-272-0 08 1 0610- ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 0307-0609 ●
13 00.293 DOWEL; C/BL TO HD 8-12570-326-0 04 1 0509-0609 ●
13 00.293 DOWEL; C/BL TO HD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12570-326-0 04 1 0610- ●
45 01.800 SWITCH; OIL PRESSURE 8-94312-940-0 01 1 0307-0609 ●
55 01.531 PLUG; OIL GALLERY
01.837 3/8" BALL 		9-00097-011-0 01 1 0307-0609 ●
130 00.056 DOWEL; BRG CAP 8-94382-070-0 08 1 0307-0609 ●
211 01.428 BOLT; CRANKCASE
M10X31 FLANGE 		8-94363-094-1 08 1 0307-0609 ●
335 01.531 PLUG; C/BL,SIDE
M28X16 FLANGE 		8-97028-246-2 01 1 0307-0609 ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-97258-523-0 01 1 0307-0609 ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-12582-652-0 01 1 0509-0609 ●
399 00.724 SENSOR; CRANKSHAFT POSITION
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12582-652-0 01 1 0610- ●
400 00.724 GASKET; CRANKSHAFT POSITION SENS 8-97131-356-0 01 1 0307-0609 ●
401 00.724 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0307-0512 ●
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601-0609 ●
401 00.724 BOLT; SENSOR 8-11519-980-0 02 1 0509-0609 ●
401 00.724 BOLT; SENSOR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-980-0 02 1 0610- ●

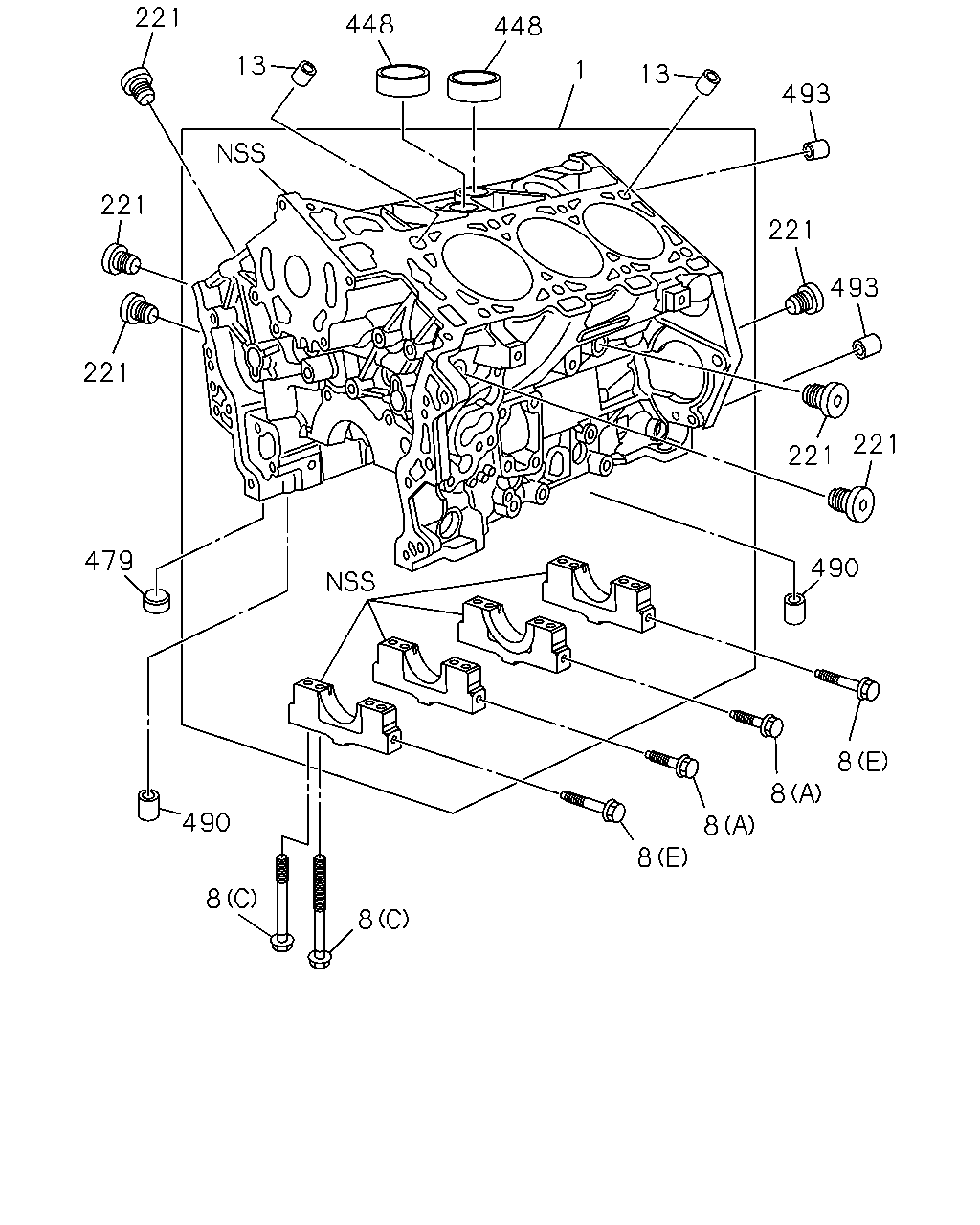

çizim 53904
221 448 448 13 1 13 493 221 221 493 221 221 221 479 490 8 8 490 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-97193-231-1 01 1 0307-0609 ●
1 00.033 BLOCK ASM; CYL 8-12601-920-0 01 1 0509-0609 ●
1 00.033 BLOCK ASM; CYL
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12601-920-0 01 1 0610-0701 ●
1 00.033 BLOCK ASM; CYL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12600-127-0 01 1 0610-0701 ●
1 00.033 BLOCK ASM; CYL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12600-127-0 01 1 0702- ●
8 00.056 BOLT; BRG CAP
(B) M11X143 FLANGE 		8-94363-095-1 08 1 0307-0609 ●
8 00.056 BOLT; BRG CAP
(D) M9X85 FLANGE 		8-94363-224-1 08 1 0307-0609 ●
8 00.056 BOLT; BRG CAP
(C) 		8-11518-861-0 08 1 0509-0609 ●
8 00.056 BOLT; BRG CAP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) 		8-11518-861-0 08 1 0610- ●
8 00.056 BOLT; BRG CAP
(E) 		8-11589-000-0 04 1 0509-0609 ●
8 00.056 BOLT; BRG CAP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-11589-000-0 04 1 0610- ●
8 00.056 BOLT; BRG CAP
(A) 		8-11589-001-0 04 1 0509-0609 ●
8 00.056 BOLT; BRG CAP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-11589-001-0 04 1 0610- ●
8 00.056 BOLT; BRG CAP
(C) M10X102 		8-12560-272-0 08 1 0509-0609 ●
8 00.056 BOLT; BRG CAP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M10X102 		8-12560-272-0 08 1 0610- ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 0307-0609 ●
13 00.293 DOWEL; C/BL TO HD 8-12570-326-0 04 1 0509-0609 ●
13 00.293 DOWEL; C/BL TO HD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12570-326-0 04 1 0610- ●
221 01.531 PLUG; OIL GALLERY 8-11561-583-0 10 1 0509-0609 ●
221 01.531 PLUG; OIL GALLERY
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11561-583-0 10 1 0610- ●
448 00.034 PLUG; C/BL 8-11569-584-0 02 1 0509-0609 ●
448 00.034 PLUG; C/BL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11569-584-0 02 1 0610- ●
479 01.456 PLUG; HOLE,OIL LEVEL GAUGE
01.531 		8-12557-520-0 01 1 0509-0609 ●
490 00.293 DOWEL; C/BL TO OIL PAN 8-22531-637-0 04 1 0509-0609 ●
490 00.293 DOWEL; C/BL TO OIL PAN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-22531-637-0 04 1 0610- ●
493 00.293 DOWEL 8-12597-210-0 02 1 0509-0609 ●
493 00.293 DOWEL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12597-210-0 02 1 0610- ●

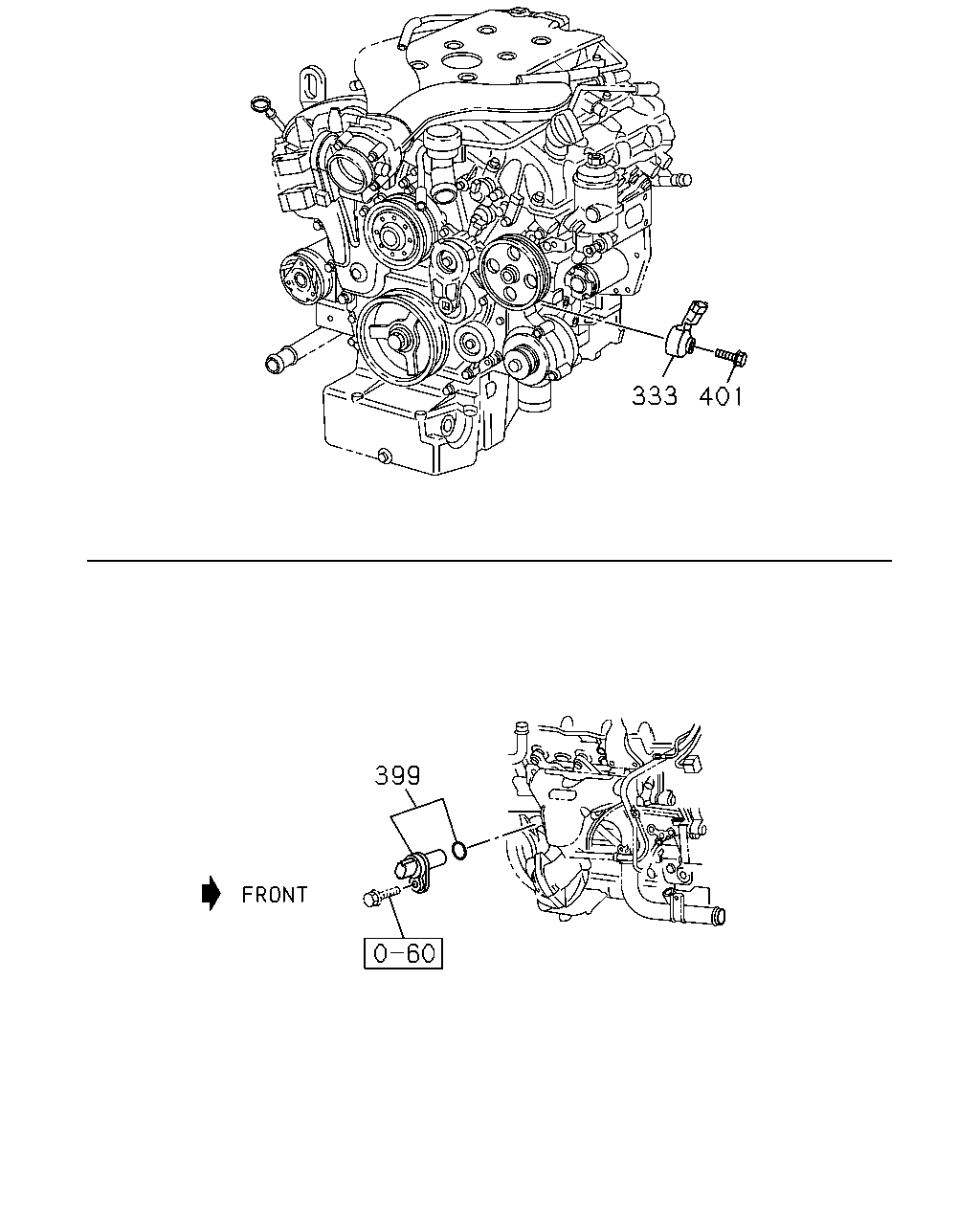

çizim 54599
333 401 399
BalonParca AdiParca NoAdetTipApplied Date A B
333 03.682 SENSOR; KNOCK 8-12566-845-0 02 1 0509-0609 ●
333 03.682 SENSOR; KNOCK
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-845-0 02 1 0610- ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-97258-523-0 01 1 0307-0609 ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-12582-652-0 01 1 0509-0609 ●
399 00.724 SENSOR; CRANKSHAFT POSITION
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12582-652-0 01 1 0610- ●
401 00.724 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0307-0512 ●
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601-0609 ●
401 00.724 BOLT; SENSOR 8-11519-980-0 02 1 0509-0609 ●
401 00.724 BOLT; SENSOR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-980-0 02 1 0610- ●
