Sayfa 0-12A - Isuzu EPC

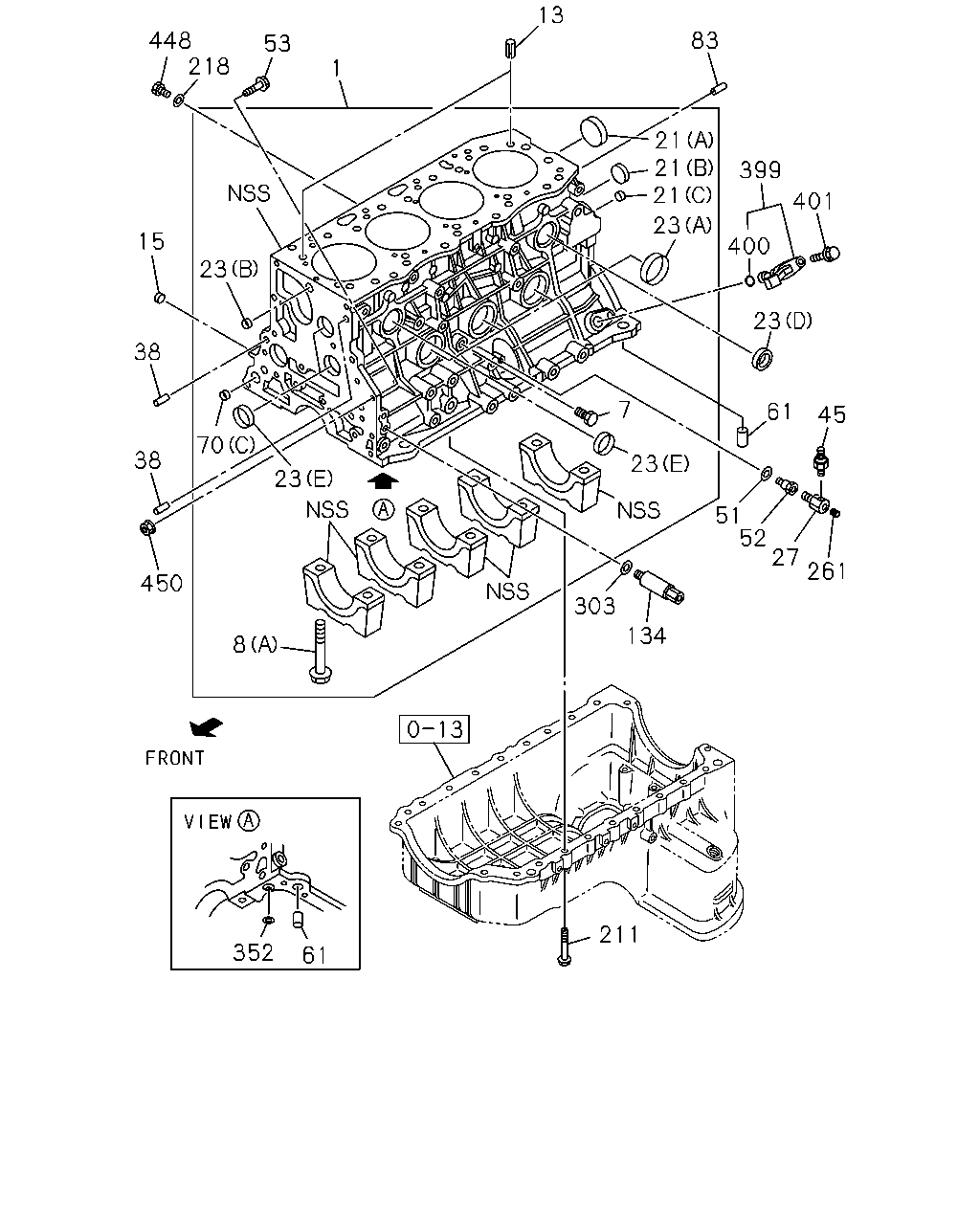

0-12A — CYLINDER BLOCK (#20060) — 393 parça

23 23 1 13 21 21 22 40 4 70 50 150 23 23 15 61 25 25 25 113 51 70 52 7 63 17 2 17 51 52 4 8 27 261 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0307-0310	●	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	0311-0609	●	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	0610-		●
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0307-0609			●
1	00.033 BLOCK ASM; CYL	8-98013-824-0	01	1	0610-0612				●	●	●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-0	01	1	0701-0912				●		●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	1001-				●	●	●	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-401-2	04	1	0307-		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-402-2	04	1	0307-		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-403-2	04	1	0307-		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-404-2	04	1	0307-		●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-132-1	04	1	0307-0609	●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-133-1	04	1	0307-0609	●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-134-1	04	1	0307-0609	●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-135-1	04	1	0307-0609	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-090-2	04	1	0307-0609			●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-091-2	04	1	0307-0609			●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-092-2	04	1	0307-0609			●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-093-2	04	1	0307-0609			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	0307-0609	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	0610-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	0307-0609	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	0610-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	0307-0609	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	0610-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	0307-0609	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	0610-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	0307-0609	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	0610-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	0307-0609	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	0610-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	0307-0609	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	0610-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	0307-0609	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	0610-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0307-0609			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0307-0609			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0307-0609			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0307-0609			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0307-0609			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0307-0609			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0307-0609			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0307-0609			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0307-0609	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0610-0612		●		●	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0701-0912		●		●		●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1001-		●		●	●	●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0307-0609	●	●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0610-0612		●		●	●	●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0701-0912		●		●		●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	1001-		●		●	●	●	●
8	00.056 BOLT; BRG CAP (C)	8-90502-412-0	10	1	0307-								●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0307-0609	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-0612		●		●	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0701-0912		●		●		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1001-		●		●	●	●	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0307-								●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0307-0609	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0610-		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0610-0612				●	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0701-0912				●		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1001-				●	●	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	0307-0609	●	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	0610-		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0307-0609	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0610-0612		●		●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0701-0912		●		●		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1001-		●		●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0307-0609	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0610-0612		●		●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0701-0912		●		●		●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1001-		●		●	●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0610-0612				●	●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0701-0912				●		●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1001-				●	●	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0307-0609	●	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0307-0609	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0307-0609	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0307-0609	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0610-0612		●		●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0701-0912		●		●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1001-		●		●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=32	5-11219-015-0	02	1	0307-0609			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=32	5-11219-015-0	04	1	0610-0612				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=32	5-11219-015-0	04	1	0701-0912				●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=32	5-11219-015-0	04	1	1001-				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-0612				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0701-0912				●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1001-				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0610-0612				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0701-0912				●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1001-				●	●	●	●
25	00.539 METAL; CM/SHF (B)	8-94427-201-2	02	1	0307-0411	●	●	●
25	00.539 METAL; CM/SHF (B)	8-97378-147-0	02	1	0412-0609	●	●	●
25	00.539 METAL; CM/SHF (B)	8-97378-147-0	02	1	0610-		●
25	00.539 METAL; CM/SHF (A)	8-94427-206-2	01	1	0307-0411	●	●	●
25	00.539 METAL; CM/SHF (A)	8-97378-148-0	01	1	0412-0609	●	●	●
25	00.539 METAL; CM/SHF (A)	8-97378-148-0	01	1	0610-		●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0307-0502		●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0503-0609		●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0610-0612		●		●	●	●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0701-0912		●		●		●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	1001-		●		●	●	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0307-0609	●	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0610-		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0307-0609	●	●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0610-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94336-292-0	01	1	0307-0609	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) .	8-94336-292-0	01	1	0610-0611		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94336-292-0	01	1	0610-0611					●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B .	8-94336-292-0	01	1	0612-0709		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94336-292-0	01	1	0612-0709				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B .	8-94336-292-0	01	1	0710-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94336-292-0	01	1	0710-				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B	8-97912-498-0	01	1	0610-0611				●	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-97912-498-0	01	1	0612-0612				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B	8-97912-498-0	01	1	0612-0612					●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-97912-498-0	01	1	0701-0912				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B	8-97912-498-0	01	1	0701-0912						●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1) .	8-97912-498-0	01	1	1001-				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97912-498-0	01	1	1001-					●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0307-0609	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-94167-750-2	01	1	0610-0611		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3>	8-94167-750-2	01	1	0610-0611					●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0612-0709		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1)	8-94167-750-2	01	1	0612-0709				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0710-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1)	8-94167-750-2	01	1	0710-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0610-0611				●	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-97943-174-0	01	1	0612-0612				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0612-0612					●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-97943-174-0	01	1	0701-0703				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0701-0703						●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-98084-434-0	01	1	0704-0912				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0704-0912						●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-98084-434-0	01	1	1001-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	1001-					●	●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0307-0609	●	●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0610-		●
53	00.862 BOLT; REAMER M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M10X40 L=75.5	8-97371-842-1	01	1	0610-0709				●	●	●	●
53	00.862 BOLT; REAMER M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M10X40 L=75.5	8-97371-842-1	01	1	0710-0912				●		●	●
53	00.862 BOLT; REAMER M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M10X40 L=75.5	8-97371-842-1	01	1	1001-				●	●	●	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0307-0609	●	●	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0610-		●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0610-0611				●	●	●	●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	0612-0612				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0612-0612					●	●	●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	0701-0912				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0701-0912						●	●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	1001-				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1001-					●	●	●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0610-0611					●		●
61	00.206 PIN; STRAIGHT KENYA EQUIPMENT(CL1) 01.428 L=31	9-09878-597-0	02	1	0612-				●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	0307-0609	●	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	0610-		●
63	01.153 DUCT; WATER,C/BL	8-94456-794-3	01	1	0307-0609			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0307-0609	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0610-		●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0307-								●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0307-1009								●
70	00.034 CUP; SEALING,FRT & RR AUSTRALIA EQUIPMENT(B13) (B) OD=36	8-11070-803-0	07	1	1010-								●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0610-0612				●	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0701-0912				●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	1001-				●	●	●	●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	0307-0310	●	●	●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	0311-0609			●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	04	1	0307-0512	●		●
150	02.313 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0601-0609	●		●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0307-0609		●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0610-0612		●		●	●	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0701-0912		●		●		●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	1001-		●		●	●	●	●

13 448 218 83 53 1 21 21 21 399 401 23 15 400 23 23 38 7 61 45 70 38 23 23 51 52 27 261 450 303 134 8 211 352 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0307-0310	●	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	0311-0609	●	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	0610-		●
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0307-0609			●
1	00.033 BLOCK ASM; CYL	8-98013-824-0	01	1	0610-0612				●	●	●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-0	01	1	0701-0912				●		●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	1001-				●	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0307-0609	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0610-0612		●		●	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0701-0912		●		●		●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1001-		●		●	●	●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0307-0609	●	●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0610-0612		●		●	●	●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0701-0912		●		●		●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	1001-		●		●	●	●	●
8	00.056 BOLT; BRG CAP (C)	8-90502-412-0	10	1	0307-								●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0307-0609	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-0612		●		●	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0701-0912		●		●		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1001-		●		●	●	●	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0307-								●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0307-0609	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0610-		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0610-0612				●	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0701-0912				●		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1001-				●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0307-0609	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0610-0612		●		●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0701-0912		●		●		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1001-		●		●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0307-0609	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0610-0612		●		●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0701-0912		●		●		●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1001-		●		●	●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0610-0612				●	●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0701-0912				●		●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1001-				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0307-0609	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0307-0609	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0307-0609	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0610-0612		●		●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0701-0912		●		●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1001-		●		●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=32	5-11219-015-0	02	1	0307-0609			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=32	5-11219-015-0	04	1	0610-0612				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=32	5-11219-015-0	04	1	0701-0912				●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=32	5-11219-015-0	04	1	1001-				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-0612				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0701-0912				●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1001-				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0610-0612				●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0701-0912				●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1001-				●	●	●	●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0307-0502		●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0503-0609		●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0610-0612		●		●	●	●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0701-0912		●		●		●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	1001-		●		●	●	●	●
38	00.206 PIN; TIMING GEAR CASE KENYA EQUIPMENT(CL1) 04.510 OD=10 L=20	8-97135-423-0	02	1	0612-				●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	0610-0611				●	●	●	●
38	00.206 PIN; TIMING GEAR CASE EXC. KENYA EQUIPMENT(CL1) 00.669 OD=10 L=20	9-08151-020-0	02	1	0612-0612				●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	0612-0612					●	●	●
38	00.206 PIN; TIMING GEAR CASE EXC. KENYA EQUIPMENT(CL1) 00.669 OD=10 L=20	9-08151-020-0	02	1	0701-0912				●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	0701-0912						●	●
38	00.206 PIN; TIMING GEAR CASE EXC. KENYA EQUIPMENT(CL1) 00.669 OD=10 L=20	9-08151-020-0	02	1	1001-				●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	1001-					●	●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0610-0612				●	●	●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0701-0912				●		●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1001-				●	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94336-292-0	01	1	0307-0609	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) .	8-94336-292-0	01	1	0610-0611		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94336-292-0	01	1	0610-0611					●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B .	8-94336-292-0	01	1	0612-0709		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94336-292-0	01	1	0612-0709				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B .	8-94336-292-0	01	1	0710-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94336-292-0	01	1	0710-				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B	8-97912-498-0	01	1	0610-0611				●	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-97912-498-0	01	1	0612-0612				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B	8-97912-498-0	01	1	0612-0612					●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-97912-498-0	01	1	0701-0912				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B	8-97912-498-0	01	1	0701-0912						●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1) .	8-97912-498-0	01	1	1001-				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97912-498-0	01	1	1001-					●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0307-0609	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-94167-750-2	01	1	0610-0611		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3>	8-94167-750-2	01	1	0610-0611					●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0612-0709		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1)	8-94167-750-2	01	1	0612-0709				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0710-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B KENYA EQUIPMENT(CL1)	8-94167-750-2	01	1	0710-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0610-0611				●	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-97943-174-0	01	1	0612-0612				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0612-0612					●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-97943-174-0	01	1	0701-0703				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0701-0703						●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-98084-434-0	01	1	0704-0912				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0704-0912						●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. KENYA EQUIPMENT(CL1)	8-98084-434-0	01	1	1001-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	1001-					●	●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0307-0609	●	●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0610-		●
53	00.862 BOLT; REAMER M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M10X40 L=75.5	8-97371-842-1	01	1	0610-0709				●	●	●	●
53	00.862 BOLT; REAMER M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M10X40 L=75.5	8-97371-842-1	01	1	0710-0912				●		●	●
53	00.862 BOLT; REAMER M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M10X40 L=75.5	8-97371-842-1	01	1	1001-				●	●	●	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0307-0609	●	●	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0610-		●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0610-0611				●	●	●	●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	0612-0612				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0612-0612					●	●	●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	0701-0912				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0701-0912						●	●
61	00.206 PIN; STRAIGHT EXC. KENYA EQUIPMENT(CL1) 01.453 L=31	8-97920-964-1	02	1	1001-				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1001-					●	●	●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0610-0611					●		●
61	00.206 PIN; STRAIGHT KENYA EQUIPMENT(CL1) 01.428 L=31	9-09878-597-0	02	1	0612-				●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0307-0609	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0610-		●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0307-								●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0307-1009								●
70	00.034 CUP; SEALING,FRT & RR AUSTRALIA EQUIPMENT(B13) (B) OD=36	8-11070-803-0	07	1	1010-								●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0610-0612				●	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0701-0912				●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	1001-				●	●	●	●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 08.939 OD=10 L=32	9-08161-032-0	01	1	0610-0709				●	●	●	●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 08.939 OD=10 L=32	9-08161-032-0	01	1	0710-0912				●		●	●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 08.939 OD=10 L=32	9-08161-032-0	01	1	1001-				●	●	●	●
134	01.531 PLUG; OIL PUMP	8-97316-983-3	01	1	0610-0612				●	●	●	●
134	01.531 PLUG; OIL PUMP	8-97316-983-4	01	1	0701-0912				●		●	●
134	01.531 PLUG; OIL PUMP	8-97316-983-4	01	1	1001-				●	●	●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	0610-0612				●	●	●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	0701-0912				●		●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	1001-				●	●	●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	0610-0612				●	●	●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	0701-0912				●		●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1001-				●	●	●	●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	0610-0612				●	●	●	●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	0701-0912				●		●	●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	1001-				●	●	●	●
218	01.531 GASKET; PLUG,C/BL SIDE 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-0612				●	●	●	●
218	01.531 GASKET; PLUG,C/BL SIDE 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0701-0912				●		●	●
218	01.531 GASKET; PLUG,C/BL SIDE 08.955 ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) .	9-09571-414-0	01	1	1001-				●	●	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0307-0609		●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0610-0612		●		●	●	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0701-0912		●		●		●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	1001-		●		●	●	●	●
303	01.531 GASKET; PLUG 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0610-0612				●	●	●	●
303	01.531 GASKET; PLUG 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0701-0912				●		●	●
303	01.531 GASKET; PLUG 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1001-				●	●	●	●
352	01.429 GASKET; C/BL TO CRANKCASE	9-09566-116-0	01	1	0610-0612				●	●	●	●
352	01.429 GASKET; C/BL TO CRANKCASE	9-09566-116-0	01	1	0701-0912				●		●	●
352	01.429 GASKET; C/BL TO CRANKCASE	9-09566-116-0	01	1	1001-				●	●	●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0610-0612				●	●	●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0701-0912				●		●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	1001-				●	●	●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0610-0612				●	●	●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0701-0912				●		●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	1001-				●	●	●	●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	0307-								●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0610-0612				●	●	●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0701-0912				●		●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1001-				●	●	●	●
448	00.034 PLUG; C/BL	8-97379-656-0	01	1	0610-0611				●	●	●	●
448	00.034 PLUG; C/BL EXC. KENYA EQUIPMENT(CL1)	8-97379-656-0	01	1	0612-0612				●
448	00.034 PLUG; C/BL	8-97379-656-0	01	1	0612-0612					●	●	●
448	00.034 PLUG; C/BL EXC. KENYA EQUIPMENT(CL1)	8-97379-656-1	01	1	0701-0912				●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	0701-0912						●	●
448	00.034 PLUG; C/BL EXC. KENYA EQUIPMENT(CL1)	8-97379-656-1	01	1	1001-				●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	1001-					●	●	●
448	00.034 PLUG; C/BL 03.001 M14X14	8-94152-613-0	01	1	0610-0611					●		●
448	00.034 PLUG; C/BL KENYA EQUIPMENT(CL1) 03.001 M14X14	8-94152-613-0	01	1	0612-				●
450	01.535 NUT; REAMER BOLT M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-0611				●	●	●	●
450	01.535 NUT; REAMER BOLT A/T 4 SPEED-JATCO(RMK) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-0612				●
450	01.535 NUT; REAMER BOLT M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-0612				●
450	01.535 NUT; REAMER BOLT 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-0612					●	●	●
450	01.535 NUT; REAMER BOLT A/T 4 SPEED-JATCO(RMK) 03.162 M10 FLANGE	0-91180-110-0	01	1	0701-0709				●
450	01.535 NUT; REAMER BOLT M/T MUA 5 SPEED 5H(MWQ) EXC. KENYA EQUIPMENT(CL1) 03.162 M10 FLANGE	0-91180-110-0	01	1	0701-0709				●
450	01.535 NUT; REAMER BOLT 03.162 M10 FLANGE	0-91180-110-0	01	1	0701-0709						●	●
450	01.535 NUT; REAMER BOLT M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-0912				●
450	01.535 NUT; REAMER BOLT M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-0912						●	●
450	01.535 NUT; REAMER BOLT M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. KENYA EQUIPMENT(CL1) 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-				●
450	01.535 NUT; REAMER BOLT M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD) 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-					●	●	●
450	01.535 NUT; REAMER BOLT M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> 04.085 M10 FLANGE	0-91180-210-0	01	1	0611-0611					●
450	01.535 NUT; REAMER BOLT A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> POWER STEERING<N40> 04.085 M10 FLANGE	0-91180-210-0	01	1	0611-0611							●
450	01.535 NUT; REAMER BOLT KENYA EQUIPMENT(CL1) 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-				●

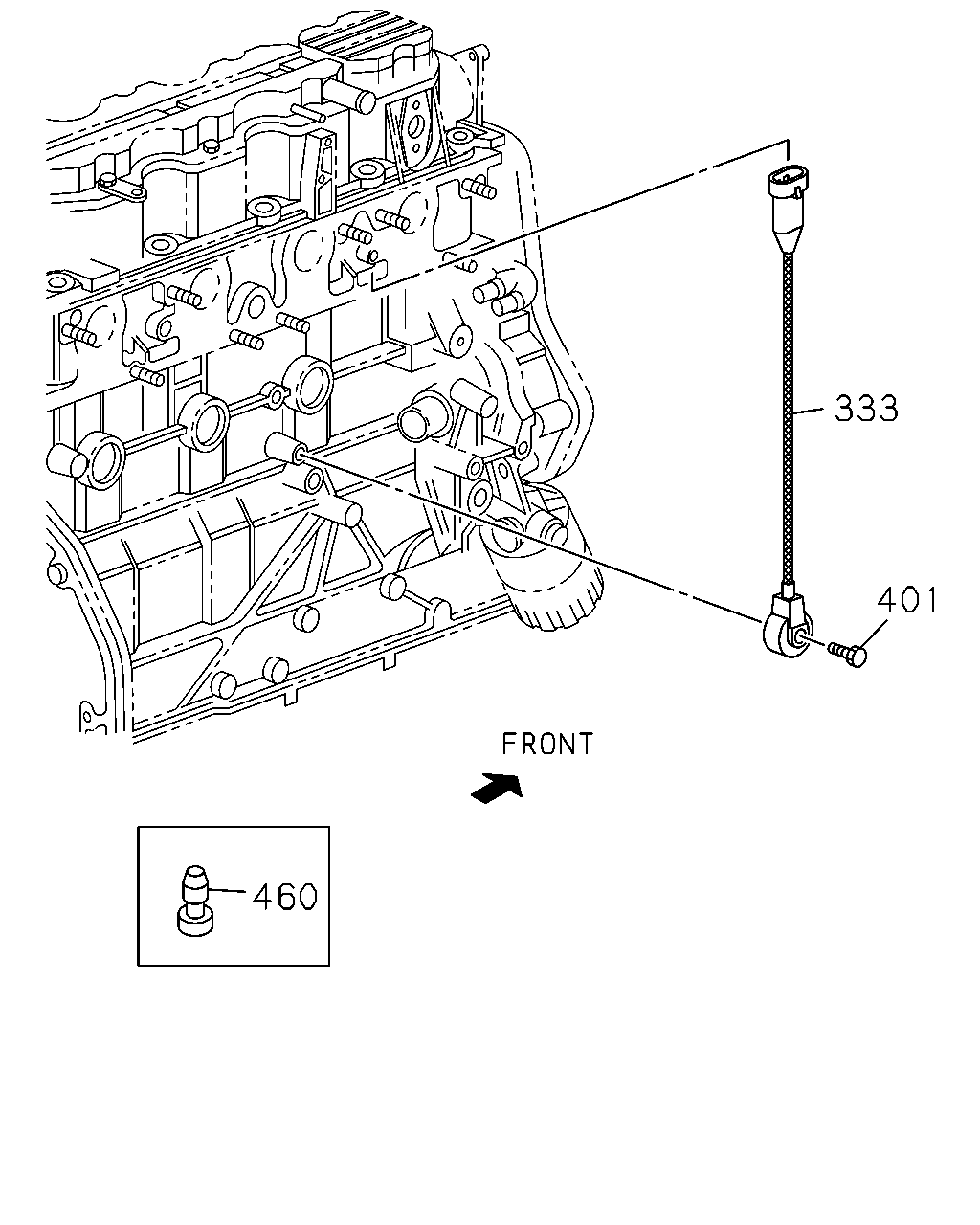

333 401 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F	G	H
333	03.682 SENSOR; KNOCK	8-10456-669-0	01	1	0307-					●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	0307-					●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0610-0612	●	●	●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0701-0912	●		●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1001-	●	●	●	●
460	00.034 SEAL; CYL BLOCK	8-97163-071-0	01	1	0307-					●

13 221 13 93 221 221 403 70 93 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0307-0609	●	●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0610-0612		●		●	●	●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0701-0912		●		●		●	●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	1001-		●		●	●	●	●
8	00.056 BOLT; BRG CAP (C)	8-90502-412-0	10	1	0307-								●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0307-0609	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-0612		●		●	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0701-0912		●		●		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1001-		●		●	●	●	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0307-								●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0307-0609	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0610-		●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0307-								●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0307-1009								●
70	00.034 CUP; SEALING,FRT & RR AUSTRALIA EQUIPMENT(B13) (B) OD=36	8-11070-803-0	07	1	1010-								●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0610-0612				●	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0701-0912				●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	1001-				●	●	●	●
93	00.206 DOWEL; RET TO C/BL EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-90096-047-0	02	1	1010-								●
93	00.206 DOWEL; RET TO C/BL EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-90351-708-0	02	1	1010-								●
93	00.206 DOWEL; RET TO C/BL (A)	8-90108-591-0	02	1	0307-1009								●
93	00.206 DOWEL; RET TO C/BL AUSTRALIA EQUIPMENT(B13) (A)	8-90108-591-0	02	1	1010-								●
93	00.206 DOWEL; RET TO C/BL 01.609 (B)	8-90351-709-0	02	1	0307-1009								●
93	00.206 DOWEL; RET TO C/BL AUSTRALIA EQUIPMENT(B13) 01.609 (B)	8-90351-709-0	02	1	1010-								●
221	01.531 PLUG; OIL GALLERY	8-11056-321-0	04	1	0307-								●
403	01.519 GUIDE; GALLERY	8-90501-712-0	01	1	0307-								●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
