0-11B — CYLINDER HEAD (#20059) — 82 parça

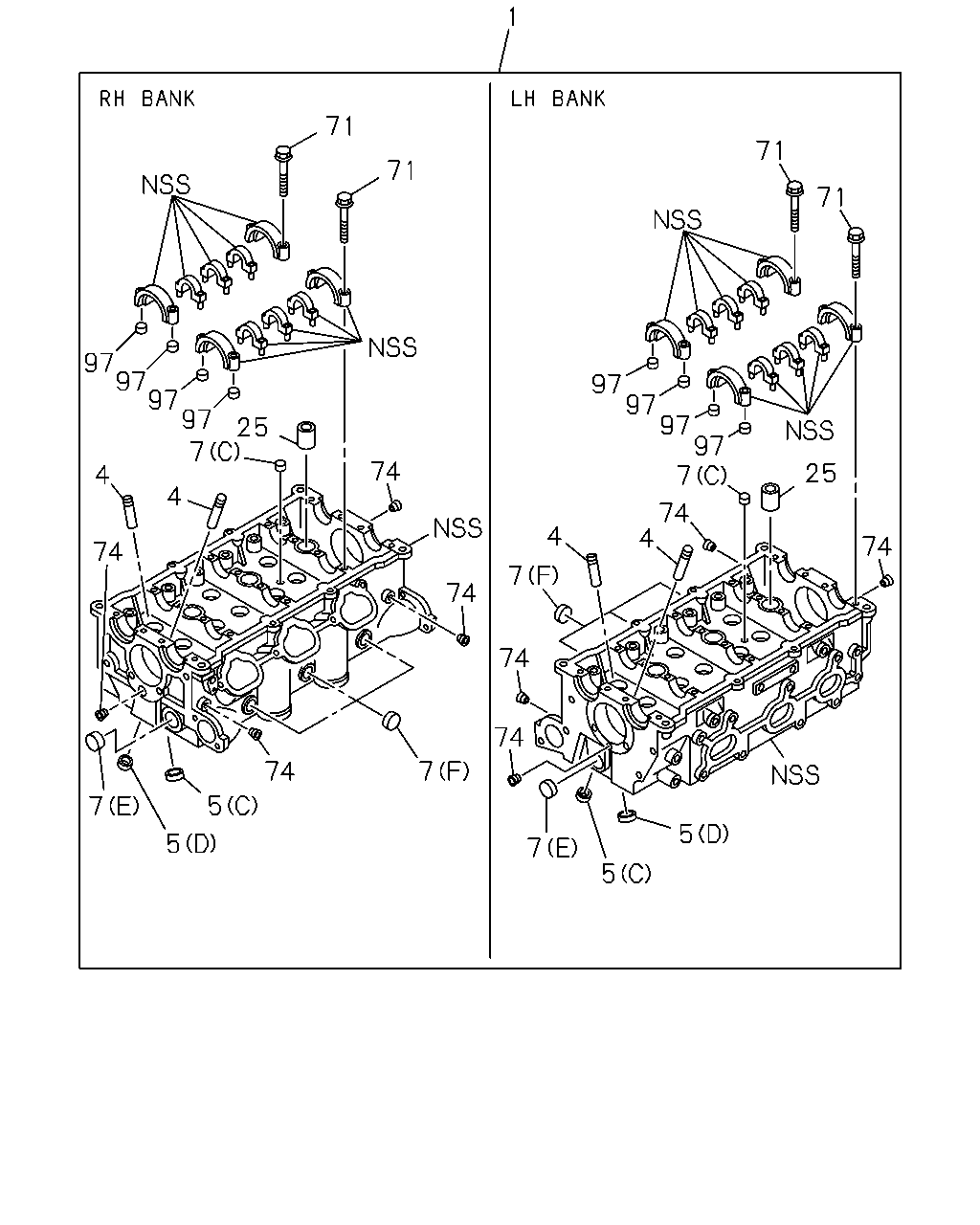

çizim 13897
1 71 71 71 71 97 97 97 97 25 7 97 97 97 97 7 74 25 4 4 74 4 4 74 74 7 74 74 74 7 74 5 7 5 5 7 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0307-0609 ●
1 00.269 HEAD ASM; CYL 8-12607-598-0 01 1 0509-0609 ●
1 00.269 HEAD ASM; CYL 8-12607-599-0 01 1 0509-0609 ●
1 00.269 HEAD ASM; CYL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12607-598-0 01 1 0610- ●
1 00.269 HEAD ASM; CYL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12607-599-0 01 1 0610- ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 0307-0609 ●
5 00.253 SEAT; VLV INSERT
(D) INLET 		8-97131-854-1 12 1 0307-0609 ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST 		8-97131-855-1 12 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 04 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=28 		5-11219-014-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (F) OD=36 		5-11219-018-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=54 		8-97136-590-0 02 1 0307-0609 ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 0307-0609 ●
25 00.293 PLUG; CYL HD 8-12565-988-0 04 1 0509-0609 ●
25 00.293 PLUG; CYL HD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12565-988-0 04 1 0610- ●
71 00.413 BOLT; CAM BRKT
M6X40 FLANGE 		0-28690-640-0 40 1 0307-0609 ●
71 00.413 BOLT; CAM BRKT 8-11518-856-0 32 1 0509-0609 ●
71 00.413 BOLT; CAM BRKT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11518-856-0 32 1 0610- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 0307-0609 ●
74 01.531 PLUG; OIL GALLERY 8-12566-290-0 04 1 0509-0609 ●
74 01.531 PLUG; OIL GALLERY
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-290-0 04 1 0610- ●
97 00.349 DOWEL; CAM BRKT SET 8-97014-295-1 24 1 0307-0609 ●

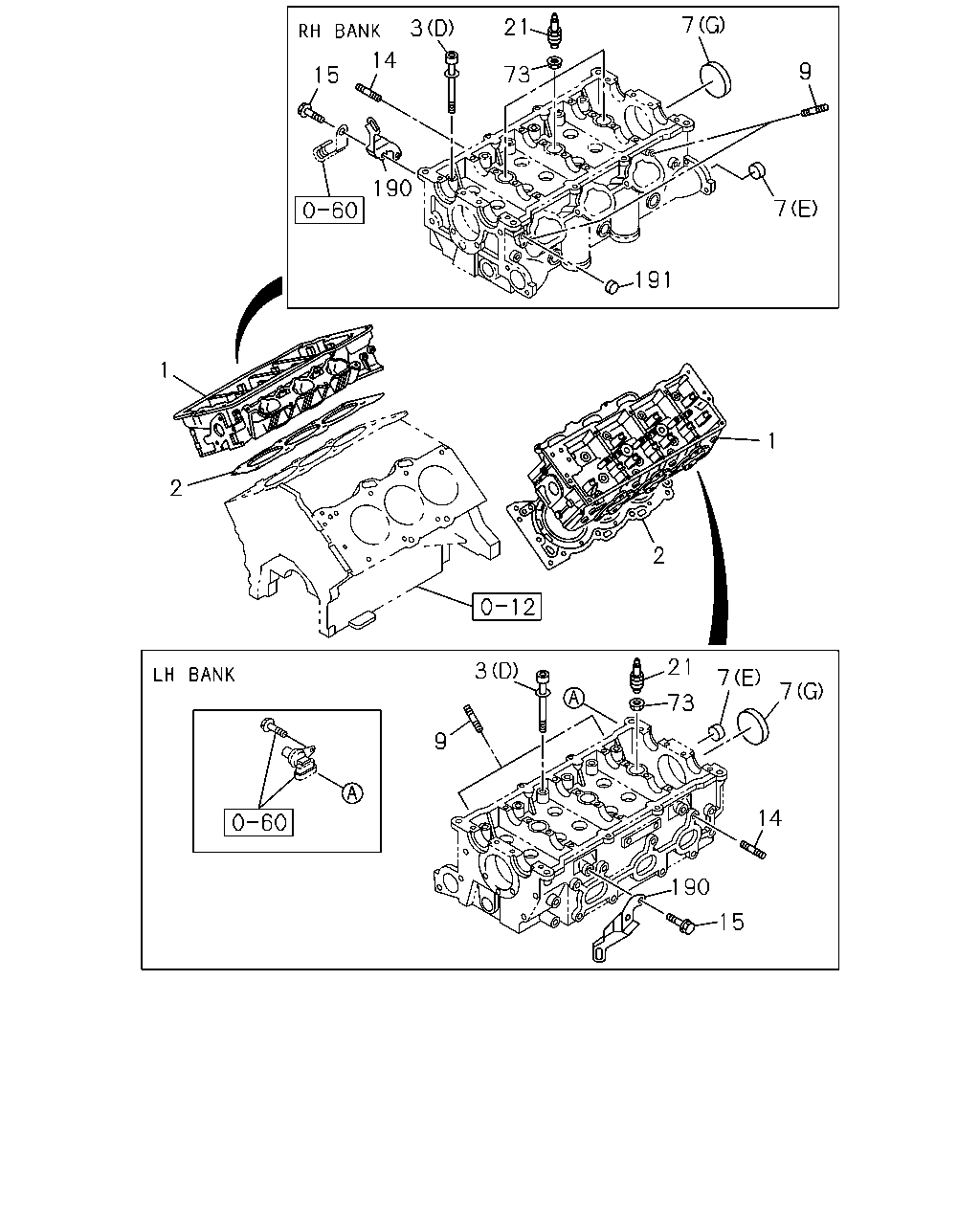

çizim 53866
7 21 3 14 9 73 15 190 7 191 1 1 2 2 21 3 7 7 73 9 14 190 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0307-0609 ●
1 00.269 HEAD ASM; CYL 8-12607-598-0 01 1 0509-0609 ●
1 00.269 HEAD ASM; CYL 8-12607-599-0 01 1 0509-0609 ●
1 00.269 HEAD ASM; CYL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12607-598-0 01 1 0610- ●
1 00.269 HEAD ASM; CYL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12607-599-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-096-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-094-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-12590-735-0 01 1 0509-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12590-735-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-12590-736-0 01 1 0509-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12590-736-0 01 1 0610- ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X155 		8-97011-998-2 16 1 0307-0609 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) 		8-11518-863-0 16 1 0509-0609 ●
3 00.293 BOLT; CYL HD TO BLOCK
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-11518-863-0 16 1 0610- ●
3 00.293 BOLT; CYL HD TO BLOCK
09.181 (B) 		8-11588-734-0 03 1 0509-0609 ●
3 00.293 BOLT; CYL HD TO BLOCK
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 09.181 (B) 		8-11588-734-0 03 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 04 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=28 		5-11219-014-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (F) OD=36 		5-11219-018-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=54 		8-97136-590-0 02 1 0307-0609 ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 0307-0609 ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 0307-0609 ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0307-0512 ●
15 00.004 BOLT; HANGER,FRT
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0601-0609 ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 0307-0609 ●
21 02.270 PLUG; SPARK 8-92067-204-0 06 1 0509-0609 ●
21 02.270 PLUG; SPARK
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-204-0 06 1 0610- ●
73 00.293 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97136-173-0 06 1 0307-0609 ●
190 00.004 HANGER; ENG 8-97288-729-0 02 1 0307-0609 ●
191 00.293 CAP; BLIND 8-97167-998-0 01 1 0307-0609 ●

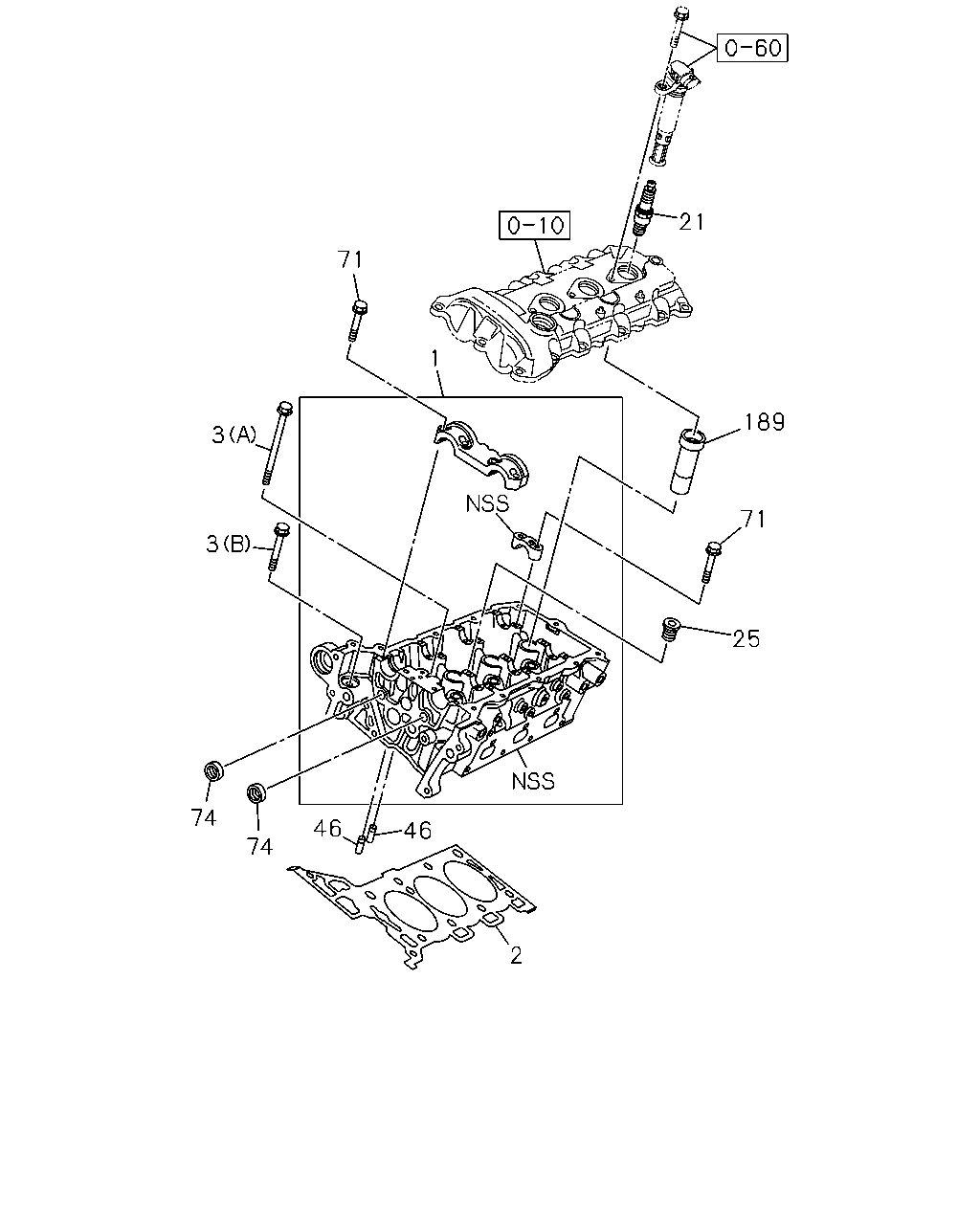

çizim 56777
21 71 1 189 3 71 3 25 74 46 46 74 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0307-0609 ●
1 00.269 HEAD ASM; CYL 8-12607-598-0 01 1 0509-0609 ●
1 00.269 HEAD ASM; CYL 8-12607-599-0 01 1 0509-0609 ●
1 00.269 HEAD ASM; CYL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12607-598-0 01 1 0610- ●
1 00.269 HEAD ASM; CYL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12607-599-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-096-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-094-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-12590-735-0 01 1 0509-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12590-735-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-12590-736-0 01 1 0509-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12590-736-0 01 1 0610- ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X155 		8-97011-998-2 16 1 0307-0609 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) 		8-11518-863-0 16 1 0509-0609 ●
3 00.293 BOLT; CYL HD TO BLOCK
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-11518-863-0 16 1 0610- ●
3 00.293 BOLT; CYL HD TO BLOCK
09.181 (B) 		8-11588-734-0 03 1 0509-0609 ●
3 00.293 BOLT; CYL HD TO BLOCK
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 09.181 (B) 		8-11588-734-0 03 1 0610- ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 0307-0609 ●
21 02.270 PLUG; SPARK 8-92067-204-0 06 1 0509-0609 ●
21 02.270 PLUG; SPARK
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-204-0 06 1 0610- ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 0307-0609 ●
25 00.293 PLUG; CYL HD 8-12565-988-0 04 1 0509-0609 ●
25 00.293 PLUG; CYL HD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12565-988-0 04 1 0610- ●
46 00.293 VALVE; OIL CHECK,CYL HD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12580-965-0 04 1 0610- ●
71 00.413 BOLT; CAM BRKT
M6X40 FLANGE 		0-28690-640-0 40 1 0307-0609 ●
71 00.413 BOLT; CAM BRKT 8-11518-856-0 32 1 0509-0609 ●
71 00.413 BOLT; CAM BRKT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11518-856-0 32 1 0610- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 0307-0609 ●
74 01.531 PLUG; OIL GALLERY 8-12566-290-0 04 1 0509-0609 ●
74 01.531 PLUG; OIL GALLERY
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-290-0 04 1 0610- ●
189 02.251 SLEEVE; SPARK PLUG
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12578-361-0 06 1 0610- ●
