◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11A - CYLINDER HEAD ▶
0-11A — CYLINDER HEAD (#20058) — 659 parça

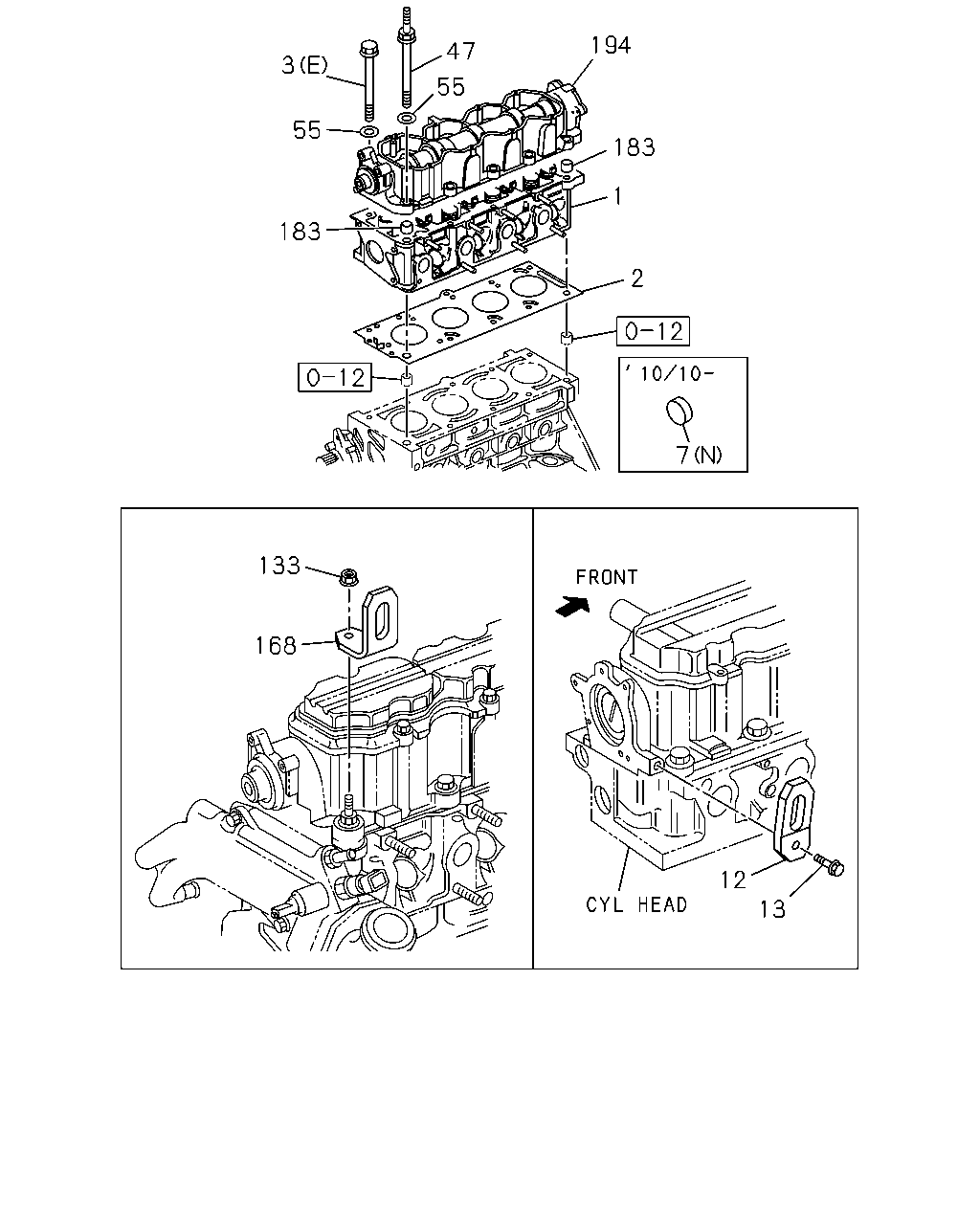

çizim 12728
194 47 3 55 55 183 1 183 2 7 133 168 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ● ● ● ●
1 00.269 HEAD ASM; CYL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0307- ●
1 00.269 HEAD ASM; CYL 8-97289-430-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97255-100-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EURO3 SPECIFICATION<NT3> 		8-97361-245-1 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0610-0612 ● ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0701-0912 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1001-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0307-1009 ●
1 00.269 HEAD ASM; CYL
AUSTRALIA EQUIPMENT(B13) 		8-92064-601-0 01 1 1010- ●
2 00.289 GASKET; CYL HD
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98135-953-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98135-954-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98135-955-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
T=1.60 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-318-0 01 1 0307-0609 ● ●
2 00.289 GASKET; CYL HD
T=1.60 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-318-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
T=1.65 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-319-0 01 1 0307-0609 ● ●
2 00.289 GASKET; CYL HD
T=1.65 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-319-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
T=1.70 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-320-0 01 1 0307-0609 ● ●
2 00.289 GASKET; CYL HD
T=1.70 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-320-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
T=1.30 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-601-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
T=1.35 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-602-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
T=1.40 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-603-0 01 1 0307-0508 ●
2 00.289 GASKET; CYL HD
OVER SIZE ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97388-314-0 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
OVER SIZE ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97388-314-0 01 1 0701-0912 ● ● ●
2 00.289 GASKET; CYL HD
OVER SIZE ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97388-314-0 01 1 1001- ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.40 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-603-0 01 1 0509-0609 ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-1 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-2 01 1 0701-0901 ● ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-0912 ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-0912 ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-868-1 01 1 1001- ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-868-1 01 1 1001- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93282-665-0 01 1 0307- ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-1 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-2 01 1 0701-0901 ● ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-0912 ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-0912 ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-867-1 01 1 1001- ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-867-1 01 1 1001- ● ● ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-1 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-2 01 1 0701-0901 ● ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-0912 ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-0912 ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-866-1 01 1 1001- ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-866-1 01 1 1001- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. AUSTRALIA EQUIPMENT(B13) (E) 		8-93294-943-0 07 1 1010- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-97133-416-1 18 1 0307-0609 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-97133-416-1 18 1 0610- ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) 		8-90325-498-0 09 1 0307-1009 ●
3 00.293 BOLT; CYL HD TO BLOCK
AUSTRALIA EQUIPMENT(B13) (E) 		8-90325-498-0 09 1 1010- ●
3 00.293 BOLT; CYL HD TO BLOCK
(F) M11X114 		8-97144-583-1 18 1 0610-0612 ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(F) M11X114 		8-97144-583-2 18 1 0701-0912 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(F) M11X114 		8-97144-583-2 18 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (M) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (N) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0307-0503 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EURO3 SPECIFICATION<NT3> (A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) STD OD=26 		8-11044-142-0 01 1 0307- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30.8 		8-11067-433-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30.8 		8-11067-433-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30 		8-11072-963-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30 		8-11072-963-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OVSI OD=28 		8-11084-312-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (H) OVSI OD=28 		8-11084-312-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 1001- ● ● ● ●
12 00.004 HANGER; ENG,RR
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98099-830-1 01 1 0807- ●
12 00.004 HANGER; ENG,RR
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97019-563-0 01 1 0307-0609 ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0307- ●
13 00.004 BOLT; HANGER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93298-987-0 01 1 1010- ●
13 00.004 BOLT; HANGER
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0807- ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0307-0410 ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0512 ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ●
13 00.004 BOLT; HANGER
03.670 		8-11041-103-0 01 1 0307-1009 ●
13 00.004 BOLT; HANGER
AUSTRALIA EQUIPMENT(B13) 03.670 		8-11041-103-0 01 1 1010- ●
47 00.413 STUD; CYL HD
EXC. AUSTRALIA EQUIPMENT(B13) 		8-10031-214-0 03 1 1010- ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 0307-1009 ●
47 00.413 STUD; CYL HD
AUSTRALIA EQUIPMENT(B13) 		8-92061-632-0 01 1 1010- ●
55 00.004 WASHER; PL,CYL HD TO BLOCK
EXC. AUSTRALIA EQUIPMENT(B13) 		8-90144-297-0 10 1 1010- ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90325-497-0 10 1 0307-1009 ●
55 00.004 WASHER; PL,CYL HD TO BLOCK
AUSTRALIA EQUIPMENT(B13) 		8-90325-497-0 10 1 1010- ●
133 00.004 NUT; HANGER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93251-957-0 01 1 1010- ●
133 00.004 NUT; HANGER 8-92066-006-0 01 1 0307-1009 ●
133 00.004 NUT; HANGER
AUSTRALIA EQUIPMENT(B13) 		8-92066-006-0 01 1 1010- ●
168 00.004 HANGER; ENG,FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92065-449-0 01 1 1010- ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 0307-1009 ●
168 00.004 HANGER; ENG,FRT
AUSTRALIA EQUIPMENT(B13) 		8-90323-004-0 01 1 1010- ●
183 00.206 DOWEL; CYL HEAD
00.293 		8-90353-654-0 02 1 0307- ●
194 00.349 CARRIER; CAM SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93369-422-0 01 1 1010- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0307-1009 ●
194 00.349 CARRIER; CAM SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-92066-103-0 01 1 1010- ●
250 00.293 CAP
KENYA EQUIPMENT(CL1) 		8-98185-418-0 04 1 1101- ●

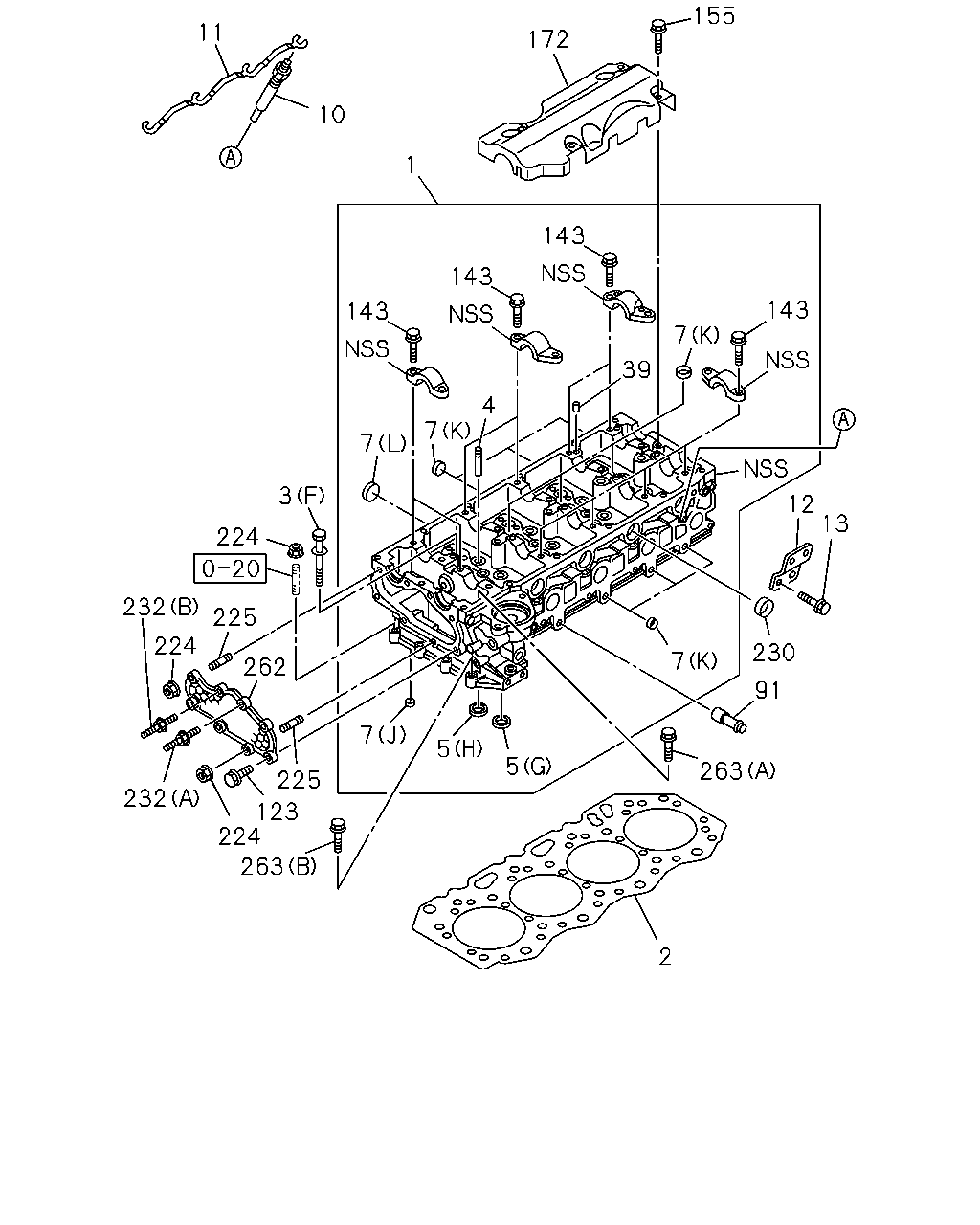

çizim 13038
155 11 172 10 1 143 143 143 143 7 39 4 7 7 3 12 13 224 232 225 224 230 7 262 91 7 5 225 5 263 232 123 224 263 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ● ● ● ●
1 00.269 HEAD ASM; CYL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0307- ●
1 00.269 HEAD ASM; CYL 8-97289-430-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97255-100-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EURO3 SPECIFICATION<NT3> 		8-97361-245-1 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0610-0612 ● ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0701-0912 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1001-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0307-1009 ●
1 00.269 HEAD ASM; CYL
AUSTRALIA EQUIPMENT(B13) 		8-92064-601-0 01 1 1010- ●
2 00.289 GASKET; CYL HD
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98135-953-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98135-954-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98135-955-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
T=1.60 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-318-0 01 1 0307-0609 ● ●
2 00.289 GASKET; CYL HD
T=1.60 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-318-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
T=1.65 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-319-0 01 1 0307-0609 ● ●
2 00.289 GASKET; CYL HD
T=1.65 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-319-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
T=1.70 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-320-0 01 1 0307-0609 ● ●
2 00.289 GASKET; CYL HD
T=1.70 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-320-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
T=1.30 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-601-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
T=1.35 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-602-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
T=1.40 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-603-0 01 1 0307-0508 ●
2 00.289 GASKET; CYL HD
OVER SIZE ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97388-314-0 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
OVER SIZE ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97388-314-0 01 1 0701-0912 ● ● ●
2 00.289 GASKET; CYL HD
OVER SIZE ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97388-314-0 01 1 1001- ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.40 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-603-0 01 1 0509-0609 ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-1 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-2 01 1 0701-0901 ● ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-0912 ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-0912 ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-868-1 01 1 1001- ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-868-1 01 1 1001- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93282-665-0 01 1 0307- ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-1 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-2 01 1 0701-0901 ● ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-0912 ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-0912 ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-867-1 01 1 1001- ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-867-1 01 1 1001- ● ● ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-1 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-2 01 1 0701-0901 ● ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-0912 ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-0912 ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-866-1 01 1 1001- ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-866-1 01 1 1001- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. AUSTRALIA EQUIPMENT(B13) (E) 		8-93294-943-0 07 1 1010- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-97133-416-1 18 1 0307-0609 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-97133-416-1 18 1 0610- ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) 		8-90325-498-0 09 1 0307-1009 ●
3 00.293 BOLT; CYL HD TO BLOCK
AUSTRALIA EQUIPMENT(B13) (E) 		8-90325-498-0 09 1 1010- ●
3 00.293 BOLT; CYL HD TO BLOCK
(F) M11X114 		8-97144-583-1 18 1 0610-0612 ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(F) M11X114 		8-97144-583-2 18 1 0701-0912 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(F) M11X114 		8-97144-583-2 18 1 1001- ● ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0307-0609 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0610- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0307- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0307-1009 ●
4 00.283 GUIDE; VLV
AUSTRALIA EQUIPMENT(B13) OVSI 		8-90108-700-0 08 1 1010- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0610-0612 ● ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0701-0912 ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1001- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 0307- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0307-0609 ● ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0610- ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97254-813-0 04 1 0307-0404 ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97378-030-0 04 1 0405-0609 ● ●
5 00.253 SEAT; VLV INSERT
(F) INLET 		8-90233-708-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (F) INLET 		8-90233-708-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST 		8-90233-709-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (F) EXHAUST 		8-90233-709-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(E) INLET 		8-90233-712-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (E) INLET 		8-90233-712-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST 		8-90233-713-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (E) EXHAUST 		8-90233-713-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(G) INLET ID=29 OD=35 		8-97311-378-0 08 1 0610-0612 ● ● ● ●
5 00.253 SEAT; VLV INSERT
(G) INLET ID=29 OD=35 		8-97311-378-0 08 1 0701-0912 ● ● ●
5 00.253 SEAT; VLV INSERT
(G) INLET ID=29 OD=35 		8-97311-378-0 08 1 1001- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(H) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0610-0612 ● ● ● ●
5 00.253 SEAT; VLV INSERT
(H) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0701-0912 ● ● ●
5 00.253 SEAT; VLV INSERT
(H) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (M) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (N) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0307-0503 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EURO3 SPECIFICATION<NT3> (A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) STD OD=26 		8-11044-142-0 01 1 0307- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30.8 		8-11067-433-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30.8 		8-11067-433-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30 		8-11072-963-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30 		8-11072-963-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OVSI OD=28 		8-11084-312-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (H) OVSI OD=28 		8-11084-312-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 1001- ● ● ● ●
10 02.270 PLUG; GLOW
KENYA EQUIPMENT(CL1) BOSCH 		8-98174-898-0 04 1 1009-1009 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98174-898-0 04 1 1010- ● ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> BOSCH 		8-94133-759-9 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0610- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> NGK 		8-94175-158-1 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0610- ●
10 02.270 PLUG; GLOW
BOSCH 		8-97306-519-3 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
EURO3 SPECIFICATION<NT3> BOSCH 		8-97306-519-3 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 0610-0612 ● ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 0701-0912 ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 1001-1008 ● ● ● ●
10 02.270 PLUG; GLOW
EXC. KENYA EQUIPMENT(CL1) BOSCH 		8-98013-392-0 04 1 1009-1009 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 1009-1009 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0307-0609 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0610- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-2 01 1 0610-0612 ● ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 0701-0912 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 1001- ● ● ● ●
12 00.004 HANGER; ENG,RR
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98099-830-1 01 1 0807- ●
12 00.004 HANGER; ENG,RR
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97019-563-0 01 1 0307-0609 ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0307- ●
13 00.004 BOLT; HANGER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93298-987-0 01 1 1010- ●
13 00.004 BOLT; HANGER
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0807- ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0307-0410 ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0512 ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ●
13 00.004 BOLT; HANGER
03.670 		8-11041-103-0 01 1 0307-1009 ●
13 00.004 BOLT; HANGER
AUSTRALIA EQUIPMENT(B13) 03.670 		8-11041-103-0 01 1 1010- ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 0610-0612 ● ● ● ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 0701-0912 ● ● ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1001- ● ● ● ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 0610-0612 ● ● ● ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 0701-0912 ● ● ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 1001- ● ● ● ●
123 00.206 BOLT; COVER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93298-898-0 04 1 1010- ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0307-1009 ●
123 00.206 BOLT; COVER
AUSTRALIA EQUIPMENT(B13) 		8-11027-991-0 04 1 1010- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0610-0611 ● ● ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0612-0612 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0612-0612 ● ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0701-0912 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0701-0912 ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1001- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1001- ● ● ●
123 00.206 BOLT; COVER
M8X20 FLANGE 		8-97366-632-0 04 1 0611-0611 ● ●
123 00.206 BOLT; COVER
KENYA EQUIPMENT(CL1) M8X20 FLANGE 		8-97366-632-0 04 1 0612- ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 0610-0612 ● ● ● ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 0701-0912 ● ● ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 1001- ● ● ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 0610-0612 ● ● ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 0701-0912 ● ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 1001- ● ● ● ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98049-103-0 01 1 0610-0612 ● ● ● ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98049-103-0 01 1 0701-0912 ● ● ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98049-103-0 01 1 1001- ● ● ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 0610-0612 ● ● ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 0701-0912 ● ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1001- ● ● ● ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 0610-0611 ● ● ● ●
225 00.349 STUD; COVER
EXC. KENYA EQUIPMENT(CL1) M8X20 L=31 		8-97945-022-0 02 1 0612-0612 ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 0612-0612 ● ● ●
225 00.349 STUD; COVER
EXC. KENYA EQUIPMENT(CL1) M8X20 L=31 		8-97945-022-0 02 1 0701-0912 ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 0701-0912 ● ●
225 00.349 STUD; COVER
EXC. KENYA EQUIPMENT(CL1) M8X20 L=31 		8-97945-022-0 02 1 1001- ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 1001- ● ● ●
225 00.349 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 0611-0611 ● ●
225 00.349 STUD; COVER
KENYA EQUIPMENT(CL1) M8X15.5 L=33.5 		8-98017-062-0 02 1 0612- ●
230 03.300 GASKET; SLEEVE,INJECTOR 8-97943-955-0 04 1 0610-0611 ● ● ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
EXC. KENYA EQUIPMENT(CL1) 		8-97943-955-0 04 1 0612-0612 ●
230 03.300 GASKET; SLEEVE,INJECTOR 8-97943-955-0 04 1 0612-0612 ● ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
EXC. KENYA EQUIPMENT(CL1) 		8-97943-955-0 04 1 0701-0912 ●
230 03.300 GASKET; SLEEVE,INJECTOR 8-97943-955-0 04 1 0701-0912 ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97943-955-0 04 1 1001- ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97943-955-0 04 1 1001- ● ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
03.306 OD=30 		1-09639-034-0 04 1 0611-0611 ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
KENYA EQUIPMENT(CL1) 03.306 OD=30 		1-09639-034-0 04 1 0612- ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 0610-0612 ● ● ● ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 0701-0912 ● ● ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 1001- ● ● ● ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 0610-0611 ● ● ● ●
232 00.413 STUD; CAM,CARRIER
EXC. KENYA EQUIPMENT(CL1) (A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 0612-0612 ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 0612-0612 ● ● ●
232 00.413 STUD; CAM,CARRIER
EXC. KENYA EQUIPMENT(CL1) (A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 0701-0912 ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 0701-0912 ● ●
232 00.413 STUD; CAM,CARRIER
EXC. KENYA EQUIPMENT(CL1) (A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 1001- ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 1001- ● ● ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97366-633-0 01 1 0611-0611 ● ●
232 00.413 STUD; CAM,CARRIER
KENYA EQUIPMENT(CL1) (A) M8X15 M8X17 L=40 		8-97366-633-0 01 1 0612-1006 ●
232 00.413 STUD; CAM,CARRIER
KENYA EQUIPMENT(CL1) (A) M8X15 M8X17 L=40 		8-98166-373-0 01 1 1007- ●
250 00.293 CAP
KENYA EQUIPMENT(CL1) 		8-98185-418-0 04 1 1101- ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 0610-0612 ● ● ● ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 0701-0912 ● ● ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 1001- ● ● ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 0610-0612 ● ● ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 0701-0912 ● ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1001- ● ● ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 0610-0612 ● ● ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 0701-0912 ● ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1001- ● ● ● ●

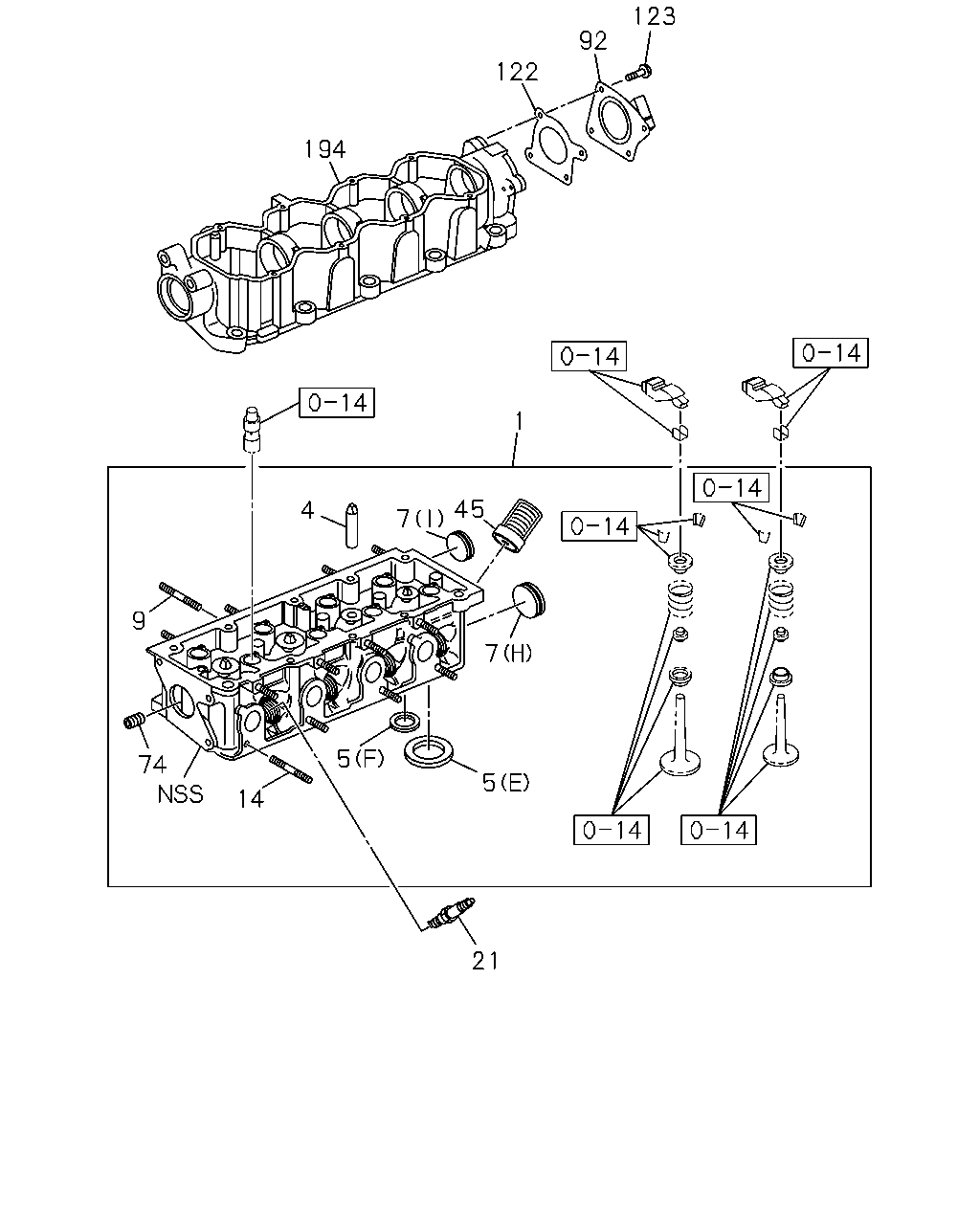

çizim 53260
123 92 122 194 1 45 7 4 9 7 5 74 5 14 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ● ● ● ●
1 00.269 HEAD ASM; CYL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0307- ●
1 00.269 HEAD ASM; CYL 8-97289-430-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97255-100-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EURO3 SPECIFICATION<NT3> 		8-97361-245-1 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0610-0612 ● ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0701-0912 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1001-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0307-1009 ●
1 00.269 HEAD ASM; CYL
AUSTRALIA EQUIPMENT(B13) 		8-92064-601-0 01 1 1010- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0307-0609 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0610- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0307- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0307-1009 ●
4 00.283 GUIDE; VLV
AUSTRALIA EQUIPMENT(B13) OVSI 		8-90108-700-0 08 1 1010- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0610-0612 ● ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0701-0912 ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1001- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 0307- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0307-0609 ● ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0610- ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97254-813-0 04 1 0307-0404 ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97378-030-0 04 1 0405-0609 ● ●
5 00.253 SEAT; VLV INSERT
(F) INLET 		8-90233-708-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (F) INLET 		8-90233-708-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST 		8-90233-709-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (F) EXHAUST 		8-90233-709-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(E) INLET 		8-90233-712-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (E) INLET 		8-90233-712-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST 		8-90233-713-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (E) EXHAUST 		8-90233-713-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(G) INLET ID=29 OD=35 		8-97311-378-0 08 1 0610-0612 ● ● ● ●
5 00.253 SEAT; VLV INSERT
(G) INLET ID=29 OD=35 		8-97311-378-0 08 1 0701-0912 ● ● ●
5 00.253 SEAT; VLV INSERT
(G) INLET ID=29 OD=35 		8-97311-378-0 08 1 1001- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(H) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0610-0612 ● ● ● ●
5 00.253 SEAT; VLV INSERT
(H) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0701-0912 ● ● ●
5 00.253 SEAT; VLV INSERT
(H) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (M) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (N) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0307-0503 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EURO3 SPECIFICATION<NT3> (A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) STD OD=26 		8-11044-142-0 01 1 0307- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30.8 		8-11067-433-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30.8 		8-11067-433-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30 		8-11072-963-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30 		8-11072-963-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OVSI OD=28 		8-11084-312-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (H) OVSI OD=28 		8-11084-312-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 1001- ● ● ● ●
9 03.275 STUD; INL MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-90106-924-0 09 1 1010- ●
9 03.275 STUD; INL MANIF 8-92066-276-0 09 1 0307-1009 ●
9 03.275 STUD; INL MANIF
AUSTRALIA EQUIPMENT(B13) 		8-92066-276-0 09 1 1010- ●
14 03.275 STUD; EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-90106-924-0 08 1 1010- ●
14 03.275 STUD; EXH MANIF 8-92066-276-0 08 1 0307-1009 ●
14 03.275 STUD; EXH MANIF
AUSTRALIA EQUIPMENT(B13) 		8-92066-276-0 08 1 1010- ●
21 02.270 PLUG; SPARK
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93206-675-0 04 1 1010- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0307-1009 ●
21 02.270 PLUG; SPARK
AUSTRALIA EQUIPMENT(B13) 		8-92063-360-0 04 1 1010- ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 0307-1009 ●
45 00.293 VALVE; OIL RELIEF,CYL HD
AUSTRALIA EQUIPMENT(B13) 		8-90136-113-0 01 1 1010- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0307-1009 ●
74 01.531 PLUG; OIL GALLERY
AUSTRALIA EQUIPMENT(B13) 		8-11095-511-0 01 1 1010- ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 0307- ●
122 00.206 GASKET; COVER
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-90572-268-0 01 1 1010- ●
122 00.206 GASKET; COVER 8-92062-158-0 01 1 0307-1009 ●
122 00.206 GASKET; COVER
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92062-158-0 01 1 1010- ●
123 00.206 BOLT; COVER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93298-898-0 04 1 1010- ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0307-1009 ●
123 00.206 BOLT; COVER
AUSTRALIA EQUIPMENT(B13) 		8-11027-991-0 04 1 1010- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0610-0611 ● ● ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0612-0612 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0612-0612 ● ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0701-0912 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0701-0912 ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1001- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1001- ● ● ●
123 00.206 BOLT; COVER
M8X20 FLANGE 		8-97366-632-0 04 1 0611-0611 ● ●
123 00.206 BOLT; COVER
KENYA EQUIPMENT(CL1) M8X20 FLANGE 		8-97366-632-0 04 1 0612- ●
194 00.349 CARRIER; CAM SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93369-422-0 01 1 1010- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0307-1009 ●
194 00.349 CARRIER; CAM SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-92066-103-0 01 1 1010- ●
250 00.293 CAP
KENYA EQUIPMENT(CL1) 		8-98185-418-0 04 1 1101- ●

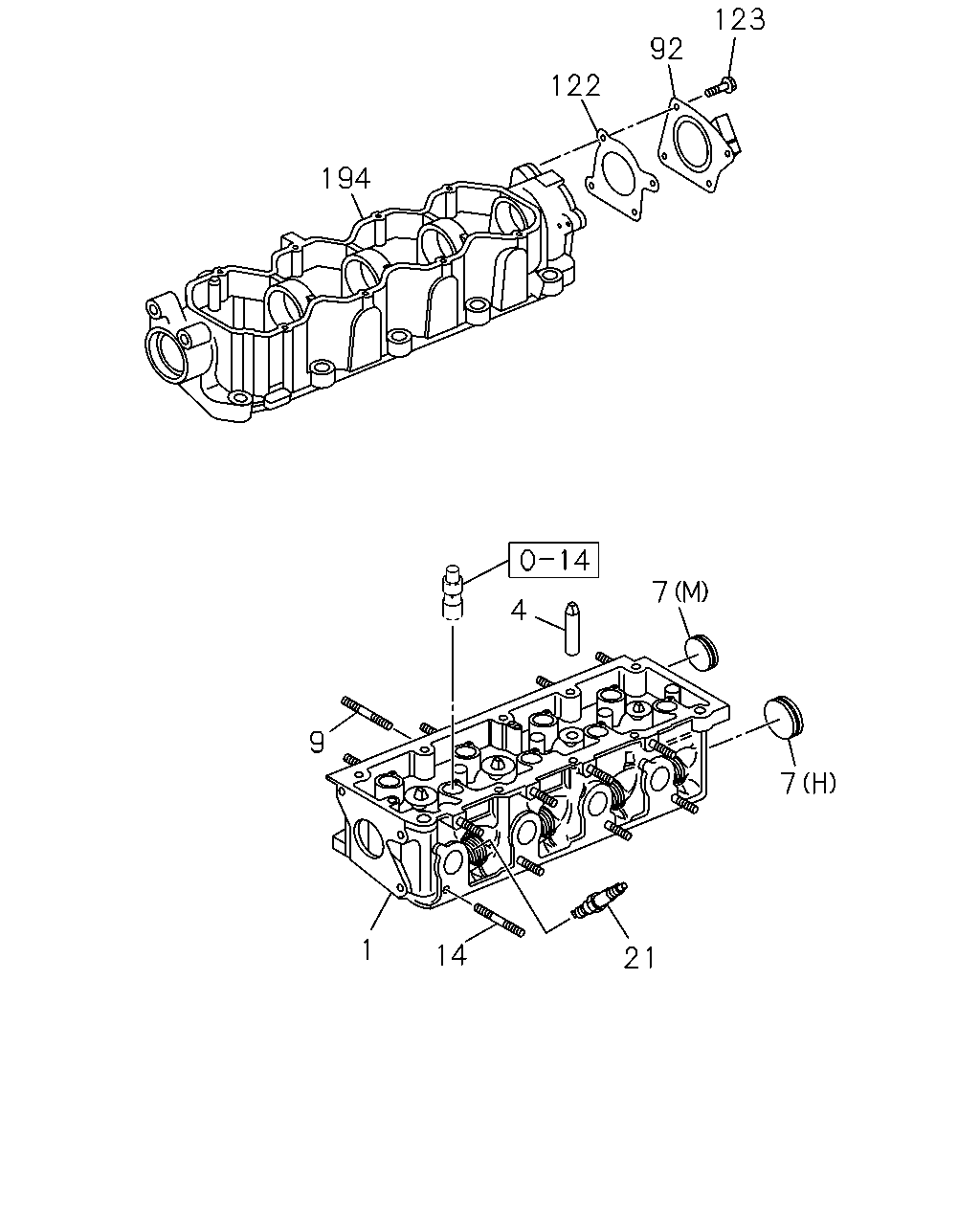

çizim 55915
123 92 122 194 7 4 9 7 1 14 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ● ● ● ●
1 00.269 HEAD ASM; CYL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0307- ●
1 00.269 HEAD ASM; CYL 8-97289-430-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97255-100-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EURO3 SPECIFICATION<NT3> 		8-97361-245-1 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0610-0612 ● ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0701-0912 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1001-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0307-1009 ●
1 00.269 HEAD ASM; CYL
AUSTRALIA EQUIPMENT(B13) 		8-92064-601-0 01 1 1010- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0307-0609 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0610- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0307- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0307-1009 ●
4 00.283 GUIDE; VLV
AUSTRALIA EQUIPMENT(B13) OVSI 		8-90108-700-0 08 1 1010- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0610-0612 ● ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0701-0912 ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (M) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (N) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0307-0503 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EURO3 SPECIFICATION<NT3> (A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) STD OD=26 		8-11044-142-0 01 1 0307- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30.8 		8-11067-433-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30.8 		8-11067-433-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30 		8-11072-963-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30 		8-11072-963-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OVSI OD=28 		8-11084-312-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (H) OVSI OD=28 		8-11084-312-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 1001- ● ● ● ●
9 03.275 STUD; INL MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-90106-924-0 09 1 1010- ●
9 03.275 STUD; INL MANIF 8-92066-276-0 09 1 0307-1009 ●
9 03.275 STUD; INL MANIF
AUSTRALIA EQUIPMENT(B13) 		8-92066-276-0 09 1 1010- ●
14 03.275 STUD; EXH MANIF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-90106-924-0 08 1 1010- ●
14 03.275 STUD; EXH MANIF 8-92066-276-0 08 1 0307-1009 ●
14 03.275 STUD; EXH MANIF
AUSTRALIA EQUIPMENT(B13) 		8-92066-276-0 08 1 1010- ●
21 02.270 PLUG; SPARK
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93206-675-0 04 1 1010- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0307-1009 ●
21 02.270 PLUG; SPARK
AUSTRALIA EQUIPMENT(B13) 		8-92063-360-0 04 1 1010- ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 0307- ●
122 00.206 GASKET; COVER
EXC. AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-90572-268-0 01 1 1010- ●
122 00.206 GASKET; COVER 8-92062-158-0 01 1 0307-1009 ●
122 00.206 GASKET; COVER
AUSTRALIA EQUIPMENT(B13) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-92062-158-0 01 1 1010- ●
123 00.206 BOLT; COVER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93298-898-0 04 1 1010- ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0307-1009 ●
123 00.206 BOLT; COVER
AUSTRALIA EQUIPMENT(B13) 		8-11027-991-0 04 1 1010- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0610-0611 ● ● ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0612-0612 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0612-0612 ● ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0701-0912 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0701-0912 ● ●
123 00.206 BOLT; COVER
EXC. KENYA EQUIPMENT(CL1) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1001- ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1001- ● ● ●
123 00.206 BOLT; COVER
M8X20 FLANGE 		8-97366-632-0 04 1 0611-0611 ● ●
123 00.206 BOLT; COVER
KENYA EQUIPMENT(CL1) M8X20 FLANGE 		8-97366-632-0 04 1 0612- ●
194 00.349 CARRIER; CAM SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93369-422-0 01 1 1010- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0307-1009 ●
194 00.349 CARRIER; CAM SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-92066-103-0 01 1 1010- ●
250 00.293 CAP
KENYA EQUIPMENT(CL1) 		8-98185-418-0 04 1 1101- ●

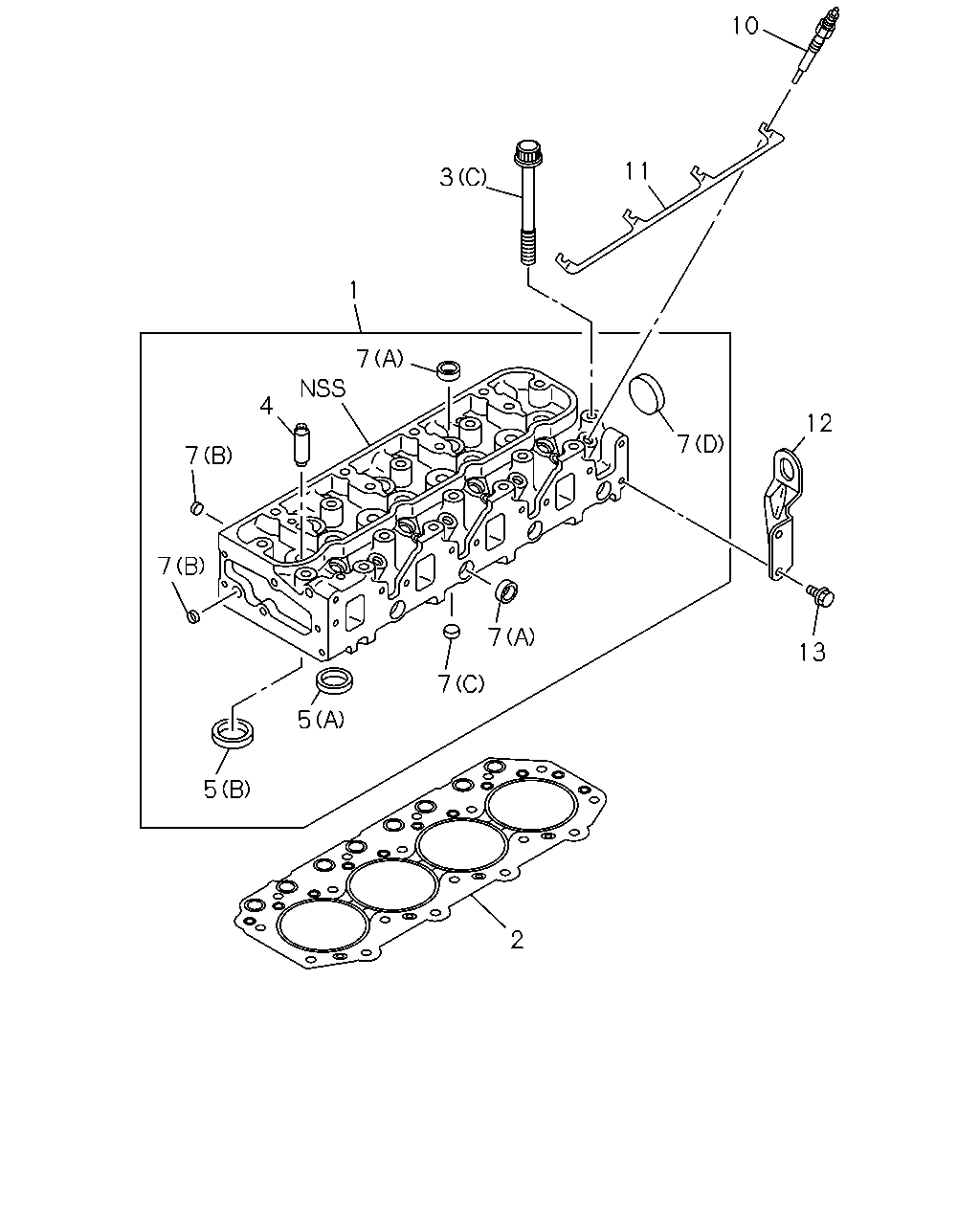

çizim 57877
10 11 3 1 7 4 12 7 7 7 7 13 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.269 HEAD ASM; CYL
EXC. KENYA EQUIPMENT(CL1) 		8-98175-606-0 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-0 01 1 1010-1012 ● ● ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ● ● ● ●
1 00.269 HEAD ASM; CYL
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93381-263-0 01 1 1010- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0307- ●
1 00.269 HEAD ASM; CYL 8-97289-430-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97255-100-3 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL
EURO3 SPECIFICATION<NT3> 		8-97361-245-1 01 1 0307-0609 ●
1 00.269 HEAD ASM; CYL 8-97355-970-8 01 1 0610-0612 ● ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0701-0912 ● ● ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1001-1009 ● ● ● ●
1 00.269 HEAD ASM; CYL
KENYA EQUIPMENT(CL1) 		8-97355-970-9 01 1 1010-1012 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0307-1009 ●
1 00.269 HEAD ASM; CYL
AUSTRALIA EQUIPMENT(B13) 		8-92064-601-0 01 1 1010- ●
2 00.289 GASKET; CYL HD
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98135-953-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98135-954-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98135-955-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
T=1.60 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-318-0 01 1 0307-0609 ● ●
2 00.289 GASKET; CYL HD
T=1.60 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-318-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
T=1.65 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-319-0 01 1 0307-0609 ● ●
2 00.289 GASKET; CYL HD
T=1.65 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-319-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
T=1.70 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-320-0 01 1 0307-0609 ● ●
2 00.289 GASKET; CYL HD
T=1.70 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97350-320-0 01 1 0610- ●
2 00.289 GASKET; CYL HD
T=1.30 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-601-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
T=1.35 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-602-0 01 1 0307-0609 ●
2 00.289 GASKET; CYL HD
T=1.40 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-603-0 01 1 0307-0508 ●
2 00.289 GASKET; CYL HD
OVER SIZE ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97388-314-0 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
OVER SIZE ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97388-314-0 01 1 0701-0912 ● ● ●
2 00.289 GASKET; CYL HD
OVER SIZE ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97388-314-0 01 1 1001- ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.40 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97259-603-0 01 1 0509-0609 ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-1 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-2 01 1 0701-0901 ● ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-0912 ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH 		8-97328-868-1 01 1 0902-0912 ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-868-1 01 1 1001- ●
2 00.289 GASKET; CYL HD
T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-868-1 01 1 1001- ● ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-93282-665-0 01 1 0307- ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-1 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-2 01 1 0701-0901 ● ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-0912 ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH 		8-97328-867-1 01 1 0902-0912 ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-867-1 01 1 1001- ●
2 00.289 GASKET; CYL HD
T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-867-1 01 1 1001- ● ● ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-1 01 1 0610-0612 ● ● ● ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-2 01 1 0701-0901 ● ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-0912 ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH 		8-97328-866-1 01 1 0902-0912 ● ●
2 00.289 GASKET; CYL HD
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-866-1 01 1 1001- ●
2 00.289 GASKET; CYL HD
T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97328-866-1 01 1 1001- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. AUSTRALIA EQUIPMENT(B13) (E) 		8-93294-943-0 07 1 1010- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-97133-416-1 18 1 0307-0609 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M11X122 		8-97133-416-1 18 1 0610- ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) 		8-90325-498-0 09 1 0307-1009 ●
3 00.293 BOLT; CYL HD TO BLOCK
AUSTRALIA EQUIPMENT(B13) (E) 		8-90325-498-0 09 1 1010- ●
3 00.293 BOLT; CYL HD TO BLOCK
(F) M11X114 		8-97144-583-1 18 1 0610-0612 ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(F) M11X114 		8-97144-583-2 18 1 0701-0912 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(F) M11X114 		8-97144-583-2 18 1 1001- ● ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0307-0609 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0610- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0307- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0307-1009 ●
4 00.283 GUIDE; VLV
AUSTRALIA EQUIPMENT(B13) OVSI 		8-90108-700-0 08 1 1010- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0610-0612 ● ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0701-0912 ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1001- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 0307- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0307-0609 ● ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0610- ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97254-813-0 04 1 0307-0404 ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97378-030-0 04 1 0405-0609 ● ●
5 00.253 SEAT; VLV INSERT
(F) INLET 		8-90233-708-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (F) INLET 		8-90233-708-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST 		8-90233-709-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (F) EXHAUST 		8-90233-709-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(E) INLET 		8-90233-712-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (E) INLET 		8-90233-712-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST 		8-90233-713-0 04 1 0307-1009 ●
5 00.253 SEAT; VLV INSERT
AUSTRALIA EQUIPMENT(B13) (E) EXHAUST 		8-90233-713-0 04 1 1010- ●
5 00.253 SEAT; VLV INSERT
(G) INLET ID=29 OD=35 		8-97311-378-0 08 1 0610-0612 ● ● ● ●
5 00.253 SEAT; VLV INSERT
(G) INLET ID=29 OD=35 		8-97311-378-0 08 1 0701-0912 ● ● ●
5 00.253 SEAT; VLV INSERT
(G) INLET ID=29 OD=35 		8-97311-378-0 08 1 1001- ● ● ● ●
5 00.253 SEAT; VLV INSERT
(H) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0610-0612 ● ● ● ●
5 00.253 SEAT; VLV INSERT
(H) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0701-0912 ● ● ●
5 00.253 SEAT; VLV INSERT
(H) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (M) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. AUSTRALIA EQUIPMENT(B13) (N) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A) OD=22 		8-97209-609-0 07 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0307-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=14 		5-11219-011-0 07 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0307-0503 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0609 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
EURO3 SPECIFICATION<NT3> (A) OD=22 		8-97209-609-0 06 1 0307-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) STD OD=26 		8-11044-142-0 01 1 0307- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30.8 		8-11067-433-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30.8 		8-11067-433-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30 		8-11072-963-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (I) OD=30 		8-11072-963-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OVSI OD=28 		8-11084-312-0 01 1 0307-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
AUSTRALIA EQUIPMENT(B13) (H) OVSI OD=28 		8-11084-312-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (L) OD=32 		1-09600-012-2 02 1 1001- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0610-0612 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 0701-0912 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(K) OD=18 		5-11219-008-0 13 1 1001- ● ● ● ●
10 02.270 PLUG; GLOW
KENYA EQUIPMENT(CL1) BOSCH 		8-98174-898-0 04 1 1009-1009 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98174-898-0 04 1 1010- ● ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> BOSCH 		8-94133-759-9 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0610- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> NGK 		8-94175-158-1 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0610- ●
10 02.270 PLUG; GLOW
BOSCH 		8-97306-519-3 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
EURO3 SPECIFICATION<NT3> BOSCH 		8-97306-519-3 04 1 0307-0609 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 0610-0612 ● ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 0701-0912 ● ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 1001-1008 ● ● ● ●
10 02.270 PLUG; GLOW
EXC. KENYA EQUIPMENT(CL1) BOSCH 		8-98013-392-0 04 1 1009-1009 ●
10 02.270 PLUG; GLOW
BOSCH 		8-98013-392-0 04 1 1009-1009 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0307-0609 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0610- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-2 01 1 0610-0612 ● ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 0701-0912 ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 1001- ● ● ● ●
12 00.004 HANGER; ENG,RR
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98099-830-1 01 1 0807- ●
12 00.004 HANGER; ENG,RR
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97019-563-0 01 1 0307-0609 ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0307- ●
13 00.004 BOLT; HANGER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93298-987-0 01 1 1010- ●
13 00.004 BOLT; HANGER
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0807- ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0307-0410 ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0512 ●
13 00.004 BOLT; HANGER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ●
13 00.004 BOLT; HANGER
03.670 		8-11041-103-0 01 1 0307-1009 ●
13 00.004 BOLT; HANGER
AUSTRALIA EQUIPMENT(B13) 03.670 		8-11041-103-0 01 1 1010- ●
250 00.293 CAP
KENYA EQUIPMENT(CL1) 		8-98185-418-0 04 1 1101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
