◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10B - CYLINDER HEAD COVER ▶
0-10B — CYLINDER HEAD COVER (#20057) — 61 parça

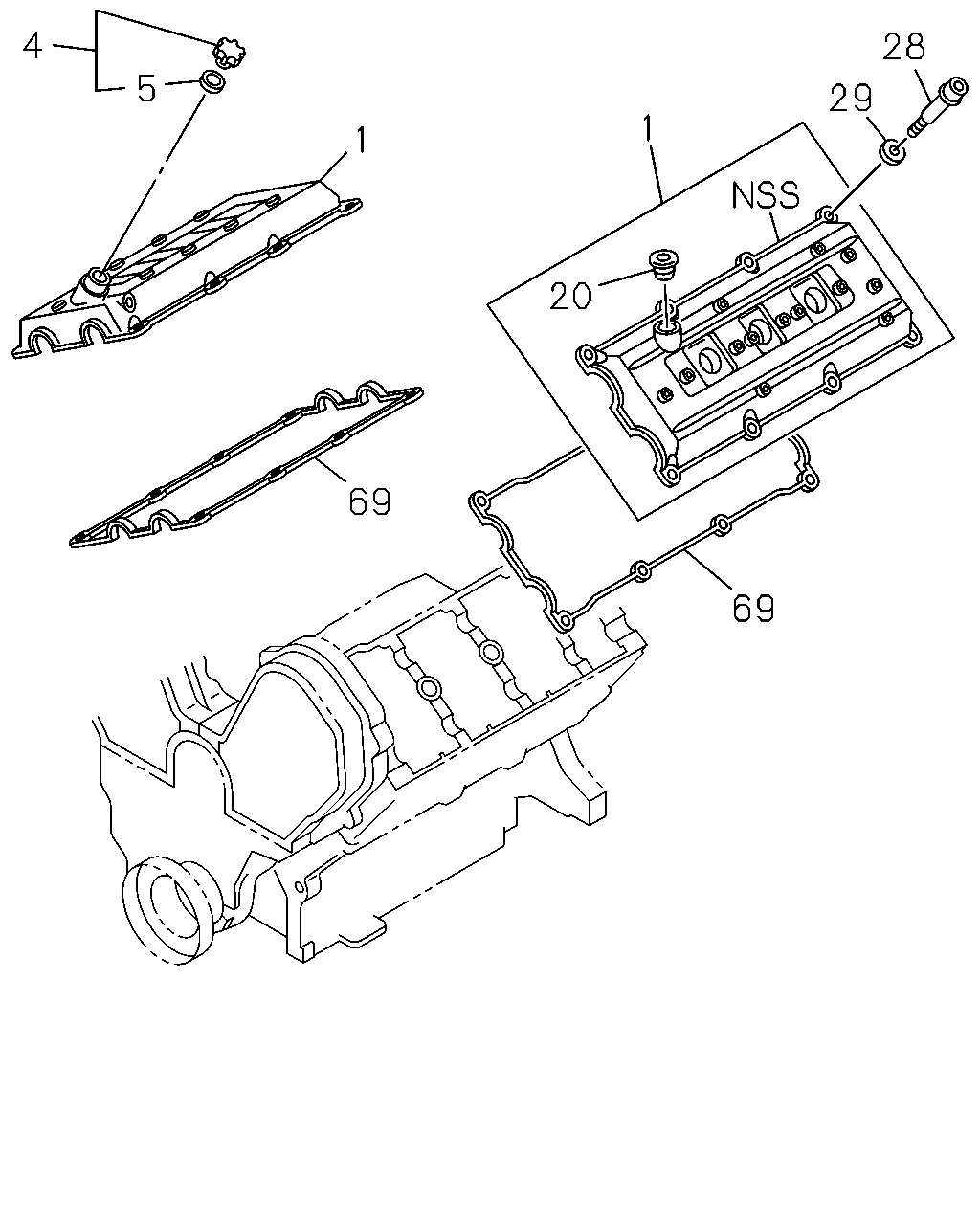

çizim 13898
4 28 5 29 1 1 20 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0307-0609 ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0307-0609 ●
1 00.386 COVER; CYL HD 8-12604-078-0 01 1 0509-0609 ●
1 00.386 COVER; CYL HD 8-12604-077-0 01 1 0509-0609 ●
1 00.386 COVER; CYL HD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12604-078-0 01 1 0610- ●
1 00.386 COVER; CYL HD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12604-077-0 01 1 0610- ●
4 01.758 CAP; OIL FILLER 8-97117-766-0 01 1 0307-0609 ●
4 01.758 CAP; OIL FILLER 8-12593-349-0 01 1 0509-0609 ●
4 01.758 CAP; OIL FILLER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12593-349-0 01 1 0610- ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97136-177-0 01 1 0307-0609 ●
5 01.758 GASKET; OIL FILLER 8-12593-348-0 01 1 0509-0609 ●
5 01.758 GASKET; OIL FILLER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12593-348-0 01 1 0610- ●
20 00.413 GROMMET; HD COVER 8-97074-653-0 01 1 0307-0609 ●
28 00.413 BOLT; HD COVER 8-97149-252-2 16 1 0307-0609 ●
28 00.413 BOLT; HD COVER 8-11561-288-0 26 1 0509-0609 ●
28 00.413 BOLT; HD COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11561-288-0 26 1 0610- ●
29 00.413 RUBBER; MTG,HD COVER 8-97149-002-2 16 1 0307-0602 ●
29 00.413 RUBBER; MTG,HD COVER 8-97372-219-0 16 1 0603-0609 ●
29 00.413 RUBBER; MTG,HD COVER 8-12566-250-0 26 1 0509-0609 ●
29 00.413 RUBBER; MTG,HD COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-250-0 26 1 0610- ●
69 00.423 GASKET; HD TO COVER 8-97172-394-0 02 1 0307-0609 ●
69 00.423 GASKET; HD TO COVER 8-12591-200-0 01 1 0509-0609 ●
69 00.423 GASKET; HD TO COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-200-0 01 1 0610- ●
69 00.423 GASKET; HD TO COVER 8-12591-203-0 01 1 0509-0609 ●
69 00.423 GASKET; HD TO COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-203-0 01 1 0610- ●

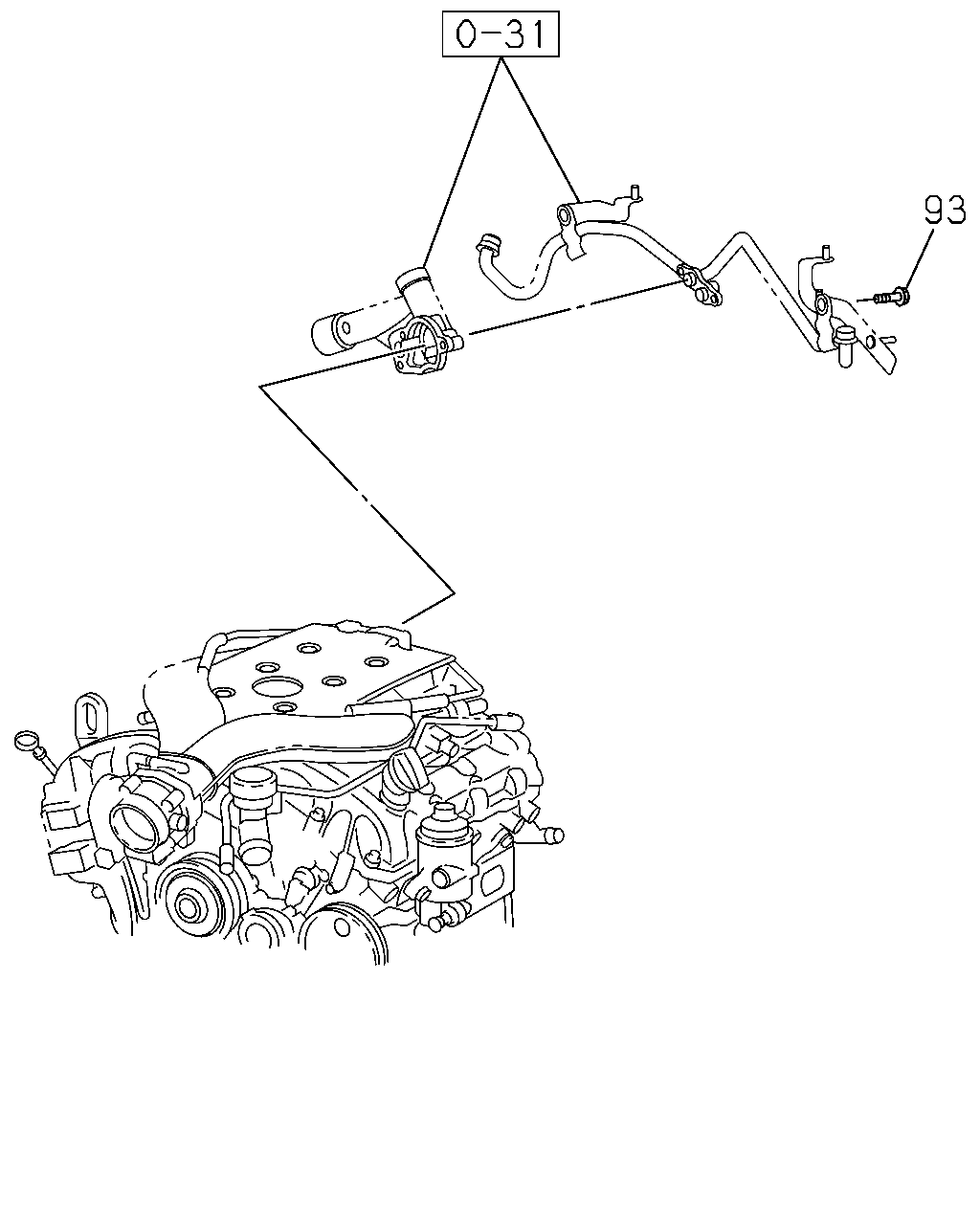

çizim 55062
93
BalonParca AdiParca NoAdetTipApplied Date A B
93 00.413 BOLT; BRKT
02.277 		8-11588-739-0 02 1 0509-0609 ●
93 00.413 BOLT; BRKT
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 02.277 		8-11588-739-0 02 1 0610- ●

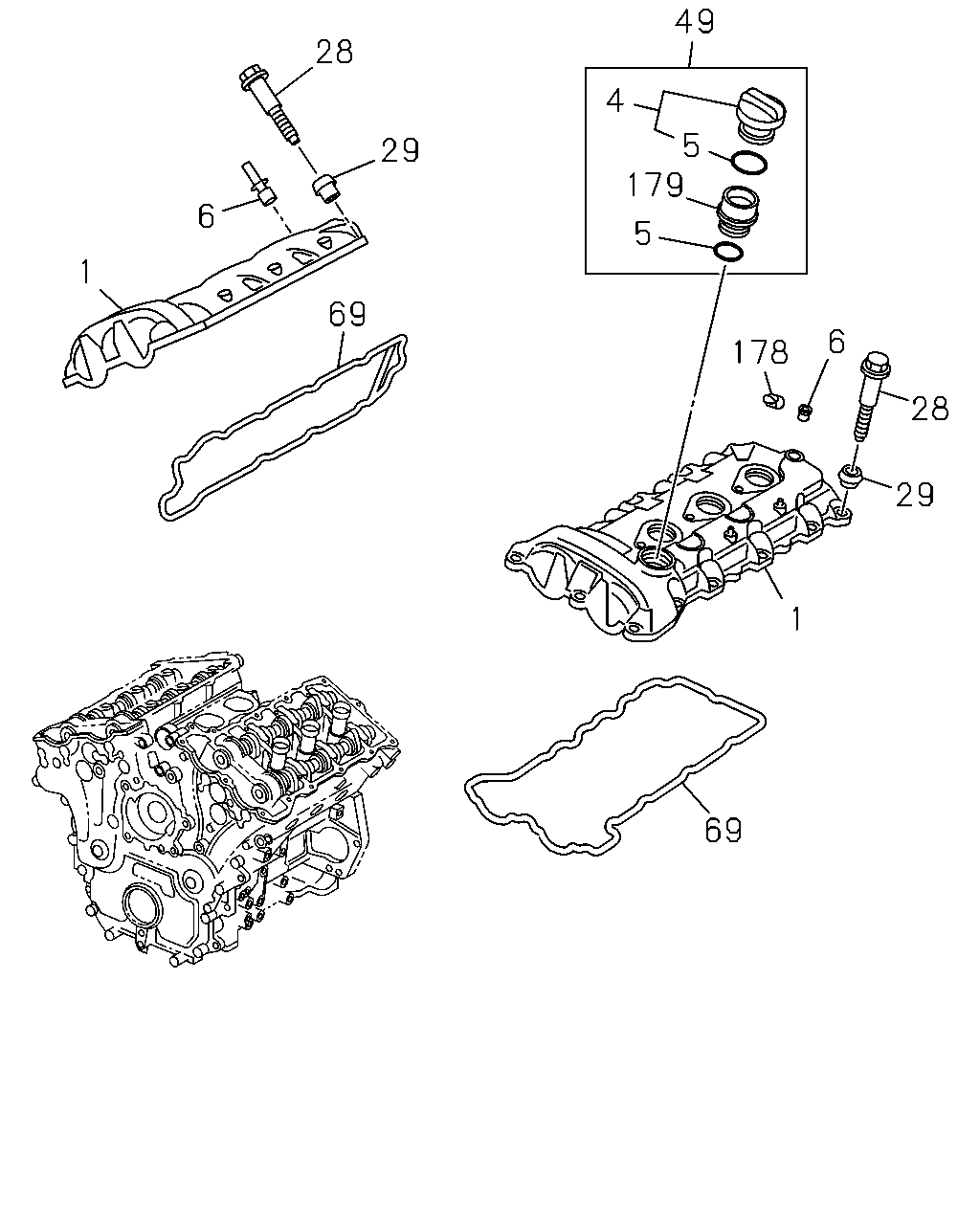

çizim 57546
49 28 4 5 179 29 6 5 1 69 6 178 28 29 1 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0307-0609 ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0307-0609 ●
1 00.386 COVER; CYL HD 8-12604-078-0 01 1 0509-0609 ●
1 00.386 COVER; CYL HD 8-12604-077-0 01 1 0509-0609 ●
1 00.386 COVER; CYL HD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12604-078-0 01 1 0610- ●
1 00.386 COVER; CYL HD
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12604-077-0 01 1 0610- ●
4 01.758 CAP; OIL FILLER 8-97117-766-0 01 1 0307-0609 ●
4 01.758 CAP; OIL FILLER 8-12593-349-0 01 1 0509-0609 ●
4 01.758 CAP; OIL FILLER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12593-349-0 01 1 0610- ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97136-177-0 01 1 0307-0609 ●
5 01.758 GASKET; OIL FILLER 8-12593-348-0 01 1 0509-0609 ●
5 01.758 GASKET; OIL FILLER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12593-348-0 01 1 0610- ●
6 01.762 PIPE; PCV HOSE 8-12578-316-0 01 1 0509-0609 ●
6 01.762 PIPE; PCV HOSE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12578-316-0 01 1 0610- ●
6 01.762 PIPE; PCV HOSE 8-12583-384-0 01 1 0509-0609 ●
6 01.762 PIPE; PCV HOSE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12583-384-0 01 1 0610- ●
28 00.413 BOLT; HD COVER 8-97149-252-2 16 1 0307-0609 ●
28 00.413 BOLT; HD COVER 8-11561-288-0 26 1 0509-0609 ●
28 00.413 BOLT; HD COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11561-288-0 26 1 0610- ●
29 00.413 RUBBER; MTG,HD COVER 8-97149-002-2 16 1 0307-0602 ●
29 00.413 RUBBER; MTG,HD COVER 8-97372-219-0 16 1 0603-0609 ●
29 00.413 RUBBER; MTG,HD COVER 8-12566-250-0 26 1 0509-0609 ●
29 00.413 RUBBER; MTG,HD COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-250-0 26 1 0610- ●
49 00.413 FILLER; OIL,HD COVER 8-12593-354-0 01 1 0509-0609 ●
49 00.413 FILLER; OIL,HD COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12593-354-0 01 1 0610- ●
69 00.423 GASKET; HD TO COVER 8-97172-394-0 02 1 0307-0609 ●
69 00.423 GASKET; HD TO COVER 8-12591-200-0 01 1 0509-0609 ●
69 00.423 GASKET; HD TO COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-200-0 01 1 0610- ●
69 00.423 GASKET; HD TO COVER 8-12591-203-0 01 1 0509-0609 ●
69 00.423 GASKET; HD TO COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-203-0 01 1 0610- ●
178 01.758 CAP; COVER 8-12588-902-0 01 1 0509-0609 ●
178 01.758 CAP; COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12588-902-0 01 1 0610- ●
179 00.413 TUBE; OIL FILLER 8-12591-275-0 01 1 0509-0609 ●
179 00.413 TUBE; OIL FILLER
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-275-0 01 1 0610- ●
