◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10A - CYLINDER HEAD COVER ▶
0-10A — CYLINDER HEAD COVER (#20056) — 204 parça

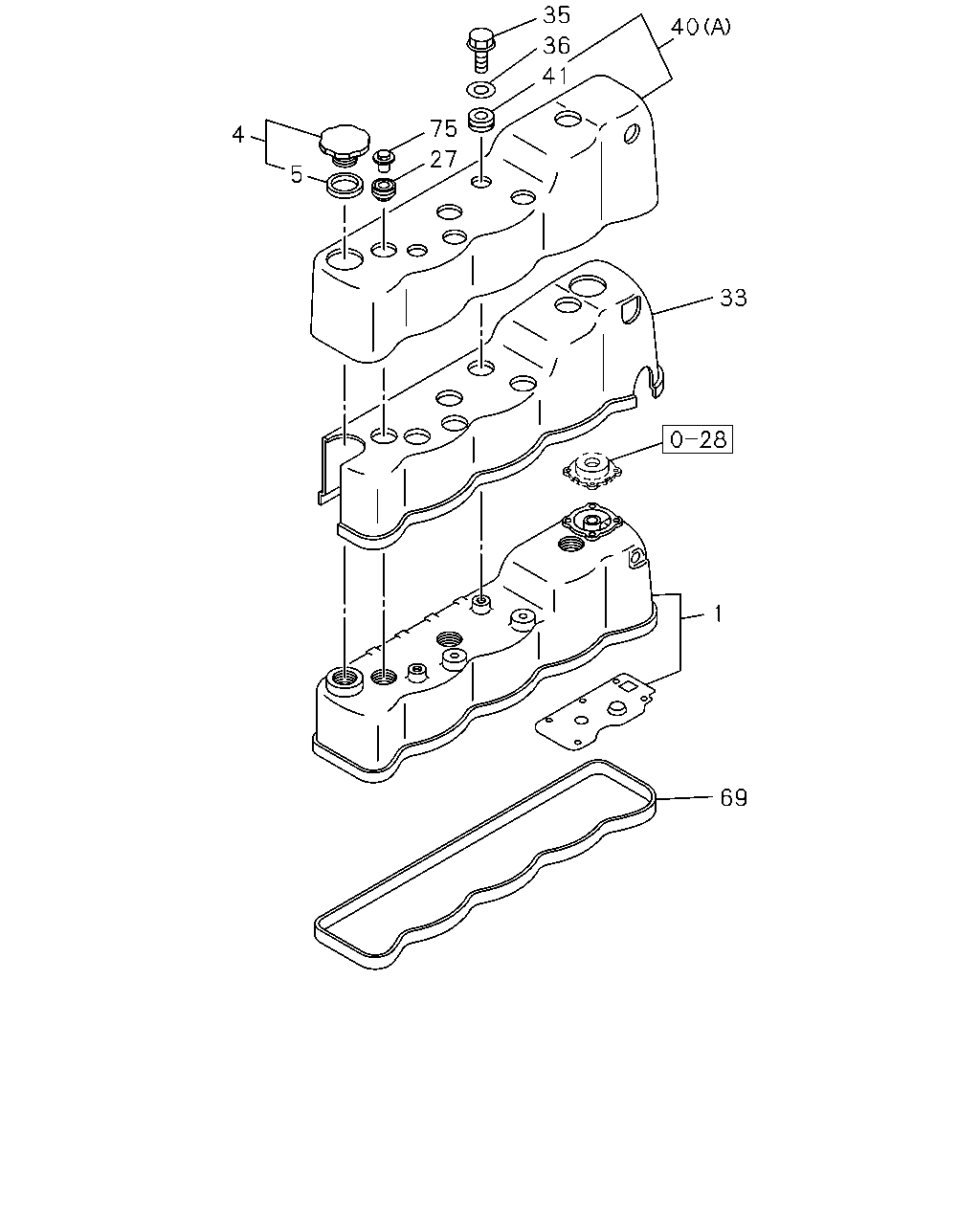

çizim 13506
35 40 36 41 75 4 27 5 33 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.386 COVER; CYL HD
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93317-147-0 01 1 1010- ●
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 0307- ●
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0307-0609 ● ●
1 00.386 COVER; CYL HD 8-90467-642-0 01 1 0307-1009 ●
1 00.386 COVER; CYL HD
AUSTRALIA EQUIPMENT(B13) 		8-90467-642-0 01 1 1010- ●
1 00.386 COVER; CYL HD 8-98051-196-1 01 1 0610-0612 ● ● ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 0701-0912 ● ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 1001- ● ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0307- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0307-0609 ● ●
4 01.758 CAP; OIL FILLER 8-90467-648-0 01 1 0307- ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0610-0612 ● ● ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0701-0912 ● ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 1001- ● ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0509- ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0307-0508 ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0509-0609 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-90448-217-0 01 1 0307- ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97918-298-0 01 1 0610-0612 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97918-298-0 01 1 0701-0912 ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97918-298-0 01 1 1001- ● ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 0307-0609 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 0610- ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97365-746-0 01 1 0307-0405 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0307-0512 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0307-0609 ● ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0610- ●
40 00.386 COVER
(A) 		8-97043-018-0 01 1 0307- ●
40 00.386 COVER
(B) 		8-97252-869-1 01 1 0307-0609 ●
40 00.386 COVER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (B) 		8-97252-869-1 01 1 0307-0609 ●
40 00.386 COVER
EURO3 SPECIFICATION<NT3> (C) 		8-97353-821-2 01 1 0307-0609 ●
41 00.413 GROMMET; HD COVER,OUTER 8-94256-959-0 02 1 0307- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0307-0609 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0610- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-90467-661-0 01 1 0307- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0610-0612 ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0701-0912 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 1001- ● ● ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0307-0609 ● ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0610- ●

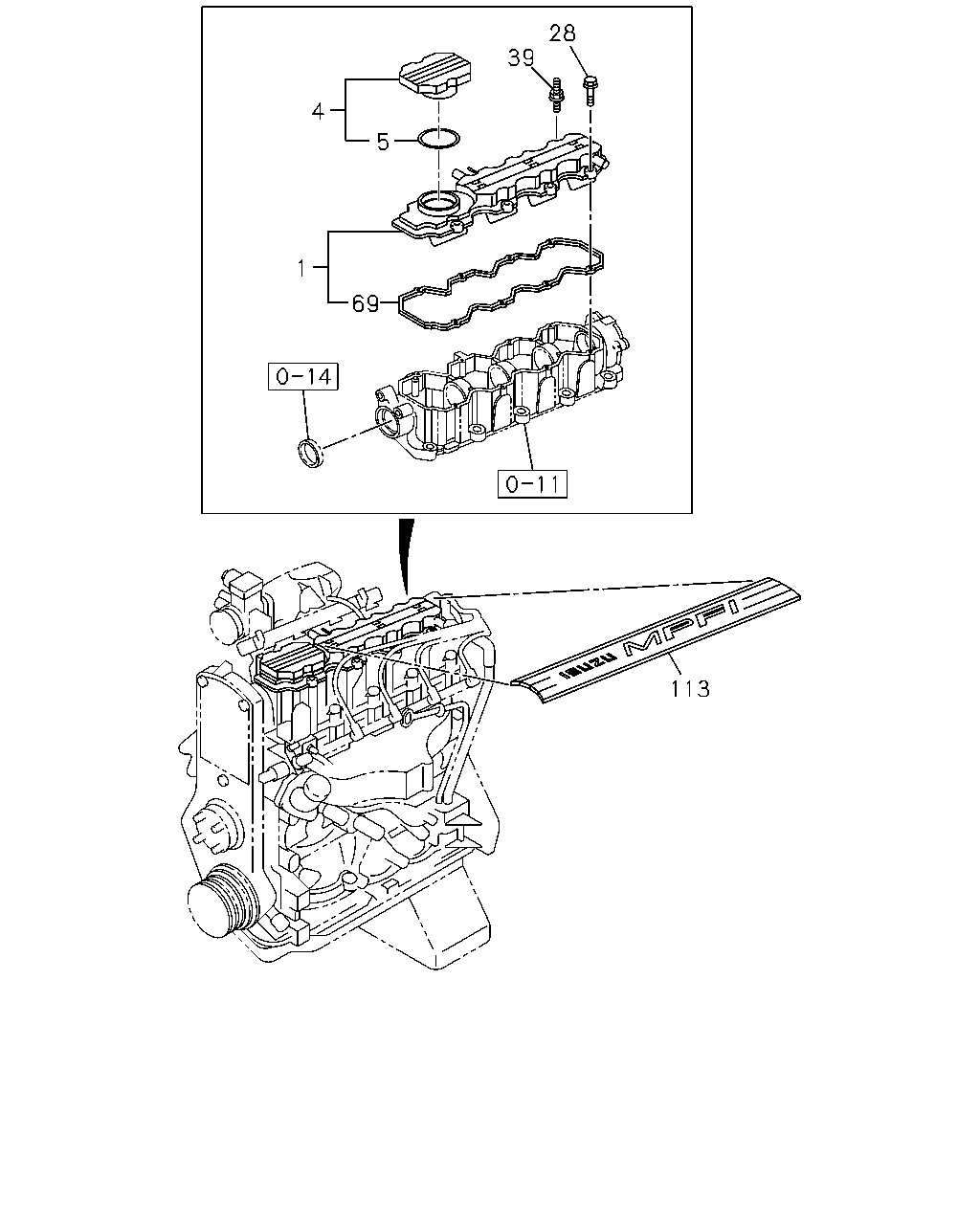

çizim 53287
28 39 4 5 1 69 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.386 COVER; CYL HD
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93317-147-0 01 1 1010- ●
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 0307- ●
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0307-0609 ● ●
1 00.386 COVER; CYL HD 8-90467-642-0 01 1 0307-1009 ●
1 00.386 COVER; CYL HD
AUSTRALIA EQUIPMENT(B13) 		8-90467-642-0 01 1 1010- ●
1 00.386 COVER; CYL HD 8-98051-196-1 01 1 0610-0612 ● ● ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 0701-0912 ● ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 1001- ● ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0307- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0307-0609 ● ●
4 01.758 CAP; OIL FILLER 8-90467-648-0 01 1 0307- ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0610-0612 ● ● ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0701-0912 ● ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 1001- ● ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0509- ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0307-0508 ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0509-0609 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-90448-217-0 01 1 0307- ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97918-298-0 01 1 0610-0612 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97918-298-0 01 1 0701-0912 ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97918-298-0 01 1 1001- ● ● ● ●
28 00.413 BOLT; HD COVER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93376-828-0 07 1 1010- ●
28 00.413 BOLT; HD COVER 8-11068-795-0 07 1 0307-1009 ●
28 00.413 BOLT; HD COVER
AUSTRALIA EQUIPMENT(B13) 		8-11068-795-0 07 1 1010- ●
39 00.413 STUD; COVER,HD 8-92064-273-0 01 1 0307- ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 0610-0611 ● ● ● ●
39 00.413 STUD; COVER,HD
EXC. KENYA EQUIPMENT(CL1) M6X30 L=38 		0-41010-630-0 01 1 0612-0612 ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 0612-0612 ● ● ●
39 00.413 STUD; COVER,HD
EXC. KENYA EQUIPMENT(CL1) M6X30 L=38 		0-41010-630-0 01 1 0701-0912 ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 0701-0912 ● ●
39 00.413 STUD; COVER,HD
EXC. KENYA EQUIPMENT(CL1) M6X30 L=38 		0-41010-630-0 01 1 1001- ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 1001- ● ● ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		8-97372-795-0 01 1 0611-0611 ● ●
39 00.413 STUD; COVER,HD
KENYA EQUIPMENT(CL1) M6X30 L=38 		8-97372-795-0 01 1 0612- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0307-0609 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0610- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-90467-661-0 01 1 0307- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0610-0612 ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0701-0912 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 1001- ● ● ● ●
113 00.386 COVER; CYL HEAD COVER 8-92063-671-0 01 1 0307- ●

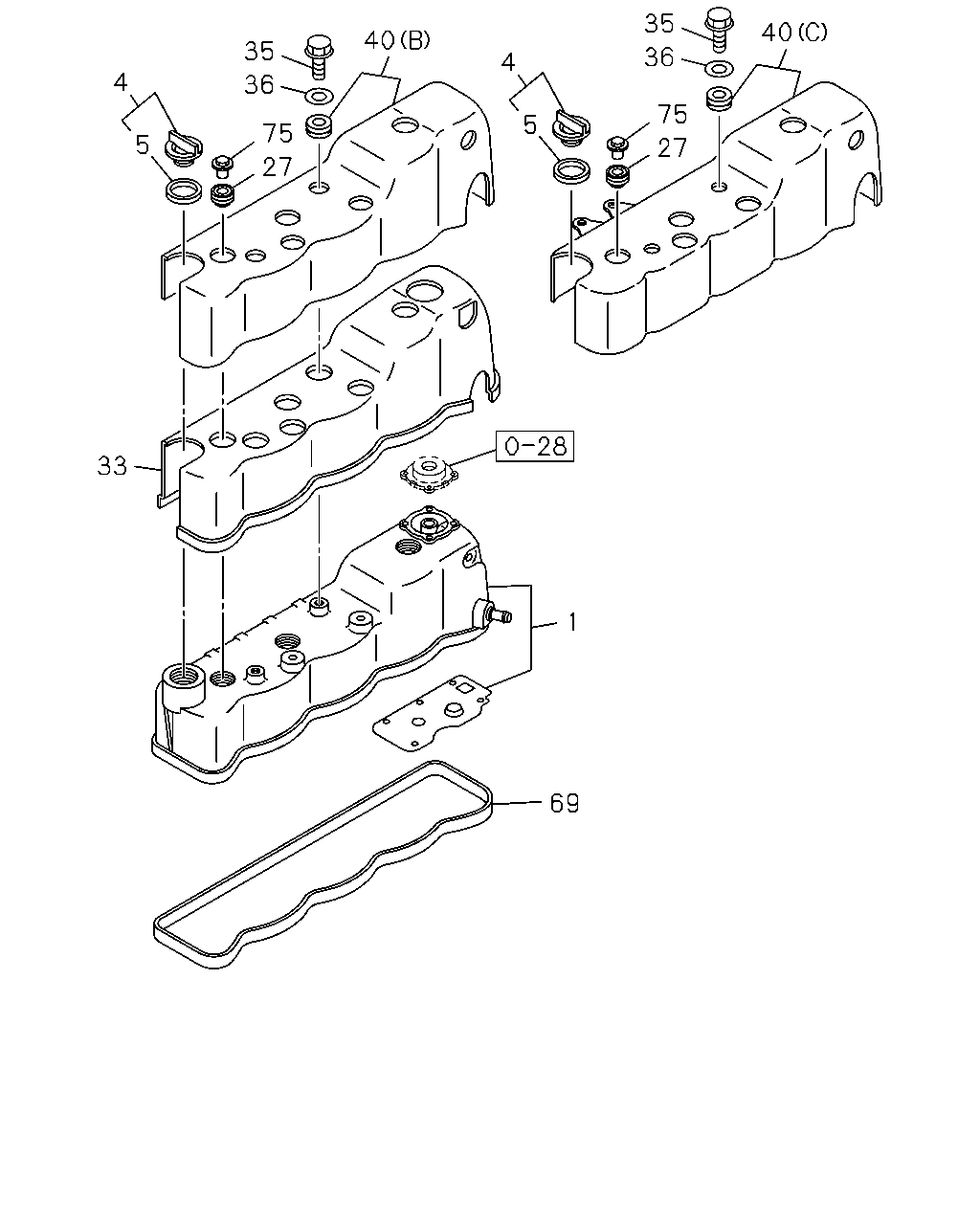

çizim 54635
35 40 40 35 36 4 4 36 75 5 75 5 27 27 33 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.386 COVER; CYL HD
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93317-147-0 01 1 1010- ●
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 0307- ●
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0307-0609 ● ●
1 00.386 COVER; CYL HD 8-90467-642-0 01 1 0307-1009 ●
1 00.386 COVER; CYL HD
AUSTRALIA EQUIPMENT(B13) 		8-90467-642-0 01 1 1010- ●
1 00.386 COVER; CYL HD 8-98051-196-1 01 1 0610-0612 ● ● ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 0701-0912 ● ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 1001- ● ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0307- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0307-0609 ● ●
4 01.758 CAP; OIL FILLER 8-90467-648-0 01 1 0307- ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0610-0612 ● ● ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0701-0912 ● ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 1001- ● ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0509- ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0307-0508 ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0509-0609 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-90448-217-0 01 1 0307- ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97918-298-0 01 1 0610-0612 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97918-298-0 01 1 0701-0912 ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97918-298-0 01 1 1001- ● ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 0307-0609 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 0610- ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97365-746-0 01 1 0307-0405 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0307-0512 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0307-0609 ● ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0610- ●
40 00.386 COVER
(A) 		8-97043-018-0 01 1 0307- ●
40 00.386 COVER
(B) 		8-97252-869-1 01 1 0307-0609 ●
40 00.386 COVER
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (B) 		8-97252-869-1 01 1 0307-0609 ●
40 00.386 COVER
EURO3 SPECIFICATION<NT3> (C) 		8-97353-821-2 01 1 0307-0609 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0307-0609 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0610- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-90467-661-0 01 1 0307- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0610-0612 ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0701-0912 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 1001- ● ● ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0307-0609 ● ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0610- ●

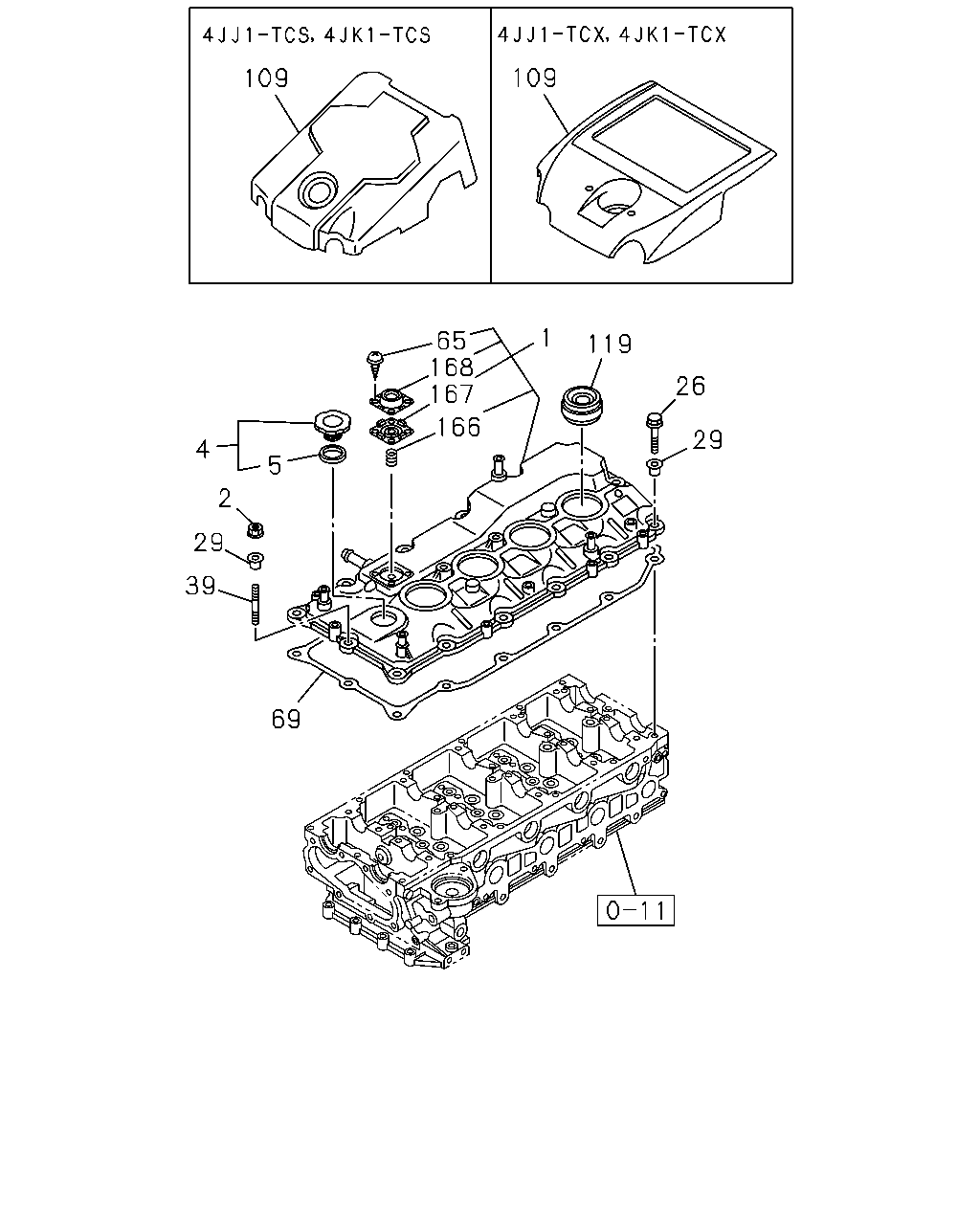

çizim 56341
109 109 1 65 168 167 119 26 166 29 4 5 2 29 39 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.386 COVER; CYL HD
EXC. AUSTRALIA EQUIPMENT(B13) 		8-93317-147-0 01 1 1010- ●
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 0307- ●
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0307-0609 ● ●
1 00.386 COVER; CYL HD 8-90467-642-0 01 1 0307-1009 ●
1 00.386 COVER; CYL HD
AUSTRALIA EQUIPMENT(B13) 		8-90467-642-0 01 1 1010- ●
1 00.386 COVER; CYL HD 8-98051-196-1 01 1 0610-0612 ● ● ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 0701-0912 ● ● ●
1 00.386 COVER; CYL HD 8-98051-196-2 01 1 1001- ● ● ● ●
2 00.413 NUT; COVER,HD
01.540 M6 FLANGE 		0-91180-206-0 01 1 0610-0612 ● ● ● ●
2 00.413 NUT; COVER,HD
01.540 M6 FLANGE 		0-91180-206-0 01 1 0701-0912 ● ● ●
2 00.413 NUT; COVER,HD
01.540 M6 FLANGE 		0-91180-206-0 01 1 1001- ● ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0307- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0307-0609 ● ●
4 01.758 CAP; OIL FILLER 8-90467-648-0 01 1 0307- ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0610-0612 ● ● ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 0701-0912 ● ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 1001- ● ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0509- ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0307-0508 ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94123-623-1 01 1 0509-0609 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-90448-217-0 01 1 0307- ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97918-298-0 01 1 0610-0612 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97918-298-0 01 1 0701-0912 ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97918-298-0 01 1 1001- ● ● ● ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 13 1 0610-0612 ● ● ● ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 13 1 0701-0912 ● ● ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 13 1 1001- ● ● ● ●
29 00.413 RUBBER; MTG,HD COVER 8-97381-524-0 14 1 0610-0611 ● ●
29 00.413 RUBBER; MTG,HD COVER
KENYA EQUIPMENT(CL1) 		8-97381-524-0 14 1 0612- ●
29 00.413 RUBBER; MTG,HD COVER 8-97361-811-1 14 1 0610-0611 ● ● ● ●
29 00.413 RUBBER; MTG,HD COVER
EXC. KENYA EQUIPMENT(CL1) 		8-97361-811-1 14 1 0612-0612 ●
29 00.413 RUBBER; MTG,HD COVER 8-97361-811-1 14 1 0612-0612 ● ● ●
29 00.413 RUBBER; MTG,HD COVER
EXC. KENYA EQUIPMENT(CL1) 		8-97361-811-1 14 1 0701-0912 ●
29 00.413 RUBBER; MTG,HD COVER 8-97361-811-1 14 1 0701-0912 ● ●
29 00.413 RUBBER; MTG,HD COVER
EXC. KENYA EQUIPMENT(CL1) 		8-97361-811-1 14 1 1001- ●
29 00.413 RUBBER; MTG,HD COVER 8-97361-811-1 14 1 1001- ● ● ●
39 00.413 STUD; COVER,HD 8-92064-273-0 01 1 0307- ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 0610-0611 ● ● ● ●
39 00.413 STUD; COVER,HD
EXC. KENYA EQUIPMENT(CL1) M6X30 L=38 		0-41010-630-0 01 1 0612-0612 ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 0612-0612 ● ● ●
39 00.413 STUD; COVER,HD
EXC. KENYA EQUIPMENT(CL1) M6X30 L=38 		0-41010-630-0 01 1 0701-0912 ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 0701-0912 ● ●
39 00.413 STUD; COVER,HD
EXC. KENYA EQUIPMENT(CL1) M6X30 L=38 		0-41010-630-0 01 1 1001- ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 1001- ● ● ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		8-97372-795-0 01 1 0611-0611 ● ●
39 00.413 STUD; COVER,HD
KENYA EQUIPMENT(CL1) M6X30 L=38 		8-97372-795-0 01 1 0612- ●
65 00.413 SCREW; ADAPTER
M5X10 W/LK WASHER 		8-97366-592-0 04 1 0610-0612 ● ● ● ●
65 00.413 SCREW; ADAPTER
M5X10 W/LK WASHER 		8-97366-592-0 04 1 0701-0912 ● ● ●
65 00.413 SCREW; ADAPTER
M5X10 W/LK WASHER 		8-97366-592-0 04 1 1001- ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0307-0609 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0610- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-90467-661-0 01 1 0307- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0610-0612 ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0701-0912 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 1001- ● ● ● ●
109 00.386 COVER; ENG
CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ> 		8-98031-432-0 01 1 1001- ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ> 		8-98097-018-0 01 1 1001- ●
109 00.386 COVER; ENG
CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ> 		8-98031-431-0 01 1 0610-0710 ●
109 00.386 COVER; ENG
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ> 		8-98031-431-0 01 1 0711-1001 ●
109 00.386 COVER; ENG
CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ> 		8-98031-431-0 01 1 1002- ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ> 		8-98019-065-0 01 1 0610-0802 ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ> 		8-98097-019-0 01 1 0803- ●
109 00.386 COVER; ENG
CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ> 		8-98031-432-0 01 1 0610-0612 ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ> 		8-98031-174-0 01 1 0610-0612 ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> 		8-98061-176-0 01 1 0610-1006 ● ●
109 00.386 COVER; ENG
ISUZU BRAND<7WL> 		8-98175-668-0 01 1 1007- ● ●
109 00.386 COVER; ENG
HOLDEN BRAND<8DU> 		8-98061-178-0 01 1 0610-1006 ●
109 00.386 COVER; ENG
HOLDEN BRAND<8DU> 		8-98175-670-0 01 1 1007- ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 0610-0612 ● ● ● ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 0701-0912 ● ● ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 1001- ● ● ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 0610-0612 ● ● ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 0701-0912 ● ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 1001- ● ● ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 0610-0612 ● ● ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 0701-0912 ● ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 1001- ● ● ● ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 0610-0612 ● ● ● ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 0701-0912 ● ● ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 1001- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
