◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05A - ENGINE GASKET KIT ▶
0-05A — ENGINE GASKET KIT (#20054) — 744 parça

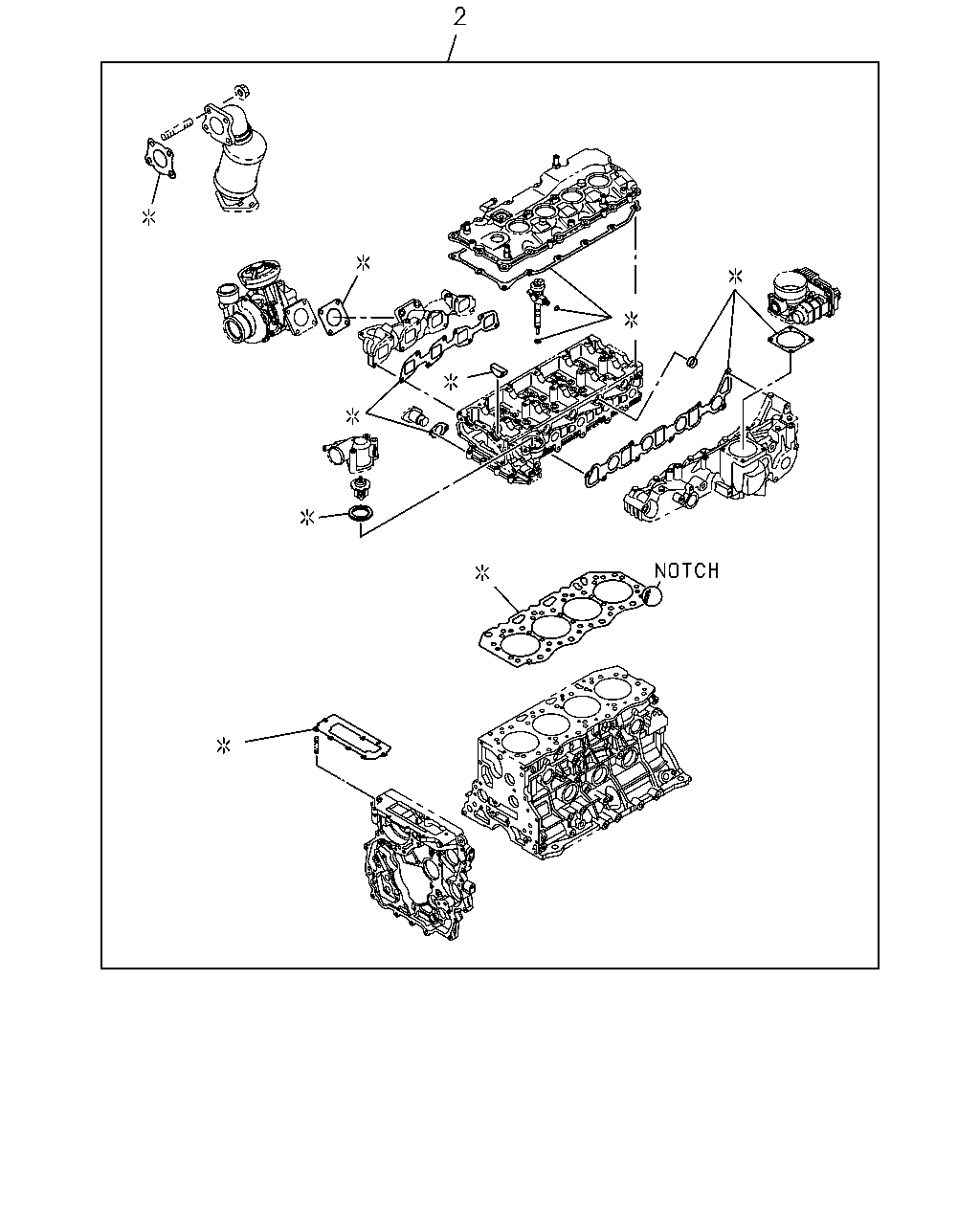

çizim 12613
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0307-1009 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92066-630-0 01 1 1010- ●

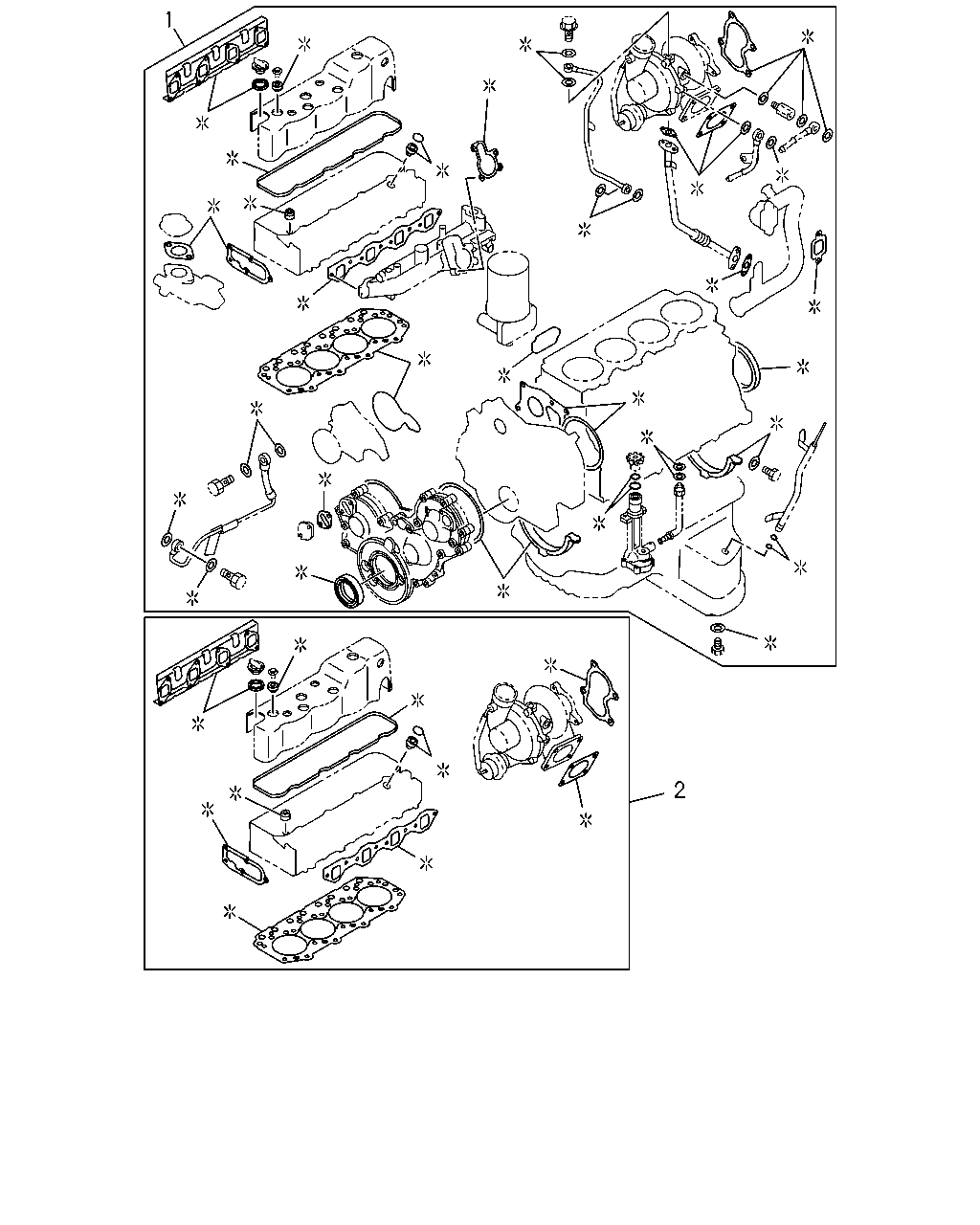

çizim 12677
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-396-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-448-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-397-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-449-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-398-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-450-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-405-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-727-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-406-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-728-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-407-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-729-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-408-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-730-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-409-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-731-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-410-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-732-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-398-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-724-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-399-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-725-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-400-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-726-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0307-1009 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92061-971-0 01 1 1010- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0307-1009 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92066-630-0 01 1 1010- ●

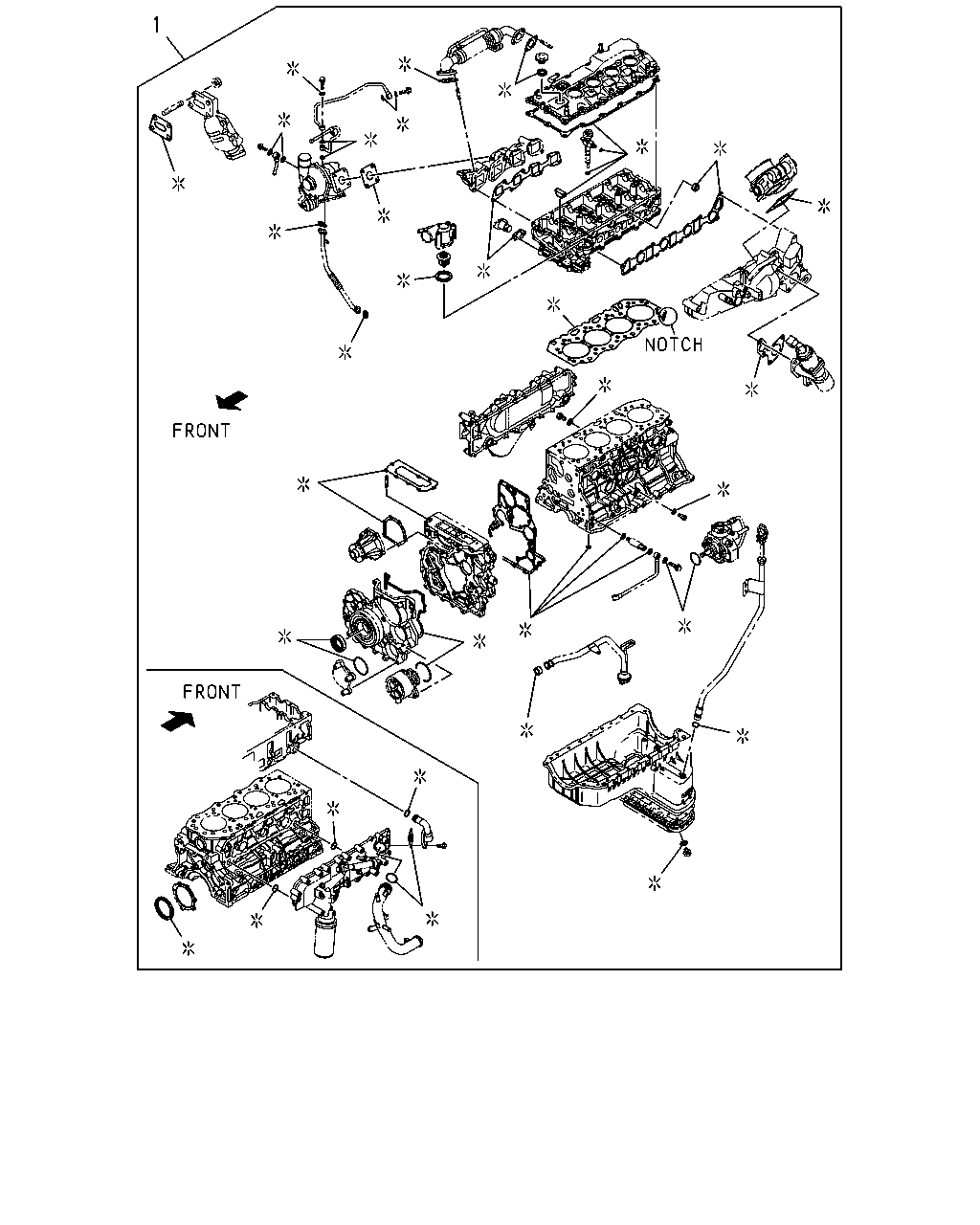

çizim 13088
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-396-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-448-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-397-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-449-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-398-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-450-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-405-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-727-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-406-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-728-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-407-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-729-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-408-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-730-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-409-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-731-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-410-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-732-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-398-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-724-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-399-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-725-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-400-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-726-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0307-1009 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92061-971-0 01 1 1010- ●

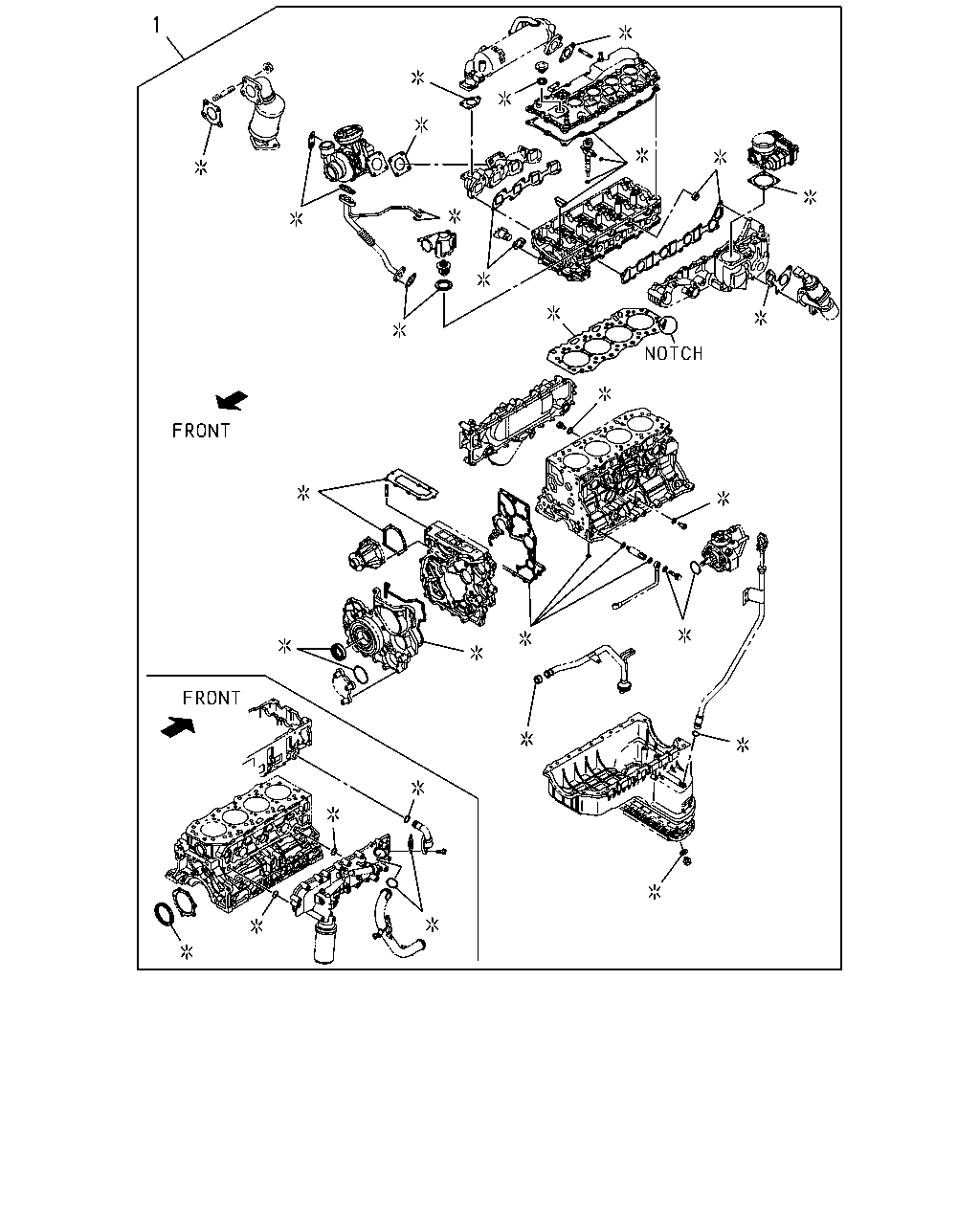

çizim 13463
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-396-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-448-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-397-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-449-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-398-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-450-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-405-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-727-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-406-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-728-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-407-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-729-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-408-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-730-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-409-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-731-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-410-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-732-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-398-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-724-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-399-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-725-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-400-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-726-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0307-1009 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92061-971-0 01 1 1010- ●

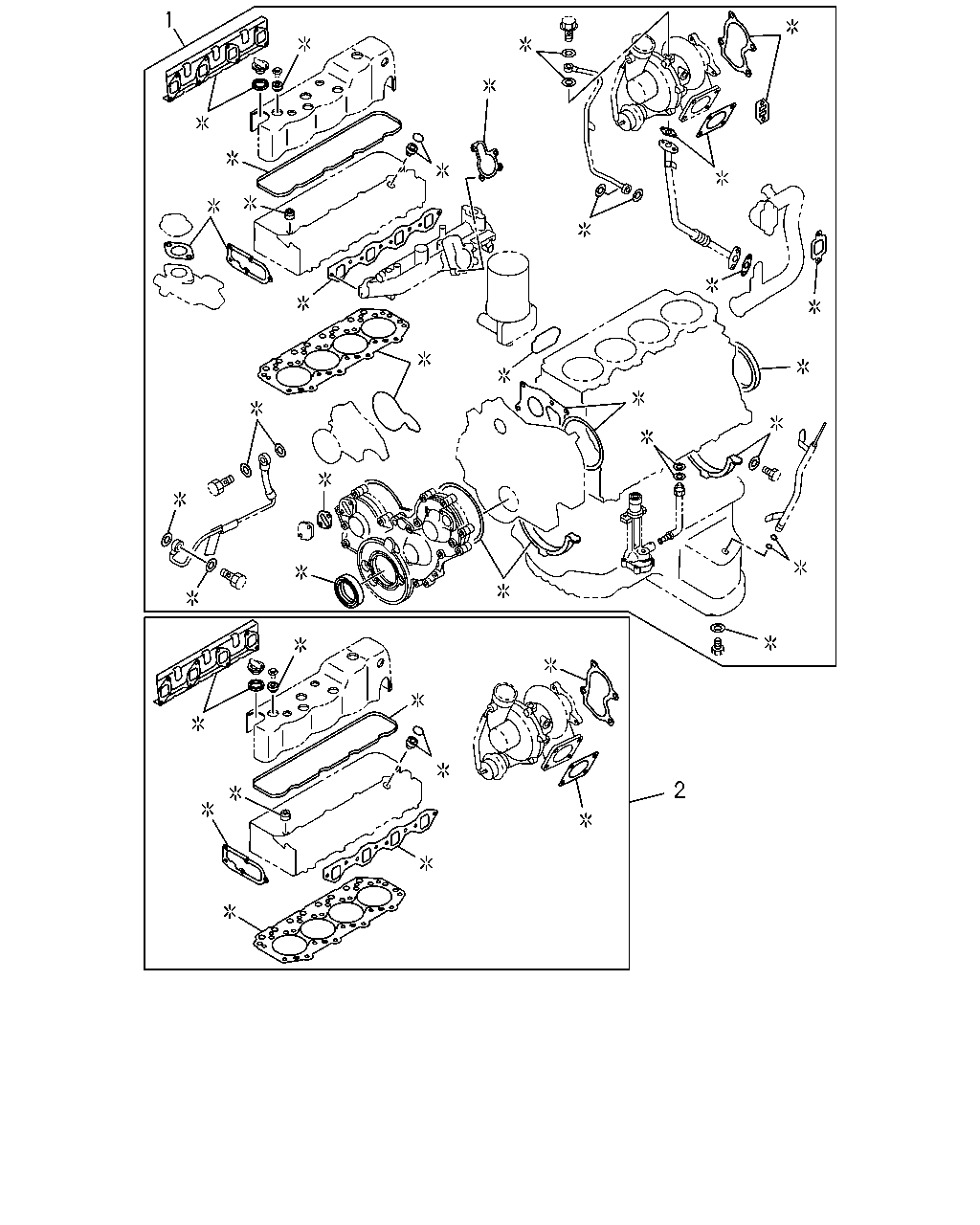

çizim 13523
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-396-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-448-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-397-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-449-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-398-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-450-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-405-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-727-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-406-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-728-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-407-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-729-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-408-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-730-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-409-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-731-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-410-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-732-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-398-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-724-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-399-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-725-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-400-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-726-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0307-1009 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92061-971-0 01 1 1010- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0307-1009 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92066-630-0 01 1 1010- ●

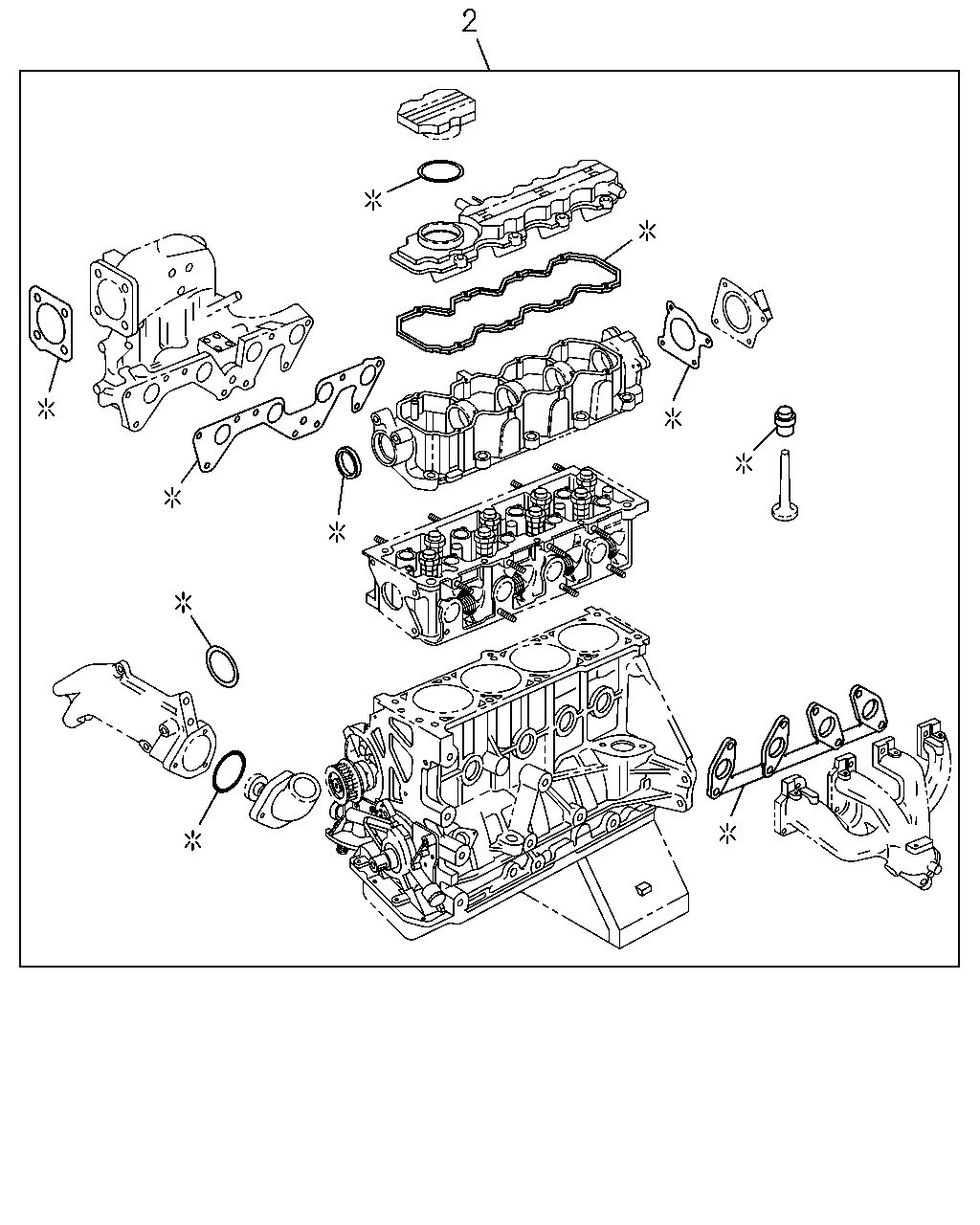

çizim 13526
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0307-1009 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92066-630-0 01 1 1010- ●
çizim 53319
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-396-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-448-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-397-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-449-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-398-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-450-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-405-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-727-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-406-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-728-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-407-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-729-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-408-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-730-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-409-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-731-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-410-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-732-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-398-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-724-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-399-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-725-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-400-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-726-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0307-1009 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92061-971-0 01 1 1010- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0307-1009 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92066-630-0 01 1 1010- ●
çizim 55968
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-646-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-856-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-647-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-857-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 0710-0912 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-648-0 01 1 1001-1011 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-858-0 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-405-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-457-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-406-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-458-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-407-0 01 1 0710-0902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-459-0 01 1 0903- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-2 01 1 0307-0609 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-4 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92066-630-0 01 1 0307-1009 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92066-630-0 01 1 1010- ●
çizim 56320
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-643-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87815-853-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-644-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87815-854-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 0710-0912 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-645-1 01 1 1001-1011 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
A/T AISIN(RMD) T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87815-855-0 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-396-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-448-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-397-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-449-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-398-0 01 1 0710-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-450-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.05 1-NOTCH 		5-87815-399-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.05 1-NOTCH 		5-87815-451-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.10 2-NOTCH 		5-87815-400-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.10 2-NOTCH 		5-87815-452-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) T=1.15 3-NOTCH 		5-87815-401-0 01 1 0807-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) T=1.15 3-NOTCH 		5-87815-453-0 01 1 0903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-405-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-727-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-406-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-728-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-407-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-729-0 01 1 0403-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-408-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-730-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-409-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-731-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-410-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-732-1 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-398-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-724-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-399-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-725-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-400-1 01 1 0307-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-726-0 01 1 0403-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 0307-1009 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(B13) 		8-92061-971-0 01 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
