Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#2005) — 298 parça

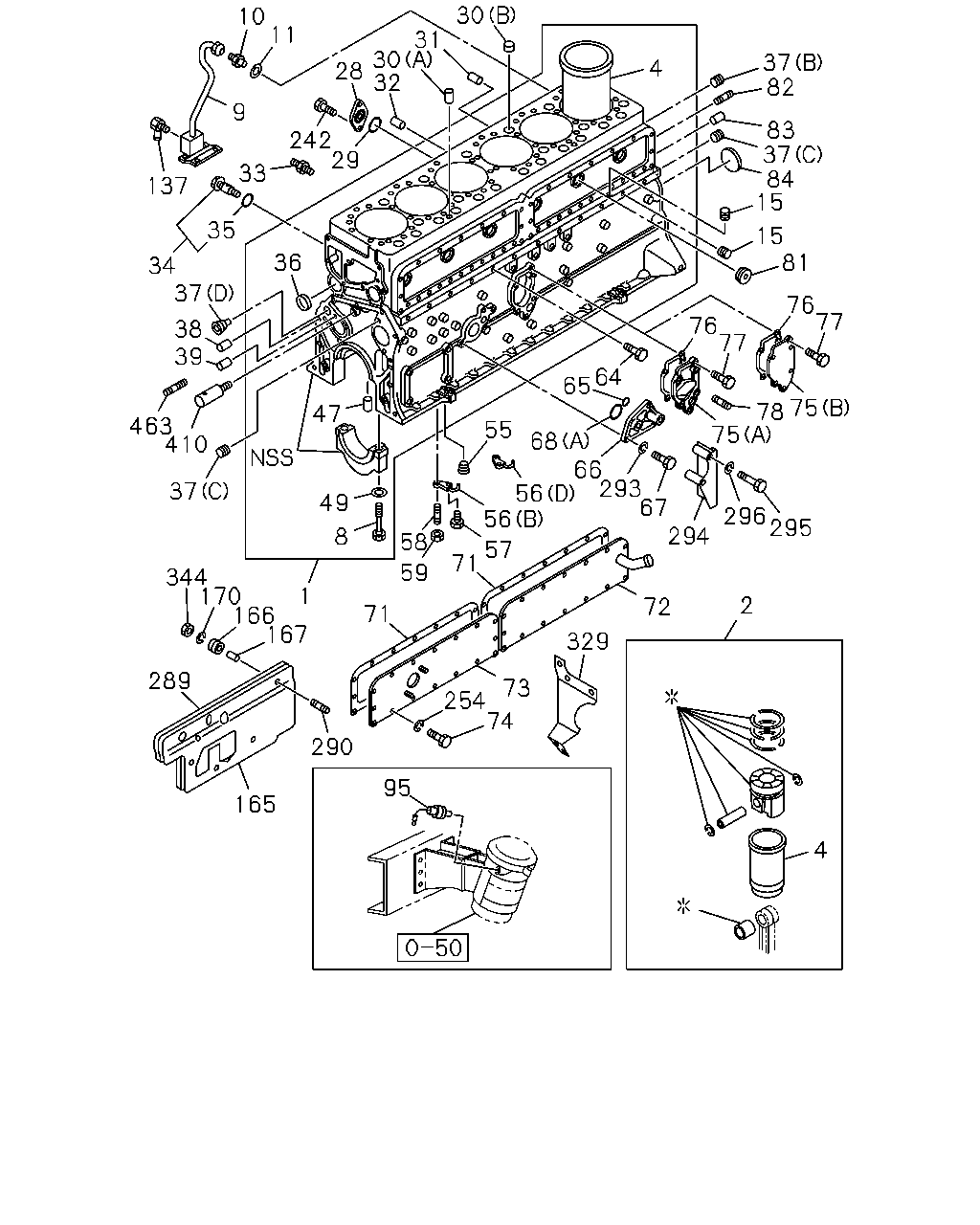

30 10 11 31 30 28 32 37 82 4 242 29 9 83 37 84 15 33 137 35 15 81 36 34 37 76 77 76 77 38 39 64 65 78 75 75 47 463 410 55 68 66 293 56 67 56 294 37 49 296 295 8 58 57 71 59 344 170 166 167 1 2 72 71 329 254 74 289 73 290 95 165 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	1-11210-537-3	01	1	9001-9103	●
1	BLOCK ASM; CYL	1-11210-568-1	01	1	9104-	●
1	BLOCK ASM; CYL	1-11210-246-3	01	1	9001-9304		●
1	BLOCK ASM; CYL EXC. TAIWAN EMISSION REGULATION<TAL>	1-11210-246-4	01	1	9305-		●
1	BLOCK ASM; CYL TAIWAN EMISSION REGULATION<TAL>	1-11210-588-0	01	1	9305-9311		●
1	BLOCK ASM; CYL TAIWAN EMISSION REGULATION<TAL>	1-11210-421-0	01	1	9312-		●
1	BLOCK ASM; CYL	1-11210-251-3	01	1	9001-			●
1	BLOCK ASM; CYL	1-11210-321-1	01	1	9101-9201				●
1	BLOCK ASM; CYL	1-11210-598-0	01	1	9202-9311				●
1	BLOCK ASM; CYL	1-11210-321-1	01	1	9312-				●
2	LINER SET; ENG CYL NON GRADE	1-87811-467-0	06	1	9001-	●
2	LINER SET; ENG CYL GRADE=1	1-87811-394-0	06	1	9001-9304		●
2	LINER SET; ENG CYL EXC. TAIWAN EMISSION REGULATION<TAL> GRADE=1	1-87811-394-0	06	1	9305-		●
2	LINER SET; ENG CYL GRADE=2	1-87811-395-0	06	1	9001-9304		●
2	LINER SET; ENG CYL EXC. TAIWAN EMISSION REGULATION<TAL> GRADE=2	1-87811-395-0	06	1	9305-		●
2	LINER SET; ENG CYL TAIWAN EMISSION REGULATION<TAL> GRADE=1	1-87811-411-0	06	1	9305-		●
2	LINER SET; ENG CYL TAIWAN EMISSION REGULATION<TAL> GRADE=2	1-87811-412-0	06	1	9305-		●
2	LINER SET; ENG CYL GRADE=1	1-87811-367-0	06	1	9001-			●
2	LINER SET; ENG CYL GRADE=2	1-87811-368-0	06	1	9001-			●
2	LINER SET; ENG CYL GRADE=1	1-87811-415-0	06	1	9101-				●
2	LINER SET; ENG CYL GRADE=2	1-87811-416-0	06	1	9101-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-290-0	06	1	9001-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-291-0	06	1	9001-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-204-0	06	1	9001-9304		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-204-0	06	1	9305-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-204-0	06	1	9305-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-205-0	06	1	9001-9304		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-205-0	06	1	9305-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-205-0	06	1	9305-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-288-0	06	1	9101-9304				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-288-0	06	1	9305-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-288-0	06	1	9305-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-289-0	06	1	9101-9304				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-289-0	06	1	9305-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-289-0	06	1	9305-				●
8	BOLT; BRG CAP M18X123	9-09805-054-0	04	1	9001-	●
8	BOLT; BRG CAP M18X155	9-09805-055-0	10	1	9001-9006	●
8	BOLT; BRG CAP M18X134	1-09009-103-0	10	1	9007-	●
8	BOLT; BRG CAP M20X150 CAP NO.1,7	9-09804-217-0	04	1	9001-		●	●	●
8	BOLT; BRG CAP M20X178 CAP NO.2,3,4,5,6	9-09804-218-0	10	1	9001-9201		●	●	●
8	BOLT; BRG CAP M20X178 CAP NO.2,4,5,6	9-09804-218-0	08	1	9202-9311		●	●	●
8	BOLT; BRG CAP M20X178 CAP NO.2,3,4,5,6	9-09804-218-0	10	1	9312-		●	●	●
8	BOLT; BRG CAP M20X178 CAP NO.3	1-09029-064-0	02	1	9202-9311		●	●	●
9	PIPE ASM; WATER DRAIN COCK	1-13711-036-3	01	1	9001-		●	●	●
10	CONNECTOR; WATER DRAIN	1-09660-011-1	01	1	9001-		●	●	●
11	GASKET; CONN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09571-418-0	01	1	9001-		●		●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	15	1	9001-		●	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	14	1	9101-				●
28	COVER; OIL PORT	9-11219-214-0	01	1	9001-	●	●	●	●
29	GASKET; COVER,OIL PORT ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	01	1	9001-9003	●	●	●
29	GASKET; COVER,OIL PORT ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9004-	●	●	●	●
30	PIN; CYL HD GASKET SETTING (A) OD=8 L=16	9-08150-816-0	02	1	9001-	●	●	●	●
30	PIN; CYL HD GASKET SETTING (B) OD=20 L=15	9-11229-011-2	04	1	9001-	●	●	●	●
31	PLUG; OIL GALLERY PT1/4	1-09605-019-0	03	1	9001-	●	●	●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9001-	●	●	●	●
33	CONNECTOR; OIL GALLERY	1-09660-034-1	01	1	9001-	●	●	●	●
34	VALVE; OIL RELIEF	9-13160-060-2	01	1	9001-	●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-059-0	01	1	9001-	●	●	●	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	04	1	9001-		●	●	●
37	PLUG; OIL GALLERY (A) PT3/4	1-09605-025-0	01	1	9001-	●
37	PLUG; OIL GALLERY (C) PT3/4,M8	1-09609-014-1	01	1	9001-	●	●	●	●
37	PLUG; OIL GALLERY (D) PT3/4	1-09605-025-0	02	1	9001-		●	●	●
37	PLUG; OIL GALLERY (B) PT3/8	1-09605-056-0	02	1	9001-		●	●	●
38	PIN; TIMING GEAR CASE	9-08151-222-0	02	1	9001-	●	●	●	●
39	DOWEL; IDLE GEAR SPINDLE	1-11229-013-0	01	1	9001-	●	●	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	14	1	9001-		●	●	●
49	WASHER; BRG CAP ID=18	9-09851-862-0	14	1	9001-	●
49	WASHER; BRG CAP OD=23.8	9-09851-915-0	14	1	9001-		●	●	●
55	PLUG; OIL GALLERY PT3/4	1-09605-025-0	01	1	9001-	●	●	●	●
56	JET; OIL,PISTON COOLING (A)	1-13342-068-0	03	1	9001-	●
56	JET; OIL,PISTON COOLING (B)	1-13342-069-0	03	1	9001-	●
56	JET; OIL,PISTON COOLING (C)	1-13342-082-0	03	1	9001-		●	●
56	JET; OIL,PISTON COOLING (D)	1-13342-083-0	03	1	9001-		●	●
56	JET; OIL,PISTON COOLING (C)	1-13342-084-0	03	1	9101-				●
56	JET; OIL,PISTON COOLING (D)	1-13342-085-0	03	1	9101-				●
57	BOLT; OIL JET M8X20	9-02050-820-0	06	1	9001-9005	●	●	●
57	BOLT; OIL JET M8X20	0-20800-820-0	06	1	9006-	●	●	●	●
58	STUD; OILING JET M8X20 L=32	9-04110-820-0	06	1	9001-	●	●	●	●
59	NUT; OILING JET M8	9-09110-408-0	06	1	9001-	●	●	●	●
64	CONNECTOR; TURBOCHARGER OIL FEED	1-09660-104-1	01	1	9309-				●
65	GASKET; SUCTION ID=27.7	1-09623-170-0	01	1	9001-9003		●	●
65	GASKET; SUCTION ID=27.7	1-09623-450-0	01	1	9004-		●	●	●
66	CONNECTOR; PARTIAL FILTER	1-13341-077-2	01	1	9001-	●	●	●	●
67	BOLT; CONNECTOR M10X25 W/LK WASHER	9-01931-025-0	02	1	9001-9002	●
67	BOLT; CONNECTOR M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-	●
67	BOLT; CONNECTOR M10X90	9-01656-090-0	01	1	9001-9004	●	●	●
67	BOLT; CONNECTOR M10X90	0-16806-090-0	01	1	9005-	●	●	●	●
67	BOLT; CONNECTOR M10X25 W/LK&PL WASHER	9-01991-025-0	02	1	9001-9002	●	●	●
67	BOLT; CONNECTOR M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	9003-	●	●	●	●
67	BOLT; CONNECTOR TAIWAN EMISSION REGULATION<TAL> M10X25 W/LK&PL WASHER	0-50151-025-0	03	1	9312-		●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-170-0	01	1	9001-9003	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9004-	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=49.7	1-09623-171-0	01	1	9001-9003	●	●	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=49.7	1-09623-541-0	01	1	9004-	●	●	●	●
71	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11292-030-1	02	1	9001-	●
71	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11292-028-0	02	1	9001-9603		●	●	●
71	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11292-031-0	02	1	9604-		●	●	●
72	COVER; TAPPET CHAMBER	1-11291-017-1	01	1	9001-	●
72	COVER; TAPPET CHAMBER	1-11291-034-0	01	1	9001-		●	●	●
73	COVER ASM; TAPPET CHAMBER	1-11291-068-0	01	1	9001-	●
73	COVER ASM; TAPPET CHAMBER	1-11291-035-1	01	1	9001-		●	●	●
74	BOLT; COVER TO C/BL M8X22	9-01910-822-0	25	1	9001-9005	●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	25	1	9006-	●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	9-01910-825-0	02	1	9001-9005	●	●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-	●	●
74	BOLT; COVER TO C/BL M8X22	9-01910-822-0	29	1	9001-9005		●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	29	1	9006-		●
74	BOLT; COVER TO C/BL M8X22	9-01970-822-0	01	1	9001-9005		●	●
74	BOLT; COVER TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	9006-		●	●	●
74	BOLT; COVER TO C/BL M8X22	9-01910-822-0	27	1	9001-9005			●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	27	1	9006-9311			●	●
74	BOLT; COVER TO C/BL TAIWAN EMISSION REGULATION<TAL> M8X22 W/LK WASHER	0-50040-822-0	27	1	9312-		●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	27	1	9312-			●	●
74	BOLT; COVER TO C/BL TAIWAN EMISSION REGULATION<TAL> M8X24,M10X35 L=64.5	1-09300-044-4	02	1	9312-		●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	9-01910-825-0	04	1	9001-9005			●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	0-50040-825-0	04	1	9006-			●	●
75	COVER; C/BL,OIL PUMP (B)	9-11219-424-1	01	1	9001-	●	●	●
75	COVER; C/BL,OIL PUMP (A)	1-11219-120-0	01	1	9101-				●
76	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13114-008-0	01	1	9001-9603	●	●	●	●
76	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13114-011-0	01	1	9604-	●	●	●	●
77	BOLT; COVER TO C/BL M10X25 W/LK WASHER	9-01931-025-0	03	1	9001-9002	●	●	●
77	BOLT; COVER TO C/BL M10X25 W/LK WASHER	0-50051-025-0	03	1	9003-	●	●	●
77	BOLT; COVER TO C/BL M10X30	9-01931-030-0	02	1	9001-9002	●	●	●
77	BOLT; COVER TO C/BL M10X30 W/LK WASHER	0-50051-030-0	02	1	9003-	●	●	●
77	BOLT; COVER TO C/BL M10X35 W/LK WASHER	0-50051-035-0	03	1	9101-				●
77	BOLT; COVER TO C/BL M10X40 W/LK WASHER	0-50051-040-0	02	1	9101-				●
78	STUD; COVER OIL PUMP M8X30 L=41	9-04110-830-0	02	1	9101-				●
81	PLUG; WATER JACKET	9-09864-050-1	06	1	9001-		●	●	●
82	STUD; FLYWHEEL HSG M14X42 L=63	9-04411-442-0	01	1	9001-	●	●	●	●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9001-	●	●	●	●
84	PLUG; CAM BRG	9-09201-371-0	01	1	9001-	●	●	●	●
95	PRESSURE UNIT; OIL	1-83151-030-0	01	1	9001-	●	●	●	●
137	COCK; DRAIN,WATER	1-09680-026-0	01	1	9001-	●	●	●	●
165	COVER; C/BL SKIRT TAIWAN EMISSION REGULATION<TAL>	1-19381-234-1	01	1	9312-		●
166	MOUNT; COVER BLOCK SKIRT TAIWAN EMISSION REGULATION<TAL>	1-09337-021-0	04	1	9312-9401		●
166	MOUNT; COVER BLOCK SKIRT TAIWAN EMISSION REGULATION<TAL>	1-09337-020-0	04	1	9402-		●
167	TUBE; DIST,SIDE COVER TAIWAN EMISSION REGULATION<TAL>	5-23332-003-0	04	1	9312-		●
170	WASHER; COVER TAIWAN EMISSION REGULATION<TAL> ID=10.5 OD=26	9-09160-710-0	08	1	9312-		●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	9-01910-820-0	02	1	9001-9005	●	●	●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-	●	●	●	●
254	WASHER; LK,TAPPET CHAMBER COVER TAIWAN EMISSION REGULATION<TAL> ID=8.2	9-09150-508-0	02	1	9312-		●
289	WOOL; GLASS,COVER TAIWAN EMISSION REGULATION<TAL>	1-19389-077-1	01	1	9312-		●
290	STUD; NOISE COVER TAIWAN EMISSION REGULATION<TAL> M10X30 L=45	9-04411-030-0	02	1	9312-		●
293	WASHER; LK,CONNECTOR ID=10.2	9-09150-510-0	01	1	9001-	●	●	●	●
294	PROTECTOR; HEAT,FLEX HOSE	1-11219-085-1	01	1	9001-	●	●	●	●
295	BOLT; HEAT PROTECTOR,FLEX HOSE M14X95	9-91656-495-0	01	1	9001-9005	●	●	●
295	BOLT; HEAT PROTECTOR,FLEX HOSE M14X95	0-16806-495-0	01	1	9006-	●	●	●	●
296	WASHER; LK,HEAT PROTECTOR,FLEX HOSE ID=14.2	9-09150-514-0	01	1	9001-	●	●	●	●
329	BRACKET; CONT CABLE A/T<X9D>	1-23335-118-1	01	1	9001-		●	●
344	NUT; NOISE COVER TAIWAN EMISSION REGULATION<TAL> M10	9-09110-410-0	04	1	9312-		●
410	JET; OIL,TIMING GEAR	9-13342-002-0	01	1	9001-	●	●	●	●
463	STUD; TIMING GEAR CASE A/T<X9D> M12X77 L=95	9-09831-161-0	06	1	9001-9012		●
463	STUD; TIMING GEAR CASE A/T<X9D> M12X77 L=95	9-09831-161-0	06	1	9101-		●
463	STUD; TIMING GEAR CASE M12X77 L=95	9-09831-161-0	06	1	9101-				●
463	STUD; TIMING GEAR CASE EXC. A/T<X9D> M12X77 L=95	9-09831-161-0	03	1	9001-		●
463	STUD; TIMING GEAR CASE M12X77 L=95	9-09831-161-0	03	1	9001-			●

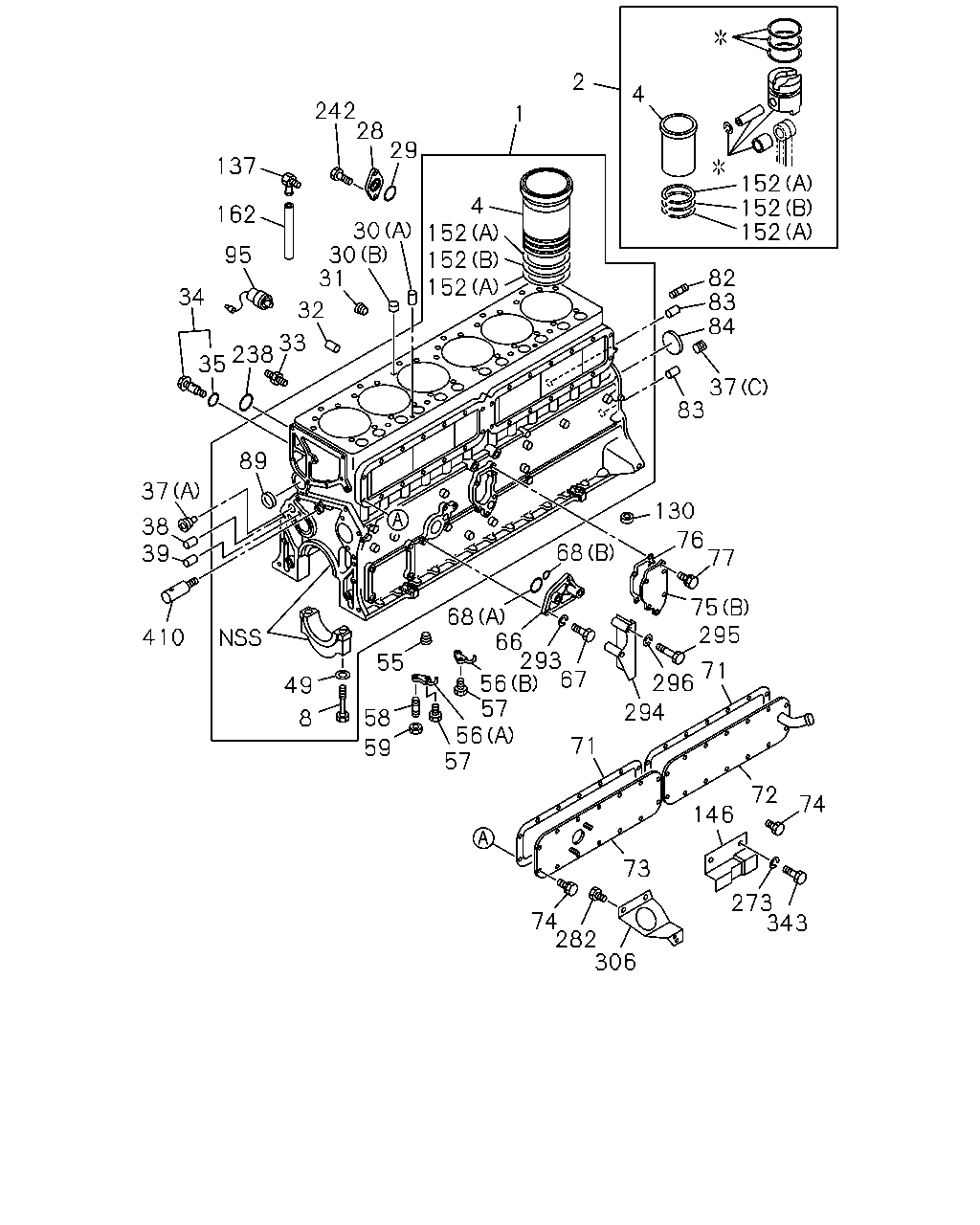

2 4 242 28 9 1 152 152 152 137 4 152 152 152 162 30 30 31 95 82 83 84 34 32 33 238 35 37 83 89 37 130 38 39 76 77 68 75 295 68 66 293 56 67 57 56 57 410 55 71 296 49 294 58 8 71 59 72 146 74 73 273 343 74 282 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	1-11210-537-3	01	1	9001-9103	●
1	BLOCK ASM; CYL	1-11210-568-1	01	1	9104-	●
1	BLOCK ASM; CYL	1-11210-246-3	01	1	9001-9304		●
1	BLOCK ASM; CYL EXC. TAIWAN EMISSION REGULATION<TAL>	1-11210-246-4	01	1	9305-		●
1	BLOCK ASM; CYL TAIWAN EMISSION REGULATION<TAL>	1-11210-588-0	01	1	9305-9311		●
1	BLOCK ASM; CYL TAIWAN EMISSION REGULATION<TAL>	1-11210-421-0	01	1	9312-		●
1	BLOCK ASM; CYL	1-11210-251-3	01	1	9001-			●
1	BLOCK ASM; CYL	1-11210-321-1	01	1	9101-9201				●
1	BLOCK ASM; CYL	1-11210-598-0	01	1	9202-9311				●
1	BLOCK ASM; CYL	1-11210-321-1	01	1	9312-				●
2	LINER SET; ENG CYL NON GRADE	1-87811-467-0	06	1	9001-	●
2	LINER SET; ENG CYL GRADE=1	1-87811-394-0	06	1	9001-9304		●
2	LINER SET; ENG CYL EXC. TAIWAN EMISSION REGULATION<TAL> GRADE=1	1-87811-394-0	06	1	9305-		●
2	LINER SET; ENG CYL GRADE=2	1-87811-395-0	06	1	9001-9304		●
2	LINER SET; ENG CYL EXC. TAIWAN EMISSION REGULATION<TAL> GRADE=2	1-87811-395-0	06	1	9305-		●
2	LINER SET; ENG CYL TAIWAN EMISSION REGULATION<TAL> GRADE=1	1-87811-411-0	06	1	9305-		●
2	LINER SET; ENG CYL TAIWAN EMISSION REGULATION<TAL> GRADE=2	1-87811-412-0	06	1	9305-		●
2	LINER SET; ENG CYL GRADE=1	1-87811-367-0	06	1	9001-			●
2	LINER SET; ENG CYL GRADE=2	1-87811-368-0	06	1	9001-			●
2	LINER SET; ENG CYL GRADE=1	1-87811-415-0	06	1	9101-				●
2	LINER SET; ENG CYL GRADE=2	1-87811-416-0	06	1	9101-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-290-0	06	1	9001-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-291-0	06	1	9001-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-204-0	06	1	9001-9304		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-204-0	06	1	9305-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-204-0	06	1	9305-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-205-0	06	1	9001-9304		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-205-0	06	1	9305-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-205-0	06	1	9305-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-288-0	06	1	9101-9304				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-288-0	06	1	9305-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-288-0	06	1	9305-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-289-0	06	1	9101-9304				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-289-0	06	1	9305-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-289-0	06	1	9305-				●
8	BOLT; BRG CAP M18X123	9-09805-054-0	04	1	9001-	●
8	BOLT; BRG CAP M18X155	9-09805-055-0	10	1	9001-9006	●
8	BOLT; BRG CAP M18X134	1-09009-103-0	10	1	9007-	●
8	BOLT; BRG CAP M20X150 CAP NO.1,7	9-09804-217-0	04	1	9001-		●	●	●
8	BOLT; BRG CAP M20X178 CAP NO.2,3,4,5,6	9-09804-218-0	10	1	9001-9201		●	●	●
8	BOLT; BRG CAP M20X178 CAP NO.2,4,5,6	9-09804-218-0	08	1	9202-9311		●	●	●
8	BOLT; BRG CAP M20X178 CAP NO.2,3,4,5,6	9-09804-218-0	10	1	9312-		●	●	●
8	BOLT; BRG CAP M20X178 CAP NO.3	1-09029-064-0	02	1	9202-9311		●	●	●
9	PIPE ASM; WATER DRAIN COCK	1-13711-036-3	01	1	9001-		●	●	●
28	COVER; OIL PORT	9-11219-214-0	01	1	9001-	●	●	●	●
30	PIN; CYL HD GASKET SETTING (A) OD=8 L=16	9-08150-816-0	02	1	9001-	●	●	●	●
30	PIN; CYL HD GASKET SETTING (B) OD=20 L=15	9-11229-011-2	04	1	9001-	●	●	●	●
31	PLUG; OIL GALLERY PT1/4	1-09605-019-0	03	1	9001-	●	●	●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9001-	●	●	●	●
33	CONNECTOR; OIL GALLERY	1-09660-034-1	01	1	9001-	●	●	●	●
34	VALVE; OIL RELIEF	9-13160-060-2	01	1	9001-	●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-059-0	01	1	9001-	●	●	●	●
37	PLUG; OIL GALLERY (A) PT3/4	1-09605-025-0	01	1	9001-	●
37	PLUG; OIL GALLERY (C) PT3/4,M8	1-09609-014-1	01	1	9001-	●	●	●	●
37	PLUG; OIL GALLERY (D) PT3/4	1-09605-025-0	02	1	9001-		●	●	●
37	PLUG; OIL GALLERY (B) PT3/8	1-09605-056-0	02	1	9001-		●	●	●
38	PIN; TIMING GEAR CASE	9-08151-222-0	02	1	9001-	●	●	●	●
39	DOWEL; IDLE GEAR SPINDLE	1-11229-013-0	01	1	9001-	●	●	●	●
49	WASHER; BRG CAP ID=18	9-09851-862-0	14	1	9001-	●
49	WASHER; BRG CAP OD=23.8	9-09851-915-0	14	1	9001-		●	●	●
55	PLUG; OIL GALLERY PT3/4	1-09605-025-0	01	1	9001-	●	●	●	●
56	JET; OIL,PISTON COOLING (A)	1-13342-068-0	03	1	9001-	●
56	JET; OIL,PISTON COOLING (B)	1-13342-069-0	03	1	9001-	●
56	JET; OIL,PISTON COOLING (C)	1-13342-082-0	03	1	9001-		●	●
56	JET; OIL,PISTON COOLING (D)	1-13342-083-0	03	1	9001-		●	●
56	JET; OIL,PISTON COOLING (C)	1-13342-084-0	03	1	9101-				●
56	JET; OIL,PISTON COOLING (D)	1-13342-085-0	03	1	9101-				●
57	BOLT; OIL JET M8X20	9-02050-820-0	06	1	9001-9005	●	●	●
57	BOLT; OIL JET M8X20	0-20800-820-0	06	1	9006-	●	●	●	●
58	STUD; OILING JET M8X20 L=32	9-04110-820-0	06	1	9001-	●	●	●	●
59	NUT; OILING JET M8	9-09110-408-0	06	1	9001-	●	●	●	●
66	CONNECTOR; PARTIAL FILTER	1-13341-077-2	01	1	9001-	●	●	●	●
67	BOLT; CONNECTOR M10X25 W/LK WASHER	9-01931-025-0	02	1	9001-9002	●
67	BOLT; CONNECTOR M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-	●
67	BOLT; CONNECTOR M10X90	9-01656-090-0	01	1	9001-9004	●	●	●
67	BOLT; CONNECTOR M10X90	0-16806-090-0	01	1	9005-	●	●	●	●
67	BOLT; CONNECTOR M10X25 W/LK&PL WASHER	9-01991-025-0	02	1	9001-9002	●	●	●
67	BOLT; CONNECTOR M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	9003-	●	●	●	●
67	BOLT; CONNECTOR TAIWAN EMISSION REGULATION<TAL> M10X25 W/LK&PL WASHER	0-50151-025-0	03	1	9312-		●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-170-0	01	1	9001-9003	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9004-	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=49.7	1-09623-171-0	01	1	9001-9003	●	●	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=49.7	1-09623-541-0	01	1	9004-	●	●	●	●
71	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11292-030-1	02	1	9001-	●
71	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11292-028-0	02	1	9001-9603		●	●	●
71	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11292-031-0	02	1	9604-		●	●	●
72	COVER; TAPPET CHAMBER	1-11291-017-1	01	1	9001-	●
72	COVER; TAPPET CHAMBER	1-11291-034-0	01	1	9001-		●	●	●
73	COVER ASM; TAPPET CHAMBER	1-11291-068-0	01	1	9001-	●
73	COVER ASM; TAPPET CHAMBER	1-11291-035-1	01	1	9001-		●	●	●
74	BOLT; COVER TO C/BL M8X22	9-01910-822-0	25	1	9001-9005	●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	25	1	9006-	●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	9-01910-825-0	02	1	9001-9005	●	●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-	●	●
74	BOLT; COVER TO C/BL M8X22	9-01910-822-0	29	1	9001-9005		●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	29	1	9006-		●
74	BOLT; COVER TO C/BL M8X22	9-01970-822-0	01	1	9001-9005		●	●
74	BOLT; COVER TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	9006-		●	●	●
74	BOLT; COVER TO C/BL M8X22	9-01910-822-0	27	1	9001-9005			●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	27	1	9006-9311			●	●
74	BOLT; COVER TO C/BL TAIWAN EMISSION REGULATION<TAL> M8X22 W/LK WASHER	0-50040-822-0	27	1	9312-		●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	27	1	9312-			●	●
74	BOLT; COVER TO C/BL TAIWAN EMISSION REGULATION<TAL> M8X24,M10X35 L=64.5	1-09300-044-4	02	1	9312-		●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	9-01910-825-0	04	1	9001-9005			●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	0-50040-825-0	04	1	9006-			●	●
75	COVER; C/BL,OIL PUMP (B)	9-11219-424-1	01	1	9001-	●	●	●
75	COVER; C/BL,OIL PUMP (A)	1-11219-120-0	01	1	9101-				●
76	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13114-008-0	01	1	9001-9603	●	●	●	●
76	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13114-011-0	01	1	9604-	●	●	●	●
77	BOLT; COVER TO C/BL M10X25 W/LK WASHER	9-01931-025-0	03	1	9001-9002	●	●	●
77	BOLT; COVER TO C/BL M10X25 W/LK WASHER	0-50051-025-0	03	1	9003-	●	●	●
77	BOLT; COVER TO C/BL M10X30	9-01931-030-0	02	1	9001-9002	●	●	●
77	BOLT; COVER TO C/BL M10X30 W/LK WASHER	0-50051-030-0	02	1	9003-	●	●	●
77	BOLT; COVER TO C/BL M10X35 W/LK WASHER	0-50051-035-0	03	1	9101-				●
77	BOLT; COVER TO C/BL M10X40 W/LK WASHER	0-50051-040-0	02	1	9101-				●
82	STUD; FLYWHEEL HSG M14X42 L=63	9-04411-442-0	01	1	9001-	●	●	●	●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9001-	●	●	●	●
84	PLUG; CAM BRG	9-09201-371-0	01	1	9001-	●	●	●	●
89	CUP; SEALING,OIL GALLERY OD=45	1-09600-005-1	02	1	9001-	●
95	PRESSURE UNIT; OIL	1-83151-030-0	01	1	9001-	●	●	●	●
130	DOWEL; BRG CAP ID=13-18 L=14.5	9-11229-040-2	07	1	9001-	●
130	DOWEL; BRG CAP OD=24	9-11229-046-2	07	1	9001-	●
137	COCK; DRAIN,WATER	1-09680-026-0	01	1	9001-	●	●	●	●
146	PROTECTOR; HEAT	9-11219-447-0	01	1	9001-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A)	1-09623-471-0	12	1	9001-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B)	1-09623-485-0	06	1	9001-	●
162	HOSE; WATER DRAIN,C/BL L=550 SERVICED BY L=10000	9-09914-701-0	01	1	9001-	●
238	PLUG; WATER GALLERY	9-09860-031-0	06	1	9001-	●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	9-01910-820-0	02	1	9001-9005	●	●	●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-	●	●	●	●
273	WASHER; LK,HEAT PROTECTOR ID=10.2	9-09150-510-0	02	1	9001-	●
282	BOLT; BRKT,CONT CABLE A/T<X9D> M12X20 W/LK WASHER	9-01931-220-0	02	1	9001-9005	●
282	BOLT; BRKT,CONT CABLE A/T<X9D> M12X20 W/LK WASHER	0-50051-220-0	02	1	9006-	●
293	WASHER; LK,CONNECTOR ID=10.2	9-09150-510-0	01	1	9001-	●	●	●	●
294	PROTECTOR; HEAT,FLEX HOSE	1-11219-085-1	01	1	9001-	●	●	●	●
295	BOLT; HEAT PROTECTOR,FLEX HOSE M14X95	9-91656-495-0	01	1	9001-9005	●	●	●
295	BOLT; HEAT PROTECTOR,FLEX HOSE M14X95	0-16806-495-0	01	1	9006-	●	●	●	●
296	WASHER; LK,HEAT PROTECTOR,FLEX HOSE ID=14.2	9-09150-514-0	01	1	9001-	●	●	●	●
306	BRACKET; ENG CONT WIRE A/T<X9D>	1-23335-153-1	01	1	9001-	●
343	BOLT; HEAT PROTECTOR M10X14	9-02341-014-0	02	1	9001-9204	●
343	BOLT; HEAT PROTECTOR M10X14	0-23801-014-0	02	1	9205-	●
410	JET; OIL,TIMING GEAR	9-13342-002-0	01	1	9001-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
