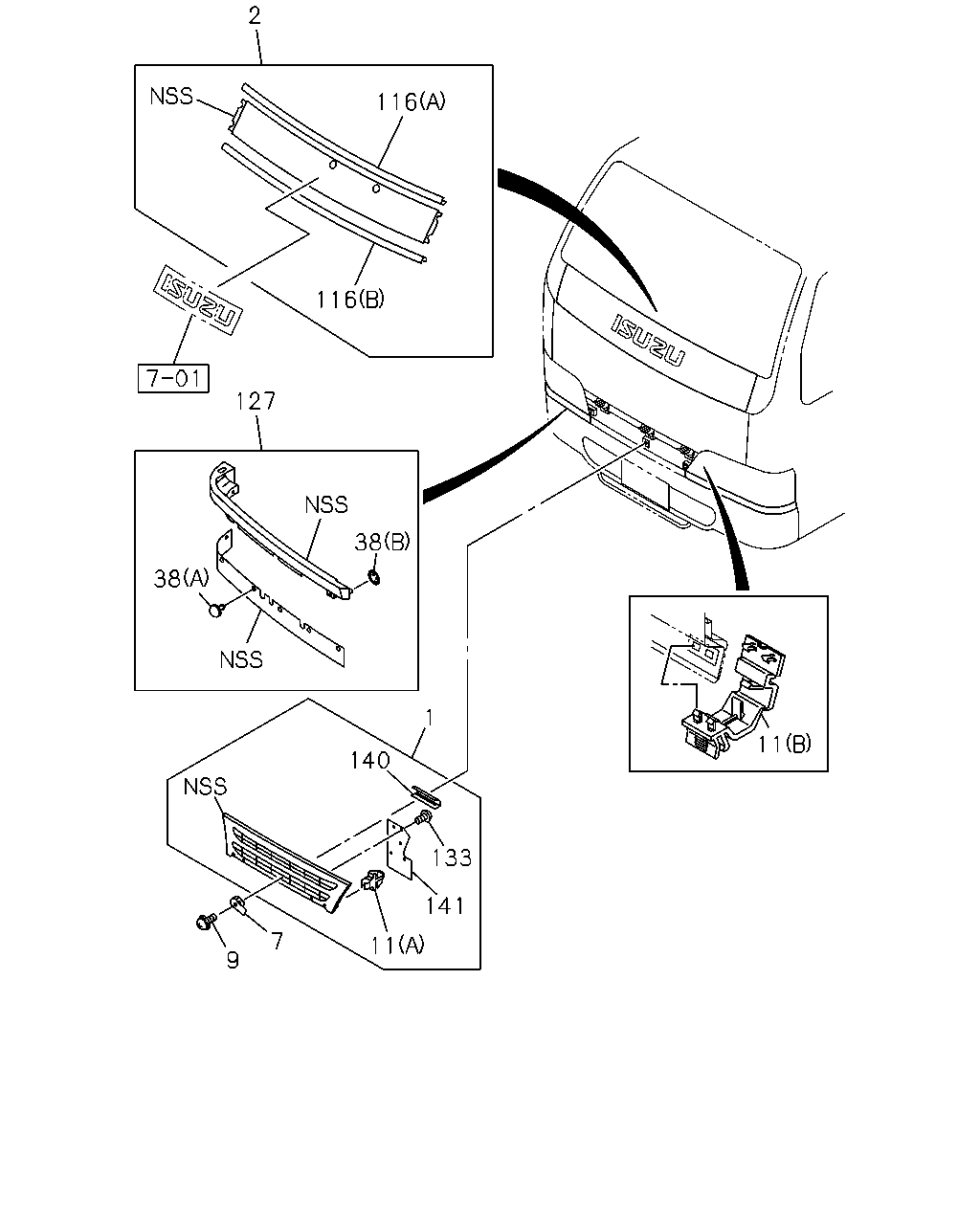

6-03 — RADIATOR GRILLE (#20047) — 20 parça

2 116 116 127 38 38 1 11 140 133 141 7 11 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GRILLE; RAD PLEASE PAINT TO MATCH BODY COLOR THA	8-97922-363-0	01	1	0309-	●	●	●
2	GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97868-327-3	01	1	0309-	●	●	●
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97859-463-3	01	1	0309-	●	●	●
7	NUT; SPIRE,RAD GRILLE	8-97805-829-0	01	1	0309-0505	●	●	●
7	NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-	●	●	●
9	SCREW; RAD GRILLE M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0309-	●	●	●
11	CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	0309-	●	●	●
11	CLIP; RAD GRILLE (A) THA	8-97922-354-0	02	1	0309-	●	●	●
38	CLIP; GRILLE BODY COLOR MARINE BLUE<890> (A) THA	8-97915-182-0	09	1	0309-	●	●	●
38	CLIP; GRILLE BODY COLOR MARINE BLUE<890> (B) THA	8-97915-181-0	01	1	0309-	●	●	●
75	WASHER; PL,RAD GRILLE ID=10.5 OD=18	9-09160-510-0	02	1	0407-	●	●	●
116	MOLDING; ORNAMENT GRILLE (B)	8-97853-097-4	01	1	0309-	●	●	●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	0309-	●	●	●
127	GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE<729> WHITE THA	8-97898-387-1	01	1	0309-	●	●	●
127	GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE<729> WHITE THA	8-97898-366-1	01	1	0309-	●	●	●
127	GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE<890> THA	8-97915-054-0	01	1	0309-	●	●	●
127	GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE<890> THA	8-97915-055-0	01	1	0309-	●	●	●
133	SCREW; COVER THA	8-97922-356-0	05	1	0309-	●	●	●
140	SEAL; RAD GRILLE THA	8-97915-176-0	02	1	0309-	●	●	●
141	COVER; RAD GRILLE THA	8-97922-355-0	01	1	0309-	●	●	●
