Isuzu WW
▶
TRUCKS
▶
NKR
▶
50970 - NKR(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

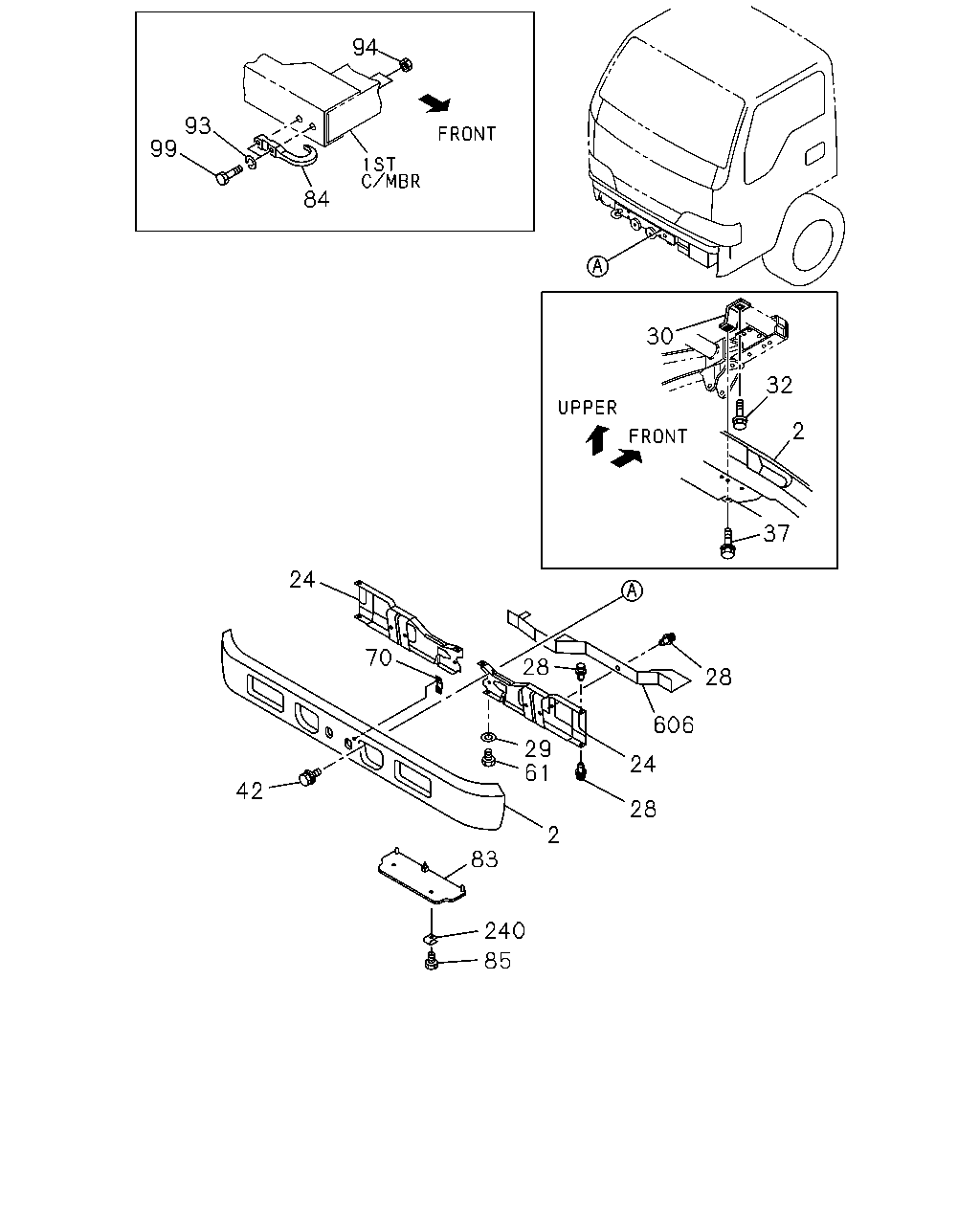

6-01 — FRONT BUMPER
(#20046) — 19 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
94
93
99
84
30
32
2
37
24
70
28
28
606
29
61
24
42
28
2
83
240
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
BUMPER; FRT,CENTER
DARK GRAY
8-97582-631-0
01
1
0309-
●
●
●
24
BAR; FRT BUMPER
8-97035-751-6
01
1
0309-
●
●
●
24
BAR; FRT BUMPER
8-97035-752-6
01
1
0309-
●
●
●
28
FASTENER; BACK BAR
D5.8 SCREW & GROMMET NYLON THA
8-94242-150-0
08
1
0309-
●
●
●
29
WASHER; FRT BUMPER
ID=8.5
8-94167-476-0
06
1
0309-
●
●
●
30
BRACKET; FRT BUMPER
8-97093-639-3
02
1
0309-
●
●
●
32
BOLT; BRKT,BUMPER
M8X25 FLANGE
0-28680-825-0
02
1
0309-
●
●
●
37
BOLT; BRKT TO BUMPER LWR
M8X22 W/LK&PL WASHER
8-94279-148-1
02
1
0309-
●
●
●
42
BOLT; BUMPER
M10X35 W/LK&PL WASHER
8-97101-865-0
04
1
0309-
●
●
●
61
BOLT; BACK BAR
M8X18 W/LK WASHER
0-50040-818-0
06
1
0309-
●
●
●
70
BRACKET; LICENSE PLATE,FRT
8-94151-164-1
02
1
0309-
●
●
●
83
GUIDE; AIR,FRT BUMPER
8-97076-832-2
01
1
0309-
●
●
●
84
HOOK
THA
8-97918-518-0
01
1
0309-
●
●
●
85
BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER THA
8-97012-072-0
03
1
0309-
●
●
●
93
WASHER; LK,HOOK
ID=14.2
9-09150-814-0
02
1
0309-
●
●
●
94
NUT; HOOK
M14
9-99110-514-0
02
1
0309-
●
●
●
99
BOLT; HOOK
M14X50
0-10806-450-0
02
1
0309-
●
●
●
240
NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT
8-97210-973-1
03
1
0309-
●
●
●
606
SEAL; BACK BAR
8-97867-844-0
01
1
0309-
●
●
●
