5-01 — FRAME AND OTHER PARTS (#20041) — 110 parça

17 20 17 2 34 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST 4JB1 ENG<RLF> THA	8-97912-910-0	01	1	0309-	●	●
2	MEMBER; CROSS,1ST 4HG1 ENG<RJH> THA	8-97912-910-0	01	1	0309-			●
17	GUSSET; 1ST C/MBR 4JB1 ENG<RLF> THA	8-97916-470-0	02	1	0309-	●	●
17	GUSSET; 1ST C/MBR 4HG1 ENG<RJH> THA	8-97916-470-0	02	1	0309-			●
20	MEMBER; CROSS,2ND 4HG1 ENG<RJH> THA	8-97922-321-0	01	1	0309-			●
20	MEMBER; CROSS,2ND 4JB1 ENG<RLF> THA	8-97912-891-0	01	1	0309-	●	●
20	MEMBER; CROSS,2ND 4HG1 ENG<RJH> THA	8-97922-321-0	01	1	0309-			●
34	MEMBER; CROSS,3RD 4JB1 ENG<RLF> THA	8-97916-507-0	01	1	0309-	●
34	MEMBER; CROSS,3RD 4JB1 ENG<RLF> THA	8-97916-509-0	01	1	0309-		●
34	MEMBER; CROSS,3RD 4HG1 ENG<RJH> THA	8-97916-508-0	01	1	0309-			●
42	MEMBER; CROSS,ENG MTG 4JB1 ENG<RLF> THA	8-97916-300-0	01	1	0309-	●	●
42	MEMBER; CROSS,ENG MTG 4HG1 ENG<RJH> THA	8-97917-486-0	01	1	0309-			●
358	BRACKET; CAB EARTH 4JB1 ENG<RLF>	8-97210-488-0	02	1	0311-	●	●
358	BRACKET; CAB EARTH 4HG1 ENG<RJH>	8-97210-488-0	02	1	0311-			●

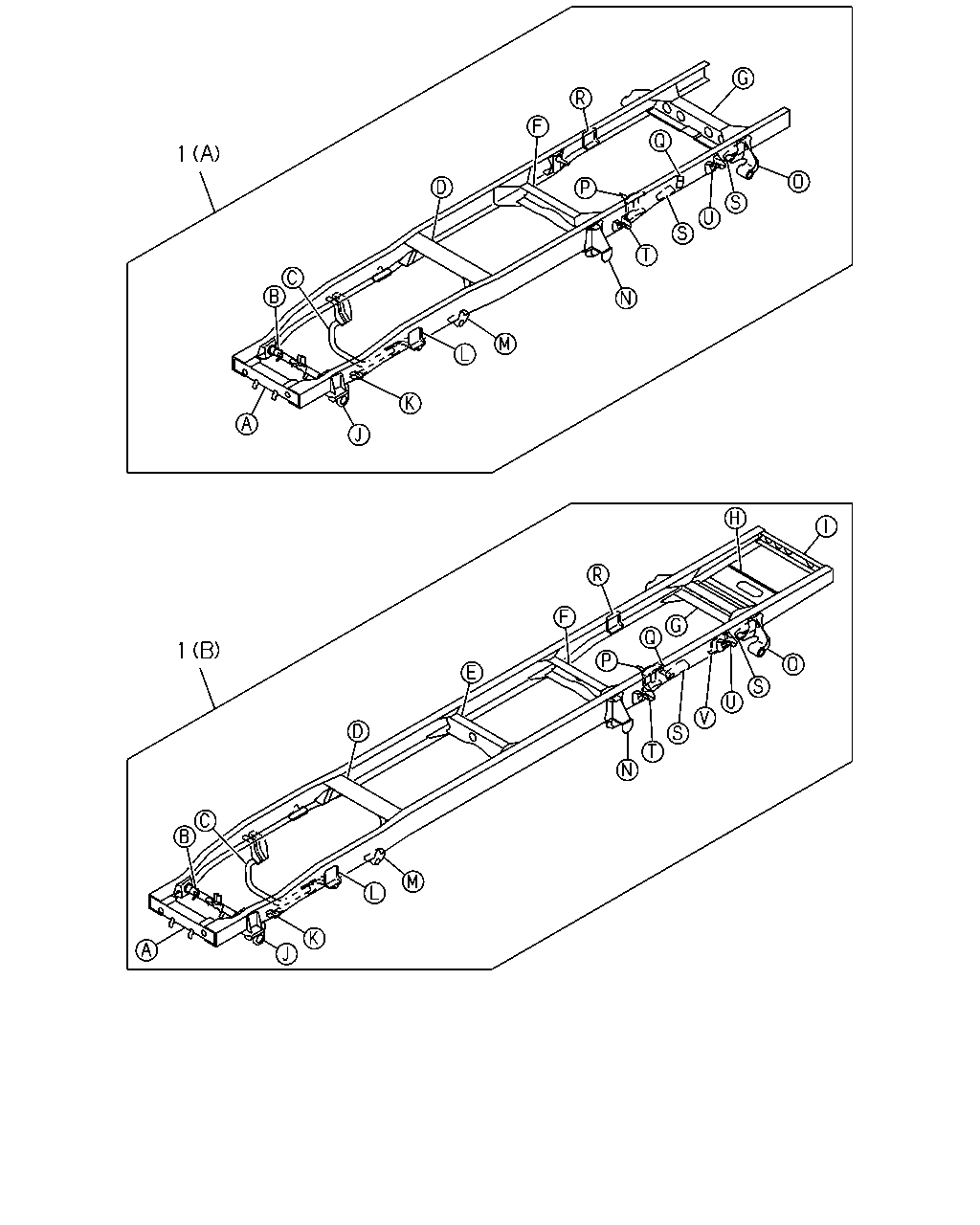

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FRAME ASM 4JB1 ENG<RLF> (A) THA	8-97922-322-0	01	1	0309-	●
1	FRAME ASM 4JB1 ENG<RLF> (A) THA	8-97922-323-0	01	1	0309-		●
1	FRAME ASM 4HG1 ENG<RJH> (B) THA	8-97922-316-0	01	1	0309-			●
358	BRACKET; CAB EARTH 4JB1 ENG<RLF>	8-97210-488-0	02	1	0311-	●	●
358	BRACKET; CAB EARTH 4HG1 ENG<RJH>	8-97210-488-0	02	1	0311-			●

130 24 51 39 63 105 101 101 105 215 215 140 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; FRT SPR,FRT 4JB1 ENG<RLF> THA	8-97065-789-1	01	1	0309-	●
24	BRACKET; FRT SPR,FRT 4JB1 ENG<RLF> THA	8-94366-818-1	01	1	0309-	●
24	BRACKET; FRT SPR,FRT 4JB1 ENG<RLF> THA	8-97065-788-1	01	1	0309-		●
24	BRACKET; FRT SPR,FRT 4HG1 ENG<RJH> THA	8-97065-788-1	01	1	0309-			●
24	BRACKET; FRT SPR,FRT 4JB1 ENG<RLF> THA	8-94366-816-1	01	1	0309-		●
24	BRACKET; FRT SPR,FRT 4HG1 ENG<RJH> THA	8-94366-816-1	01	1	0309-			●
39	BRACKET; FRT SPR,RR 4JB1 ENG<RLF> THA	8-94258-091-0	02	1	0309-	●	●
39	BRACKET; FRT SPR,RR 4HG1 ENG<RJH> THA	8-94258-091-0	02	1	0309-			●
51	BRACKET; ENG SUPPORT,OUTER 4JB1 ENG<RLF> THA	8-97916-595-0	02	1	0309-	●	●
51	BRACKET; ENG SUPPORT,OUTER 4HG1 ENG<RJH> THA	8-97916-595-0	02	1	0309-			●
63	BRACKET; RAD MTG 4JB1 ENG<RLF> THA	8-97916-925-0	01	1	0309-	●	●
63	BRACKET; RAD MTG 4HG1 ENG<RJH> THA	8-97916-925-0	01	1	0309-			●
101	BRACKET; RR SPR,FRT 4JB1 ENG<RLF> (A) THA	8-94258-093-1	02	1	0309-	●
101	BRACKET; RR SPR,FRT 4JB1 ENG<RLF> (B) THA	8-97034-156-1	02	1	0309-		●
101	BRACKET; RR SPR,FRT 4HG1 ENG<RJH> (B) THA	8-97034-156-1	02	1	0309-			●
105	BRACKET; RR SPR,RR 4JB1 ENG<RLF> (A) THA	8-97915-066-0	01	1	0309-	●
105	BRACKET; RR SPR,RR 4JB1 ENG<RLF> (A) THA	8-97915-067-0	01	1	0309-	●
105	BRACKET; RR SPR,RR 4JB1 ENG<RLF> (B) THA	8-97915-065-0	01	1	0309-		●
105	BRACKET; RR SPR,RR 4HG1 ENG<RJH> (B) THA	8-97915-065-0	01	1	0309-			●
105	BRACKET; RR SPR,RR 4JB1 ENG<RLF> (B) THA	8-97915-072-0	01	1	0309-		●
105	BRACKET; RR SPR,RR 4HG1 ENG<RJH> (B) THA	8-97915-072-0	01	1	0309-			●
130	MEMBER; CROSS,END 4HG1 ENG<RJH> THA	8-97916-497-0	01	1	0309-			●
140	BRACKET; S/ABS,RR 4JB1 ENG<RLF> (A) THA	8-94258-104-1	01	1	0309-	●
140	BRACKET; S/ABS,RR 4JB1 ENG<RLF> (A) THA	8-94258-103-1	01	1	0309-	●
140	BRACKET; S/ABS,RR 4JB1 ENG<RLF> (B) THA	8-97012-285-0	01	1	0309-		●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> (B) THA	8-97012-285-0	01	1	0309-			●
140	BRACKET; S/ABS,RR 4JB1 ENG<RLF> (C) THA	8-94101-303-0	01	1	0309-		●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> (C) THA	8-94101-303-0	01	1	0309-			●
215	BUSHING; BRKT,RR SPRING 4JB1 ENG<RLF>	8-97184-699-1	04	1	0309-		●
215	BUSHING; BRKT,RR SPRING 4HG1 ENG<RJH>	8-97184-699-1	04	1	0309-			●
358	BRACKET; CAB EARTH 4JB1 ENG<RLF>	8-97210-488-0	02	1	0311-	●	●
358	BRACKET; CAB EARTH 4HG1 ENG<RJH>	8-97210-488-0	02	1	0311-			●

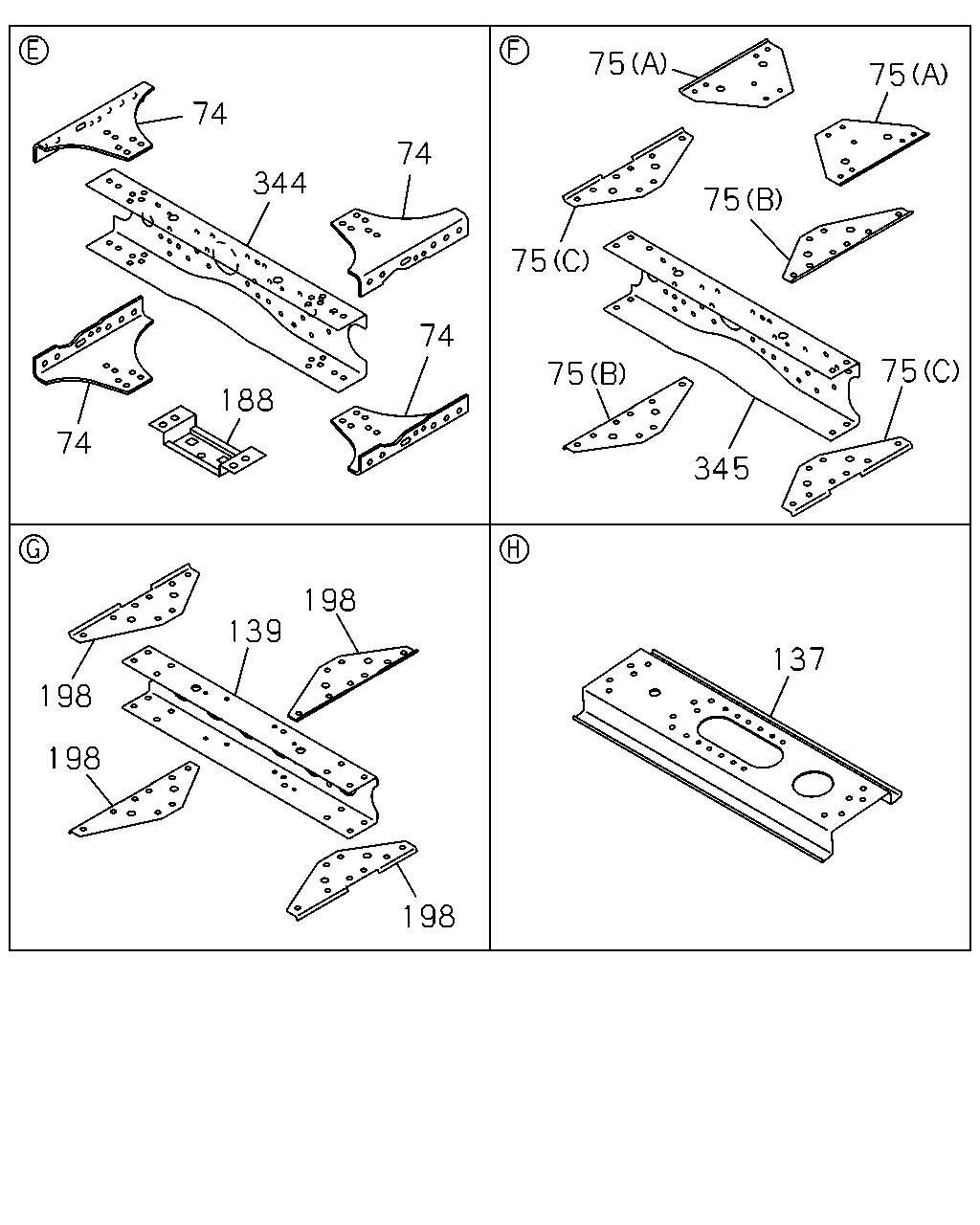

75 75 74 74 344 75 75 74 75 75 188 74 345 198 139 137 198 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> RH LOWER,LH UPPER THA	8-97916-812-0	02	1	0309-			●
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> RH UPPER,LH LOWER THA	8-97916-813-0	02	1	0309-			●
75	GUSSET; 5TH C/MBR 4JB1 ENG<RLF> (A) THA	8-97916-494-0	02	1	0309-	●
75	GUSSET; 5TH C/MBR 4JB1 ENG<RLF> (B) THA	8-97916-481-0	02	1	0309-		●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> (B) THA	8-97916-481-0	02	1	0309-			●
75	GUSSET; 5TH C/MBR 4JB1 ENG<RLF> (C) THA	8-97916-482-0	02	1	0309-		●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> (C) THA	8-97916-482-0	02	1	0309-			●
137	BRACKET; SPARE TIRE 4HG1 ENG<RJH> THA	8-97205-235-1	01	1	0309-			●
139	MEMBER; CROSS,6TH 4JB1 ENG<RLF> THA	8-97916-988-0	01	1	0309-	●
139	MEMBER; CROSS,6TH 4JB1 ENG<RLF> THA	8-97918-350-0	01	1	0309-		●
139	MEMBER; CROSS,6TH 4HG1 ENG<RJH> THA	8-97918-350-0	01	1	0309-			●
188	BRACKET; SUPPORT,CTR BRG 4HG1 ENG<RJH> THA	8-97078-869-1	01	1	0309-			●
198	GUSSET; 6TH C/MBR 4JB1 ENG<RLF> THA	8-97916-495-0	02	1	0309-	●
198	GUSSET; 6TH C/MBR 4JB1 ENG<RLF> RH UPPER,LH LOWER THA	8-97916-481-0	02	1	0309-		●
198	GUSSET; 6TH C/MBR 4HG1 ENG<RJH> RH UPPER,LH LOWER THA	8-97916-481-0	02	1	0309-			●
198	GUSSET; 6TH C/MBR 4JB1 ENG<RLF> RH LOWER,LH UPPER THA	8-97916-482-0	02	1	0309-		●
198	GUSSET; 6TH C/MBR 4HG1 ENG<RJH> RH LOWER,LH UPPER THA	8-97916-482-0	02	1	0309-			●
344	MEMBER; CROSS,4TH 4HG1 ENG<RJH> THA	8-97910-267-0	01	1	0309-			●
345	MEMBER; CROSS,5TH 4JB1 ENG<RLF> THA	8-97916-987-0	01	1	0309-	●
345	MEMBER; CROSS,5TH 4JB1 ENG<RLF> THA	8-97916-876-0	01	1	0309-		●
345	MEMBER; CROSS,5TH 4HG1 ENG<RJH> THA	8-97916-876-0	01	1	0309-			●
358	BRACKET; CAB EARTH 4JB1 ENG<RLF>	8-97210-488-0	02	1	0311-	●	●
358	BRACKET; CAB EARTH 4HG1 ENG<RJH>	8-97210-488-0	02	1	0311-			●

376 376 376 376 376 376 376 376 376 376 376 376 376 176 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
118	NUT; STOPPER 4JB1 ENG<RLF> M8 LOCK NUT	9-09131-508-0	04	1	0309-		●
118	NUT; STOPPER 4HG1 ENG<RJH> M8 LOCK NUT	9-09131-508-0	04	1	0309-			●
176	BOLT; C/MBR,ENG MTG 4JB1 ENG<RLF> M10X25 FLANGE	0-28081-025-0	08	1	0309-	●	●
176	BOLT; C/MBR,ENG MTG 4HG1 ENG<RJH> M10X25 FLANGE	0-28081-025-0	08	1	0309-			●
358	BRACKET; CAB EARTH 4JB1 ENG<RLF>	8-97210-488-0	02	1	0311-	●	●
358	BRACKET; CAB EARTH 4HG1 ENG<RJH>	8-97210-488-0	02	1	0311-			●
376	RIVET; FRAME (A) D8X20 TAPER END	9-06750-820-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (B) D8X22 TAPER END	9-06750-822-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (C) D8X28 TAPER END	9-06750-828-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (J) D12X30 TAPER END	9-06751-230-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (K) D12X32 TAPER END	9-06751-232-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (L) D12X34 TAPER END	9-06751-234-0	AR	1	0309-	●	●	●
376	RIVET; FRAME (M) D12X38 TAPER END	9-06751-238-0	AR	1	0309-	●	●	●

217 142 142 103 103 173 147 147 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
103	STOPPER; SUB SPR 4JB1 ENG<RLF> (A) THA	8-97223-749-0	02	1	0309-		●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> (A) THA	8-97223-749-0	02	1	0309-			●
103	STOPPER; SUB SPR 4JB1 ENG<RLF> (B) THA	8-97223-751-0	02	1	0309-		●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> (B) THA	8-97223-751-0	02	1	0309-			●
142	BRACKET; FLEX HOSE,BRAKE 4JB1 ENG<RLF> (A) THA	8-97047-775-1	01	1	0309-	●
142	BRACKET; FLEX HOSE,BRAKE 4JB1 ENG<RLF> (B) THA	8-97035-308-0	01	1	0309-		●
142	BRACKET; FLEX HOSE,BRAKE 4HG1 ENG<RJH> (B) THA	8-97035-308-0	01	1	0309-			●
147	RUBBER; SUB SPRING 4JB1 ENG<RLF>	8-97254-387-0	04	1	0309-		●
147	RUBBER; SUB SPRING 4HG1 ENG<RJH>	8-97254-387-0	04	1	0309-			●
173	STIFFENER; RR SPRING 4JB1 ENG<RLF> REAR THA	8-97916-487-0	02	1	0309-		●
173	STIFFENER; RR SPRING 4HG1 ENG<RJH> REAR THA	8-97916-487-0	02	1	0309-			●
173	STIFFENER; RR SPRING 4JB1 ENG<RLF> FRONT THA	8-97916-778-1	01	1	0309-		●
173	STIFFENER; RR SPRING 4HG1 ENG<RJH> FRONT THA	8-97916-778-1	01	1	0309-			●
217	BRACKET; HELPER RUBBER,RR SPRING 4JB1 ENG<RLF> THA	8-97917-266-0	02	1	0309-		●
229	REINFORCEMENT; S/ABS RR,FRAME 4HG1 ENG<RJH> THA	8-97205-441-0	01	1	0309-			●
358	BRACKET; CAB EARTH 4JB1 ENG<RLF>	8-97210-488-0	02	1	0311-	●	●
358	BRACKET; CAB EARTH 4HG1 ENG<RJH>	8-97210-488-0	02	1	0311-			●
