Sayfa 0-11 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶

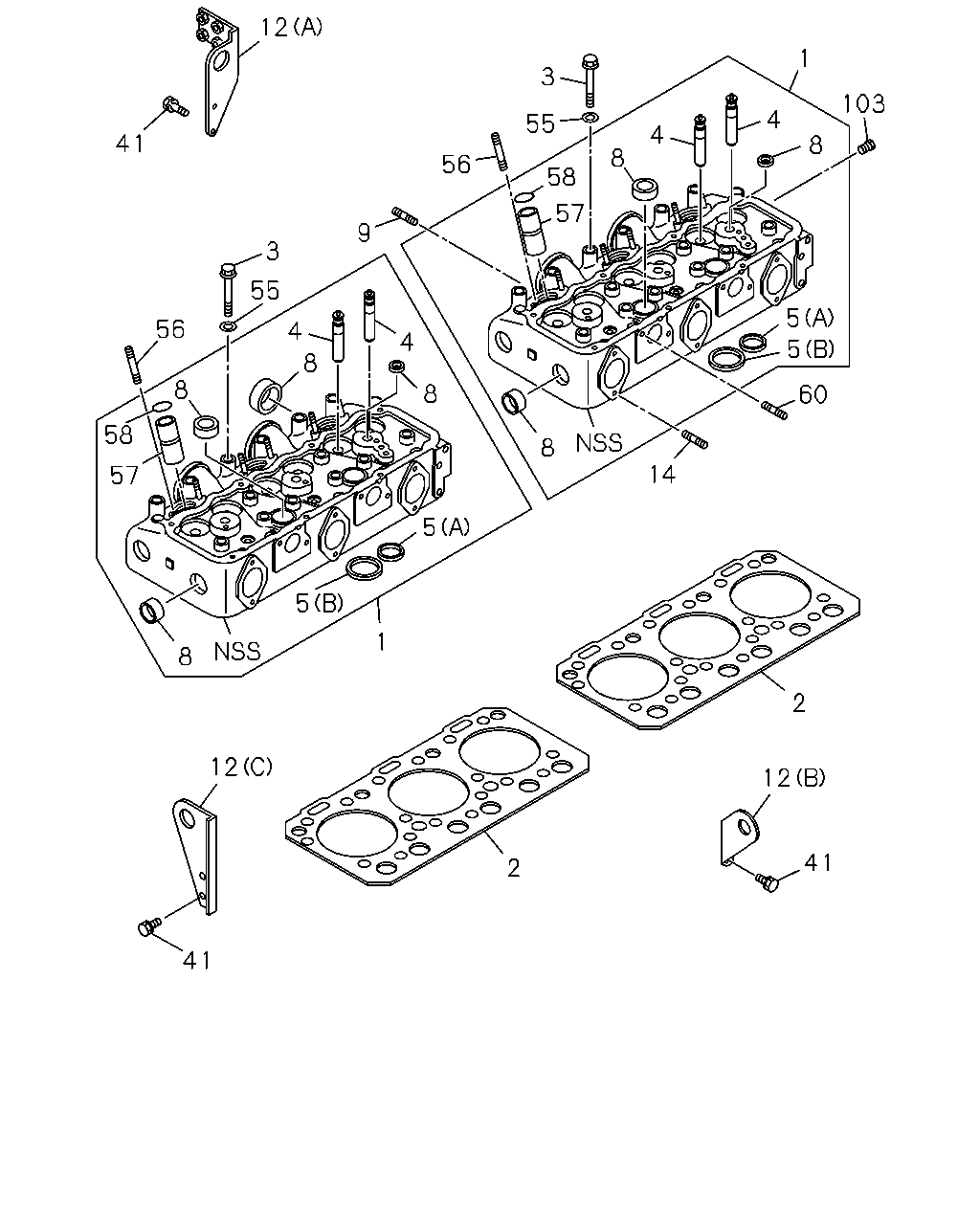

0-11 — CYLINDER HEAD (#2004) — 179 parça

12 1 3 103 4 55 4 41 8 8 56 58 57 9 3 55 5 5 56 4 4 8 8 8 60 58 8 14 57 5 5 1 8 2 12 12 41 2 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HEAD ASM; CYL	1-11110-730-1	02	1	9001-9602	●
1	HEAD ASM; CYL	1-11110-736-1	02	1	9603-	●
1	HEAD ASM; CYL TAIWAN EMISSION REGULATION<TAL>	1-11110-735-0	02	1	9305-		●
1	HEAD ASM; CYL	1-11110-360-2	02	1	9001-9304		●	●
1	HEAD ASM; CYL EXC. TAIWAN EMISSION REGULATION<TAL>	1-11110-360-2	02	1	9305-9603		●
1	HEAD ASM; CYL	1-11110-360-2	02	1	9305-9603			●
1	HEAD ASM; CYL	1-11110-557-0	02	1	9101-9603				●
1	HEAD ASM; CYL EXC. TAIWAN EMISSION REGULATION<TAL>	1-11110-867-0	02	1	9604-		●
1	HEAD ASM; CYL	1-11110-867-0	02	1	9604-			●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-169-0	02	1	9001-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-115-0	02	1	9001-9304		●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-115-0	02	1	9305-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-115-0	02	1	9305-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-142-0	02	1	9101-9304				●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-142-0	02	1	9305-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-142-0	02	1	9305-				●
3	BOLT; CYL HD TO BLOCK M16X167	1-09020-028-0	32	1	9001-	●
3	BOLT; CYL HD TO BLOCK M16X163	1-09070-039-0	40	1	9001-		●	●	●
4	GUIDE; VLV	9-11721-165-0	12	1	9001-	●
4	GUIDE; VLV	1-11721-001-0	24	1	9001-		●	●	●
5	SEAT; VLV INSERT (B) EXHAUST	1-11711-042-0	06	1	9001-	●
5	SEAT; VLV INSERT (A) INLET	9-11715-125-0	06	1	9001-	●
5	SEAT; VLV INSERT TAIWAN EMISSION REGULATION<TAL> (C) EXHAUST ID=38	1-11711-047-0	12	1	9305-9603		●
5	SEAT; VLV INSERT (C) EXHAUST ID=38	1-11711-047-0	12	1	9604-		●	●	●
5	SEAT; VLV INSERT TAIWAN EMISSION REGULATION<TAL> (D) INLET ID=39	1-11715-085-0	12	1	9305-9603		●
5	SEAT; VLV INSERT (D) INLET ID=39	1-11715-085-0	12	1	9604-		●	●	●
5	SEAT; VLV INSERT (C) EXHAUST	1-11711-025-0	12	1	9001-9304		●	●	●
5	SEAT; VLV INSERT EXC. TAIWAN EMISSION REGULATION<TAL> (C) EXHAUST	1-11711-025-0	12	1	9305-9603		●
5	SEAT; VLV INSERT (C) EXHAUST	1-11711-025-0	12	1	9305-9603			●	●
5	SEAT; VLV INSERT (D) INLET	1-11715-035-0	12	1	9001-9304		●	●	●
5	SEAT; VLV INSERT EXC. TAIWAN EMISSION REGULATION<TAL> (D) INLET	1-11715-035-0	12	1	9305-9603		●
5	SEAT; VLV INSERT (D) INLET	1-11715-035-0	12	1	9305-9603			●	●
8	CUP; SEALING,WATER JACKET OD=38	1-09600-003-0	06	1	9001-	●
8	CUP; SEALING,WATER JACKET OD=32	1-09600-012-1	12	1	9001-	●
8	CUP; SEALING,WATER JACKET OD=25	1-09600-016-0	06	1	9001-	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> OD=20 HOLE ID=6	1-09600-054-0	06	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=20 HOLE ID=6	1-09600-054-0	06	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> INLET SIDE UNDER OD=32 W/HOLE	1-11129-022-0	04	1	9305-9603		●
8	CUP; SEALING,WATER JACKET INLET SIDE UNDER OD=32 W/HOLE	1-11129-022-0	04	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> OD=16	1-11129-023-0	06	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=16	1-11129-023-0	06	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> EXHAUST SIDE UNDER OD=32	5-11219-015-0	04	1	9305-9603		●
8	CUP; SEALING,WATER JACKET EXHAUST SIDE UNDER OD=32	5-11219-015-0	04	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET EXC. TAIWAN EMISSION REGULATION<TAL> OD=12	1-09600-010-1	10	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	10	1	9305-9603			●	●
8	CUP; SEALING,WATER JACKET OD=38	1-09600-003-0	08	1	9001-		●	●	●
8	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	06	1	9001-		●	●	●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	10	1	9001-9304		●	●	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> OD=12	1-09600-010-1	04	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	04	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET UP SIDE OD=32	1-09600-012-1	08	1	9001-		●	●	●
8	CUP; SEALING,WATER JACKET OD=25	1-09600-016-0	04	1	9001-		●	●	●
8	CUP; SEALING,WATER JACKET OD=20	1-09600-032-0	06	1	9001-9304		●	●	●
8	CUP; SEALING,WATER JACKET EXC. TAIWAN EMISSION REGULATION<TAL> OD=20	1-09600-032-0	06	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=20	1-09600-032-0	06	1	9305-9603			●	●
8	CUP; SEALING,WATER JACKET OD=32 W/HOLE	1-11129-018-0	08	1	9001-9304		●	●	●
8	CUP; SEALING,WATER JACKET EXC. TAIWAN EMISSION REGULATION<TAL> OD=32 W/HOLE	1-11129-018-0	08	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=32 W/HOLE	1-11129-018-0	08	1	9305-9603			●	●
9	STUD; INL MANIF M10X22 L=37	9-04411-022-0	08	1	9001-	●
12	HANGER; ENG,RR (A)	1-11777-072-0	01	1	9001-	●
12	HANGER; ENG,RR (B)	9-11777-087-1	01	1	9001-	●
12	HANGER; ENG,RR (C)	9-11777-088-0	01	1	9001-	●
12	HANGER; ENG,RR (D)	1-11777-056-1	01	1	9001-		●	●
12	HANGER; ENG,RR (E)	1-11777-082-1	01	1	9101-				●
12	HANGER; ENG,RR (F)	1-11777-083-2	01	1	9101-				●
14	STUD; EXH MANIF M10X80 L=95	9-04411-080-0	12	1	9001-	●
14	STUD; EXH MANIF M10X80 L=95	9-04411-080-0	18	1	9001-		●	●	●
41	BOLT; ENG HANGER M10X22 W/LK WASHER	9-01931-022-0	06	1	9001-9002	●
41	BOLT; ENG HANGER M10X22 W/LK WASHER	0-50051-022-0	06	1	9003-	●
41	BOLT; ENG HANGER M10X22 W/LK WASHER	9-01931-022-0	08	1	9001-9002		●	●
41	BOLT; ENG HANGER M10X22 W/LK WASHER	0-50051-022-0	08	1	9003-		●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=16.2	9-09851-672-2	32	1	9001-	●
55	WASHER; PL,CYL HD TO BLOCK ID=16.2	9-09851-672-2	40	1	9001-		●	●	●
56	STUD; NOZZLE HOLDER M8X73 L=90	1-09300-034-0	12	1	9001-	●
56	STUD; NOZZLE HOLDER M8X35 L=47	9-04110-835-0	06	1	9001-		●	●	●
56	STUD; NOZZLE HOLDER M10X55 L=75	9-04311-055-0	06	1	9001-		●	●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-005-0	06	1	9001-	●
57	SLEEVE; NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-11129-041-0	06	1	9305-		●
57	SLEEVE; NOZZLE HOLDER	9-11129-109-2	06	1	9001-9304		●	●
57	SLEEVE; NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-11129-109-2	06	1	9305-9603		●
57	SLEEVE; NOZZLE HOLDER	9-11129-109-2	06	1	9305-9603			●
57	SLEEVE; NOZZLE HOLDER	1-11129-025-0	06	1	9101-9603				●
57	SLEEVE; NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-11129-033-0	06	1	9604-		●
57	SLEEVE; NOZZLE HOLDER	1-11129-033-0	06	1	9604-			●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	9-09565-228-0	06	1	9001-	●	●	●	●
60	STUD; WATER OUTLET PIPE M8X22 L=34	9-04110-822-0	08	1	9001-	●	●	●	●
103	PLUG; HD PT1/8	1-09605-050-0	02	1	9001-	●

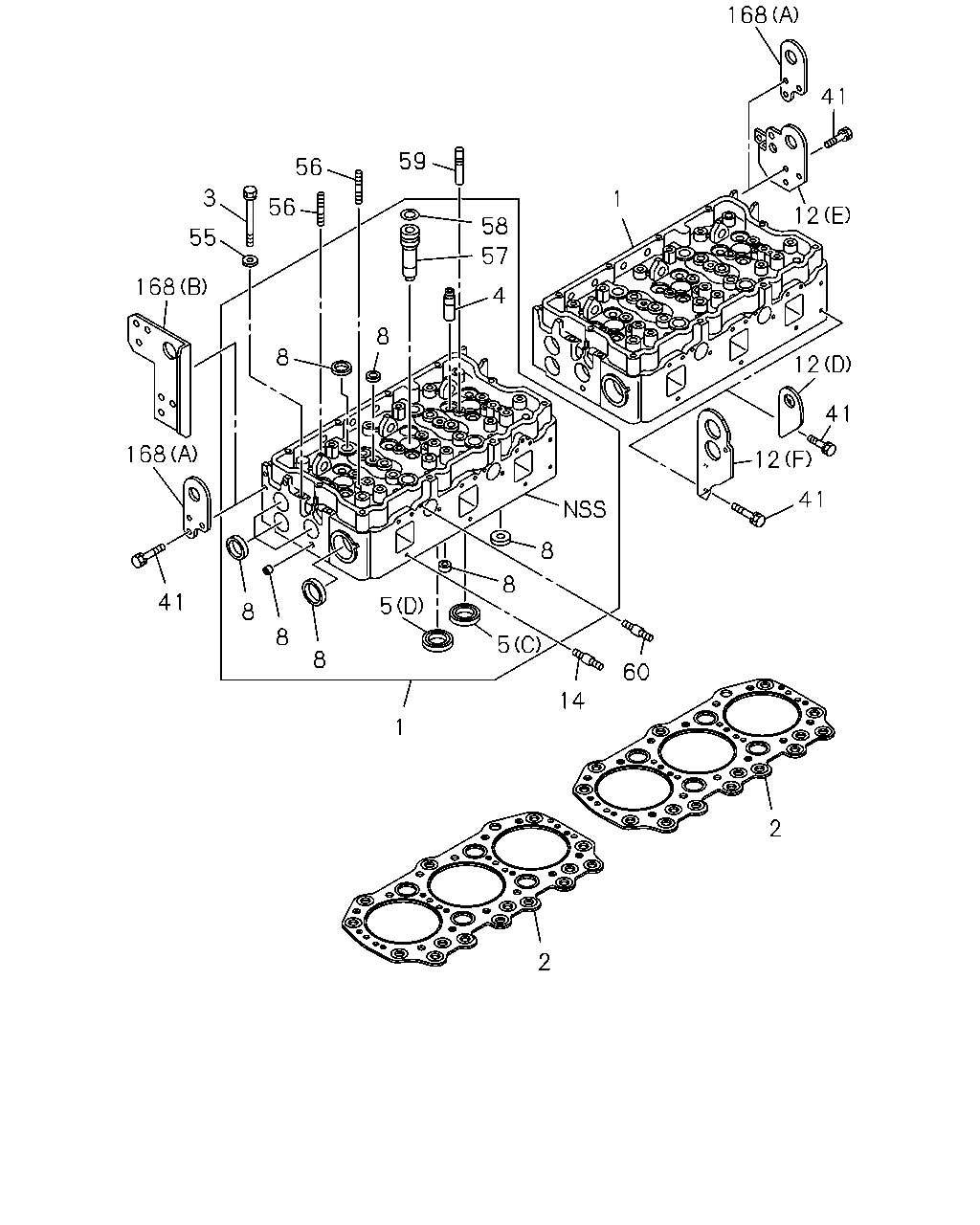

168 41 59 56 3 1 56 12 58 55 57 168 4 8 8 12 41 168 12 41 8 8 41 5 8 8 5 8 60 14 1 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HEAD ASM; CYL	1-11110-730-1	02	1	9001-9602	●
1	HEAD ASM; CYL	1-11110-736-1	02	1	9603-	●
1	HEAD ASM; CYL TAIWAN EMISSION REGULATION<TAL>	1-11110-735-0	02	1	9305-		●
1	HEAD ASM; CYL	1-11110-360-2	02	1	9001-9304		●	●
1	HEAD ASM; CYL EXC. TAIWAN EMISSION REGULATION<TAL>	1-11110-360-2	02	1	9305-9603		●
1	HEAD ASM; CYL	1-11110-360-2	02	1	9305-9603			●
1	HEAD ASM; CYL	1-11110-557-0	02	1	9101-9603				●
1	HEAD ASM; CYL EXC. TAIWAN EMISSION REGULATION<TAL>	1-11110-867-0	02	1	9604-		●
1	HEAD ASM; CYL	1-11110-867-0	02	1	9604-			●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-169-0	02	1	9001-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-115-0	02	1	9001-9304		●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-115-0	02	1	9305-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-115-0	02	1	9305-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-142-0	02	1	9101-9304				●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-142-0	02	1	9305-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-142-0	02	1	9305-				●
3	BOLT; CYL HD TO BLOCK M16X167	1-09020-028-0	32	1	9001-	●
3	BOLT; CYL HD TO BLOCK M16X163	1-09070-039-0	40	1	9001-		●	●	●
4	GUIDE; VLV	9-11721-165-0	12	1	9001-	●
4	GUIDE; VLV	1-11721-001-0	24	1	9001-		●	●	●
5	SEAT; VLV INSERT (B) EXHAUST	1-11711-042-0	06	1	9001-	●
5	SEAT; VLV INSERT (A) INLET	9-11715-125-0	06	1	9001-	●
5	SEAT; VLV INSERT TAIWAN EMISSION REGULATION<TAL> (C) EXHAUST ID=38	1-11711-047-0	12	1	9305-9603		●
5	SEAT; VLV INSERT (C) EXHAUST ID=38	1-11711-047-0	12	1	9604-		●	●	●
5	SEAT; VLV INSERT TAIWAN EMISSION REGULATION<TAL> (D) INLET ID=39	1-11715-085-0	12	1	9305-9603		●
5	SEAT; VLV INSERT (D) INLET ID=39	1-11715-085-0	12	1	9604-		●	●	●
5	SEAT; VLV INSERT (C) EXHAUST	1-11711-025-0	12	1	9001-9304		●	●	●
5	SEAT; VLV INSERT EXC. TAIWAN EMISSION REGULATION<TAL> (C) EXHAUST	1-11711-025-0	12	1	9305-9603		●
5	SEAT; VLV INSERT (C) EXHAUST	1-11711-025-0	12	1	9305-9603			●	●
5	SEAT; VLV INSERT (D) INLET	1-11715-035-0	12	1	9001-9304		●	●	●
5	SEAT; VLV INSERT EXC. TAIWAN EMISSION REGULATION<TAL> (D) INLET	1-11715-035-0	12	1	9305-9603		●
5	SEAT; VLV INSERT (D) INLET	1-11715-035-0	12	1	9305-9603			●	●
8	CUP; SEALING,WATER JACKET OD=38	1-09600-003-0	06	1	9001-	●
8	CUP; SEALING,WATER JACKET OD=32	1-09600-012-1	12	1	9001-	●
8	CUP; SEALING,WATER JACKET OD=25	1-09600-016-0	06	1	9001-	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> OD=20 HOLE ID=6	1-09600-054-0	06	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=20 HOLE ID=6	1-09600-054-0	06	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> INLET SIDE UNDER OD=32 W/HOLE	1-11129-022-0	04	1	9305-9603		●
8	CUP; SEALING,WATER JACKET INLET SIDE UNDER OD=32 W/HOLE	1-11129-022-0	04	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> OD=16	1-11129-023-0	06	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=16	1-11129-023-0	06	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> EXHAUST SIDE UNDER OD=32	5-11219-015-0	04	1	9305-9603		●
8	CUP; SEALING,WATER JACKET EXHAUST SIDE UNDER OD=32	5-11219-015-0	04	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET EXC. TAIWAN EMISSION REGULATION<TAL> OD=12	1-09600-010-1	10	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	10	1	9305-9603			●	●
8	CUP; SEALING,WATER JACKET OD=38	1-09600-003-0	08	1	9001-		●	●	●
8	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	06	1	9001-		●	●	●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	10	1	9001-9304		●	●	●
8	CUP; SEALING,WATER JACKET TAIWAN EMISSION REGULATION<TAL> OD=12	1-09600-010-1	04	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=12	1-09600-010-1	04	1	9604-		●	●	●
8	CUP; SEALING,WATER JACKET UP SIDE OD=32	1-09600-012-1	08	1	9001-		●	●	●
8	CUP; SEALING,WATER JACKET OD=25	1-09600-016-0	04	1	9001-		●	●	●
8	CUP; SEALING,WATER JACKET OD=20	1-09600-032-0	06	1	9001-9304		●	●	●
8	CUP; SEALING,WATER JACKET EXC. TAIWAN EMISSION REGULATION<TAL> OD=20	1-09600-032-0	06	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=20	1-09600-032-0	06	1	9305-9603			●	●
8	CUP; SEALING,WATER JACKET OD=32 W/HOLE	1-11129-018-0	08	1	9001-9304		●	●	●
8	CUP; SEALING,WATER JACKET EXC. TAIWAN EMISSION REGULATION<TAL> OD=32 W/HOLE	1-11129-018-0	08	1	9305-9603		●
8	CUP; SEALING,WATER JACKET OD=32 W/HOLE	1-11129-018-0	08	1	9305-9603			●	●
12	HANGER; ENG,RR (A)	1-11777-072-0	01	1	9001-	●
12	HANGER; ENG,RR (B)	9-11777-087-1	01	1	9001-	●
12	HANGER; ENG,RR (C)	9-11777-088-0	01	1	9001-	●
12	HANGER; ENG,RR (D)	1-11777-056-1	01	1	9001-		●	●
12	HANGER; ENG,RR (E)	1-11777-082-1	01	1	9101-				●
12	HANGER; ENG,RR (F)	1-11777-083-2	01	1	9101-				●
14	STUD; EXH MANIF M10X80 L=95	9-04411-080-0	12	1	9001-	●
14	STUD; EXH MANIF M10X80 L=95	9-04411-080-0	18	1	9001-		●	●	●
41	BOLT; ENG HANGER M10X22 W/LK WASHER	9-01931-022-0	06	1	9001-9002	●
41	BOLT; ENG HANGER M10X22 W/LK WASHER	0-50051-022-0	06	1	9003-	●
41	BOLT; ENG HANGER M10X22 W/LK WASHER	9-01931-022-0	08	1	9001-9002		●	●
41	BOLT; ENG HANGER M10X22 W/LK WASHER	0-50051-022-0	08	1	9003-		●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=16.2	9-09851-672-2	32	1	9001-	●
55	WASHER; PL,CYL HD TO BLOCK ID=16.2	9-09851-672-2	40	1	9001-		●	●	●
56	STUD; NOZZLE HOLDER M8X73 L=90	1-09300-034-0	12	1	9001-	●
56	STUD; NOZZLE HOLDER M8X35 L=47	9-04110-835-0	06	1	9001-		●	●	●
56	STUD; NOZZLE HOLDER M10X55 L=75	9-04311-055-0	06	1	9001-		●	●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-005-0	06	1	9001-	●
57	SLEEVE; NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-11129-041-0	06	1	9305-		●
57	SLEEVE; NOZZLE HOLDER	9-11129-109-2	06	1	9001-9304		●	●
57	SLEEVE; NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-11129-109-2	06	1	9305-9603		●
57	SLEEVE; NOZZLE HOLDER	9-11129-109-2	06	1	9305-9603			●
57	SLEEVE; NOZZLE HOLDER	1-11129-025-0	06	1	9101-9603				●
57	SLEEVE; NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-11129-033-0	06	1	9604-		●
57	SLEEVE; NOZZLE HOLDER	1-11129-033-0	06	1	9604-			●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	9-09565-228-0	06	1	9001-	●	●	●	●
59	GUIDE; BRIDGE TAIWAN EMISSION REGULATION<TAL>	1-11729-003-1	12	1	9305-9603		●
59	GUIDE; BRIDGE	1-11729-003-1	12	1	9604-		●	●	●
59	GUIDE; BRIDGE	9-11729-009-0	12	1	9001-9304		●	●	●
59	GUIDE; BRIDGE EXC. TAIWAN EMISSION REGULATION<TAL>	9-11729-009-0	12	1	9305-9603		●
59	GUIDE; BRIDGE	9-11729-009-0	12	1	9305-9603			●	●
60	STUD; WATER OUTLET PIPE M8X22 L=34	9-04110-822-0	08	1	9001-	●	●	●	●
168	HANGER; ENG,FRT (A)	9-11777-162-1	02	1	9001-		●	●
168	HANGER; ENG,FRT (B)	1-11777-191-0	01	1	9101-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
