◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50970 - NKR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#20038) — 13 parça

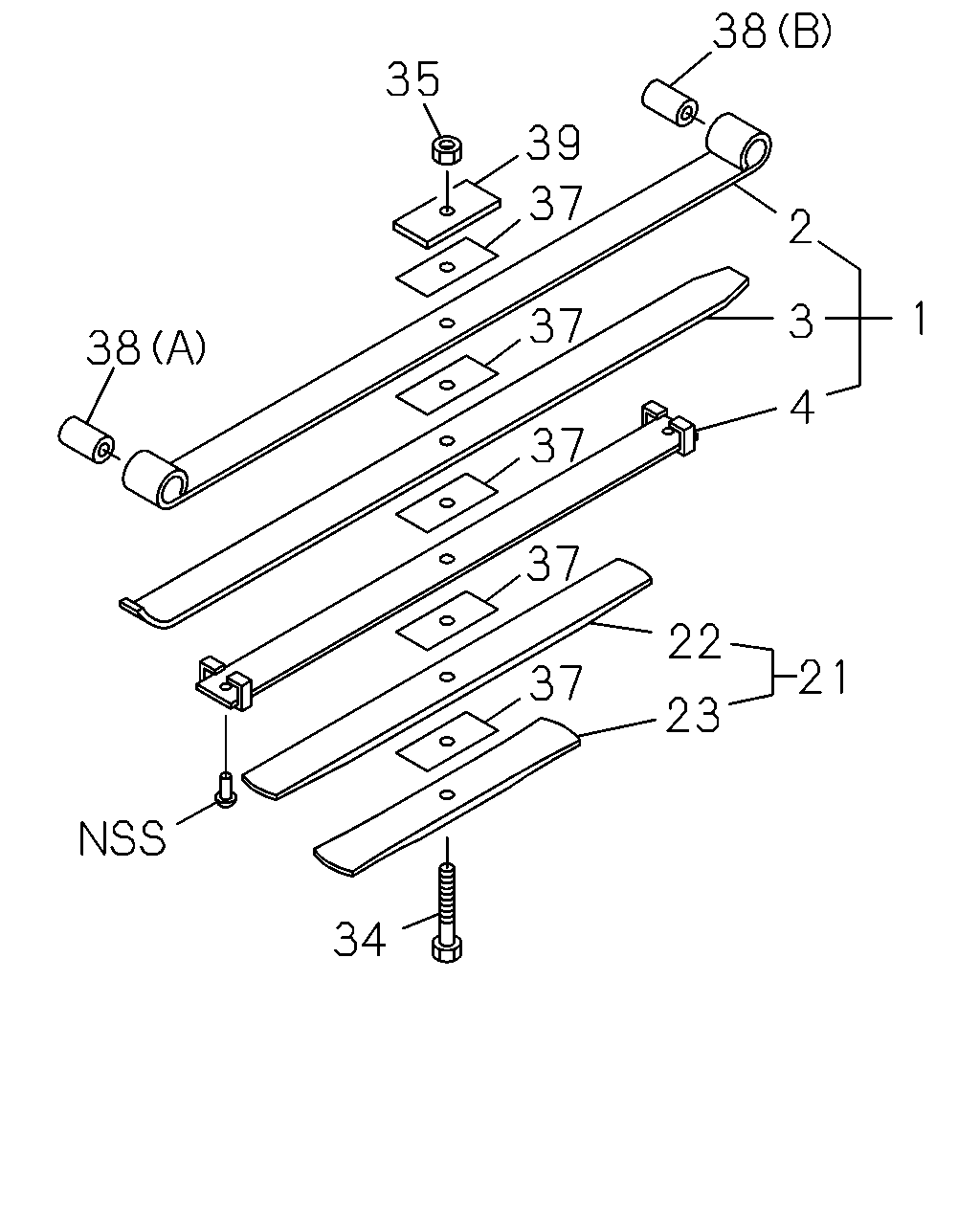

çizim 55940
38 35 39 37 2 1 3 37 38 4 37 37 22 21 37 23 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: A = 8-97910-223-0 		8-97918-692-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-97910-223-0 		8-97918-578-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-97910-223-0 		8-97918-582-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-97910-223-0 		8-97918-583-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: A = 8-97910-223-0 		8-97918-693-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: A = 8-97910-223-0 		8-97918-580-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: A = 8-97910-223-0 		8-97918-581-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=100, THA ASM PART: A = 8-97910-223-0 		8-97918-637-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97910-223-0 		9-99110-512-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
THA ASM PART: A = 8-97910-223-0 		8-97918-632-0 05 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-97910-223-0 		8-94130-354-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=85.2 ASM PART: A = 8-97910-223-0 		8-97034-380-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12, THA ASM PART: A = 8-97910-223-0 		8-97918-628-0 01 1 -
