4-61 — SHOCK ABSORBER; REAR SUSPENSION (#20037) — 16 parça

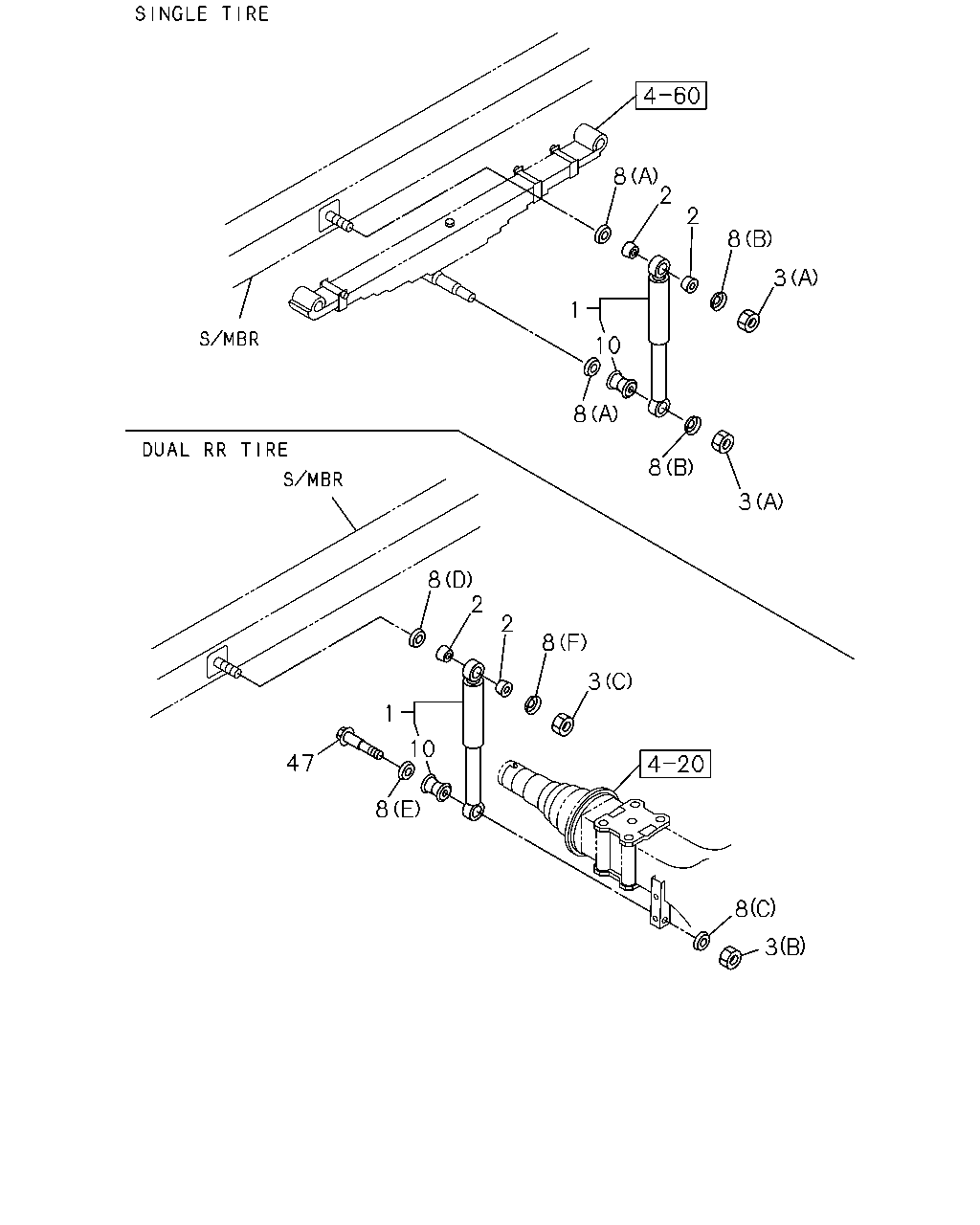

çizim 56088
8 2 2 8 3 1 10 8 8 3 8 2 2 8 3 1 10 8 47 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ABSORBER ASM; SHOCK,RR
THA 		8-97921-280-0 02 1 0309- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97921-281-0 02 1 0309- ● ●
2 BUSHING; RUBBER,S/ABS,LWR
THA 		8-97916-996-0 04 1 0309- ●
2 BUSHING; RUBBER,S/ABS,LWR
THA 		8-97916-997-0 04 1 0309- ● ●
3 NUT; S/ABS
(A) M12 		9-99110-412-0 04 1 0309- ●
3 NUT; S/ABS
(C) M14 		9-99111-414-0 02 1 0309- ● ●
3 NUT; S/ABS
(B) M16 		9-99111-516-0 02 1 0309- ● ●
8 WASHER; S/ABS
(A) ID=16.5 		9-51679-021-0 04 1 0309- ●
8 WASHER; S/ABS
(B) ID=12.5 THA 		9-51679-022-0 04 1 0309- ●
8 WASHER; S/ABS
(E) ID=16.4 		8-94137-482-1 02 1 0309- ● ●
8 WASHER; S/ABS
(C) ID=16.5 		8-97070-925-1 02 1 0309- ● ●
8 WASHER; S/ABS
(F) ID=15.0 		9-51679-012-0 02 1 0309- ● ●
8 WASHER; S/ABS
(D) ID=20.0 		9-51679-013-0 02 1 0309- ● ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97918-633-0 02 1 0309- ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97918-645-0 02 1 0309- ● ●
47 PIN; S/ABS SETTING 8-97316-972-0 02 1 0309- ● ●
