4-60 — REAR SUSPENSION (#20036) — 52 parça

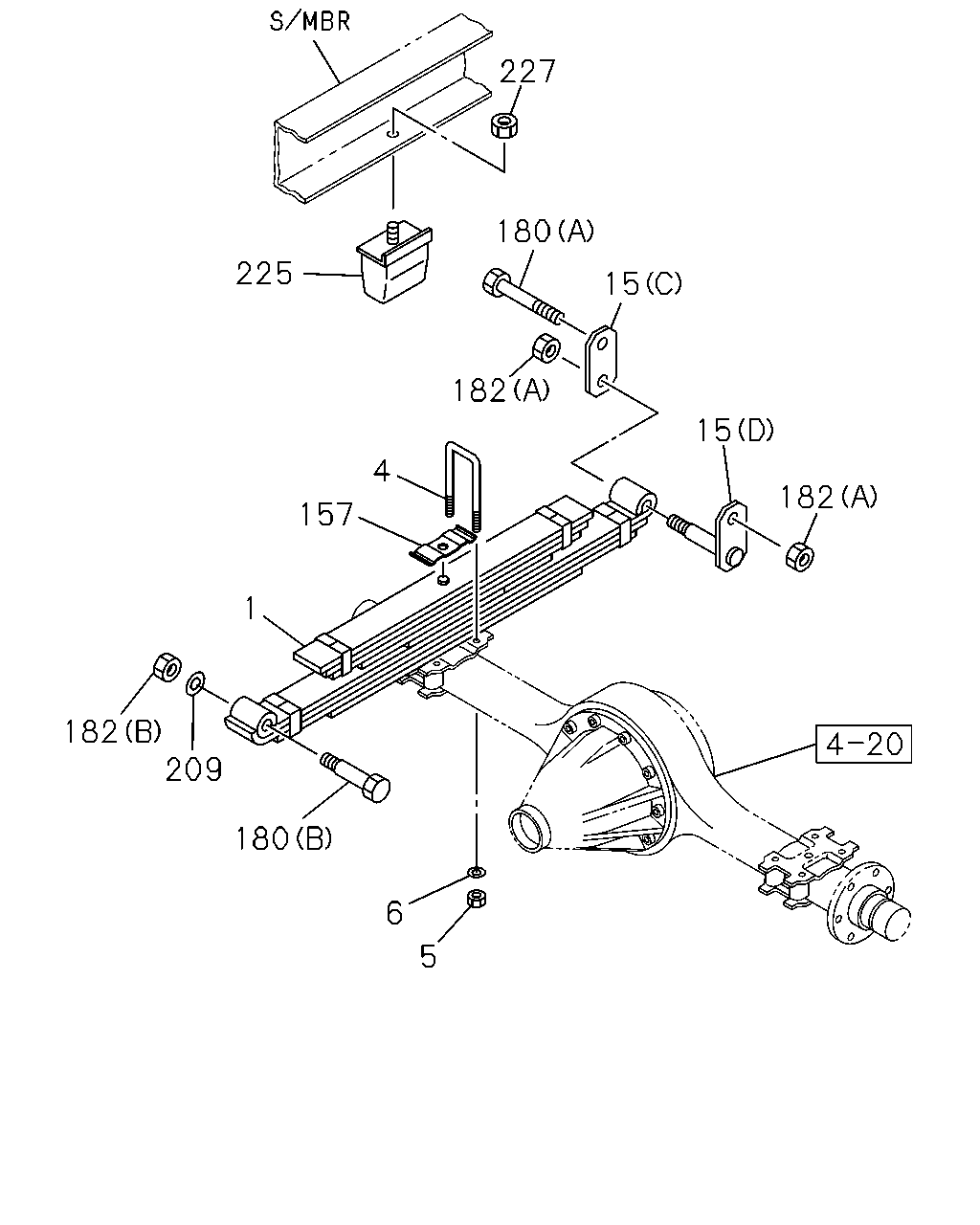

çizim 54982
227 180 225 15 182 15 4 182 157 1 182 209 180 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF THA 		8-97910-223-0 02 1 0309- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA 		8-97910-222-0 02 1 0309- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA 		8-97912-813-0 02 1 0309- ●
4 U-BOLT; RR SPR
L=235 THA 		8-97916-751-0 04 1 0309- ●
4 U-BOLT; RR SPR
L=265 THA 		8-97916-753-0 04 1 0309- ●
4 U-BOLT; RR SPR
L=285 THA 		8-97916-746-0 04 1 0309- ●
5 NUT; U-BOLT,RR SPR
M16 		8-94107-767-0 08 1 0309- ● ● ●
6 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0309- ● ● ●
15 SHACKLE; RR SPR
(A) OUTSIDE THA 		8-97916-651-0 02 1 0309- ●
15 SHACKLE; RR SPR
(B) INSIDE THA 		8-97916-756-0 02 1 0309- ●
15 SHACKLE; RR SPR
(C) THA 		8-97916-534-0 02 1 0309- ● ●
15 SHACKLE; RR SPR
(D) W/PIN THA 		8-97916-652-0 02 1 0309- ● ●
157 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 0309- ● ●
157 CLAMP; UPR,RR SPR
L=140 T=4.5 		8-94118-509-1 02 1 0309- ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) L=122 THA 		8-97916-533-0 02 1 0309- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0309- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) L=130 THA 		8-97916-757-0 02 1 0309- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0309- ● ●
182 NUT; PIN,RR SPR
(A) M16 FLANGE 		8-97147-389-0 06 1 0309- ●
182 NUT; PIN,RR SPR
(A) M16 FLANGE 		8-97147-389-0 04 1 0309- ● ●
182 NUT; PIN,RR SPR
(B) M18 		9-99110-518-0 02 1 0309- ● ●
209 WASHER; PL
ID=19 		8-97073-435-1 02 1 0309- ● ●
225 RUBBER; CUSHION,RR SPR
THA 		8-97916-767-1 02 1 0309- ●
225 RUBBER; CUSHION,RR SPR
THA 		8-97916-766-0 02 1 0309- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-112-0 02 1 0405- ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-112-0 02 1 0309- ● ● ●

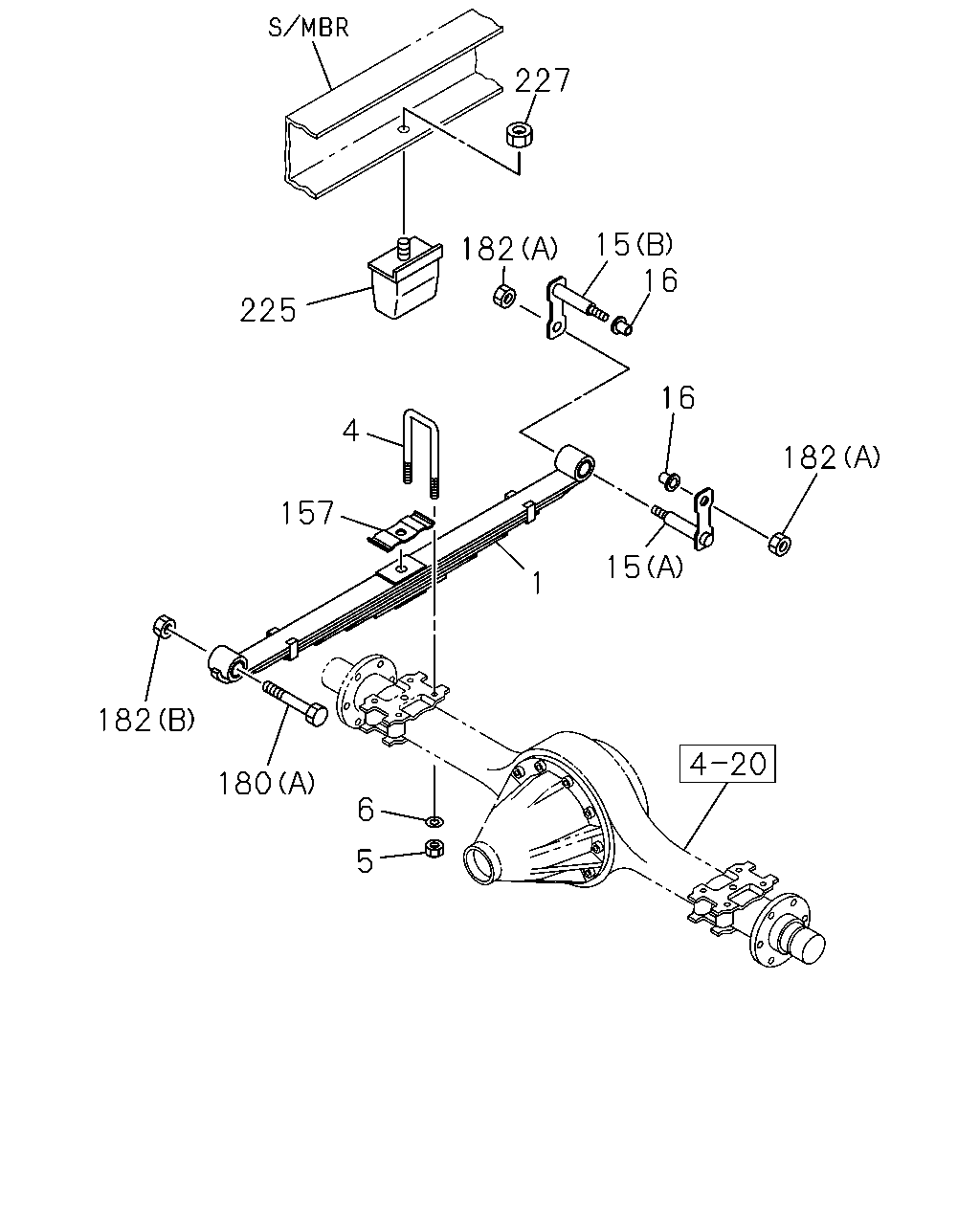

çizim 55298
227 15 16 182 225 16 4 182 157 15 1 182 180 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF THA 		8-97910-223-0 02 1 0309- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA 		8-97910-222-0 02 1 0309- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA 		8-97912-813-0 02 1 0309- ●
4 U-BOLT; RR SPR
L=235 THA 		8-97916-751-0 04 1 0309- ●
4 U-BOLT; RR SPR
L=265 THA 		8-97916-753-0 04 1 0309- ●
4 U-BOLT; RR SPR
L=285 THA 		8-97916-746-0 04 1 0309- ●
5 NUT; U-BOLT,RR SPR
M16 		8-94107-767-0 08 1 0309- ● ● ●
6 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0309- ● ● ●
15 SHACKLE; RR SPR
(A) OUTSIDE THA 		8-97916-651-0 02 1 0309- ●
15 SHACKLE; RR SPR
(B) INSIDE THA 		8-97916-756-0 02 1 0309- ●
15 SHACKLE; RR SPR
(C) THA 		8-97916-534-0 02 1 0309- ● ●
15 SHACKLE; RR SPR
(D) W/PIN THA 		8-97916-652-0 02 1 0309- ● ●
16 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 0309- ●
157 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 0309- ● ●
157 CLAMP; UPR,RR SPR
L=140 T=4.5 		8-94118-509-1 02 1 0309- ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) L=122 THA 		8-97916-533-0 02 1 0309- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0309- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) L=130 THA 		8-97916-757-0 02 1 0309- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0309- ● ●
182 NUT; PIN,RR SPR
(A) M16 FLANGE 		8-97147-389-0 06 1 0309- ●
182 NUT; PIN,RR SPR
(A) M16 FLANGE 		8-97147-389-0 04 1 0309- ● ●
182 NUT; PIN,RR SPR
(B) M18 		9-99110-518-0 02 1 0309- ● ●
225 RUBBER; CUSHION,RR SPR
THA 		8-97916-767-1 02 1 0309- ●
225 RUBBER; CUSHION,RR SPR
THA 		8-97916-766-0 02 1 0309- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-112-0 02 1 0405- ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-112-0 02 1 0309- ● ● ●
