Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#20031) — 74 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-97357-214-0	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (C) ASM PART: B = 8-97357-214-0	8-97075-584-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-0	8-97354-944-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97388-650-0	8-97388-648-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97388-650-0	8-97388-649-0	01	1	-

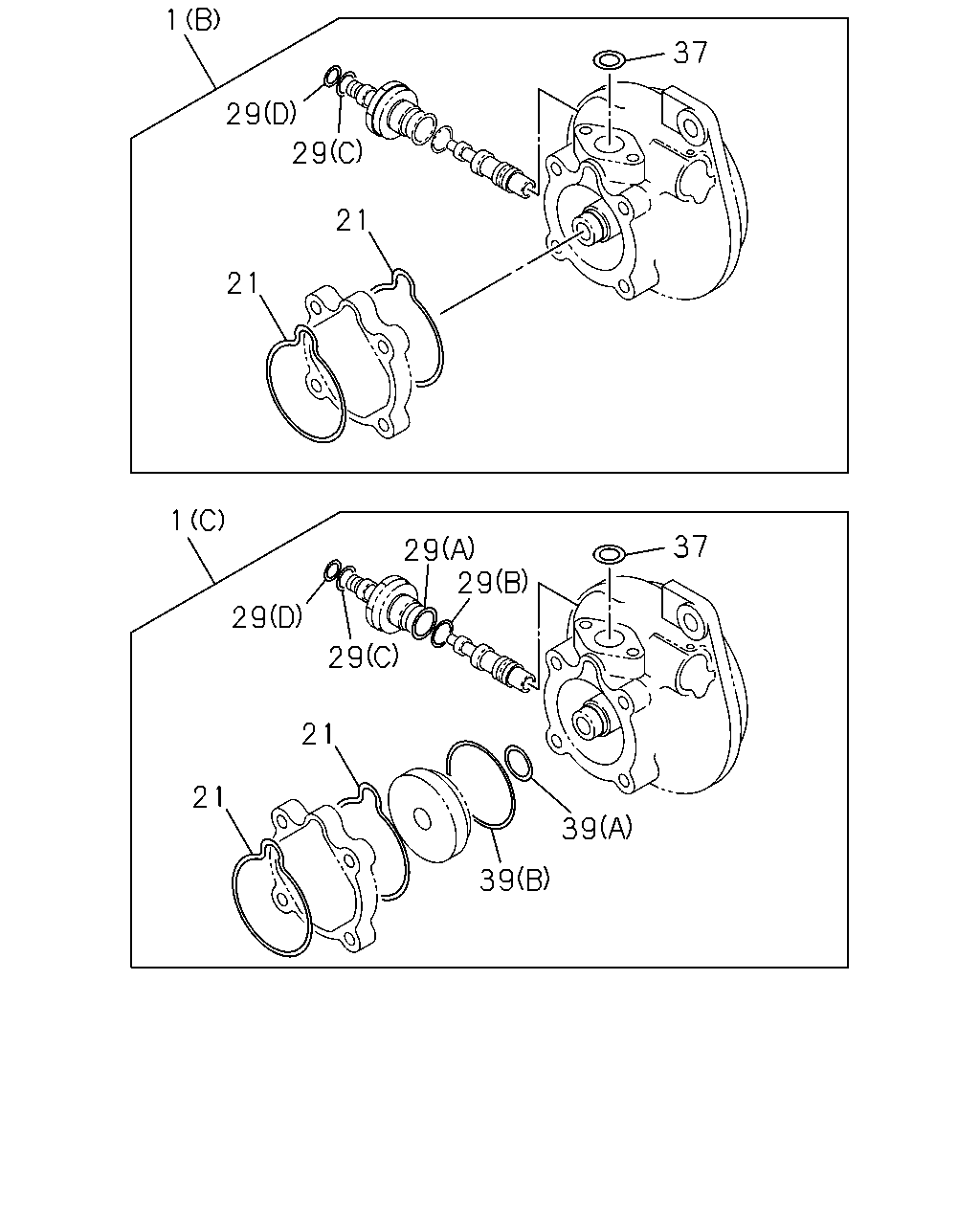

1 37 29 29 21 21 1 37 29 29 29 29 21 21 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-97357-214-0	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (C) ASM PART: B = 8-97357-214-0	8-97075-584-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-0	8-97354-944-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97388-650-0	8-97388-648-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97388-650-0	8-97388-649-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97062-329-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97075-581-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-97357-214-0	8-97029-777-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97388-650-0	8-97184-767-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97147-441-0	01	1	-

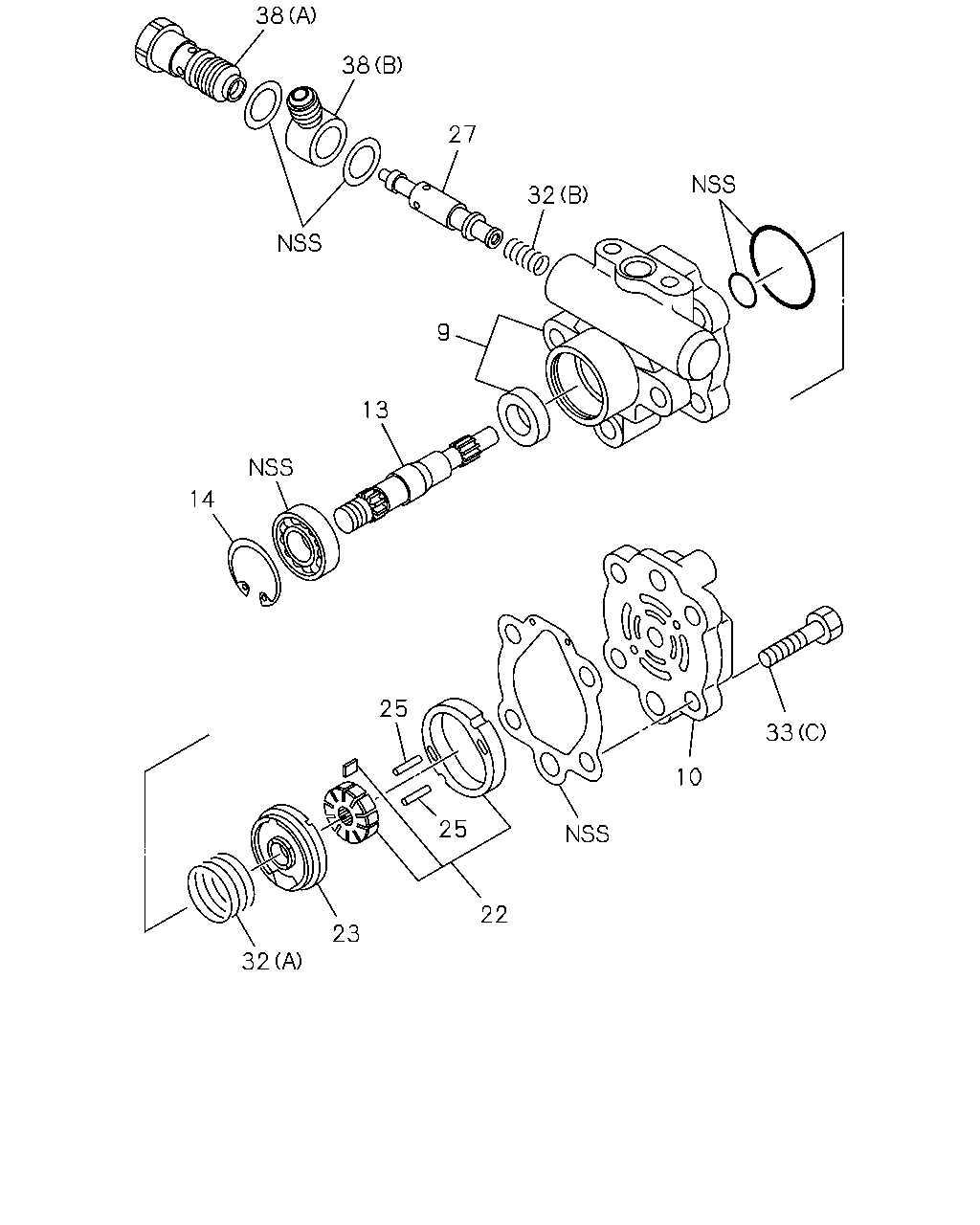

38 38 27 32 9 13 14 25 33 10 25 22 23 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-0	8-97354-933-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97357-214-0	8-97369-595-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97388-650-0	8-97388-641-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-0	8-97102-294-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97354-730-0	8-97354-935-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 8-97354-730-0	8-97064-620-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-0	8-97313-095-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97147-453-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97354-730-0	8-97354-679-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97354-730-0	8-97081-859-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97075-586-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-0	8-97094-142-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-654-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-0	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-0	8-97064-987-0	01	1	-
33	BOLT; COVER (B) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97029-773-0	03	1	-
33	BOLT; COVER (C) ASM PART: A = 8-97354-730-0	8-97064-979-0	04	1	-
33	BOLT; COVER (A) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97075-585-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-0	8-97354-941-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-0	8-97354-943-0	01	1	-

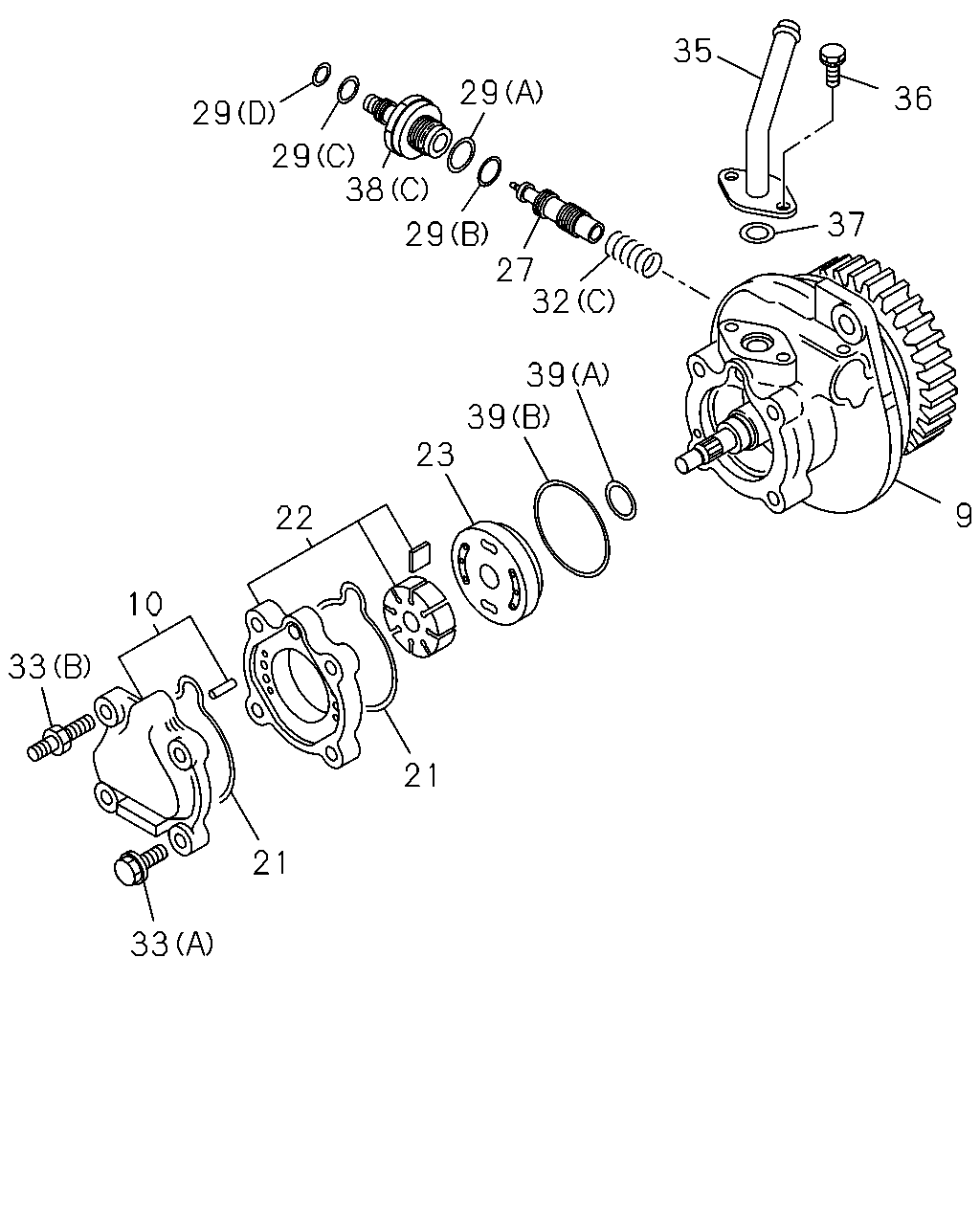

35 29 36 29 29 38 37 29 27 32 39 39 23 9 22 10 33 21 21 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-0	8-97354-933-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97357-214-0	8-97369-595-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97388-650-0	8-97388-641-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-0	8-97102-294-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97062-329-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-0	8-97313-095-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97147-453-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97354-730-0	8-97354-679-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97075-586-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-0	8-97094-142-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97075-581-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-654-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-0	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-0	8-97064-987-0	01	1	-
33	BOLT; COVER (B) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97029-773-0	03	1	-
33	BOLT; COVER (C) ASM PART: A = 8-97354-730-0	8-97064-979-0	04	1	-
33	BOLT; COVER (A) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97075-585-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97357-214-0	8-97091-932-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97388-650-0	8-97388-640-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-664-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-97357-214-0	8-97029-777-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97388-650-0	8-97184-767-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-0	8-97354-941-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-0	8-97354-943-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 8-97357-214-0, C = 8-97388-650-0	8-97147-441-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
