0-10 — CYLINDER HEAD COVER (#2003) — 129 parça

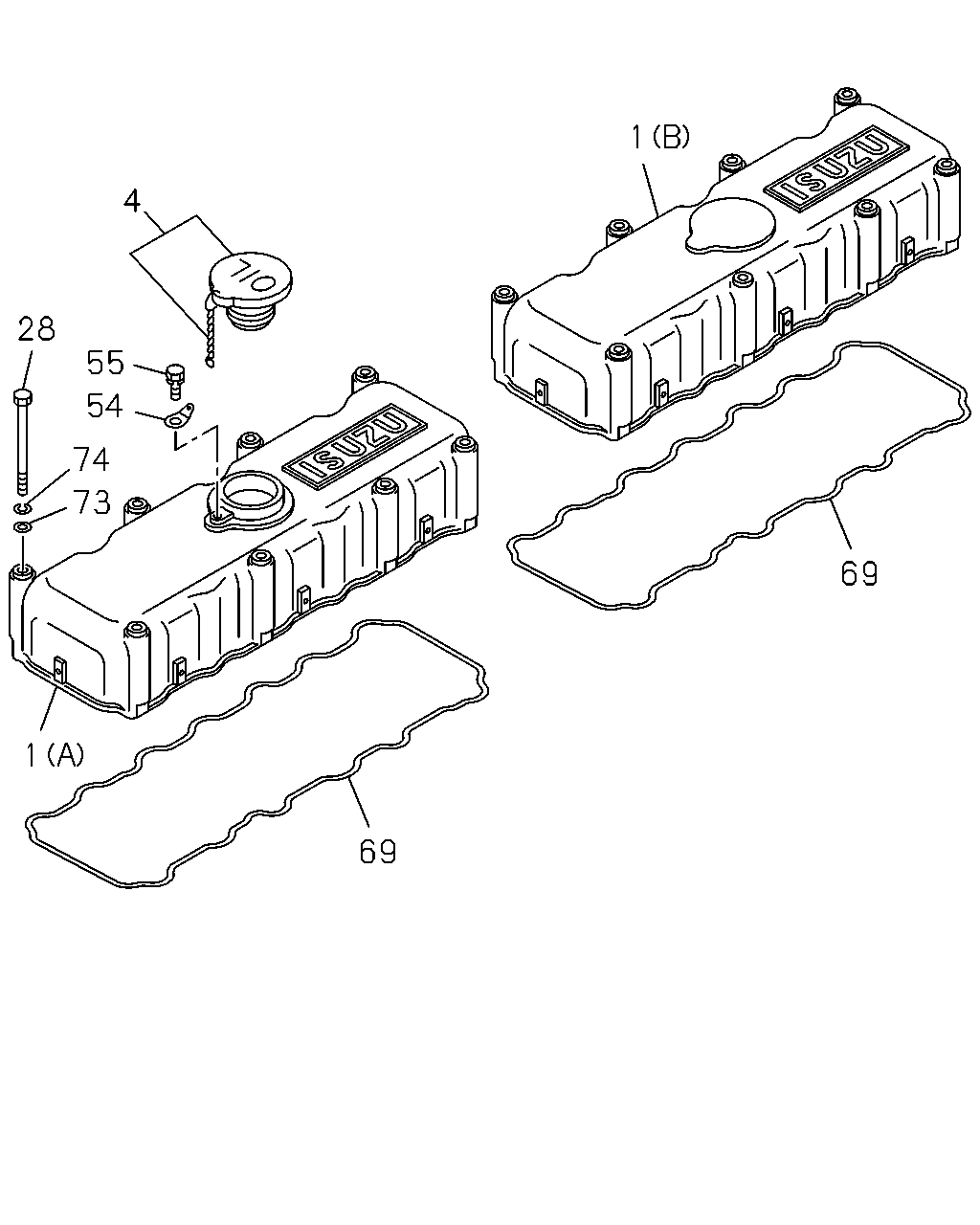

1 4 28 55 54 74 73 69 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD (A) FRONT	1-11171-184-1	01	1	9001-	●
1	COVER; CYL HD (B) REAR	1-11171-185-1	01	1	9001-	●
1	COVER; CYL HD (C) FRONT	1-11171-085-4	01	1	9001-9304		●	●
1	COVER; CYL HD EXC. TAIWAN EMISSION REGULATION<TAL> (C) FRONT	1-11171-085-4	01	1	9305-		●
1	COVER; CYL HD (C) FRONT	1-11171-085-4	01	1	9305-			●
1	COVER; CYL HD (D) REAR	1-11171-086-4	01	1	9001-		●	●	●
1	COVER; CYL HD (E) FRONT	1-11171-239-0	01	1	9101-9311				●
1	COVER; CYL HD TAIWAN EMISSION REGULATION<TAL> (E) FRONT	1-11171-239-0	01	1	9305-		●
1	COVER; CYL HD (E) FRONT	1-11171-239-0	01	1	9305-				●
4	CAP; OIL FILLER INDIA EQUIPMENT(WK3) W/WHITE MARK	1-11750-017-0	01	1	9001-	●
4	CAP; OIL FILLER EXC. INDIA EQUIPMENT(WK3)	9-11750-050-1	01	1	9001-	●
4	CAP; OIL FILLER	9-11750-050-1	01	1	9001-		●	●	●
28	BOLT; HD COVER M10X115	9-09804-203-1	14	1	9001-	●
28	BOLT; HD COVER M10X125	9-09804-207-0	02	1	9001-	●
28	BOLT; HD COVER M10X100	9-01656-000-0	08	1	9001-9004		●	●
28	BOLT; HD COVER M10X100	0-16806-000-0	08	1	9005-		●	●
28	BOLT; HD COVER M10X50	9-01656-050-0	08	1	9001-9004		●	●
28	BOLT; HD COVER M10X50	0-16806-050-0	08	1	9005-		●	●	●
28	BOLT; HD COVER M10X110	9-09804-143-1	04	1	9001-		●	●	●
28	BOLT; HD COVER M10X100	0-16806-000-0	06	1	9101-				●
28	BOLT; HD COVER M10X115	9-09804-203-1	02	1	9101-				●
54	BRACKET; CHAIN HD COVER FRT	9-11759-014-0	01	1	9001-	●	●	●	●
55	BOLT; BRKT CHAIN FRT COVER M8X14 W/LK WASHER	9-01900-814-0	01	1	9001-9204	●			●
55	BOLT; BRKT CHAIN FRT COVER M8X14 W/LK WASHER	0-50040-814-0	01	1	9305-	●			●
55	BOLT; BRKT CHAIN FRT COVER TAIWAN EMISSION REGULATION<TAL> M8X14 W/LK WASHER	0-50040-814-0	01	1	9305-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-048-0	02	1	9001-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-010-1	02	1	9001-		●	●	●
73	WASHER; PL,HD COVER ID=10.5 OD=18	9-09160-510-0	13	1	9001-	●
73	WASHER; PL,HD COVER TAIWAN EMISSION REGULATION<TAL> ID=10.5 OD=18	9-09160-510-0	06	1	9312-		●
73	WASHER; PL,HD COVER TAIWAN EMISSION REGULATION<TAL> ID=10.5 OD=26	9-09160-710-0	04	1	9312-		●
73	WASHER; PL,HD COVER ID=10.5 OD=18	9-09160-510-0	15	1	9001-		●	●
73	WASHER; PL,HD COVER ID=10.5 OD=18	9-09160-510-0	18	1	9101-				●
74	WASHER; LK,HD COVER ID=10.2	9-09150-510-0	16	1	9001-	●
74	WASHER; LK,HD COVER ID=10.2	9-09150-510-0	20	1	9001-		●	●	●

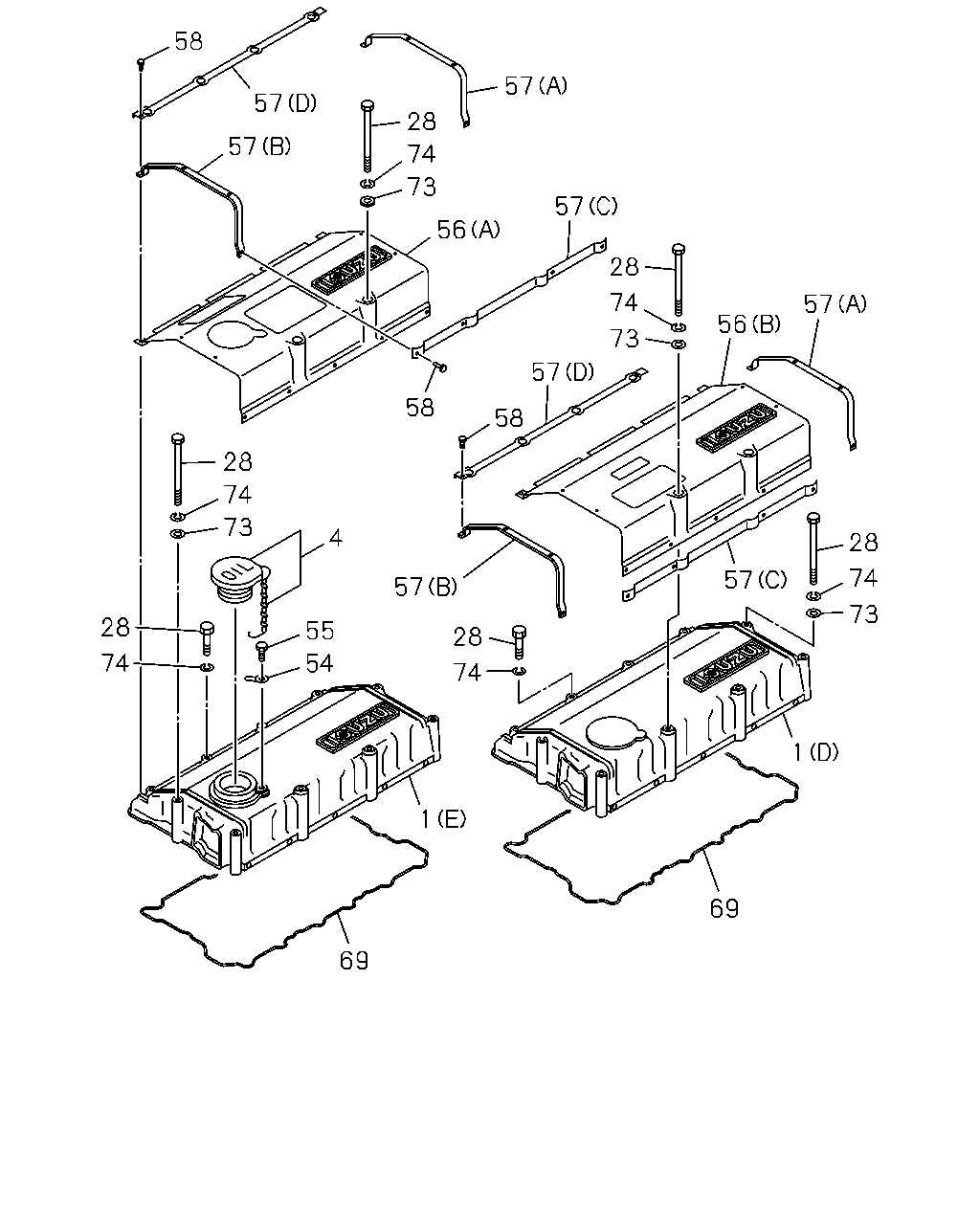

58 57 57 28 57 74 73 57 56 28 74 57 56 73 57 58 58 28 74 73 4 28 74 57 57 73 28 55 28 74 54 74 1 1 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD (A) FRONT	1-11171-184-1	01	1	9001-	●
1	COVER; CYL HD (B) REAR	1-11171-185-1	01	1	9001-	●
1	COVER; CYL HD (C) FRONT	1-11171-085-4	01	1	9001-9304		●	●
1	COVER; CYL HD EXC. TAIWAN EMISSION REGULATION<TAL> (C) FRONT	1-11171-085-4	01	1	9305-		●
1	COVER; CYL HD (C) FRONT	1-11171-085-4	01	1	9305-			●
1	COVER; CYL HD (D) REAR	1-11171-086-4	01	1	9001-		●	●	●
1	COVER; CYL HD (E) FRONT	1-11171-239-0	01	1	9101-9311				●
1	COVER; CYL HD TAIWAN EMISSION REGULATION<TAL> (E) FRONT	1-11171-239-0	01	1	9305-		●
1	COVER; CYL HD (E) FRONT	1-11171-239-0	01	1	9305-				●
4	CAP; OIL FILLER INDIA EQUIPMENT(WK3) W/WHITE MARK	1-11750-017-0	01	1	9001-	●
4	CAP; OIL FILLER EXC. INDIA EQUIPMENT(WK3)	9-11750-050-1	01	1	9001-	●
4	CAP; OIL FILLER	9-11750-050-1	01	1	9001-		●	●	●
28	BOLT; HD COVER M10X115	9-09804-203-1	14	1	9001-	●
28	BOLT; HD COVER M10X125	9-09804-207-0	02	1	9001-	●
28	BOLT; HD COVER M10X100	9-01656-000-0	08	1	9001-9004		●	●
28	BOLT; HD COVER M10X100	0-16806-000-0	08	1	9005-		●	●
28	BOLT; HD COVER M10X50	9-01656-050-0	08	1	9001-9004		●	●
28	BOLT; HD COVER M10X50	0-16806-050-0	08	1	9005-		●	●	●
28	BOLT; HD COVER M10X110	9-09804-143-1	04	1	9001-		●	●	●
28	BOLT; HD COVER M10X100	0-16806-000-0	06	1	9101-				●
28	BOLT; HD COVER M10X115	9-09804-203-1	02	1	9101-				●
54	BRACKET; CHAIN HD COVER FRT	9-11759-014-0	01	1	9001-	●	●	●	●
55	BOLT; BRKT CHAIN FRT COVER M8X14 W/LK WASHER	9-01900-814-0	01	1	9001-9204	●			●
55	BOLT; BRKT CHAIN FRT COVER M8X14 W/LK WASHER	0-50040-814-0	01	1	9305-	●			●
55	BOLT; BRKT CHAIN FRT COVER TAIWAN EMISSION REGULATION<TAL> M8X14 W/LK WASHER	0-50040-814-0	01	1	9305-		●
56	COVER ASM; NOISE SHIELD TAIWAN EMISSION REGULATION<TAL> (B) REAR	1-19381-110-1	01	1	9312-		●
56	COVER ASM; NOISE SHIELD TAIWAN EMISSION REGULATION<TAL> (A) FRONT	1-19381-178-0	01	1	9312-		●
57	FLANGE; NOISE SHIELD COVER TAIWAN EMISSION REGULATION<TAL> (A)	1-11179-050-2	02	1	9312-		●
57	FLANGE; NOISE SHIELD COVER TAIWAN EMISSION REGULATION<TAL> (B)	1-11179-051-2	02	1	9312-		●
57	FLANGE; NOISE SHIELD COVER TAIWAN EMISSION REGULATION<TAL> (C)	1-11179-052-0	02	1	9312-		●
57	FLANGE; NOISE SHIELD COVER TAIWAN EMISSION REGULATION<TAL> (D)	1-11179-053-1	02	1	9312-		●
58	SCREW; NOISE SHIELD COVER TAIWAN EMISSION REGULATION<TAL> M4X12 TAPPING	9-07077-412-0	22	1	9312-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-048-0	02	1	9001-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-010-1	02	1	9001-		●	●	●
73	WASHER; PL,HD COVER ID=10.5 OD=18	9-09160-510-0	13	1	9001-	●
73	WASHER; PL,HD COVER TAIWAN EMISSION REGULATION<TAL> ID=10.5 OD=18	9-09160-510-0	06	1	9312-		●
73	WASHER; PL,HD COVER TAIWAN EMISSION REGULATION<TAL> ID=10.5 OD=26	9-09160-710-0	04	1	9312-		●
73	WASHER; PL,HD COVER ID=10.5 OD=18	9-09160-510-0	15	1	9001-		●	●
73	WASHER; PL,HD COVER ID=10.5 OD=18	9-09160-510-0	18	1	9101-				●
74	WASHER; LK,HD COVER ID=10.2	9-09150-510-0	16	1	9001-	●
74	WASHER; LK,HD COVER ID=10.2	9-09150-510-0	20	1	9001-		●	●	●

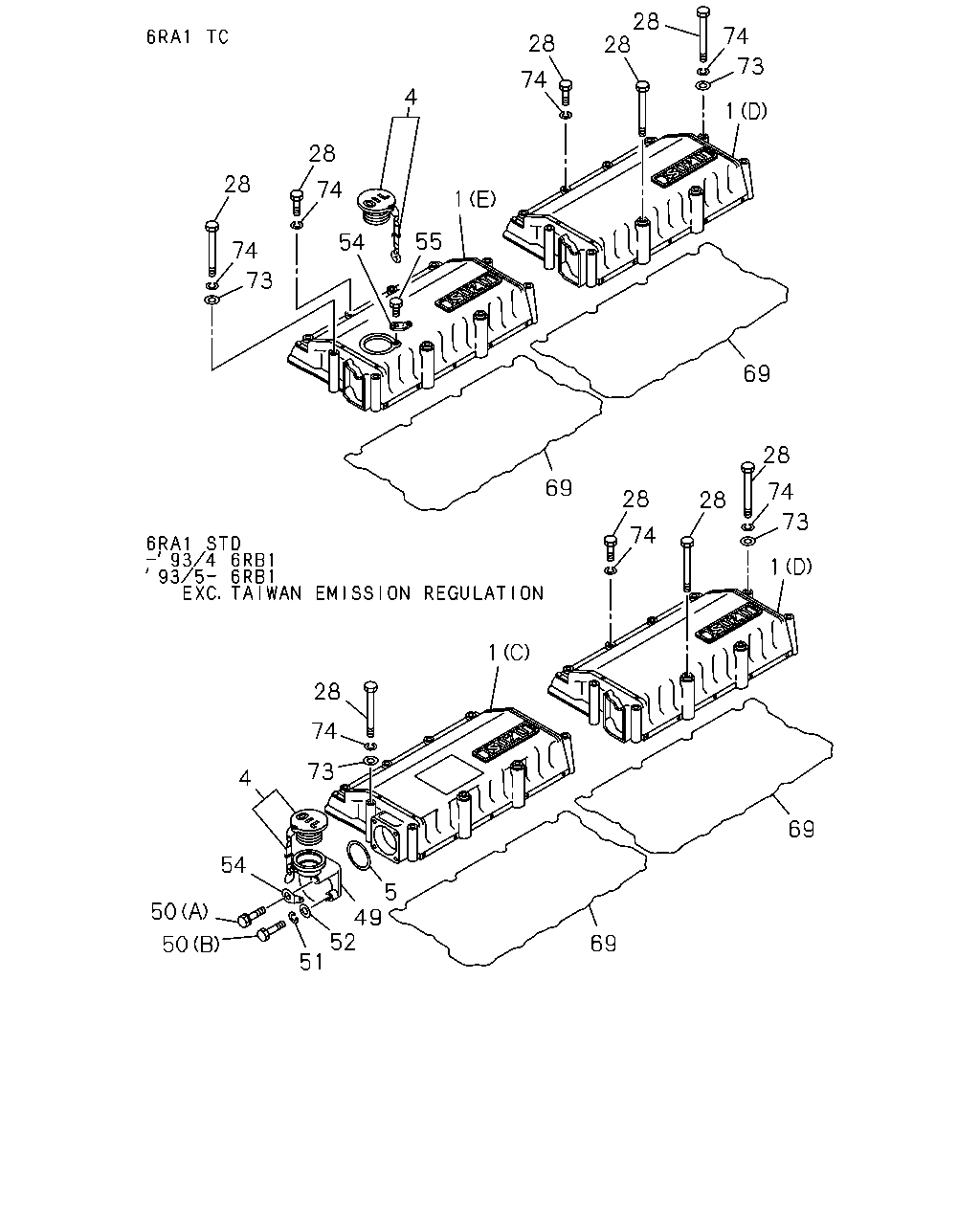

28 28 74 28 73 74 4 1 28 28 74 1 55 54 74 73 69 28 69 74 28 28 73 74 1 1 28 74 73 4 69 54 5 49 52 51 50 69 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD (A) FRONT	1-11171-184-1	01	1	9001-	●
1	COVER; CYL HD (B) REAR	1-11171-185-1	01	1	9001-	●
1	COVER; CYL HD (C) FRONT	1-11171-085-4	01	1	9001-9304		●	●
1	COVER; CYL HD EXC. TAIWAN EMISSION REGULATION<TAL> (C) FRONT	1-11171-085-4	01	1	9305-		●
1	COVER; CYL HD (C) FRONT	1-11171-085-4	01	1	9305-			●
1	COVER; CYL HD (D) REAR	1-11171-086-4	01	1	9001-		●	●	●
1	COVER; CYL HD (E) FRONT	1-11171-239-0	01	1	9101-9311				●
1	COVER; CYL HD TAIWAN EMISSION REGULATION<TAL> (E) FRONT	1-11171-239-0	01	1	9305-		●
1	COVER; CYL HD (E) FRONT	1-11171-239-0	01	1	9305-				●
4	CAP; OIL FILLER INDIA EQUIPMENT(WK3) W/WHITE MARK	1-11750-017-0	01	1	9001-	●
4	CAP; OIL FILLER EXC. INDIA EQUIPMENT(WK3)	9-11750-050-1	01	1	9001-	●
4	CAP; OIL FILLER	9-11750-050-1	01	1	9001-		●	●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09920-648-0	01	1	9001-9304		●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EMISSION REGULATION<TAL>.	9-09920-648-0	01	1	9305-		●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09920-648-0	01	1	9305-			●
28	BOLT; HD COVER M10X115	9-09804-203-1	14	1	9001-	●
28	BOLT; HD COVER M10X125	9-09804-207-0	02	1	9001-	●
28	BOLT; HD COVER M10X100	9-01656-000-0	08	1	9001-9004		●	●
28	BOLT; HD COVER M10X100	0-16806-000-0	08	1	9005-		●	●
28	BOLT; HD COVER M10X50	9-01656-050-0	08	1	9001-9004		●	●
28	BOLT; HD COVER M10X50	0-16806-050-0	08	1	9005-		●	●	●
28	BOLT; HD COVER M10X110	9-09804-143-1	04	1	9001-		●	●	●
28	BOLT; HD COVER M10X100	0-16806-000-0	06	1	9101-				●
28	BOLT; HD COVER M10X115	9-09804-203-1	02	1	9101-				●
49	FILLER; OIL,HD COVER	9-11741-109-0	01	1	9001-9304		●	●
49	FILLER; OIL,HD COVER EXC. TAIWAN EMISSION REGULATION<TAL>	9-11741-109-0	01	1	9305-		●
49	FILLER; OIL,HD COVER	9-11741-109-0	01	1	9305-			●
50	BOLT; OIL FILLER (A) M8X80	9-01055-880-0	02	1	9001-9005		●	●
50	BOLT; OIL FILLER (A) M8X80	0-10805-880-0	02	1	9006-9304		●	●
50	BOLT; OIL FILLER EXC. TAIWAN EMISSION REGULATION<TAL> (A) M8X80	0-10805-880-0	02	1	9305-		●
50	BOLT; OIL FILLER (A) M8X80	0-10805-880-0	02	1	9305-			●
50	BOLT; OIL FILLER (B) M8X35	9-01970-835-0	02	1	9001-9005		●	●
50	BOLT; OIL FILLER (B) M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9006-9304		●	●
50	BOLT; OIL FILLER EXC. TAIWAN EMISSION REGULATION<TAL> (B) M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9305-		●
50	BOLT; OIL FILLER (B) M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9305-			●
51	WASHER; LK,OIL FILLER ID=8.2	9-09150-508-0	02	1	9001-9304		●	●
51	WASHER; LK,OIL FILLER EXC. TAIWAN EMISSION REGULATION<TAL> ID=8.2	9-09150-508-0	02	1	9305-		●
51	WASHER; LK,OIL FILLER ID=8.2	9-09150-508-0	02	1	9305-			●
52	WASHER; PL,OIL FILLER ID=8.4	9-09160-508-0	01	1	9001-9304		●	●
52	WASHER; PL,OIL FILLER EXC. TAIWAN EMISSION REGULATION<TAL> ID=8.4	9-09160-508-0	01	1	9305-		●
52	WASHER; PL,OIL FILLER ID=8.4	9-09160-508-0	01	1	9305-			●
54	BRACKET; CHAIN HD COVER FRT	9-11759-014-0	01	1	9001-	●	●	●	●
55	BOLT; BRKT CHAIN FRT COVER M8X14 W/LK WASHER	9-01900-814-0	01	1	9001-9204	●			●
55	BOLT; BRKT CHAIN FRT COVER M8X14 W/LK WASHER	0-50040-814-0	01	1	9305-	●			●
55	BOLT; BRKT CHAIN FRT COVER TAIWAN EMISSION REGULATION<TAL> M8X14 W/LK WASHER	0-50040-814-0	01	1	9305-		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-048-0	02	1	9001-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-010-1	02	1	9001-		●	●	●
73	WASHER; PL,HD COVER ID=10.5 OD=18	9-09160-510-0	13	1	9001-	●
73	WASHER; PL,HD COVER TAIWAN EMISSION REGULATION<TAL> ID=10.5 OD=18	9-09160-510-0	06	1	9312-		●
73	WASHER; PL,HD COVER TAIWAN EMISSION REGULATION<TAL> ID=10.5 OD=26	9-09160-710-0	04	1	9312-		●
73	WASHER; PL,HD COVER ID=10.5 OD=18	9-09160-510-0	15	1	9001-		●	●
73	WASHER; PL,HD COVER ID=10.5 OD=18	9-09160-510-0	18	1	9101-				●
74	WASHER; LK,HD COVER ID=10.2	9-09150-510-0	16	1	9001-	●
74	WASHER; LK,HD COVER ID=10.2	9-09150-510-0	20	1	9001-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
