4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#20028) — 121 parça

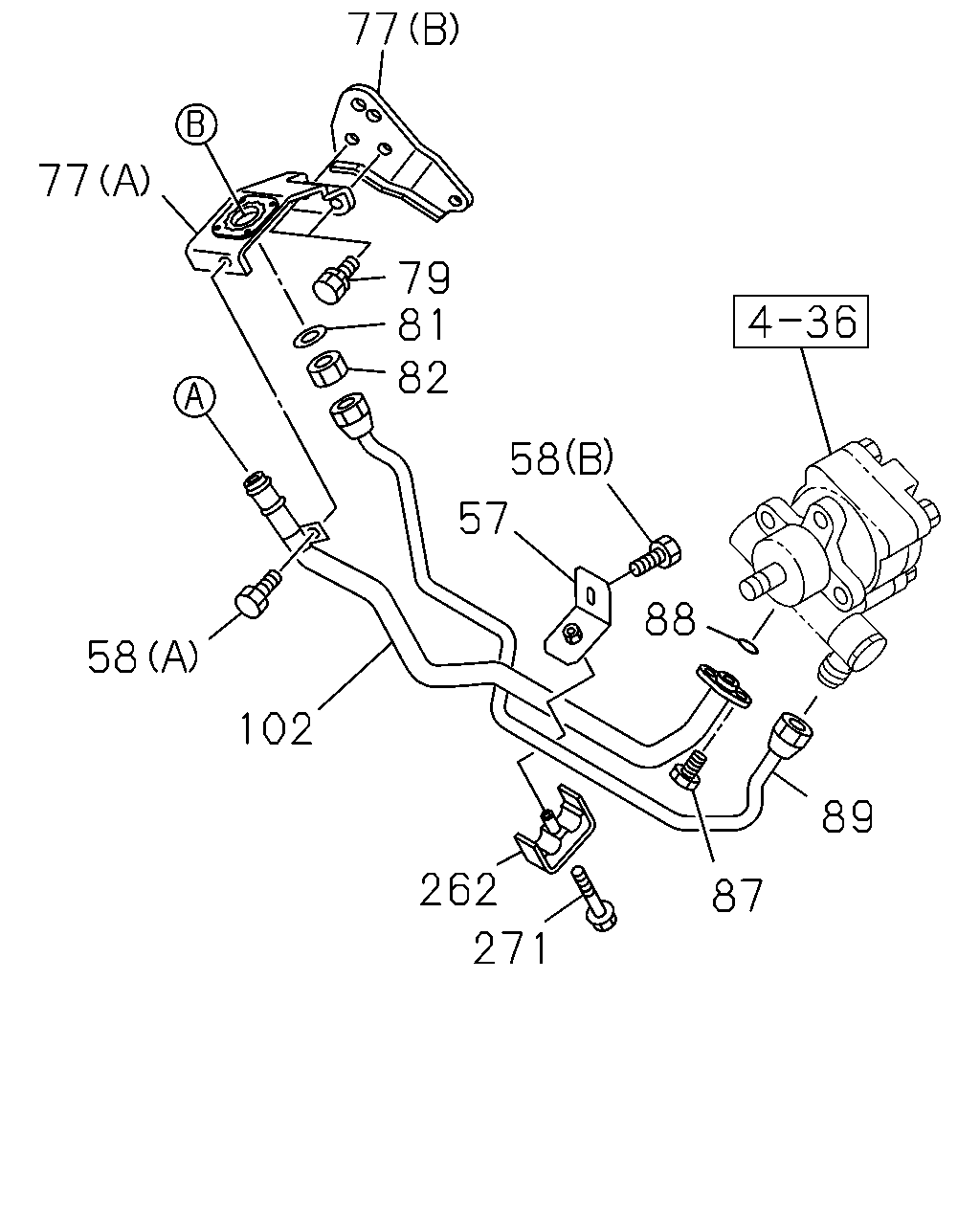

77 77 79 81 82 58 57 88 58 102 89 262 87 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	BRACKET; POWER STRG PIPE 4JB1 ENG<RLF> POWER STEERING<N40>	8-97312-558-1	01	1	0309-	●	●
58	BOLT; CLIP 4JB1 ENG<RLF> POWER STEERING<N40> (C) M6X16 FLANGE	0-28680-616-0	01	1	0309-	●	●
58	BOLT; CLIP 4JB1 ENG<RLF> POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	0309-	●	●
58	BOLT; CLIP 4JB1 ENG<RLF> POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0309-	●	●
77	BRACKET; POWER STEERING HOSE 4JB1 ENG<RLF> POWER STEERING<N40> (B)	8-97075-615-0	01	1	0309-	●	●
77	BRACKET; POWER STEERING HOSE 4JB1 ENG<RLF> POWER STEERING<N40> (A)	8-97208-424-0	01	1	0309-	●	●
79	BOLT; BRKT 4JB1 ENG<RLF> POWER STEERING<N40> M8X20 W/LK WASHER	0-50040-820-0	02	1	0309-	●	●
81	WASHER; LK,FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-	●	●
81	WASHER; LK,FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-	●	●
81	WASHER; LK,FLEX HOSE 4HG1 ENG<RJH> POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-			●
82	NUT; FLEX HOSE,P/S 4JB1 ENG<RLF> POWER STEERING<N40> M16	8-94370-339-0	01	1	0309-	●	●
82	NUT; FLEX HOSE,P/S 4HG1 ENG<RJH> POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0309-			●
87	BOLT; POWER STRG PIPE 4JB1 ENG<RLF> POWER STEERING<N40> M8X12 FLANGE	0-28080-812-0	02	1	0309-	●	●
88	RING; OIL PIPE 4JB1 ENG<RLF> POWER STEERING<N40> ID=11.0	9-09561-111-0	01	1	0309-	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40>	8-97312-556-0	01	1	0309-	●	●
102	PIPE; SUCTION,P/S 4JB1 ENG<RLF> POWER STEERING<N40>	8-97312-557-1	01	1	0309-	●	●
262	CLIP; P/S PIPE 4JB1 ENG<RLF> POWER STEERING<N40>	8-97300-961-0	01	1	0309-	●	●
271	BOLT; P/S OIL PIPE FIX 4JB1 ENG<RLF> POWER STEERING<N40> M8X40 FLANGE	0-28680-840-0	01	1	0309-	●	●

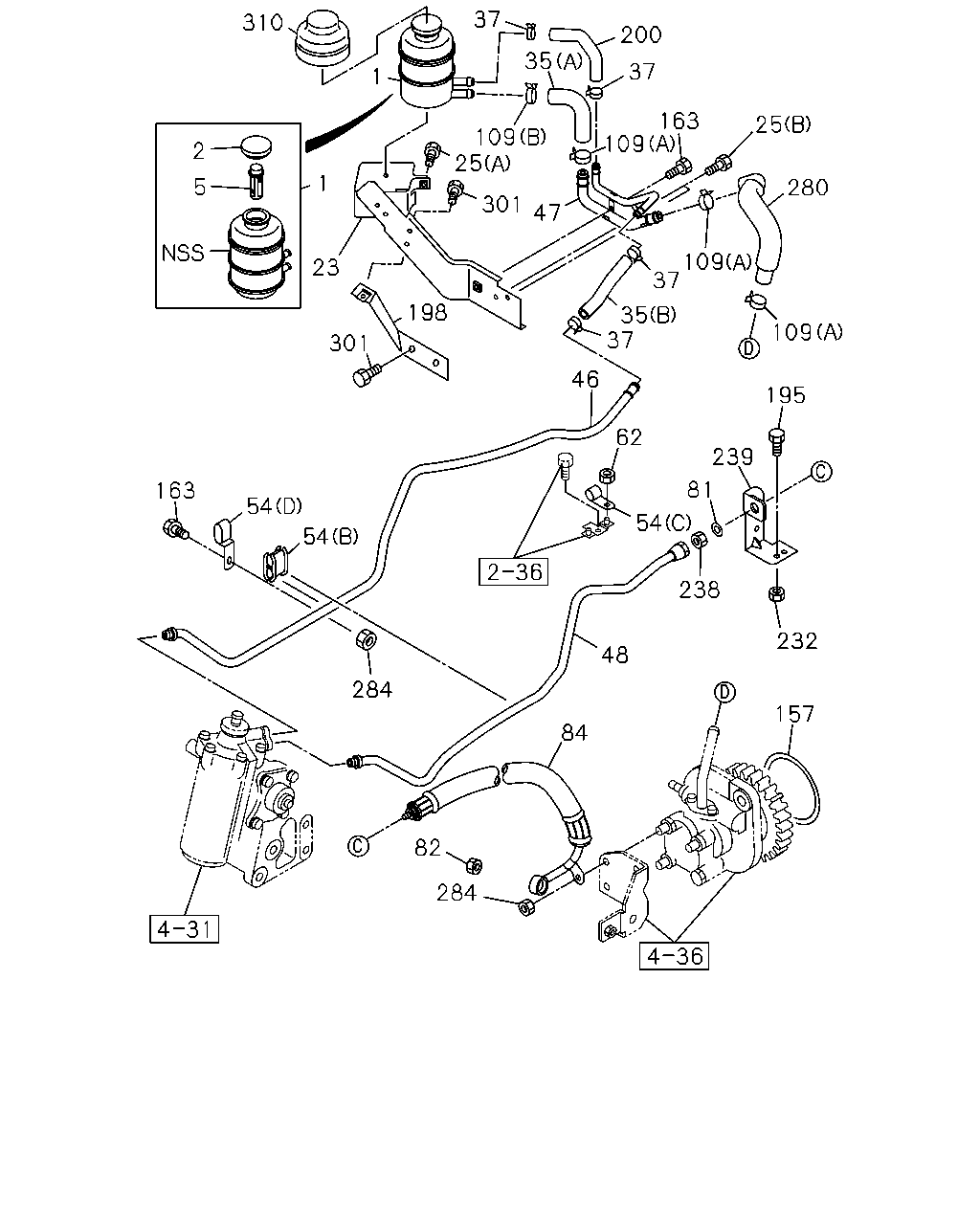

37 310 200 35 37 1 163 109 25 109 25 2 1 5 280 301 47 109 37 23 198 35 37 109 301 46 195 62 239 81 163 54 54 54 238 232 48 284 157 84 82 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0309-	●	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0309-	●	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0309-	●	●	●
23	BRACKET; OIL TANK,P/S 4JB1 ENG<RLF> POWER STEERING<N40>	8-97066-500-3	01	1	0309-	●	●
23	BRACKET; OIL TANK,P/S 4HG1 ENG<RJH> POWER STEERING<N40>	8-97101-040-1	01	1	0309-			●
25	BOLT; OIL TANK BRKT 4JB1 ENG<RLF> POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0309-	●	●	●
25	BOLT; OIL TANK BRKT 4HG1 ENG<RJH> POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0309-			●
35	HOSE; RETURN,P/S TANK 4JB1 ENG<RLF> POWER STEERING<N40> (C)	8-97081-444-3	01	1	0309-	●	●
35	HOSE; RETURN,P/S TANK 4HG1 ENG<RJH> POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	0309-			●
35	HOSE; RETURN,P/S TANK 4HG1 ENG<RJH> POWER STEERING<N40> (A)	8-97080-108-1	01	1	0309-			●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0309-	●	●	●
37	CLIP; HOSE,P/S 4HG1 ENG<RJH> POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0309-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG<RLF> POWER STEERING<N40>	8-97364-358-0	01	1	0309-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG<RJH> POWER STEERING<N40>	8-97364-361-0	01	1	0309-			●
47	PIPE; RETURN 4HG1 ENG<RJH> POWER STEERING<N40>	8-97046-041-1	01	1	0309-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG<RLF> POWER STEERING<N40>	8-97364-352-0	01	1	0309-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG<RJH> POWER STEERING<N40>	8-97364-354-0	01	1	0309-			●
54	CLIP; OIL PIPE 4JB1 ENG<RLF> POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	0309-	●	●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> (D) H=15 ID=14	1-09700-744-0	01	1	0309-			●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> (B) ID=10X2 H=22 THA	8-94252-455-2	01	1	0309-			●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> (C) ID=11 L=20	9-09525-035-0	01	1	0309-			●
62	NUT; CLIP FIX 4HG1 ENG<RJH> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-			●
81	WASHER; LK,FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-	●	●
81	WASHER; LK,FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-	●	●
81	WASHER; LK,FLEX HOSE 4HG1 ENG<RJH> POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-			●
82	NUT; FLEX HOSE,P/S 4JB1 ENG<RLF> POWER STEERING<N40> M16	8-94370-339-0	01	1	0309-	●	●
82	NUT; FLEX HOSE,P/S 4HG1 ENG<RJH> POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0309-			●
84	HOSE; FLEX,P/S 4JB1 ENG<RLF> POWER STEERING<N40>	8-97358-326-0	01	1	0309-	●	●
84	HOSE; FLEX,P/S 4HG1 ENG<RJH> POWER STEERING<N40>	8-97358-334-2	01	1	0309-			●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0309-	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0309-	●	●	●
109	CLIP; RUBBER HOSE 4HG1 ENG<RJH> POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0309-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HG1 ENG<RJH> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT<C60>	8-97101-875-2	01	1	0309-			●
163	BOLT; OIL PIPE 4JB1 ENG<RLF> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●
163	BOLT; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
163	BOLT; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
195	BOLT; BRKT 4HG1 ENG<RJH> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
195	BOLT; BRKT 4JB1 ENG<RLF> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●
198	STAY; OIL TANK,POWER STEERING 4HG1 ENG<RJH> POWER STEERING<N40>	8-97081-778-1	01	1	0309-			●
200	HOSE; RUBBER,RETURN 4HG1 ENG<RJH> POWER STEERING<N40>	8-97080-109-0	01	1	0309-			●
232	NUT; BRKT 4HG1 ENG<RJH> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-			●
232	NUT; BRKT 4JB1 ENG<RLF> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	02	1	0309-	●	●
238	NUT; FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40> M16	8-94370-339-0	01	1	0309-	●	●
238	NUT; FLEX HOSE 4HG1 ENG<RJH> POWER STEERING<N40> M16	8-94370-339-0	01	1	0309-			●
239	BRACKET; FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40>	8-97089-879-0	01	1	0309-	●	●
239	BRACKET; FLEX HOSE 4HG1 ENG<RJH> POWER STEERING<N40>	8-97187-402-0	01	1	0309-			●
280	HOSE; P/S OIL PUMP,INL 4JB1 ENG<RLF> POWER STEERING<N40>	8-97205-635-0	01	1	0309-	●	●
280	HOSE; P/S OIL PUMP,INL 4HG1 ENG<RJH> POWER STEERING<N40>	8-97106-424-0	01	1	0309-			●
284	NUT; PIPE 4JB1 ENG<RLF> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-	●	●
284	NUT; PIPE 4HG1 ENG<RJH> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-			●
301	BOLT; STAY,OIL TANK 4HG1 ENG<RJH> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0309-			●
310	COVER; OIL TANK 4HG1 ENG<RJH> POWER STEERING<N40>	8-97103-394-0	01	1	0309-			●

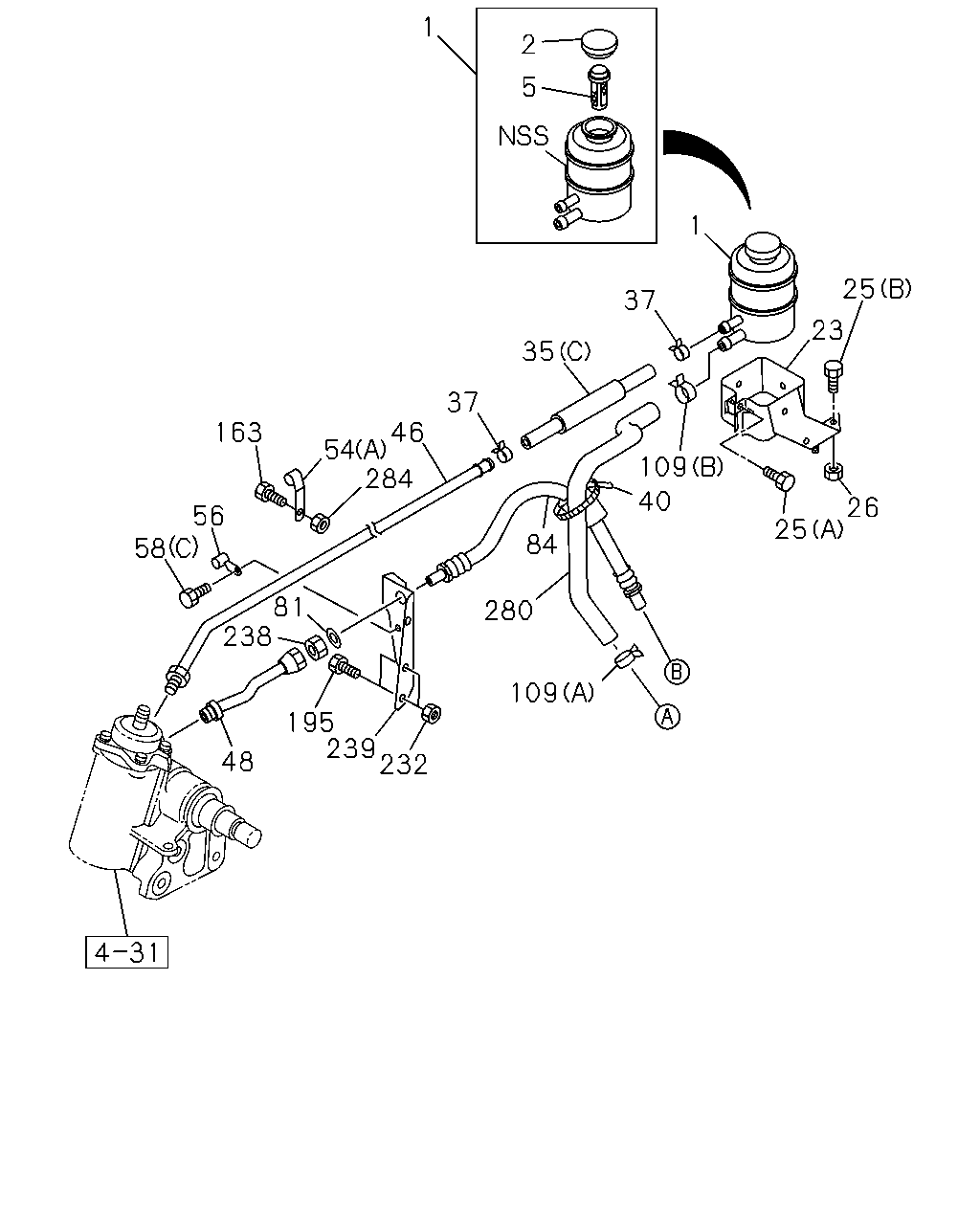

1 2 5 1 25 37 23 35 37 163 46 54 284 109 40 26 56 58 25 84 81 238 280 195 239 232 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0309-	●	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0309-	●	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0309-	●	●	●
23	BRACKET; OIL TANK,P/S 4JB1 ENG<RLF> POWER STEERING<N40>	8-97066-500-3	01	1	0309-	●	●
23	BRACKET; OIL TANK,P/S 4HG1 ENG<RJH> POWER STEERING<N40>	8-97101-040-1	01	1	0309-			●
25	BOLT; OIL TANK BRKT 4JB1 ENG<RLF> POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0309-	●	●	●
25	BOLT; OIL TANK BRKT 4HG1 ENG<RJH> POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0309-			●
26	NUT; OIL TANK TO BRKT 4JB1 ENG<RLF> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-	●	●
35	HOSE; RETURN,P/S TANK 4JB1 ENG<RLF> POWER STEERING<N40> (C)	8-97081-444-3	01	1	0309-	●	●
35	HOSE; RETURN,P/S TANK 4HG1 ENG<RJH> POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	0309-			●
35	HOSE; RETURN,P/S TANK 4HG1 ENG<RJH> POWER STEERING<N40> (A)	8-97080-108-1	01	1	0309-			●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0309-	●	●	●
37	CLIP; HOSE,P/S 4HG1 ENG<RJH> POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0309-			●
40	CLIP; BAND 4JB1 ENG<RLF> POWER STEERING<N40> L=250 THA	5-09707-030-1	01	1	0309-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG<RLF> POWER STEERING<N40>	8-97364-358-0	01	1	0309-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG<RJH> POWER STEERING<N40>	8-97364-361-0	01	1	0309-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG<RLF> POWER STEERING<N40>	8-97364-352-0	01	1	0309-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG<RJH> POWER STEERING<N40>	8-97364-354-0	01	1	0309-			●
54	CLIP; OIL PIPE 4JB1 ENG<RLF> POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	0309-	●	●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> (D) H=15 ID=14	1-09700-744-0	01	1	0309-			●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> (B) ID=10X2 H=22 THA	8-94252-455-2	01	1	0309-			●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> (C) ID=11 L=20	9-09525-035-0	01	1	0309-			●
56	CLIP; OIL PIPE 4JB1 ENG<RLF> POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	0309-	●	●
58	BOLT; CLIP 4JB1 ENG<RLF> POWER STEERING<N40> (C) M6X16 FLANGE	0-28680-616-0	01	1	0309-	●	●
58	BOLT; CLIP 4JB1 ENG<RLF> POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	0309-	●	●
58	BOLT; CLIP 4JB1 ENG<RLF> POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0309-	●	●
81	WASHER; LK,FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-	●	●
81	WASHER; LK,FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-	●	●
81	WASHER; LK,FLEX HOSE 4HG1 ENG<RJH> POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-			●
84	HOSE; FLEX,P/S 4JB1 ENG<RLF> POWER STEERING<N40>	8-97358-326-0	01	1	0309-	●	●
84	HOSE; FLEX,P/S 4HG1 ENG<RJH> POWER STEERING<N40>	8-97358-334-2	01	1	0309-			●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0309-	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0309-	●	●	●
109	CLIP; RUBBER HOSE 4HG1 ENG<RJH> POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0309-			●
163	BOLT; OIL PIPE 4JB1 ENG<RLF> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●
163	BOLT; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
163	BOLT; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
195	BOLT; BRKT 4HG1 ENG<RJH> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
195	BOLT; BRKT 4JB1 ENG<RLF> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●
232	NUT; BRKT 4HG1 ENG<RJH> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-			●
232	NUT; BRKT 4JB1 ENG<RLF> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	02	1	0309-	●	●
238	NUT; FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40> M16	8-94370-339-0	01	1	0309-	●	●
238	NUT; FLEX HOSE 4HG1 ENG<RJH> POWER STEERING<N40> M16	8-94370-339-0	01	1	0309-			●
239	BRACKET; FLEX HOSE 4JB1 ENG<RLF> POWER STEERING<N40>	8-97089-879-0	01	1	0309-	●	●
239	BRACKET; FLEX HOSE 4HG1 ENG<RJH> POWER STEERING<N40>	8-97187-402-0	01	1	0309-			●
280	HOSE; P/S OIL PUMP,INL 4JB1 ENG<RLF> POWER STEERING<N40>	8-97205-635-0	01	1	0309-	●	●
280	HOSE; P/S OIL PUMP,INL 4HG1 ENG<RJH> POWER STEERING<N40>	8-97106-424-0	01	1	0309-			●
284	NUT; PIPE 4JB1 ENG<RLF> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-	●	●
284	NUT; PIPE 4HG1 ENG<RJH> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-			●
