Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#20024) — 173 parça

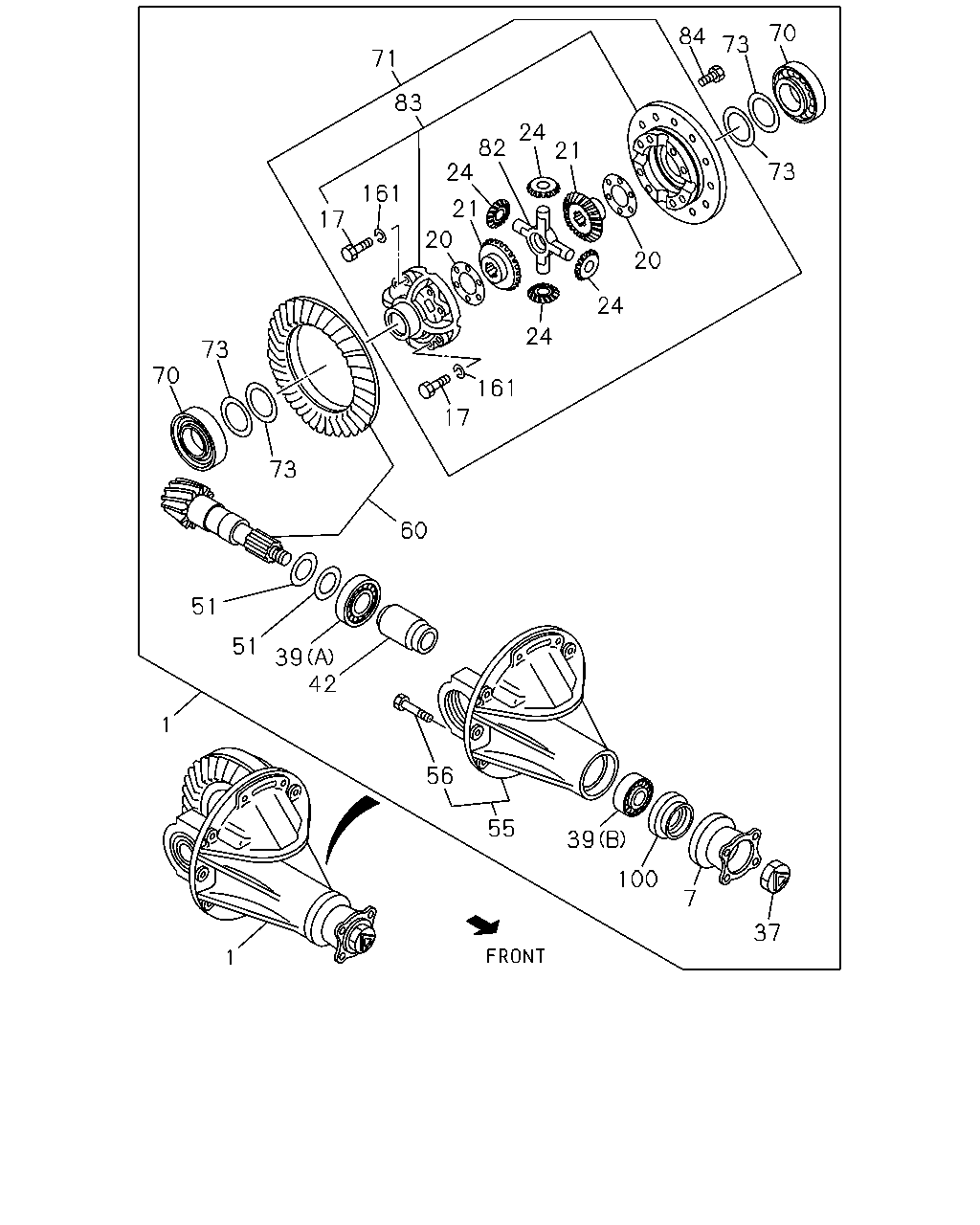

70 84 73 71 83 24 21 82 24 73 161 21 17 20 20 24 24 73 70 161 17 73 60 51 51 39 42 56 55 39 100 7 37 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97367-501-0	01	1	0309-	●
1	DRIVE ASM; FINAL,RR 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> 41/7	8-97363-117-0	01	1	0309-		●
1	DRIVE ASM; FINAL,RR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> 41/8	8-97363-097-0	01	1	0309-			●
7	FLANGE; FINAL FINAL GEAR RATIO 39/7<GV1>	8-97075-216-3	01	1	0309-	●
7	FLANGE; FINAL 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-94426-787-4	01	1	0309-		●
7	FLANGE; FINAL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-94477-723-4	01	1	0309-			●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1> M12X58	8-97314-497-0	08	1	0309-	●
17	BOLT; DIFF CAGE SETTING 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M10X75 FLANGE	8-97232-161-0	12	1	0309-		●
17	BOLT; DIFF CAGE SETTING 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M10X75 FLANGE	8-97232-161-0	12	1	0309-			●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7<GV1> T=1.00	9-41562-602-0	02	1	0309-	●
20	WASHER; THRUST,SIDE GEAR 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> T=1.40	9-41562-601-0	02	1	0309-		●
20	WASHER; THRUST,SIDE GEAR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> T=1.40	9-41562-601-0	02	1	0309-			●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1> Z=18	8-97226-764-0	02	1	0309-	●
21	GEAR; SIDE,DIFF 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> Z=20	8-97362-599-0	02	1	0309-		●
21	GEAR; SIDE,DIFF 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> Z=20	8-97362-598-0	02	1	0309-			●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1> Z=10	8-97226-762-0	04	1	0309-	●
24	GEAR; PINION,DIFF 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> Z=10	8-97356-349-0	04	1	0309-		●
24	GEAR; PINION,DIFF 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> Z=10	8-97356-349-0	04	1	0309-			●
37	NUT; DRIVING PINION FINAL GEAR RATIO 39/7<GV1> M24 FLANGE	8-94376-261-1	01	1	0309-	●
37	NUT; DRIVING PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M24 FLANGE	8-94329-526-1	01	1	0309-		●
37	NUT; DRIVING PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M24 FLANGE	8-94329-526-1	01	1	0309-			●
39	BEARING; FINAL PINION FINAL GEAR RATIO 39/7<GV1> (B) NSK	9-00093-078-0	01	1	0309-	●
39	BEARING; FINAL PINION FINAL GEAR RATIO 39/7<GV1> (A) KOYO	9-00093-079-0	01	1	0309-	●
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 39/7<GV1> L=53.35	9-41219-634-1	01	1	0309-	●
42	COLLAR; DIST,COLLAPSIBLE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> L=19.6	9-41219-603-1	01	1	0309-		●
42	COLLAR; DIST,COLLAPSIBLE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> L=19.6	9-41219-603-1	01	1	0309-			●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.12	9-41219-608-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.16	9-41219-610-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.20	9-41219-612-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.24	9-41219-614-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.28	9-41219-616-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.32	9-41219-618-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.36	9-41219-620-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.40	9-41219-622-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.44	9-41219-624-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.48	9-41219-626-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.52	9-41219-628-0	01	1	0309-	●
51	SHIM; PINION,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1> OD=89.5 T=2.56	9-41219-630-0	01	1	0309-	●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>	8-94376-227-3	01	1	0309-	●
55	CARRIER; DIFF 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-97307-760-0	01	1	0309-		●
55	CARRIER; DIFF 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-97307-760-0	01	1	0309-			●
56	BOLT; BRG CAP FINAL GEAR RATIO 39/7<GV1> M14X80	8-94365-377-3	04	1	0309-	●
56	BOLT; BRG CAP 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M14X80	8-94365-377-3	04	1	0309-		●
56	BOLT; BRG CAP 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M14X80	8-94365-377-3	04	1	0309-			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97035-433-0	01	1	0309-	●
60	GEAR SET; FINAL DRIVE,RR 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> 41/7	8-97319-161-0	01	1	0309-		●
60	GEAR SET; FINAL DRIVE,RR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> 41/8	8-97319-158-0	01	1	0309-			●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 39/7<GV1> KOYO	8-98003-043-0	02	1	0504-	●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 39/7<GV1> NSK	9-00032-211-0	02	1	0309-	●
70	BEARING; DIFF CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> NSK	9-00093-602-0	02	1	0309-		●
70	BEARING; DIFF CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> NSK	9-00093-602-0	02	1	0309-			●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>	8-97228-309-0	01	1	0309-	●
71	CAGE ASM; DIFF,FINAL DRIVE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-97363-159-0	01	1	0309-		●
71	CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-97363-156-0	01	1	0309-			●
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 39/7<GV1> T=0.50	9-41519-009-0	AR	1	0309-	●
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 39/7<GV1> T=0.25	9-41519-010-0	AR	1	0309-	●
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 39/7<GV1> T=0.30	9-41519-601-0	AR	1	0309-	●
73	SHIM; DIFF SIDE BRG FINAL GEAR RATIO 39/7<GV1> T=0.35	9-41519-602-0	AR	1	0309-	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7<GV1>	9-41521-611-0	01	1	0309-	●
82	SPIDER; DIFF PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	5-41521-008-0	01	1	0309-		●
82	SPIDER; DIFF PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	5-41521-008-0	01	1	0309-			●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7<GV1>	9-41510-610-0	01	1	0309-	●
83	CAGE ASM; DIFF 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-97319-396-1	01	1	0309-		●
83	CAGE ASM; DIFF 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-97319-396-1	01	1	0309-			●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1> M12X25	9-09606-505-2	12	1	0309-	●
84	BOLT; FINAL DRIVE GEAR 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M14X25	8-97318-938-1	12	1	0309-		●
84	BOLT; FINAL DRIVE GEAR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M14X25	8-97318-938-1	12	1	0309-			●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1> NOK	8-94408-084-1	01	1	0309-0412	●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1> NOK	8-97328-648-0	01	1	0501-	●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1> TKK	8-94408-085-1	01	1	0309-0412	●
100	SEAL; OIL,FINAL PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> OD=103	8-94408-083-0	01	1	0309-		●
100	SEAL; OIL,FINAL PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> OD=103	8-94408-083-0	01	1	0309-			●
161	WASHER; LK FINAL GEAR RATIO 39/7<GV1> ID=12.2	9-09150-612-0	08	1	0309-	●

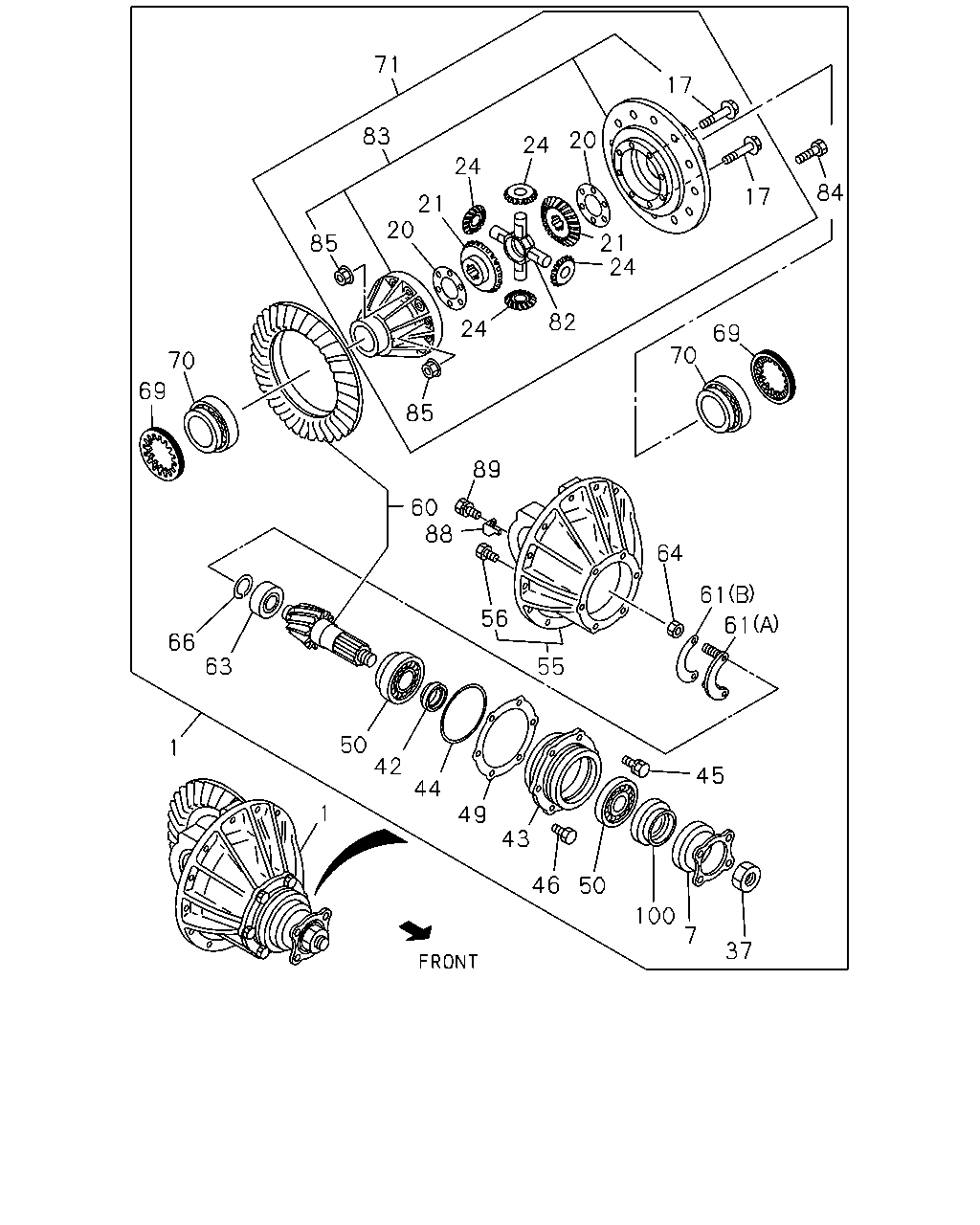

71 17 83 20 24 24 84 21 24 17 21 20 85 82 24 69 70 70 69 85 89 60 88 64 61 56 61 66 63 55 50 42 1 45 44 1 49 43 46 50 100 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97367-501-0	01	1	0309-	●
1	DRIVE ASM; FINAL,RR 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> 41/7	8-97363-117-0	01	1	0309-		●
1	DRIVE ASM; FINAL,RR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> 41/8	8-97363-097-0	01	1	0309-			●
7	FLANGE; FINAL FINAL GEAR RATIO 39/7<GV1>	8-97075-216-3	01	1	0309-	●
7	FLANGE; FINAL 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-94426-787-4	01	1	0309-		●
7	FLANGE; FINAL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-94477-723-4	01	1	0309-			●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7<GV1> M12X58	8-97314-497-0	08	1	0309-	●
17	BOLT; DIFF CAGE SETTING 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M10X75 FLANGE	8-97232-161-0	12	1	0309-		●
17	BOLT; DIFF CAGE SETTING 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M10X75 FLANGE	8-97232-161-0	12	1	0309-			●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7<GV1> T=1.00	9-41562-602-0	02	1	0309-	●
20	WASHER; THRUST,SIDE GEAR 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> T=1.40	9-41562-601-0	02	1	0309-		●
20	WASHER; THRUST,SIDE GEAR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> T=1.40	9-41562-601-0	02	1	0309-			●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7<GV1> Z=18	8-97226-764-0	02	1	0309-	●
21	GEAR; SIDE,DIFF 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> Z=20	8-97362-599-0	02	1	0309-		●
21	GEAR; SIDE,DIFF 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> Z=20	8-97362-598-0	02	1	0309-			●
24	GEAR; PINION,DIFF FINAL GEAR RATIO 39/7<GV1> Z=10	8-97226-762-0	04	1	0309-	●
24	GEAR; PINION,DIFF 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> Z=10	8-97356-349-0	04	1	0309-		●
24	GEAR; PINION,DIFF 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> Z=10	8-97356-349-0	04	1	0309-			●
37	NUT; DRIVING PINION FINAL GEAR RATIO 39/7<GV1> M24 FLANGE	8-94376-261-1	01	1	0309-	●
37	NUT; DRIVING PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M24 FLANGE	8-94329-526-1	01	1	0309-		●
37	NUT; DRIVING PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M24 FLANGE	8-94329-526-1	01	1	0309-			●
42	COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 39/7<GV1> L=53.35	9-41219-634-1	01	1	0309-	●
42	COLLAR; DIST,COLLAPSIBLE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> L=19.6	9-41219-603-1	01	1	0309-		●
42	COLLAR; DIST,COLLAPSIBLE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> L=19.6	9-41219-603-1	01	1	0309-			●
43	CAGE; FINAL PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-94400-890-0	01	1	0309-		●
43	CAGE; FINAL PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-94400-890-0	01	1	0309-			●
44	GASKET; PINION CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	9-09720-505-0	01	1	0309-		●
44	GASKET; PINION CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	9-09720-505-0	01	1	0309-			●
45	BOLT; FINAL PINION CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M12X38 W/LK WASHER	0-50051-238-0	05	1	0309-		●
45	BOLT; FINAL PINION CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M12X38 W/LK WASHER	0-50051-238-0	05	1	0309-			●
46	BOLT 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M14X35 W/LK WASHER	0-50051-435-0	01	1	0309-		●
46	BOLT 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M14X35 W/LK WASHER	0-50051-435-0	01	1	0309-			●
49	SHIM; FINAL PINION CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> ID=132 T=0.10	8-94401-335-0	AR	1	0309-		●
49	SHIM; FINAL PINION CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> ID=132 T=0.10	8-94401-335-0	AR	1	0309-			●
49	SHIM; FINAL PINION CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> ID=132 T=0.12	8-94401-336-0	AR	1	0309-		●
49	SHIM; FINAL PINION CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> ID=132 T=0.12	8-94401-336-0	AR	1	0309-			●
49	SHIM; FINAL PINION CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> ID=132 T=0.14	8-94401-337-0	AR	1	0309-		●
49	SHIM; FINAL PINION CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> ID=132 T=0.14	8-94401-337-0	AR	1	0309-			●
49	SHIM; FINAL PINION CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> ID=132 T=0.16	8-94401-338-0	AR	1	0309-		●
49	SHIM; FINAL PINION CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> ID=132 T=0.16	8-94401-338-0	AR	1	0309-			●
49	SHIM; FINAL PINION CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> ID=132 T=0.18	8-94401-339-0	AR	1	0309-		●
49	SHIM; FINAL PINION CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> ID=132 T=0.18	8-94401-339-0	AR	1	0309-			●
49	SHIM; FINAL PINION CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> ID=132 T=0.20	8-94401-340-0	AR	1	0309-		●
49	SHIM; FINAL PINION CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> ID=132 T=0.20	8-94401-340-0	AR	1	0309-			●
50	BEARING; FINAL PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> KOYO	5-09812-062-1	02	1	0309-		●
50	BEARING; FINAL PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> KOYO	5-09812-062-1	02	1	0309-			●
50	BEARING; FINAL PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> NSK	5-09812-063-0	02	1	0309-		●
50	BEARING; FINAL PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> NSK	5-09812-063-0	02	1	0309-			●
55	CARRIER; DIFF FINAL GEAR RATIO 39/7<GV1>	8-94376-227-3	01	1	0309-	●
55	CARRIER; DIFF 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-97307-760-0	01	1	0309-		●
55	CARRIER; DIFF 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-97307-760-0	01	1	0309-			●
56	BOLT; BRG CAP FINAL GEAR RATIO 39/7<GV1> M14X80	8-94365-377-3	04	1	0309-	●
56	BOLT; BRG CAP 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M14X80	8-94365-377-3	04	1	0309-		●
56	BOLT; BRG CAP 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M14X80	8-94365-377-3	04	1	0309-			●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97035-433-0	01	1	0309-	●
60	GEAR SET; FINAL DRIVE,RR 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> 41/7	8-97319-161-0	01	1	0309-		●
60	GEAR SET; FINAL DRIVE,RR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> 41/8	8-97319-158-0	01	1	0309-			●
61	RETAINER; PILOT BRG,PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> (A) W/STUD	5-41227-001-0	01	1	0309-		●
61	RETAINER; PILOT BRG,PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> (A) W/STUD	5-41227-001-0	01	1	0309-			●
61	RETAINER; PILOT BRG,PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> (B)	9-41227-601-0	01	1	0309-		●
61	RETAINER; PILOT BRG,PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> (B)	9-41227-601-0	01	1	0309-			●
63	BEARING; PINION PILOT 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> NSK	5-09810-008-1	01	1	0309-		●
63	BEARING; PINION PILOT 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> NSK	5-09810-008-1	01	1	0309-			●
63	BEARING; PINION PILOT 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> KOYO	8-97107-548-0	01	1	0309-		●
63	BEARING; PINION PILOT 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> KOYO	8-97107-548-0	01	1	0309-			●
64	NUT; RET 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M6 FLANGE	0-91150-106-0	02	1	0309-		●
64	NUT; RET 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M6 FLANGE	0-91150-106-0	02	1	0309-			●
66	RING; SNAP,PILOT BRG 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	9-09752-002-0	01	1	0309-		●
66	RING; SNAP,PILOT BRG 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	9-09752-002-0	01	1	0309-			●
69	NUT; ADJ,DIFF CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M110 H=10	5-41121-001-0	02	1	0309-		●
69	NUT; ADJ,DIFF CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M110 H=10	5-41121-001-0	02	1	0309-			●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 39/7<GV1> KOYO	8-98003-043-0	02	1	0504-	●
70	BEARING; DIFF CAGE FINAL GEAR RATIO 39/7<GV1> NSK	9-00032-211-0	02	1	0309-	●
70	BEARING; DIFF CAGE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> NSK	9-00093-602-0	02	1	0309-		●
70	BEARING; DIFF CAGE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> NSK	9-00093-602-0	02	1	0309-			●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7<GV1>	8-97228-309-0	01	1	0309-	●
71	CAGE ASM; DIFF,FINAL DRIVE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-97363-159-0	01	1	0309-		●
71	CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-97363-156-0	01	1	0309-			●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7<GV1>	9-41521-611-0	01	1	0309-	●
82	SPIDER; DIFF PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	5-41521-008-0	01	1	0309-		●
82	SPIDER; DIFF PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	5-41521-008-0	01	1	0309-			●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7<GV1>	9-41510-610-0	01	1	0309-	●
83	CAGE ASM; DIFF 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-97319-396-1	01	1	0309-		●
83	CAGE ASM; DIFF 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-97319-396-1	01	1	0309-			●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7<GV1> M12X25	9-09606-505-2	12	1	0309-	●
84	BOLT; FINAL DRIVE GEAR 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M14X25	8-97318-938-1	12	1	0309-		●
84	BOLT; FINAL DRIVE GEAR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M14X25	8-97318-938-1	12	1	0309-			●
85	NUT; DIFF CAGE SETTING 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M10 FLANGE	0-91150-210-0	12	1	0309-		●
85	NUT; DIFF CAGE SETTING 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M10 FLANGE	0-91150-210-0	12	1	0309-			●
88	PLATE; LK,ADJ NUT 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-97027-281-0	AR	1	0309-		●
88	PLATE; LK,ADJ NUT 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-97027-281-0	AR	1	0309-			●
88	PLATE; LK,ADJ NUT 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41>	8-97027-282-0	AR	1	0309-		●
88	PLATE; LK,ADJ NUT 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>	8-97027-282-0	AR	1	0309-			●
89	BOLT; LK PLATE 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> M8X16 FLANGE	0-28080-816-0	02	1	0309-		●
89	BOLT; LK PLATE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M8X16 FLANGE	0-28080-816-0	02	1	0309-			●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1> NOK	8-94408-084-1	01	1	0309-0412	●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1> NOK	8-97328-648-0	01	1	0501-	●
100	SEAL; OIL,FINAL PINION FINAL GEAR RATIO 39/7<GV1> TKK	8-94408-085-1	01	1	0309-0412	●
100	SEAL; OIL,FINAL PINION 4JB1 ENG<RLF> FINAL GEAR RATIO 41/7<R41> OD=103	8-94408-083-0	01	1	0309-		●
100	SEAL; OIL,FINAL PINION 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> OD=103	8-94408-083-0	01	1	0309-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
