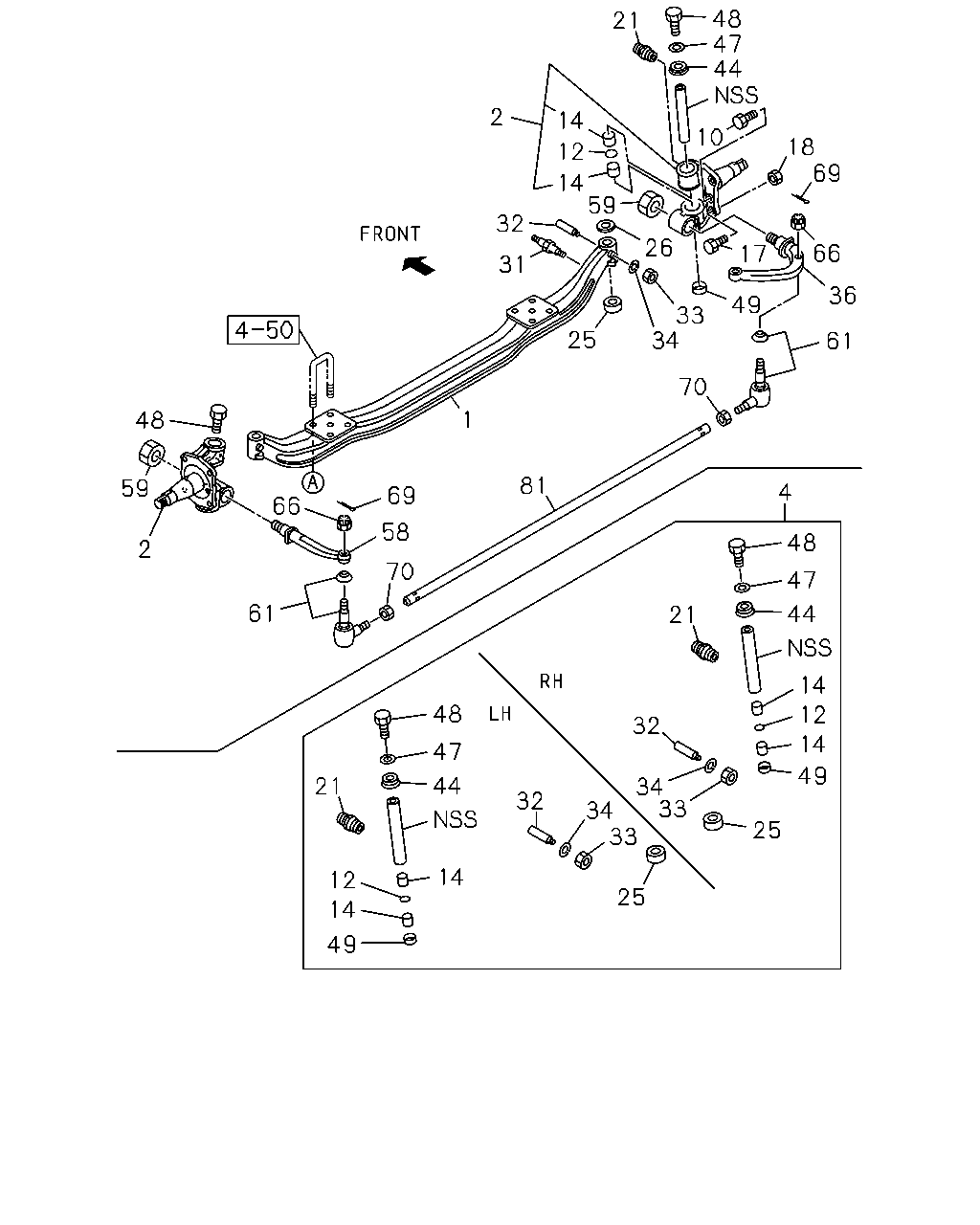

4-10 — FRONT AXLE (#20021) — 135 parça

48 47 44 21 2 14 10 18 69 12 14 59 32 26 66 17 31 36 49 33 34 25 61 70 1 48 59 66 81 4 69 58 48 2 70 47 61 44 21 14 48 12 32 14 47 49 44 21 34 33 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT	8-97137-585-2	01	1	0309-	●
1	AXLE; FRT 4JB1 ENG<RLF>	8-97137-585-2	01	1	0309-		●
1	AXLE; FRT 4HG1 ENG<RJH>	8-97137-585-2	01	1	0309-			●
2	KNUCKLE; FRT AXLE	8-97261-546-1	01	1	0309-	●
2	KNUCKLE; FRT AXLE 4JB1 ENG<RLF>	8-97261-546-1	01	1	0309-		●
2	KNUCKLE; FRT AXLE 4HG1 ENG<RJH>	8-97261-546-1	01	1	0309-			●
2	KNUCKLE; FRT AXLE	8-97261-545-1	01	1	0309-	●
2	KNUCKLE; FRT AXLE 4JB1 ENG<RLF>	8-97261-545-1	01	1	0309-		●
2	KNUCKLE; FRT AXLE 4HG1 ENG<RJH>	8-97261-545-1	01	1	0309-			●
4	KING PIN KIT	5-87831-608-2	01	1	0309-	●
4	KING PIN KIT 4JB1 ENG<RLF>	5-87831-608-2	01	1	0309-		●
4	KING PIN KIT 4HG1 ENG<RJH>	5-87831-608-2	01	1	0309-			●
10	PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0309-	●
10	PLUG; PLATE,KNUCKLE 4JB1 ENG<RLF>	8-94107-661-0	01	1	0309-		●
10	PLUG; PLATE,KNUCKLE 4HG1 ENG<RJH>	8-94107-661-0	01	1	0309-			●
12	GASKET; KNUCKLE	9-09561-230-0	02	1	0309-	●
12	GASKET; KNUCKLE 4JB1 ENG<RLF>	9-09561-230-0	02	1	0309-		●
12	GASKET; KNUCKLE 4HG1 ENG<RJH>	9-09561-230-0	02	1	0309-			●
14	BUSHING; KING PIN DAIDO	8-94107-672-2	04	1	0309-	●
14	BUSHING; KING PIN 4JB1 ENG<RLF> DAIDO	8-94107-672-2	04	1	0309-		●
14	BUSHING; KING PIN 4HG1 ENG<RJH> DAIDO	8-94107-672-2	04	1	0309-			●
14	BUSHING; KING PIN JBK	8-94127-925-2	04	1	0309-	●
14	BUSHING; KING PIN 4JB1 ENG<RLF> JBK	8-94127-925-2	04	1	0309-		●
14	BUSHING; KING PIN 4HG1 ENG<RJH> JBK	8-94127-925-2	04	1	0309-			●
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0309-	●
17	BOLT; STOPPER KNUCKLE 4JB1 ENG<RLF> M12X24 EYE-BOLT	5-09000-208-1	03	1	0309-		●
17	BOLT; STOPPER KNUCKLE 4HG1 ENG<RJH> M12X24 EYE-BOLT	5-09000-208-1	03	1	0309-			●
18	NUT; STOPPER BOLT,KNUCKLE M12	9-99111-512-0	03	1	0309-	●
18	NUT; STOPPER BOLT,KNUCKLE 4JB1 ENG<RLF> M12	9-99111-512-0	03	1	0309-		●
18	NUT; STOPPER BOLT,KNUCKLE 4HG1 ENG<RJH> M12	9-99111-512-0	03	1	0309-			●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	04	1	0309-	●
21	NIPPLE; GREASE,KING PIN 4JB1 ENG<RLF> M6 STRAIGHT	9-09031-006-0	04	1	0309-		●
21	NIPPLE; GREASE,KING PIN 4HG1 ENG<RJH> M6 STRAIGHT	9-09031-006-0	04	1	0309-			●
25	BEARING; THRUST,KING PIN	8-97141-943-0	01	1	0309-	●
25	BEARING; THRUST,KING PIN 4JB1 ENG<RLF>	8-97141-943-0	01	1	0309-		●
25	BEARING; THRUST,KING PIN 4HG1 ENG<RJH>	8-97141-943-0	01	1	0309-			●
25	BEARING; THRUST,KING PIN	8-94248-883-2	01	1	0309-	●
25	BEARING; THRUST,KING PIN 4JB1 ENG<RLF>	8-94248-883-2	01	1	0309-		●
25	BEARING; THRUST,KING PIN 4HG1 ENG<RJH>	8-94248-883-2	01	1	0309-			●
26	SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	0309-	●
26	SHIM; KING PIN,BRG 4JB1 ENG<RLF> T=0.50	8-94162-574-0	AR	1	0309-		●
26	SHIM; KING PIN,BRG 4HG1 ENG<RJH> T=0.50	8-94162-574-0	AR	1	0309-			●
26	SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	0309-	●
26	SHIM; KING PIN,BRG 4JB1 ENG<RLF> T=0.55	8-94162-575-0	AR	1	0309-		●
26	SHIM; KING PIN,BRG 4HG1 ENG<RJH> T=0.55	8-94162-575-0	AR	1	0309-			●
26	SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	0309-	●
26	SHIM; KING PIN,BRG 4JB1 ENG<RLF> T=0.60	8-94162-576-0	AR	1	0309-		●
26	SHIM; KING PIN,BRG 4HG1 ENG<RJH> T=0.60	8-94162-576-0	AR	1	0309-			●
26	SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	0309-	●
26	SHIM; KING PIN,BRG 4JB1 ENG<RLF> T=0.65	8-94162-577-0	AR	1	0309-		●
26	SHIM; KING PIN,BRG 4HG1 ENG<RJH> T=0.65	8-94162-577-0	AR	1	0309-			●
26	SHIM; KING PIN,BRG T=1.95	8-94168-490-0	01	1	0309-	●
26	SHIM; KING PIN,BRG 4JB1 ENG<RLF> T=1.95	8-94168-490-0	01	1	0309-		●
26	SHIM; KING PIN,BRG 4HG1 ENG<RJH> T=1.95	8-94168-490-0	01	1	0309-			●
26	SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	0309-	●
26	SHIM; KING PIN,BRG 4JB1 ENG<RLF> T=0.70	8-94174-352-0	AR	1	0309-		●
26	SHIM; KING PIN,BRG 4HG1 ENG<RJH> T=0.70	8-94174-352-0	AR	1	0309-			●
26	SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	0309-	●
26	SHIM; KING PIN,BRG 4JB1 ENG<RLF> T=0.80	8-94174-354-0	AR	1	0309-		●
26	SHIM; KING PIN,BRG 4HG1 ENG<RJH> T=0.80	8-94174-354-0	AR	1	0309-			●
26	SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	0309-	●
26	SHIM; KING PIN,BRG 4JB1 ENG<RLF> T=0.90	8-94174-356-0	AR	1	0309-		●
26	SHIM; KING PIN,BRG 4HG1 ENG<RJH> T=0.90	8-94174-356-0	AR	1	0309-			●
31	PIN; S/ABS,LWR	8-97141-944-0	02	1	0309-	●
31	PIN; S/ABS,LWR 4JB1 ENG<RLF>	8-97141-944-0	02	1	0309-		●
31	PIN; S/ABS,LWR 4HG1 ENG<RJH>	8-97141-944-0	02	1	0309-			●
32	BOLT; KEY,KING PIN	8-97141-945-1	02	1	0309-	●
32	BOLT; KEY,KING PIN 4JB1 ENG<RLF>	8-97141-945-1	02	1	0309-		●
32	BOLT; KEY,KING PIN 4HG1 ENG<RJH>	8-97141-945-1	02	1	0309-			●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0309-	●
33	NUT; KEY BOLT 4JB1 ENG<RLF> M10	9-09110-410-0	02	1	0309-		●
33	NUT; KEY BOLT 4HG1 ENG<RJH> M10	9-09110-410-0	02	1	0309-			●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0309-	●
34	WASHER; LK,KEY BOLT 4JB1 ENG<RLF> ID=10.2	9-09150-510-0	02	1	0309-		●
34	WASHER; LK,KEY BOLT 4HG1 ENG<RJH> ID=10.2	9-09150-510-0	02	1	0309-			●
36	ARM; KNUCKLE	8-97204-075-2	01	1	0309-	●
36	ARM; KNUCKLE 4JB1 ENG<RLF>	8-97204-075-2	01	1	0309-		●
36	ARM; KNUCKLE 4HG1 ENG<RJH>	8-97204-075-2	01	1	0309-			●
44	COVER; KING PIN OD=36	8-94248-675-1	02	1	0309-	●
44	COVER; KING PIN 4JB1 ENG<RLF> OD=36	8-94248-675-1	02	1	0309-		●
44	COVER; KING PIN 4HG1 ENG<RJH> OD=36	8-94248-675-1	02	1	0309-			●
47	WASHER; PL,COVER,KING PIN ID=10.5	9-09164-510-0	02	1	0309-0403	●
47	WASHER; PL,COVER,KING PIN 4JB1 ENG<RLF> ID=10.5	9-09164-510-0	02	1	0309-0403		●
47	WASHER; PL,COVER,KING PIN 4HG1 ENG<RJH> ID=10.5	9-09164-510-0	02	1	0309-0403			●
48	BOLT; COVER M10X16	0-20801-016-0	02	1	0309-0403	●
48	BOLT; COVER 4JB1 ENG<RLF> M10X16	0-20801-016-0	02	1	0309-0403		●
48	BOLT; COVER 4HG1 ENG<RJH> M10X16	0-20801-016-0	02	1	0309-0403			●
48	BOLT; COVER M10X12 FLANGE	0-28081-012-0	02	1	0404-	●
48	BOLT; COVER 4JB1 ENG<RLF> M10X12 FLANGE	0-28081-012-0	02	1	0404-		●
48	BOLT; COVER 4HG1 ENG<RJH> M10X12 FLANGE	0-28081-012-0	02	1	0404-			●
49	CAP; KNUCKLE	8-97261-587-0	02	1	0309-	●
49	CAP; KNUCKLE 4JB1 ENG<RLF>	8-97261-587-0	02	1	0309-		●
49	CAP; KNUCKLE 4HG1 ENG<RJH>	8-97261-587-0	02	1	0309-			●
58	ARM; TIE ROD	8-97138-303-0	01	1	0309-	●
58	ARM; TIE ROD 4JB1 ENG<RLF>	8-97138-303-0	01	1	0309-		●
58	ARM; TIE ROD 4HG1 ENG<RJH>	8-97138-303-0	01	1	0309-			●
59	NUT; TIE ROD ARM	8-94247-724-0	02	1	0309-	●
59	NUT; TIE ROD ARM 4JB1 ENG<RLF>	8-94247-724-0	02	1	0309-		●
59	NUT; TIE ROD ARM 4HG1 ENG<RJH>	8-94247-724-0	02	1	0309-			●
61	ROD END; TIE ROD	8-97142-101-1	01	1	0309-	●
61	ROD END; TIE ROD 4JB1 ENG<RLF>	8-97142-101-1	01	1	0309-		●
61	ROD END; TIE ROD 4HG1 ENG<RJH>	8-97142-101-1	01	1	0309-			●
61	ROD END; TIE ROD	8-97142-100-1	01	1	0309-	●
61	ROD END; TIE ROD 4JB1 ENG<RLF>	8-97142-100-1	01	1	0309-		●
61	ROD END; TIE ROD 4HG1 ENG<RJH>	8-97142-100-1	01	1	0309-			●
66	NUT; TIE ROD END M16 SLOTTED	9-99116-516-0	02	1	0309-	●
66	NUT; TIE ROD END 4JB1 ENG<RLF> M16 SLOTTED	9-99116-516-0	02	1	0309-		●
66	NUT; TIE ROD END 4HG1 ENG<RJH> M16 SLOTTED	9-99116-516-0	02	1	0309-			●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	9-08114-020-0	02	1	0309-	●
69	PIN; SPLIT,TIE ROD END 4JB1 ENG<RLF> OD=3.7 L=20	9-08114-020-0	02	1	0309-		●
69	PIN; SPLIT,TIE ROD END 4HG1 ENG<RJH> OD=3.7 L=20	9-08114-020-0	02	1	0309-			●
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0309-	●
70	NUT; TIE ROD END 4JB1 ENG<RLF> M20 LH THREAD	8-94254-726-0	01	1	0309-		●
70	NUT; TIE ROD END 4HG1 ENG<RJH> M20 LH THREAD	8-94254-726-0	01	1	0309-			●
70	NUT; TIE ROD END M20	9-99111-420-0	01	1	0309-	●
70	NUT; TIE ROD END 4JB1 ENG<RLF> M20	9-99111-420-0	01	1	0309-		●
70	NUT; TIE ROD END 4HG1 ENG<RJH> M20	9-99111-420-0	01	1	0309-			●
81	ROD; TIE	8-97142-023-0	01	1	0309-	●
81	ROD; TIE 4JB1 ENG<RLF>	8-97142-023-0	01	1	0309-		●
81	ROD; TIE 4HG1 ENG<RJH>	8-97142-023-0	01	1	0309-			●

116 85 126 116 115 82 134 126 109 108 85 242 109 108 91 96 238 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-97170-624-1	01	1	0309-	●
85	WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	9-51779-027-0	04	1	0309-	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-752-0	02	1	0309-	●
96	NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	9-09131-510-0	02	1	0309-	●
106	BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER	0-50041-030-0	02	1	0309-	●
108	CAP FRONT STABILIZER SHAFT<F59>	8-97170-631-0	04	1	0309-	●
109	BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-622-0	04	1	0309-	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> ID=15.0 OD=32	9-51631-049-0	02	1	0309-0406	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-97387-669-0	02	1	0407-	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	9-09131-510-0	02	1	0309-	●
126	RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> THA	5-51631-017-0	04	1	0309-	●
134	BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97304-056-0	01	1	0309-	●
134	BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97304-055-0	01	1	0309-	●
238	ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97170-751-0	02	1	0309-	●
242	CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97170-746-0	02	1	0309-	●
