4-01 — PROPELLER SHAFT (#20020) — 74 parça

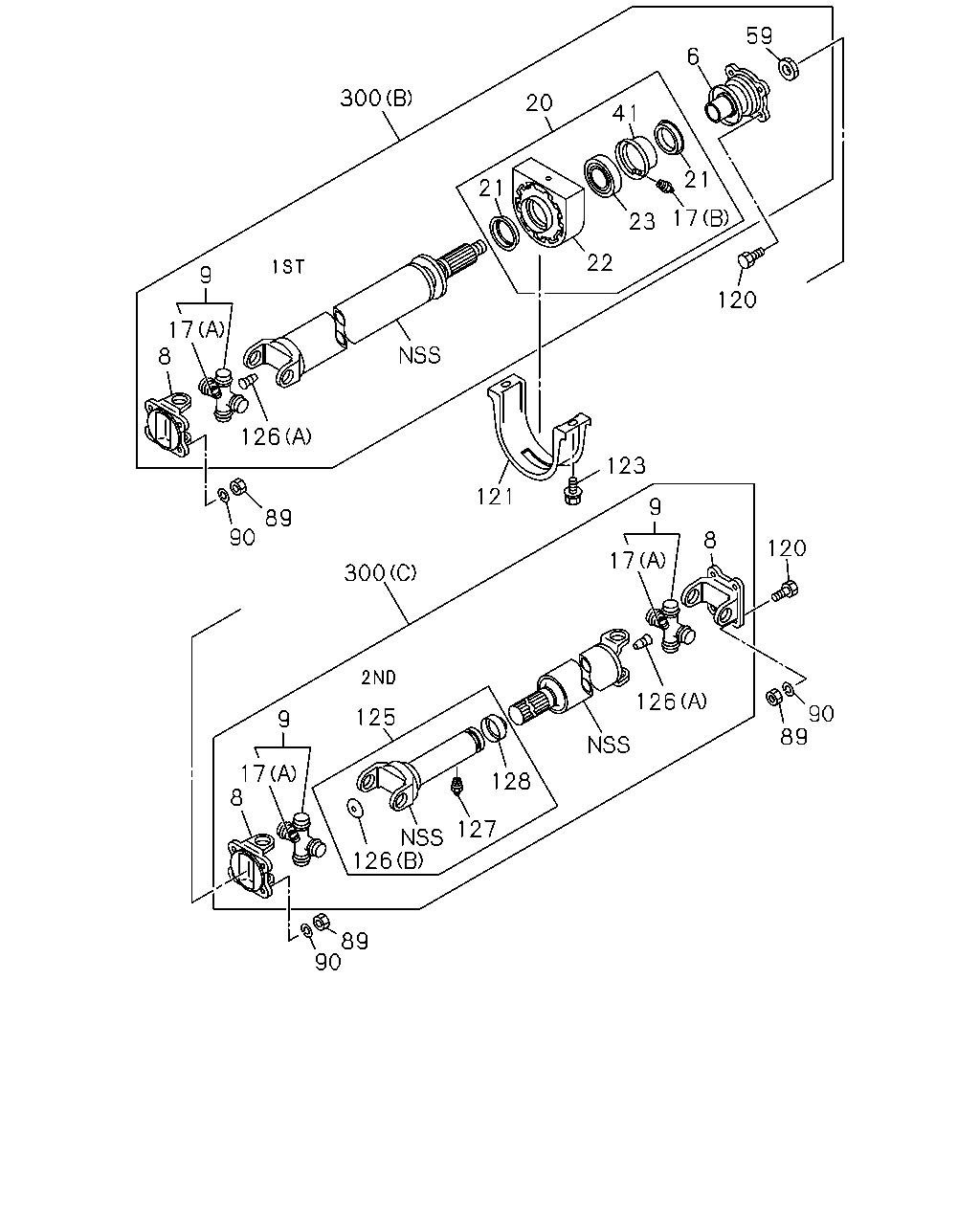

59 6 300 20 41 21 21 17 23 22 9 120 17 8 126 123 121 9 89 90 8 120 17 300 126 90 89 125 9 17 8 128 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	COUPLING ASM; DRIVER,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97036-123-0	01	1	0309-	●
8	YOKE; FLANGE,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5S<R45> THA	8-97020-281-0	02	1	0309-		●
8	YOKE; FLANGE,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5M<RM5> THA	8-97020-281-0	02	1	0309-			●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> 2ND	8-97322-663-0	02	1	0309-	●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> 1ST	8-97322-663-0	01	1	0309-	●
9	JOURNAL ASM; PROP SHAFT 4JB1 ENG<RLF> M/T MSB5S<R45> THA	8-97185-603-0	02	1	0309-		●
9	JOURNAL ASM; PROP SHAFT 4JB1 ENG<RLF> M/T MSB5M<RM5> THA	8-97185-603-0	02	1	0309-			●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> 2ND	8-97322-749-0	02	1	0309-	●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> 1ST	8-97322-749-0	01	1	0309-	●
17	NIPPLE; GREASE,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5S<R45> M6 STRAIGHT	9-09031-006-0	02	1	0311-0311		●
17	NIPPLE; GREASE,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5S<R45> M6 STRAIGHT	9-09031-006-0	02	1	0311-		●
17	NIPPLE; GREASE,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5M<RM5> M6 STRAIGHT	9-09031-006-0	02	1	0311-			●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> (A) 2ND PT1/8 ELBOW	9-09031-210-0	02	1	0309-	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> (B) M6 STRAIGHT	9-09031-006-0	01	1	0309-	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) 1ST PT1/8 ELBOW	9-09031-210-0	01	1	0309-	●
20	BEARING ASM; CTR,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0309-	●
21	SEAL; OIL,CENTER BRG 4HG1 ENG<RJH> M/T MYY5T<RSM> ID=49 THA	5-09625-067-1	02	1	0309-	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	5-37516-005-1	01	1	0309-	●
23	BEARING; CENTER,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> OD=80 THA	5-09800-068-0	01	1	0309-	●
41	COVER; CENTER BRG,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	5-37512-004-0	01	1	0309-	●
59	NUT; RET TO SUPPORT 4HG1 ENG<RJH> M/T MYY5T<RSM> M27 H=25	8-97253-126-0	01	1	0309-	●
89	NUT; YOKE TO RR AXLE 4JB1 ENG<RLF> M10	8-94159-009-1	08	1	0309-		●	●
89	NUT; YOKE TO RR AXLE 4HG1 ENG<RJH> M12	8-94477-841-0	12	1	0309-	●
90	WASHER; LK,YOKE TO RR AXLE 4JB1 ENG<RLF> ID=10.2	9-09150-610-0	08	1	0309-		●	●
90	WASHER; LK,YOKE TO RR AXLE 4HG1 ENG<RJH> ID=12.2	9-09150-812-0	12	1	0309-	●
120	BOLT; YOKE TO RR AXLE 4JB1 ENG<RLF> M10X29 THA	8-97168-458-1	04	1	0309-		●	●
120	BOLT; YOKE TO RR AXLE 4HG1 ENG<RJH> M12X35	8-94477-842-0	08	1	0309-	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0309-	●
123	BOLT; RET M10X25 FLANGE	0-28681-025-0	04	1	0309-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5S<R45> L=177	8-97211-131-0	01	1	0311-0311		●
125	YOKE ASM; SPLINED,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5S<R45> L=177	8-97211-131-0	01	1	0311-		●
125	YOKE ASM; SPLINED,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5M<RM5> L=177	8-97211-131-0	01	1	0311-			●
125	YOKE ASM; SPLINED,PROP SHAFT 4HG1 ENG<RJH> L=183	8-97327-979-1	01	1	0309-	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> (B) THA	8-94366-900-0	01	1	0309-	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) THA	1-09600-023-0	01	1	0309-	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> (A) THA	1-09600-023-0	01	1	0309-	●
127	NIPPLE; GREASE,SPLINED YOKE 4HG1 ENG<RJH> M6 STRAIGHT	9-09031-006-0	01	1	0309-0310	●
127	NIPPLE; GREASE,SPLINED YOKE 4JB1 ENG<RLF> M/T MSB5S<R45> M6 STRAIGHT	9-09031-006-0	01	1	0311-0311		●
127	NIPPLE; GREASE,SPLINED YOKE 4HG1 ENG<RJH> M6 STRAIGHT	9-09031-006-0	01	1	0311-0311	●
127	NIPPLE; GREASE,SPLINED YOKE 4JB1 ENG<RLF> M/T MSB5S<R45> M6 STRAIGHT	9-09031-006-0	01	1	0311-		●
127	NIPPLE; GREASE,SPLINED YOKE 4JB1 ENG<RLF> M/T MSB5M<RM5> M6 STRAIGHT	9-09031-006-0	01	1	0311-			●
127	NIPPLE; GREASE,SPLINED YOKE 4HG1 ENG<RJH> M6 STRAIGHT	9-09031-006-0	01	1	0311-	●
128	SEAL; SLEEVE 4JB1 ENG<RLF> M/T MSB5S<R45>	8-97020-597-1	01	1	0311-0311		●
128	SEAL; SLEEVE 4JB1 ENG<RLF> M/T MSB5S<R45>	8-97020-597-1	01	1	0311-		●
128	SEAL; SLEEVE 4JB1 ENG<RLF> M/T MSB5M<RM5>	8-97020-597-1	01	1	0311-			●
128	SEAL; SLEEVE 4HG1 ENG<RJH> THA	8-97145-746-0	01	1	0309-	●
300	SHAFT ASM; PROP,RR 4JB1 ENG<RLF> M/T MSB5S<R45> (A) L=1118 THA	8-97940-282-1	01	1	0309-		●
300	SHAFT ASM; PROP,RR 4JB1 ENG<RLF> M/T MSB5M<RM5> (A) L=1104 THA	8-97940-283-1	01	1	0309-			●
300	SHAFT ASM; PROP,RR 4JB1 ENG<RLF> M/T MSB5S<R45> L=1122	8-98002-492-0	01	1	0412-		●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> (C) L=1059	8-97308-060-2	01	1	0309-	●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> M/T MYY5T<RSM> (B) L=802	8-97308-048-3	01	1	0309-	●
300	SHAFT ASM; PROP,RR 4JB1 ENG<RLF> M/T MSB5M<RM5> L=1064	8-98002-496-0	01	1	0412-			●

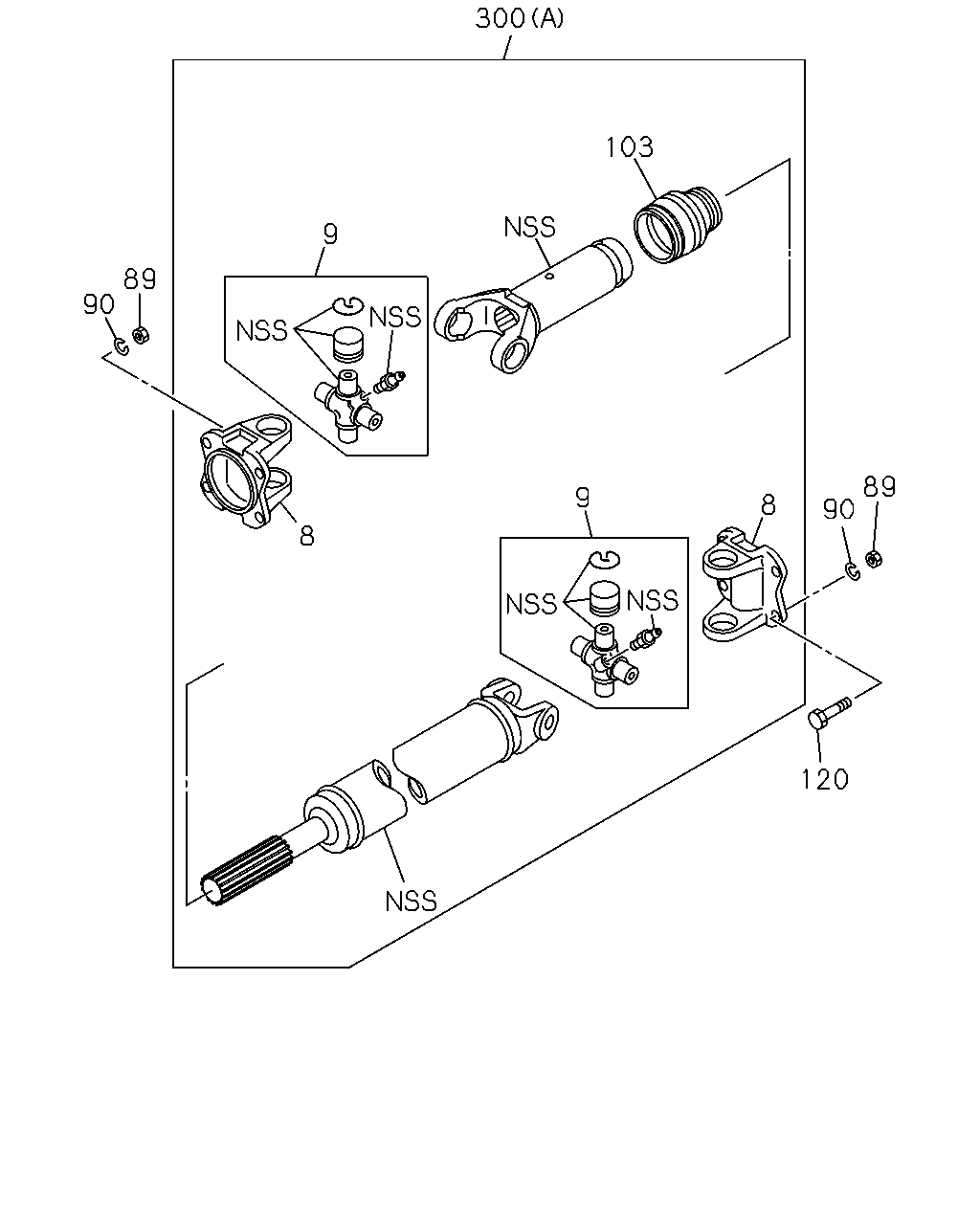

300 103 9 89 90 89 90 9 8 8 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	YOKE; FLANGE,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5S<R45> THA	8-97020-281-0	02	1	0309-		●
8	YOKE; FLANGE,PROP SHAFT 4JB1 ENG<RLF> M/T MSB5M<RM5> THA	8-97020-281-0	02	1	0309-			●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> 2ND	8-97322-663-0	02	1	0309-	●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> 1ST	8-97322-663-0	01	1	0309-	●
9	JOURNAL ASM; PROP SHAFT 4JB1 ENG<RLF> M/T MSB5S<R45> THA	8-97185-603-0	02	1	0309-		●
9	JOURNAL ASM; PROP SHAFT 4JB1 ENG<RLF> M/T MSB5M<RM5> THA	8-97185-603-0	02	1	0309-			●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> 2ND	8-97322-749-0	02	1	0309-	●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> 1ST	8-97322-749-0	01	1	0309-	●
89	NUT; YOKE TO RR AXLE 4JB1 ENG<RLF> M10	8-94159-009-1	08	1	0309-		●	●
89	NUT; YOKE TO RR AXLE 4HG1 ENG<RJH> M12	8-94477-841-0	12	1	0309-	●
90	WASHER; LK,YOKE TO RR AXLE 4JB1 ENG<RLF> ID=10.2	9-09150-610-0	08	1	0309-		●	●
90	WASHER; LK,YOKE TO RR AXLE 4HG1 ENG<RJH> ID=12.2	9-09150-812-0	12	1	0309-	●
103	BOOT; PROP SHAFT 4JB1 ENG<RLF> M/T MSB5S<R45> THA	8-97182-164-0	01	1	0309-		●
103	BOOT; PROP SHAFT 4JB1 ENG<RLF> M/T MSB5M<RM5> THA	8-97182-164-0	01	1	0309-			●
120	BOLT; YOKE TO RR AXLE 4JB1 ENG<RLF> M10X29 THA	8-97168-458-1	04	1	0309-		●	●
120	BOLT; YOKE TO RR AXLE 4HG1 ENG<RJH> M12X35	8-94477-842-0	08	1	0309-	●
300	SHAFT ASM; PROP,RR 4JB1 ENG<RLF> M/T MSB5S<R45> (A) L=1118 THA	8-97940-282-1	01	1	0309-		●
300	SHAFT ASM; PROP,RR 4JB1 ENG<RLF> M/T MSB5M<RM5> (A) L=1104 THA	8-97940-283-1	01	1	0309-			●
300	SHAFT ASM; PROP,RR 4JB1 ENG<RLF> M/T MSB5S<R45> L=1122	8-98002-492-0	01	1	0412-		●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> (C) L=1059	8-97308-060-2	01	1	0309-	●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> M/T MYY5T<RSM> (B) L=802	8-97308-048-3	01	1	0309-	●
300	SHAFT ASM; PROP,RR 4JB1 ENG<RLF> M/T MSB5M<RM5> L=1064	8-98002-496-0	01	1	0412-			●
