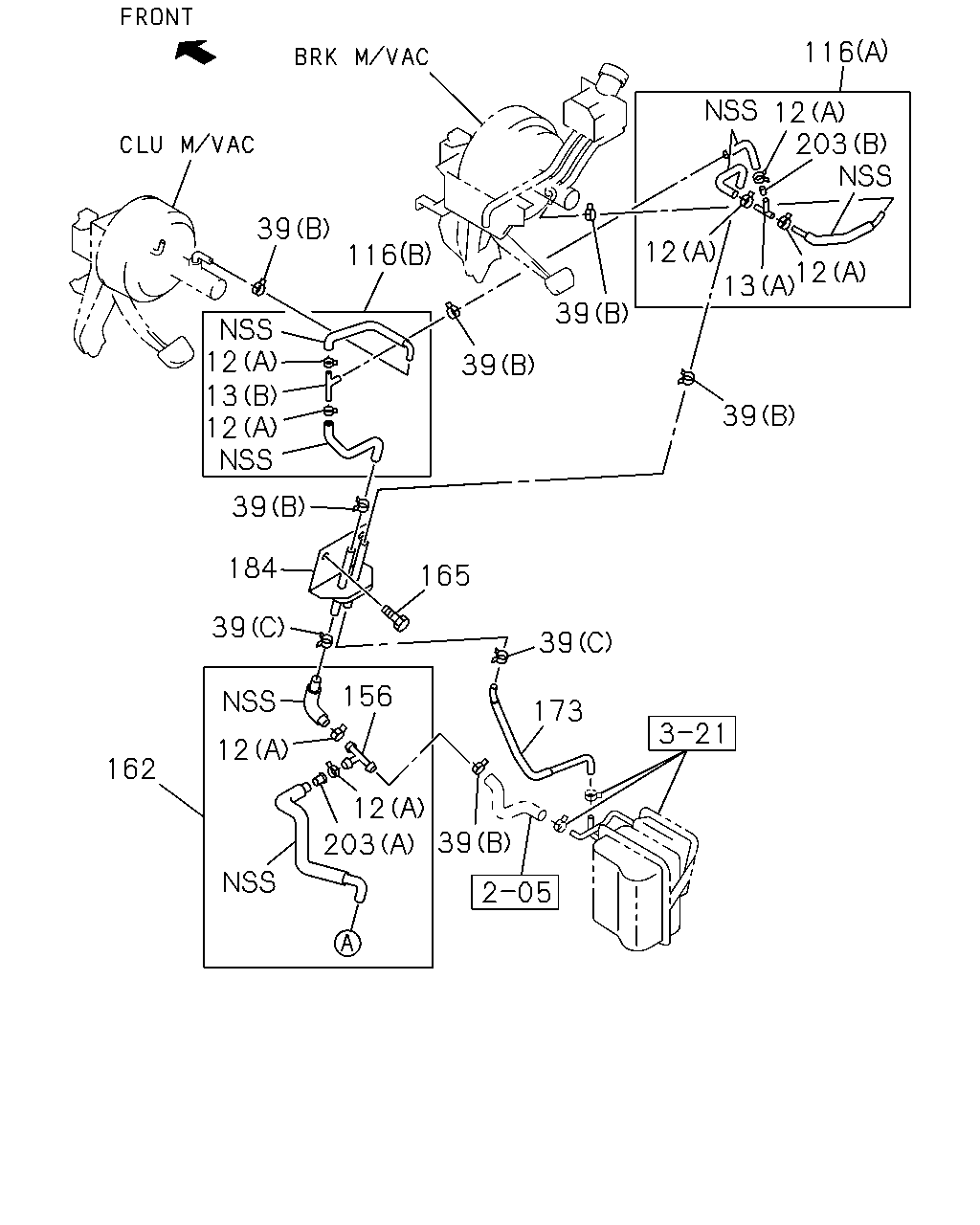

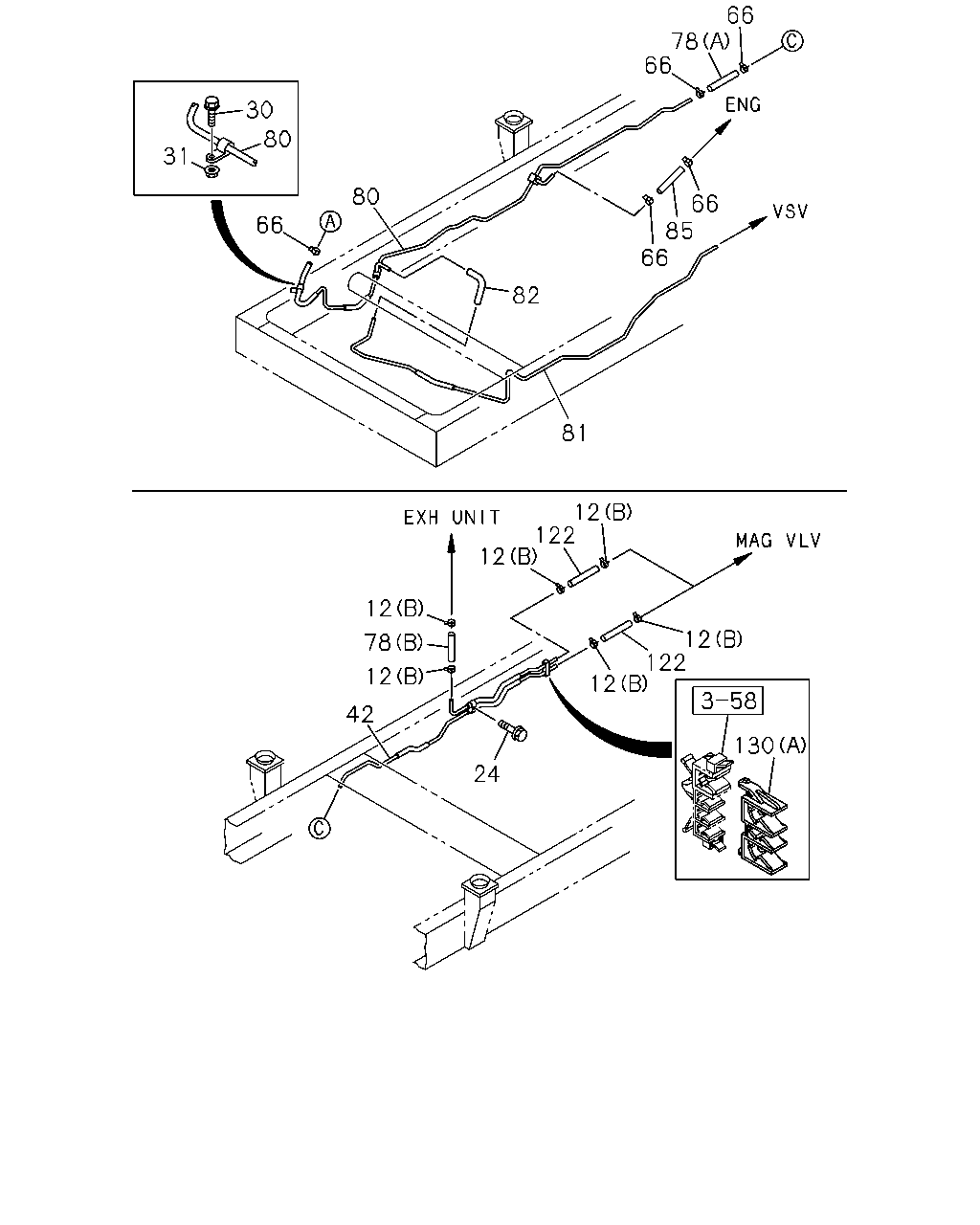

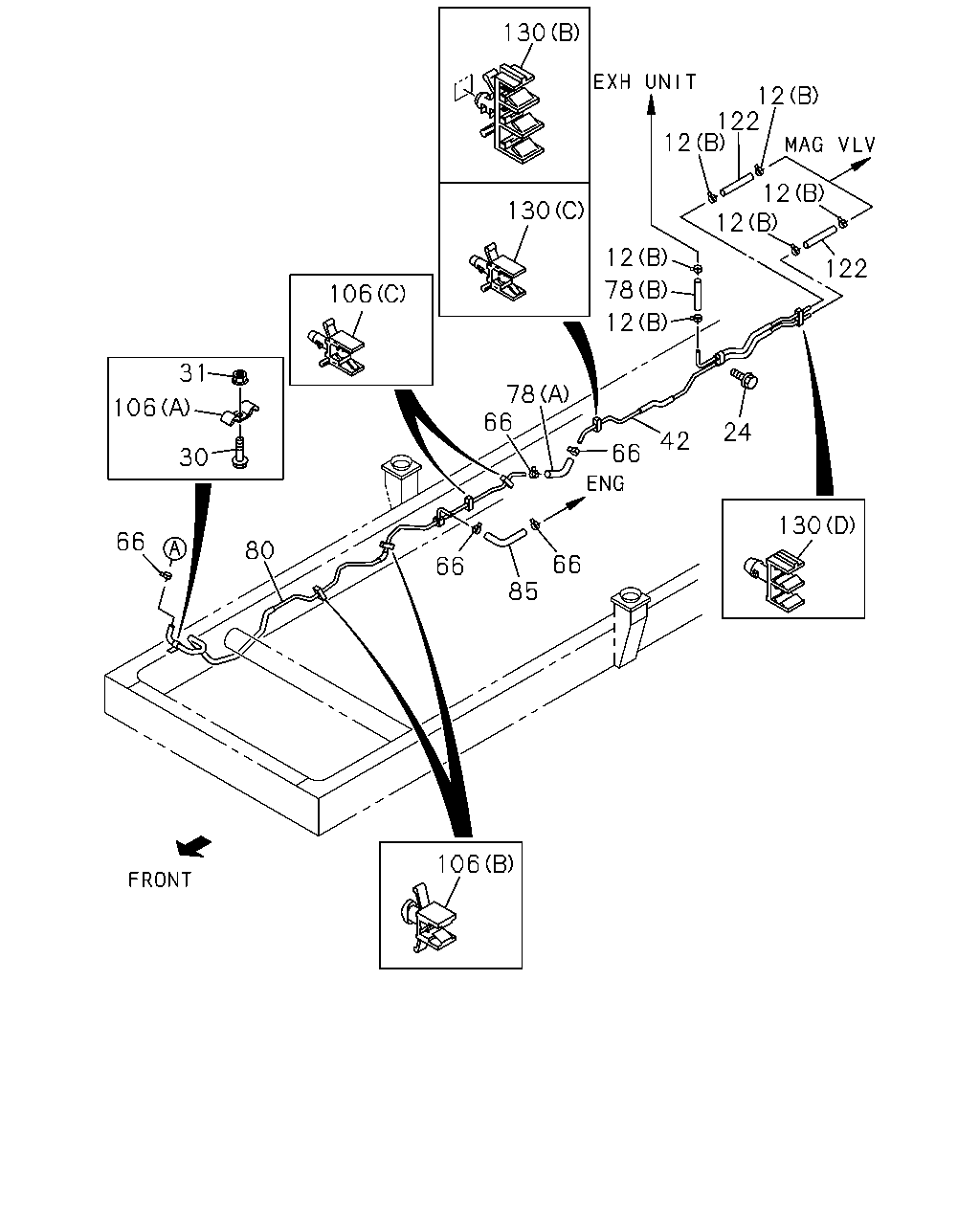

3-60 — BRAKE PIPING; VACUUM (#20019) — 149 parça

66 78 66 30 80 31 80 66 85 66 66 82 81 12 122 12 12 12 122 12 78 12 42 130 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0309-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	03	1	0309-			●
12	CLIP; HOSE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0309-	●	●
12	CLIP; HOSE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0309-			●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	07	1	0309-			●
24	BOLT; BRKT 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●
24	BOLT; BRKT 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	0309-	●	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0309-	●	●	●
42	PIPE; VAC,UNION TO MAG VLV 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97258-369-0	01	1	0309-	●
42	PIPE; VAC,UNION TO MAG VLV 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97325-999-1	01	1	0309-			●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0309-	●	●
66	CLIP; VAC HOSE,M/VAC 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0309-			●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0309-	●	●	●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0309-		●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0309-		●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0309-			●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0309-			●
80	PIPE; VAC,ENG SIDE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	0309-	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0309-	●	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	0309-		●
80	PIPE; VAC,ENG SIDE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97361-326-0	01	1	0309-			●
80	PIPE; VAC,ENG SIDE 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8>	8-97361-325-0	01	1	0309-			●
81	PIPE; VAC,VSV 4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> EXC. EXHAUST BRAKE<NF8>	8-97367-544-0	01	1	0309-			●
81	PIPE; VAC,VSV 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97367-544-0	01	1	0309-			●
82	HOSE; VAC,VSV 4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> EXC. EXHAUST BRAKE<NF8> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-			●
82	HOSE; VAC,VSV 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-			●
85	HOSE; VAC,ENG SIDE 4JB1 ENG<RLF> L=130	8-94438-246-0	01	1	0309-	●	●
85	HOSE; VAC,ENG SIDE 4HG1 ENG<RJH>	8-97315-080-0	01	1	0309-			●
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0309-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> L=230 SERVICED BY L=3000	0-08258-300-0	02	1	0309-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0309-			●
130	CLIP; VAC PIPE TO FRAME 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (C) ID=10 H=40	8-94462-219-0	01	1	0309-	●
130	CLIP; VAC PIPE TO FRAME 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (D) ID=10X2 H=47.5	8-97018-605-0	01	1	0309-	●	●
130	CLIP; VAC PIPE TO FRAME 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0309-		●
130	CLIP; VAC PIPE TO FRAME 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0309-			●

130 12 122 12 12 12 130 12 122 78 106 12 31 78 66 106 24 42 66 30 130 66 66 80 66 85 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0309-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	03	1	0309-			●
12	CLIP; HOSE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0309-	●	●
12	CLIP; HOSE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0309-			●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	07	1	0309-			●
24	BOLT; BRKT 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●
24	BOLT; BRKT 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	0309-	●	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0309-	●	●	●
42	PIPE; VAC,UNION TO MAG VLV 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97258-369-0	01	1	0309-	●
42	PIPE; VAC,UNION TO MAG VLV 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97325-999-1	01	1	0309-			●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0309-	●	●
66	CLIP; VAC HOSE,M/VAC 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0309-			●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0309-	●	●	●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0309-		●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0309-		●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0309-			●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0309-			●
80	PIPE; VAC,ENG SIDE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	0309-	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0309-	●	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	0309-		●
80	PIPE; VAC,ENG SIDE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97361-326-0	01	1	0309-			●
80	PIPE; VAC,ENG SIDE 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8>	8-97361-325-0	01	1	0309-			●
85	HOSE; VAC,ENG SIDE 4JB1 ENG<RLF> L=130	8-94438-246-0	01	1	0309-	●	●
85	HOSE; VAC,ENG SIDE 4HG1 ENG<RJH>	8-97315-080-0	01	1	0309-			●
106	CLIP; PIPE 4JB1 ENG<RLF> (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0309-	●	●
106	CLIP; PIPE 4JB1 ENG<RLF> (B) ID=10 H=36	8-94249-686-1	02	1	0309-	●	●
106	CLIP; PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (C) ID=10 H=40	8-94462-219-0	02	1	0309-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0309-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> L=230 SERVICED BY L=3000	0-08258-300-0	02	1	0309-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0309-			●
130	CLIP; VAC PIPE TO FRAME 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (C) ID=10 H=40	8-94462-219-0	01	1	0309-	●
130	CLIP; VAC PIPE TO FRAME 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (D) ID=10X2 H=47.5	8-97018-605-0	01	1	0309-	●	●
130	CLIP; VAC PIPE TO FRAME 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0309-		●
130	CLIP; VAC PIPE TO FRAME 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0309-			●

116 12 203 39 12 13 116 12 39 12 13 12 39 39 39 184 165 39 39 156 173 12 162 12 39 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0309-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	03	1	0309-			●
12	CLIP; HOSE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0309-	●	●
12	CLIP; HOSE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0309-			●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	07	1	0309-			●
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0309-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) 3WAY	8-94167-478-0	01	1	0309-			●
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	03	1	0309-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0309-			●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0309-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0309-			●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0309-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	06	1	0309-			●
116	HOSE; VAC,M/VAC (C)	8-97314-597-1	01	1	0309-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97314-597-1	01	1	0309-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0309-0403			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T>	8-97379-286-1	01	1	0404-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0309-			●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> 3WAY	8-94441-184-0	01	1	0309-			●
162	HOSE; VAC	8-97102-369-2	01	1	0309-	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>	8-97102-369-2	01	1	0309-			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-97178-659-0	01	1	0309-			●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0309-	●	●	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0309-	●	●	●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0309-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0309-			●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94386-540-0	01	1	0309-0412			●
203	VALVE; CHECK	8-94386-540-0	01	1	0501-	●	●	●

85 106 66 66 80 66 30 106 31 85 66 66 30 80 80 66 31 210 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	0309-	●	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0309-	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0309-	●	●
66	CLIP; VAC HOSE,M/VAC 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0309-			●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0309-	●	●	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	0309-	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0309-	●	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	0309-		●
80	PIPE; VAC,ENG SIDE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97361-326-0	01	1	0309-			●
80	PIPE; VAC,ENG SIDE 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8>	8-97361-325-0	01	1	0309-			●
81	PIPE; VAC,VSV 4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> EXC. EXHAUST BRAKE<NF8>	8-97367-544-0	01	1	0309-			●
81	PIPE; VAC,VSV 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97367-544-0	01	1	0309-			●
82	HOSE; VAC,VSV 4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> EXC. EXHAUST BRAKE<NF8> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-			●
82	HOSE; VAC,VSV 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-			●
85	HOSE; VAC,ENG SIDE 4JB1 ENG<RLF> L=130	8-94438-246-0	01	1	0309-	●	●
85	HOSE; VAC,ENG SIDE 4HG1 ENG<RJH>	8-97315-080-0	01	1	0309-			●
106	CLIP; PIPE 4JB1 ENG<RLF> (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0309-	●	●
106	CLIP; PIPE 4JB1 ENG<RLF> (B) ID=10 H=36	8-94249-686-1	02	1	0309-	●	●
106	CLIP; PIPE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (C) ID=10 H=40	8-94462-219-0	02	1	0309-		●
210	RUBBER; CAP 4HG1 ENG<RJH> EXC. AIR CONDITIONER MANUAL CONT<C60>,EXHAUST BRAKE<NF8>	8-97108-680-0	01	1	0309-			●

12 116 12 12 13 39 39 184 39 39 165 39 173 39 162 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0309-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	03	1	0309-			●
12	CLIP; HOSE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0309-	●	●
12	CLIP; HOSE 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0309-			●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	07	1	0309-			●
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0309-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) 3WAY	8-94167-478-0	01	1	0309-			●
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	03	1	0309-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0309-			●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0309-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0309-			●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0309-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	06	1	0309-			●
116	HOSE; VAC,M/VAC (C)	8-97314-597-1	01	1	0309-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97314-597-1	01	1	0309-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0309-0403			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T>	8-97379-286-1	01	1	0404-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0309-			●
162	HOSE; VAC	8-97102-369-2	01	1	0309-	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>	8-97102-369-2	01	1	0309-			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-97178-659-0	01	1	0309-			●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0309-	●	●	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0309-	●	●	●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0309-	●	●	●
202	SEAL OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0309-	●	●
202	SEAL EXC. POWER ASSIST CLUTCH<S2T> OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0309-			●
