3-52 — BRAKE PIPING; OIL,FRONT (#20016) — 38 parça

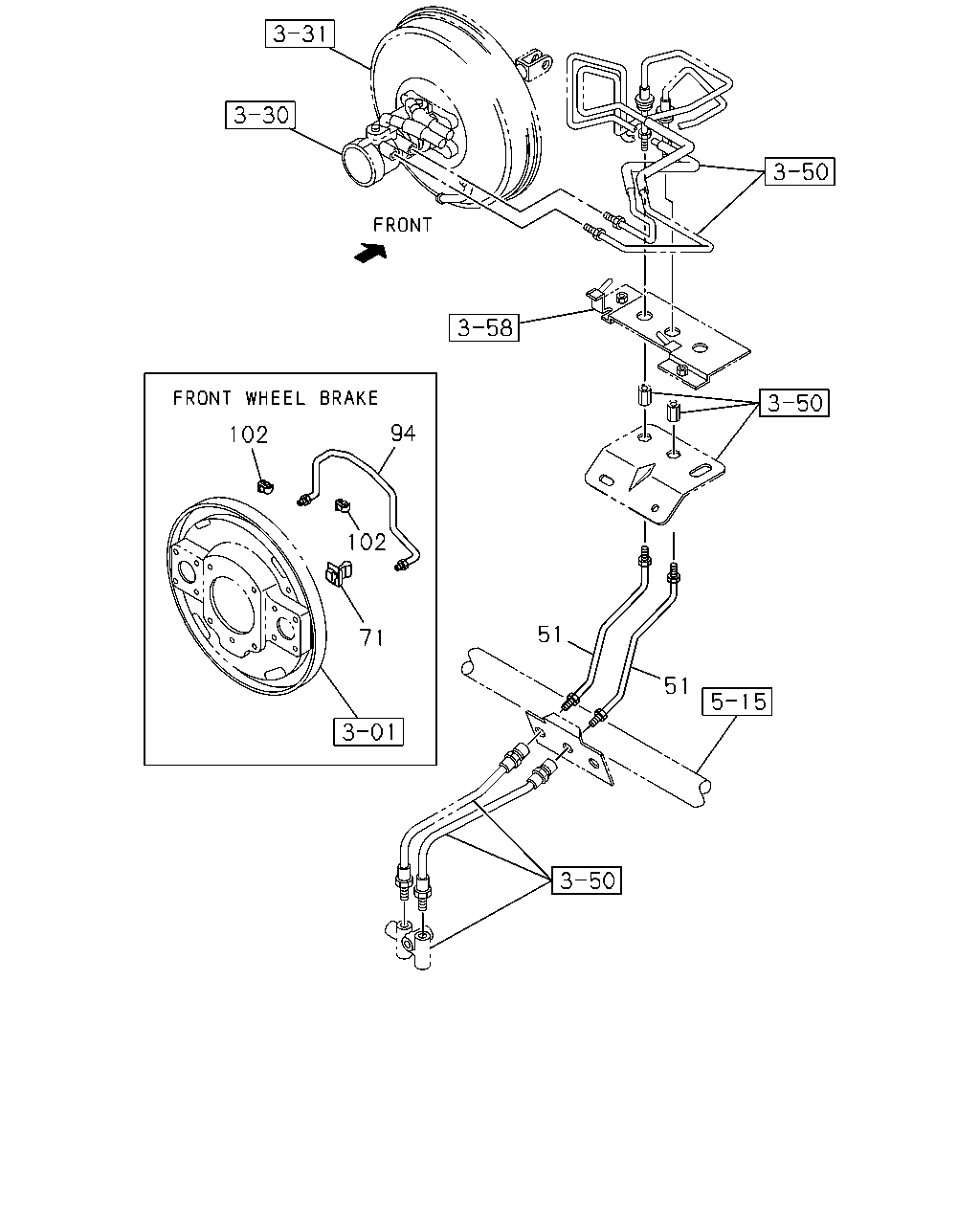

çizim 12040
94 102 102 51 71 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 PIPE; BRK
THA 		8-97916-832-0 02 1 0309- ● ● ●
71 GROMMET; OIL PIPE
THA 		9-09756-034-0 02 1 0309- ●
71 GROMMET; OIL PIPE
4JB1 ENG<RLF> THA 		9-09756-034-0 02 1 0309- ●
71 GROMMET; OIL PIPE
4HG1 ENG<RJH> THA 		9-09756-034-0 02 1 0309- ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-700-0 01 1 0309- ●
94 PIPE; BRK,W/C TO W/C
4JB1 ENG<RLF> THA 		8-97940-700-0 01 1 0309- ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-699-0 01 1 0309- ●
94 PIPE; BRK,W/C TO W/C
4JB1 ENG<RLF> THA 		8-97940-699-0 01 1 0309- ●
94 PIPE; BRK,W/C TO W/C
4HG1 ENG<RJH> THA 		8-97940-696-0 02 1 0309- ●
102 CLIP; PIPE 8-94128-306-0 02 1 0309- ●
102 CLIP; PIPE
4JB1 ENG<RLF> 		8-94128-306-0 02 1 0309- ●
102 CLIP; PIPE
4HG1 ENG<RJH> 		8-94128-306-0 01 1 0309- ●

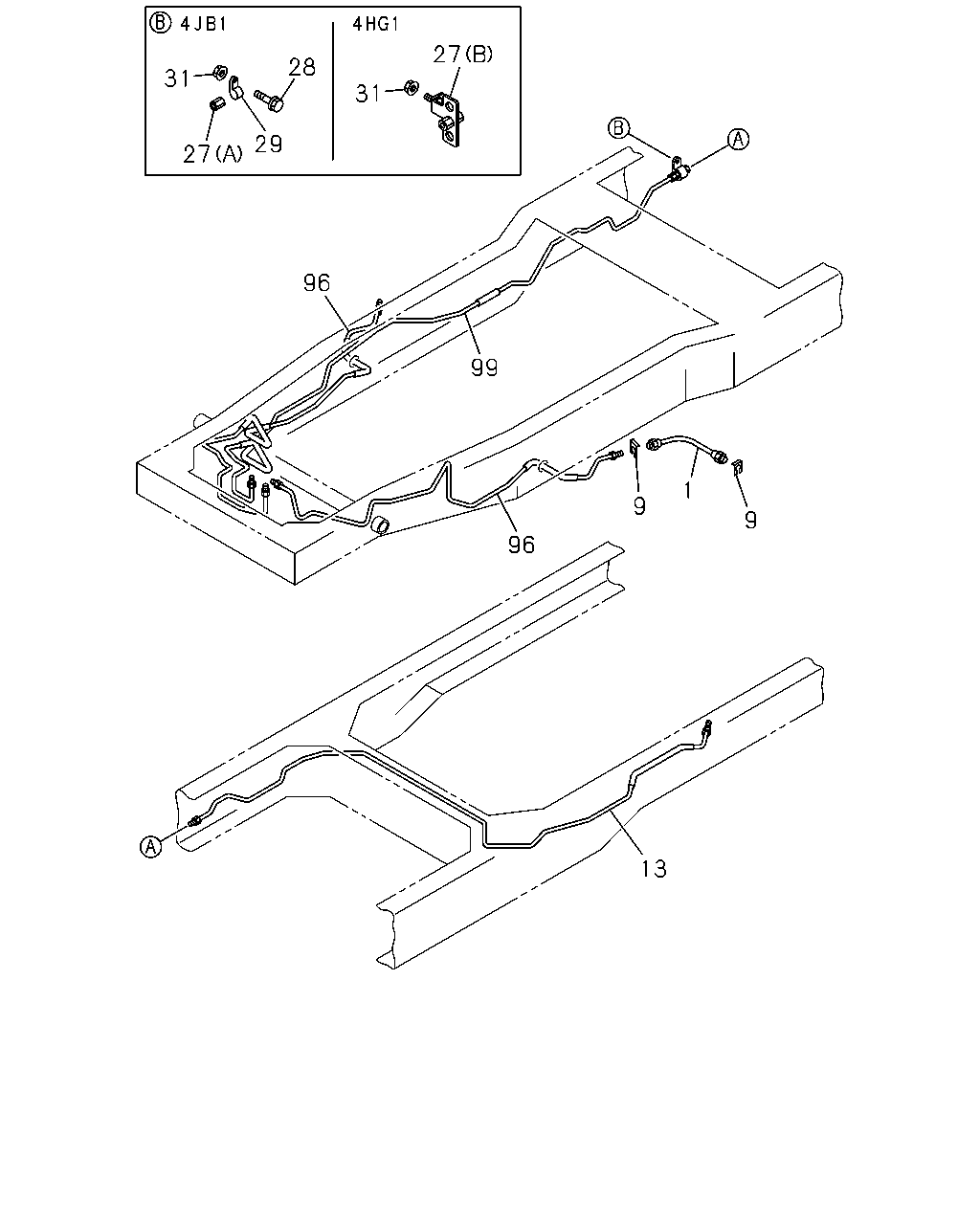

çizim 54302
27 28 31 31 29 27 96 99 1 9 9 96 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK 8-97035-063-0 02 1 0309- ●
1 HOSE; FLEX,FRT BRK
4JB1 ENG<RLF> 		8-97035-063-0 02 1 0309- ●
1 HOSE; FLEX,FRT BRK
4HG1 ENG<RJH> 		8-97035-063-0 02 1 0309- ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0309- ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0309- ●
9 CLIP; FLEX HOSE,FRT BRK
4JB1 ENG<RLF> 		8-94137-662-0 02 1 0309- ●
9 CLIP; FLEX HOSE,FRT BRK
4HG1 ENG<RJH> 		8-94137-662-0 02 1 0309- ●
13 PIPE; OIL,UNION TO UNION
4JB1 ENG<RLF> THA 		8-97922-325-0 01 1 0309- ●
13 PIPE; OIL,UNION TO UNION
THA 		8-97914-142-0 01 1 0309- ●
13 PIPE; OIL,UNION TO UNION
4HG1 ENG<RJH> THA 		8-97922-326-0 01 1 0309- ●
27 UNION; BRK PIPE
4JB1 ENG<RLF> (A) M10 STRAIGHT 		9-09227-005-0 01 1 0309- ● ●
27 UNION; BRK PIPE
4HG1 ENG<RJH> (B) 		8-97287-444-0 01 1 0309- ●
28 BOLT; UNION CLIP
4JB1 ENG<RLF> M6X25 FLANGE 		0-28680-625-0 01 1 0309- ● ●
29 CLIP; UNION
4JB1 ENG<RLF> ID=16 L=20 		9-09525-532-0 01 1 0309- ● ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 0309- ● ● ●
96 PIPE ASM; 6 WAY
4JB1 ENG<RLF> THA 		8-97922-403-0 01 1 0309-0309 ●
96 PIPE ASM; 6 WAY
4JB1 ENG<RLF> THA 		8-97916-826-1 01 1 0309- ● ●
96 PIPE ASM; 6 WAY
4JB1 ENG<RLF> THA 		8-97917-994-0 01 1 0309-0309 ●
96 PIPE ASM; 6 WAY
4JB1 ENG<RLF> THA 		8-97917-994-0 01 1 0310- ● ●
96 PIPE ASM; 6 WAY
4HG1 ENG<RJH> THA 		8-97922-327-0 01 1 0309- ●
96 PIPE ASM; 6 WAY
4HG1 ENG<RJH> THA 		8-97922-301-0 01 1 0309- ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG<RLF> THA 		8-97922-410-0 01 1 0309-0309 ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG<RLF> THA 		8-97917-995-0 01 1 0310- ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG<RLF> THA 		8-97917-996-0 01 1 0309- ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG<RLF> THA 		8-97205-103-0 01 1 0310- ●
99 PIPE ASM; 4/5/6 WAY
4HG1 ENG<RJH> THA 		8-97922-324-0 01 1 0309- ●
