3-11 — PARKING BRAKE CONTROL (#20011) — 26 parça
çizim 11935
49 324 89 181 236 225 91 224
BalonParca AdiParca NoAdetTipApplied Date A B C
49 CABLE; PARKING BRK
4JB1 ENG<RLF> THA 		8-97940-537-0 01 1 0309- ● ●
49 CABLE; PARKING BRK
4HG1 ENG<RJH> THA 		8-97922-332-0 01 1 0309- ●
89 BRACKET; CLIP
4JB1 ENG<RLF> 		8-97113-984-1 01 1 0309- ● ●
91 CLIP; PARKING BRK CABLE
4JB1 ENG<RLF> ID=13 L=50 		9-09525-286-0 01 1 0309- ● ●
91 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> ID=13 L=20 		1-09701-138-1 01 1 0309- ●
181 BOLT; BRKT
4JB1 ENG<RLF> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
224 BOLT; CABLE CLIP
4JB1 ENG<RLF> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
224 BOLT; CABLE CLIP
4HG1 ENG<RJH> M10X25 FLANGE 		0-28681-025-0 01 1 0309- ●
225 NUT; CABLE CLIP
4JB1 ENG<RLF> M8 FLANGE 		0-91150-108-0 01 1 0309- ● ●
225 NUT; CABLE CLIP
4HG1 ENG<RJH> M10 FLANGE 		0-91150-110-0 01 1 0309- ●
236 BOLT; BRKT TO FRAME
4HG1 ENG<RJH> M8X25 FLANGE 		0-28680-825-0 02 1 0309- ●
324 BRACKET
4HG1 ENG<RJH> 		8-97357-242-0 01 1 0309- ●

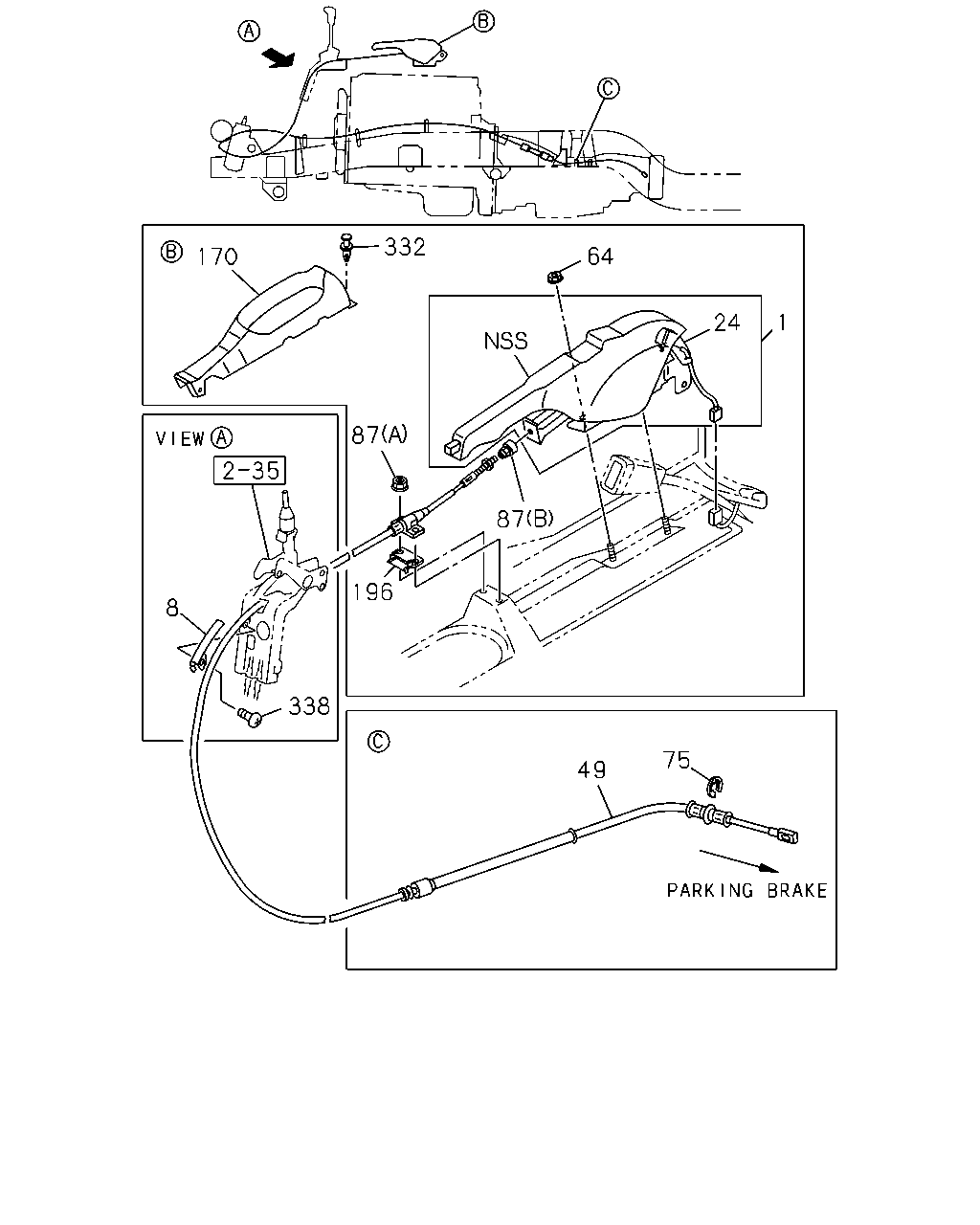

çizim 54912
332 64 170 24 1 87 196 8 338 75 49 87
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0309- ● ● ●
8 GUIDE; PARKING BRK 8-97190-672-0 01 1 0309- ● ● ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0309- ● ● ●
49 CABLE; PARKING BRK
4JB1 ENG<RLF> THA 		8-97940-537-0 01 1 0309- ● ●
49 CABLE; PARKING BRK
4HG1 ENG<RJH> THA 		8-97922-332-0 01 1 0309- ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0309- ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 0309- ● ● ●
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0309- ● ● ●
87 NUT
(B) 		8-97088-730-1 01 1 0309-0310 ● ● ●
87 NUT
M6 		1-71996-312-0 01 1 0311- ● ● ●
170 COVER; PARKING BRK LEVER
DARK GRAY 		8-97155-172-0 01 1 0309- ● ● ●
196 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 0309- ● ● ●
332 CLIP; COVER
D6X12.5 		8-94146-425-0 01 1 0309- ● ● ●
338 SCREW; GUIDE
M6X10 		9-03497-610-0 01 1 0309- ● ● ●
