Isuzu WW
▶
TRUCKS
▶
NKR
▶
50970 - NKR(THAILAND)
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

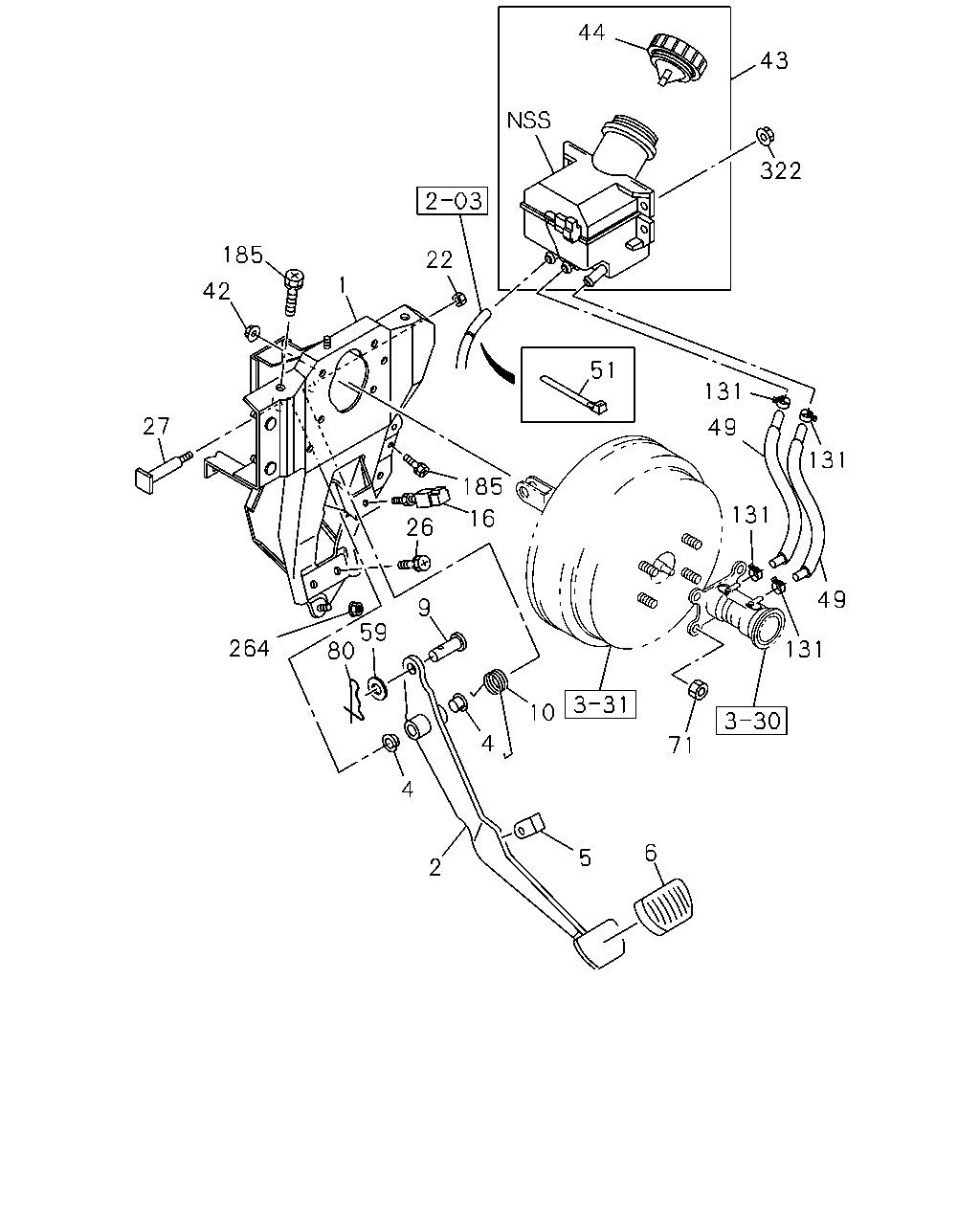

3-10 — BRAKE PEDAL AND CONTROL
(#20010) — 23 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
44
43
322
185
22
1
42
51
131
27
49
131
185
131
16
26
49
9
59
80
131
264
10
4
71
4
6
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BRACKET ASM; PEDAL
8-97896-968-0
01
1
0309-
●
●
●
2
PEDAL; BRK
THA
8-97916-493-0
01
1
0309-
●
●
●
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
0309-
●
●
●
5
STOPPER; BRK PEDAL
THA
8-97853-602-1
01
1
0309-
●
●
●
6
COVER; BRK PEDAL
8-97853-413-1
01
1
0309-
●
●
●
9
PIN; JAW JOINT
8-94410-276-0
01
1
0309-
●
●
●
10
SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
0309-
●
●
●
16
SWITCH; STOP LAMP
THA
8-97855-187-0
01
1
0309-
●
●
●
22
NUT; SHAFT
M10 FLANGE
1-09440-022-0
01
1
0309-
●
●
●
26
BOLT; PEDAL
M10X22 W/PL WASHER
8-97313-188-0
02
1
0309-
●
●
●
27
SHAFT; BRK PEDAL
8-97866-667-0
01
1
0309-
●
●
●
42
NUT; BRK PEDAL
M8 W/LK WASHER
8-94279-050-0
04
1
0309-
●
●
●
43
TANK ASM; OIL
8-97179-813-1
01
1
0309-
●
●
●
44
CAP; OIL TANK
8-97178-291-1
01
1
0309-
●
●
●
49
HOSE; OIL TANK TO BRK M/CYL
8-97129-582-0
02
1
0309-
●
●
●
51
CLIP; HOSE,OIL TANK
L=140
5-09707-031-1
01
1
0309-
●
●
●
59
WASHER; PL,JAW JOINT
ID=15
9-09160-514-0
01
1
0309-
●
●
●
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
04
1
0309-
●
●
●
80
PIN; SNAP,BRK PEDAL
8-94279-912-0
01
1
0309-
●
●
●
131
CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
8-97130-480-0
04
1
0309-
●
●
●
185
BOLT; BRKT
M10X25 FLANGE
0-28691-025-0
02
1
0309-
●
●
●
264
NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE
8-97046-127-0
01
1
0309-
●
●
●
322
NUT; OIL TANK
M6 FLANGE
0-91150-106-0
02
1
0309-
●
●
●
