3-08 — PARKING BRAKE (#20009) — 72 parça

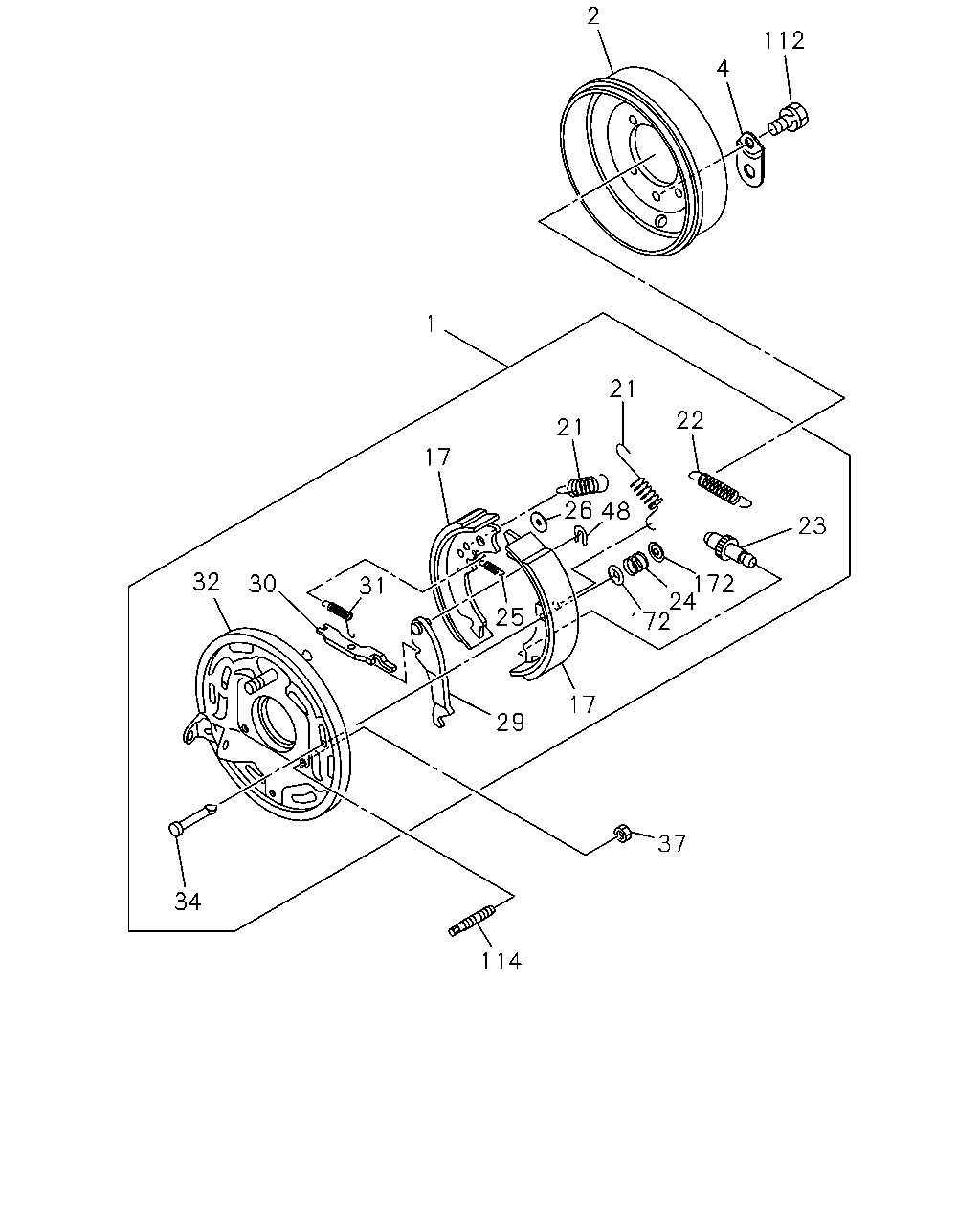

2 112 4 1 21 22 21 17 23 32 31 30 172 24 172 25 17 29 37 34 114 26 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRAKE ASM; CENTER,PARKING 4JB1 ENG<RLF>	8-97034-553-2	01	1	0309-	●	●
1	BRAKE ASM; CENTER,PARKING 4HG1 ENG<RJH>	8-97308-175-0	01	1	0309-			●
2	DRUM; PARKING BRK 4JB1 ENG<RLF> THA	8-97916-779-0	01	1	0309-	●	●
2	DRUM; PARKING BRK 4HG1 ENG<RJH> THA	8-97916-628-0	01	1	0309-			●
4	COVER; ADJ HOLE 4JB1 ENG<RLF>	5-42319-003-0	01	1	0309-	●	●
4	COVER; ADJ HOLE 4HG1 ENG<RJH>	5-46219-001-0	01	1	0309-			●
17	SHOE; PARKING BRK 4JB1 ENG<RLF>	8-97042-933-1	02	1	0309-	●	●
17	SHOE; PARKING BRK 4HG1 ENG<RJH>	8-97020-250-2	02	1	0309-			●
21	SPRING; RETURN,PARKING BRK SHOE 4JB1 ENG<RLF>	9-09942-552-1	01	1	0309-	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4HG1 ENG<RJH>	8-94132-157-0	02	1	0309-			●
22	SPRING; ADJ SCREW,PARKING BRK 4JB1 ENG<RLF>	9-09942-340-1	01	1	0309-	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4HG1 ENG<RJH>	8-94107-618-0	01	1	0309-			●
23	SCREW; ADJ,PARKING BRK SHOE 4JB1 ENG<RLF>	5-47165-025-0	01	1	0309-	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4HG1 ENG<RJH>	5-47165-025-0	01	1	0309-			●
24	SPRING; BRK SHOE 4JB1 ENG<RLF>	9-09941-062-1	02	1	0309-	●	●
24	SPRING; BRK SHOE 4HG1 ENG<RJH>	8-94132-155-0	02	1	0309-			●
25	SPRING; SHOE ALIGNMENT 4HG1 ENG<RJH>	8-94132-156-0	01	1	0309-			●
26	PLATE; SHOE GUIDE 4HG1 ENG<RJH>	9-09851-986-0	01	1	0309-			●
29	LEVER; PARKING BRK 4JB1 ENG<RLF>	8-94128-765-0	01	1	0309-	●	●
29	LEVER; PARKING BRK 4HG1 ENG<RJH>	8-97027-125-0	01	1	0309-			●
30	STRUT; PARKING BRK 4JB1 ENG<RLF>	5-46251-007-0	01	1	0309-	●	●
30	STRUT; PARKING BRK 4HG1 ENG<RJH>	8-94311-779-0	01	1	0309-			●
31	SPRING; SHOE TO STRUT 4JB1 ENG<RLF>	9-09942-521-1	01	1	0309-	●	●
31	SPRING; SHOE TO STRUT 4HG1 ENG<RJH>	8-94132-158-0	01	1	0309-			●
32	PLATE; SUPPORT,PARKING BRK 4JB1 ENG<RLF>	9-46213-601-2	01	1	0309-	●	●
32	PLATE; SUPPORT,PARKING BRK 4HG1 ENG<RJH>	8-97308-176-0	01	1	0309-			●
34	PIN; BRK SHOE 4JB1 ENG<RLF>	9-47162-034-0	02	1	0309-	●	●
34	PIN; BRK SHOE 4HG1 ENG<RJH>	8-94132-159-0	02	1	0309-			●
37	NUT; SUPPORT PLATE 4JB1 ENG<RLF> M12	8-97033-122-0	01	1	0309-	●	●
37	NUT; SUPPORT PLATE 4HG1 ENG<RJH> M12 LOCK NUT	8-97248-173-0	04	1	0309-			●
48	RETAINER; PIN,PARKING BRK 4JB1 ENG<RLF>	9-46349-005-1	01	1	0309-	●	●
48	RETAINER; PIN,PARKING BRK 4HG1 ENG<RJH>	9-46349-005-1	01	1	0309-			●
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER	0-50040-616-0	01	1	0309-	●	●	●
114	STUD; SUPPORT PLATE 4HG1 ENG<RJH>	8-97289-280-0	04	1	0309-			●
172	CUP; SHOE HOLD 4JB1 ENG<RLF>	8-94378-404-0	04	1	0309-	●	●
172	CUP; SHOE HOLD 4HG1 ENG<RJH>	9-47162-033-0	04	1	0309-			●

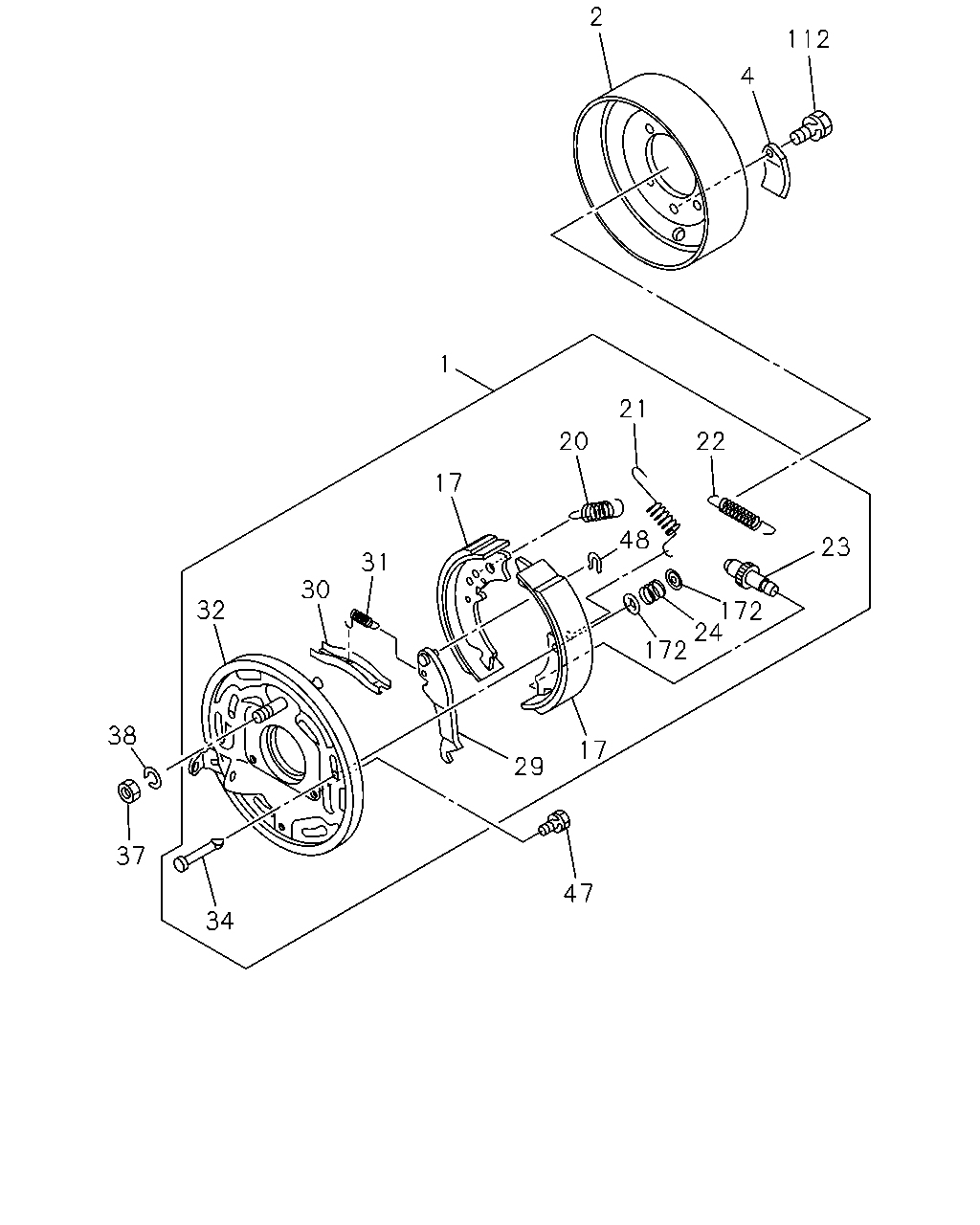

2 112 4 1 21 20 22 17 48 23 31 30 32 172 24 172 38 17 29 37 47 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRAKE ASM; CENTER,PARKING 4JB1 ENG<RLF>	8-97034-553-2	01	1	0309-	●	●
1	BRAKE ASM; CENTER,PARKING 4HG1 ENG<RJH>	8-97308-175-0	01	1	0309-			●
2	DRUM; PARKING BRK 4JB1 ENG<RLF> THA	8-97916-779-0	01	1	0309-	●	●
2	DRUM; PARKING BRK 4HG1 ENG<RJH> THA	8-97916-628-0	01	1	0309-			●
4	COVER; ADJ HOLE 4JB1 ENG<RLF>	5-42319-003-0	01	1	0309-	●	●
4	COVER; ADJ HOLE 4HG1 ENG<RJH>	5-46219-001-0	01	1	0309-			●
17	SHOE; PARKING BRK 4JB1 ENG<RLF>	8-97042-933-1	02	1	0309-	●	●
17	SHOE; PARKING BRK 4HG1 ENG<RJH>	8-97020-250-2	02	1	0309-			●
20	SPRING; RETURN,SECONDARY,PARKING BRK 4JB1 ENG<RLF>	9-09942-553-1	01	1	0309-	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4JB1 ENG<RLF>	9-09942-552-1	01	1	0309-	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4HG1 ENG<RJH>	8-94132-157-0	02	1	0309-			●
22	SPRING; ADJ SCREW,PARKING BRK 4JB1 ENG<RLF>	9-09942-340-1	01	1	0309-	●	●
22	SPRING; ADJ SCREW,PARKING BRK 4HG1 ENG<RJH>	8-94107-618-0	01	1	0309-			●
23	SCREW; ADJ,PARKING BRK SHOE 4JB1 ENG<RLF>	5-47165-025-0	01	1	0309-	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4HG1 ENG<RJH>	5-47165-025-0	01	1	0309-			●
24	SPRING; BRK SHOE 4JB1 ENG<RLF>	9-09941-062-1	02	1	0309-	●	●
24	SPRING; BRK SHOE 4HG1 ENG<RJH>	8-94132-155-0	02	1	0309-			●
29	LEVER; PARKING BRK 4JB1 ENG<RLF>	8-94128-765-0	01	1	0309-	●	●
29	LEVER; PARKING BRK 4HG1 ENG<RJH>	8-97027-125-0	01	1	0309-			●
30	STRUT; PARKING BRK 4JB1 ENG<RLF>	5-46251-007-0	01	1	0309-	●	●
30	STRUT; PARKING BRK 4HG1 ENG<RJH>	8-94311-779-0	01	1	0309-			●
31	SPRING; SHOE TO STRUT 4JB1 ENG<RLF>	9-09942-521-1	01	1	0309-	●	●
31	SPRING; SHOE TO STRUT 4HG1 ENG<RJH>	8-94132-158-0	01	1	0309-			●
32	PLATE; SUPPORT,PARKING BRK 4JB1 ENG<RLF>	9-46213-601-2	01	1	0309-	●	●
32	PLATE; SUPPORT,PARKING BRK 4HG1 ENG<RJH>	8-97308-176-0	01	1	0309-			●
34	PIN; BRK SHOE 4JB1 ENG<RLF>	9-47162-034-0	02	1	0309-	●	●
34	PIN; BRK SHOE 4HG1 ENG<RJH>	8-94132-159-0	02	1	0309-			●
37	NUT; SUPPORT PLATE 4JB1 ENG<RLF> M12	8-97033-122-0	01	1	0309-	●	●
37	NUT; SUPPORT PLATE 4HG1 ENG<RJH> M12 LOCK NUT	8-97248-173-0	04	1	0309-			●
38	WASHER; LK,SUPPORT PLATE 4JB1 ENG<RLF> ID=8.2	9-09150-808-0	02	1	0309-	●	●
47	BOLT; SUPPORT PLATE 4JB1 ENG<RLF>	9-02060-814-0	02	1	0309-	●	●
48	RETAINER; PIN,PARKING BRK 4JB1 ENG<RLF>	9-46349-005-1	01	1	0309-	●	●
48	RETAINER; PIN,PARKING BRK 4HG1 ENG<RJH>	9-46349-005-1	01	1	0309-			●
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER	0-50040-616-0	01	1	0309-	●	●	●
172	CUP; SHOE HOLD 4JB1 ENG<RLF>	8-94378-404-0	04	1	0309-	●	●
172	CUP; SHOE HOLD 4HG1 ENG<RJH>	9-47162-033-0	04	1	0309-			●
