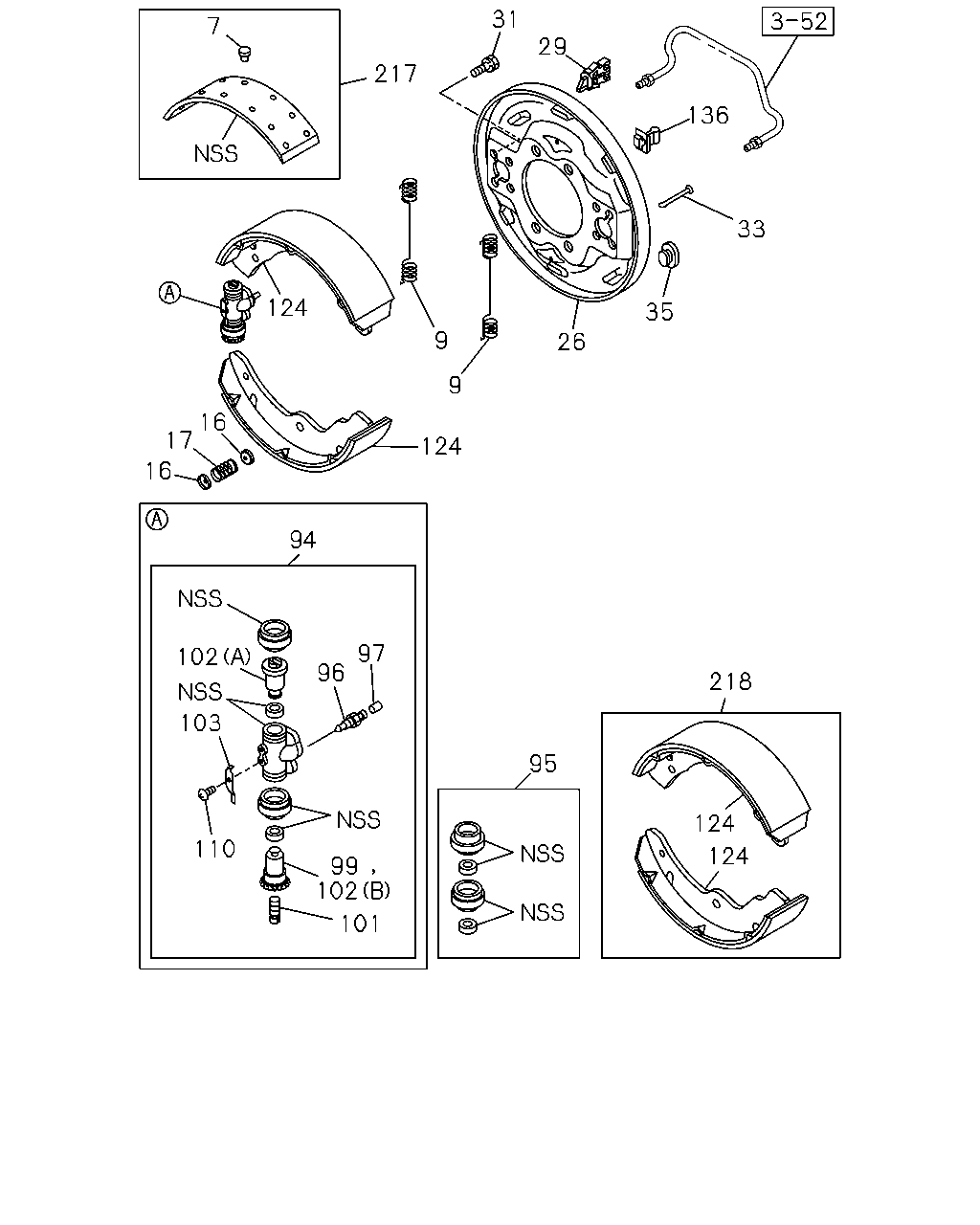

3-05 — REAR WHEEL BRAKE (#20008) — 74 parça

31 7 29 217 136 33 124 35 9 26 9 16 17 124 16 94 97 102 96 218 103 95 124 110 124 99 102 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	RIVET; LINING,RR BRK 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	1-09732-029-0	40	1	0309-	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97078-739-0	04	1	0309-		●
9	SPRING; RETURN,BRK SHOE 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97078-739-0	04	1	0309-			●
9	SPRING; RETURN,BRK SHOE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	5-09583-118-0	04	1	0309-	●
16	CUP; SHOE HOLDING FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	9-47162-033-0	08	1	0309-		●
16	CUP; SHOE HOLDING 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	9-47162-033-0	08	1	0309-			●
16	CUP; SHOE HOLDING 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	9-47165-096-0	08	1	0309-	●
17	SPRING; SHOE HOLD DOWN FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	9-09940-989-1	04	1	0309-		●
17	SPRING; SHOE HOLD DOWN 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	9-09940-989-1	04	1	0309-			●
17	SPRING; SHOE HOLD DOWN 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	5-09580-101-1	04	1	0309-	●
26	PLATE; BACK,RR BRK FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97093-934-0	01	1	0309-		●
26	PLATE; BACK,RR BRK FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97093-935-0	01	1	0309-		●
26	PLATE; BACK,RR BRK 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97078-679-0	01	1	0309-			●
26	PLATE; BACK,RR BRK 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97078-680-0	01	1	0309-			●
26	PLATE; BACK,RR BRK 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97078-607-0	01	1	0309-	●
26	PLATE; BACK,RR BRK 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97078-608-0	01	1	0309-	●
29	CLIP; PIPE,BRK FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-94128-307-0	02	1	0309-		●
29	CLIP; PIPE,BRK 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94128-307-0	02	1	0309-			●
29	CLIP; PIPE,BRK 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94128-306-0	02	1	0309-	●
31	BOLT; RR WHEEL CYL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	5-09030-036-1	16	1	0309-		●
31	BOLT; RR WHEEL CYL 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	5-09030-036-1	16	1	0309-			●
31	BOLT; RR WHEEL CYL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97078-643-0	16	1	0309-	●
33	PIN; SHOE HOLD DOWN FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	9-47162-607-0	04	1	0309-		●
33	PIN; SHOE HOLD DOWN 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	9-47162-607-0	04	1	0309-			●
33	PIN; SHOE HOLD DOWN 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	5-47162-001-0	04	1	0309-	●
35	GROMMET; CHECK HOLE FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-94344-919-0	02	1	0309-		●
35	GROMMET; CHECK HOLE 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94344-919-0	02	1	0309-			●
35	GROMMET; CHECK HOLE 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94171-287-0	02	1	0309-	●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> FRONT	8-97179-335-0	01	1	0309-		●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> REAR	8-97179-336-0	01	1	0309-		●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97179-337-0	02	1	0309-		●
94	CYLINDER; WHEEL,RR BRK 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> FRONT	8-97139-840-0	01	1	0309-			●
94	CYLINDER; WHEEL,RR BRK 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> REAR	8-97139-841-0	01	1	0309-			●
94	CYLINDER; WHEEL,RR BRK 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97139-842-0	02	1	0309-			●
94	CYLINDER; WHEEL,RR BRK 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> FRONT ID=30.16(1 3/16")	8-97139-814-0	01	1	0309-	●
94	CYLINDER; WHEEL,RR BRK 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> REAR ID=30.16(1 3/16")	8-97139-816-0	01	1	0309-	●
94	CYLINDER; WHEEL,RR BRK 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> ID=30.16(1 3/16")	8-97139-817-0	02	1	0309-	●
95	CUP SET; RR WHEEL CYL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	5-87831-598-0	02	1	0309-	●
95	CUP SET; RR WHEEL CYL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	5-87831-625-0	01	1	0309-		●
95	CUP SET; RR WHEEL CYL 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	5-87831-621-0	01	1	0309-			●
96	SCREW; BLEEDER,RR BRK FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	9-47615-027-0	01	1	0309-		●
96	SCREW; BLEEDER,RR BRK 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	9-47615-027-0	01	1	0309-			●
96	SCREW; BLEEDER,RR BRK 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	9-47615-027-0	01	1	0309-	●
97	CAP; BLEEDER,RR WHEEL CYL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	1-47619-009-0	01	1	0309-		●
97	CAP; BLEEDER,RR WHEEL CYL 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	1-47619-009-0	01	1	0309-			●
97	CAP; BLEEDER,RR WHEEL CYL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	1-47619-009-0	01	1	0309-	●
99	PISTON; RR WHEEL CYL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97081-149-0	03	1	0309-		●
99	PISTON; RR WHEEL CYL 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97078-698-0	03	1	0309-			●
99	PISTON; RR WHEEL CYL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94414-700-1	03	1	0309-	●
101	SCREW; ADJ,RR WHEEL CYL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97078-623-0	04	1	0309-		●
101	SCREW; ADJ,RR WHEEL CYL 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97078-623-0	04	1	0309-			●
101	SCREW; ADJ,RR WHEEL CYL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94414-702-0	04	1	0309-	●
102	PISTON; REAR WHEEL CYL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> (A) D=22.22	8-94128-533-1	04	1	0309-		●
102	PISTON; REAR WHEEL CYL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> (B)	8-97081-149-0	01	1	0309-		●
102	PISTON; REAR WHEEL CYL 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> (A) D=25.4	8-94128-531-1	04	1	0309-			●
102	PISTON; REAR WHEEL CYL 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> (B)	8-97078-698-0	01	1	0309-			●
102	PISTON; REAR WHEEL CYL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> (B)	8-94414-700-1	01	1	0309-	●
102	PISTON; REAR WHEEL CYL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> (A) D=30.16	8-94414-701-1	04	1	0309-	●
103	SPRING; LK,RR WHEEL CYL,ADJ FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-94128-486-0	04	1	0309-		●
103	SPRING; LK,RR WHEEL CYL,ADJ 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94128-486-0	04	1	0309-			●
103	SPRING; LK,RR WHEEL CYL,ADJ 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94128-486-0	04	1	0309-	●
110	SCREW; LOCK SPRING,RR WHEEL CYL FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-94128-727-0	04	1	0309-		●
110	SCREW; LOCK SPRING,RR WHEEL CYL 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-94128-727-0	04	1	0309-			●
110	SCREW; LOCK SPRING,RR WHEEL CYL 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-94128-727-0	04	1	0309-	●
124	SHOE ASM; BRK,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	8-97035-085-1	04	1	0309-		●
124	SHOE ASM; BRK,RR 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	8-97035-085-1	04	1	0309-			●
124	SHOE ASM; BRK,RR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	8-97287-778-0	04	1	0309-	●
136	GROMMET FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	9-09956-640-0	04	1	0309-		●
136	GROMMET 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	9-09956-640-0	04	1	0309-			●
136	GROMMET 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> THA	9-09756-034-0	04	1	0309-	●
217	LINING KIT; RR BRK 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	5-87831-801-0	01	1	0309-	●
218	SHOE KIT; BRK,RR FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>	5-87832-045-0	01	1	0309-		●
218	SHOE KIT; BRK,RR 4JB1 ENG<RLF> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42>	5-87832-045-0	01	1	0309-			●
218	SHOE KIT; BRK,RR 4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40>	5-87832-047-0	01	1	0309-	●
