2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#20003) — 151 parça

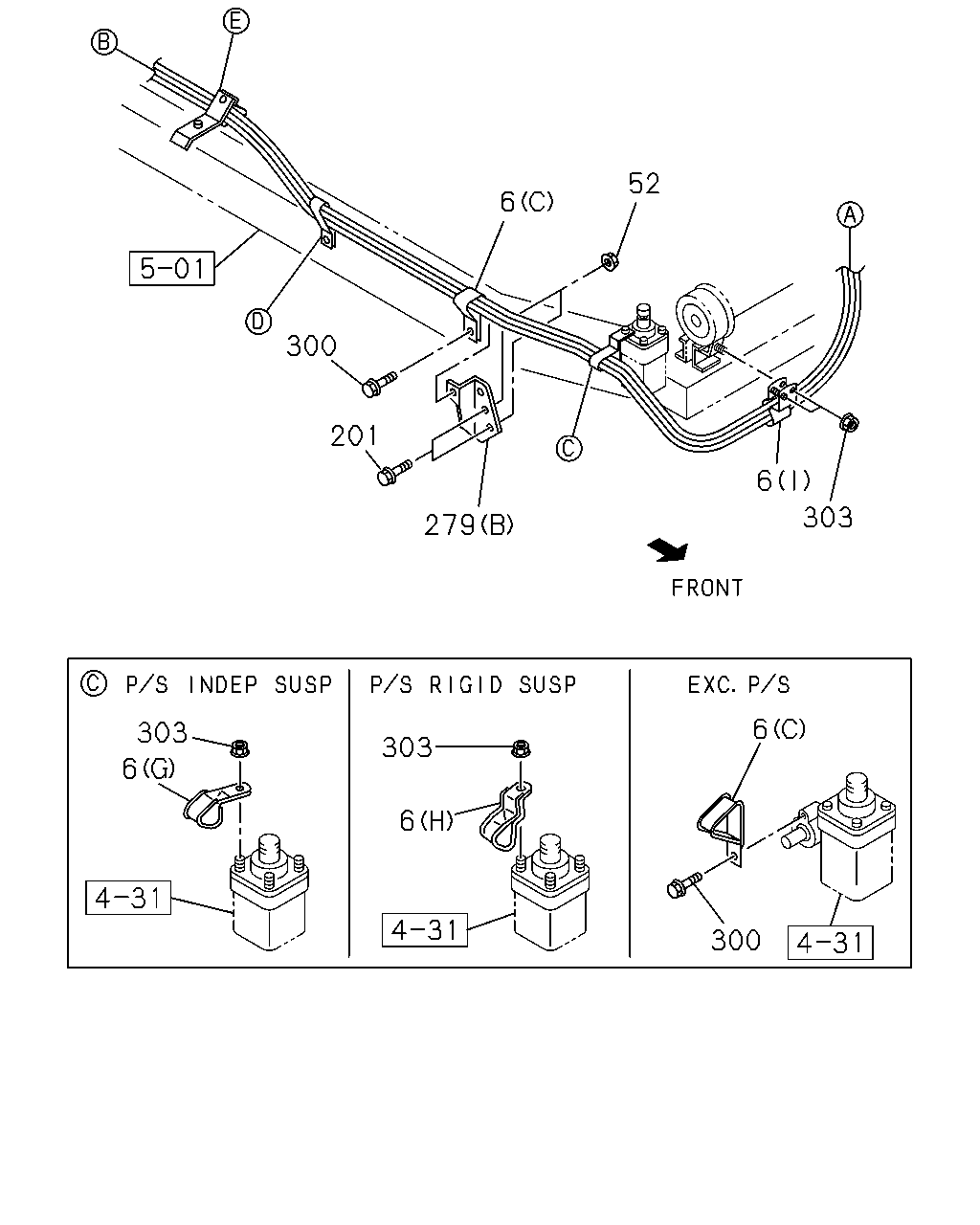

çizim 56104
52 6 300 201 6 303 279 6 303 303 6 6 300
BalonParca AdiParca NoAdetTipApplied Date A B C
6 CLIP; CABLE
(H) ID=19.2 		8-97211-011-0 02 1 0309- ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (C) 		8-97036-329-2 01 1 0309- ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (D) 		8-97036-332-1 01 1 0309- ● ●
6 CLIP; CABLE
(F) 		8-97011-448-0 02 1 0309- ● ● ●
6 CLIP; CABLE
(A) 		8-97147-985-0 01 1 0309- ● ● ●
6 CLIP; CABLE
POWER STEERING<N40> (B) 		8-97036-334-2 01 1 0309- ● ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (I) 		8-97036-333-1 01 1 0309- ● ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (I) 		8-97036-333-1 01 1 0309- ● ●
6 CLIP; CABLE
(E) ID=22.2 THA 		1-09701-209-1 01 1 0309- ●
6 CLIP; CABLE
(G) ID=19.2 		8-97211-011-0 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (K) 		8-97039-295-0 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (J) 		8-97039-296-1 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (A) 		8-97039-517-1 01 1 0309- ●
52 NUT; BRKT
4JB1 ENG<RLF> EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 02 1 0309- ● ●
178 JOINT; BALL,LINK ROD
L=45.5 		1-09760-118-1 01 1 0404- ● ●
201 BOLT; BRKT
4JB1 ENG<RLF> EXC. POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 02 1 0309- ● ●
201 BOLT; BRKT
4JB1 ENG<RLF> EXC. POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
201 BOLT; BRKT
4HG1 ENG<RJH> POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
279 BRACKET; CABLE TO FRAME
4JB1 ENG<RLF> EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0309- ● ●
279 BRACKET; CABLE TO FRAME
4JB1 ENG<RLF> EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0309- ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG<RJH> (D) 		8-97205-549-1 01 1 0309- ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG<RJH> POWER STEERING<N40> (A) 		8-97028-496-1 01 1 0309- ●
288 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 0404- ● ●
300 BOLT; CLIP
4JB1 ENG<RLF> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
300 BOLT; CLIP
4JB1 ENG<RLF> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
300 BOLT; CLIP
4JB1 ENG<RLF> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
300 BOLT; CLIP
4HG1 ENG<RJH> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
300 BOLT; CLIP
4HG1 ENG<RJH> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
300 BOLT; CLIP
4HG1 ENG<RJH> EXC. POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE 		0-28080-816-0 01 1 0309- ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0309- ● ● ●
303 NUT; CLIP
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0309- ● ● ●
303 NUT; CLIP
4JB1 ENG<RLF> M8 FLANGE 		0-91150-108-0 01 1 0309- ● ●
303 NUT; CLIP
4HG1 ENG<RJH> M8 FLANGE 		0-91150-108-0 01 1 0309- ●
303 NUT; CLIP
4HG1 ENG<RJH> EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0309- ●
422 NUT; CONT ROD TO LEVER 8-97373-729-0 01 1 0404- ● ●

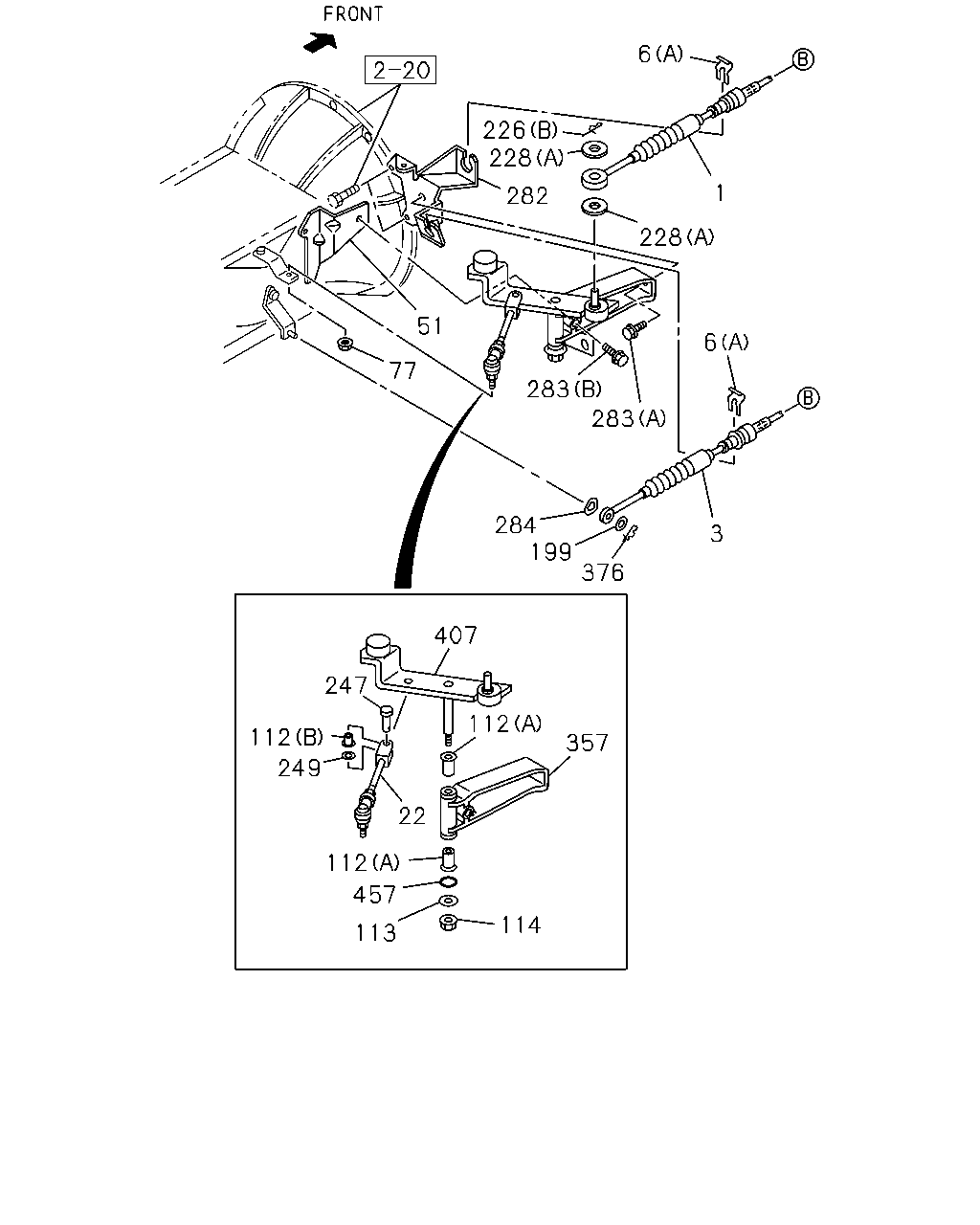

çizim 56326
6 226 228 1 282 228 51 6 77 283 283 284 199 3 376 407 247 112 112 357 249 22 112 457 114 113
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-1 01 1 0309- ● ●
1 CABLE; SHIFT,TRANS CONT
L=2855 		8-97361-330-1 01 1 0309- ●
3 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 0309- ● ●
3 CABLE; SELECT,TRANS CONT
L=2917 		8-97361-331-0 01 1 0309- ●
6 CLIP; CABLE
(H) ID=19.2 		8-97211-011-0 02 1 0309- ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (C) 		8-97036-329-2 01 1 0309- ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (D) 		8-97036-332-1 01 1 0309- ● ●
6 CLIP; CABLE
(F) 		8-97011-448-0 02 1 0309- ● ● ●
6 CLIP; CABLE
(A) 		8-97147-985-0 01 1 0309- ● ● ●
6 CLIP; CABLE
POWER STEERING<N40> (B) 		8-97036-334-2 01 1 0309- ● ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (I) 		8-97036-333-1 01 1 0309- ● ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (I) 		8-97036-333-1 01 1 0309- ● ●
6 CLIP; CABLE
(E) ID=22.2 THA 		1-09701-209-1 01 1 0309- ●
6 CLIP; CABLE
(G) ID=19.2 		8-97211-011-0 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (K) 		8-97039-295-0 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (J) 		8-97039-296-1 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (A) 		8-97039-517-1 01 1 0309- ●
22 ROD; CONT,SHIFT 8-97134-286-0 01 1 0309- ● ●
51 BRACKET; GEAR CONT
4JB1 ENG<RLF> 		8-97029-286-0 01 1 0309- ● ●
77 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 0309- ● ●
112 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 0309- ● ●
112 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 0309- ● ●
113 WASHER; RELAY LEVER
ID=10.5 OD=22 		9-09160-610-0 02 1 0309- ● ●
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 0309- ● ●
178 JOINT; BALL,LINK ROD
L=45.5 		1-09760-118-1 01 1 0404- ● ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 0309- ● ● ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 0309- ● ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0309- ● ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0309- ● ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 0309- ● ● ●
247 PIN; CONT ROD TO LEVER 8-97373-728-0 01 1 0404- ● ●
247 PIN; CONT ROD TO LEVER 9-09876-059-1 01 1 0309-0403 ● ●
249 WASHER; RUBBER,CONT ROD TO LEVER
ID=8.5 T=1.5 		9-09851-889-0 01 1 0309- ● ●
282 BRACKET; TRANS SIDE
4JB1 ENG<RLF> 		8-97034-142-1 01 1 0309- ● ●
282 BRACKET; TRANS SIDE
4HG1 ENG<RJH> 		8-97311-441-1 01 1 0309- ●
283 BOLT; RELAY LEVER
(A) M10X25 FLANGE 		0-28681-025-0 01 1 0309- ● ●
283 BOLT; RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 01 1 0309- ● ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0309- ● ● ●
288 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 0404- ● ●
357 BRACKET; RELAY LEVER 8-97182-166-0 01 1 0309- ● ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0309- ● ● ●
407 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 0309- ● ●
422 NUT; CONT ROD TO LEVER 8-97373-729-0 01 1 0404- ● ●
457 GASKET
ID=13.8 		9-09561-114-0 02 1 0309- ● ●

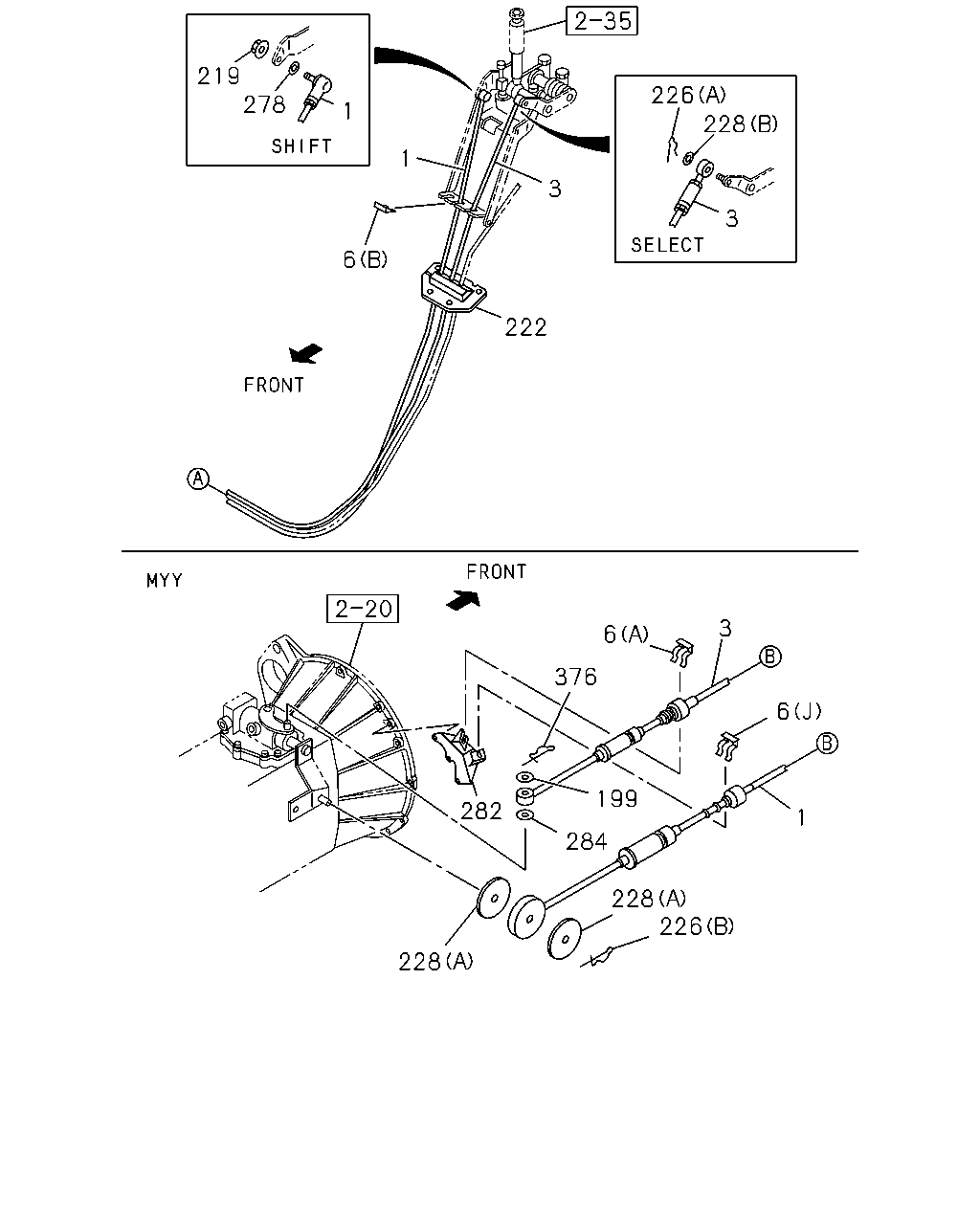

çizim 56632
219 278 226 228 1 1 3 3 6 222 3 6 376 6 199 282 1 284 228 226 228
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-1 01 1 0309- ● ●
1 CABLE; SHIFT,TRANS CONT
L=2855 		8-97361-330-1 01 1 0309- ●
3 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 0309- ● ●
3 CABLE; SELECT,TRANS CONT
L=2917 		8-97361-331-0 01 1 0309- ●
6 CLIP; CABLE
(H) ID=19.2 		8-97211-011-0 02 1 0309- ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (C) 		8-97036-329-2 01 1 0309- ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (D) 		8-97036-332-1 01 1 0309- ● ●
6 CLIP; CABLE
(F) 		8-97011-448-0 02 1 0309- ● ● ●
6 CLIP; CABLE
(A) 		8-97147-985-0 01 1 0309- ● ● ●
6 CLIP; CABLE
POWER STEERING<N40> (B) 		8-97036-334-2 01 1 0309- ● ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (I) 		8-97036-333-1 01 1 0309- ● ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (I) 		8-97036-333-1 01 1 0309- ● ●
6 CLIP; CABLE
(E) ID=22.2 THA 		1-09701-209-1 01 1 0309- ●
6 CLIP; CABLE
(G) ID=19.2 		8-97211-011-0 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (K) 		8-97039-295-0 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (J) 		8-97039-296-1 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (A) 		8-97039-517-1 01 1 0309- ●
178 JOINT; BALL,LINK ROD
L=45.5 		1-09760-118-1 01 1 0404- ● ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 0309- ● ● ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 0309- ● ● ●
222 GROMMET; CABLE 8-97061-403-2 01 1 0309- ● ● ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 0309- ● ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0309- ● ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0309- ● ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 0309- ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0309- ● ● ●
282 BRACKET; TRANS SIDE
4JB1 ENG<RLF> 		8-97034-142-1 01 1 0309- ● ●
282 BRACKET; TRANS SIDE
4HG1 ENG<RJH> 		8-97311-441-1 01 1 0309- ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0309- ● ● ●
288 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 0404- ● ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0309- ● ● ●
422 NUT; CONT ROD TO LEVER 8-97373-729-0 01 1 0404- ● ●
çizim 57894
6 6 300 300 203 6 300 474 279 279 201 201 303 6 300 6 303 203 279 201 303 488
BalonParca AdiParca NoAdetTipApplied Date A B C
6 CLIP; CABLE
(H) ID=19.2 		8-97211-011-0 02 1 0309- ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (C) 		8-97036-329-2 01 1 0309- ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (D) 		8-97036-332-1 01 1 0309- ● ●
6 CLIP; CABLE
(F) 		8-97011-448-0 02 1 0309- ● ● ●
6 CLIP; CABLE
(A) 		8-97147-985-0 01 1 0309- ● ● ●
6 CLIP; CABLE
POWER STEERING<N40> (B) 		8-97036-334-2 01 1 0309- ● ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (I) 		8-97036-333-1 01 1 0309- ● ● ●
6 CLIP; CABLE
4JB1 ENG<RLF> (I) 		8-97036-333-1 01 1 0309- ● ●
6 CLIP; CABLE
(E) ID=22.2 THA 		1-09701-209-1 01 1 0309- ●
6 CLIP; CABLE
(G) ID=19.2 		8-97211-011-0 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (K) 		8-97039-295-0 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (J) 		8-97039-296-1 01 1 0309- ●
6 CLIP; CABLE
4HG1 ENG<RJH> (A) 		8-97039-517-1 01 1 0309- ●
178 JOINT; BALL,LINK ROD
L=45.5 		1-09760-118-1 01 1 0404- ● ●
201 BOLT; BRKT
4JB1 ENG<RLF> EXC. POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 02 1 0309- ● ●
201 BOLT; BRKT
4JB1 ENG<RLF> EXC. POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
201 BOLT; BRKT
4HG1 ENG<RJH> POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
203 NUT; BRKT FIX
4JB1 ENG<RLF> EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0309- ● ●
203 NUT; BRKT FIX
4HG1 ENG<RJH> POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0309- ●
279 BRACKET; CABLE TO FRAME
4JB1 ENG<RLF> EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0309- ● ●
279 BRACKET; CABLE TO FRAME
4JB1 ENG<RLF> EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0309- ● ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG<RJH> (D) 		8-97205-549-1 01 1 0309- ●
279 BRACKET; CABLE TO FRAME
4HG1 ENG<RJH> POWER STEERING<N40> (A) 		8-97028-496-1 01 1 0309- ●
288 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 0404- ● ●
300 BOLT; CLIP
4JB1 ENG<RLF> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
300 BOLT; CLIP
4JB1 ENG<RLF> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
300 BOLT; CLIP
4JB1 ENG<RLF> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ● ●
300 BOLT; CLIP
4HG1 ENG<RJH> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
300 BOLT; CLIP
4HG1 ENG<RJH> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
300 BOLT; CLIP
4HG1 ENG<RJH> EXC. POWER STEERING<N40> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE 		0-28080-816-0 01 1 0309- ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0309- ● ● ●
303 NUT; CLIP
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0309- ● ● ●
303 NUT; CLIP
4JB1 ENG<RLF> M8 FLANGE 		0-91150-108-0 01 1 0309- ● ●
303 NUT; CLIP
4HG1 ENG<RJH> M8 FLANGE 		0-91150-108-0 01 1 0309- ●
303 NUT; CLIP
4HG1 ENG<RJH> EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0309- ●
422 NUT; CONT ROD TO LEVER 8-97373-729-0 01 1 0404- ● ●
474 BOLT; BRKT
4HG1 ENG<RJH> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
488 NUT; CABLE
4HG1 ENG<RJH> M8 FLANGE 		0-91150-108-0 01 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
