Isuzu WW
▶
TRUCKS
▶
NKR
▶
50970 - NKR(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

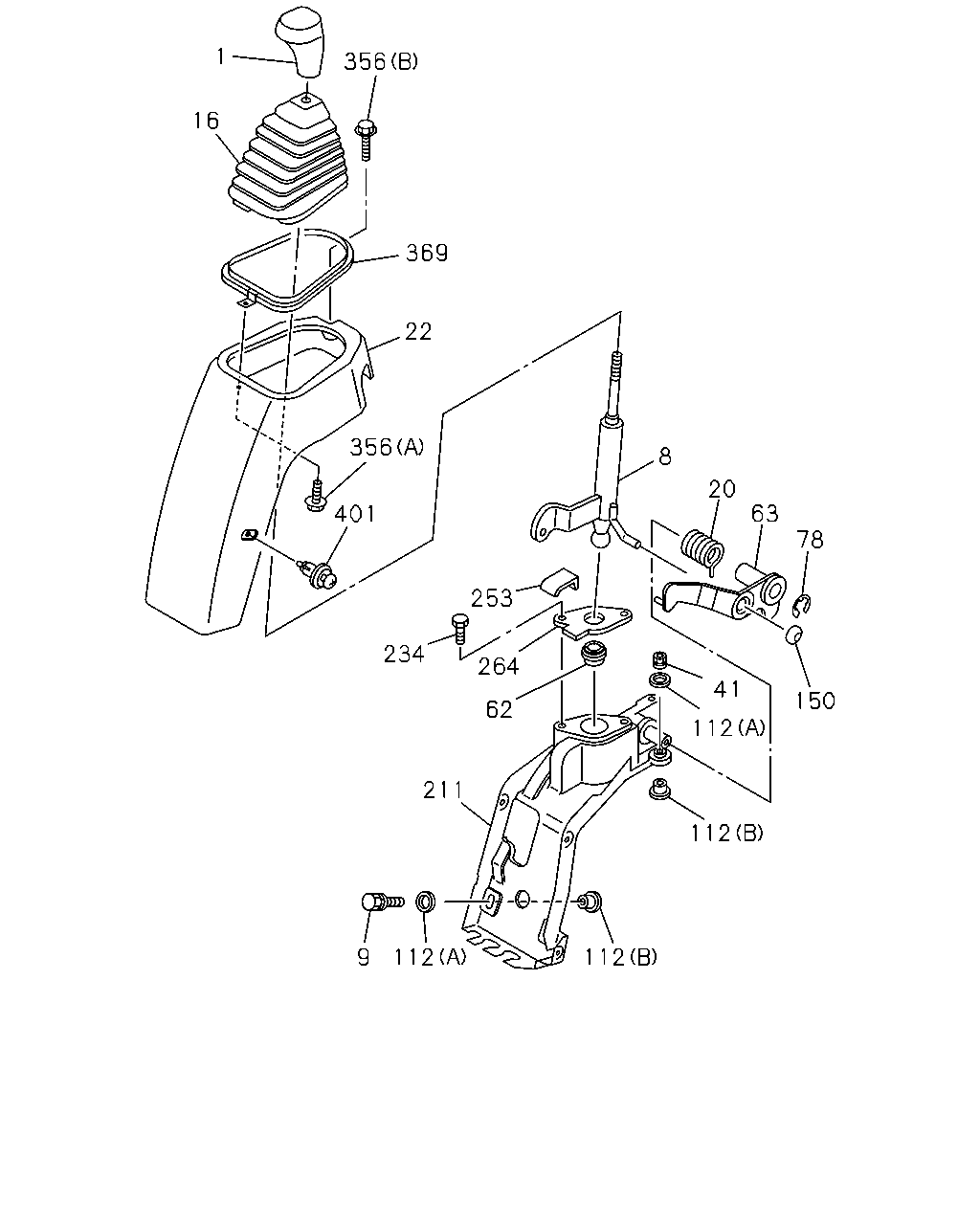

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#20002) — 23 parça
Tümü
A - M/T MSB5S
B - M/T MSB5M
C - M/T MYY5T
1
356
16
369
22
356
8
20
63
401
78
253
234
264
41
150
62
112
211
112
9
112
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
KNOB; CHANGE LEVER
THA
8-97922-340-0
01
1
0309-
●
●
1
KNOB; CHANGE LEVER
THA
8-97922-341-0
01
1
0309-
●
8
LEVER; CHANGE
8-97204-506-0
01
1
0309-
●
●
●
9
BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER
8-94438-324-1
02
1
0309-
●
●
●
16
BOOT; CHANGE LEVER
8-97066-287-2
01
1
0309-
●
●
●
20
SPRING; CHANGE LEVER
8-97204-514-1
01
1
0309-
●
●
●
22
COVER; DUST,CHANGE LEVER
DARK GRAY
8-94351-595-1
01
1
0309-
●
●
●
41
NUT; CHANGE LEVER
M8 FLANGE
8-97046-127-0
02
1
0309-
●
●
●
62
SEAT; BALL,CHANGE LEVER
8-97011-895-1
01
1
0309-
●
●
●
63
LEVER; RELAY,SELECT
8-97143-199-0
01
1
0309-
●
●
●
78
RING; SNAP,CHANGE LEVER
ID=10
9-09185-410-0
01
1
0309-
●
●
●
112
RUBBER; CUSHION
(A)
8-97091-426-0
04
1
0309-
●
●
●
112
RUBBER; CUSHION
(B)
8-97091-427-0
04
1
0309-
●
●
●
150
BALL; DETENT,CONT LEVER
8-97049-147-0
01
1
0309-
●
●
●
211
BRACKET; CHANGE LEVER
8-97204-505-1
01
1
0309-
●
●
●
234
BOLT; BRKT
8-97204-512-0
02
1
0309-0310
●
●
●
234
BOLT; BRKT
M6X12 FLANGE
1-33739-842-0
02
1
0311-
●
●
●
253
STOPPER; CHANGE LEVER
8-97204-510-0
01
1
0309-
●
●
●
264
PLATE; COVER
8-97204-511-0
01
1
0309-
●
●
●
356
SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER
0-74100-514-0
01
1
0309-
●
●
●
356
SCREW; COVER
(B) M6X12
8-97094-854-0
01
1
0309-
●
●
●
369
RETAINER; REINF
8-97066-288-1
01
1
0309-
●
●
●
401
CLIP; COVER
DARK GRAY
8-97098-523-0
03
1
0309-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
