2-30 — GEAR SHIFTER AND QUADRANT BOX (#20001) — 133 parça

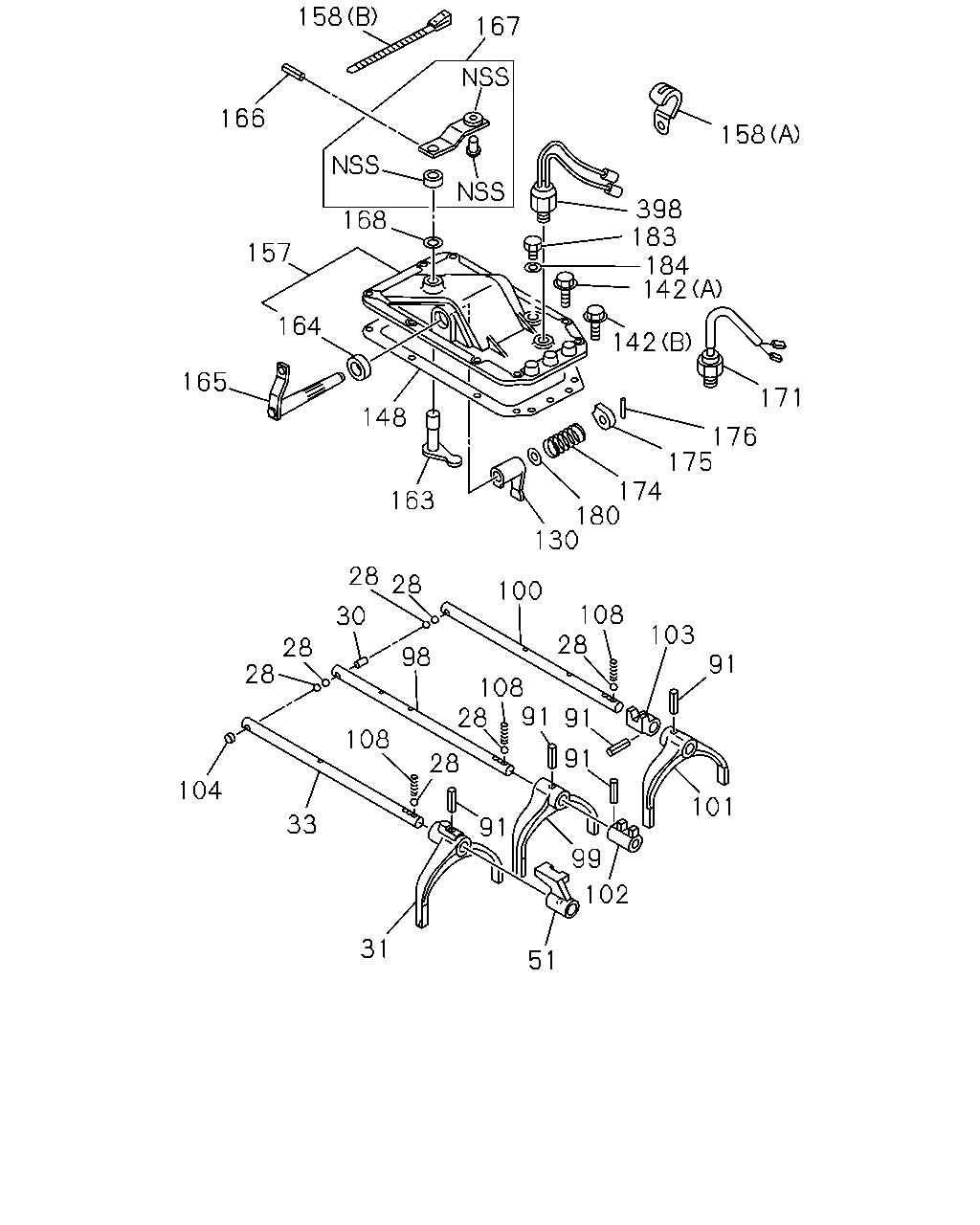

158 167 166 158 398 183 184 142 168 157 164 142 165 171 148 176 175 174 180 130 163 28 28 100 108 28 30 103 28 28 98 91 108 91 108 91 28 104 101 99 33 91 102 31 51 28 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
28	BALL; INTER LK 4JB1 ENG<RLF>	9-00097-010-0	07	1	0309-	●	●
30	PIN; INTER LK 4JB1 ENG<RLF>	5-33534-001-0	01	1	0309-	●	●
31	ARM; SHIFT,LOW & 2ND 4JB1 ENG<RLF>	8-97011-365-1	01	1	0309-	●	●
33	ROD; SHIFT,LOW & 2ND 4JB1 ENG<RLF>	8-97011-370-1	01	1	0309-	●	●
51	BLOCK; SHIFT,1ST & 2ND 4JB1 ENG<RLF>	8-97022-837-2	01	1	0309-	●	●
91	PIN; SPR,SHIFT ARM 4JB1 ENG<RLF> L=25 OD=5	8-94135-771-0	06	1	0309-	●	●
98	ROD; SHIFT,TOP & 3RD 4JB1 ENG<RLF>	8-97011-371-1	01	1	0309-	●	●
99	ARM; SHIFT,4TH & 3RD 4JB1 ENG<RLF>	8-97011-366-1	01	1	0309-	●	●
100	ROD; SHIFT,REV & 5TH 4JB1 ENG<RLF>	8-94316-923-0	01	1	0309-	●	●
101	ARM; SHIFT,REV & 5TH 4JB1 ENG<RLF>	8-97107-545-0	01	1	0309-	●	●
102	BLOCK; SHIFT,3RD & 4TH 4JB1 ENG<RLF>	8-97017-573-1	01	1	0309-	●	●
103	BLOCK; SHIFT,REV TO OD 4JB1 ENG<RLF>	8-94135-719-4	01	1	0309-	●	●
104	PLUG; PLATE 4JB1 ENG<RLF> OD=16	9-09201-316-0	01	1	0309-0409		●
104	PLUG; PLATE 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8> OD=16	9-09201-316-0	01	1	0309-0409	●
104	PLUG; PLATE 4JB1 ENG<RLF> OD=16	9-09201-316-0	01	1	0410-		●
104	PLUG; PLATE 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8> OD=16	9-09201-316-0	01	1	0410-	●
104	PLUG; PLATE 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> OD=16	9-09201-316-0	01	1	0410-	●
108	SPRING; LOCK BALL 4JB1 ENG<RLF> OD=6.8 L=31.6	9-09740-114-0	03	1	0309-	●	●
130	LEVER; SHIFT,INTERNAL 4JB1 ENG<RLF>	8-94105-141-2	01	1	0309-	●	●
130	LEVER; SHIFT,INTERNAL 4HG1 ENG<RJH>	8-97306-647-0	01	1	0309-			●
142	BOLT; QUAD BOX 4JB1 ENG<RLF> (A) M8X25	8-94128-786-0	08	1	0309-	●	●
142	BOLT; QUAD BOX 4JB1 ENG<RLF> (B) M8X30	8-97029-705-0	02	1	0309-	●	●
142	BOLT; QUAD BOX 4HG1 ENG<RJH> (C) M8X22 FLANGE	8-94448-815-3	04	1	0309-			●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF>	8-94257-162-0	01	1	0309-	●	●
157	BOX; QUAD,TRANS 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	0309-0409	●	●
157	BOX; QUAD,TRANS 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	0410-	●	●
157	BOX; QUAD,TRANS 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	0410-	●	●
157	BOX; QUAD,TRANS 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	0309-0409	●	●
157	BOX; QUAD,TRANS 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-94340-146-0	01	1	0410-	●	●
158	CLIP; HARNESS 4JB1 ENG<RLF> (A) ID=8.5 THA	5-09700-275-0	01	1	0309-	●	●
158	CLIP; HARNESS 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (B) L=140	5-09707-031-1	01	1	0309-0409	●	●
158	CLIP; HARNESS 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> L=140	5-09707-031-1	01	1	0410-	●	●
158	CLIP; HARNESS 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> L=140	5-09707-031-1	01	1	0410-	●	●
160	PLUG; BLIND 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> M14X9	9-99202-314-0	01	1	0410-	●	●
163	LEVER; SELECT,INTERNAL 4JB1 ENG<RLF>	8-94159-268-1	01	1	0309-	●	●
163	LEVER; SELECT,INTERNAL 4HG1 ENG<RJH>	8-97305-663-0	01	1	0309-			●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> OD=27	8-97304-068-0	02	1	0309-	●	●
165	LEVER; SHIFT 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	0309-0409	●	●
165	LEVER; SHIFT 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	0410-	●	●
165	LEVER; SHIFT 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	0410-	●	●
165	LEVER; SHIFT 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	0309-0409	●	●
165	LEVER; SHIFT 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97035-557-0	01	1	0410-	●	●
166	PIN; SPR,SELECT LEVER 4JB1 ENG<RLF> L=25 OD=5	8-94135-771-0	01	1	0309-	●	●
167	LEVER; SELECT,EXTERNAL 4JB1 ENG<RLF>	8-97035-560-1	01	1	0309-	●	●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG<RJH>	8-97306-648-0	01	1	0309-			●
168	WASHER; LK,SELECT LEVER 4JB1 ENG<RLF>	8-94249-250-1	01	1	0309-	●	●
171	SWITCH; NEUTRAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0309-	●	●
171	SWITCH; NEUTRAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97316-688-1	01	1	0309-			●
174	SPRING; REV 4JB1 ENG<RLF>	8-97031-927-0	01	1	0309-	●	●
175	RING; STOPPER,SHIFT LEVER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	0309-0409	●	●
175	RING; STOPPER,SHIFT LEVER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	0410-	●	●
175	RING; STOPPER,SHIFT LEVER 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	0410-	●	●
176	PIN; SPR,STOPPER 4JB1 ENG<RLF>	9-09678-549-0	02	1	0309-0409		●
176	PIN; SPR,STOPPER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	9-09678-549-0	02	1	0309-0409	●
176	PIN; SPR,STOPPER 4JB1 ENG<RLF>	9-09678-549-0	02	1	0410-		●
176	PIN; SPR,STOPPER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	9-09678-549-0	02	1	0410-	●
176	PIN; SPR,STOPPER 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	9-09678-549-0	02	1	0410-	●
176	PIN; SPR,STOPPER 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	9-09678-549-0	01	1	0309-0409	●
176	PIN; SPR,STOPPER 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	9-09678-549-0	01	1	0410-	●
177	GASKET; CONT BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> ID=14.2 OD=20.0	9-09571-414-0	01	1	0410-	●	●
180	WASHER; REV STOP SPRING 4JB1 ENG<RLF>	8-94249-244-0	01	1	0309-	●	●
183	PLUG; SCREW,OIL FILTER 4JB1 ENG<RLF> M18	8-94337-946-1	01	1	0309-	●	●
184	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> ID=15.3	8-94336-511-0	01	1	0309-	●	●
398	SWITCH; REV LAMP 4JB1 ENG<RLF>	8-97165-947-1	01	1	0309-	●	●
398	SWITCH; REV LAMP 4HG1 ENG<RJH>	8-97316-688-1	01	1	0309-			●
645	DETENT ASM 4HG1 ENG<RJH>	8-97241-341-0	01	1	0405-			●

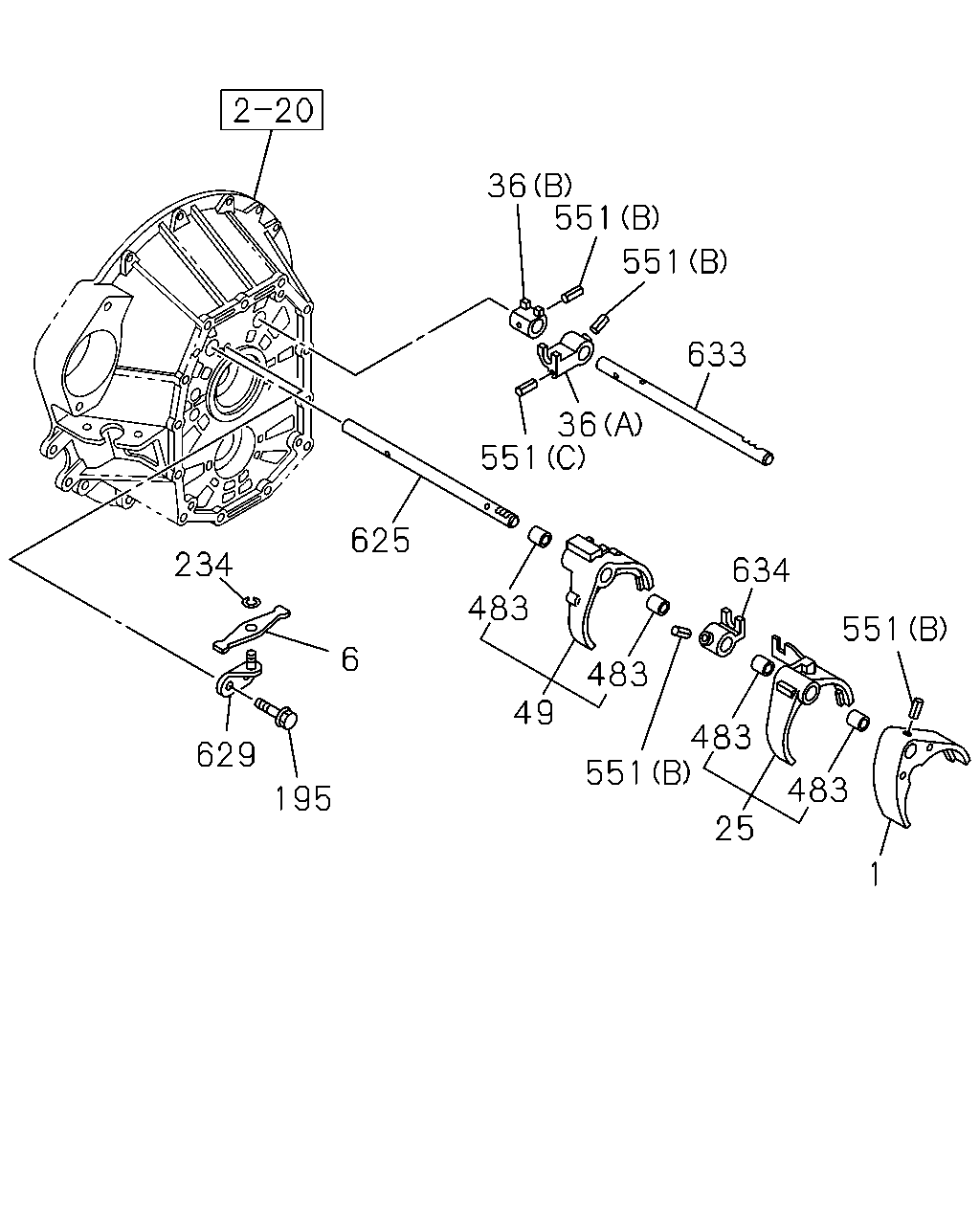

36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV 4HG1 ENG<RJH>	8-97241-320-2	01	1	0309-			●
6	LEVER; RELAY 4HG1 ENG<RJH>	8-97241-344-0	01	1	0309-			●
25	ARM; SHIFT,2ND & 3RD 4HG1 ENG<RJH>	8-97355-690-0	01	1	0309-0404			●
25	ARM; SHIFT,2ND & 3RD 4HG1 ENG<RJH>	8-97362-731-1	01	1	0405-			●
36	BLOCK; SHIFT,4TH & 5TH 4HG1 ENG<RJH> (A)	8-97241-329-1	01	1	0309-			●
36	BLOCK; SHIFT,4TH & 5TH 4HG1 ENG<RJH> (B)	8-97241-330-0	01	1	0309-			●
49	ARM; SHIFT,4TH & 5TH 4HG1 ENG<RJH>	8-97258-716-0	01	1	0309-			●
160	PLUG; BLIND 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> M14X9	9-99202-314-0	01	1	0410-	●	●
177	GASKET; CONT BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> ID=14.2 OD=20.0	9-09571-414-0	01	1	0410-	●	●
195	BOLT 4HG1 ENG<RJH> M10X28 FLANGE REAMER	1-09040-089-1	02	1	0309-			●
234	RING; SNAP 4HG1 ENG<RJH> ID=12	8-94460-357-0	01	1	0309-			●
483	BUSHING; SHIFT ARM 4HG1 ENG<RJH>	8-97241-326-2	04	1	0309-			●
551	PIN; SPRING 4HG1 ENG<RJH> (A) L=17	1-09748-032-0	01	1	0309-			●
551	PIN; SPRING 4HG1 ENG<RJH> (B) L=32	8-97011-596-2	04	1	0309-			●
551	PIN; SPRING 4HG1 ENG<RJH> (C) L=20	8-97241-340-0	01	1	0309-			●
625	ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 4HG1 ENG<RJH>	8-97241-333-3	01	1	0309-0404			●
625	ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 4HG1 ENG<RJH>	8-97362-741-0	01	1	0405-			●
629	BRIDGE; LEVER 4HG1 ENG<RJH>	8-97237-107-1	01	1	0309-			●
633	ROD; GEAR SHIFT,4TH,5TH 4HG1 ENG<RJH>	8-97358-832-0	01	1	0309-0404			●
633	ROD; GEAR SHIFT,4TH,5TH 4HG1 ENG<RJH>	8-97362-743-0	01	1	0405-			●
634	BLOCK; SHIFT,LOW,REV 4HG1 ENG<RJH>	8-97241-327-1	01	1	0309-			●
645	DETENT ASM 4HG1 ENG<RJH>	8-97241-341-0	01	1	0405-			●

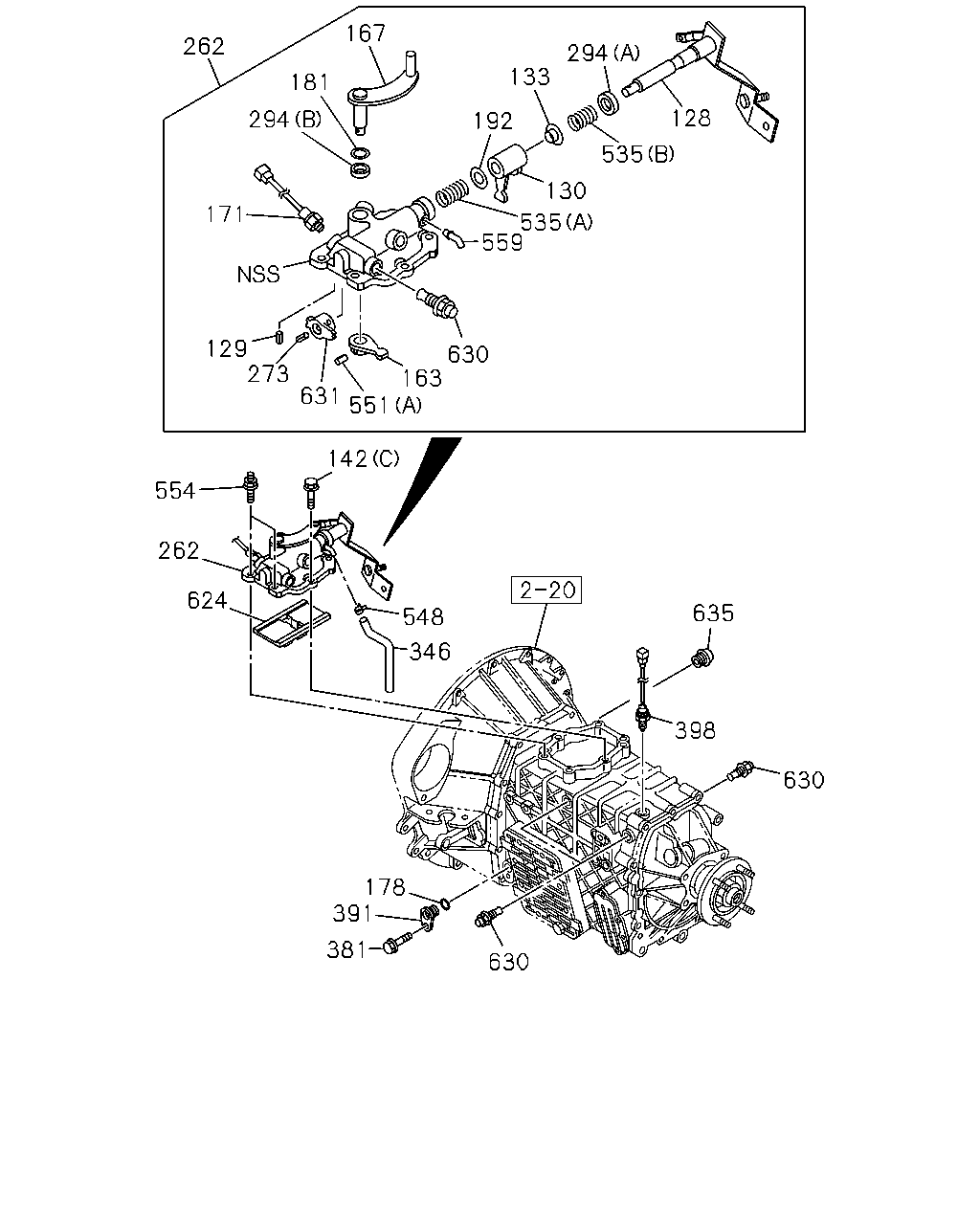

167 262 294 133 181 128 294 192 535 130 171 535 559 129 273 630 163 551 631 142 554 262 624 635 548 346 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
128	LEVER; SHIFT,EXTERNAL 4HG1 ENG<RJH>	8-97305-725-0	01	1	0309-			●
129	PIN; SPR,SHIFT 4HG1 ENG<RJH> D=4	1-09748-031-0	01	1	0309-			●
130	LEVER; SHIFT,INTERNAL 4JB1 ENG<RLF>	8-94105-141-2	01	1	0309-	●	●
130	LEVER; SHIFT,INTERNAL 4HG1 ENG<RJH>	8-97306-647-0	01	1	0309-			●
133	SEAT; SPR 4HG1 ENG<RJH>	8-97305-667-0	01	1	0309-			●
142	BOLT; QUAD BOX 4JB1 ENG<RLF> (A) M8X25	8-94128-786-0	08	1	0309-	●	●
142	BOLT; QUAD BOX 4JB1 ENG<RLF> (B) M8X30	8-97029-705-0	02	1	0309-	●	●
142	BOLT; QUAD BOX 4HG1 ENG<RJH> (C) M8X22 FLANGE	8-94448-815-3	04	1	0309-			●
160	PLUG; BLIND 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> M14X9	9-99202-314-0	01	1	0410-	●	●
163	LEVER; SELECT,INTERNAL 4JB1 ENG<RLF>	8-94159-268-1	01	1	0309-	●	●
163	LEVER; SELECT,INTERNAL 4HG1 ENG<RJH>	8-97305-663-0	01	1	0309-			●
167	LEVER; SELECT,EXTERNAL 4JB1 ENG<RLF>	8-97035-560-1	01	1	0309-	●	●
167	LEVER; SELECT,EXTERNAL 4HG1 ENG<RJH>	8-97306-648-0	01	1	0309-			●
171	SWITCH; NEUTRAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0309-	●	●
171	SWITCH; NEUTRAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97316-688-1	01	1	0309-			●
177	GASKET; CONT BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> ID=14.2 OD=20.0	9-09571-414-0	01	1	0410-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH>	9-09567-113-0	01	1	0309-			●
181	WASHER; PL,SELECT LEVER 4HG1 ENG<RJH>	8-97367-327-0	01	1	0309-			●
192	WASHER; PL 4HG1 ENG<RJH>	8-97305-661-0	01	1	0309-			●
262	BOX ASM; SHIFT CONT 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97256-825-7	01	1	0309-0404			●
262	BOX ASM; SHIFT CONT 4HG1 ENG<RJH> EXHAUST BRAKE<NF8>	8-97362-750-1	01	1	0405-			●
262	BOX ASM; SHIFT CONT 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8>	8-97352-015-0	01	1	0309-0404			●
262	BOX ASM; SHIFT CONT 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8>	8-97362-755-1	01	1	0405-			●
273	PIN; SPR,STOPPER 4HG1 ENG<RJH> D=4.2 L=25	8-97103-142-0	01	1	0309-			●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH> (B)	8-97305-662-0	01	1	0309-			●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH> (A)	8-97363-225-0	01	1	0309-			●
346	HOSE; AIR 4HG1 ENG<RJH>	8-97309-855-0	01	1	0309-			●
381	BOLT 4HG1 ENG<RJH> M6X16 FLANGE	0-28680-616-0	01	1	0309-			●
391	PLUG; SW HOLE 4HG1 ENG<RJH>	8-97300-273-1	01	1	0309-			●
398	SWITCH; REV LAMP 4JB1 ENG<RLF>	8-97165-947-1	01	1	0309-	●	●
398	SWITCH; REV LAMP 4HG1 ENG<RJH>	8-97316-688-1	01	1	0309-			●
535	SPRING; LEVER 4HG1 ENG<RJH> (A)	8-97323-771-0	01	1	0309-			●
535	SPRING; LEVER 4HG1 ENG<RJH> (B)	8-97323-772-0	01	1	0309-			●
548	CLIP; HOSE 4HG1 ENG<RJH>	8-97031-674-0	01	1	0309-			●
551	PIN; SPRING 4HG1 ENG<RJH> (A) L=17	1-09748-032-0	01	1	0309-			●
551	PIN; SPRING 4HG1 ENG<RJH> (B) L=32	8-97011-596-2	04	1	0309-			●
551	PIN; SPRING 4HG1 ENG<RJH> (C) L=20	8-97241-340-0	01	1	0309-			●
554	STUD; CONT BOX 4HG1 ENG<RJH> M8X15,M8X25 L=49	8-97352-677-0	02	1	0309-			●
559	PIPE; BREATHER 4HG1 ENG<RJH>	8-97305-517-0	01	1	0309-			●
624	PLATE; INTER LOCK 4HG1 ENG<RJH>	8-97241-317-2	01	1	0309-			●
630	DETENT ASM 4HG1 ENG<RJH>	8-97241-341-0	03	1	0309-0512			●
630	DETENT ASM 4HG1 ENG<RJH>	8-98019-536-0	03	1	0601-			●
631	STOPPER; SPRING 4HG1 ENG<RJH>	8-97305-666-0	01	1	0309-			●
635	PLUG; DETENT 4HG1 ENG<RJH>	8-97229-313-2	01	1	0309-			●
645	DETENT ASM 4HG1 ENG<RJH>	8-97241-341-0	01	1	0405-			●
