◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85B - POWER TAKE OFF CONTROL ▶
2-85B — POWER TAKE OFF CONTROL (#20) — 19 parça

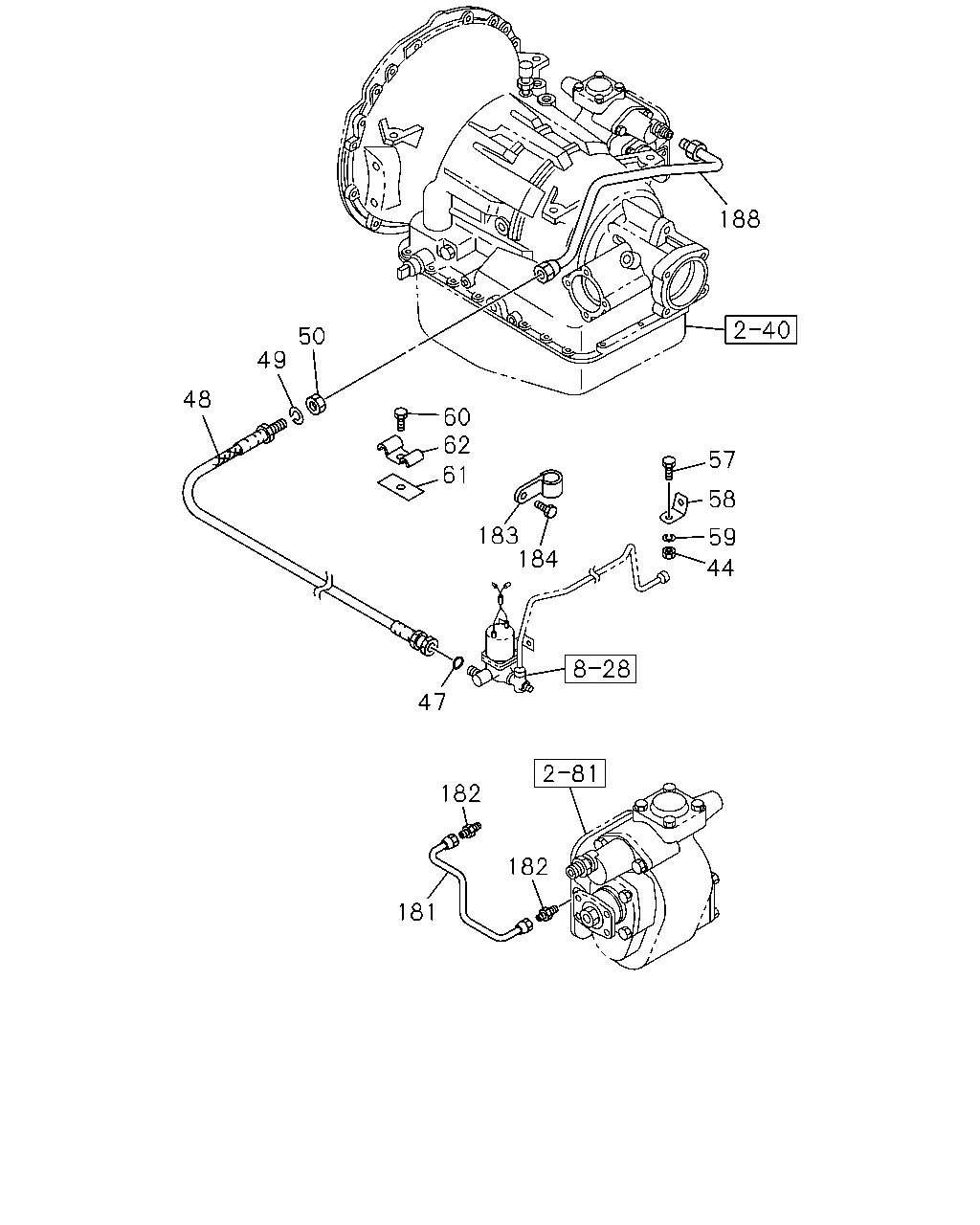

çizim 92959
188 50 49 48 60 62 57 61 58 183 184 59 44 47 182 182 181
BalonParca AdiParca NoAdetTipApplied Date A B
44 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M14 		9-99111-414-0 01 1 9202- ● ●
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 01 1 9202- ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=400 		0-07120-400-0 01 1 9202- ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=500 		0-07120-500-0 01 1 9202- ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		9-09150-512-0 01 1 9202- ● ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 9202- ● ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M14X45 		9-92041-445-0 01 1 9202-9204 ● ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M14X45 		0-20801-445-0 01 1 9205- ● ●
58 BRACKET; PTO AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47475-677-0 01 1 9202- ● ●
59 WASHER; LK,BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2 		9-09150-514-0 01 1 9202- ● ●
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9202-9204 ● ●
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205- ● ●
61 BRACKET; AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 W/NUT 		1-47475-729-0 01 1 9202- ● ●
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=7 & 7 L=15 & 15 		1-09700-652-0 01 1 9202- ● ●
181 PIPE ASM; OIL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-21111-359-0 01 1 9202- ● ●
182 CONNECTOR; FLARE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 9202- ● ●
183 CLIP; OIL PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09701-108-0 01 1 9202- ● ●
184 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) 7/16"X30 		1-09087-010-0 01 1 9202- ● ●
188 PIPE; AIR,FLEX HOSE TO AIR CYL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47448-671-0 01 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
