Sayfa 2-20 - Isuzu EPC

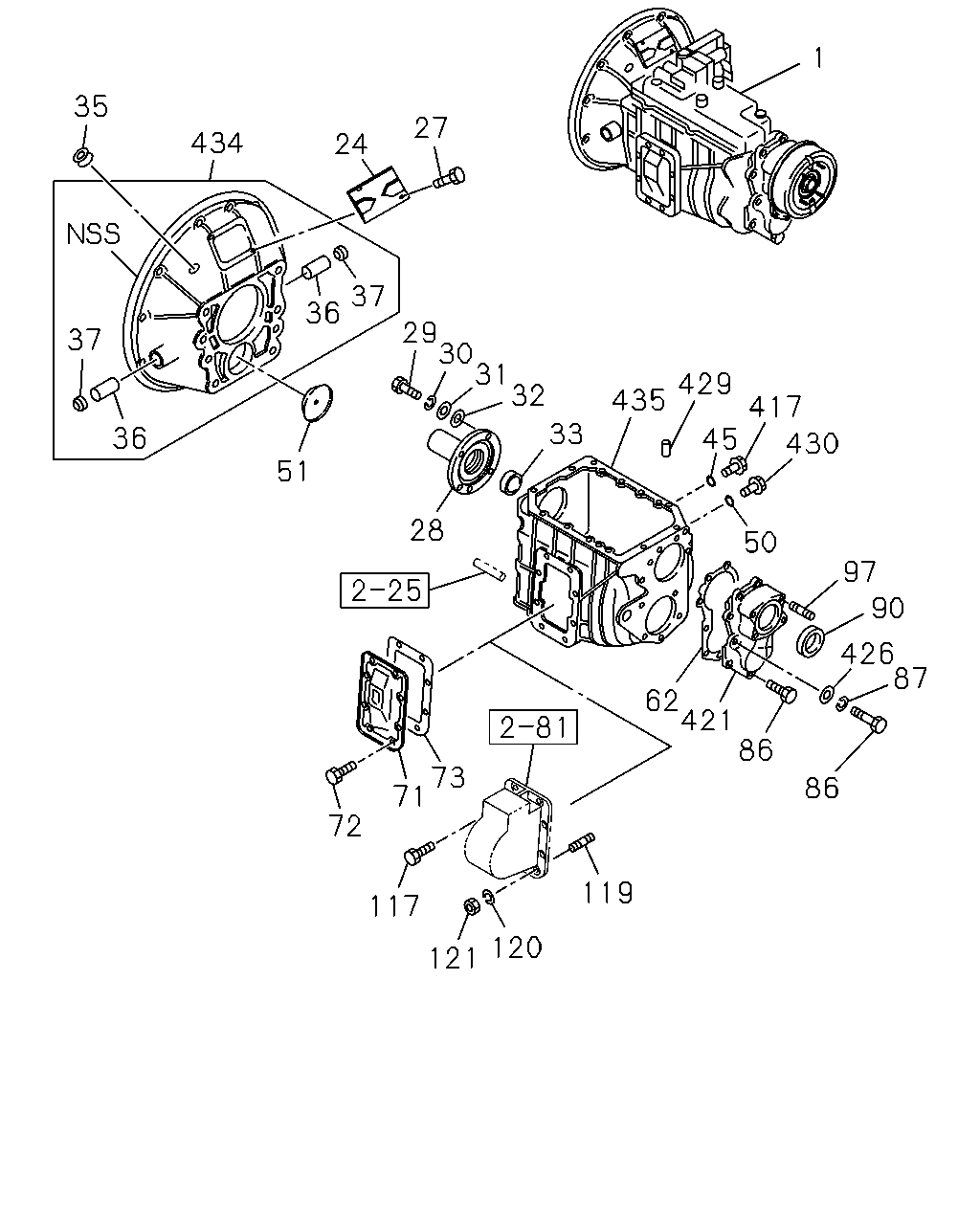

2-20 — MANUAL TRANSMISSION ASM AND CASE (#2) — 220 parça

1 35 27 434 24 37 36 29 30 31 32 37 429 435 417 45 33 36 430 51 28 50 97 90 426 87 62 421 86 73 71 86 72 119 117 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) EXC. 14"SPICER CLUTCH(SFF),13" CLUTCH(WD4)	1-33032-757-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 13" CLUTCH(WD4) P30 PROP SHAFT(B2F)	1-33032-493-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 14"SPICER CLUTCH(SFF) P30 PROP SHAFT(B2F)	1-33032-845-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 14"SPICER CLUTCH(SFF) P46 PROP SHAFT(C4Z)	1-33032-933-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) EXC. PARKING BRAKE DRUM 8.5"(B1S),14"SPICER CLUTCH(SFF),13" CLUTCH(WD4)	1-33032-768-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 13" CLUTCH(WD4) P30 PROP SHAFT(B2F) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-504-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) P30 PROP SHAFT(B2F) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-856-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) P46 PROP SHAFT(C4Z) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-944-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S)	1-33033-286-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 8.5"(B1S),14"SPICER CLUTCH(SFF)	1-33033-297-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-473-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) EXC. 14"SPICER CLUTCH(SFF),13" CLUTCH(WD4)	1-33033-682-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 13" CLUTCH(WD4) P30 PROP SHAFT(B2F)	1-33033-550-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) EXC. PARKING BRAKE DRUM 8.5"(B1S),14"SPICER CLUTCH(SFF),13" CLUTCH(WD4)	1-33033-693-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 13" CLUTCH(WD4) P30 PROP SHAFT(B2F) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-561-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) P30 PROP SHAFT(B2F) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-737-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) P46 PROP SHAFT(C4Z) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-781-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) ASSISTER SHIFT CONTROL<WX8> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. 14"SPICER CLUTCH(SFF)	1-33033-932-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) ASSISTER SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 14"SPICER CLUTCH(SFF)	1-33033-919-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14"SPICER CLUTCH(SFF) ASSISTER SHIFT CONTROL<WX8>	1-33033-828-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. 14"SPICER CLUTCH(SFF),ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 14"SPICER CLUTCH(SFF),ASSISTER SHIFT CONTROL<WX8>	1-33033-971-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R)	1-33033-974-0	01	1	9405-				●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF)	1-33032-178-0	01	1	9202-					●
1	TRANSMISSION ASM; MANUAL EXC. 14"SPICER CLUTCH(SFF)	1-33040-288-0	01	1	9405-					●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-	●	●	●	●	●
28	COVER; FRT,TRANS CASE 14"SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-33121-079-0	01	1	9202-	●	●	●
28	COVER; FRT,TRANS CASE 13" CLUTCH(WD4)	1-33121-078-0	01	1	9202-	●		●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-				●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●	●	●	●	●
29	BOLT; FRT COVER	1-09040-089-0	04	1	9206-	●	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9202-9306	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-				●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9405	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9202-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402				●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-				●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9202-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33112-014-1	01	1	9202-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-				●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9202-	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-				●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●	●	●
86	BOLT; RR COVER M10X60	9-01656-060-0	02	1	9202-9205	●	●
86	BOLT; RR COVER M10X25	1-09044-080-0	07	1	9206-	●	●
86	BOLT; RR COVER M10X30	9-01931-030-0	07	1	9202-9205	●	●
86	BOLT; RR COVER M10X32	1-09033-009-0	08	1	9202-9205			●
86	BOLT; RR COVER M10X25	1-09044-080-0	08	1	9206-			●
86	BOLT; RR COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X50	1-09033-011-0	02	1	9202-9205			●
86	BOLT; RR COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X16	1-09044-082-0	02	1	9206-			●
86	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X55	1-09020-135-0	02	1	9202-9205			●
86	BOLT; RR COVER M10X55	1-09044-083-0	02	1	9206-	●	●
86	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X55	1-09044-083-0	02	1	9206-			●
86	BOLT; RR COVER M12X65	9-01656-265-0	01	1	9202-9205				●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9206-				●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	08	1	9202-9205				●	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9206-				●	●
87	WASHER; LK,RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205				●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9202-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9202-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-				●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9202-	●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	1-09302-138-1	01	1	9202-			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	1-09302-138-1	03	1	9202-			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-0	03	1	9202-				●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9202-				●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 W/LK WASHER	0-50051-030-0	06	1	9202-9205	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28	0-50051-028-0	06	1	9202-9205				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9206-	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9202-	●	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9202-9205	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9405	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●	●	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-063-4	01	1	9202-	●	●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-058-5	01	1	9202-	●	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-143-1	01	1	9202-			●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-141-0	01	1	9202-			●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-				●	●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	01	1	9202-9205				●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-				●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-	●	●	●	●	●
434	HOUSING; CLU 14"SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-31110-085-2	01	1	9202-	●	●	●
434	HOUSING; CLU 13" CLUTCH(WD4)	1-31110-086-0	01	1	9202-	●		●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-				●	●
435	CASE; TRANS	1-33111-157-3	01	1	9202-	●	●
435	CASE; TRANS	1-33111-158-4	01	1	9202-			●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204				●	●
435	CASE; TRANS	1-33111-235-0	01	1	9205-				●	●

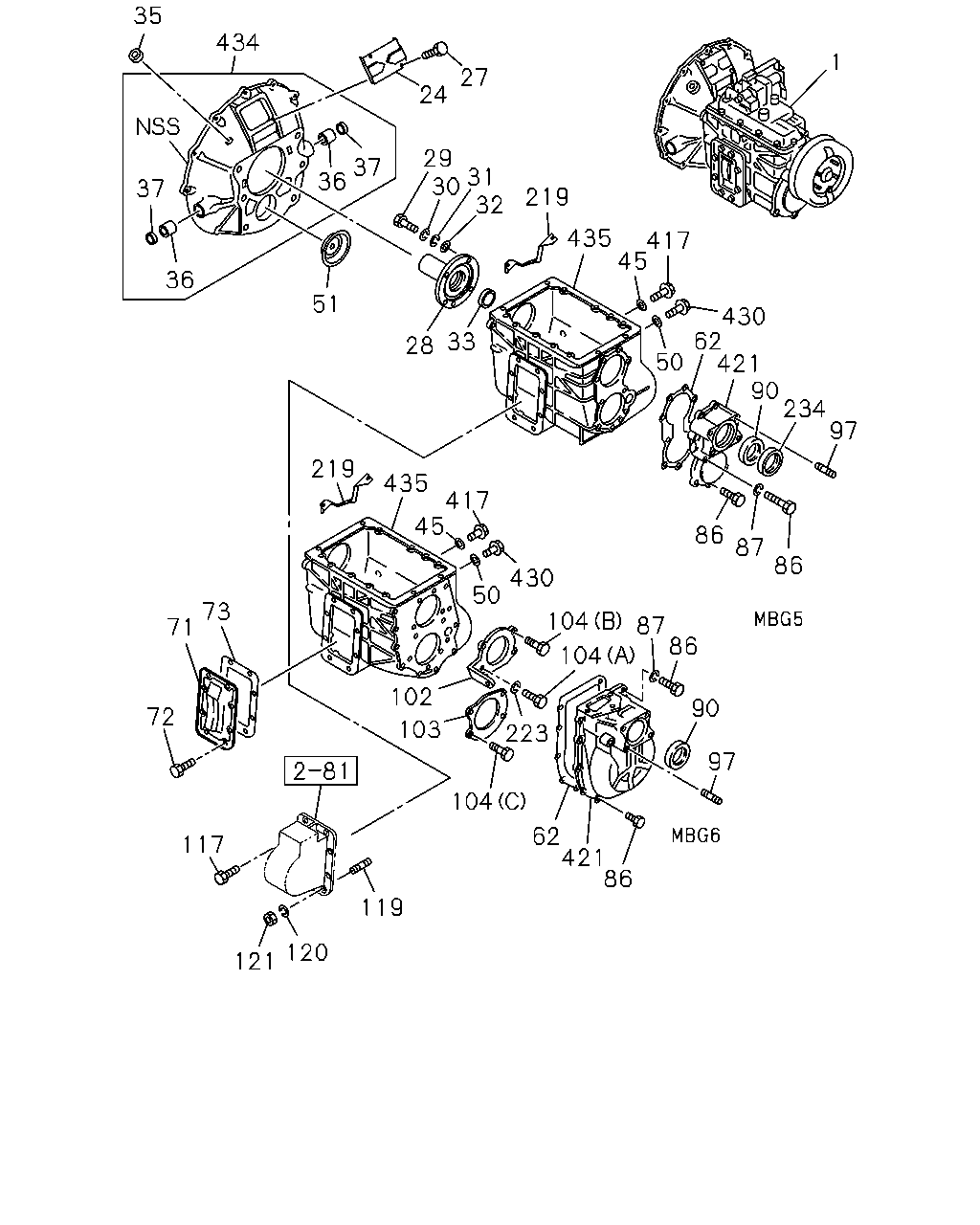

35 434 1 27 24 29 31 30 32 37 36 37 219 435 417 45 36 51 430 62 421 90 234 97 33 28 50 219 435 417 45 102 86 87 86 430 50 73 104 87 86 71 104 90 72 223 103 97 104 62 421 86 117 119 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) EXC. 14"SPICER CLUTCH(SFF),13" CLUTCH(WD4)	1-33032-757-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 13" CLUTCH(WD4) P30 PROP SHAFT(B2F)	1-33032-493-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 14"SPICER CLUTCH(SFF) P30 PROP SHAFT(B2F)	1-33032-845-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 14"SPICER CLUTCH(SFF) P46 PROP SHAFT(C4Z)	1-33032-933-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) EXC. PARKING BRAKE DRUM 8.5"(B1S),14"SPICER CLUTCH(SFF),13" CLUTCH(WD4)	1-33032-768-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 13" CLUTCH(WD4) P30 PROP SHAFT(B2F) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-504-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) P30 PROP SHAFT(B2F) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-856-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) P46 PROP SHAFT(C4Z) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-944-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S)	1-33033-286-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 8.5"(B1S),14"SPICER CLUTCH(SFF)	1-33033-297-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-473-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) EXC. 14"SPICER CLUTCH(SFF),13" CLUTCH(WD4)	1-33033-682-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 13" CLUTCH(WD4) P30 PROP SHAFT(B2F)	1-33033-550-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) EXC. PARKING BRAKE DRUM 8.5"(B1S),14"SPICER CLUTCH(SFF),13" CLUTCH(WD4)	1-33033-693-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 13" CLUTCH(WD4) P30 PROP SHAFT(B2F) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-561-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) P30 PROP SHAFT(B2F) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-737-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF) P46 PROP SHAFT(C4Z) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-781-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) ASSISTER SHIFT CONTROL<WX8> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. 14"SPICER CLUTCH(SFF)	1-33033-932-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) ASSISTER SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 14"SPICER CLUTCH(SFF)	1-33033-919-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14"SPICER CLUTCH(SFF) ASSISTER SHIFT CONTROL<WX8>	1-33033-828-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. 14"SPICER CLUTCH(SFF),ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 14"SPICER CLUTCH(SFF),ASSISTER SHIFT CONTROL<WX8>	1-33033-971-0	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R)	1-33033-974-0	01	1	9405-				●
1	TRANSMISSION ASM; MANUAL 14"SPICER CLUTCH(SFF)	1-33032-178-0	01	1	9202-					●
1	TRANSMISSION ASM; MANUAL EXC. 14"SPICER CLUTCH(SFF)	1-33040-288-0	01	1	9405-					●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-	●	●	●	●	●
28	COVER; FRT,TRANS CASE 14"SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-33121-079-0	01	1	9202-	●	●	●
28	COVER; FRT,TRANS CASE 13" CLUTCH(WD4)	1-33121-078-0	01	1	9202-	●		●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-				●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●	●	●	●	●
29	BOLT; FRT COVER	1-09040-089-0	04	1	9206-	●	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9202-9306	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-				●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9405	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9202-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402				●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-				●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9202-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33112-014-1	01	1	9202-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-				●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9202-	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-				●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●	●	●
86	BOLT; RR COVER M10X60	9-01656-060-0	02	1	9202-9205	●	●
86	BOLT; RR COVER M10X25	1-09044-080-0	07	1	9206-	●	●
86	BOLT; RR COVER M10X30	9-01931-030-0	07	1	9202-9205	●	●
86	BOLT; RR COVER M10X32	1-09033-009-0	08	1	9202-9205			●
86	BOLT; RR COVER M10X25	1-09044-080-0	08	1	9206-			●
86	BOLT; RR COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X50	1-09033-011-0	02	1	9202-9205			●
86	BOLT; RR COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X16	1-09044-082-0	02	1	9206-			●
86	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X55	1-09020-135-0	02	1	9202-9205			●
86	BOLT; RR COVER M10X55	1-09044-083-0	02	1	9206-	●	●
86	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X55	1-09044-083-0	02	1	9206-			●
86	BOLT; RR COVER M12X65	9-01656-265-0	01	1	9202-9205				●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9206-				●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	08	1	9202-9205				●	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9206-				●	●
87	WASHER; LK,RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205				●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9202-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9202-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-				●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9202-	●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	1-09302-138-1	01	1	9202-			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	1-09302-138-1	03	1	9202-			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-0	03	1	9202-				●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9202-				●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-040-1	01	1	9202-			●
103	RETAINER; BRG	1-33151-029-0	01	1	9202-			●
104	BOLT; BRG RET (B) M10X30 W/LK WASHER	0-50051-030-0	03	1	9202-9205			●
104	BOLT; BRG RET (A) M10X30	1-09040-063-1	01	1	9202-9205			●
104	BOLT; BRG RET (A) M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-			●
104	BOLT; BRG RET (C) M10X25	1-09049-006-1	04	1	9202-9205			●
104	BOLT; BRG RET (C) M10X25	1-09049-006-1	07	1	9206-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 W/LK WASHER	0-50051-030-0	06	1	9202-9205	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28	0-50051-028-0	06	1	9202-9205				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9206-	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9202-	●	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9202-9205	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9202-	●	●	●
223	WASHER; LK,RET ID=10.2	9-09150-610-0	01	1	9202-9205			●
234	COVER; OIL SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33139-001-1	01	1	9202-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9405	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●	●	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-063-4	01	1	9202-	●	●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-058-5	01	1	9202-	●	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-143-1	01	1	9202-			●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-141-0	01	1	9202-			●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-				●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-	●	●	●	●	●
434	HOUSING; CLU 14"SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-31110-085-2	01	1	9202-	●	●	●
434	HOUSING; CLU 13" CLUTCH(WD4)	1-31110-086-0	01	1	9202-	●		●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-				●	●
435	CASE; TRANS	1-33111-157-3	01	1	9202-	●	●
435	CASE; TRANS	1-33111-158-4	01	1	9202-			●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204				●	●
435	CASE; TRANS	1-33111-235-0	01	1	9205-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
