2-25 — SPEEDOMETER DRIVEN GEAR (#19999) — 18 parça

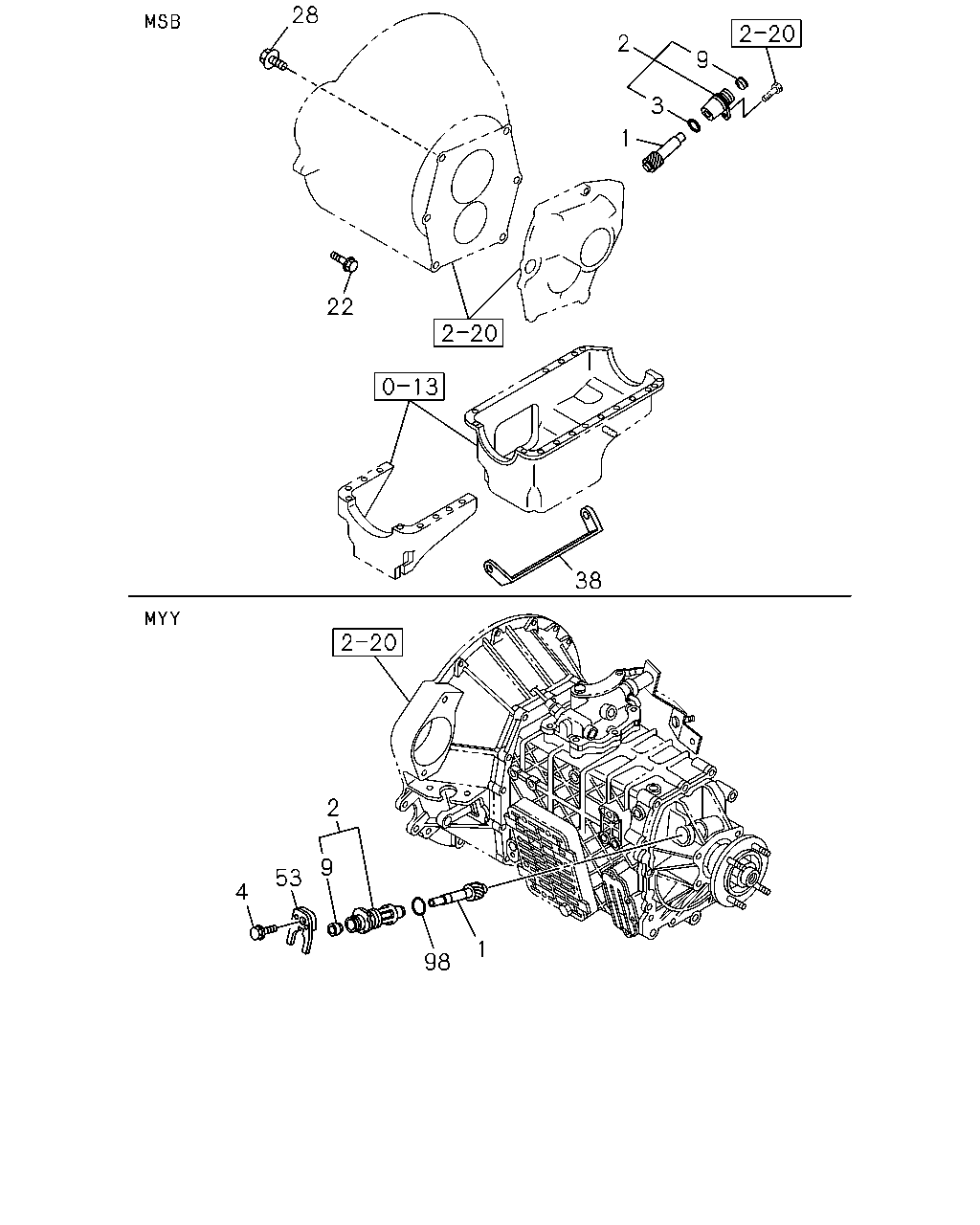

çizim 54933
28 2 9 3 1 22 38 2 9 53 4 1 98
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GEAR; DRIVEN,SPD
M/T MSB5S<R45> FINAL GEAR RATIO 39/7<GV1> Z=14 		8-94249-062-0 01 1 0309- ●
1 GEAR; DRIVEN,SPD
M/T MSB5M<RM5> FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=16 		8-94249-064-0 01 1 0309- ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 41/8<RU1> Z=13 		8-97253-562-1 01 1 0309- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5S<R45> FINAL GEAR RATIO 39/7<GV1> Z=14 MARK "4" 		8-97080-360-1 01 1 0309- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MSB5M<RM5> FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> Z=16 MARK "6" 		8-97080-362-1 01 1 0309- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> MARK "12,13,14,15" 		8-97253-125-0 01 1 0309- ●
3 GASKET; BUSHING
M/T MSB5S<R45> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> 		9-09920-852-0 01 1 0309- ●
3 GASKET; BUSHING
M/T MSB5M<RM5> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> 		9-09920-852-0 01 1 0309- ●
4 BOLT; RET,DRIVEN GEAR
M/T MYY5T<RSM> M8X20 FLANGE 		0-28680-820-0 01 1 0309- ●
9 SEAL; OIL,DRIVEN GEAR
M/T MSB5S<R45> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41> 		8-97080-507-0 01 1 0309- ●
9 SEAL; OIL,DRIVEN GEAR
M/T MSB5M<RM5> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/7<R41>,FINAL GEAR RATIO 43/7<R42> 		8-97080-507-0 01 1 0309- ●
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T<RSM> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> NOK 		8-97131-328-1 01 1 0309- ●
22 BOLT; TRANS CASE TO ENG
4JB1 ENG<RLF> M10X40 FLANGE 		0-28681-040-0 04 1 0309- ● ●
28 BOLT; TRANS CASE TO HSG
4JB1 ENG<RLF> M/T MSB5S<R45> M12X35 FLANGE 		8-94249-246-0 06 1 0309- ●
28 BOLT; TRANS CASE TO HSG
4JB1 ENG<RLF> M/T MSB5M<RM5> M12X35 FLANGE 		8-94249-246-0 06 1 0309- ●
38 BRACKET; SPACE RUBBER
4JB1 ENG<RLF> 		8-97095-937-1 01 1 0309- ● ●
53 PLATE; LOCK,DRIVEN GEAR
M/T MYY5T<RSM> 		8-97252-679-2 01 1 0309- ●
98 SEAL; OIL,BUSH
M/T MYY5T<RSM> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 43/8<R40> 		9-09561-324-0 01 1 0309- ●
