Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#19998) — 179 parça

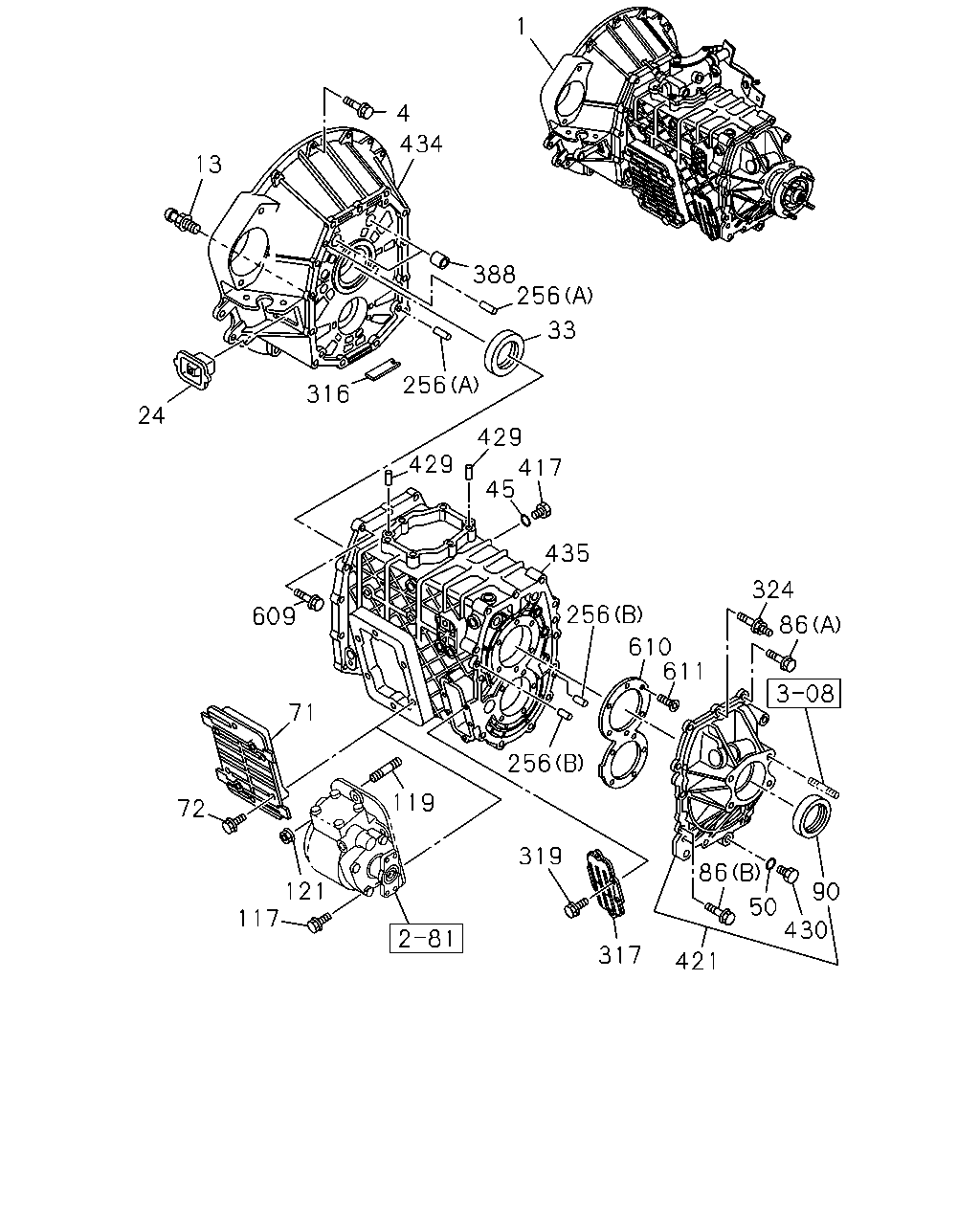

1 4 434 13 388 256 33 256 316 24 429 429 417 45 435 256 256 324 609 86 610 611 71 119 72 86 319 121 117 90 50 430 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-579-0	01	1	0410-	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-580-0	01	1	0410-	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-583-0	01	1	0410-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-584-0	01	1	0410-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97161-660-1	01	1	0309-0409		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-660-1	01	1	0410-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	8-97161-672-1	01	1	0309-0409		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-672-1	01	1	0410-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97204-444-1	01	1	0309-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-444-1	01	1	0410-	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	8-97186-635-2	01	1	0309-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97186-635-2	01	1	0410-	●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> PTO TRANSMISSION SIDE<V66>	8-97350-617-0	01	1	0309-0404			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0405-			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> EXC. PTO TRANSMISSION SIDE<V66>	8-97350-617-0	01	1	0309-0404			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> EXC. PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0405-			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8>,PTO TRANSMISSION SIDE<V66>	8-97352-010-0	01	1	0309-0404			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8>,PTO TRANSMISSION SIDE<V66>	8-97373-921-0	01	1	0405-			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> EXC. EXHAUST BRAKE<NF8>	8-97352-010-0	01	1	0309-0404			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> EXC. EXHAUST BRAKE<NF8>	8-97373-921-0	01	1	0405-			●
4	BOLT; FLYWHEEL HSG 4JB1 ENG<RLF> M10X35 FLANGE	0-28081-035-0	02	1	0309-	●	●
4	BOLT; FLYWHEEL HSG 4JB1 ENG<RLF> M10X40 FLANGE	0-28081-040-0	01	1	0309-	●	●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> M10X35 FLANGE	0-28181-035-0	03	1	0309-			●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> M10X50 FLANGE	0-28181-050-0	02	1	0309-			●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28181-035-0	02	1	0309-			●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28181-030-0	02	1	0309-			●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> M10X30 FLANGE	0-28181-030-0	02	1	0309-			●
13	SUPPORT; SHIFT FORK 4HG1 ENG<RJH>	8-97255-384-1	01	1	0309-			●
24	COVER; CHECK HOLE,DUST 4HG1 ENG<RJH>	8-97255-201-0	01	1	0309-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH>	8-97253-550-0	01	1	0309-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH> ID=17	8-97115-712-0	01	1	0309-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> ID=15.3	8-94336-511-0	01	1	0309-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH> ID=17	8-97115-712-0	01	1	0309-			●
71	COVER; SIDE,TRANS CASE 4JB1 ENG<RLF>	9-33141-601-2	01	1	0309-	●	●
71	COVER; SIDE,TRANS CASE 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0309-			●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> M10X12 FLANGE	8-94128-791-0	06	1	0309-0409		●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8> M10X12 FLANGE	8-94128-791-0	06	1	0309-0409	●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> M10X12 FLANGE	8-94128-791-0	06	1	0410-		●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8> M10X12 FLANGE	8-94128-791-0	06	1	0410-	●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	0410-	●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> M10X20 FLANGE	0-28081-020-0	06	1	0309-0409	●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X20 FLANGE	0-28081-020-0	06	1	0410-	●
72	BOLT; SIDE COVER 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	06	1	0309-			●
86	BOLT; RR COVER 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X25	8-94128-786-0	07	1	0410-	●	●
86	BOLT; RR COVER 4JB1 ENG<RLF> (C) M8X25	8-94128-786-0	07	1	0309-0409	●	●
86	BOLT; RR COVER 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> M8X25	8-94128-786-0	04	1	0410-	●	●
86	BOLT; RR COVER 4HG1 ENG<RJH> (A) M10X40 FLANGE	0-28181-040-0	10	1	0309-			●
86	BOLT; RR COVER 4HG1 ENG<RJH> (B) M10X40 FLANGE	8-97305-392-0	02	1	0309-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> NOK	8-97257-296-0	01	1	0309-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH>	8-97253-552-1	01	1	0309-			●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 W/LK WASHER	0-50041-025-0	04	1	0309-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X30 W/LK WASHER	0-50041-030-0	02	1	0309-	●	●
117	BOLT; PTO FIX 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28781-030-0	03	1	0309-			●
119	STUD; PTO FIX 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	03	1	0309-			●
121	NUT; PTO FIX 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	03	1	0309-			●
256	PIN; KNOCK 4HG1 ENG<RJH> (A) OD=10 L=20	8-97135-423-0	02	1	0309-			●
256	PIN; KNOCK 4HG1 ENG<RJH> (B) ID=6 L=12	9-08160-612-0	02	1	0309-			●
316	MAGNET; TRANS CASE 4HG1 ENG<RJH>	8-94249-524-2	01	1	0309-			●
317	COVER; CASE 4HG1 ENG<RJH>	8-97252-626-0	01	1	0309-			●
319	BOLT; COVER 4HG1 ENG<RJH> M8X20 FLANGE	0-28080-820-0	06	1	0309-			●
324	STUD; RR COVER 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97320-356-0	03	1	0410-	●	●
324	STUD; RR COVER 4HG1 ENG<RJH> M10X15,M10X40 L=65	8-97309-013-0	01	1	0309-			●
388	BUSHING; CLU HSG 4HG1 ENG<RJH>	8-97241-326-2	02	1	0309-			●
417	PLUG; OIL FILLER,TRANS 4HG1 ENG<RJH>	8-94310-917-0	01	1	0309-			●
421	COVER; RR,TRANS 4JB1 ENG<RLF>	8-97112-986-2	01	1	0309-0409	●	●
421	COVER; RR,TRANS 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97112-986-2	01	1	0410-	●	●
421	COVER; RR,TRANS 4HG1 ENG<RJH>	8-97252-621-0	01	1	0309-0507			●
421	COVER; RR,TRANS 4HG1 ENG<RJH>	8-98020-029-0	01	1	0508-			●
429	PIN; STRAIGHT 4HG1 ENG<RJH> OD=10 L=20	8-97135-423-0	02	1	0309-			●
430	PLUG; OIL DRAIN 4JB1 ENG<RLF>	8-94336-512-1	01	1	0309-	●	●
430	PLUG; OIL DRAIN 4HG1 ENG<RJH>	9-09662-004-0	01	1	0309-			●
434	HOUSING; CLU 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-108-0	01	1	0410-	●	●
434	HOUSING; CLU 4JB1 ENG<RLF>	8-97034-879-2	01	1	0309-0409	●	●
434	HOUSING; CLU 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-879-2	01	1	0410-	●	●
434	HOUSING; CLU 4HG1 ENG<RJH>	8-97237-099-5	01	1	0309-			●
435	CASE; TRANS 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0410-	●	●
435	CASE; TRANS 4JB1 ENG<RLF>	8-97240-847-0	01	1	0309-0409	●	●
435	CASE; TRANS 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0410-	●	●
435	CASE; TRANS 4HG1 ENG<RJH>	8-97252-623-7	01	1	0309-0403			●
435	CASE; TRANS 4HG1 ENG<RJH>	8-97379-375-0	01	1	0404-			●
609	BOLT; HSG TO CASE 4HG1 ENG<RJH> M10X40 FLANGE	0-28181-040-0	13	1	0309-			●
610	RETAINER; BRG 4HG1 ENG<RJH>	8-97241-315-1	01	1	0309-			●
611	SCREW 4HG1 ENG<RJH> M10X27	8-97254-834-2	11	1	0309-			●
650	COVER; RR 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-087-0	01	1	0410-	●	●

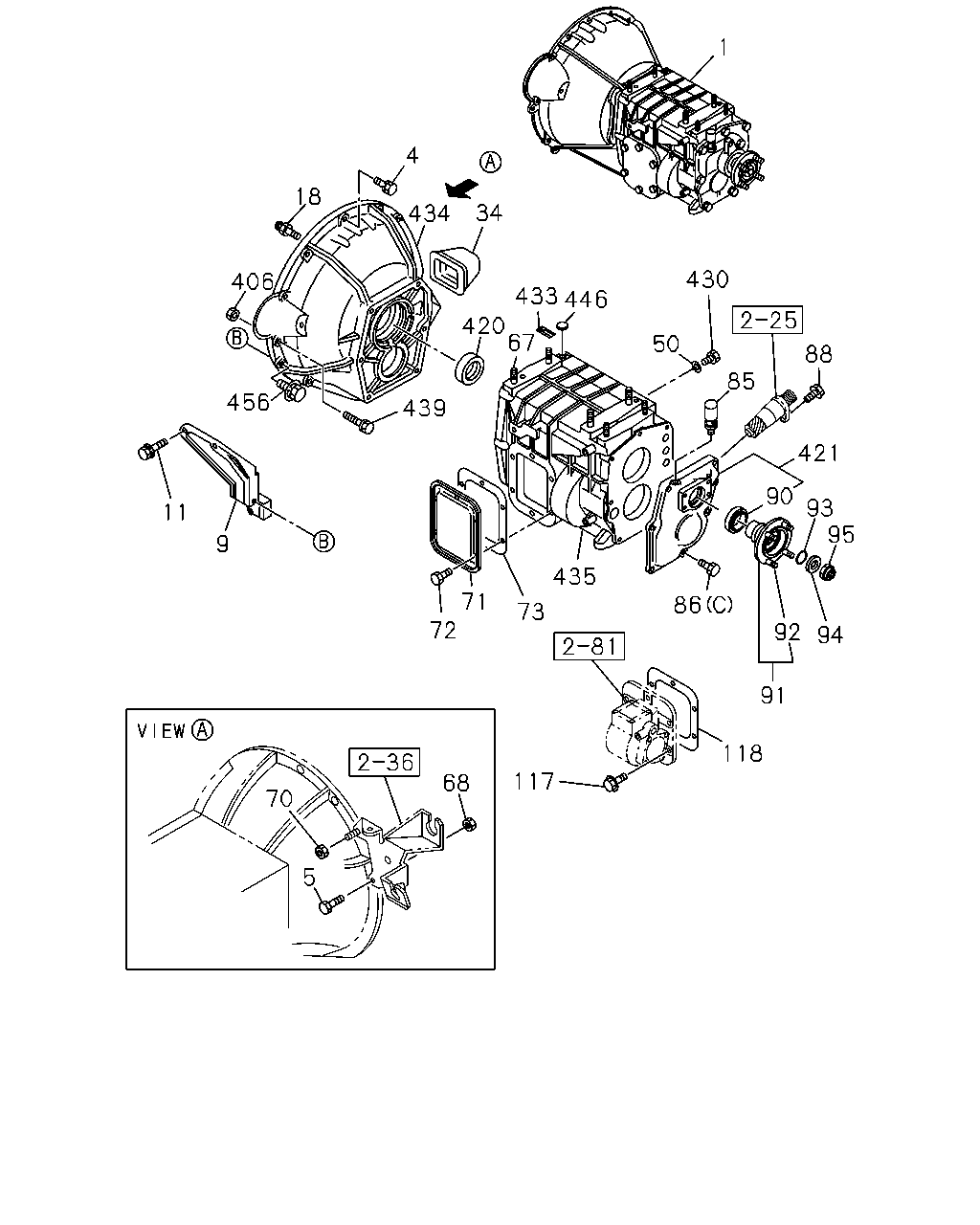

1 4 18 34 434 430 406 433 446 420 67 50 88 85 456 439 421 90 93 95 11 9 435 71 72 86 73 92 94 91 118 117 68 70 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-579-0	01	1	0410-	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-580-0	01	1	0410-	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-583-0	01	1	0410-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-584-0	01	1	0410-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97161-660-1	01	1	0309-0409		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-660-1	01	1	0410-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	8-97161-672-1	01	1	0309-0409		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-672-1	01	1	0410-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8>	8-97204-444-1	01	1	0309-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-444-1	01	1	0410-	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>	8-97186-635-2	01	1	0309-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97186-635-2	01	1	0410-	●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> PTO TRANSMISSION SIDE<V66>	8-97350-617-0	01	1	0309-0404			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0405-			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> EXC. PTO TRANSMISSION SIDE<V66>	8-97350-617-0	01	1	0309-0404			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> EXC. PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0405-			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8>,PTO TRANSMISSION SIDE<V66>	8-97352-010-0	01	1	0309-0404			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8>,PTO TRANSMISSION SIDE<V66>	8-97373-921-0	01	1	0405-			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> EXC. EXHAUST BRAKE<NF8>	8-97352-010-0	01	1	0309-0404			●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> EXC. EXHAUST BRAKE<NF8>	8-97373-921-0	01	1	0405-			●
4	BOLT; FLYWHEEL HSG 4JB1 ENG<RLF> M10X35 FLANGE	0-28081-035-0	02	1	0309-	●	●
4	BOLT; FLYWHEEL HSG 4JB1 ENG<RLF> M10X40 FLANGE	0-28081-040-0	01	1	0309-	●	●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> M10X35 FLANGE	0-28181-035-0	03	1	0309-			●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> M10X50 FLANGE	0-28181-050-0	02	1	0309-			●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28181-035-0	02	1	0309-			●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28181-030-0	02	1	0309-			●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> M10X30 FLANGE	0-28181-030-0	02	1	0309-			●
5	BOLT; REAR PLATE 4JB1 ENG<RLF> M10X35 FLANGE	0-28081-035-0	01	1	0309-	●	●
9	STIFFENER; C/BL 4JB1 ENG<RLF>	8-97074-108-3	01	1	0309-	●	●
9	STIFFENER; C/BL 4JB1 ENG<RLF>	8-97084-390-2	01	1	0309-	●	●
11	BOLT; BRKT 4JB1 ENG<RLF> M8X12 FLANGE	0-28080-812-0	02	1	0309-	●	●
18	SUPPORT; DRAW LEVER 4JB1 ENG<RLF> L=47.5	8-97225-469-1	01	1	0309-	●	●
34	COVER; DUST,SHIFT FORK 4JB1 ENG<RLF>	8-97034-880-0	01	1	0309-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> ID=15.3	8-94336-511-0	01	1	0309-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH> ID=17	8-97115-712-0	01	1	0309-			●
67	STUD; CASE TRANS 4JB1 ENG<RLF>	9-09631-004-0	06	1	0309-	●	●
68	NUT; REAR PLATE 4JB1 ENG<RLF> M10 FLANGE	0-91150-110-0	01	1	0309-	●	●
70	NUT; REAMER BOLT 4JB1 ENG<RLF> M10 FLANGE	0-91150-110-0	01	1	0309-	●	●
71	COVER; SIDE,TRANS CASE 4JB1 ENG<RLF>	9-33141-601-2	01	1	0309-	●	●
71	COVER; SIDE,TRANS CASE 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0309-			●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> M10X12 FLANGE	8-94128-791-0	06	1	0309-0409		●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8> M10X12 FLANGE	8-94128-791-0	06	1	0309-0409	●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> M10X12 FLANGE	8-94128-791-0	06	1	0410-		●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8> M10X12 FLANGE	8-94128-791-0	06	1	0410-	●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	0410-	●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> M10X20 FLANGE	0-28081-020-0	06	1	0309-0409	●
72	BOLT; SIDE COVER 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X20 FLANGE	0-28081-020-0	06	1	0410-	●
72	BOLT; SIDE COVER 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	06	1	0309-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF>	9-33142-601-0	01	1	0309-	●	●
85	BREATHER; RR COVER 4JB1 ENG<RLF>	8-97165-939-0	01	1	0309-	●	●
86	BOLT; RR COVER 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X25	8-94128-786-0	07	1	0410-	●	●
86	BOLT; RR COVER 4JB1 ENG<RLF> (C) M8X25	8-94128-786-0	07	1	0309-0409	●	●
86	BOLT; RR COVER 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW> M8X25	8-94128-786-0	04	1	0410-	●	●
86	BOLT; RR COVER 4HG1 ENG<RJH> (A) M10X40 FLANGE	0-28181-040-0	10	1	0309-			●
86	BOLT; RR COVER 4HG1 ENG<RJH> (B) M10X40 FLANGE	8-97305-392-0	02	1	0309-			●
88	SCREW; SPEEDOMETER BUSHING 4JB1 ENG<RLF> M8X12	8-94128-785-0	01	1	0309-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> NOK	8-97257-296-0	01	1	0309-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH>	8-97253-552-1	01	1	0309-			●
91	DRIVER; COUPLING 4JB1 ENG<RLF>	8-97207-215-0	01	1	0309-	●	●
92	BOLT; COUPLING DRIVER 4JB1 ENG<RLF> M10X33	8-97109-696-1	04	1	0309-	●	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF>	8-94178-725-0	01	1	0309-	●	●
94	WASHER; COUPLING DRIVER 4JB1 ENG<RLF>	8-94249-240-0	01	1	0309-	●	●
95	NUT; MAINSHAFT 4JB1 ENG<RLF> M24 FLANGE	8-97087-750-0	01	1	0309-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 W/LK WASHER	0-50041-025-0	04	1	0309-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X30 W/LK WASHER	0-50041-030-0	02	1	0309-	●	●
117	BOLT; PTO FIX 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28781-030-0	03	1	0309-			●
118	GASKET; PTO TO TRANS PTO TRANSMISSION SIDE<V66>	9-38113-603-0	01	1	0309-0506	●	●
406	NUT; BRKT 4JB1 ENG<RLF> PTO TRANSMISSION SIDE<V66> M8 FLANGE	0-91150-108-0	01	1	0309-	●	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG<RLF> NOK	8-94326-441-0	01	1	0309-	●	●
421	COVER; RR,TRANS 4JB1 ENG<RLF>	8-97112-986-2	01	1	0309-0409	●	●
421	COVER; RR,TRANS 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97112-986-2	01	1	0410-	●	●
421	COVER; RR,TRANS 4HG1 ENG<RJH>	8-97252-621-0	01	1	0309-0507			●
421	COVER; RR,TRANS 4HG1 ENG<RJH>	8-98020-029-0	01	1	0508-			●
430	PLUG; OIL DRAIN 4JB1 ENG<RLF>	8-94336-512-1	01	1	0309-	●	●
430	PLUG; OIL DRAIN 4HG1 ENG<RJH>	9-09662-004-0	01	1	0309-			●
433	LABEL; TRANS 4JB1 ENG<RLF>	8-97084-051-0	01	1	0309-0412		●
433	LABEL; TRANS 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97084-051-0	01	1	0501-		●
433	LABEL; TRANS 4JB1 ENG<RLF>	8-97076-909-0	01	1	0309-0412	●
433	LABEL; TRANS 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97076-909-0	01	1	0501-	●
434	HOUSING; CLU 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-108-0	01	1	0410-	●	●
434	HOUSING; CLU 4JB1 ENG<RLF>	8-97034-879-2	01	1	0309-0409	●	●
434	HOUSING; CLU 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-879-2	01	1	0410-	●	●
434	HOUSING; CLU 4HG1 ENG<RJH>	8-97237-099-5	01	1	0309-			●
435	CASE; TRANS 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0410-	●	●
435	CASE; TRANS 4JB1 ENG<RLF>	8-97240-847-0	01	1	0309-0409	●	●
435	CASE; TRANS 4JB1 ENG<RLF> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0410-	●	●
435	CASE; TRANS 4HG1 ENG<RJH>	8-97252-623-7	01	1	0309-0403			●
435	CASE; TRANS 4HG1 ENG<RJH>	8-97379-375-0	01	1	0404-			●
439	BOLT; BRKT 4JB1 ENG<RLF> PTO TRANSMISSION SIDE<V66> M8X35 FLANGE	0-28680-835-0	01	1	0309-	●	●
446	PLUG; CASE,TRANS 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> OD=16	9-09201-316-0	01	1	0309-0409	●
446	PLUG; CASE,TRANS 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> OD=16	9-09201-316-0	01	1	0410-	●
456	BOLT; STIFFENER 4JB1 ENG<RLF> PTO TRANSMISSION SIDE<V66> M12X35 FLANGE	0-28081-235-0	03	1	0309-	●	●
456	BOLT; STIFFENER 4JB1 ENG<RLF> PTO TRANSMISSION SIDE<V66> M12X40 FLANGE	0-28081-240-0	01	1	0309-	●	●
456	BOLT; STIFFENER 4JB1 ENG<RLF> EXC. PTO TRANSMISSION SIDE<V66> M12X35 FLANGE	0-28081-235-0	04	1	0309-	●	●
650	COVER; RR 4JB1 ENG<RLF> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-087-0	01	1	0410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
