◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50970 - NKR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#19993) — 44 parça

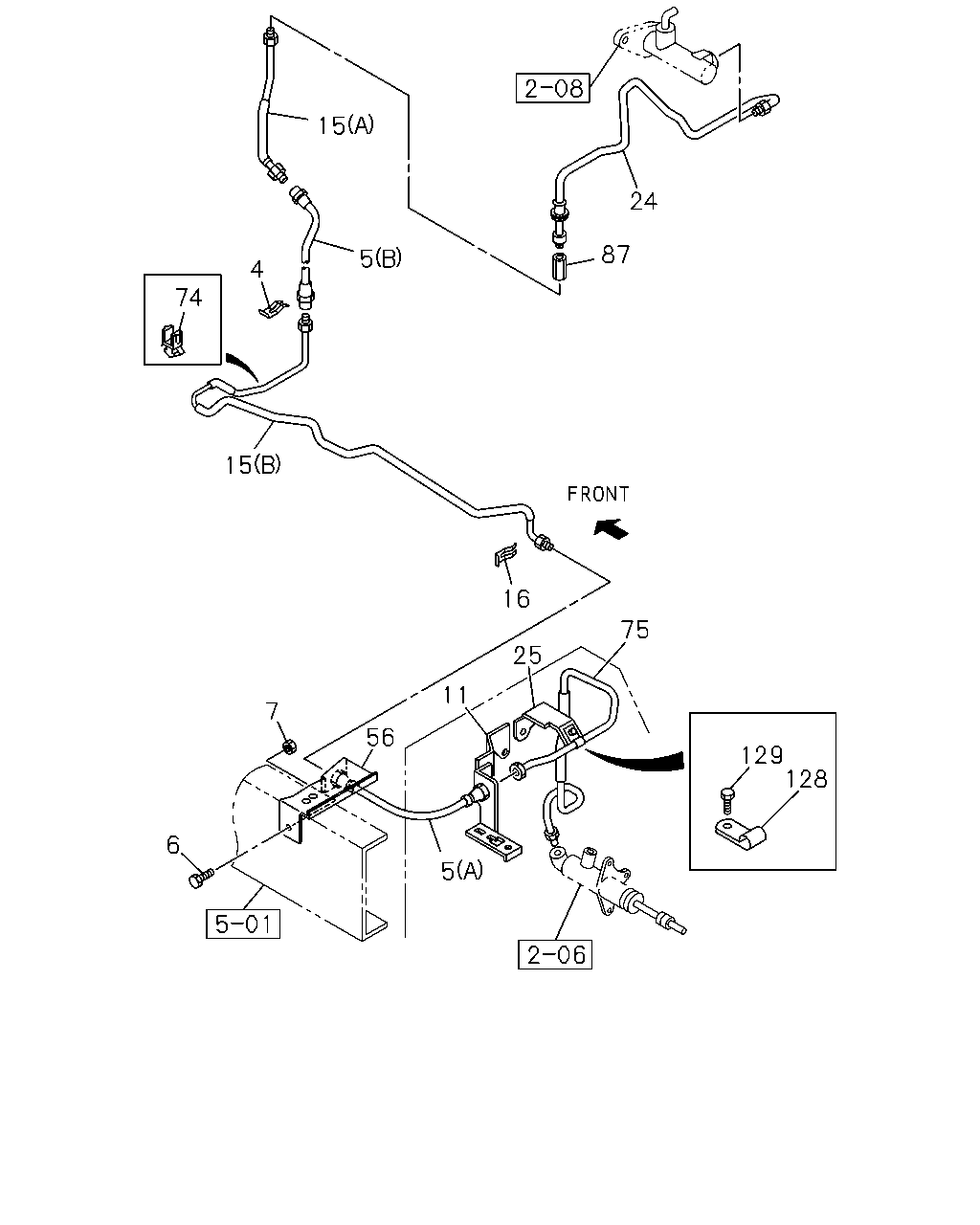

çizim 12120
15 24 87 5 4 74 15 16 75 25 11 7 56 129 128 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0309- ● ● ●
5 HOSE; FLEX,CLU PIPE
4JB1 ENG<RLF> (A) 		8-94374-552-1 01 1 0309- ● ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0309- ● ● ●
5 HOSE; FLEX,CLU PIPE
4HG1 ENG<RJH> (A) 		8-94482-265-1 01 1 0309- ●
6 BOLT; BRKT,FLEX HOSE
4JB1 ENG<RLF> M8X20 FLANGE 		0-28680-820-0 01 1 0309- ● ●
6 BOLT; BRKT,FLEX HOSE
4HG1 ENG<RJH> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 0309- ● ● ●
11 BRACKET; FLEX HOSE,CLU
4JB1 ENG<RLF> 		8-97091-929-0 01 1 0309- ● ●
11 BRACKET; FLEX HOSE,CLU
4HG1 ENG<RJH> 		8-97063-755-0 01 1 0309- ●
15 PIPE; CLU,FLEX HOSE
4JB1 ENG<RLF> (B) THA 		8-97917-010-1 01 1 0309- ● ●
15 PIPE; CLU,FLEX HOSE
(A) THA 		8-97916-848-1 01 1 0309- ● ● ●
15 PIPE; CLU,FLEX HOSE
4HG1 ENG<RJH> (B) THA 		8-97922-404-1 01 1 0309- ●
16 CLIP; FLEX HOSE
4JB1 ENG<RLF> 		8-94167-006-0 02 1 0309- ● ●
16 CLIP; FLEX HOSE
4HG1 ENG<RJH> 		8-94167-006-0 01 1 0309- ●
24 PIPE ASM; CLU,M/CYL TO UNION
THA 		8-97916-852-1 01 1 0309- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97916-852-1 01 1 0309- ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0309- ●
25 BRACKET; OIL PIPE
4JB1 ENG<RLF> 		8-97013-211-1 01 1 0309- ● ●
56 BRACKET; FLEX HOSE
4JB1 ENG<RLF> 		8-97090-299-0 01 1 0309- ● ●
74 CLIP; CLU OIL PIPE
4JB1 ENG<RLF> H=28.5 		8-94486-808-0 02 1 0309- ● ●
75 PIPE ASM; CLU,HSG
4JB1 ENG<RLF> THA 		8-97917-497-0 01 1 0309- ● ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0309- ● ● ●
128 CLIP; AIR PIPE
4JB1 ENG<RLF> ID=7 L=16 		9-09524-622-0 02 1 0309- ● ●
129 BOLT; PIPE CLIP
4JB1 ENG<RLF> M6X12 FLANGE 		0-28080-612-0 02 1 0309- ● ●

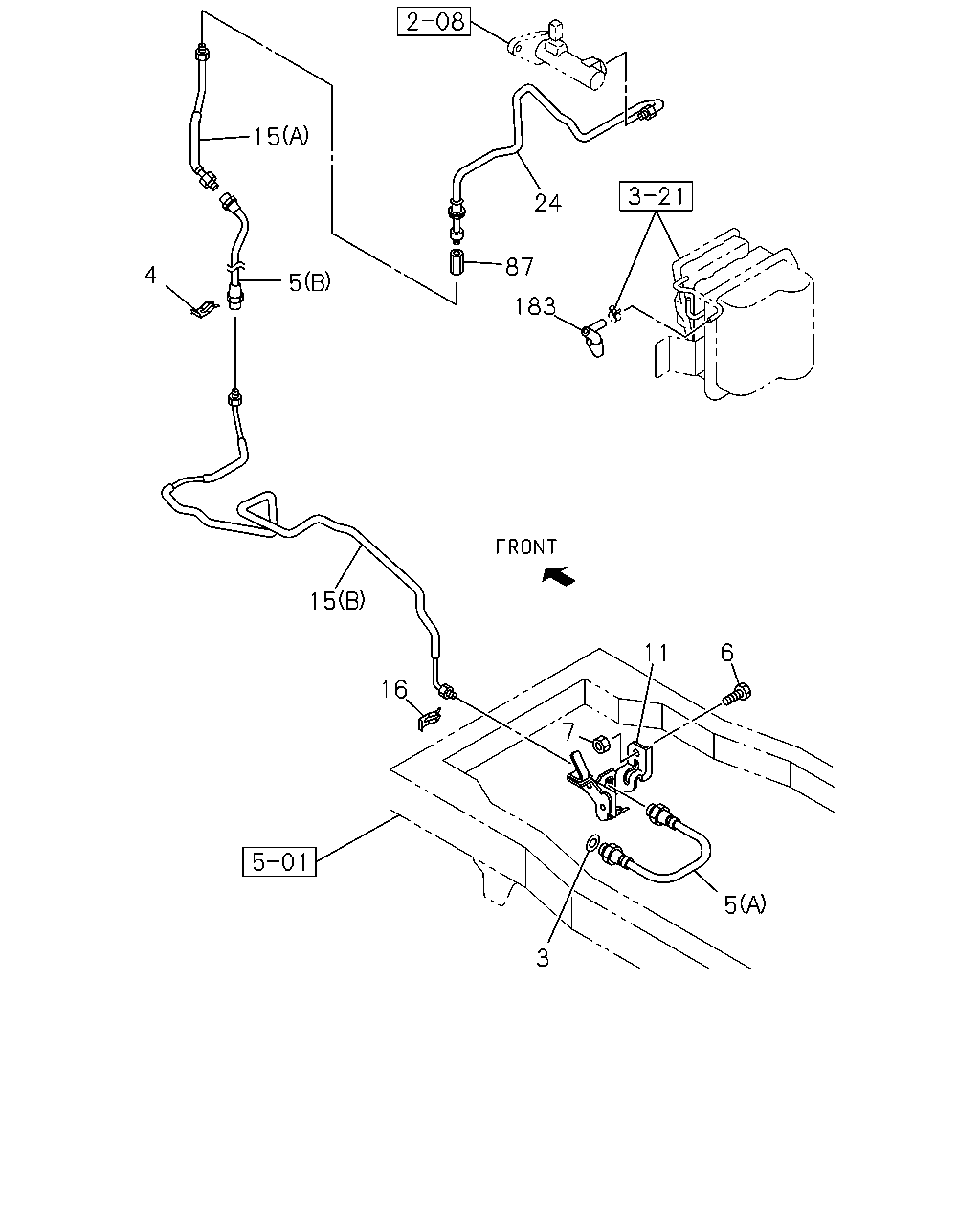

çizim 57306
15 24 87 4 5 183 15 11 6 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 GASKET; FLEX HOSE,CLU
4HG1 ENG<RJH> 		9-09920-873-1 01 1 0309- ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0309- ● ● ●
5 HOSE; FLEX,CLU PIPE
4JB1 ENG<RLF> (A) 		8-94374-552-1 01 1 0309- ● ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0309- ● ● ●
5 HOSE; FLEX,CLU PIPE
4HG1 ENG<RJH> (A) 		8-94482-265-1 01 1 0309- ●
6 BOLT; BRKT,FLEX HOSE
4JB1 ENG<RLF> M8X20 FLANGE 		0-28680-820-0 01 1 0309- ● ●
6 BOLT; BRKT,FLEX HOSE
4HG1 ENG<RJH> M8X25 FLANGE 		0-28680-825-0 01 1 0309- ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 0309- ● ● ●
11 BRACKET; FLEX HOSE,CLU
4JB1 ENG<RLF> 		8-97091-929-0 01 1 0309- ● ●
11 BRACKET; FLEX HOSE,CLU
4HG1 ENG<RJH> 		8-97063-755-0 01 1 0309- ●
15 PIPE; CLU,FLEX HOSE
4JB1 ENG<RLF> (B) THA 		8-97917-010-1 01 1 0309- ● ●
15 PIPE; CLU,FLEX HOSE
(A) THA 		8-97916-848-1 01 1 0309- ● ● ●
15 PIPE; CLU,FLEX HOSE
4HG1 ENG<RJH> (B) THA 		8-97922-404-1 01 1 0309- ●
16 CLIP; FLEX HOSE
4JB1 ENG<RLF> 		8-94167-006-0 02 1 0309- ● ●
16 CLIP; FLEX HOSE
4HG1 ENG<RJH> 		8-94167-006-0 01 1 0309- ●
24 PIPE ASM; CLU,M/CYL TO UNION
THA 		8-97916-852-1 01 1 0309- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97916-852-1 01 1 0309- ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0309- ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0309- ● ● ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97129-874-0 01 1 0309- ●
