8-80 — WINDSHIELD WIPER AND WASHER (#1999) — 57 parça

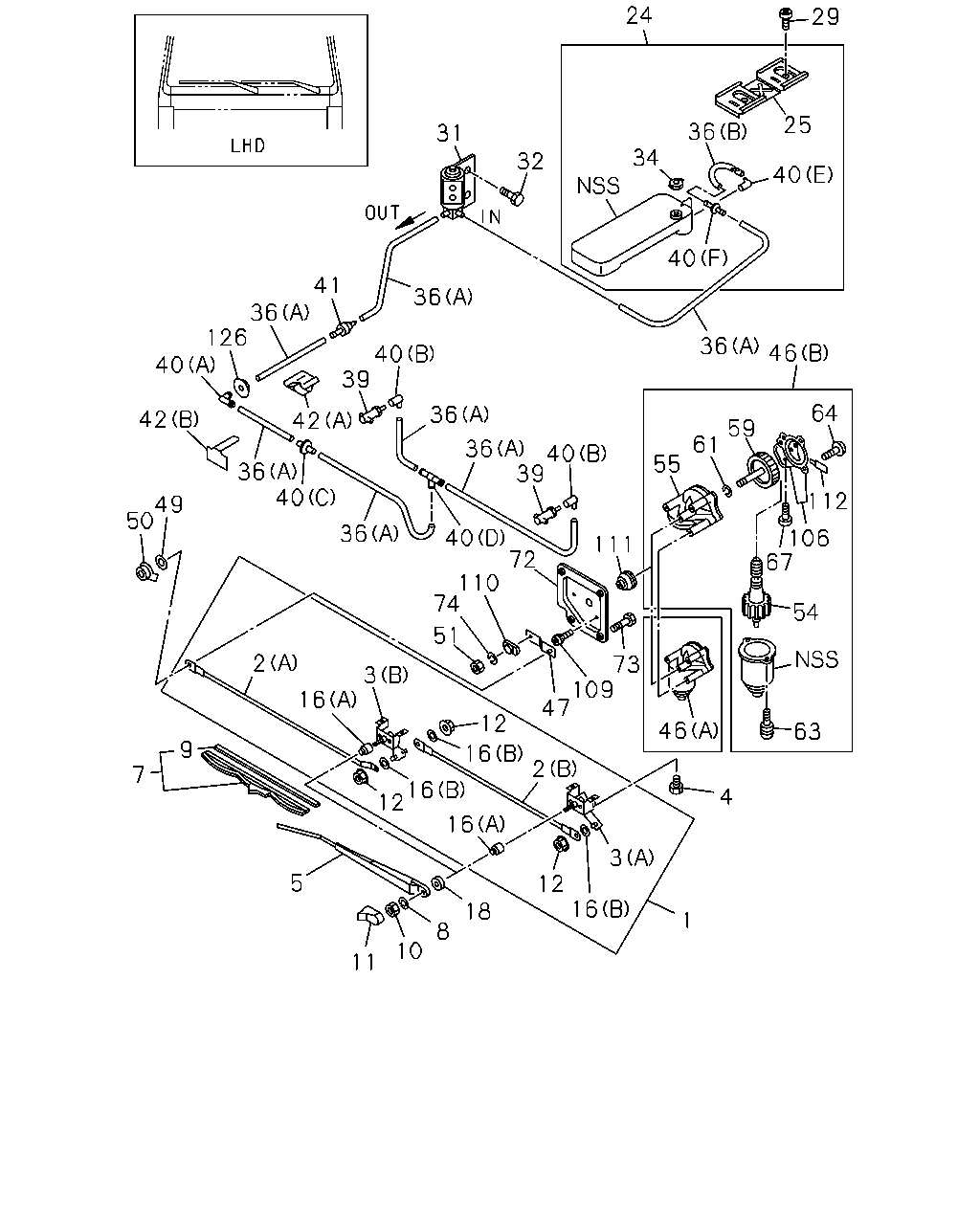

çizim 27479
24 29 25 36 31 34 32 40 40 41 36 36 126 36 46 40 39 40 64 36 42 42 59 61 36 40 39 55 36 40 112 49 50 40 72 110 74 36 106 67 111 54 51 2 73 109 47 3 16 12 46 63 9 16 2 7 16 12 4 16 3 5 12 16 18 1 8 10 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LINK ASM; FRT WIPER 1-83312-054-3 01 1 9207- ● ● ● ●
2 LINK; FRT WIPER
(B) 		1-83312-055-0 01 1 9207- ● ● ● ●
2 LINK; FRT WIPER
(A) 		1-83312-056-1 01 1 9207- ● ● ● ●
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-071-0 01 1 9207- ● ● ● ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-072-0 01 1 9207- ● ● ● ●
4 BOLT; WIPER LINK TO BODY
M6X20 W/LK&PL WASHER 		1-09980-490-0 04 1 9207- ● ● ● ●
5 ARM; WIPER 1-83314-088-0 02 1 9207- ● ● ● ●
7 BLADE; WIPER 1-83315-028-0 02 1 9207- ● ● ● ●
8 WASHER; LK,PIVOT
ID=10.2 		9-09150-510-0 02 1 9207- ● ● ● ●
9 RUBBER; FRT WIPER BLADE 1-83355-003-0 02 1 9207- ● ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		9-09111-410-0 02 1 9207- ● ● ● ●
11 COVER; WIPER ARM 1-83319-015-0 02 1 9207- ● ● ● ●
12 RETAINER; BALL JOINT,FRT WIPER LINK 1-83318-026-0 03 1 9207- ● ● ● ●
16 SEAL; BALL JOINT
(A) 		1-83318-022-0 02 1 9207- ● ● ● ●
16 SEAL; BALL JOINT
(B) 		8-94235-628-0 03 1 9207- ● ● ● ●
18 GROMMET; WIPER PIVOT HOLE 1-09983-060-1 02 1 9207- ● ● ● ●
24 TANK ASM; WASHER 1-83332-023-4 01 1 9207- ● ● ● ●
25 BRACKET; WASHER TANK 1-83338-011-1 01 1 9207- ● ● ● ●
29 SCREW; WASHER TANK TO BODY
M6X14 W/LK&PL WASHER 		9-03920-614-0 02 1 9207- ● ● ● ●
31 PUMP ASM; WINDSHIELD WASHER 1-83335-012-1 01 1 9207- ● ● ● ●
32 BOLT; WASHER PUMP
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9207- ● ● ● ●
34 CAP; WASHER TANK 1-83362-013-0 01 1 9207- ● ● ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94153-780-0 01 1 9207- ● ● ● ●
36 HOSE; WASHER
(B) L=110 SERVICED BY L=10000 		9-09914-906-0 01 1 9207- ● ● ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83334-028-0 02 1 9207- ● ● ● ●
40 JOINT; WASHER HOSE
(B) 		1-83338-003-0 02 1 9207- ● ● ● ●
40 JOINT; WASHER HOSE
(C) 		1-83338-004-0 01 1 9207- ● ● ● ●
40 JOINT; WASHER HOSE
(D) 3WAY 		1-83338-005-0 01 1 9207- ● ● ● ●
40 JOINT; WASHER HOSE
(A) 		1-83338-006-0 01 1 9207- ● ● ● ●
40 JOINT; WASHER HOSE
(F) 		1-83339-006-0 01 1 9207- ● ● ● ●
40 JOINT; WASHER HOSE
(E) 		5-83363-006-0 02 1 9207- ● ● ● ●
41 VALVE; CHECK,WASHER TANK 1-83338-007-1 01 1 9207- ● ● ● ●
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 09 1 9207- ● ● ● ●
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 01 1 9303-9303 ● ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-94138-987-0 01 1 9304- ● ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
(A) 		1-83311-046-0 01 1 9207-9307 ● ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
(B) 		1-83311-076-0 01 1 9308- ● ● ● ●
47 ARM; CRANK,WIPER MOTOR 1-83314-127-0 01 1 9207- ● ● ● ●
49 SEAL; BALL JOINT,CRANK ARM,FRT WIPER 1-83319-035-0 01 1 9207- ● ● ● ●
50 RETAINER; BALL JOINT,CRANK ARM,FRT WIP 1-83318-026-0 01 1 9207- ● ● ● ●
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 9207- ● ● ● ●
54 ARMATURE ASM; WIPER MOTOR 1-83351-013-0 01 1 9308- ● ● ● ●
55 HOUSING ASM; WIPER MOTOR 1-83351-019-0 01 1 9308- ● ● ● ●
59 GEAR; DRIVE,WIPER MOTOR 1-83351-018-0 01 1 9308- ● ● ● ●
61 WASHER; LK,WIPER MOTOR 1-83351-017-0 02 1 9308- ● ● ● ●
63 SCREW; HSG TO YOKE,WIPER MOTOR 8-94232-880-0 02 1 9308- ● ● ● ●
64 SCREW; PLATE TO HSG,WIPER MOTOR
M4X10 TAPPING 		9-07076-410-0 03 1 9308- ● ● ● ●
67 SCREW; HOLDER TO HSG,WIPER MOTOR
M4X8 		5-09140-007-0 02 1 9308- ● ● ● ●
72 BRACKET; WIPER MOTOR 1-83318-027-0 01 1 9207- ● ● ● ●
73 BOLT
M6X20 W/LK&PL WASHER 		1-09980-490-0 04 1 9207- ● ● ● ●
74 WASHER; ARM TO MOTOR 9-09150-508-0 01 1 9207- ● ● ● ●
106 HOLDER; FRT WIPER MOTOR 1-83351-015-0 01 1 9308- ● ● ● ●
109 SCREW; ADJ,HSG,FRT WIPER MOTOR 8-94232-910-0 03 1 9207- ● ● ● ●
110 WASHER; ADJ SCREW,ARMATURE,WIPER MOTOR 1-83319-005-1 01 1 9207- ● ● ● ●
111 SEAL; FRT WIPER MOTOR TO BRKT 1-83318-020-0 01 1 9207- ● ● ● ●
112 CLIP; HARNESS,WIPER MOTOR 1-83318-034-0 02 1 9308- ● ● ● ●
126 GROMMET; FRT WASHER TANK HOSE 1-83338-009-0 01 1 9207- ● ● ● ●
