1-50 — EXHAUST PIPE AND SILENCER (#19988) — 154 parça

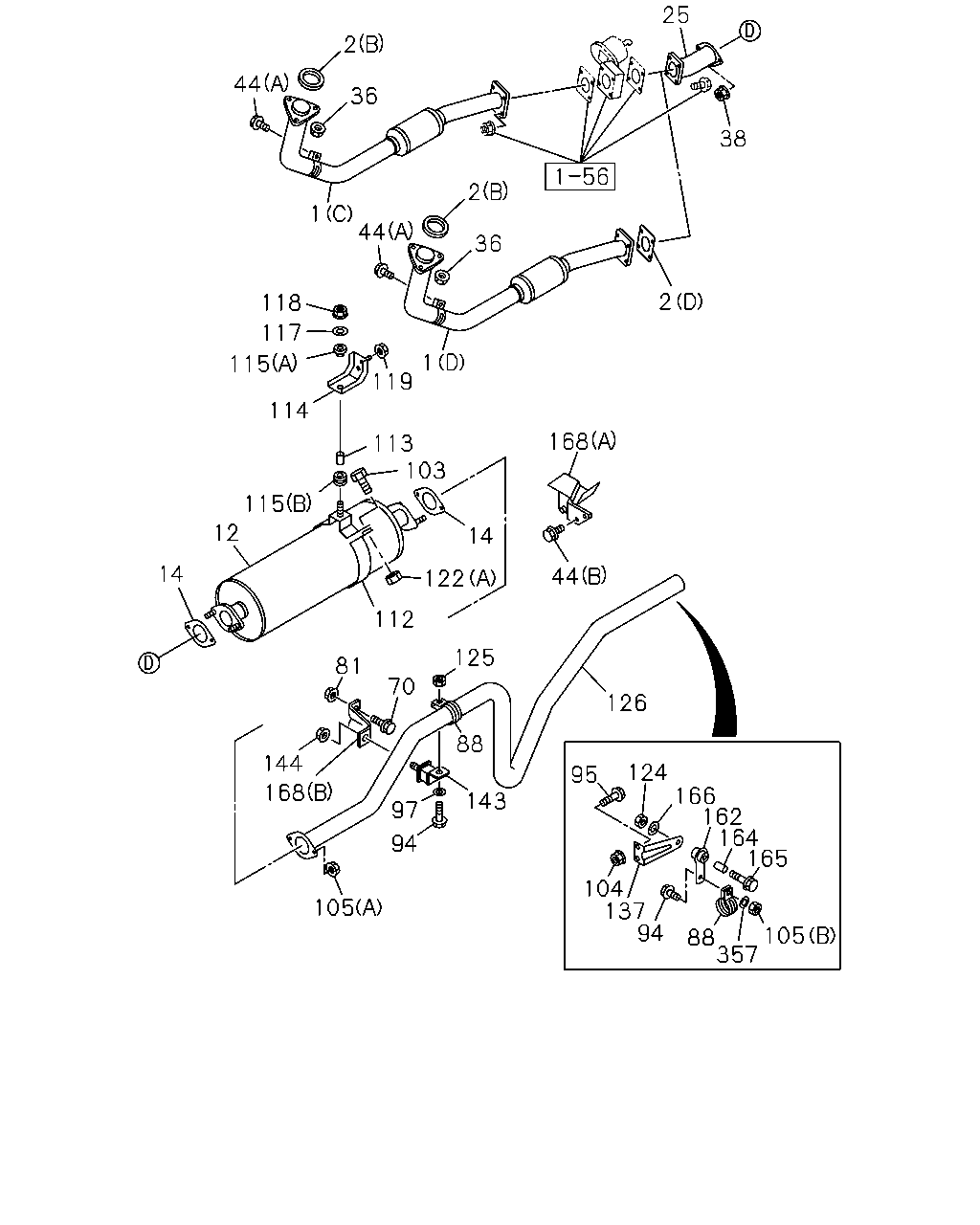

25 2 44 36 38 2 1 44 36 2 118 117 1 115 119 114 168 113 103 115 12 14 14 44 122 112 125 81 70 126 88 144 124 166 162 164 165 95 168 143 97 94 104 137 94 105 88 105 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (A)	8-97187-135-0	01	1	0309-	●	●
1	PIPE; EXH 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8> (B) THA	8-97917-122-2	01	1	0309-	●	●
1	PIPE; EXH 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (C) THA	8-97917-123-3	01	1	0309-			●
1	PIPE; EXH 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8> (D)	8-97187-140-1	01	1	0309-			●
2	GASKET; PIPE TO MANIF (C) ID=71	8-94324-194-0	02	1	0309-	●	●
2	GASKET; PIPE TO MANIF 4JB1 ENG<RLF> (A)	8-97180-750-2	01	1	0309-0408	●	●
2	GASKET; PIPE TO MANIF 4JB1 ENG<RLF>	8-97381-456-0	01	1	0409-	●	●
2	GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (D)	8-94328-354-0	01	1	0309-			●
2	GASKET; PIPE TO MANIF 4HG1 ENG<RJH> (B)	8-97180-749-2	01	1	0309-0408			●
2	GASKET; PIPE TO MANIF 4HG1 ENG<RJH>	8-97381-455-0	01	1	0409-			●
12	SILENCER ASM; EXH 4JB1 ENG<RLF> THA	8-97940-314-2	01	1	0309-	●	●
12	SILENCER ASM; EXH 4HG1 ENG<RJH> THA	8-97940-315-2	01	1	0309-			●
14	GASKET; SILENCER TO EXH PIPE EXC. EXHAUST BRAKE<NF8>	8-94328-354-0	01	1	0309-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	02	1	0309-			●
25	PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> THA	8-97917-125-1	01	1	0309-			●
36	NUT; EXH PIPE 4JB1 ENG<RLF> M10 FLANGE	8-97096-192-1	02	1	0309-	●	●
36	NUT; EXH PIPE 4HG1 ENG<RJH> M10 FLANGE	8-97096-192-1	03	1	0309-			●
38	NUT; SILENCER EXC. EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	04	1	0309-	●	●
38	NUT; SILENCER 4HG1 ENG<RJH> M10 FLANGE	0-91150-110-0	02	1	0309-			●
44	BOLT; BRKT 4JB1 ENG<RLF> (A) M8X16 FLANGE	0-28080-816-0	02	1	0309-	●	●
44	BOLT; BRKT 4JB1 ENG<RLF> (B) M8X40 FLANGE	0-28080-840-0	01	1	0309-	●	●
44	BOLT; BRKT 4HG1 ENG<RJH> (B) M8X40 FLANGE	0-28080-840-0	01	1	0309-			●
44	BOLT; BRKT 4HG1 ENG<RJH> (A) M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	0309-			●
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0309-			●
81	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0309-	●	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-			●
88	CLAMP; EXH PIPE 4JB1 ENG<RLF> THA	8-97919-446-0	01	1	0309-	●	●
88	CLAMP; EXH PIPE 4HG1 ENG<RJH> THA	8-97917-235-0	01	1	0309-			●
88	CLAMP; EXH PIPE 4HG1 ENG<RJH> THA	8-97917-235-0	01	1	0309-			●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0309-	●	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0309-			●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0309-			●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0309-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-	●	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0309-	●	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0309-			●
112	BRACKET; HANGER 4JB1 ENG<RLF>	8-97323-894-0	01	1	0309-	●	●
112	BRACKET; HANGER 4HG1 ENG<RJH>	8-97076-020-0	01	1	0309-			●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0309-	●	●	●
114	BRACKET; EXH SILENCER	8-97073-758-0	01	1	0309-	●
114	BRACKET; EXH SILENCER	8-94329-857-0	01	1	0309-		●
114	BRACKET; EXH SILENCER	8-94329-996-0	01	1	0309-			●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0309-	●	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0309-	●	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0309-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0309-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-	●	●	●
122	NUT; HANGER BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0309-	●	●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	0309-	●	●	●
124	NUT; SUPPORT RUBBER M10	9-09110-410-0	01	1	0309-		●	●
125	NUT; CLAMP M8	9-09110-408-0	01	1	0309-			●
126	PIPE; EXH,RR THA	8-97917-016-1	01	1	0309-	●
126	PIPE; EXH,RR THA	8-97917-014-1	01	1	0309-		●
126	PIPE; EXH,RR THA	8-97917-015-1	01	1	0309-			●
137	BRACKET; TAIL PIPE 4JB1 ENG<RLF>	9-22121-146-1	01	1	0309-	●
137	BRACKET; TAIL PIPE	8-97169-014-0	01	1	0309-		●
137	BRACKET; TAIL PIPE	8-94468-175-0	01	1	0309-			●
143	RUBBER; SUPPORT	8-97229-586-0	01	1	0309-0309			●
143	RUBBER; SUPPORT	8-97371-655-0	01	1	0309-			●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0309-			●
162	RUBBER; SUPPORT,TAIL PIPE L=180	8-97222-646-0	01	1	0309-	●
162	RUBBER; SUPPORT,TAIL PIPE L=148	8-97145-971-0	01	1	0309-		●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0309-			●
164	COLLAR; DIST,TAIL PIPE L=23	9-22151-175-0	01	1	0309-	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0309-		●	●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28080-845-0	01	1	0309-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0309-		●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	9-09164-808-0	01	1	0309-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0309-		●	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG<RLF> (C)	8-97084-346-2	01	1	0309-	●	●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	0309-			●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> (A)	8-97075-343-1	01	1	0309-			●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0309-	●	●	●

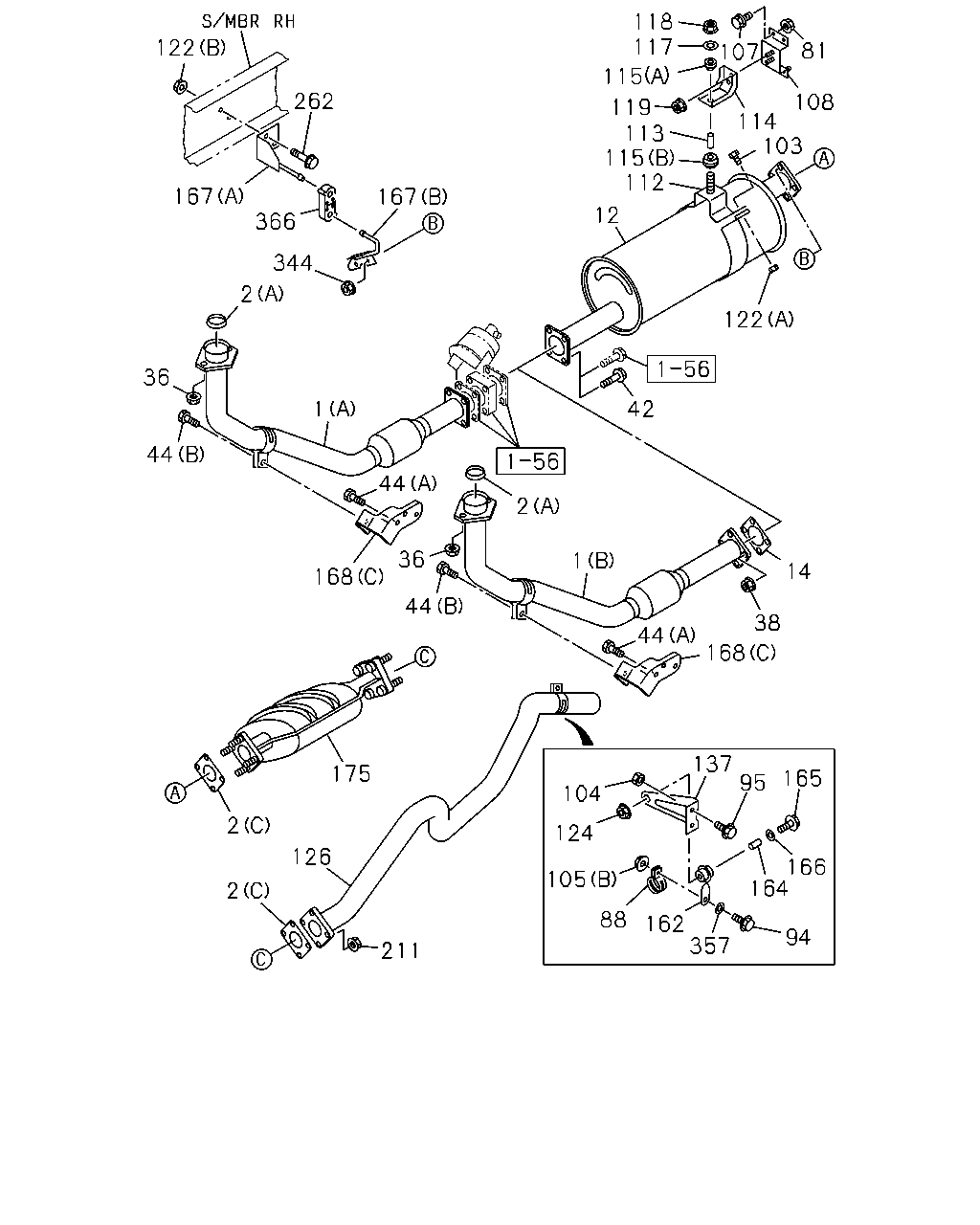

122 118 117 107 81 115 262 108 119 113 115 112 114 103 167 167 12 366 344 2 122 36 42 1 44 44 2 36 1 14 168 44 38 44 168 137 95 175 165 104 2 124 126 166 164 105 2 88 162 357 94 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4JB1 ENG<RLF> EXHAUST BRAKE<NF8> (A)	8-97187-135-0	01	1	0309-	●	●
1	PIPE; EXH 4JB1 ENG<RLF> EXC. EXHAUST BRAKE<NF8> (B) THA	8-97917-122-2	01	1	0309-	●	●
1	PIPE; EXH 4HG1 ENG<RJH> EXHAUST BRAKE<NF8> (C) THA	8-97917-123-3	01	1	0309-			●
1	PIPE; EXH 4HG1 ENG<RJH> EXC. EXHAUST BRAKE<NF8> (D)	8-97187-140-1	01	1	0309-			●
2	GASKET; PIPE TO MANIF (C) ID=71	8-94324-194-0	02	1	0309-	●	●
2	GASKET; PIPE TO MANIF 4JB1 ENG<RLF> (A)	8-97180-750-2	01	1	0309-0408	●	●
2	GASKET; PIPE TO MANIF 4JB1 ENG<RLF>	8-97381-456-0	01	1	0409-	●	●
2	GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (D)	8-94328-354-0	01	1	0309-			●
2	GASKET; PIPE TO MANIF 4HG1 ENG<RJH> (B)	8-97180-749-2	01	1	0309-0408			●
2	GASKET; PIPE TO MANIF 4HG1 ENG<RJH>	8-97381-455-0	01	1	0409-			●
12	SILENCER ASM; EXH 4JB1 ENG<RLF> THA	8-97940-314-2	01	1	0309-	●	●
12	SILENCER ASM; EXH 4HG1 ENG<RJH> THA	8-97940-315-2	01	1	0309-			●
14	GASKET; SILENCER TO EXH PIPE EXC. EXHAUST BRAKE<NF8>	8-94328-354-0	01	1	0309-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	02	1	0309-			●
36	NUT; EXH PIPE 4JB1 ENG<RLF> M10 FLANGE	8-97096-192-1	02	1	0309-	●	●
36	NUT; EXH PIPE 4HG1 ENG<RJH> M10 FLANGE	8-97096-192-1	03	1	0309-			●
38	NUT; SILENCER EXC. EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	04	1	0309-	●	●
38	NUT; SILENCER 4HG1 ENG<RJH> M10 FLANGE	0-91150-110-0	02	1	0309-			●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. EXHAUST BRAKE<NF8> M8X35 FLANGE	0-28680-835-0	04	1	0405-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. EXHAUST BRAKE<NF8> M8X35 FLANGE	0-28680-835-0	04	1	0309-	●	●
44	BOLT; BRKT 4JB1 ENG<RLF> (A) M8X16 FLANGE	0-28080-816-0	02	1	0309-	●	●
44	BOLT; BRKT 4JB1 ENG<RLF> (B) M8X40 FLANGE	0-28080-840-0	01	1	0309-	●	●
44	BOLT; BRKT 4HG1 ENG<RJH> (B) M8X40 FLANGE	0-28080-840-0	01	1	0309-			●
44	BOLT; BRKT 4HG1 ENG<RJH> (A) M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	0309-			●
81	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0309-	●	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-			●
88	CLAMP; EXH PIPE 4JB1 ENG<RLF> THA	8-97919-446-0	01	1	0309-	●	●
88	CLAMP; EXH PIPE 4HG1 ENG<RJH> THA	8-97917-235-0	01	1	0309-			●
88	CLAMP; EXH PIPE 4HG1 ENG<RJH> THA	8-97917-235-0	01	1	0309-			●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0309-	●	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0309-			●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0309-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-	●	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0309-	●	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0309-			●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0309-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	8-97187-346-0	01	1	0309-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	8-94378-511-1	01	1	0309-		●
112	BRACKET; HANGER 4JB1 ENG<RLF>	8-97323-894-0	01	1	0309-	●	●
112	BRACKET; HANGER 4HG1 ENG<RJH>	8-97076-020-0	01	1	0309-			●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0309-	●	●	●
114	BRACKET; EXH SILENCER	8-97073-758-0	01	1	0309-	●
114	BRACKET; EXH SILENCER	8-94329-857-0	01	1	0309-		●
114	BRACKET; EXH SILENCER	8-94329-996-0	01	1	0309-			●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0309-	●	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0309-	●	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0309-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0309-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-	●	●	●
122	NUT; HANGER BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0309-	●	●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	0309-	●	●	●
124	NUT; SUPPORT RUBBER M10	9-09110-410-0	01	1	0309-		●	●
126	PIPE; EXH,RR THA	8-97917-016-1	01	1	0309-	●
126	PIPE; EXH,RR THA	8-97917-014-1	01	1	0309-		●
126	PIPE; EXH,RR THA	8-97917-015-1	01	1	0309-			●
137	BRACKET; TAIL PIPE 4JB1 ENG<RLF>	9-22121-146-1	01	1	0309-	●
137	BRACKET; TAIL PIPE	8-97169-014-0	01	1	0309-		●
137	BRACKET; TAIL PIPE	8-94468-175-0	01	1	0309-			●
162	RUBBER; SUPPORT,TAIL PIPE L=180	8-97222-646-0	01	1	0309-	●
162	RUBBER; SUPPORT,TAIL PIPE L=148	8-97145-971-0	01	1	0309-		●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0309-			●
164	COLLAR; DIST,TAIL PIPE L=23	9-22151-175-0	01	1	0309-	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0309-		●	●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28080-845-0	01	1	0309-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0309-		●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	9-09164-808-0	01	1	0309-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0309-		●	●
167	HANGER; EXH PIPE (A)	8-97187-323-0	01	1	0309-	●
167	HANGER; EXH PIPE (B)	8-97187-324-1	01	1	0309-	●	●
167	HANGER; EXH PIPE (A)	8-97144-952-0	01	1	0309-		●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG<RLF> (C)	8-97084-346-2	01	1	0309-	●	●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	0309-			●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> (A)	8-97075-343-1	01	1	0309-			●
175	CONVERTER; CATALYST	8-97140-417-2	01	1	0309-	●	●
211	NUT; CONV M10 FLANGE	0-91150-110-0	04	1	0309-	●	●
262	BOLT; HANGER TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●
344	NUT; SILENCER M10 FLANGE	0-91150-110-0	04	1	0309-	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0309-	●	●	●
366	RUBBER; SUPPORT,EXH PIPE	8-97166-498-0	01	1	0309-	●	●
