◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50970 - NKR(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶

1-41 — FUEL PIPING; CHASSIS (#19986) — 158 parça

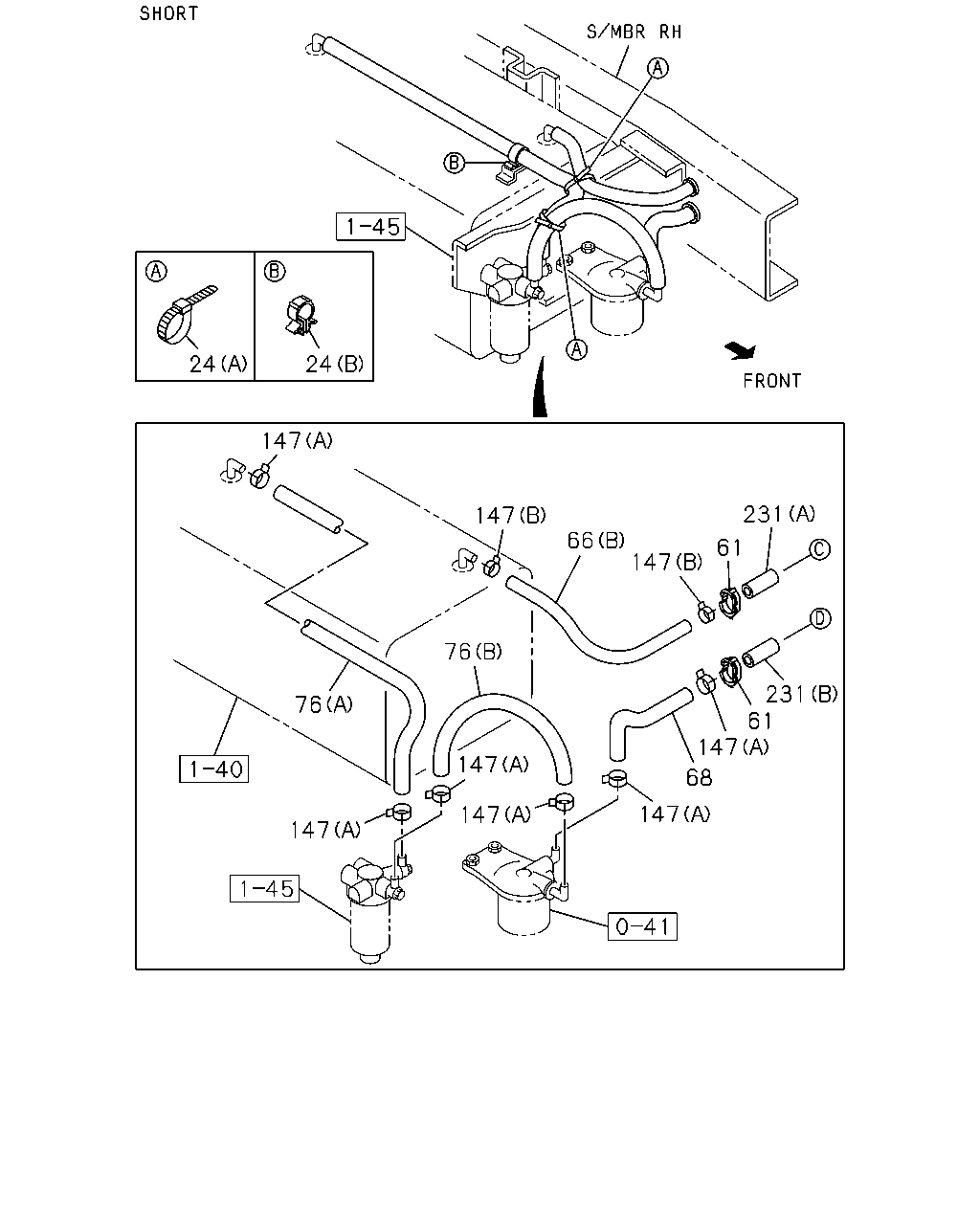

24 24 147 231 147 66 147 61 67 76 231 61 147 147 67 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0309-	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0309-			●
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0309-	●	●
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0309-	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0309-			●
24	CLIP; FUEL HOSE (B) THA	8-97089-536-0	01	1	0309-	●	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C)	9-09916-239-1	01	1	0309-			●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0309-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG<RLF> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
66	HOSE; FUEL,RETURN PIPE (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
67	HOSE; FUEL,DELIVERY 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
67	HOSE; FUEL,DELIVERY 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A),(B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A),(B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●
76	HOSE; FUEL,TANK 4JB1 ENG<RLF> EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
76	HOSE; FUEL,TANK 4JB1 ENG<RLF> (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0309-		●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (A)	0-01209-410-0	01	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (A) ID=16	8-94238-568-0	10	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (B) ID=13	8-94238-571-0	06	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	06	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (A) ID=16	8-94238-568-0	08	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (D) ID=12 & 6.35	8-97215-437-0	03	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0309-			●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0309-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0309-	●	●	●

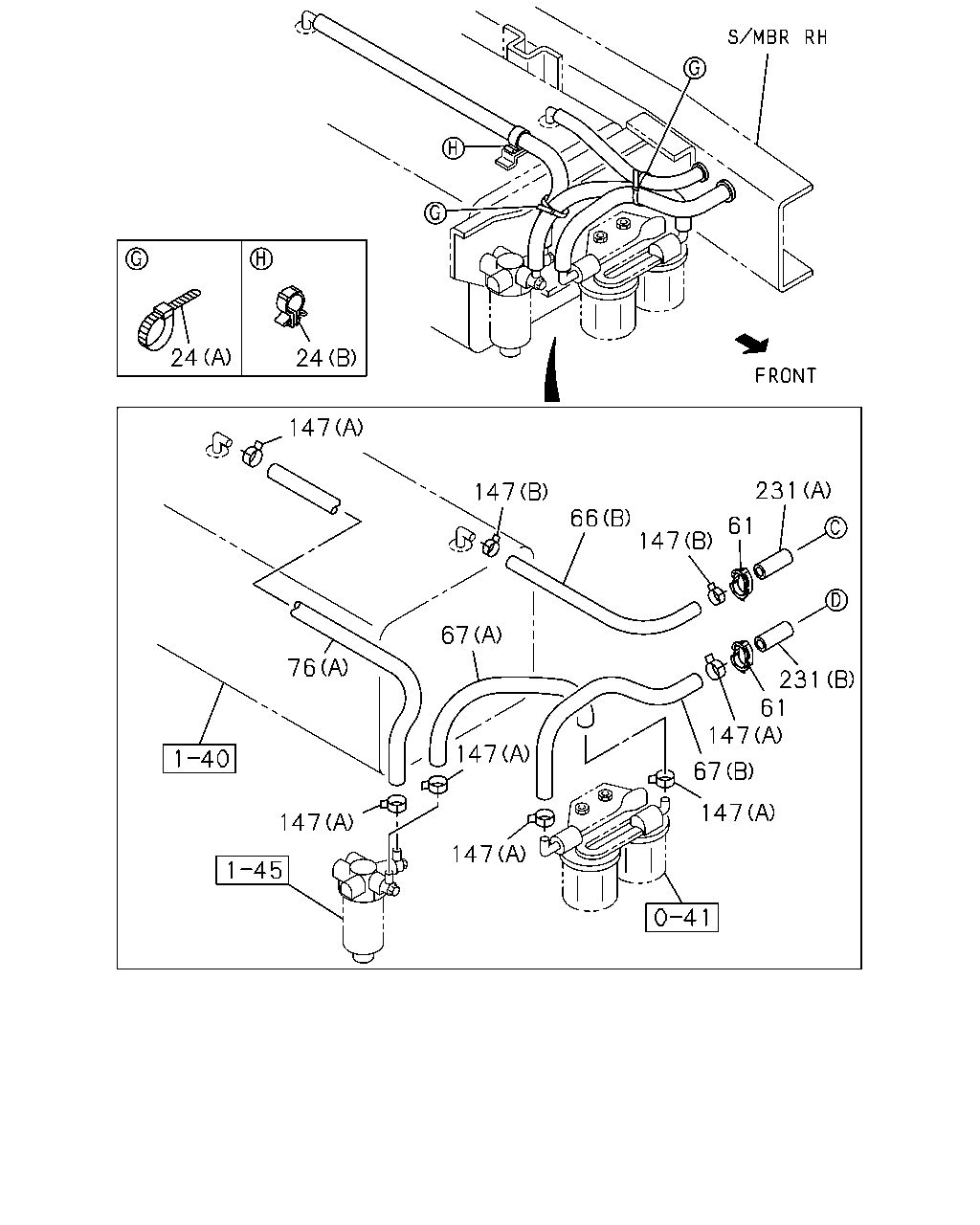

24 24 147 231 147 66 147 61 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0309-	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0309-			●
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0309-	●	●
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0309-	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0309-			●
24	CLIP; FUEL HOSE (B) THA	8-97089-536-0	01	1	0309-	●	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C)	9-09916-239-1	01	1	0309-			●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0309-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG<RLF> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
66	HOSE; FUEL,RETURN PIPE (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG<RLF> EXC. FUEL FILTER DUAL<S6B> THA	8-97916-769-0	01	1	0309-	●
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG<RLF> EXC. FUEL FILTER DUAL<S6B> L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0309-		●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●
76	HOSE; FUEL,TANK 4JB1 ENG<RLF> EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
76	HOSE; FUEL,TANK 4JB1 ENG<RLF> (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0309-		●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (A)	0-01209-410-0	01	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (A) ID=16	8-94238-568-0	10	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (B) ID=13	8-94238-571-0	06	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	06	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (A) ID=16	8-94238-568-0	08	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (D) ID=12 & 6.35	8-97215-437-0	03	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0309-			●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0309-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0309-	●	●	●

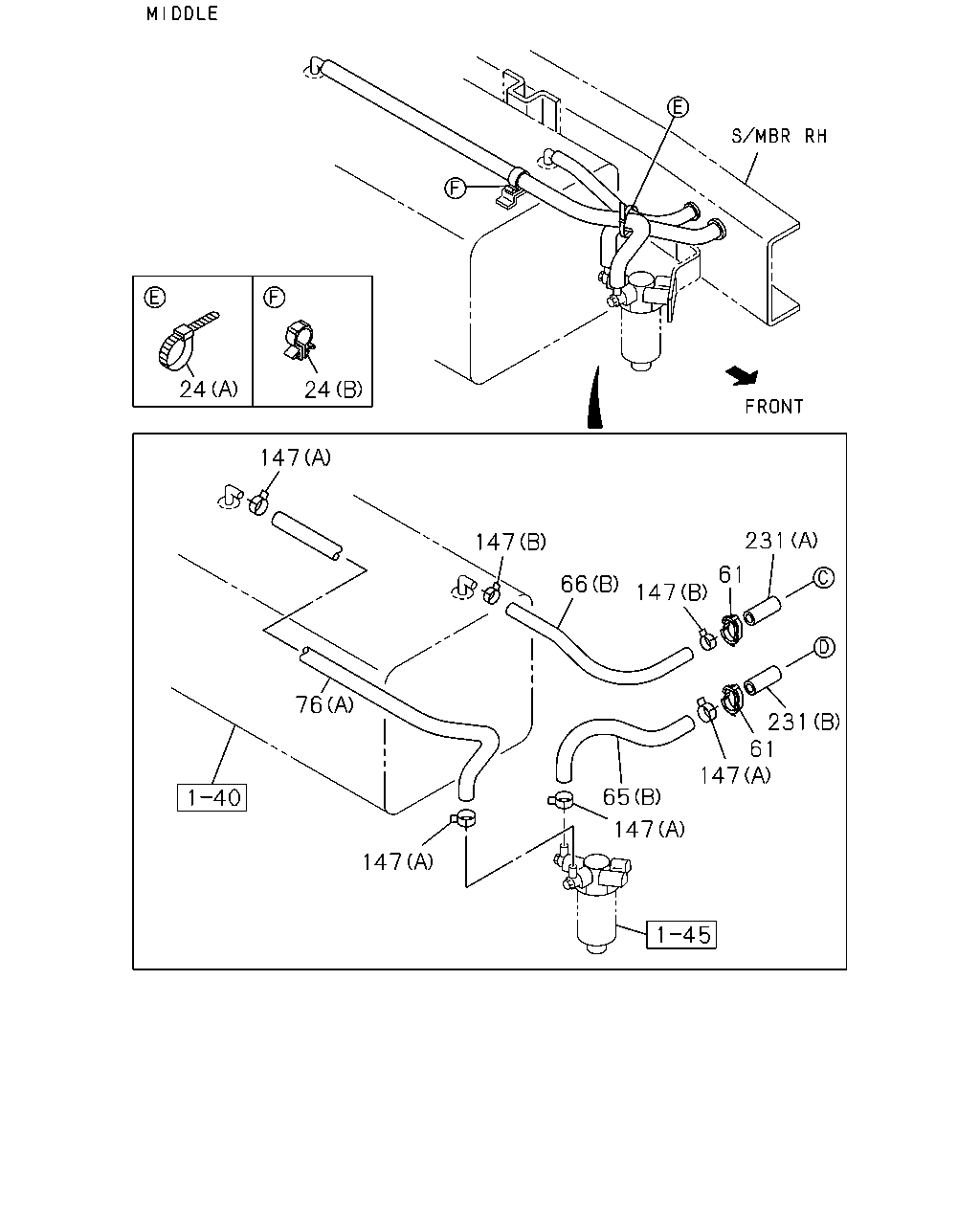

24 24 147 231 147 61 66 147 76 231 61 147 65 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0309-	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0309-			●
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0309-	●	●
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0309-	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0309-			●
24	CLIP; FUEL HOSE (B) THA	8-97089-536-0	01	1	0309-	●	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C)	9-09916-239-1	01	1	0309-			●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0309-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4JB1 ENG<RLF> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG<RLF> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
66	HOSE; FUEL,RETURN PIPE (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●
76	HOSE; FUEL,TANK 4JB1 ENG<RLF> EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
76	HOSE; FUEL,TANK 4JB1 ENG<RLF> (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0309-		●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (A)	0-01209-410-0	01	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (A) ID=16	8-94238-568-0	10	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (B) ID=13	8-94238-571-0	06	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	06	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (A) ID=16	8-94238-568-0	08	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (D) ID=12 & 6.35	8-97215-437-0	03	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0309-			●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0309-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0309-	●	●	●

147 147 39 46 147 147 65 147 66 147 147 45 47 147 29 147 147 147 24 156 304 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0309-	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0309-			●
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0309-	●	●
24	CLIP; FUEL HOSE 4JB1 ENG<RLF> EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0309-	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0309-			●
24	CLIP; FUEL HOSE (B) THA	8-97089-536-0	01	1	0309-	●	●	●
24	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C)	9-09916-239-1	01	1	0309-			●
29	HOSE; FUEL 4HG1 ENG<RJH> THA	8-97914-141-1	01	1	0309-			●
39	PIPE; FUEL 4JB1 ENG<RLF> THA	8-97916-822-2	01	1	0309-	●
39	PIPE; FUEL 4JB1 ENG<RLF> THA	8-97916-829-2	01	1	0309-		●
39	PIPE; FUEL 4HG1 ENG<RJH> THA	8-97922-407-1	01	1	0309-			●
45	PIPE; FUEL,DELIVERY 4JB1 ENG<RLF> THA	8-97916-808-2	01	1	0309-	●
45	PIPE; FUEL,DELIVERY 4JB1 ENG<RLF> THA	8-97916-831-2	01	1	0309-		●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> THA	8-97922-406-1	01	1	0309-			●
46	PIPE; FUEL,TANK SIDE 4JB1 ENG<RLF> THA	8-97916-854-2	01	1	0309-	●
46	PIPE; FUEL,TANK SIDE 4JB1 ENG<RLF> THA	8-97916-806-2	01	1	0309-		●
46	PIPE; FUEL,TANK SIDE 4HG1 ENG<RJH> THA	8-97922-405-0	01	1	0309-			●
47	PIPE; FUEL,RETURN 4JB1 ENG<RLF> THA	8-97916-830-2	01	1	0309-	●
47	PIPE; FUEL,RETURN 4JB1 ENG<RLF> THA	8-97922-408-0	01	1	0309-		●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> THA	8-97922-409-0	01	1	0309-			●
65	HOSE; FUEL,DELIVERY PIPE 4JB1 ENG<RLF> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG<RLF> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
66	HOSE; FUEL,RETURN PIPE (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (A) ID=16	8-94238-568-0	10	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (B) ID=13	8-94238-571-0	06	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	06	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (A) ID=16	8-94238-568-0	08	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (D) ID=12 & 6.35	8-97215-437-0	03	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0309-			●
156	BRACKET; FUEL HOSE 4HG1 ENG<RJH>	8-97087-834-3	01	1	0309-			●
304	NUT; BRKT 4HG1 ENG<RJH> (A) M6 FLANGE	0-91150-106-0	01	1	0309-			●
304	NUT; BRKT 4HG1 ENG<RJH> (B) M10 FLANGE	0-91150-210-0	01	1	0309-			●

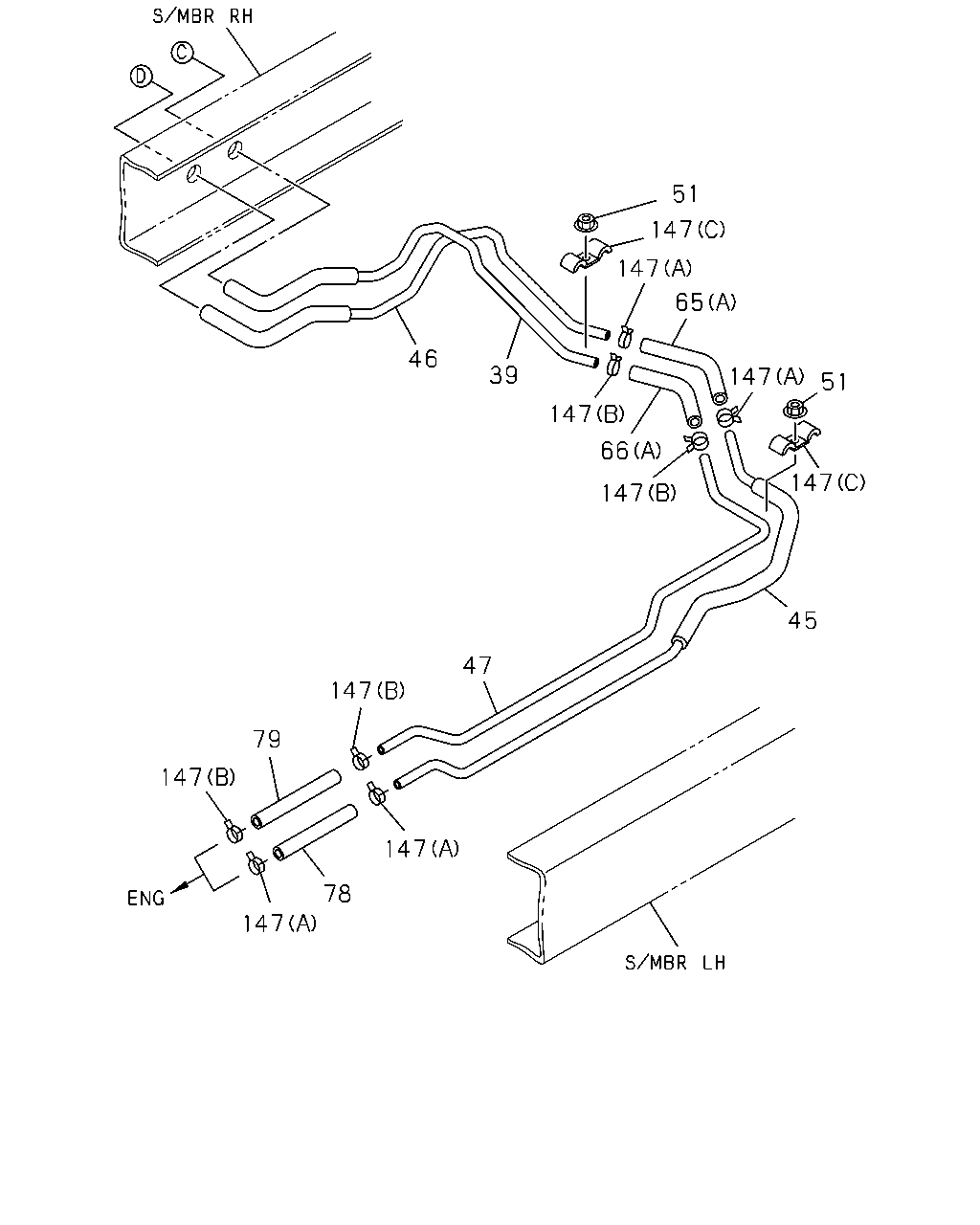

51 147 147 65 46 39 147 51 147 66 147 147 45 47 147 79 147 147 78 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	PIPE; FUEL 4JB1 ENG<RLF> THA	8-97916-822-2	01	1	0309-	●
39	PIPE; FUEL 4JB1 ENG<RLF> THA	8-97916-829-2	01	1	0309-		●
39	PIPE; FUEL 4HG1 ENG<RJH> THA	8-97922-407-1	01	1	0309-			●
45	PIPE; FUEL,DELIVERY 4JB1 ENG<RLF> THA	8-97916-808-2	01	1	0309-	●
45	PIPE; FUEL,DELIVERY 4JB1 ENG<RLF> THA	8-97916-831-2	01	1	0309-		●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> THA	8-97922-406-1	01	1	0309-			●
46	PIPE; FUEL,TANK SIDE 4JB1 ENG<RLF> THA	8-97916-854-2	01	1	0309-	●
46	PIPE; FUEL,TANK SIDE 4JB1 ENG<RLF> THA	8-97916-806-2	01	1	0309-		●
46	PIPE; FUEL,TANK SIDE 4HG1 ENG<RJH> THA	8-97922-405-0	01	1	0309-			●
47	PIPE; FUEL,RETURN 4JB1 ENG<RLF> THA	8-97916-830-2	01	1	0309-	●
47	PIPE; FUEL,RETURN 4JB1 ENG<RLF> THA	8-97922-408-0	01	1	0309-		●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> THA	8-97922-409-0	01	1	0309-			●
51	NUT; CLIP,PIPE 4JB1 ENG<RLF> M6 FLANGE	0-91150-106-0	03	1	0309-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4JB1 ENG<RLF> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B> (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0309-			●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG<RLF> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
66	HOSE; FUEL,RETURN PIPE (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0309-			●
78	HOSE; FUEL,PUMP TO PIPE 4JB1 ENG<RLF> L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1 ENG<RLF> L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (A) ID=16	8-94238-568-0	10	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG<RLF> (B) ID=13	8-94238-571-0	06	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	06	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (A) ID=16	8-94238-568-0	08	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (D) ID=12 & 6.35	8-97215-437-0	03	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0309-			●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0309-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
