1-40 — FUEL TANK (#19985) — 26 parça

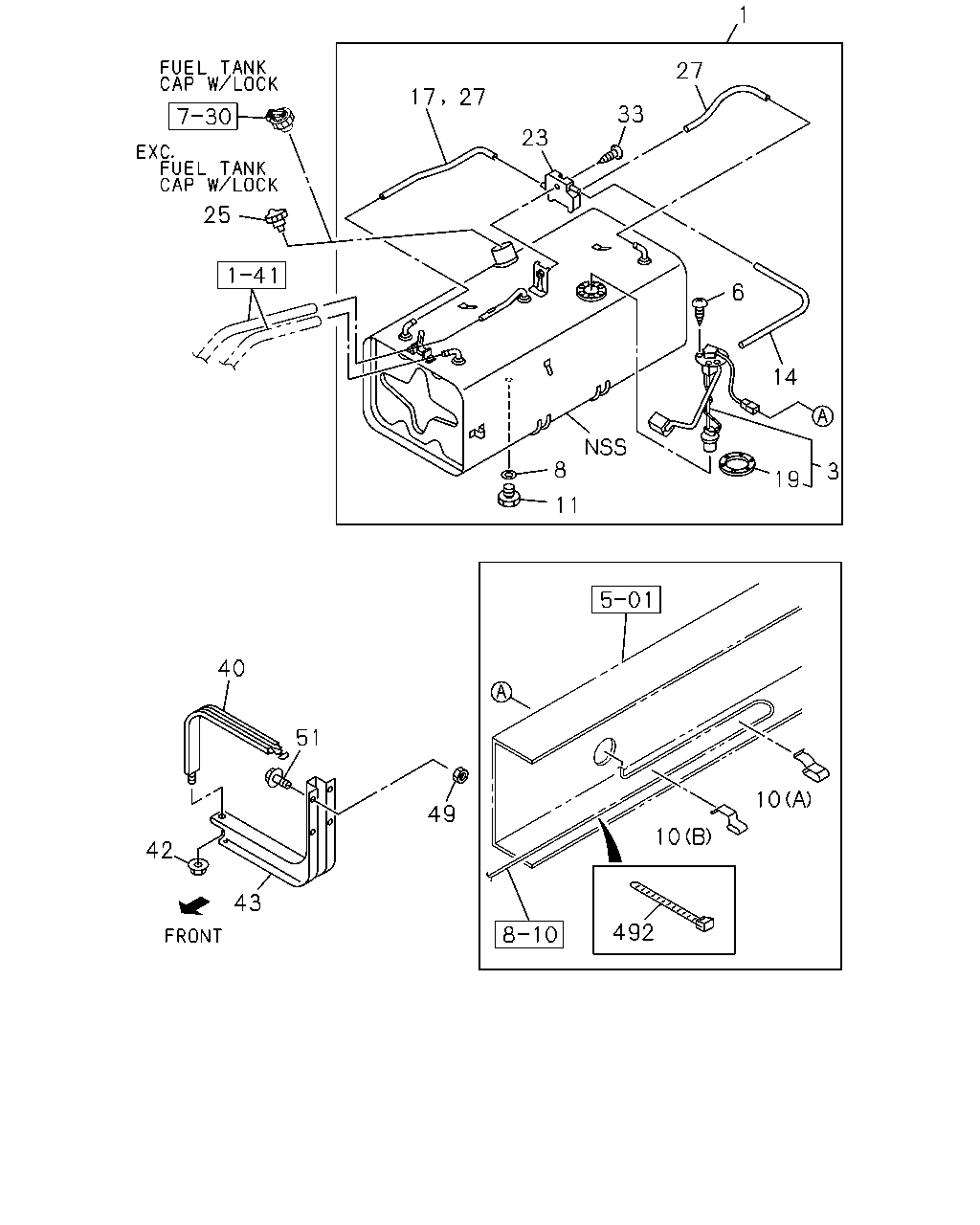

çizim 56140
1 27 17 27 33 23 25 6 14 8 3 19 11 40 51 10 49 10 42 43 492
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; FUEL
753X340X327 75L THA 		8-97916-356-0 01 1 0309- ● ●
1 TANK; FUEL
1000X340X327 100L THA 		8-97916-357-0 01 1 0309- ●
3 UNIT; FUEL TANK,SUB 8-94316-190-0 01 1 0309- ● ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 0309- ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
THA 		8-97918-206-0 01 1 0309- ● ● ●
10 CLIP; SPRING,FUEL TANK UNIT CABLE
(A) T=9.2 THA 		5-09709-013-0 AR 1 0309- ● ● ●
10 CLIP; SPRING,FUEL TANK UNIT CABLE
(B) T=4.5 & 9 		5-09709-023-0 AR 1 0309- ● ● ●
10 CLIP; SPRING,FUEL TANK UNIT CABLE
(B) T=9.2 & 9 THA 		5-09709-025-0 AR 1 0309- ● ● ●
10 CLIP; SPRING,FUEL TANK UNIT CABLE
(A) T=5.5 		5-09709-047-0 AR 1 0309- ● ● ●
11 PLUG; DRAIN,FUEL TANK
THA 		8-97917-063-0 01 1 0309- ● ●
11 PLUG; DRAIN,FUEL TANK
THA 		8-97917-063-0 01 1 0309- ●
14 HOSE; BREATHER,OUTLET
THA 		8-97917-066-0 02 1 0309- ● ●
14 HOSE; BREATHER,OUTLET
L=430 THA 		8-97917-065-0 01 1 0309- ●
17 HOSE; BREATHER
THA 		8-97917-069-0 01 1 0309- ● ●
19 GASKET; FUEL TANK UNIT 5-83148-001-0 01 1 0309- ● ● ●
23 JOINT; BREATHER HOSE
THA 		8-97917-064-0 01 1 0309- ● ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0309- ● ● ●
27 HOSE; BREATHER
THA 		8-97917-068-0 01 1 0309- ● ●
27 HOSE; BREATHER
L=470 THA 		8-97917-067-0 02 1 0309- ●
33 SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0309- ● ● ●
40 BELT; SUPPORT,FUEL TANK
THA 		8-97916-551-0 02 1 0309- ● ● ●
42 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0309- ● ● ●
43 BRACKET; FUEL TANK
THA 		8-97917-011-0 02 1 0309- ● ● ●
49 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0309- ● ● ●
51 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28691-030-0 08 1 0309- ● ● ●
492 CLIP; HARNESS TO VAC HOSE
EXHAUST BRAKE<NF8> L=250 THA 		5-09707-030-1 02 1 0309- ● ● ●
