1-31 — AIR DUCT (#19983) — 87 parça

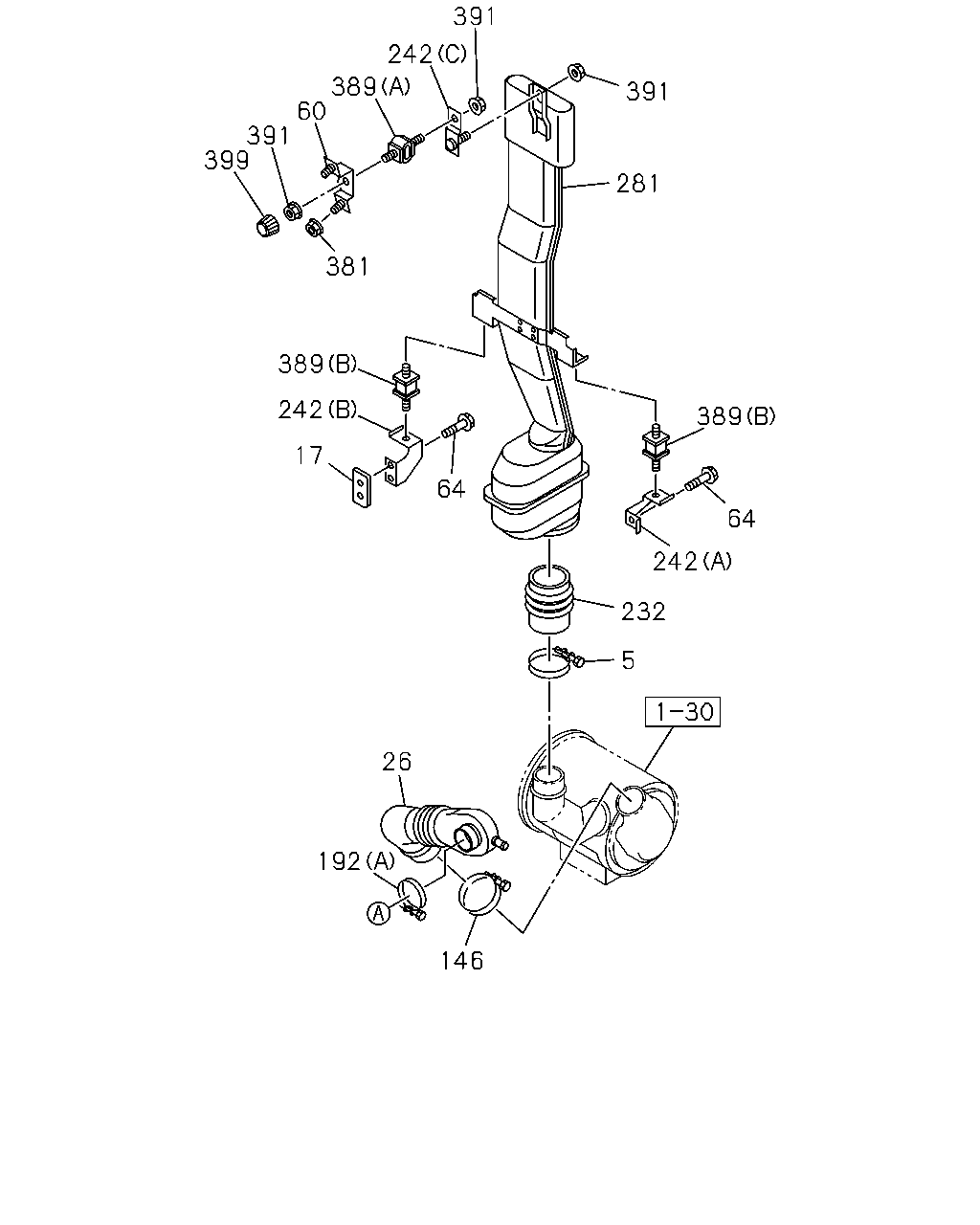

391 242 389 60 391 391 399 281 381 389 242 389 17 64 64 242 232 5 26 192 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT 4JB1 ENG<RLF> ID=87	8-97087-432-0	01	1	0309-	●	●
5	CLIP; AIR DUCT 4HG1 ENG<RJH> D=101.6	9-09915-502-1	01	1	0309-			●
17	GASKET; AIR DUCT 4JB1 ENG<RLF>	8-97853-699-2	01	1	0309-	●	●
17	GASKET; AIR DUCT 4HG1 ENG<RJH>	8-97853-699-2	01	1	0309-			●
26	DUCT; AIR INT 4JB1 ENG<RLF>	8-97205-771-0	01	1	0309-	●	●
60	BRACKET; AIR DUCT,UPR 4JB1 ENG<RLF> THA	8-97916-584-0	01	1	0309-	●	●
60	BRACKET; AIR DUCT,UPR 4HG1 ENG<RJH> THA	8-97916-585-0	01	1	0309-			●
64	BOLT; BRKT,AIR DUCT 4JB1 ENG<RLF> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0309-	●	●
64	BOLT; BRKT,AIR DUCT 4HG1 ENG<RJH> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0309-			●
146	CLIP; HOSE,ACL 4JB1 ENG<RLF> ID=87	8-97087-432-0	01	1	0309-	●	●
146	CLIP; HOSE,ACL 4HG1 ENG<RJH> ID=95	9-09915-733-1	01	1	0309-			●
192	CLIP; HOSE 4JB1 ENG<RLF> (B) ID=58-79 THA	8-94126-771-0	02	1	0309-0403	●	●
192	CLIP; HOSE 4JB1 ENG<RLF> ID=58-76 THA	1-09707-203-0	02	1	0404-	●	●
192	CLIP; HOSE 4JB1 ENG<RLF> (A) ID=44-60	8-94175-940-0	07	1	0309-	●	●
232	HOSE; CONN 4JB1 ENG<RLF>	5-14231-115-1	01	1	0309-	●	●
232	HOSE; CONN 4HG1 ENG<RJH>	8-97109-423-0	01	1	0309-			●
242	BRACKET; AIR DUCT 4JB1 ENG<RLF> (C) THA	8-97916-580-0	01	1	0309-	●	●
242	BRACKET; AIR DUCT 4JB1 ENG<RLF> (A) THA	8-97916-581-0	01	1	0309-	●	●
242	BRACKET; AIR DUCT 4JB1 ENG<RLF> (B) THA	8-97916-583-0	01	1	0309-	●	●
242	BRACKET; AIR DUCT 4HG1 ENG<RJH> (B) THA	8-97916-575-0	01	1	0309-			●
242	BRACKET; AIR DUCT 4HG1 ENG<RJH> (A) THA	8-97916-582-0	01	1	0309-			●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG<RLF>	8-97076-959-2	01	1	0309-	●	●
281	DUCT; AIR,VERTICAL INT 4HG1 ENG<RJH>	8-97125-174-1	01	1	0309-			●
381	NUT; BRKT,AIR DUCT 4JB1 ENG<RLF> M6 FLANGE	1-09984-018-0	02	1	0309-	●	●
381	NUT; BRKT,AIR DUCT 4HG1 ENG<RJH> M6 FLANGE	1-09984-018-0	02	1	0309-			●
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG<RLF> (A)	8-97080-149-0	01	1	0309-	●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG<RJH> (A)	8-97080-149-0	01	1	0309-			●
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG<RLF> (B)	8-97081-886-0	02	1	0309-	●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG<RJH> (B)	8-97081-886-0	02	1	0309-			●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG<RLF> M8 FLANGE	8-94279-517-0	07	1	0309-	●	●
391	NUT; SUPPORT RUBBER,UPR 4HG1 ENG<RJH> M8 FLANGE	8-94279-517-0	06	1	0309-			●
399	CAP; BRKT,AIR DUCT 4JB1 ENG<RLF>	8-94273-605-0	02	1	0309-	●	●
399	CAP; BRKT,AIR DUCT 4HG1 ENG<RJH>	8-94273-605-0	02	1	0309-			●

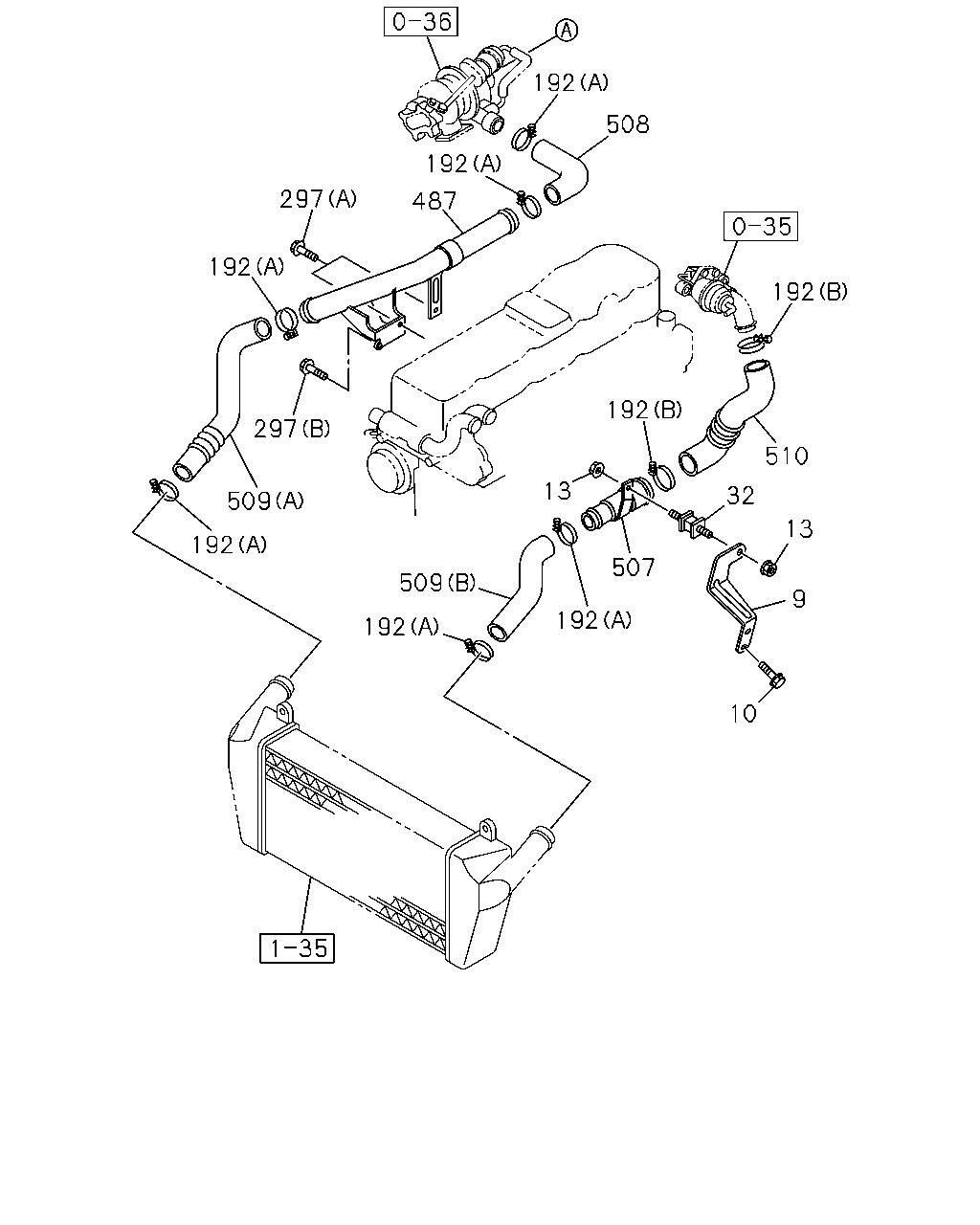

192 508 192 297 487 192 192 192 297 510 13 32 509 13 192 507 509 9 192 192 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BRACKET; INT PIPE 4JB1 ENG<RLF>	8-97226-059-0	01	1	0309-	●	●
10	BOLT; BRKT FIX 4JB1 ENG<RLF> M8X12 FLANGE	0-28080-812-0	01	1	0309-	●	●
13	NUT; BRKT FIX 4JB1 ENG<RLF> M8 FLANGE	0-91150-108-0	02	1	0309-	●	●
32	RUBBER; AIR DUCT MTG 4JB1 ENG<RLF>	8-94158-155-1	01	1	0309-	●	●
192	CLIP; HOSE 4JB1 ENG<RLF> (B) ID=58-79 THA	8-94126-771-0	02	1	0309-0403	●	●
192	CLIP; HOSE 4JB1 ENG<RLF> ID=58-76 THA	1-09707-203-0	02	1	0404-	●	●
192	CLIP; HOSE 4JB1 ENG<RLF> (A) ID=44-60	8-94175-940-0	07	1	0309-	●	●
297	BOLT; DUCT 4JB1 ENG<RLF> (A) M8X12 FLANGE	0-28080-812-0	02	1	0309-	●	●
297	BOLT; DUCT 4JB1 ENG<RLF> (B) M10X12 FLANGE	0-28081-012-0	01	1	0309-	●	●
487	PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG<RLF>	8-97216-223-0	01	1	0309-	●	●
507	PIPE; CHARGE AIR COOLER TO INL MANIF 4JB1 ENG<RLF>	8-97228-660-0	01	1	0309-	●	●
508	HOSE; AIR,TURBO TO PIPE 4JB1 ENG<RLF>	8-97217-911-1	01	1	0309-	●	●
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JB1 ENG<RLF> (A)	8-97221-914-2	01	1	0309-	●	●
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JB1 ENG<RLF> (B)	8-97228-657-0	01	1	0309-	●	●
510	HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG<RLF>	8-97228-658-0	01	1	0309-	●	●

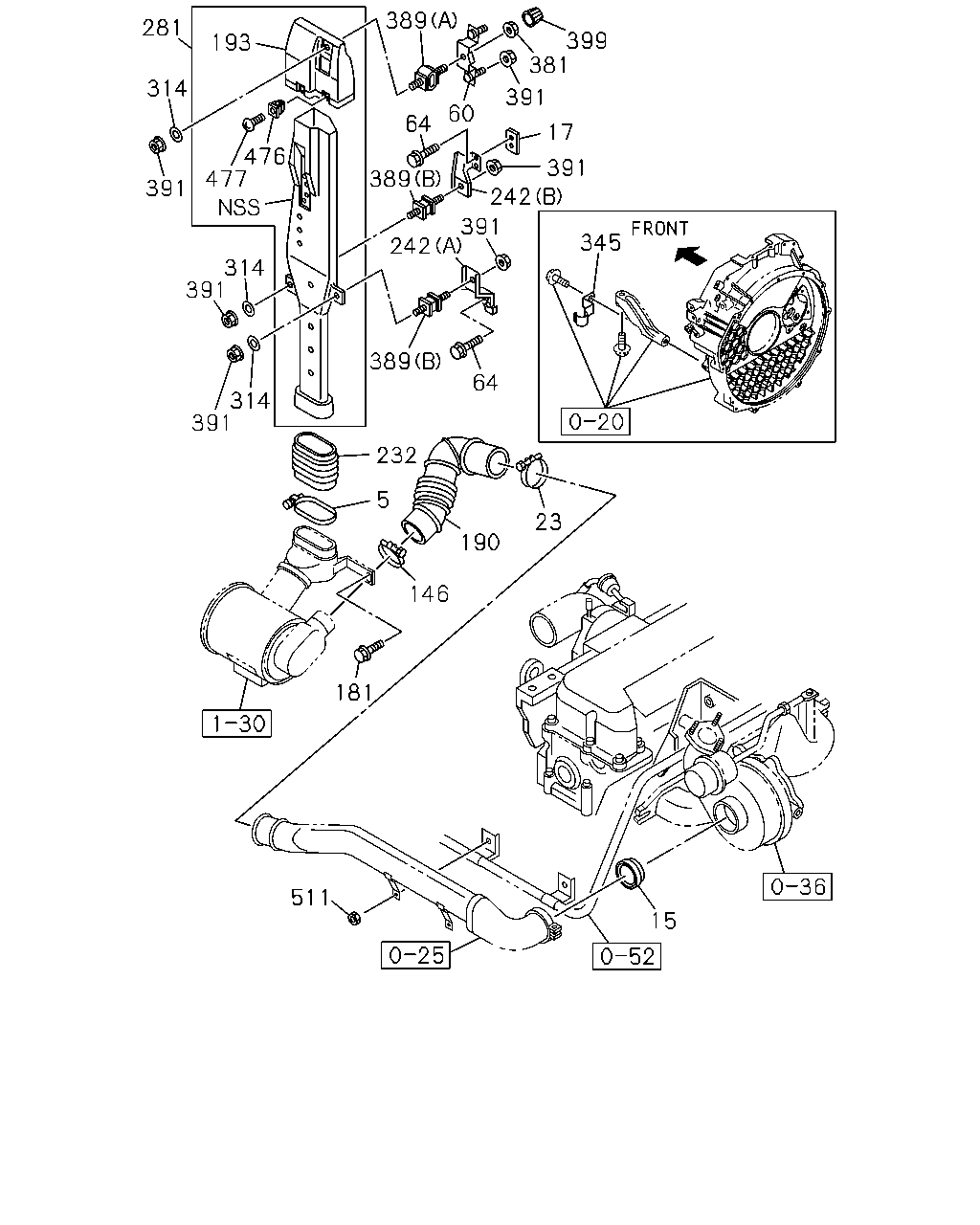

389 281 399 381 193 314 391 60 64 17 476 477 391 389 391 242 391 345 242 314 391 389 64 314 391 232 5 23 190 146 181 511 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT 4JB1 ENG<RLF> ID=87	8-97087-432-0	01	1	0309-	●	●
5	CLIP; AIR DUCT 4HG1 ENG<RJH> D=101.6	9-09915-502-1	01	1	0309-			●
15	INSULATOR 4HG1 ENG<RJH>	8-94454-802-0	01	1	0309-			●
17	GASKET; AIR DUCT 4JB1 ENG<RLF>	8-97853-699-2	01	1	0309-	●	●
17	GASKET; AIR DUCT 4HG1 ENG<RJH>	8-97853-699-2	01	1	0309-			●
23	CLIP; HOSE 4HG1 ENG<RJH> ID=87	8-97087-432-0	01	1	0309-			●
60	BRACKET; AIR DUCT,UPR 4JB1 ENG<RLF> THA	8-97916-584-0	01	1	0309-	●	●
60	BRACKET; AIR DUCT,UPR 4HG1 ENG<RJH> THA	8-97916-585-0	01	1	0309-			●
64	BOLT; BRKT,AIR DUCT 4JB1 ENG<RLF> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0309-	●	●
64	BOLT; BRKT,AIR DUCT 4HG1 ENG<RJH> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0309-			●
146	CLIP; HOSE,ACL 4JB1 ENG<RLF> ID=87	8-97087-432-0	01	1	0309-	●	●
146	CLIP; HOSE,ACL 4HG1 ENG<RJH> ID=95	9-09915-733-1	01	1	0309-			●
181	BOLT; AIR DUCT TO RAD 4HG1 ENG<RJH> M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
190	HOSE; CONN,DUCT TO ACL 4HG1 ENG<RJH>	8-97178-749-1	01	1	0309-			●
193	COVER; DUCT,AIR INT 4HG1 ENG<RJH>	8-97044-953-0	01	1	0309-			●
232	HOSE; CONN 4JB1 ENG<RLF>	5-14231-115-1	01	1	0309-	●	●
232	HOSE; CONN 4HG1 ENG<RJH>	8-97109-423-0	01	1	0309-			●
242	BRACKET; AIR DUCT 4JB1 ENG<RLF> (C) THA	8-97916-580-0	01	1	0309-	●	●
242	BRACKET; AIR DUCT 4JB1 ENG<RLF> (A) THA	8-97916-581-0	01	1	0309-	●	●
242	BRACKET; AIR DUCT 4JB1 ENG<RLF> (B) THA	8-97916-583-0	01	1	0309-	●	●
242	BRACKET; AIR DUCT 4HG1 ENG<RJH> (B) THA	8-97916-575-0	01	1	0309-			●
242	BRACKET; AIR DUCT 4HG1 ENG<RJH> (A) THA	8-97916-582-0	01	1	0309-			●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG<RLF>	8-97076-959-2	01	1	0309-	●	●
281	DUCT; AIR,VERTICAL INT 4HG1 ENG<RJH>	8-97125-174-1	01	1	0309-			●
314	WASHER; PL,AIR INT DUCT 4HG1 ENG<RJH> ID=10.2 T=3.2	8-94279-642-0	03	1	0309-			●
345	CLIP; PCV HOSE 4HG1 ENG<RJH>	8-97369-959-0	01	1	0309-			●
381	NUT; BRKT,AIR DUCT 4JB1 ENG<RLF> M6 FLANGE	1-09984-018-0	02	1	0309-	●	●
381	NUT; BRKT,AIR DUCT 4HG1 ENG<RJH> M6 FLANGE	1-09984-018-0	02	1	0309-			●
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG<RLF> (A)	8-97080-149-0	01	1	0309-	●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG<RJH> (A)	8-97080-149-0	01	1	0309-			●
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG<RLF> (B)	8-97081-886-0	02	1	0309-	●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG<RJH> (B)	8-97081-886-0	02	1	0309-			●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG<RLF> M8 FLANGE	8-94279-517-0	07	1	0309-	●	●
391	NUT; SUPPORT RUBBER,UPR 4HG1 ENG<RJH> M8 FLANGE	8-94279-517-0	06	1	0309-			●
399	CAP; BRKT,AIR DUCT 4JB1 ENG<RLF>	8-94273-605-0	02	1	0309-	●	●
399	CAP; BRKT,AIR DUCT 4HG1 ENG<RJH>	8-94273-605-0	02	1	0309-			●
476	GROMMET; SCREW,COVER 4HG1 ENG<RJH>	1-09983-081-0	04	1	0309-			●
477	SCREW; COVER 4HG1 ENG<RJH> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0309-			●
511	NUT; PIPE 4HG1 ENG<RJH> M8 FLANGE	0-91150-108-0	02	1	0309-			●
