Isuzu WW
▶
TRUCKS
▶
NKR
▶
50970 - NKR(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#19980) — 68 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀

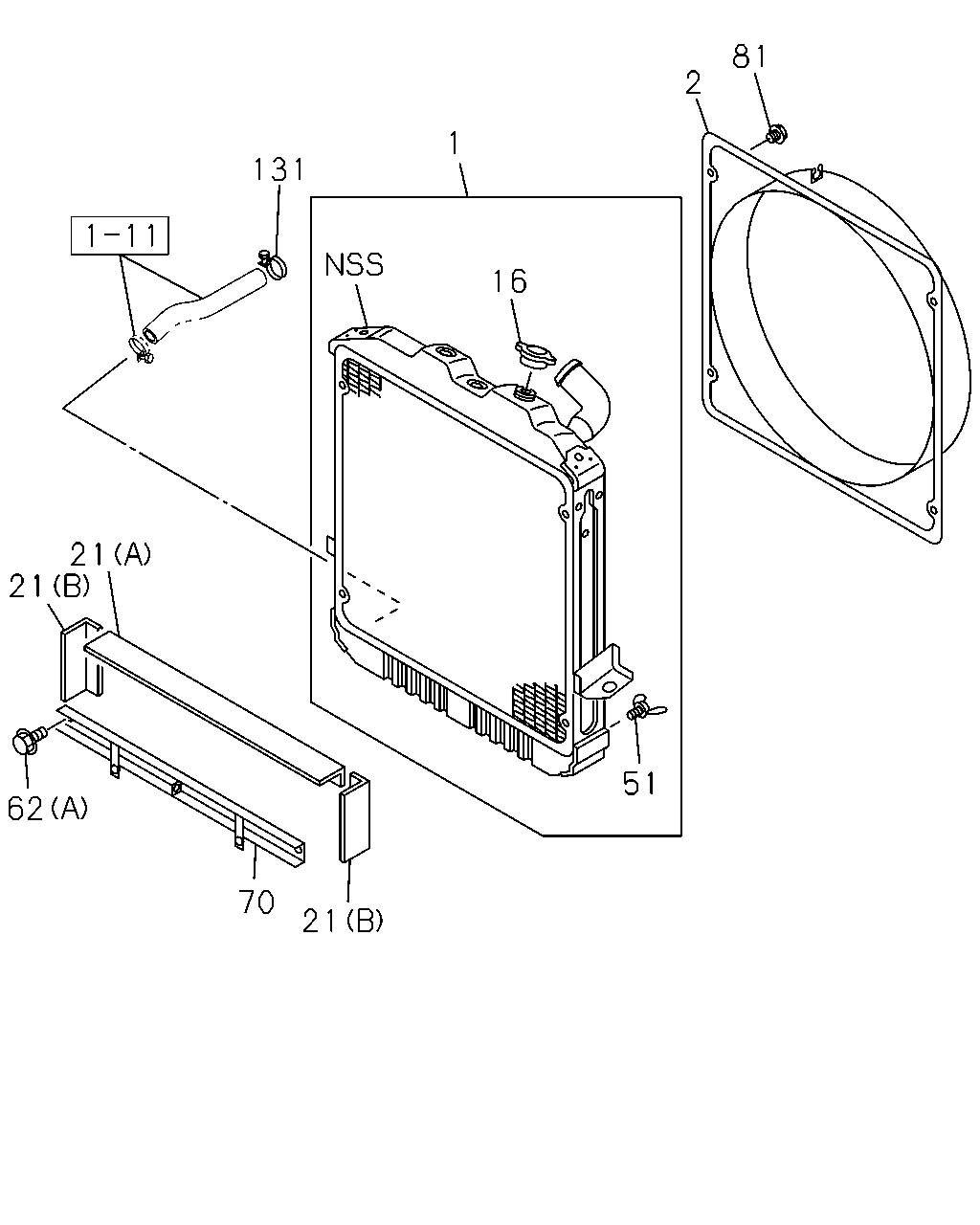

[110A] 4JB1 (21 parça)

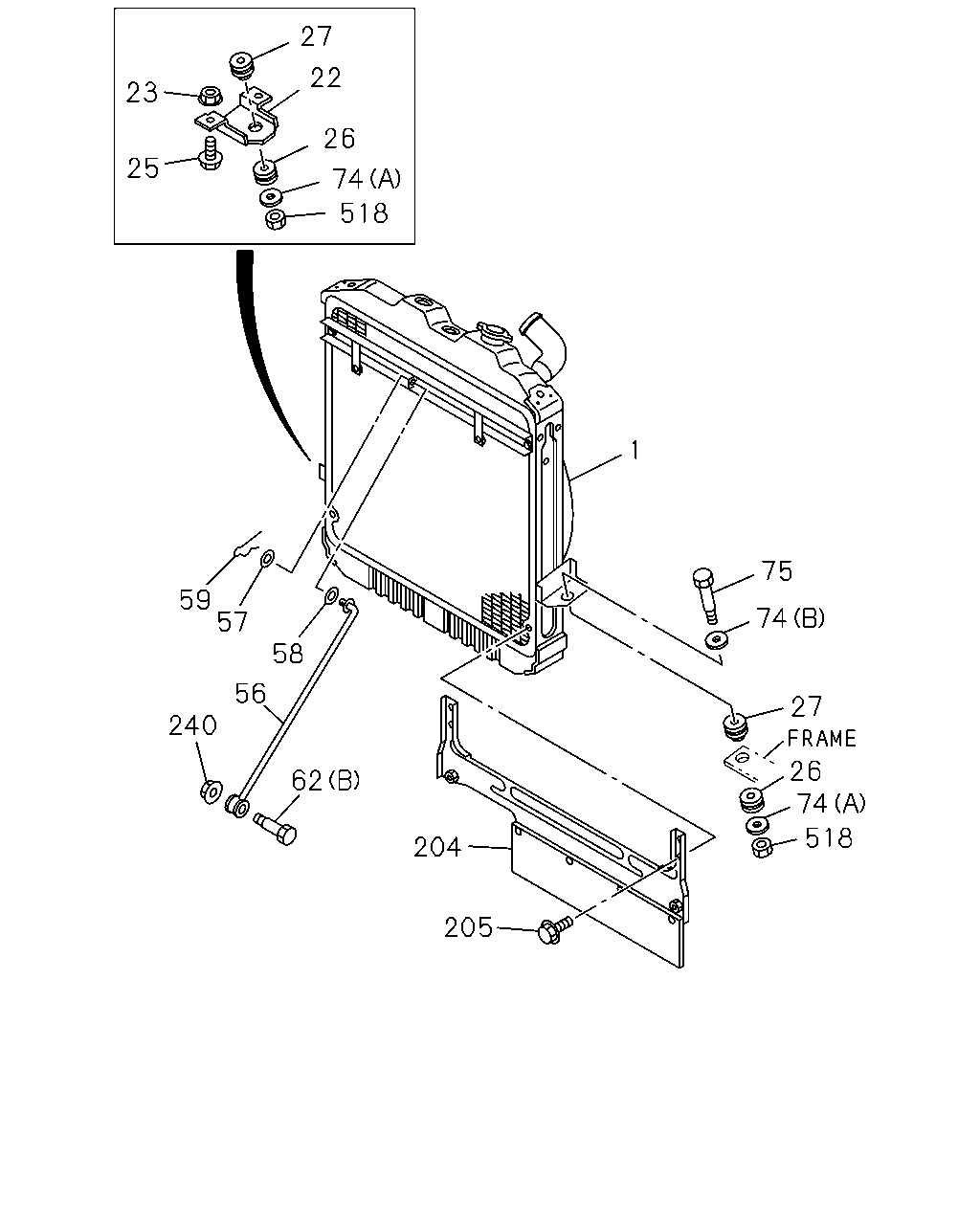

[110A] FIXING (25 parça)

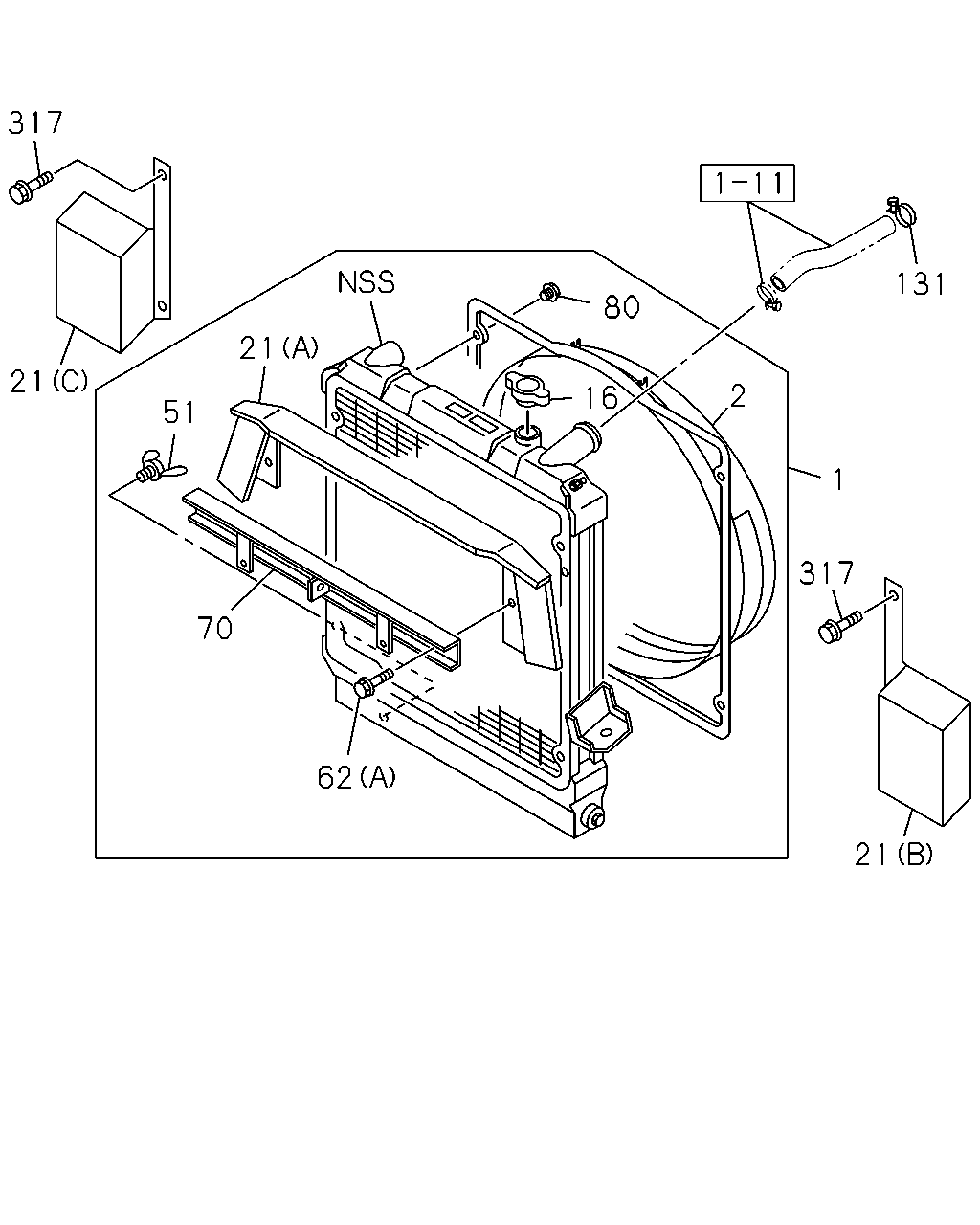

[110A] 4HG1 (22 parça)
▶
81
2
1
131
16
21
21
51
62
70
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
RADIATOR ASM
4JB1 ENG<RLF> THA
8-97940-552-3
01
1
0309-
●
●
1
RADIATOR ASM
4HG1 ENG<RJH> THA
8-97942-210-0
01
1
0309-
●
2
GUIDE; FAN
4JB1 ENG<RLF> THA
8-97940-553-0
01
1
0309-
●
●
2
GUIDE; FAN
4HG1 ENG<RJH> THA
8-97940-656-0
01
1
0309-
●
16
CAP; RAD
4JB1 ENG<RLF> THA
8-97940-668-0
01
1
0309-
●
●
16
CAP; RAD
4HG1 ENG<RJH> THA
8-97940-668-0
01
1
0309-
●
21
SEAL; RAD
4JB1 ENG<RLF> (A) THA
8-97940-661-0
01
1
0309-
●
●
21
SEAL; RAD
4JB1 ENG<RLF> (B) THA
8-97940-662-0
02
1
0309-
●
●
21
SEAL; RAD
4HG1 ENG<RJH> (C)
8-97289-767-1
01
1
0309-
●
21
SEAL; RAD
4HG1 ENG<RJH> (B)
8-97289-768-1
01
1
0309-
●
21
SEAL; RAD
4HG1 ENG<RJH> (A) THA
8-97942-211-0
01
1
0309-
●
51
PLUG; DRAIN
4JB1 ENG<RLF> THA
8-97940-673-0
01
1
0309-
●
●
51
PLUG; DRAIN
4HG1 ENG<RJH> THA
8-97940-673-0
01
1
0309-
●
62
BOLT; STAY
4JB1 ENG<RLF> (A) M8X12 FLANGE
0-28080-812-0
02
1
0309-
●
●
62
BOLT; STAY
4HG1 ENG<RJH> (A) M8X12 FLANGE
0-28080-812-0
02
1
0309-
●
62
BOLT; STAY
(B) M8X45
8-94401-350-0
01
1
0309-
●
●
●
70
STAY; RAD
4JB1 ENG<RLF> THA
8-97940-659-0
01
1
0309-
●
●
70
STAY; RAD
4HG1 ENG<RJH> THA
8-97940-659-0
01
1
0309-
●
81
SCREW; FAN GUIDE,RAD
4JB1 ENG<RLF> THA
8-97940-658-0
04
1
0309-
●
●
131
CLIP; ENG SIDE TOP
4JB1 ENG<RLF> ID=42
5-09704-047-1
01
1
0309-
●
●
131
CLIP; ENG SIDE TOP
4HG1 ENG<RJH> ID=40
8-97245-216-0
01
1
0309-
●
27
22
23
26
25
74
518
1
75
59
57
74
58
56
27
240
26
74
62
518
204
205
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
RADIATOR ASM
4JB1 ENG<RLF> THA
8-97940-552-3
01
1
0309-
●
●
1
RADIATOR ASM
4HG1 ENG<RJH> THA
8-97942-210-0
01
1
0309-
●
22
BRACKET; RAD MTG
THA
8-97916-772-0
01
1
0309-
●
●
●
23
NUT; RAD MTG
M10 FLANGE
5-09440-006-0
02
1
0309-
●
●
●
25
BOLT; BRKT
M10X30 FLANGE
0-28681-030-0
02
1
0309-
●
●
●
26
BUFFER; RAD,LWR
THA
8-97916-760-0
02
1
0309-
●
●
●
27
BUFFER; RAD,UPR
THA
8-97916-770-0
02
1
0309-
●
●
●
56
STAY; RAD
4JB1 ENG<RLF>
8-97350-324-0
01
1
0309-
●
●
56
STAY; RAD
4HG1 ENG<RJH>
8-97350-322-0
01
1
0309-
●
57
WASHER; PL,STAY
4JB1 ENG<RLF> ID=10.5 OD=18
9-09160-510-0
01
1
0309-
●
●
57
WASHER; PL,STAY
4HG1 ENG<RJH> ID=10.5 OD=18
9-09160-510-0
01
1
0309-
●
58
WASHER; CURVED,STAY
4JB1 ENG<RLF> ID=12
8-97011-676-0
01
1
0309-
●
●
58
WASHER; CURVED,STAY
4HG1 ENG<RJH> ID=12
8-97011-676-0
01
1
0309-
●
59
PIN; SNAP,STAY
4JB1 ENG<RLF> L=27.7
8-94202-777-0
01
1
0309-
●
●
59
PIN; SNAP,STAY
4HG1 ENG<RJH> L=27.7
8-94202-777-0
01
1
0309-
●
62
BOLT; STAY
4JB1 ENG<RLF> (A) M8X12 FLANGE
0-28080-812-0
02
1
0309-
●
●
62
BOLT; STAY
4HG1 ENG<RJH> (A) M8X12 FLANGE
0-28080-812-0
02
1
0309-
●
62
BOLT; STAY
(B) M8X45
8-94401-350-0
01
1
0309-
●
●
●
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-94221-082-0
02
1
0309-
●
●
●
74
WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26
9-09160-710-0
01
1
0309-
●
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M8X63
8-94249-446-0
01
1
0309-
●
●
●
204
GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT<C60>
8-97035-512-3
01
1
0309-
●
●
●
205
BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT<C60> M6X12 FLANGE
0-28080-612-0
04
1
0309-
●
●
●
240
NUT; STAY
M8 FLANGE
8-94178-701-0
01
1
0309-
●
●
●
518
NUT
M8 FLANGE THA
5-09440-005-0
02
1
0309-
●
●
●
317
131
80
21
21
2
16
51
1
317
70
62
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
RADIATOR ASM
4JB1 ENG<RLF> THA
8-97940-552-3
01
1
0309-
●
●
1
RADIATOR ASM
4HG1 ENG<RJH> THA
8-97942-210-0
01
1
0309-
●
2
GUIDE; FAN
4JB1 ENG<RLF> THA
8-97940-553-0
01
1
0309-
●
●
2
GUIDE; FAN
4HG1 ENG<RJH> THA
8-97940-656-0
01
1
0309-
●
16
CAP; RAD
4JB1 ENG<RLF> THA
8-97940-668-0
01
1
0309-
●
●
16
CAP; RAD
4HG1 ENG<RJH> THA
8-97940-668-0
01
1
0309-
●
21
SEAL; RAD
4JB1 ENG<RLF> (A) THA
8-97940-661-0
01
1
0309-
●
●
21
SEAL; RAD
4JB1 ENG<RLF> (B) THA
8-97940-662-0
02
1
0309-
●
●
21
SEAL; RAD
4HG1 ENG<RJH> (C)
8-97289-767-1
01
1
0309-
●
21
SEAL; RAD
4HG1 ENG<RJH> (B)
8-97289-768-1
01
1
0309-
●
21
SEAL; RAD
4HG1 ENG<RJH> (A) THA
8-97942-211-0
01
1
0309-
●
51
PLUG; DRAIN
4JB1 ENG<RLF> THA
8-97940-673-0
01
1
0309-
●
●
51
PLUG; DRAIN
4HG1 ENG<RJH> THA
8-97940-673-0
01
1
0309-
●
62
BOLT; STAY
4JB1 ENG<RLF> (A) M8X12 FLANGE
0-28080-812-0
02
1
0309-
●
●
62
BOLT; STAY
4HG1 ENG<RJH> (A) M8X12 FLANGE
0-28080-812-0
02
1
0309-
●
62
BOLT; STAY
(B) M8X45
8-94401-350-0
01
1
0309-
●
●
●
70
STAY; RAD
4JB1 ENG<RLF> THA
8-97940-659-0
01
1
0309-
●
●
70
STAY; RAD
4HG1 ENG<RJH> THA
8-97940-659-0
01
1
0309-
●
80
BOLT; FAN GUIDE
4HG1 ENG<RJH> M6X12 FLANGE
0-28080-612-0
04
1
0309-
●
131
CLIP; ENG SIDE TOP
4JB1 ENG<RLF> ID=42
5-09704-047-1
01
1
0309-
●
●
131
CLIP; ENG SIDE TOP
4HG1 ENG<RJH> ID=40
8-97245-216-0
01
1
0309-
●
317
BOLT; SEAL
4HG1 ENG<RJH> M6X12 FLANGE
0-28080-612-0
04
1
0309-
●
