◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#1998) — 27 parça

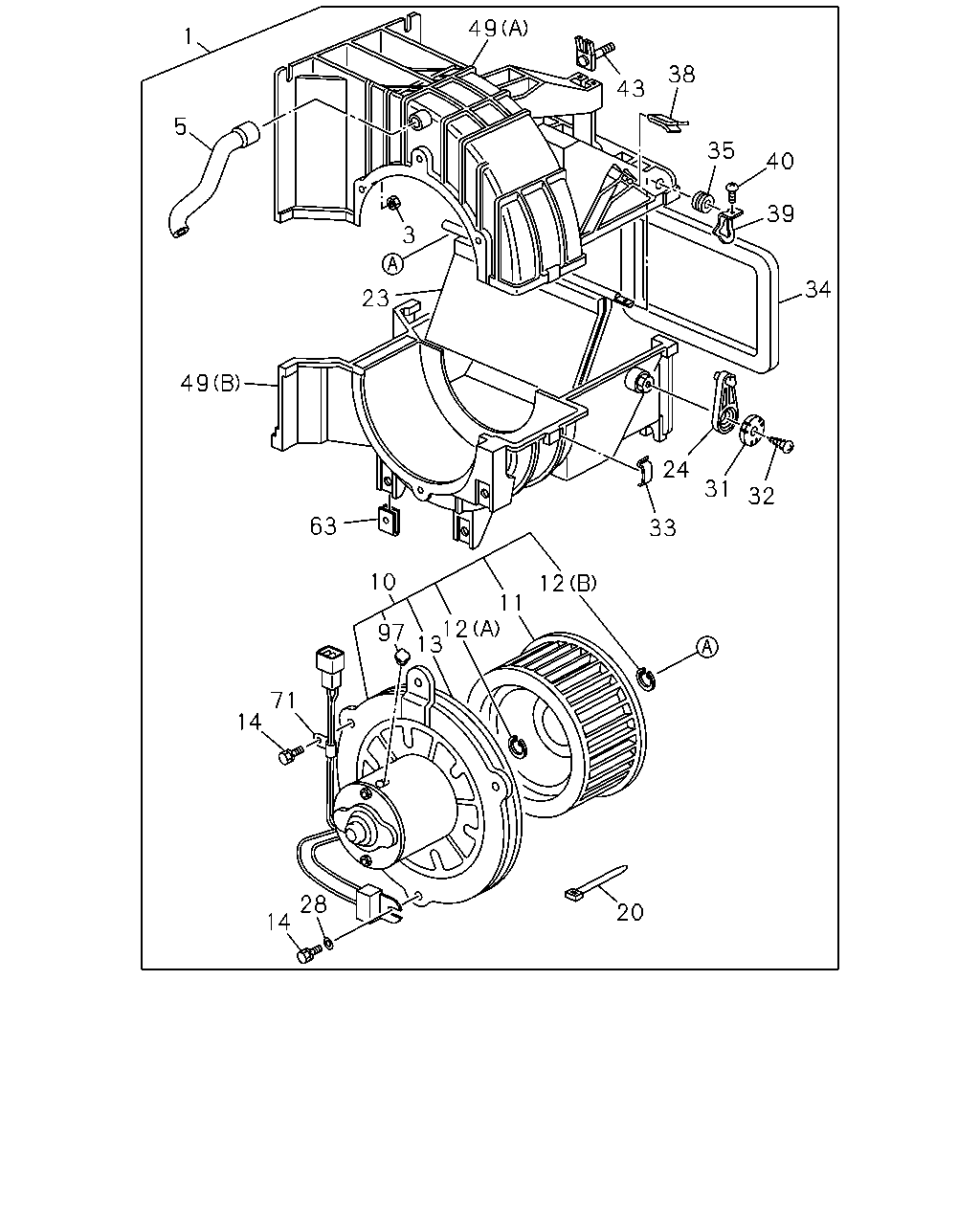

çizim 94105
49 1 38 43 5 35 40 39 3 34 23 49 24 31 32 63 33 10 12 11 12 13 97 71 14 28 14 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BLOWER ASM
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83561-048-3 01 1 9207- ● ● ● ●
3 NUT; CASE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		8-94233-154-0 04 1 9207- ● ● ● ●
5 HOSE; AIR
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83563-109-0 01 1 9207- ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83561-060-1 01 1 9207- ● ● ● ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-082-0 01 1 9207- ● ● ● ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A) 		5-83569-088-0 01 1 9207- ● ● ● ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B) 		8-94243-962-0 01 1 9207- ● ● ● ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		8-94233-165-0 01 1 9207- ● ● ● ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X25 		5-15729-279-0 04 1 9207- ● ● ● ●
20 BAND; CLIP,BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-263-0 01 1 9207- ● ● ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-192-1 01 1 9207- ● ● ● ●
24 LEVER; CASE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83564-189-0 01 1 9207- ● ● ● ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> ID=5.3 OD=12 		9-09160-605-0 01 1 9207- ● ● ● ●
31 WASHER; LEVER
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-095-0 01 1 9207- ● ● ● ●
32 SCREW; LEVER
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X16 		8-94248-820-0 01 1 9207- ● ● ● ●
33 CLIP; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83574-148-0 06 1 9207- ● ● ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-286-0 01 1 9207- ● ● ● ●
35 BUSHING; LEVER
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83576-028-0 01 1 9207- ● ● ● ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83574-149-0 01 1 9207- ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83564-190-0 01 1 9207- ● ● ● ●
40 SCREW; LEVER,BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		5-83571-160-0 01 1 9207- ● ● ● ●
43 BOLT; CASE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-175-0 03 1 9207- ● ● ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A) 		1-83563-107-0 01 1 9207- ● ● ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B) 		1-83563-108-0 01 1 9207- ● ● ● ●
63 NUT; CLIP,CASE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE 		1-09466-001-0 03 1 9207- ● ● ● ●
71 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83574-080-0 01 1 9207- ● ● ● ●
97 PLUG; FAN MOTOR
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-248-0 01 1 9207- ● ● ● ●
