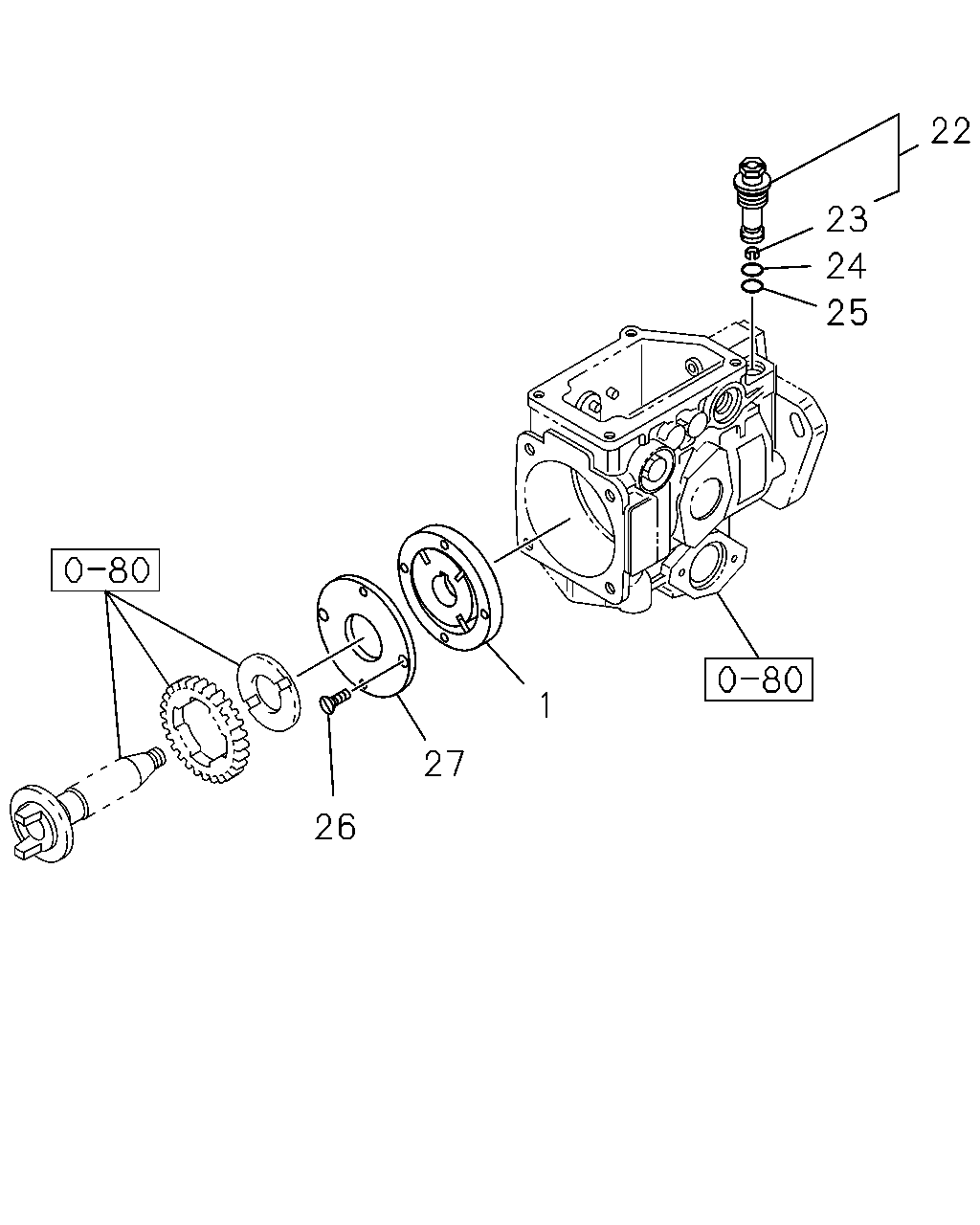

0-84B — FEED PUMP; INJECTION PUMP (#19975) — 8 parça

22 23 24 25 1 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97192-330-8	8-94227-477-0	01	1	-
22	VALVE; REGULATING,INJ PUMP STAMP 06 ASM PART: A = 8-97192-330-8	8-94174-819-0	01	1	-
23	RING; SPRING,REGULATING VLV,INJ PUMP ASM PART: A = 8-97192-330-8	8-94227-643-0	01	1	-
24	GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97192-330-8	8-94227-641-0	01	1	-
25	GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97192-330-8	8-94227-640-0	01	1	-
26	SCREW; COVER FIX,FUEL FEED PUMP ASM PART: A = 8-97192-330-8	8-94227-479-0	02	1	-
27	COVER; FUEL FEED PUMP ASM PART: A = 8-97192-330-8	8-97218-959-0	01	1	-0406
27	COVER; FUEL FEED PUMP ASM PART: A = 8-97192-330-8	8-97385-180-0	01	1	0407-
