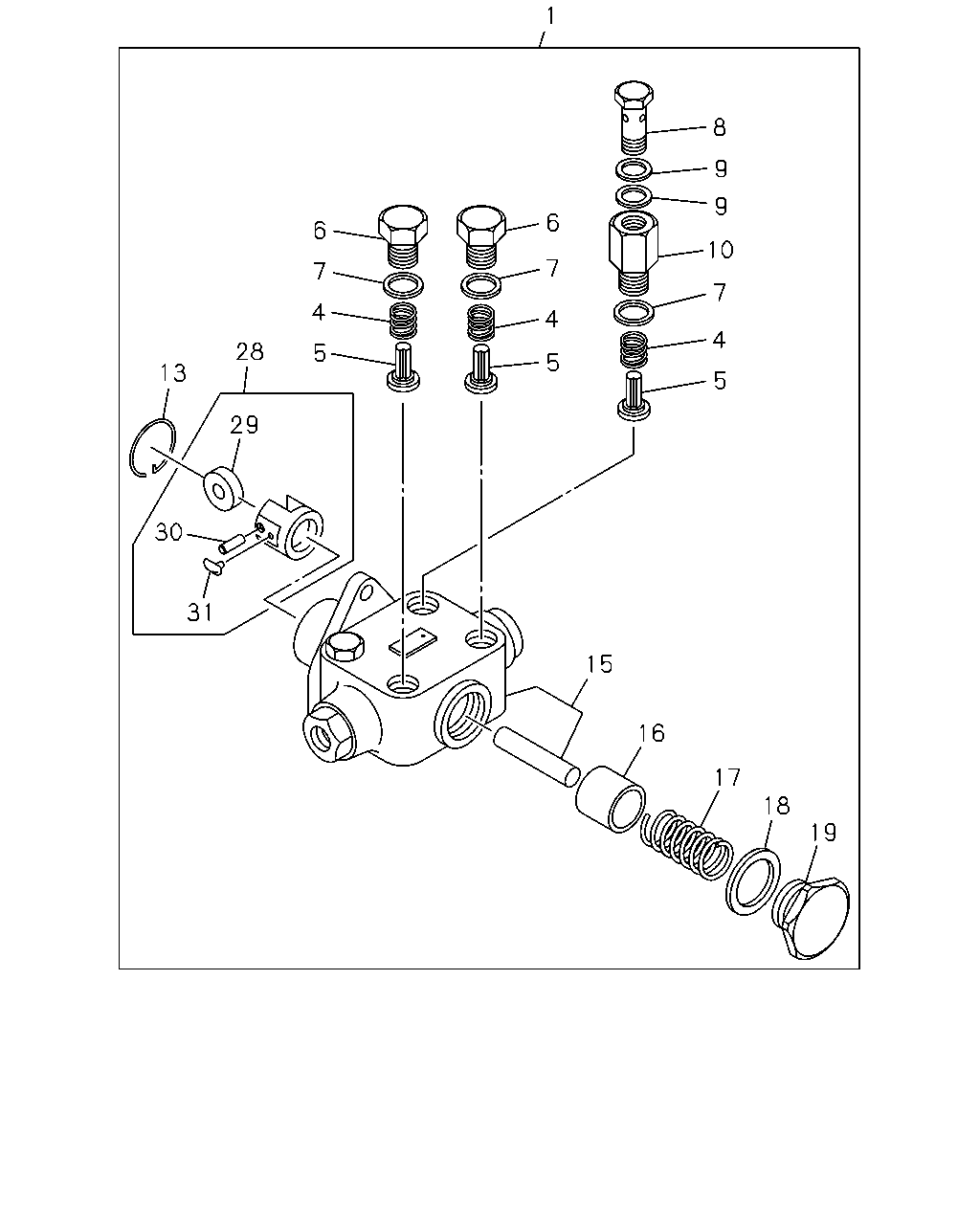

0-84A — FEED PUMP; INJECTION PUMP (#19974) — 18 parça

1 8 9 9 6 6 10 7 7 7 4 4 4 28 5 5 13 5 29 30 31 15 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-533-1	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-97178-485-5	1-15755-002-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	1-15759-066-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	1-19623-016-0	04	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 8-97178-485-5	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 8-97178-485-5	1-09630-085-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	1-15759-067-0	01	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	9-81355-025-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-97178-485-5	1-15751-043-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-97178-485-5	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	8-97214-466-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 8-97178-485-5	1-15754-002-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	1-15759-043-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	9-81351-406-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 8-97178-485-5	9-81351-416-0	02	1	-
