0-81B — GOVERNOR; INJECTION PUMP (#19971) — 110 parça

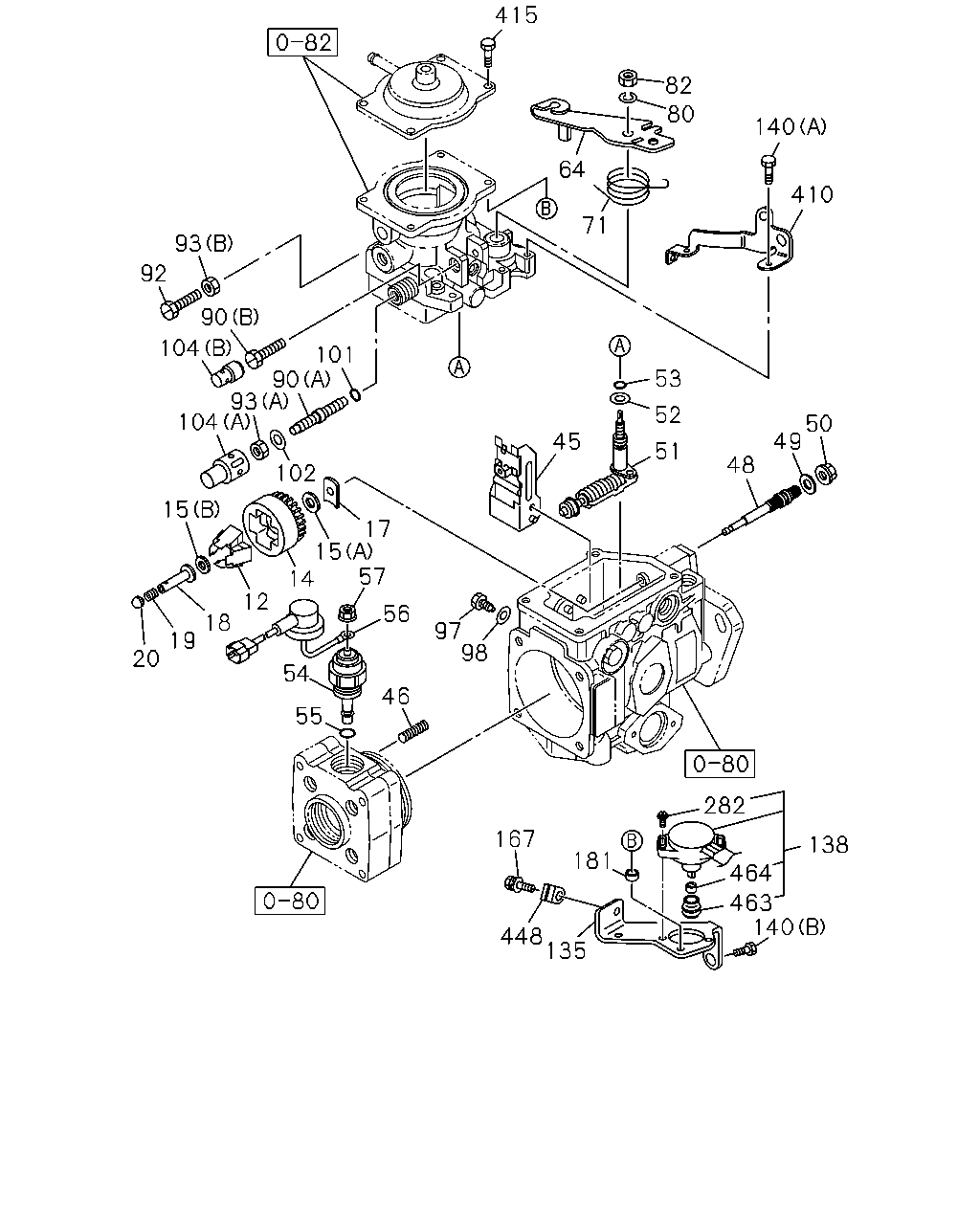

çizim 13249
415 82 80 140 64 410 71 93 92 90 104 101 90 93 104 53 52 50 49 45 51 48 102 15 17 15 14 57 12 56 18 97 98 19 20 54 46 55 282 167 138 181 464 463 140 448 135
BalonParca AdiParca NoAdetTipApplied Date
12 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97192-330-8 		8-94228-403-0 01 1 -
14 HOLDER; GOV FLYWEIGHT,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-94227-613-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(A) ASM PART: A = 8-97192-330-8 		8-94227-612-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: A = 8-97192-330-8 		8-94227-614-0 01 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.05 ASM PART: A = 8-97192-330-8 		8-94227-607-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.25 ASM PART: A = 8-97192-330-8 		8-94227-608-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.45 ASM PART: A = 8-97192-330-8 		8-94227-609-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.65 ASM PART: A = 8-97192-330-8 		8-94227-610-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.85 ASM PART: A = 8-97192-330-8 		8-94227-611-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.15 ASM PART: A = 8-97192-330-8 		8-94231-123-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.35 ASM PART: A = 8-97192-330-8 		8-94231-124-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.55 ASM PART: A = 8-97192-330-8 		8-94231-125-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.75 ASM PART: A = 8-97192-330-8 		8-94231-126-0 AR 1 -
18 SLEEVE; GOV
ASM PART: A = 8-97192-330-8 		8-97214-475-0 01 1 -
19 CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-94408-519-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.20 ASM PART: A = 8-97192-330-8 		8-94372-499-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.30 ASM PART: A = 8-97192-330-8 		8-94372-500-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.40 ASM PART: A = 8-97192-330-8 		8-94372-501-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.50 ASM PART: A = 8-97192-330-8 		8-94372-502-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.10 ASM PART: A = 8-97192-330-8 		8-94408-520-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.30 ASM PART: A = 8-97192-330-8 		8-94408-521-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.50 ASM PART: A = 8-97192-330-8 		8-94408-522-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.70 ASM PART: A = 8-97192-330-8 		8-94408-523-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.90 ASM PART: A = 8-97192-330-8 		8-94408-524-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.10 ASM PART: A = 8-97192-330-8 		8-94408-525-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.30 ASM PART: A = 8-97192-330-8 		8-94408-526-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.50 ASM PART: A = 8-97192-330-8 		8-94408-527-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.70 ASM PART: A = 8-97192-330-8 		8-94408-528-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.90 ASM PART: A = 8-97192-330-8 		8-94408-529-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.10 ASM PART: A = 8-97192-330-8 		8-94408-530-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.30 ASM PART: A = 8-97192-330-8 		8-94408-531-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.50 ASM PART: A = 8-97192-330-8 		8-94408-532-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.70 ASM PART: A = 8-97192-330-8 		8-94408-533-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.90 ASM PART: A = 8-97192-330-8 		8-94408-534-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.10 ASM PART: A = 8-97192-330-8 		8-94408-535-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.20 ASM PART: A = 8-97192-330-8 		8-94428-868-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.40 ASM PART: A = 8-97192-330-8 		8-94428-869-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.60 ASM PART: A = 8-97192-330-8 		8-94428-870-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.80 ASM PART: A = 8-97192-330-8 		8-94428-871-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.00 ASM PART: A = 8-97192-330-8 		8-94428-872-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.20 ASM PART: A = 8-97192-330-8 		8-94428-873-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.40 ASM PART: A = 8-97192-330-8 		8-94428-874-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.60 ASM PART: A = 8-97192-330-8 		8-94428-875-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.80 ASM PART: A = 8-97192-330-8 		8-94428-876-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.00 ASM PART: A = 8-97192-330-8 		8-94428-877-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.20 ASM PART: A = 8-97192-330-8 		8-94428-878-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.40 ASM PART: A = 8-97192-330-8 		8-94428-879-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.60 ASM PART: A = 8-97192-330-8 		8-94428-880-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.80 ASM PART: A = 8-97192-330-8 		8-94428-881-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.00 ASM PART: A = 8-97192-330-8 		8-94428-882-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.60 ASM PART: A = 8-97192-330-8 		8-97163-167-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.70 ASM PART: A = 8-97192-330-8 		8-97163-168-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.80 ASM PART: A = 8-97192-330-8 		8-97163-169-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.90 ASM PART: A = 8-97192-330-8 		8-97163-170-0 01 1 -
45 LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-97224-539-0 01 1 -
46 SPRING; GOV,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-94473-128-0 02 1 -
48 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-94248-002-0 01 1 -
49 GASKET; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-94227-606-0 01 1 -
50 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-94473-129-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97192-330-8 		8-97231-938-0 01 1 -
52 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-97192-330-8 		8-94227-590-0 01 1 -
53 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97192-330-8 		8-94227-585-0 01 1 -
54 VALVE; MAG,ENG STOP,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-94242-275-0 01 1 -
55 GASKET; MAG VLV,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-94239-373-0 01 1 -
56 WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-97192-330-8 		8-94470-582-0 01 1 -
57 NUT; VLV
ASM PART: A = 8-97192-330-8 		8-94473-135-0 01 1 -0406
57 NUT; VLV
ASM PART: A = 8-97192-330-8 		8-97138-042-1 01 1 0407-
64 LEVER; LOAD CONT,GOV
STAMP 042 ASM PART: A = 8-97192-330-8 		8-97086-120-0 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 043 ASM PART: A = 8-97192-330-8 		8-97086-121-0 01 1 -
71 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97192-330-8 		8-97214-511-0 01 1 -
80 WASHER; LK,CONT LEVER,GOV
ID=6.1 ASM PART: A = 8-97192-330-8 		9-09150-506-0 01 1 -
82 NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-97192-330-8 		1-15729-006-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), THA ASM PART: A = 8-97192-330-8 		8-94313-253-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), L=53.0 ASM PART: A = 8-97192-330-8 		8-94316-274-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), L=55.0 ASM PART: A = 8-97192-330-8 		8-94316-275-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), L=57.0 ASM PART: A = 8-97192-330-8 		8-94316-276-0 01 1 -
92 BOLT; FULL LOAD STOPPER,GOV
THA ASM PART: A = 8-97192-330-8 		8-94313-253-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97192-330-8 		8-94316-277-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97192-330-8 		8-94426-047-1 02 1 -
97 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-97192-330-8 		8-94227-601-0 02 1 -
98 GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 8-97192-330-8 		8-94227-602-0 02 1 -
101 GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-97192-330-8 		8-94227-598-0 01 1 -
102 WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-97192-330-8 		8-94227-593-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(A), L=16.5 ASM PART: A = 8-97192-330-8 		8-94316-262-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=18.0 ASM PART: A = 8-97192-330-8 		8-94316-263-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=21.0 ASM PART: A = 8-97192-330-8 		8-94316-264-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=24.0 ASM PART: A = 8-97192-330-8 		8-94316-265-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=27.0 ASM PART: A = 8-97192-330-8 		8-94316-266-0 01 1 -
135 BRACKET; POTENTIO METER
ASM PART: A = 8-97192-330-8 		8-97231-937-0 01 1 -
138 POTENTIO METER
ASM PART: A = 8-97192-330-8 		8-97214-513-0 01 1 -
140 BOLT; BRKT,INJ PUMP
(B) ASM PART: A = 8-97192-330-8 		8-94313-203-0 01 1 -
140 BOLT; BRKT,INJ PUMP
(A), M6X12 ASM PART: A = 8-97192-330-8 		8-94313-267-0 01 1 -
167 BOLT; PLATE
ASM PART: A = 8-97192-330-8 		8-94174-987-0 01 1 -
181 SPACER; BRKT
ASM PART: A = 8-97192-330-8 		8-97214-506-0 02 1 -
282 SCREW; POTENTIO METER
ASM PART: A = 8-97192-330-8 		8-97148-143-0 02 1 -
410 BRACKET; GOV
ASM PART: A = 8-97192-330-8 		8-97231-936-0 01 1 -
448 PLATE; BRKT
ASM PART: A = 8-97192-330-8 		8-97182-233-0 01 1 -
463 BOOT; POTENTIO METER
ASM PART: A = 8-97192-330-8 		8-97148-144-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=15? ASM PART: A = 8-97192-330-8 		8-97168-229-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=30? ASM PART: A = 8-97192-330-8 		8-97168-230-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=45? ASM PART: A = 8-97192-330-8 		8-97168-231-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=60? ASM PART: A = 8-97192-330-8 		8-97168-232-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=75? ASM PART: A = 8-97192-330-8 		8-97168-233-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=90? ASM PART: A = 8-97192-330-8 		8-97214-514-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=105? ASM PART: A = 8-97192-330-8 		8-97214-515-0 01 1 -
464 JOINT; POTENTIO METER
ANGEL=120? ASM PART: A = 8-97192-330-8 		8-97214-516-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=135? ASM PART: A = 8-97192-330-8 		8-97214-517-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=150? ASM PART: A = 8-97192-330-8 		8-97214-518-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=165? ASM PART: A = 8-97192-330-8 		8-97214-519-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=0? ASM PART: A = 8-97192-330-8 		8-97214-520-0 01 1 -
