0-52 — OIL AND VACUUM PIPING; ENGINE (#19961) — 77 parça

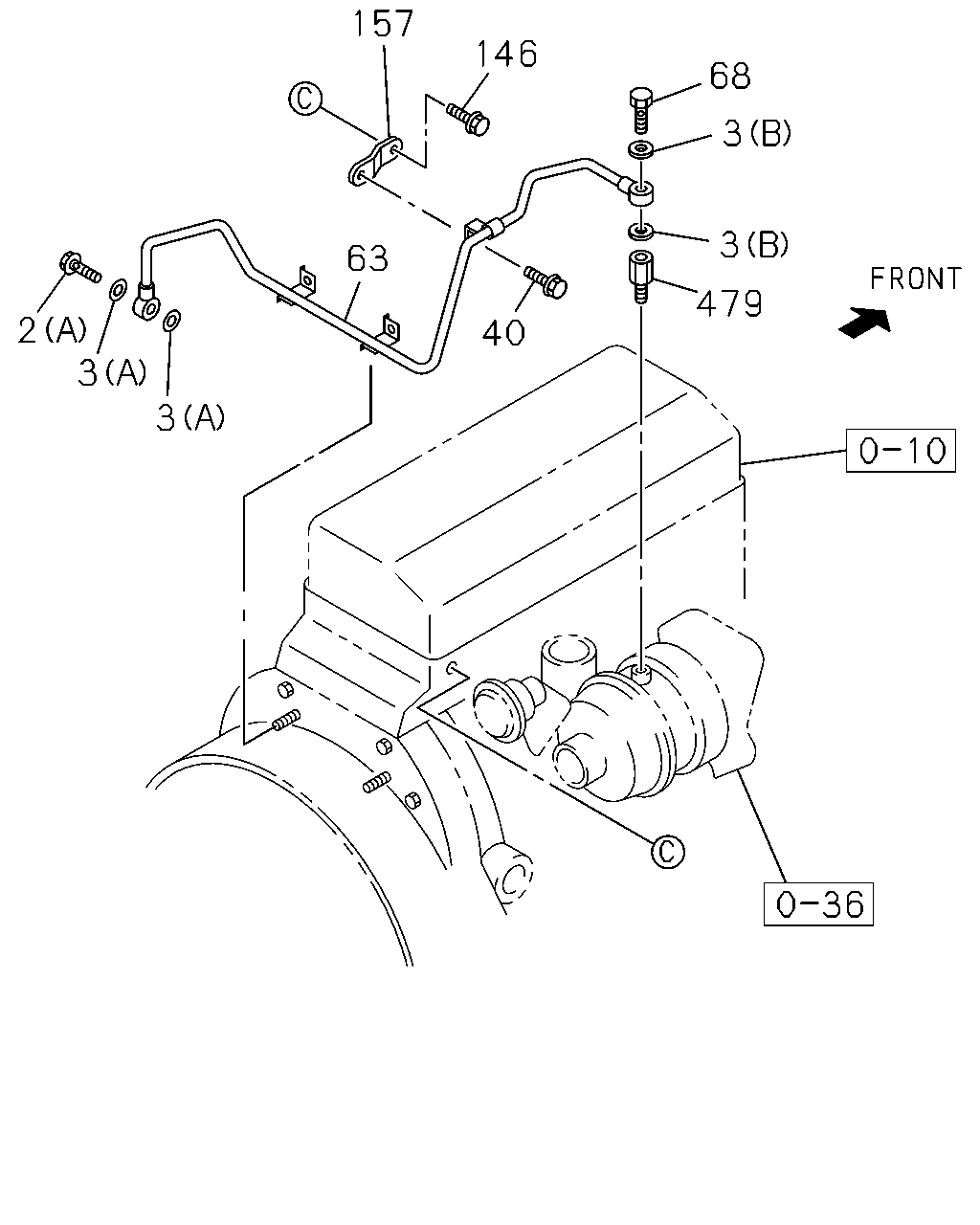

çizim 13236
157 146 68 3 3 63 2 3 40 3 479
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,OIL PIPE
(A) M10X40 FLANGE 		8-97182-847-0 01 1 0309- ●
2 BOLT; EYE,OIL PIPE
(B) M10X24 		9-09906-205-1 01 1 0309- ●
2 BOLT; EYE,OIL PIPE
(C) M10X23 FLANGE 		8-94332-831-1 01 1 0309- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 THA 		1-09630-083-0 05 1 0309- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 02 1 0309- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0309- ●
40 BOLT; OIL PIPE
M8X12 FLANGE 		0-28080-812-0 01 1 0309- ●
40 BOLT; OIL PIPE
M6X10 FLANGE 		0-28080-610-0 01 1 0309- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97349-474-0 01 1 0309-0311 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-0 01 1 0312- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 0309- ●
68 BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M12X28 FLANGE 		8-97166-518-0 01 1 0309- ●
146 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0309- ●
157 BRACKET; OIL PIPE 8-97181-586-0 01 1 0309- ●
479 ADAPTER 8-94436-891-0 01 1 0309- ●
çizim 53781
3 3 2 3 1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 8-97200-615-2 01 1 0309- ●
2 BOLT; EYE,OIL PIPE
(A) M10X40 FLANGE 		8-97182-847-0 01 1 0309- ●
2 BOLT; EYE,OIL PIPE
(B) M10X24 		9-09906-205-1 01 1 0309- ●
2 BOLT; EYE,OIL PIPE
(C) M10X23 FLANGE 		8-94332-831-1 01 1 0309- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 THA 		1-09630-083-0 05 1 0309- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 02 1 0309- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0309- ●

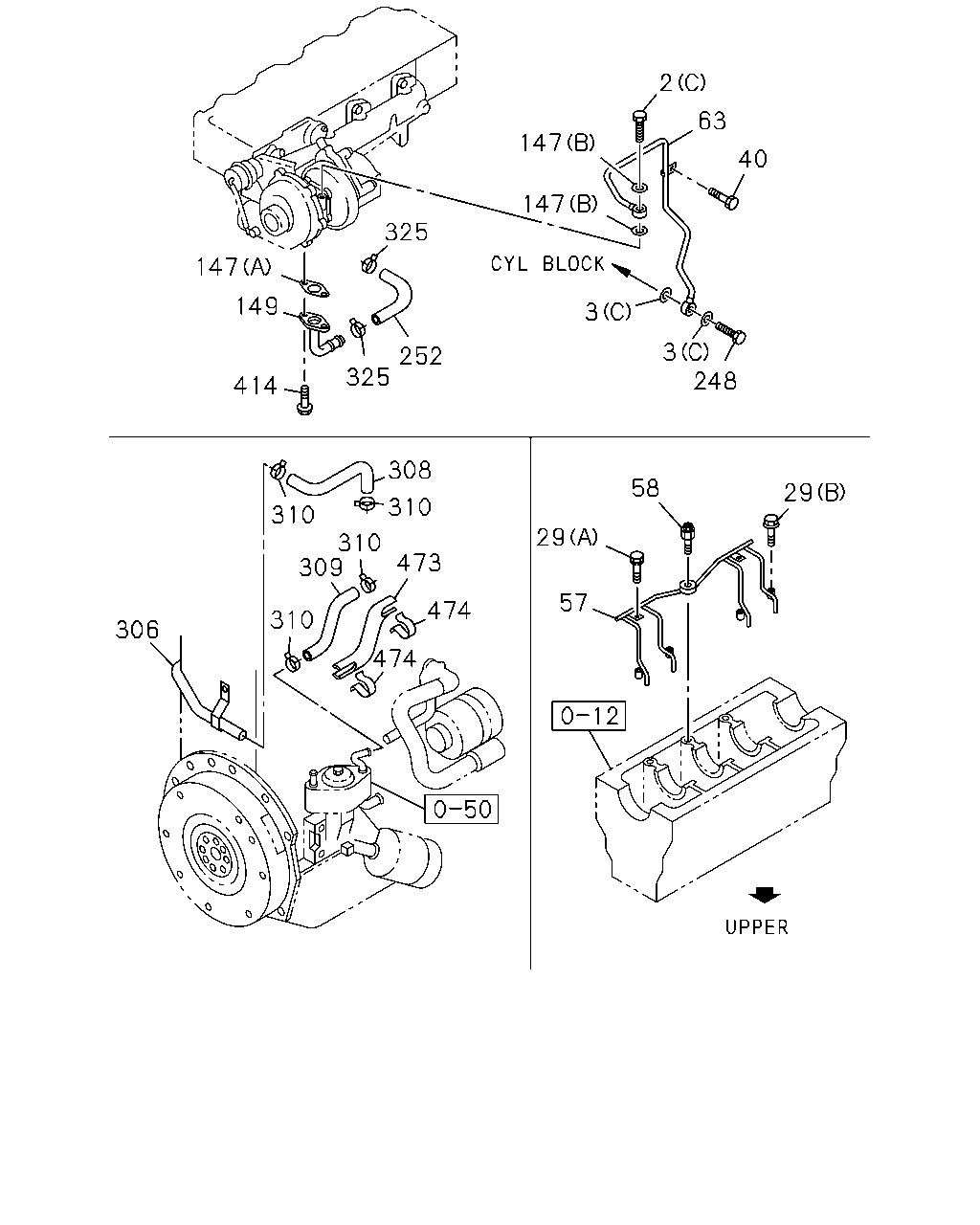

çizim 53915
2 63 147 40 147 325 147 149 3 3 248 252 325 414 308 58 29 310 310 29 310 309 473 57 474 310 306 474
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,OIL PIPE
(A) M10X40 FLANGE 		8-97182-847-0 01 1 0309- ●
2 BOLT; EYE,OIL PIPE
(B) M10X24 		9-09906-205-1 01 1 0309- ●
2 BOLT; EYE,OIL PIPE
(C) M10X23 FLANGE 		8-94332-831-1 01 1 0309- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 THA 		1-09630-083-0 05 1 0309- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 02 1 0309- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0309- ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE 		0-28080-810-0 01 1 0309- ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0309- ●
40 BOLT; OIL PIPE
M8X12 FLANGE 		0-28080-812-0 01 1 0309- ●
40 BOLT; OIL PIPE
M6X10 FLANGE 		0-28080-610-0 01 1 0309- ●
57 PIPE; OIL,OIL JET 8-94469-709-3 01 1 0309- ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING 8-97311-976-0 01 1 0309- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97349-474-0 01 1 0309-0311 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-0 01 1 0312- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 0309- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA 		8-94362-672-0 01 1 0309- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0309- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 0309- ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0309- ●
252 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 0309- ●
306 PIPE ASM; CYL HD TO OIL COOLER 8-97169-754-1 01 1 0309- ●
308 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 0309- ●
309 HOSE; OIL COOLER RETURN 8-97224-318-1 01 1 0309- ●
310 CLIP; WATER HOSE FIX
ID=20.8 		8-94125-862-1 04 1 0309- ●
325 CLIP; RUBBER HOSE,OIL RETURN
ID=20.8 		8-94125-862-1 02 1 0309- ●
414 BOLT; OIL PIPE
M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0309-0310 ●
414 BOLT; OIL PIPE
M6X16 FLANGE 		0-28080-616-0 02 1 0311- ●
473 INSULATOR; HOSE 8-97101-331-0 02 1 0309- ●
474 CLIP; INSULATOR 8-97101-337-0 04 1 0309- ●

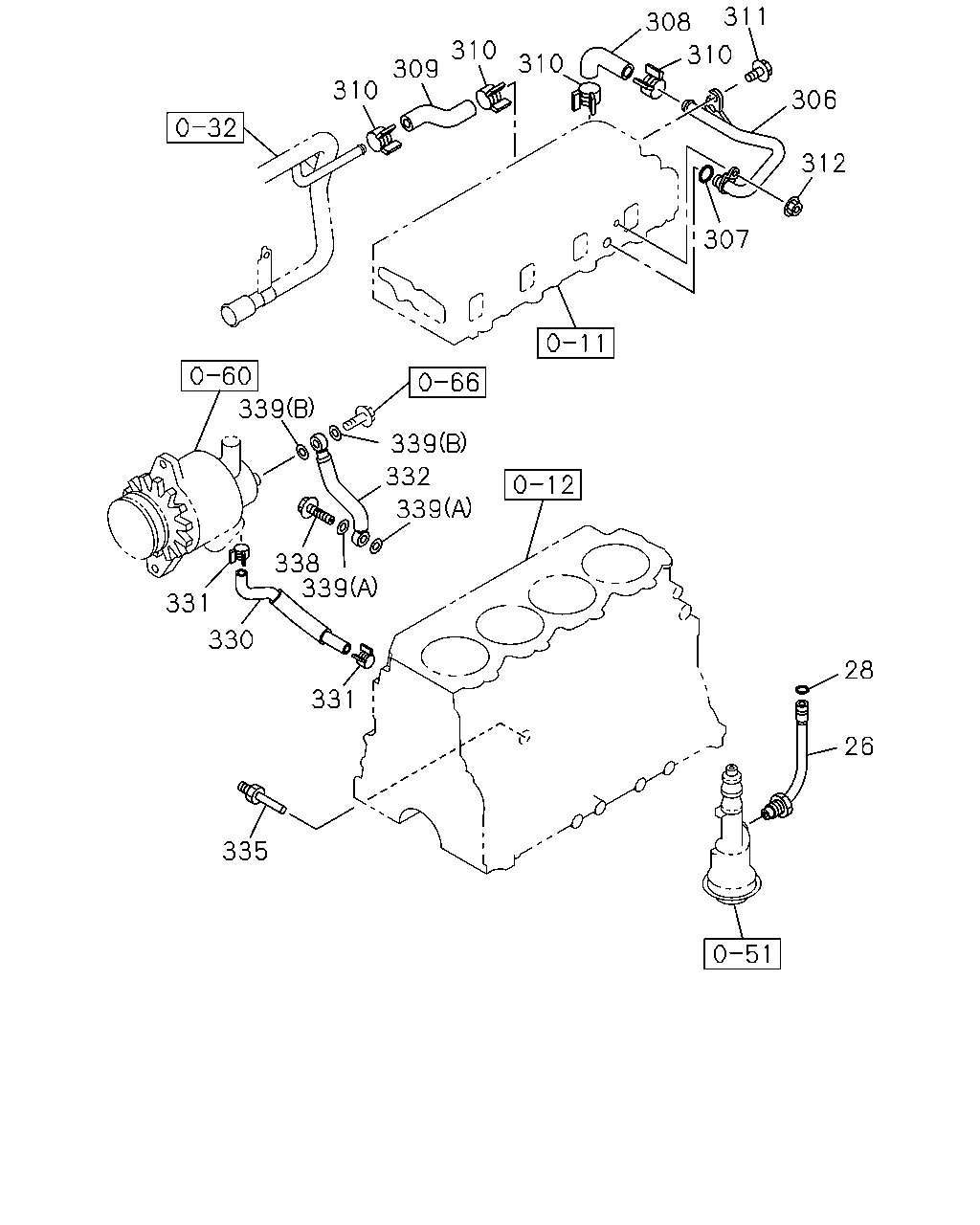

çizim 56107
311 308 310 310 310 309 310 306 312 307 339 339 332 339 338 339 331 330 28 331 26 335
BalonParca AdiParca NoAdetTipApplied Date A B
26 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0309-0309 ●
26 PIPE; OIL,PUMP TO C/BL
THA 		8-97920-470-0 01 1 0309- ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA 		5-09623-002-0 02 1 0309- ●
306 PIPE ASM; CYL HD TO OIL COOLER 8-97169-754-1 01 1 0309- ●
307 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0309- ●
308 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 0309- ●
309 HOSE; OIL COOLER RETURN 8-97224-318-1 01 1 0309- ●
310 CLIP; WATER HOSE FIX
ID=20.8 		8-94125-862-1 04 1 0309- ●
311 BOLT; PIPE FIX
M8X14 FLANGE 		0-28080-814-0 01 1 0309- ●
312 NUT; PIPE FIX
M8 FLANGE THA 		5-09440-005-0 01 1 0309- ●
330 HOSE; VAC PUMP,RETURN 8-97207-067-0 01 1 0309- ●
331 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0309- ●
332 PIPE; OIL,C/BL TO VAC PUMP 8-94310-221-1 01 1 0309- ●
335 STOPPER; OIL PIPE 8-97203-568-0 01 1 0309- ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE BOLT THA 		5-09675-018-1 01 1 0309- ●
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0309- ●
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0309- ●
çizim 56216
89 202 86 202 89 65 202 340 83 202 65 27
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; OIL PIPE FIX
M8X12,M10X20 L=42 		8-97118-911-0 01 1 0309- ●
65 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE THA 		1-09675-078-0 01 1 0309- ●
65 BOLT; JOINT,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 0309- ●
83 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-97916-358-0 01 1 0309- ●
86 PIPE; OIL,VAC PUMP RETURN
THA 		8-94455-311-1 01 1 0309- ●
89 CLIP; VAC HOSE
ID=17.1 		8-94122-679-0 01 1 0309- ●
202 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 THA 		1-09630-083-0 02 1 0309- ●
202 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0309- ●
340 HOSE; VAC PUMP,RETURN
THA 		8-97916-768-0 01 1 0309- ●
